3/8 NPT

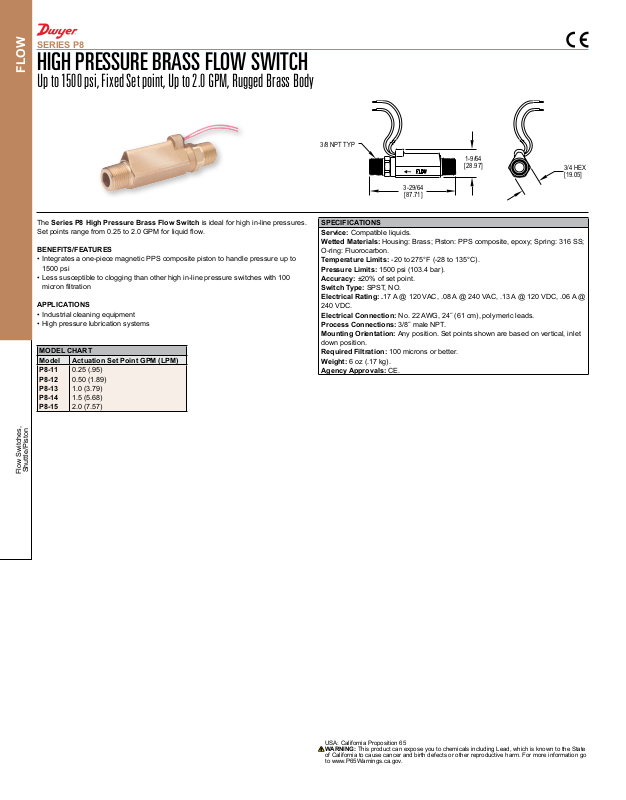

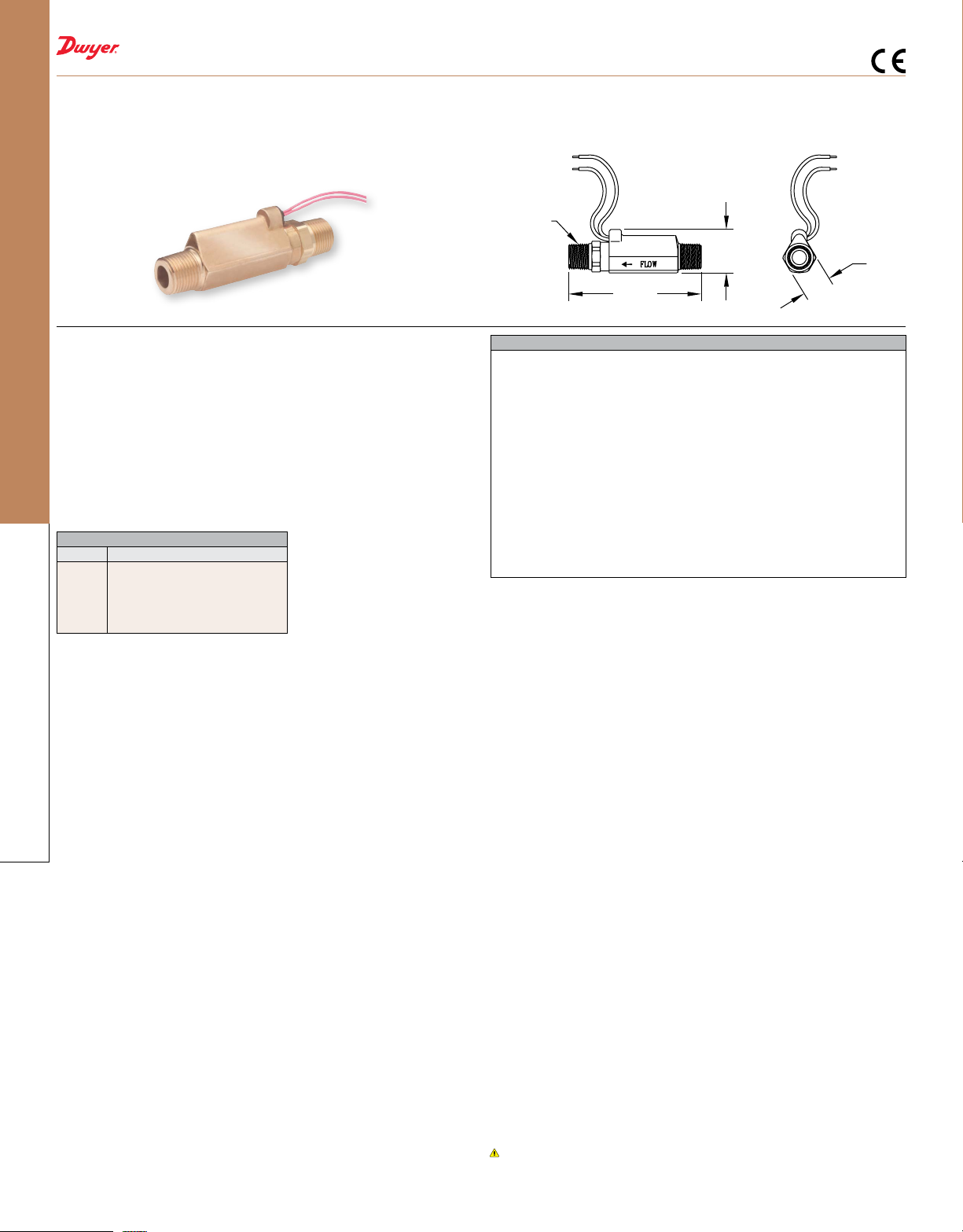

SERIES P8
HIGH PRESSURE BRASS FLOW SWITCH
FLOW
Up to 1500 psi, Fixed Set point, Up to 2.0 GPM, Rugged Brass Body
TYP
3-29/64
[87.71]
1-9/64
[28.97]
3/4 HEX
[19.05]
The Series P8 High Pressure Brass Flow Switch is ideal for high in-line pressures.
Set points range from 0.25 to 2.0 GPM for liquid ow.
BENEFITS/FEATURES
• Integrates a one-piece magnetic PPS composite piston to handle pressure up to
1500 psi
• Less susceptible to clogging than other high in-line pressure switches with 100
micron ltration
APPLICATIONS
• Industrial cleaning equipment
• High pressure lubrication systems
MODEL CHART
Model Actuation Set Point GPM (LPM)
P8-11
P8-12
P8-13
P8-14
P8-15
Shuttle/Piston
Flow Switches,
0.25 (.95)
0.50 (1.89)
1.0 (3.79)
1.5 (5.68)
2.0 (7.57)
SPECIFICATIONS
Service: Compatible liquids.
Wetted Materials: Housing: Brass; Piston: PPS composite, epoxy; Spring: 316 SS;
O-ring: Fluorocarbon.
Temperature Limits: -20 to 275°F (-28 to 135°C).
Pressure Limits: 1500 psi (103.4 bar).
Accuracy: ±20% of set point.
Switch Type: SPST, NO.
Electrical Rating: .17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @
240 VDC.
Electrical Connection: No. 22 AWG, 24˝ (61 cm), polymeric leads.
Process Connections: 3/8˝ male NPT.
Mounting Orientation: Any position. Set points shown are based on vertical, inlet
down position.
Required Filtration: 100 microns or better.
Weight: 6 oz (.17 kg).
Agency Approvals: CE.
USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
