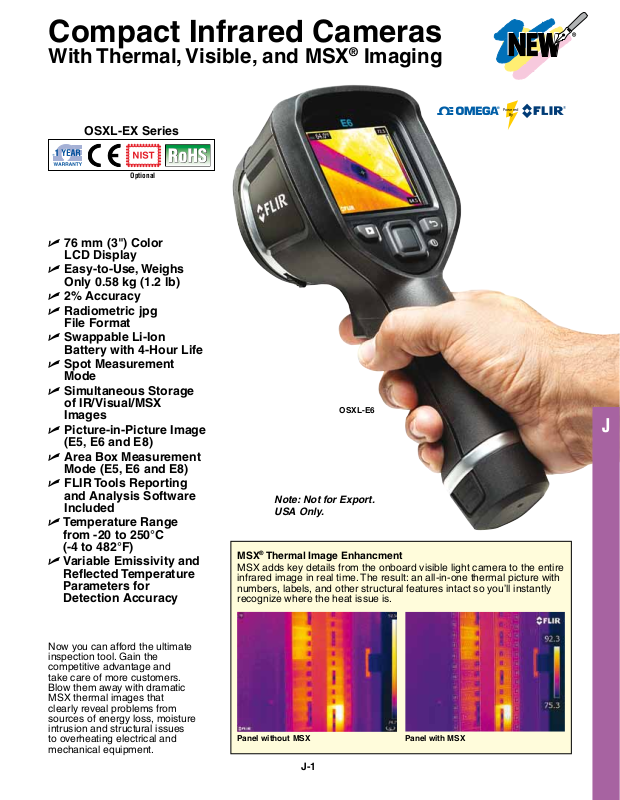

Compact Infrared Cameras
With Thermal, Visible, and MSX® Imaging
OSXL-EX Series
Optional
U 76 mm (3") Color
LCD Display
U Easy-to-Use, Weighs
Only 0.58 kg (1.2 lb)
U 2% Accuracy
U Radiometric jpg
File Format
U Swappable Li-Ion
Battery with 4-Hour Life
U Spot Measurement
Mode
U Simultaneous Storage
of IR/Visual/MSX
Images
U Picture-in-Picture Image
(E5, E6 and E8)
U Area Box Measurement
Mode (E5, E6 and E8)
U FLIR Tools Reporting
and Analysis Software
Included
U Temperature Range
from -20 to 250°C
(-4 to 482°F)
U Variable Emissivity and
Reflected Temperature
Parameters for
Detection Accuracy
Note: Not for Export.
USA Only.
MSX® Thermal Image Enhancment
MSX adds key details from the onboard visible light camera to the entire
infrared image in real time. The result: an all-in-one thermal picture with
numbers, labels, and other structural features intact so you’ll instantly
recognize where the heat issue is.
OSXL-E6
®
Powered
By
J
Now you can afford the ultimate
inspection tool. Gain the
competitive advantage and
take care of more customers.
Blow them away with dramatic
MSX thermal images that
clearly reveal problems from
sources of energy loss, moisture
intrusion and structural issues
to overheating electrical and
mechanical equipment.
Panel without MSX Panel with MSX
J-1
Page 2
The Power of
One Button
A focus-free lens
and simple button
navigation to onscreen settings,
imaging modes,
measurement tools,
and saved JPEGS
make all four of these
cameras amazingly
easy to operate, even
with just the press of a
single gloved thumb.
Affordable Resolution Choices
From the 4800-pixel thermal image clarity
of the E4 to the E8’s incredible 320×240
detector with 76,800 pixels, new FLIR
OSXL-EX Series cameras offer a
resolution to fit the target size, working
distance, and detail required for your
application as well as your budget.
Removable Battery
Quick-release, tool-type Li-ion battery is easy to
remove, recharge and snap back in. Charge in-camera
or with the optional charging station to keep you up
and running all day.
Recharging
the battery.
Removable
battery.
Compare camera
resolutions
SM
Extended Warranty
Program
OMEGACARESM extended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARESM
covers parts, labor and equivalent loaners.
OSXL-E4
OSXL-E6
Fast Temperature Measurement Tools
The E4 on up feature an on-screen center spotmeter
for measuring temperatures. The E5, E6, and E8
also give you an area box tool with an automatic hot
or cold spot that hunts down temperature extremes.
And the E6 and E8 provide a blue-below and redabove color alarm to quickly alert you to heat issues.
OSXL-E5
OSXL-E8
Multiple Imaging Modes
All OSXL-EX Series cameras let you view thermal,
visual, and MSX images and store them simultaneously
for further analysis using FLIR Tools software. The
E6 and E8 also offer Picture-in-Picture that inserts
the thermal image over the visible photo as an extra
documentation option.
Thermal Only Thermal with MSX Picture-in-Picture
J-2
Page 3
OSXL-E4 OSXL-E5 OSXL-E6 OSXL-E8
All models
shown
smaller than
Specifications
Model No. OSXL-E4 OSXL-E5 OSXL-E6 OSXL-E8
Imaging and Optical Data
IR Resolution
MSX Resolution
Thermal Sensitivity
Field of View
Focus
Detector
Screen
Frame Rate
Analysis
Image Modes
Multi-Spectral Dynamic
Imaging (MSX)
Picture-in-Picture
Temperature Range
Accuracy
Measurement Modes
Alarm
Emissivity Correction
Set-Up
Color Palettes
Set-up Commands
Image Storage
Storage Capacity
Storage Mode
File Formats
Other
Battery Type/Operation Time
Dimensions/Weight
Drop
80 x 60 120 x 90 160 x 120 320 x 240
320 x 240
<0.15°C <0.10°C <0.06°C
45° x 34°
Focus-free
Uncooled microbolometer
76 mm (3.0"), 320 x 240 color LCD
9 Hz
IR image, visual image, MSX,
thumbnail gallery
IR image with enhanced detail presentation
–
-20 to 250°C (-4 to 482°F)
Spot (center)
mode
2 modes: 1 spot
(center); 1 area
box (min/max)
– –
Variable from 0.1 to 1.0
Iron, rainbow, and gray
Local adaptation of units, language, date and time formats
Internal memory store at least 500 sets of images
Simultaneous storage of images in IR, visual and MSX
Standard JPEG, 14-bit measurement data included
Swappable Li-ion battery/4 hours
244 x 95 x 140 mm (9.6 x 3.74 x 5.5")/0.58 kg (1.27 lb)
±2% or 2°C
2 m (6.6')
IR image, visual image, MSX,
picture-in-picture, thumbnail gallery
IR area on visual image
3 modes: 1 spot (center); 1 area box
(min/max); isotherm (above/below)
Blue below or red above set temperature
actual size.
J
J-3
Page 4
OSXL-E5 OSXL-E8
Why Thermal Imaging?
While spot infrared thermometers
present only a single temperature
at a single spot, these Thermal
Imaging Cameras give you the
whole picture, equal up to 76,800
spots! (OSXL-EX)
Thermal imaging is the most
effective method for finding
problems or potential problems
in a variety of applications across
many fields. If you are new to
thermography and need a general
purpose thermal imaging camera
for troubleshooting, the OSXL-EX
Series is perfect for you! They are
fully loaded with thermal imaging
functions at a fraction of the price
of a professional grade camera.
What the human eye sees What an infrared thermometer sees What a thermal imaging camera sees
To Order
Model No. Description
OSXL-E4
OSXL-E4-NIST
OSXL-E5
OSXL-E5-NIST
OSXL-E6
OSXL-E6-NIST
OSXL-E8
OSXL-E8-NIST
Accessories
Model No. Description
T198529
T198530
T198531
T198532
T198534
T198533
T198528
Comes complete with FLIR thermal imaging camera, hard transport case, FLIR ToolsTM download card, battery (OSXL-E8 2X), battery charger
(OSXL-E8 only), power supply/charger with EU, UK, US and Australian plugs, USB cable, printed and CD-ROM operator’s manual.
FLIR E4 compact thermal imaging infrared camera with MSX enhancement (80 x 60)
FLIR E4 with certificate traceable to NIST
FLIR E5 compact thermal imaging infrared camera with MSX enhancement (120 x 90)
FLIR E5 with certificate traceable to NIST
FLIR E6 compact thermal imaging infrared camera with MSX enhancement (160 x 120)
FLIR E6 with certificate traceable to NIST
FLIR E8 compact thermal imaging infrared camera with MSX enhancement (320 x 240)
FLIR E8 with certificate traceable to NIST
Pouch case
Replacement battery
External battery charger
Car charger
Power supply/charger with EU, UK, US and AU plugs
USB cable
Hard transport case
J-4
