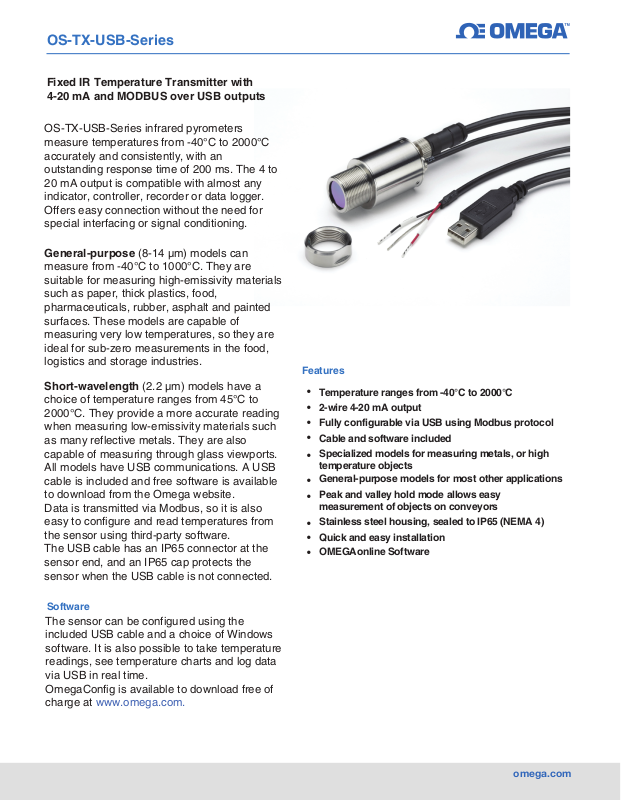

OS-TX-USB-Series
Fixed IR Temperature Transmitter with
4-20 mA and MODBUS over USB outputs

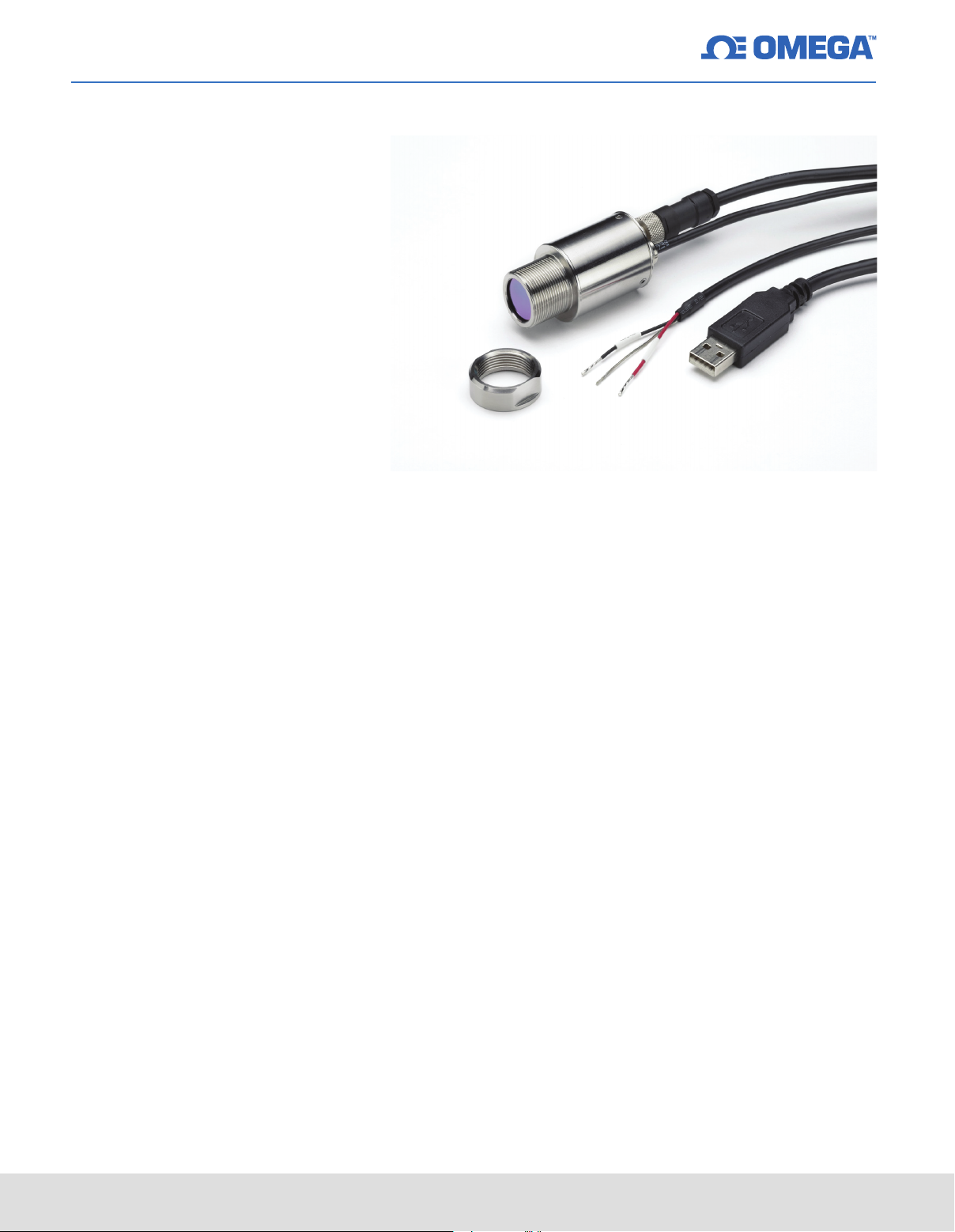

OS-TX-USB-Series infrared pyrometers
measure temperatures from -40°C to 2000°C
accurately and consistently, with an
outstanding response time of 200 ms. The 4 to
20 mA output is compatible with almost any
indicator, controller, recorder or data logger.
Offers easy connection without the need for
special interfacing or signal conditioning.
General-purpose (8-14 µm) models can
measure from -40°C to 1000°C. They are
suitable for measuring high-emissivity materials
such as paper, thick plastics, food,
pharmaceuticals, rubber, asphalt and painted
surfaces. These models are capable of
measuring very low temperatures, so they are
ideal for sub-zero measurements in the food,
logistics and storage industries.
Short-wavelength (2.2 µm) models have a
choice of temperature ranges from 45°C to
2000°C. They provide a more accurate reading
when measuring low-emissivity materials such
as many reflective metals. They are also
capable of measuring through glass viewports.
All models have USB communications. A USB
cable is included and free software is available
to download from the Omega website.
Data is transmitted via Modbus, so it is also
easy to configure and read temperatures from
the sensor using third-party software.
The USB cable has an IP65 connector at the
sensor end, and an IP65 cap protects the
sensor when the USB cable is not connected.
Features
•
Temperature ranges from -40°C to 2000°C
•
2-wire 4-20 mA output
•
Fully configurable via USB using Modbus protocol
•
Cable and software included
Specialized models for measuring metals, or high
•
temperature objects
General-purpose models for most other applications
•
Peak and valley hold mode allows easy
•
measurement of objects on conveyors
Stainless steel housing, sealed to IP65 (NEMA 4)
•
Quick and easy installation
•
OMEGAonline Software
•
Software
The sensor can be configured using the
included USB cable and a choice of Windows
software. It is also possible to take temperature
readings, see temperature charts and log data
via USB in real time.
OmegaConfig is available to download free of
charge at www.omega.com.
omega.com
Page 2

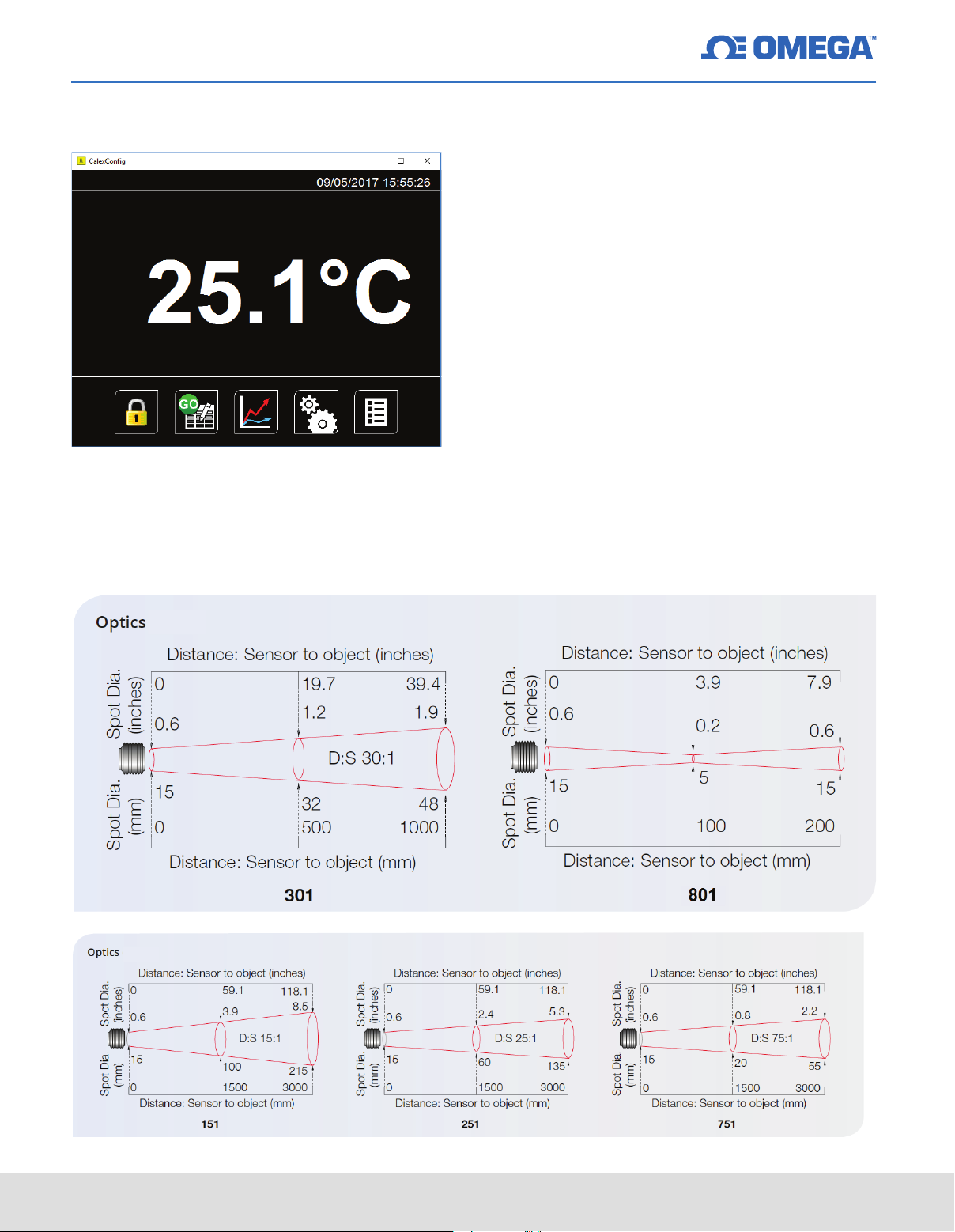

OmegaConfig
Simple, touch-friendly software for one sensor.
Features (OmegaConfig)
Temperature display (°C or °F)
•
•
Scrolling temperature chart
•
Data logging to comma-separated text file,
Excel-compatible
•
OS-TX-USB-Series sensor configuration:
Emissivity setting
Averaging
Peak/valley hold processing
Reflected energy compensation
4-20 mA output temperature scale
Third-Party Software
The OS-TX-USB-Series can also be used with
third-party Modbus software.
Modbus protocol information is provided in the
Operator's Guide, available to download at
www.omega.com and supplied with each
sensor.
2
omega.com
Page 3

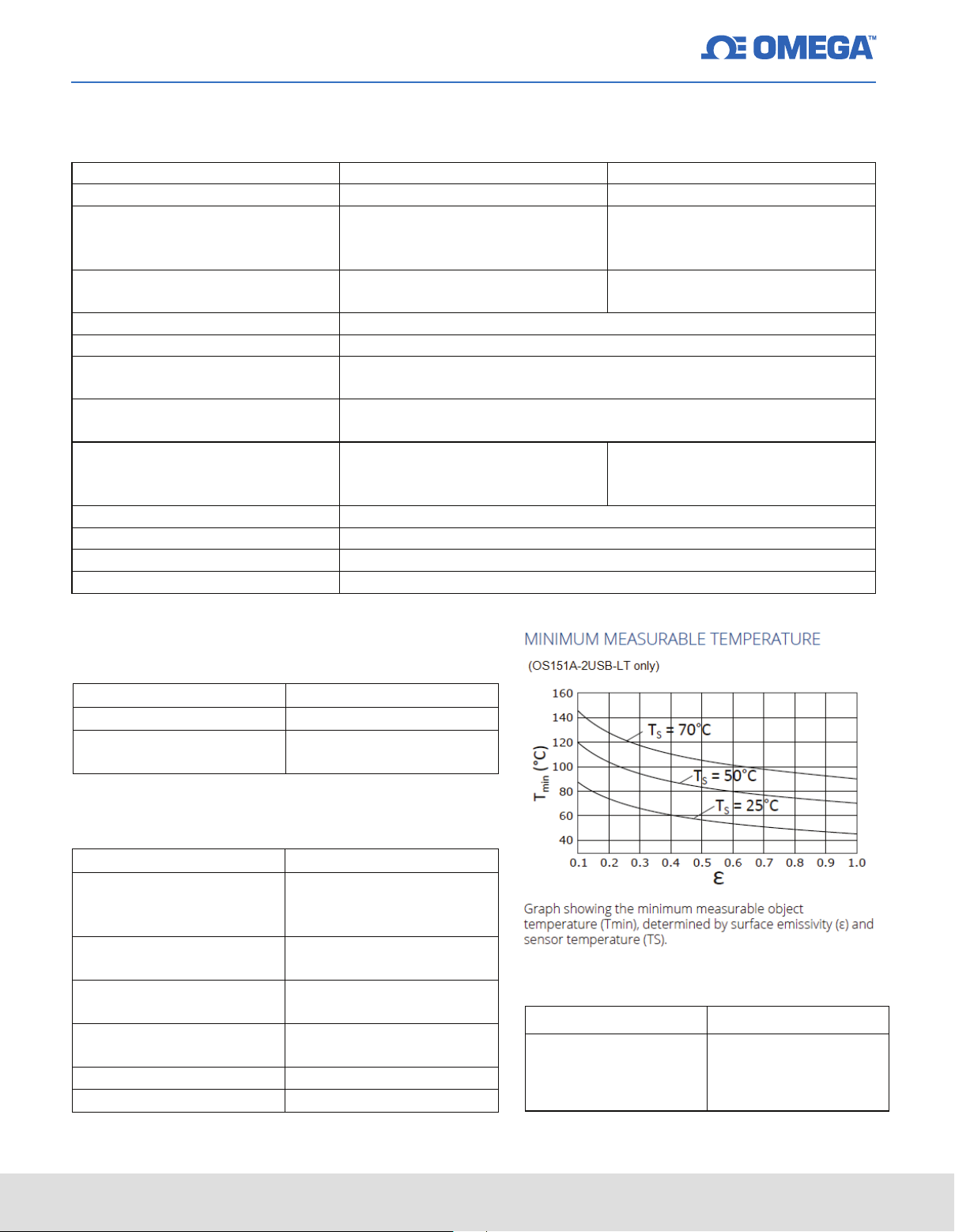

General Specifications
Model
* -2USB
* -USB
Spectral Response
2.2 µm
5 µm
C
-
Response Time
200 ms
Output
2-wire, 4-20 mA, linear with measured temperature
Communications
Modbus protocol
Emissivity
0.1 to 1.0
Maximum Span (4-20mA output)
Full temperature range
Length
(optional)
models are available for
Application
Temperature Range
Optics
Accuracy
Repeatability
Minimum Span (4-20 mA output)
Electrical
Ferrous metals and
high-temperature targets
Choice of ranges from 45 °C to
2000 °
USB 2.0 (removable USB cable and software included) using the
Choice of optics for small or large targets at short or long
± 2°C or 1% of reading, whichever
is greater
± 0.5°C or 0.5% of reading, whichever is greater
distances (see Optics)
± 1°C or 1% of reading, whichever
100°C
General Purpose
40 °C to 1000 °C
is greater
Supply Voltage
Sensor Voltage (minimum) 6 V DC
Maximum Loop
Impedance
Mechanical
Construction
Dimensions
Thread mounting
4-20 mA Output Cable
Weight with 1 m Output
Cable
USB Cable Length
Relative Humidity
24 V DC (28 V DC max)
900 Ω @ 24 V DC
Stainless Steel
Ø 27.6 x length 61 mm
including cable glands
M20 x 1 mm pitch, length
15 mm
1 m (standard), up to 30 m
155 g
1.8 m
95% max. non- condensing
Environmental
Environmental Rating IP65
Ambient (Operating)
Temperature
0°C to 70°C (cooled
higher temperatures)
2
omega.com
Page 4

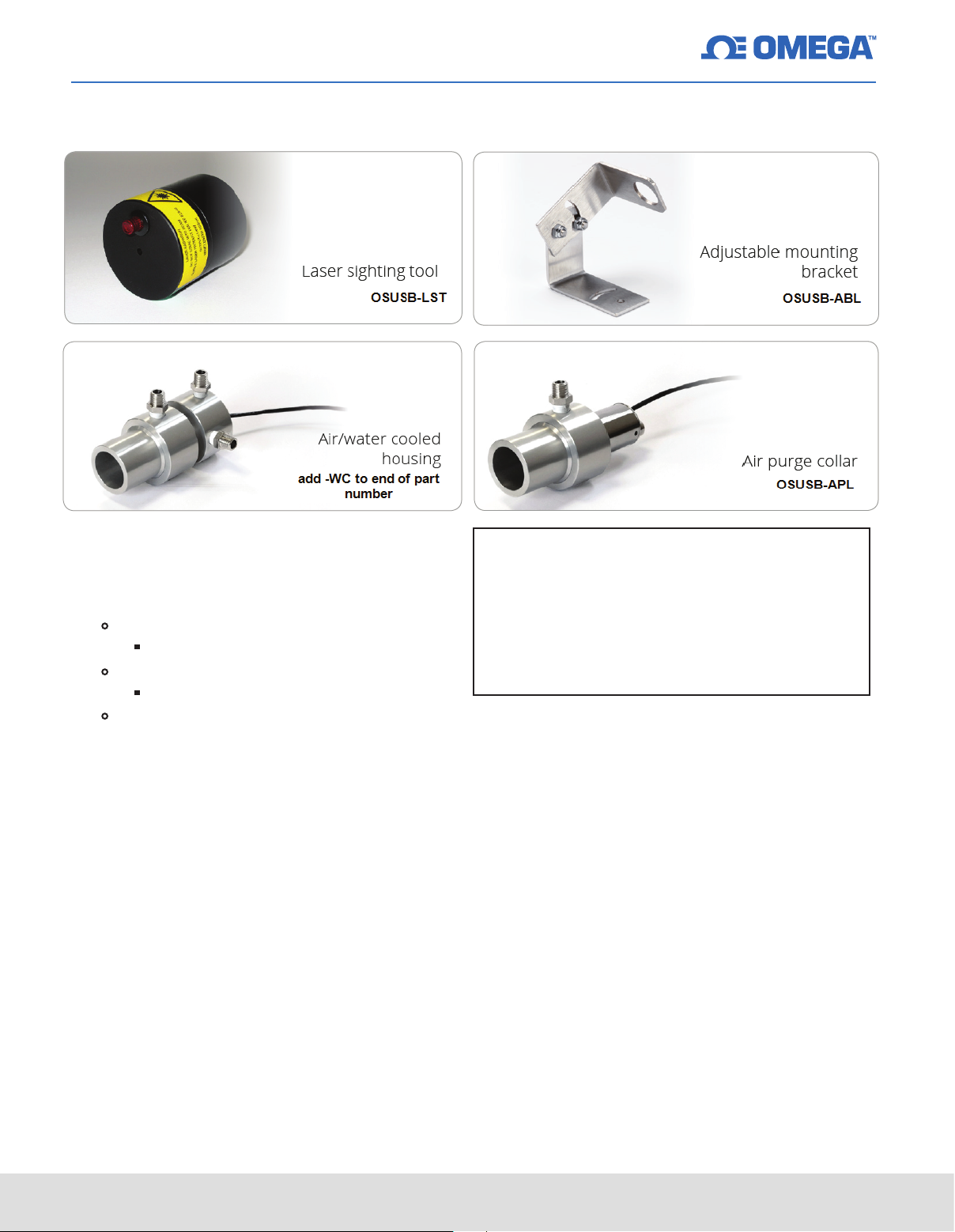

Additional Options:
Fixed mounting bracket (OSUSB – FBL)
•
•
Extended 4-20 mA output cable
Models without cooling add -CE*
* = cable length in meters
Models with cooling (-WC) add
* = cable length in meters
Maximum length is 30 m
Ordering Example:
OS801A-USB-WC-CEHT5
Close Focus (5mm spot at 100 mm)
Infrared temperature sensor with water cooled jacket
and 5m (16 ft) cable.
2
omega.com
Page 5

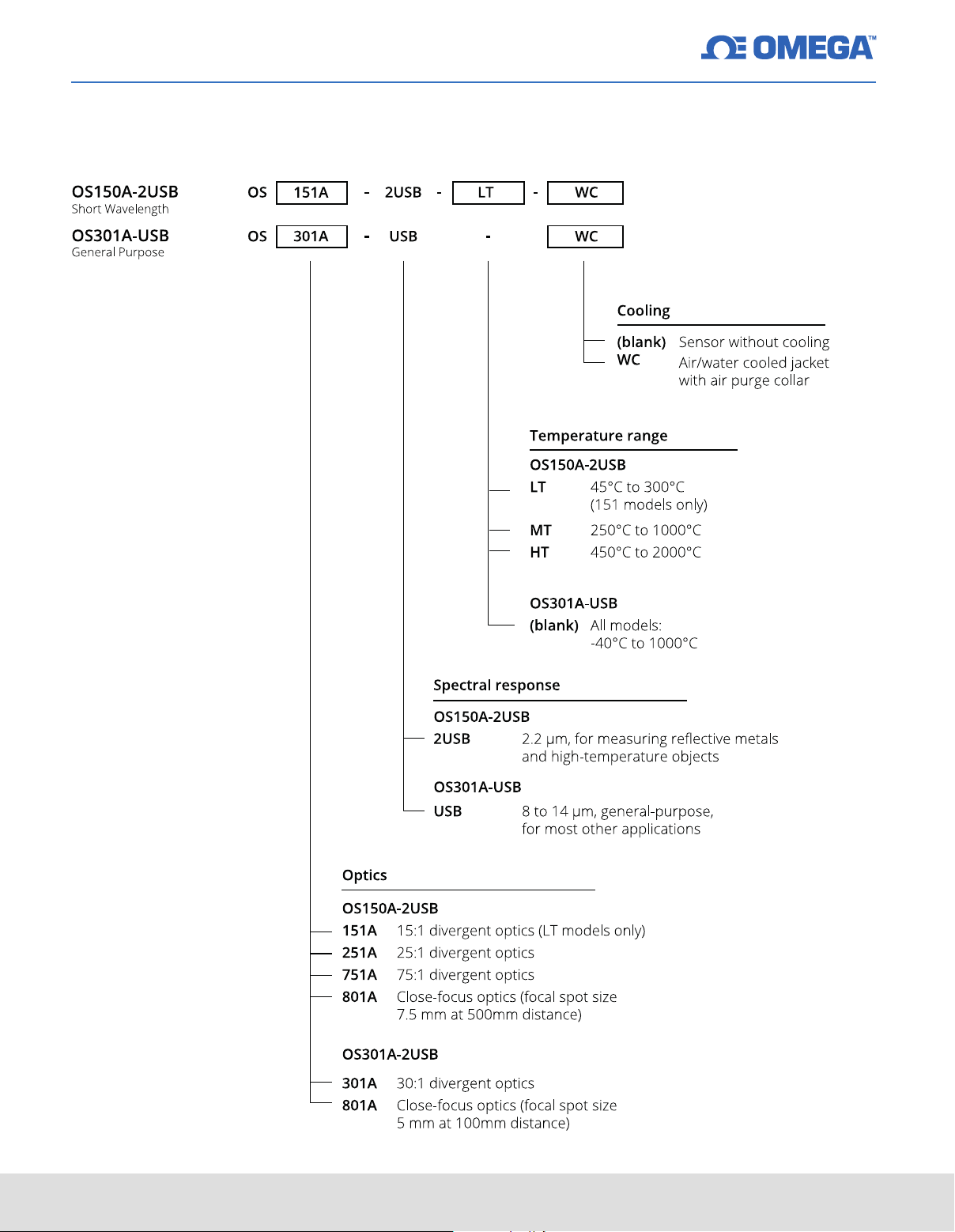

Model Numbers
Series
Series
Series
Series
Series
Series
Series
Series
