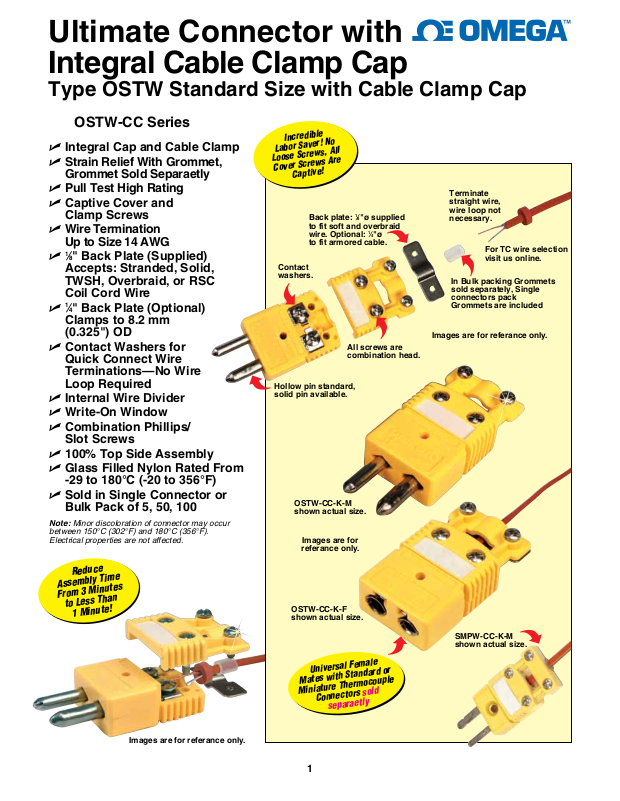

Page 1
Ultimate Connector with
Integral Cable Clamp Cap
Type OSTW Standard Size with Cable Clamp Cap
OSTW-CC Series
U Integral Cap and Cable Clamp
U Strain Relief With Grommet,
Grommet Sold Separaetly
U Pull Test High Rating
U Captive Cover and
Clamp Screws
U Wire Termination
Up to Size 14 AWG
U 1⁄8" Back Plate (Supplied)
Accepts: Stranded, Solid,
TWSH, Overbraid, or RSC
Coil Cord Wire
U 1⁄4" Back Plate (Optional)
Clamps to 8.2 mm
(0.325") OD
U Contact Washers for
Quick Connect Wire
Terminations—No Wire
Loop Required
U Internal Wire Divider
U Write-On Window
U Combination Phillips/
Slot Screws
U 100% Top Side Assembly
U Glass Filled Nylon Rated From
-29 to 180°C (-20 to 356°F)
U Sold in Single Connector or
Bulk Pack of 5, 50, 100
Note: Minor discoloration of connector may occur
between 150°C (302°F) and 180°C (356°F).
Electrical properties are not affected.
Incredible
Labor Saver! No
Loose Screws, All
Cover Screws Are
Captive!

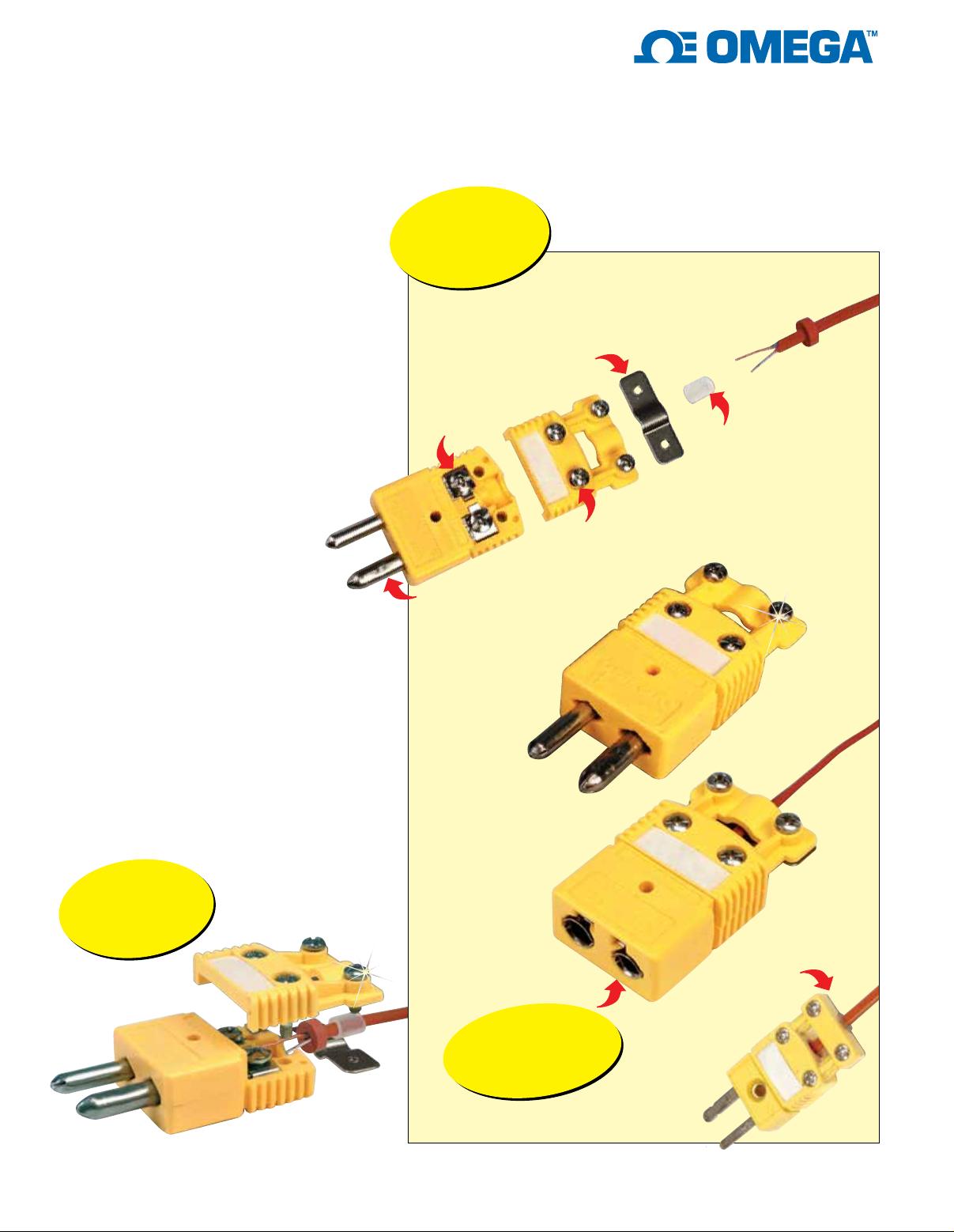

Back plate:
to fit soft and overbraid
wire. Optional: 1⁄4"ø
to fit armored cable.
Contact
washers.
Hollow pin standard,
solid pin available.
OSTW-CC-K-M
shown actual size.
Images are for
referance only.
1
⁄8"ø supplied
All screws are
combination head.
Terminate
straight wire,
wire loop not
necessary.
For TC wire selection
visit us online.
In Bulk packing Grommets
sold separately, Single
connectors pack
Grommets are included
Images are for referance only.
Reduce
Assembly Time
From 3 Minutes
to Less Than
1 Minute!
Images are for referance only.
OSTW-CC-K-F
shown actual size.
Universal Female
Mates with Standard or
Miniature Thermocouple
Connectors sold
separaetly
1
SMPW-CC-K-M
shown actual size.
Page 2
OSTW-CC-K-M
shown actual size.
Pull Test
Highest Rating
Images are for
referance only.
Side Load
Equal to
Stainless Steel

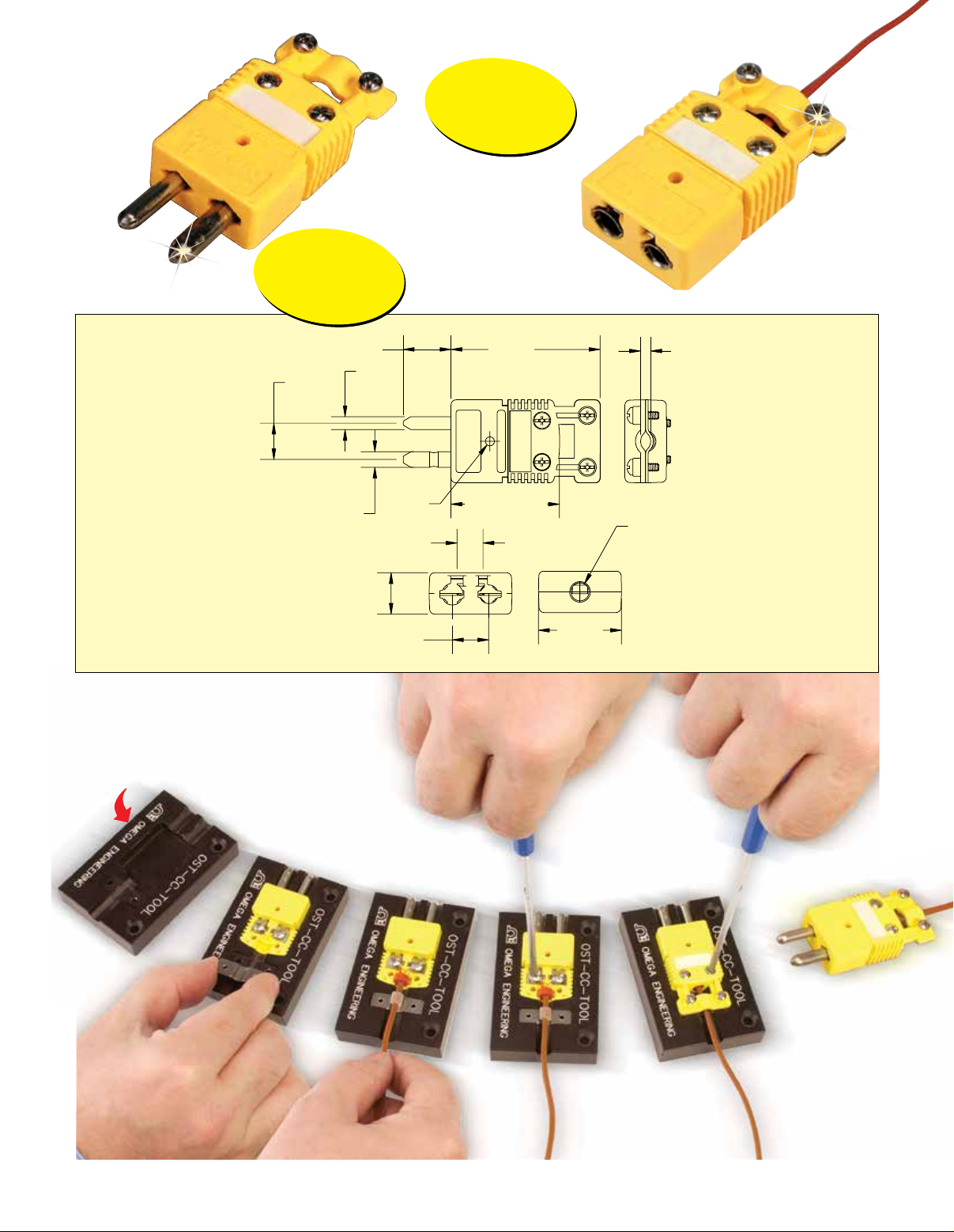

Dimensions:
mm (inch) ø = diameter
11.11
(0.44)
Front And Rear View Of Female
Quick Assembly Tool!
15.06 (0.59)
ø3.96
(0.16)
ø4.75
(0.19)
12.7
(0.5)
ø 2.77
(0.11)
8.0
(1.0)
11.1
(0.44)
45.64
(1.80)
33.33 (1.31)
25.40
(1.00)
OSTW-CC-K-F
shown actual size.
CLAMP RANGE
Supplied back plate
opens to 5.7 (0.225)
Optional 1⁄4" back plate
opens to 8.2 (0.325)
ø 5.54 (0.22)
WIRE ACCESS
IN CONNEC
Front and back view
of female of connector.
TOR BODY
OST-CC-TOOL shown
smaller than actual size.
1. Place back plate
and OST body
2. Terminate
straight wire
3. Tighten
captive screws
Images are for
referance only.
2
Page 3
Bulk Packaging, the Wire/Connector and Clamp Grommets Sold Separately.
U
W
U
Model Number
SSRT-316-*
SSRT-CC-018-(*)
SSRT-CC-332-(*)
SSRT-CC-116-(*)
SSRT-CC-132-(*)
* Insert package QTY: Select from 5, 10, 50, 100
Inside Dia
mm (inch)
4.77 (0.1875) 6.35 (0.25) 6.35 (0.25) Silicone Wire Grommet (Strain Relief)
3.18 (0.125)
2.38 (0.094)
1.59 (0.063)
0.79 (0.032)
Outside Dia
mm (inch)
4.77 (0.188) 6.35 (0.250) Clamp Silicone Grommet
Length
mm (inch) Description
To Order
Compensating Alloy
Alloy
Code
CHROMEGA
* To order solid pin male connectors, add suffix “-S” to the model number for additional cost.
Ordering Example: OSTW-CC-K-M, clamp cap, Type K, hollow pin male.
Note: Bulk packaging options available OSTW-CC-*-**-***, where * Calibration type, ** M or F, *** 5, 50 or 100 pkg qty.
Used in Connector
(+) (-) Male Female
TM
ALOMEGA
Copper Constantan Blue
Iron Constantan Black
CHROMEGA Constantan Purple
Copper RNX/SNX Green
CPX CNX Red
Copper Copper White
OMEGA-P
TM
OMEGA-N
TM
TM
ANSI
Color
Code
Yellow
Orange
Glass-Filled Nylon
Model No.
OSTW-CC-K-M OSTW-CC-K-F
OSTW-CC-T-M OSTW-CC-T-F
OSTW-CC-J-M OSTW-CC-J-F
OSTW-CC-E-M OSTW-CC-E-F
OSTW-CC-R/S-M OSTW-CC-R/S-F
OSTW-CC-C-M OSTW-CC-C-F
OSTW-CC-U-M OSTW-CC-U-F
OSTW-CC-N-M OSTW-CC-N-F
3
