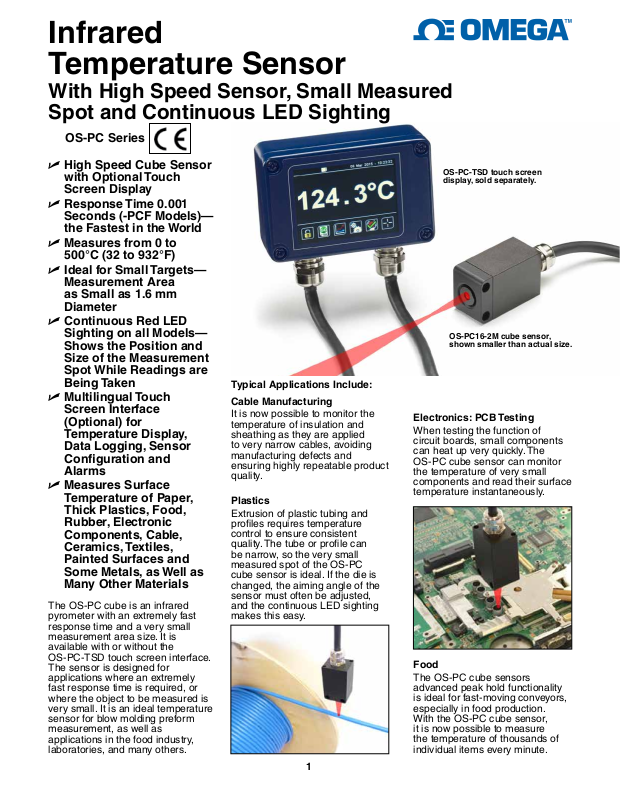

Page 1
Infrared
Temperature Sensor
With High Speed Sensor, Small Measured
Spot and Continuous LED Sighting
OS-PC Series
U High Speed Cube Sensor
with Optional Touch
Screen Display
U Response Time 0.001
Seconds (-PCF Models)—
the Fastest in the World
U Measures from 0 to
500°C (32 to 932°F)
U Ideal for Small Targets—
Measurement Area
as Small as 1.6 mm
Diameter
U Continuous Red LED
Sighting on all Models—
Shows the Position and
Size of the Measurement
Spot While Readings are
Being Taken
U Multilingual Touch
Screen Interface
(Optional) for
Temperature Display,
Data Logging, Sensor
Configuration and
Alarms
U Measures Surface
Temperature of Paper,
Thick Plastics, Food,
Rubber, Electronic
Components, Cable,
Ceramics, Textiles,
Painted Surfaces and
Some Metals, as Well as
Many Other Materials
The OS-PC cube is an infrared
pyrometer with an extremely fast
response time and a very small
measurement area size. It is
available with or without the
OS-PC-TSD touch screen interface.
The sensor is designed for
applications where an extremely
fast response time is required, or
where the object to be measured is
very small. It is an ideal temperature
sensor for blow molding preform
measurement, as well as
applications in the food industry,
laboratories, and many others.
Typical Applications Include:
Cable Manufacturing
It is now possible to monitor the
temperature of insulation and
sheathing as they are applied
to very narrow cables, avoiding
manufacturing defects and
ensuring highly repeatable product
quality.
Plastics
Extrusion of plastic tubing and
profiles requires temperature
control to ensure consistent
quality. The tube or profile can
be narrow, so the very small
measured spot of the OS-PC
cube sensor is ideal. If the die is
changed, the aiming angle of the
sensor must often be adjusted,
and the continuous LED sighting
makes this easy.
1

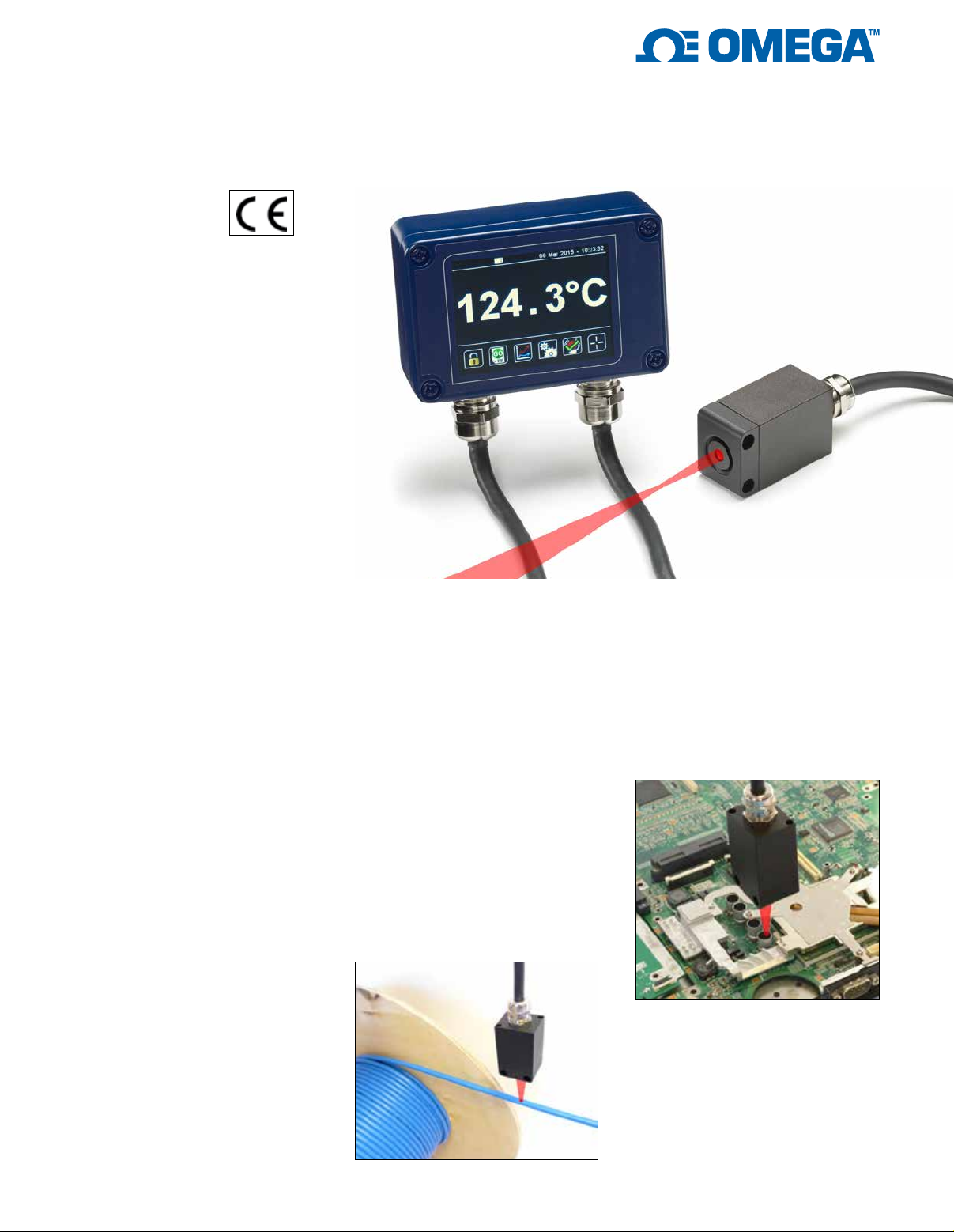

OS-PC-TSD touch screen
display, sold separately.
OS-PC16-2M cube sensor,
shown smaller than actual size.
Electronics: PCB Testing
When testing the function of
circuit boards, small components
can heat up very quickly. The
OS-PC cube sensor can monitor
the temperature of very small
components and read their surface
temperature instantaneously.
Food
The OS-PC cube sensors
advanced peak hold functionality
is ideal for fast-moving conveyors,
especially in food production.
With the OS-PC cube sensor,
it is now possible to measure
the temperature of thousands of
individual items every minute.
Page 2

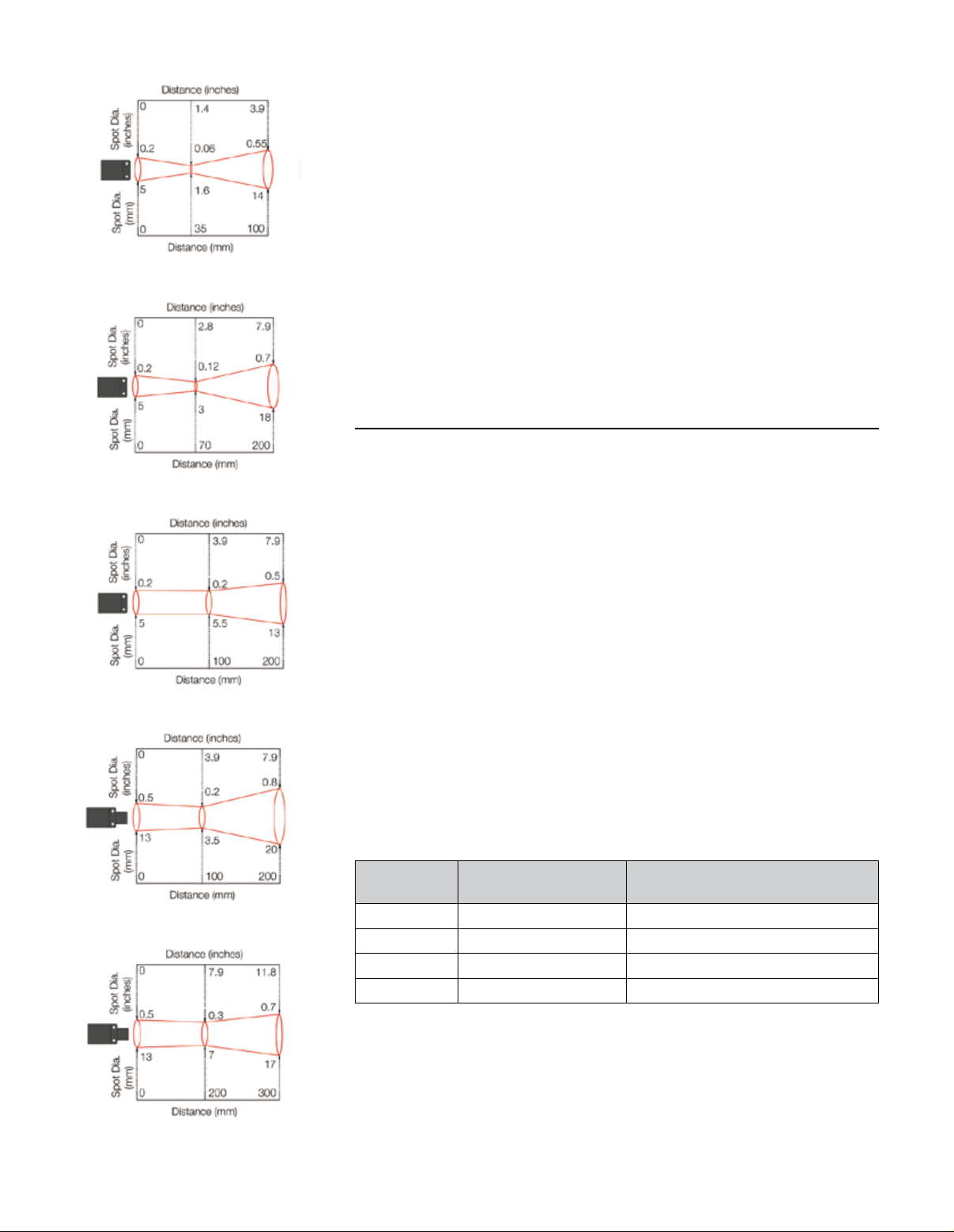

OS-PC16
Sensor Specifications
Temperature Range: 0 to 500°C
(0 to 932°F)
Response Time: 95%
“F” Models: 1 ms
Standard Models: 10 ms
Averaging Function: Adjustable up
to 5s
Target Sighting: Red LED built-in
as standard on all models, shows the
position and size of the measurement
area; switchable on/off*
*LED sighting and alarms
Accuracy of Measurement: ±3°C
(±5.4°F) or 1%, whichever is greater
Ambient Temperature: 23 ±5°C,
emissivity 1.0, averaging time 50 ms
Repeatability: ±0.5°C (0.9°F)
Ambient Temperature: 23 ±5°C,
emissivity 1.0, averaging time 50 ms
Temperature Resolution: <0.5°C
(0.9°F)
Emissivity Setting: Adjustable,
0.3 to 1.0, via RS232C or optional
touch screen interface
ENVIRONMENTAL
Weight: 85 g (3 oz), without cable
Environmental Rating: IP67
Operating Ambient Temperature:
0 to 50°C (32 to 122°F)
Storage Temperature: -15 to 70°C
(5 to 158°F)
Operating Ambient Humidity:
30 to 85% RH non-condensing
Sensor Only: These functions are
selectable via RS232C and share
a common connection, which is
configurable either as an input to
switch the LED sighting on/off, or an
open drain alarm output, but not both
at once
Sensor with OS-PC-TSD: These
functions may be configured via the
OS-PC-TSD interface; two alarm relay
output
OS-PC30
OS-PC55
OS-PCF35
OS-PC-TSD Specifications
Touch Screen Display Format:
72 mm (2.83") resistive touch TFT,
320 x 240 pixels, backlit
Configurable Parameters: Language
(English, Chinese, Japanese),
temperature units °C/°F, displayed
temperature, LED sighting on/
off, password, date and time (for
data logging time stamps), peak
hold period, decay level, averaging
period, correction (gain/offset),
emissivity setting (with teach function),
reflected energy compensation (with
teach function), output type, output
temperature range, polarity on error,
alarm mode, levels, hysteresis
OS-PC-TSD Data Logging
Specifications
Optional wall-mounted display, data
logging, configuration and alarm unit
for OS-PC sensor
Outputs (From Touch Screen Module):
Retransmitted analog output from sensor, plus 2 relays, rated 24 Vdc, 1 A
Output
Type
Effective Minimum
Output
Temperature Reading: Large, bright
backlit temperature display turns red
in alarm condition
Temperature Recording History:
Graphs of measured temperature,
log more than a year of data to a
single MicroSD card; data is stored in
a simple text format easily imported
into Excel
Sensor Configuration: Configuration
settings can be adjusted via the
intuitive touch screen interface
Temperature Alarm Triggers: Two
alarms are individually configurable
as high, low, band or error; red screen
to signal alarm condition, built-in 24V,
1 A relay outputs can be connected
directly to alarm
Measurement Accuracy: Accurate,
even with reflections of hot objects;
measure the temperature of objects
using Reflected Energy Compensation
feature
®
Output Accuracy (Additional to
Measurement Accuracy)
0 to 1 Vdc 30 mV ±1.5 mV
mV/°C 30 mV ±1.5 mV
0 to 20 mA 0.2 mA ±0.02 mA
4 to 20 mA 4.0 mA ±0.02 mA
OS-PCF70
Storage: MicroSD card (optional),
max 32 GB, equal to 16 years of data at
the fastest sample rate of 1 per second
Data Logging Interval: 1 second to
1 day (configurable)
Internal Clock Battery: One BR 1225
3V (not included)
Variables Logged: Instant target and
hold temperatures, alarm events
2
File Format: .csv
Configurable Parameters
(Data Logging): Sample period,
number of samples, scheduled start
Configurable Parameters
(Alarm Logging): Log times when
triggered, acknowledged, reset;
log data while triggered
Page 3
Electrical Specifications
Outputs: 1 analog output and 1 alarm
output
Analog Output: 4 to 20 mA (set by
default), 0 to 20 mA, mV/°C or voltage,
selectable via optional OS-PC-TSD
touch screen interface
Alarm Output: 1 open drain alarm
output, rated 27 Vdc, 0.2 A*
Supply Voltage: 5 to 27 Vdc, 100 mA
max
Digital Communications: RS232C
MODBUS
®
RTU, non-isolated

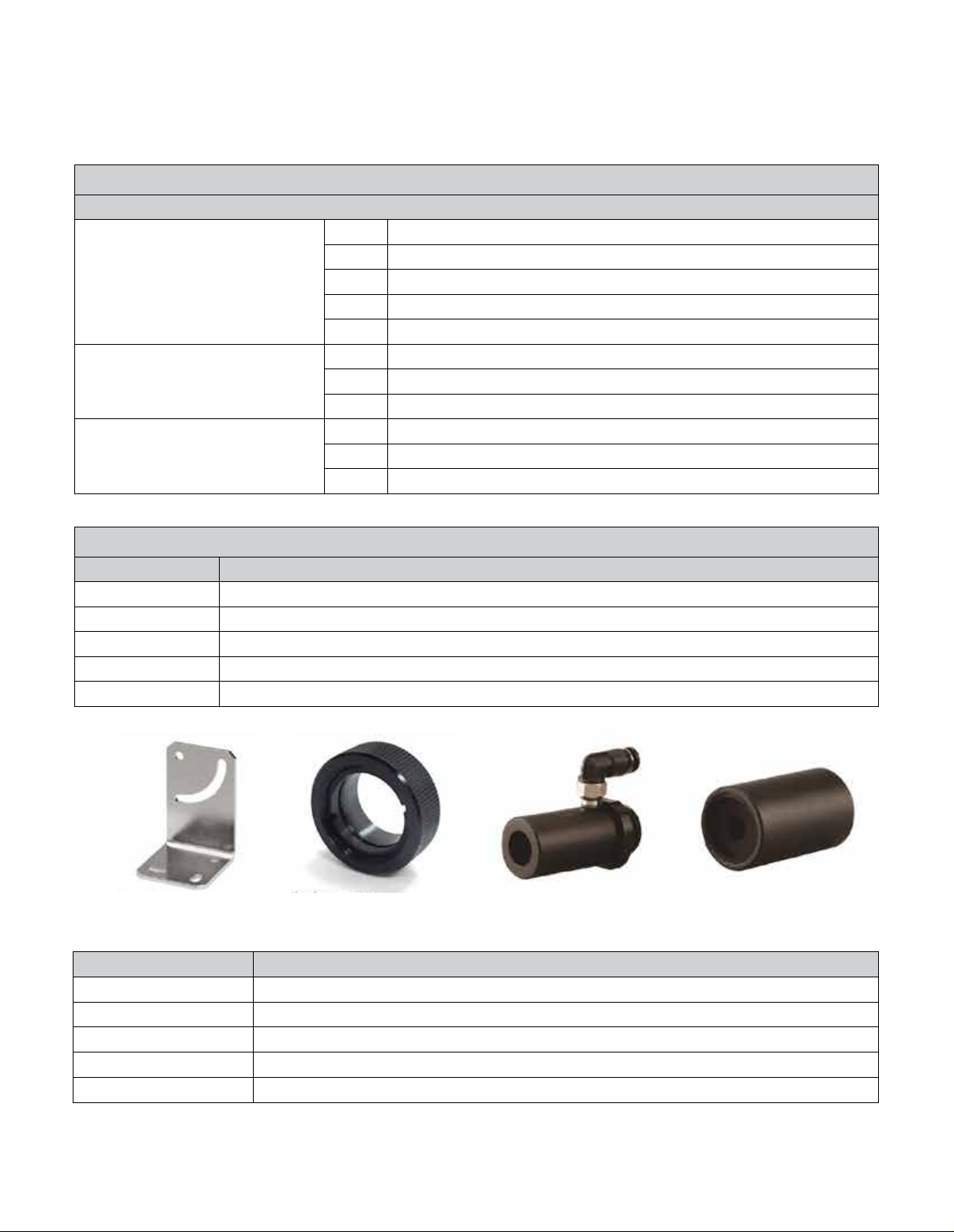

To Order
OS-PC{Response Time & Optics}-{Cable Length}-{Voltage Analog Output Option}
Response Time & Optics 16
30
55
F35
F70
Cable Length 2M
5M
10M
Voltage Analog Output* Option 1V
5V
10V
*Note: All units include as standard 0 to 20 mA, 4 to 20 mA and mV/°C outputs.
10 mS response, 1.6 mm spot @ 35 mm
10 mS response, 3.0 mm spot @ 70 mm
10 mS response, 5.5 mm spot @ 120 mm
1 mS response, 3.5 mm spot @ 100 mm
1 mS response, 7.0 mm spot @ 200 mm
2 m (6.6')
5 m (16.4')
10 m (32.8')
0 to 1 Vdc
0 to 5 Vdc
0 to 10 Vdc
Ordering Examples
Model No. Description
OS-PC16-2M-(*)
OS-PC30-2M-(*)
OS-PC55-2M-(*)
OS-PCF35-2M-(*)
OS-PCF70-2M-(*)
* Voltage analog output option, see below.
OS-PC-FBN
Fixed mounting bracket
Options/Accessories
Model No. Description
OS-PC-TSD
OS-PC-FBN
OS-PC-PWC
OS-PC-APC
OS-PC-ADP
Comes complete with operator’s instructions.
Ordering Examples: OS-PC16-2M-1V, high speed cube sensor with 10 mS response, 1.6 mm spot @ 35 mm with 2 m (6.6') cable and optional
0 to 1 Vdc analog output.
OS-PCF35-5M-5V, very fast cube sensor with 1 mS response, 3.5 mm spot @ 100 mm with 5 m (16.4') cable and optional 0 to 5 Vdc analog output.
High speed cube sensor with 10 mS response, 1.6 mm spot @ 35 mm with 2 m (6.6') cable
High speed cube sensor with 10 mS response, 3.0 mm spot @70 mm with 2 m (6.6') cable
High speed cube sensor with 10 mS response, 5.5 mm spot @ 120 mm with 2 m (6.6') cable
Very fast cube sensor with 1 mS response, 3.5 mm spot @ 100 mm with 2 m (6.6') cable
Very fast cube sensor with 1 mS response, 7.0 mm spot @ 200 mm with 2 m (6.6') cable
OS-PC-PWC
Protective lens cover
OS-PC-APC
Air purge collar
OS-PC-ADP
Airless dust protector
Touch screen display (°C/°F) with data logging
Fixed mounting bracket (1-axis)
Protective lens cover
Air purge collar
Airless dust protector
3
Page 4

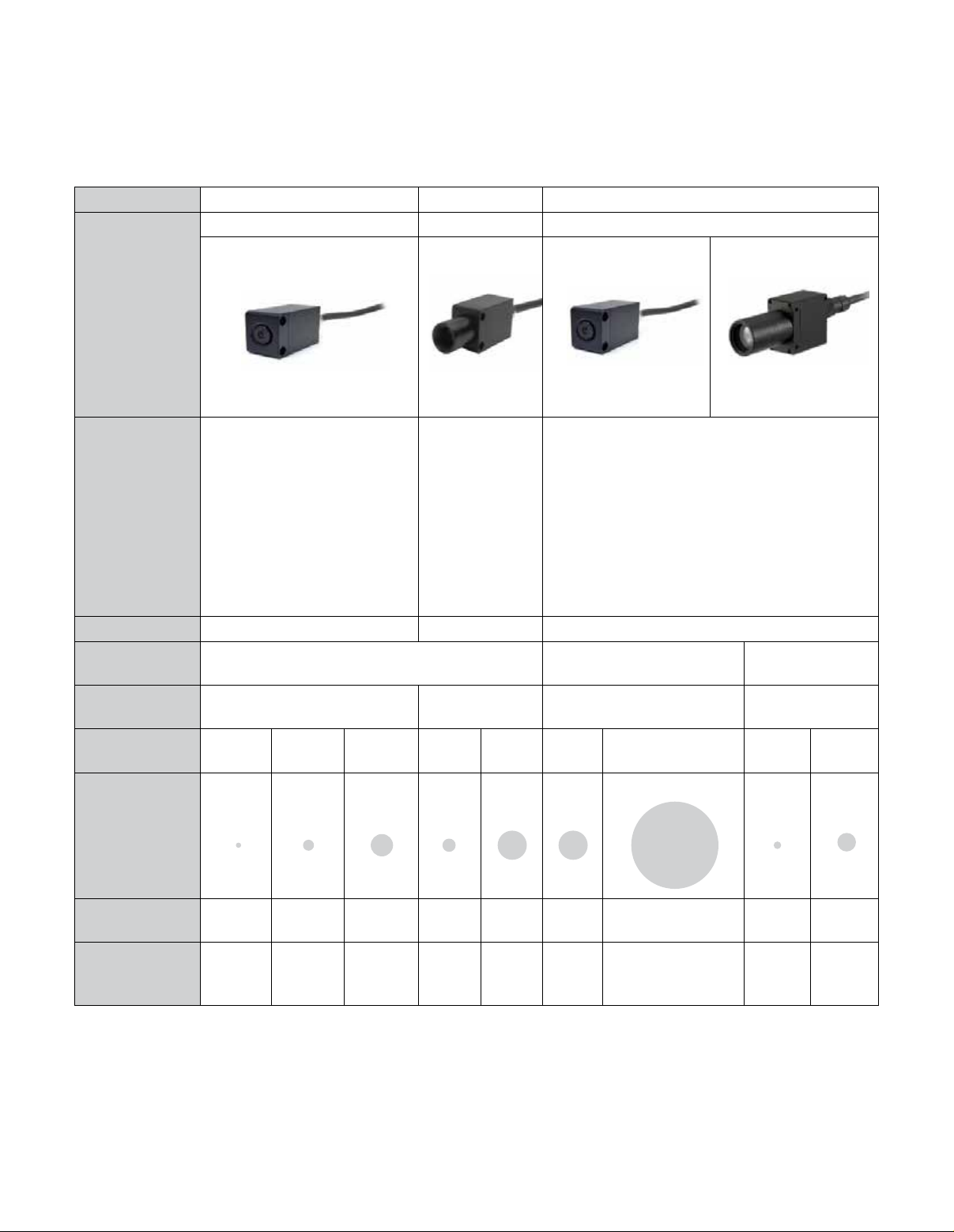

F
Fast response
G
Glass
Pyrometers for Special Applications
F
Fast response
S
General purpose
G
Glass
G
Glass
Type
Application
Description
Wavelength
Temperature
Range
Response
Time
Model No.
OS-PC
Focal Spot
Diameter (mm)
S F G
General purpose Fast response Glass
The general-purpose S is
suitable for measuring most
non-reflective non-metals
Advantages over other
general purpose sensors are
the built-in LED aiming light,
fast response time, and small
measured spot size.
2 to 7 µm 2 to 7 µm 5 µm
0 to 500°C (0 to 932°F)
10 ms 1 ms 50 ms 10 ms
16 30 55 F35 F70 G70 G200 GH22 GH45
1.6 3 5.5 3.5 7 7 20 2.2 4.5
The F has a
lightning-fast
response
time of 0.001
seconds.
Glass-specific measurement wavelength for
improved accuracy when measuring glass
surface temperature.
G models are ideal for annealing,
e.g. light bulb and fluorescent lamp
manufacturing.
GH models are suitable for
high-temperature glass melting,
such as in glass-to-metal sealing.
50 to 1200°C
(122 to 2192ºF)
50 to 2400°C
(122 to 4352ºF)
Focal Distance
(mm)
Maximum
Measurement
Distance (mm)
35 70 120 100 200 180 500 150 300
150 200 300 300 500 500 1000 300 500
4
Page 5

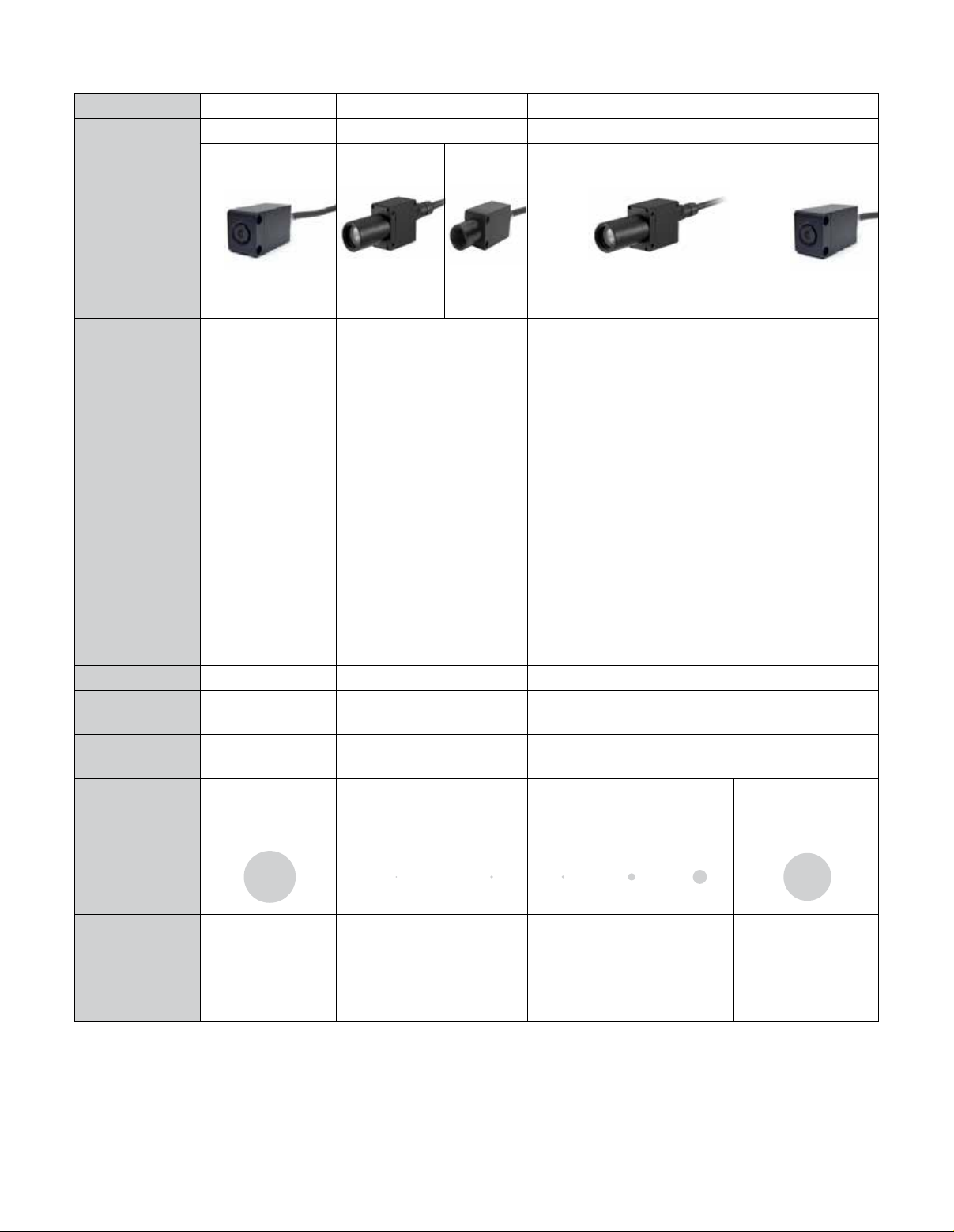

XS
Very small targetsMMetals, low temperature
M
Metals, low temperature
M
Metals, low temperature
XS
Very small targets
M
Metals, low temperature
Pyrometers for Special Applications
Type
Application
Description
Wavelength
Temperature
Range
Response
Time
Model No.
OS-PC
Focal Spot
Diameter (mm)
P XS M
Thin film plastics Very small targets Metals, low temperature
Accurately
measures the
temperature of
thin film plastics
that cannot
be measured
with general-
purpose sensors.
Materials include
Extremely small
measured spot size.
Applications include
measuring individual
electronic component
temperatures on a
circuit board, and plastic
welding where the seam
is very narrow.
Short-wavelength sensors for measuring
metals as cool as 50°C (122°F), with a very
fast response time of 0.001 seconds and a
very small measured spot size.
polyolefin,
polyamide,
polyethylene,
polypropylene,
polystyrene,
nylon, PVC,
acrylic,
polyurethane and
polycarbonate.
3.4 µm 5 to 7 µm 2.2 µm
80 to 350°C
(176 to 662ºF)
0 to 500°C
(0 to 932°F)
50 to 600°C
(122 to 1112ºF)
10 ms 10 ms 50 ms 1 ms
P120 XA7 XB10 MA10 MA20 MA35 MB110
12 0.7 1 1 2 3.5 11
Focal Distance
(mm)
200 40 100 50 100 200 200
Maximum
Measurement
500 100 300 100 200 400 500
Distance (mm)
5
