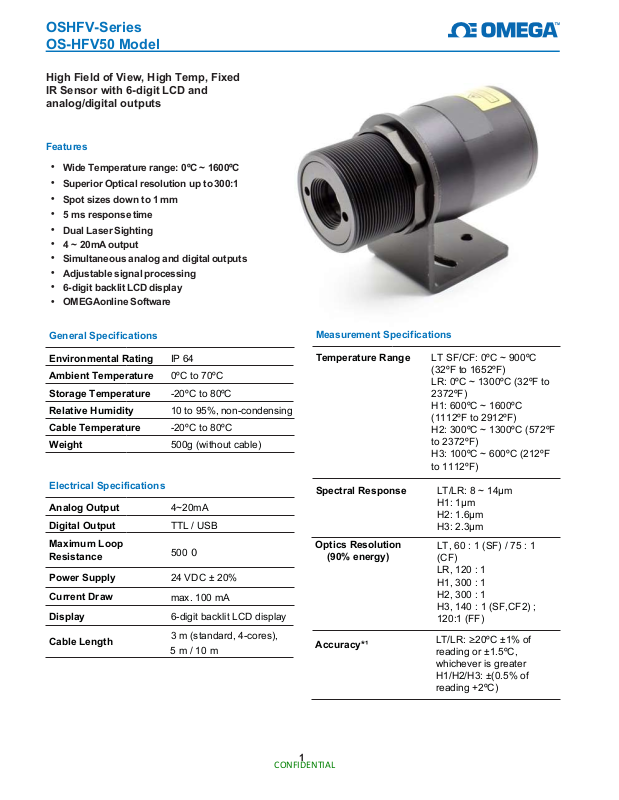

Page 1
OSHFV-Series
OS-HFV50 Model
High Field of View, High Temp, Fixed
IR Sensor with 6-digit LCD and
analog/digital outputs
Features
•
Wide Temperature range: 0ºC ~ 1600ºC
•
Superior Optical resolution up to 300:1
•
Spot sizes down to 1 mm
•
5 ms response time
•
Dual Laser Sighting
•
4 ~ 20mA output
•
Simultaneous analog and digital outputs
•
Adjustable signal processing
•
6-digit backlit LCD display
•
OMEGAonline Software
General Specifications
Environmental Rating IP 64
Ambient Temperature 0ºC to 70ºC
Storage Temperature -20ºC to 80ºC
Relative Humidity 10 to 95%, non-condensing
Cable Temperature -20ºC to 80ºC
Weight 500g (without cable)
Electrical Specifications
Analog Output 4~20mA
Digital Output TTL / USB
Maximum Loop
Resistance
Power Supply 24 VDC ± 20%
Current Draw
Display 6-digit backlit LCD display
Cable Length
500 0
max. 100 mA
3 m (standard, 4-cores),
5 m / 10 m
Measurement Specifications
Temperature Range LT SF/CF: 0ºC ~ 900ºC
(32ºF to 1652ºF)
LR: 0ºC ~ 1300ºC (32ºF to
2372ºF)
H1: 600ºC ~ 1600ºC
Spectral Response LT/LR: 8 ~ 14µm
Optics Resolution
(90% energy)
(1112ºF to 2912ºF)
H2: 300ºC ~ 1300ºC (572ºF
to 2372ºF)
H3: 100ºC ~ 600ºC (212ºF
to 1112ºF)
H1: 1µm
H2: 1.6µm
H3: 2.3µm
LT, 60 : 1 (SF) / 75 : 1
(CF)
LR, 120 : 1
H1, 300 : 1
H2, 300 : 1
Accuracy*¹
H3, 140 : 1 (SF,CF2) ;
120:1 (FF)
LT/LR: ≥20ºC ±1% of
reading or ±1.5ºC,
whichever is greater
H1/H2/H3: ±(0.5% of
reading +2ºC)
1
CONFIDENTIAL
Page 2
average
S 20 9.8
D 0 236
Repeatability*¹
Temperature Resolution 0.1ºC
LT/LR: ±0.5% of reading or
±1ºC, whichever is greater
H1/H2/H3: ±(0.3% of
reading +1ºC)
Dimensions(mm)
Response Time
(95% signal)
LT/LR: 150 ms
H1/H2/H3: 5 ms
Emissivity (adjustable) 0.100 ~ 1.000, in 0.001
increments
Signal processing
peak hold, valley hold,
*¹ At 23ºC ± 5ºC, emissivity LT/LR = 0.95, H1/H2/H3 = 1.00
Control Panel
Optical Specifications
OS-HFV50-3001-H1
OS-HFV50-1201-LR
2
Page 3
Accessories
Fixed Bracket Adjustable Bracket (Option)
Air Purge Collar (Option)
OS-HFV50-FMB OS-HFV50-AMB OS-HFV-APC
3
