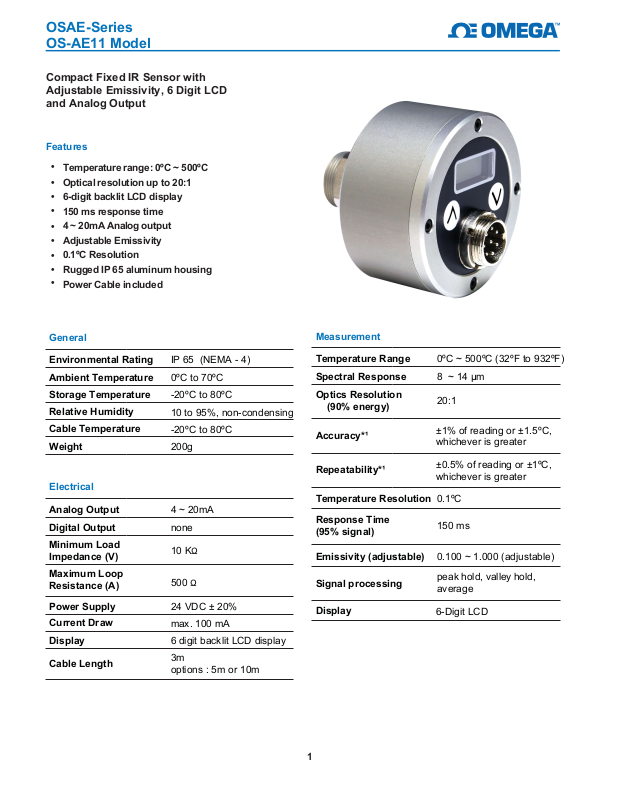

Page 1
1
OSAE-Series
OS-AE11 Model
Compact Fixed IR Sensor with
Adjustable Emissivity, 6 Digit LCD
and Analog Output
Features
•
Temperature range: 0ºC ~ 500ºC
•
Optical resolution up to 20:1
•
6-digit backlit LCD display
•
150 ms response time
4 ~ 20mA Analog output
•
Adjustable Emissivity
•
0.1ºC Resolution
•
Rugged IP 65 aluminum housing
•
•
Power Cable included
General
Environmental Rating
Ambient Temperature
Storage Temperature
Relative Humidity
Cable Temperature
Weight
Electrical
Analog Output
Digital Output
Minimum Load
Impedance (V)
Maximum Loop
Resistance (A)
Power Supply
Current Draw
Display
Cable Length
IP 65 (NEMA - 4)
0ºC to 70ºC
-20ºC to 80ºC
10 to 95%, non-condensing
-20ºC to 80ºC
200g
4 ~ 20mA
none
10 KᲲ
500 Ჲ
24 VDC ± 20%
max. 100 mA
6 digit backlit LCD display
3m
options : 5m or 10m
Measurement
Temperature Range
Spectral Response
Optics Resolution
(90% energy)
Accuracy*¹
Repeatability*¹
Temperature Resolution
Response Time
(95% signal)
Emissivity (adjustable)
Signal processing
Display
0ºC ~ 500ºC (32ºF to 932ºF)
8 ~ 14 µm
20:1
±1% of reading or ±1.5ºC,
whichever is greater
±0.5% of reading or ±1ºC,
whichever is greater
0.1ºC
150 ms
0.100 ~ 1.000 (adjustable)
peak hold, valley hold,
average
6-Digit LCD
Page 2
2
Dimensions(mm)
Optical Specifications
Optional Accessories
OS- FMB
Up Button
OS - AMB
Display
OS-AE11 Model
Cable Connector
Down Button
