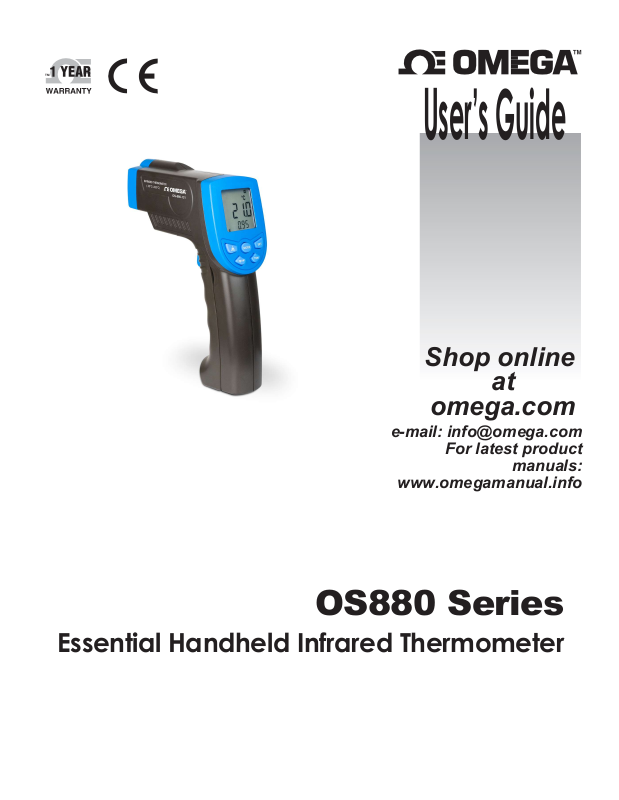

OS880 Series
Essential Handheld Infrared Thermometer
manuals:
Page 2
En
gineering Service: 1
-
800-872-9436 (USA & Canada only)
Headquarters:
Tel: (203) 359
-
1660
Fax: (203) 359
-
7700
alter specifications without
notice.
U.S.A.
omega.com [email protected]
Servicing North America:
Omega Engineering, Inc.
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
e-mail: [email protected]
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to
Page 3
Table of Contents
Table of Contents ............................................................................................................................................. 3
1) Introduction .............................................................................................................................................. 4
1.1 How it works .........................................................................................................................................................4
1.2 Caution .................................................................................................................................................................5
2) Specifications ............................................................................................................................................ 6
3) Operating Instructions ............................................................................................................................... 6
3.1 Battery Installation: ...............................................................................................................................................6
3.2 Button and key Layout: ..........................................................................................................................................7
3.3 Locating a Hotspot: ................................................................................................................................................8
4) Maintenance ............................................................................................................................................. 8
Page 4
1) Introduction
The OS880-Series handheld infrared thermometer is a non-contact temperature sensing thermometer. It measures from
-30 to 550°C (-22 to 1022°F). This thermometer features a backlit display which is automatically illuminated when the
trigger is pulled and allows working in poor or zero-lighting conditions. The single laser is also automatically active when the
trigger is pulled. The laser is located above the IR sensor to locate the center of the area being measured. The meter
constantly updates the temperature measurement as long as the trigger is held in and will “hold” on the last temperature
seen when the trigger is released. The OS880-Series has adjustable emissivity, min, max, and averaging functions, as well as
high and low alarm capability. This safely measures surface temperatures of hot, hazardous or hard-to-reach objects
without contact.
1.1 How it works
This handheld infrared thermometer measures the surface temperature of an object. The unit’s optics sense emitted,
reflected, and transmitted energy which is collected and focused onto a detector. The unit’s electronics converts the energy
value into a temperature in °C or °F which is displayed on the digital display. A clean line of sight free of dust or mist is
needed between the sensor and the object. For increased ease of use and accuracy the laser pointer makes aiming even
more precise.
Measurement:
When taking measurement, point the thermometer toward the object to be measured and hold the trigger. The
temperature will be displayed along with the word “Scan” to indicate that the temperature is constantly being updated on
the display. When the trigger is released, the last reading seen will be held on the display. The object under test should be
larger than the spot size calculated by the field of view diagram below.

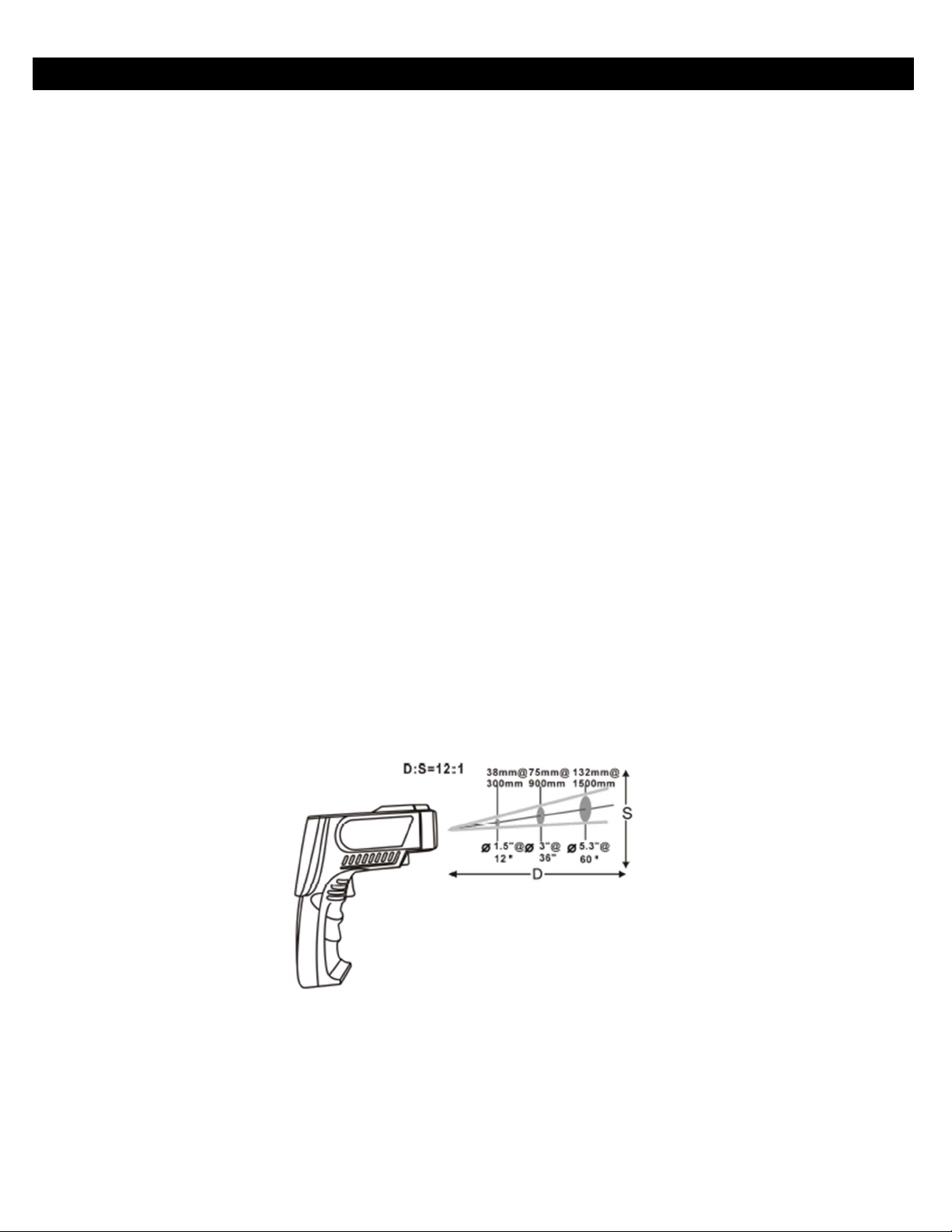

Field of View:
Field of view, or distance to spot ratio, is the size of an area that can be measured from a specified distance. As the distance
from the object increases, the spot size of the measuring area becomes larger. Make sure the target is larger than the unit’s
spot size. When accuracy is critical, ensure that the target is at least twice as large as the spot size. Please see field of view
diagram for the OS880-Series below.
Emissivity:
Most organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings
will result from measuring shiny or polished metal surfaces. To compensate, cover the measured surface with masking tape
or flat black paint. Measure the tape or painted surface when the tape or painted surface reaches the material
temperature. Please see the Emissivity table below for common emissivity values and adjust accordingly.
Page 5
Emissivity Table:
Material
Emissivity
Material
Emissivity
Aluminum
0.30 Iron 0.70 Asbestos
0.95 Lead
0.50 Asphalt
0.95 Limestone
0.98 Basalt
0.70 Oil 0.94 Brass
0.50 Paint
0.93 Brick
0.90 Paper
0.95 Carbon
0.85 Plastic
0.95 Ceramic
0.95 Rubber
0.95 Concrete
0.95 Sand
0.90 Copper
0.95 Skin 0.98 Dirt 0.94 Snow
0.90 Frozen Food
0.90 Steel
0.80 Hot food
0.93 Textiles
0.94 Glass (plate)
0.85 Water
0.93 Ice 0.98 Wood
0.94
1.2 Caution
Infrared thermometer should be protected for the following:
- EMF (electro-magnetic fields) from arc welders and induction heaters.
- Thermal shock (caused by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize
before use).
- Do not leave the unit on or near objects of high temperature.

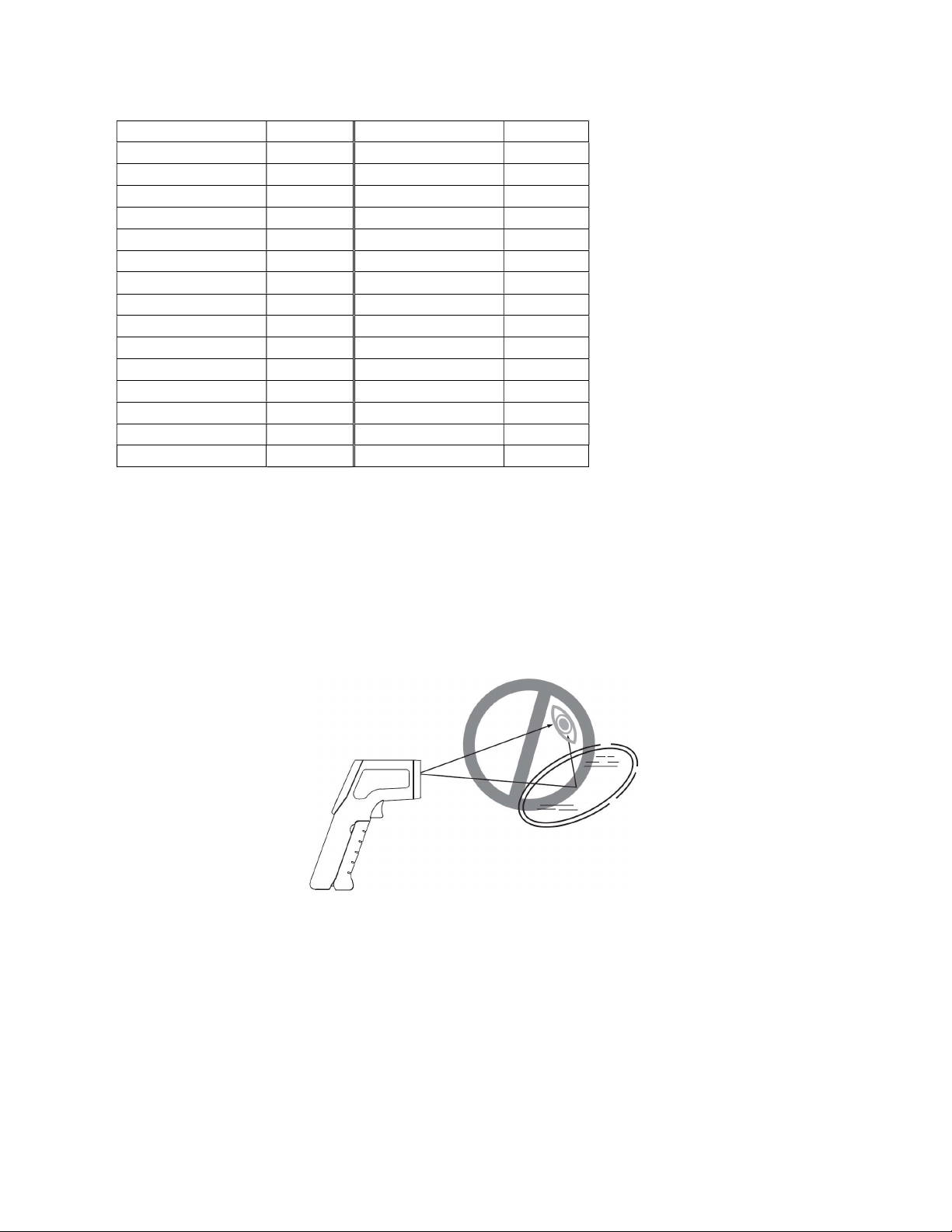

Warning: Do not point laser directly at eye or indirectly off reflective surfaces!
Page 6
2) Specifications
°C
°C
°C
°C
°C
°C
°C
°C
Temperature Range -30 to 550°C (-22 to 1022°F)
Accuracy ±3
Field of View 12:1
Repeatability 1% of reading or 1°C
Response Time 500 ms (95% response)
Spectral Response 8 – 14 µm
Emissivity Adjustable from 0.1 to 1.0
Operating Temperature
Range
Relative Humidity 10 -95% RH
Storage Temperature -20 - 60°C (-4 - 140°F)
Weight 130 g (4.58 oz) without battery
Dimensions 5.74 x 3.14 x 1.49 in (146 x 80 x 38 mm)
Power 9V Battery
Estimated Battery Life 12 hours (using laser)
or ±3% of rdg, -30
±2
or ±2% of rdg, 0
±3
or ±3% of rdg, ≥100
0 - 40°C (32 - 104°F)
to 0
to 100
(212°F)
(-22 to 32°F)
(32 to 212°F)
3) Operating Instructions

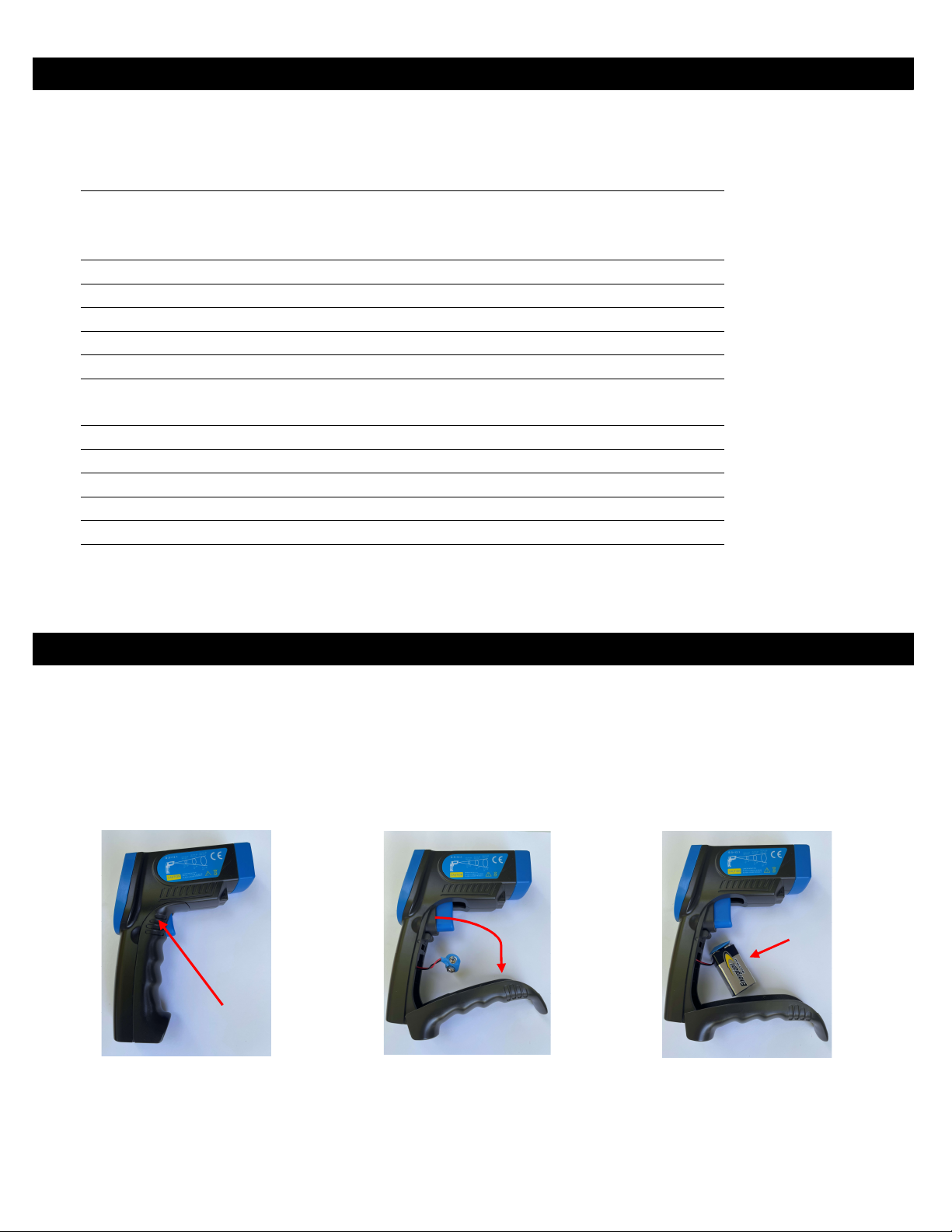

3.1 Battery Installation:
Use the thumb and forefinger to pull on the finger grips on either side of the trigger of the thermometer (Figure 1). The
battery compartment door will swing down (Figure 2). Insert a 9 Volt alkaline battery into the battery holder (Figure 3).
Take care not to pinch the battery wires when closing the battery door back to its original position.
Figure 1 Figure 2 Figure 3
Page 7
[Grab
1
7 6
5 4
3
2 8
Operating instructions

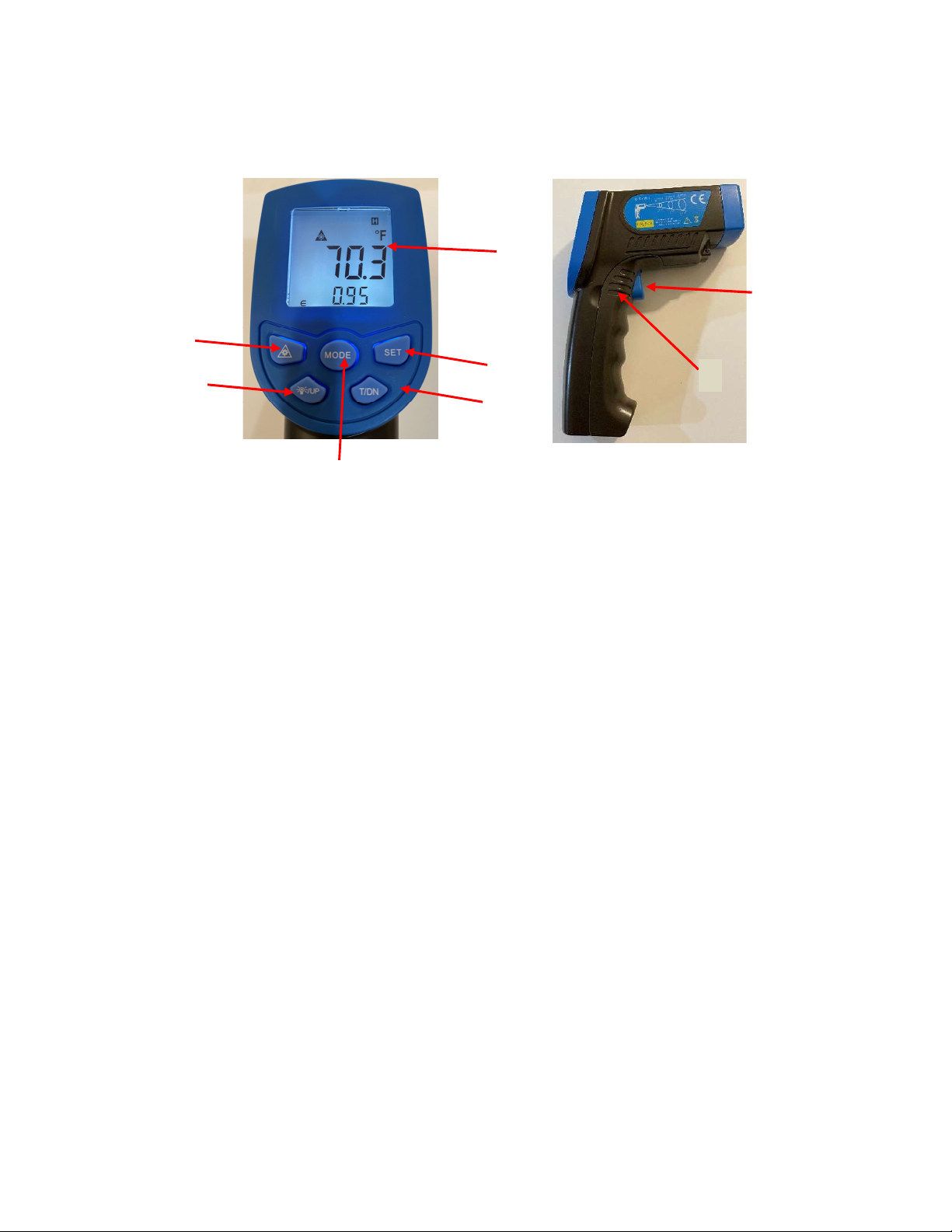

3.2 Button and key Layout:
1) Trigger
2) Back light/Up Button
3) Mode button
4) T/Down Button
5) SET Button
6) LCD Display
7) Battery Door
8) Laser Button
3.3 Operating Steps
1) Hold the thermometer by the handle grip and point it towards the surface to be measured.
2) Pull and hold the trigger to turn the thermometer on. The “SCAN” icon will appear on the top line of the display.
3) The surface temperature being measured will be displayed on the LCD screen.
4) When the trigger is released, the “HOLD” icon will appear and the last reading seen will remain on the display screen.
5) The thermometer will automatically turn off after 7 seconds of inactivity.
3.4 Button function
3.4.1 Mode Selection
1) With trigger held, press the “MODE” button [3] to cycle through the different modes.
a. “AVG” displays average temperature reading seen during the session.
b. “MAX” displays maximum temperature reading seen during session.
c. “MIN” displays minimum temperature reading seen during session.
d. “HAL” shows High Alarm value (use UP and DN buttons to adjust up or down).
e. “LAL” shows Low Alarm value (use UP and DN buttons to adjust up or down).
3.4.2 Changing Temperature Units
1) With trigger [1] held and “SCAN” shown on display, press “T/DN” [4] to toggle between °C
and °F.
Page 8
3.4.3 Adjusting Laser
1) While holding the trigger and “SCAN” activated on display, press the “Laser” button [8] to
toggle the single laser dot on and off.
3.4.4 Adjusting Emissivity
1) With unit turned “on”, press the “MODE” button [3] a few times to get to the “Є” annunciator
which will show the current Emissivity value.
2) Press the Backlight/UP button [2] to increase value and the “T/DN” button [4] to decrease value.
3) When desired value is reached, press “SET” again to lock in the value.
3.4.5 Adjusting High/Low Alarm
1) With trigger held and “SCAN” activated on the display, press the “Mode” button [3] one press
a time to get to “LAL” (low alarm) or “HAL” (high alarm) annunciator.
2) Press the Backlight/UP button [2] to increase value and the “T/DN” button [4] to decrease value.
3.5 Locating a Hotspot:
To find a hot spot, aim the thermometer outside the area of interest, then scan across with up and down motions until you
locate the hot spot. Turning on the laser will make for more precise targeting.
4) Maintenance
1) Lens cleaning : blow off loose particles using clean compressed air. Gently brush remaining debris away with a moist
cotton cloth.
2) Case cleaning: clean the case with a damp sponge/cloth and mild soap.
Note: Do not use solvent to clean lens and do not submerge the unit into water or any other liquid.
