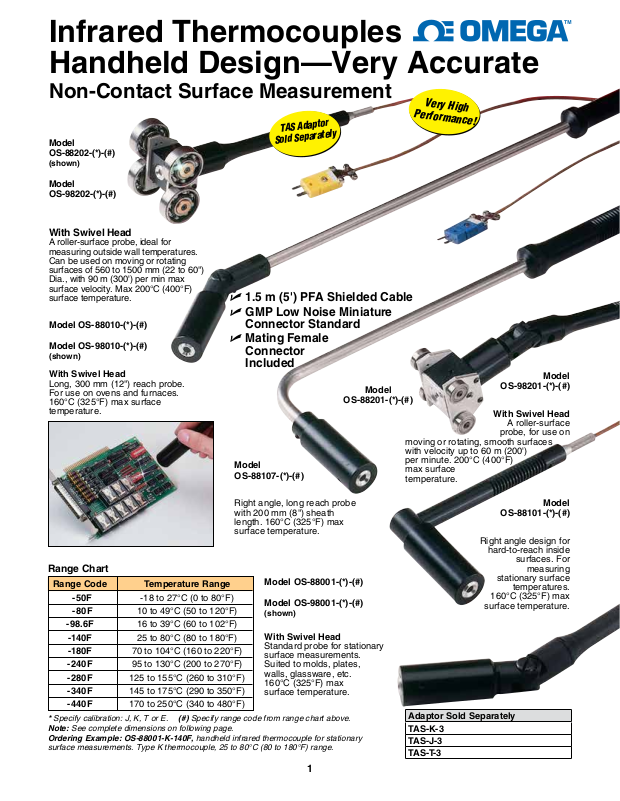

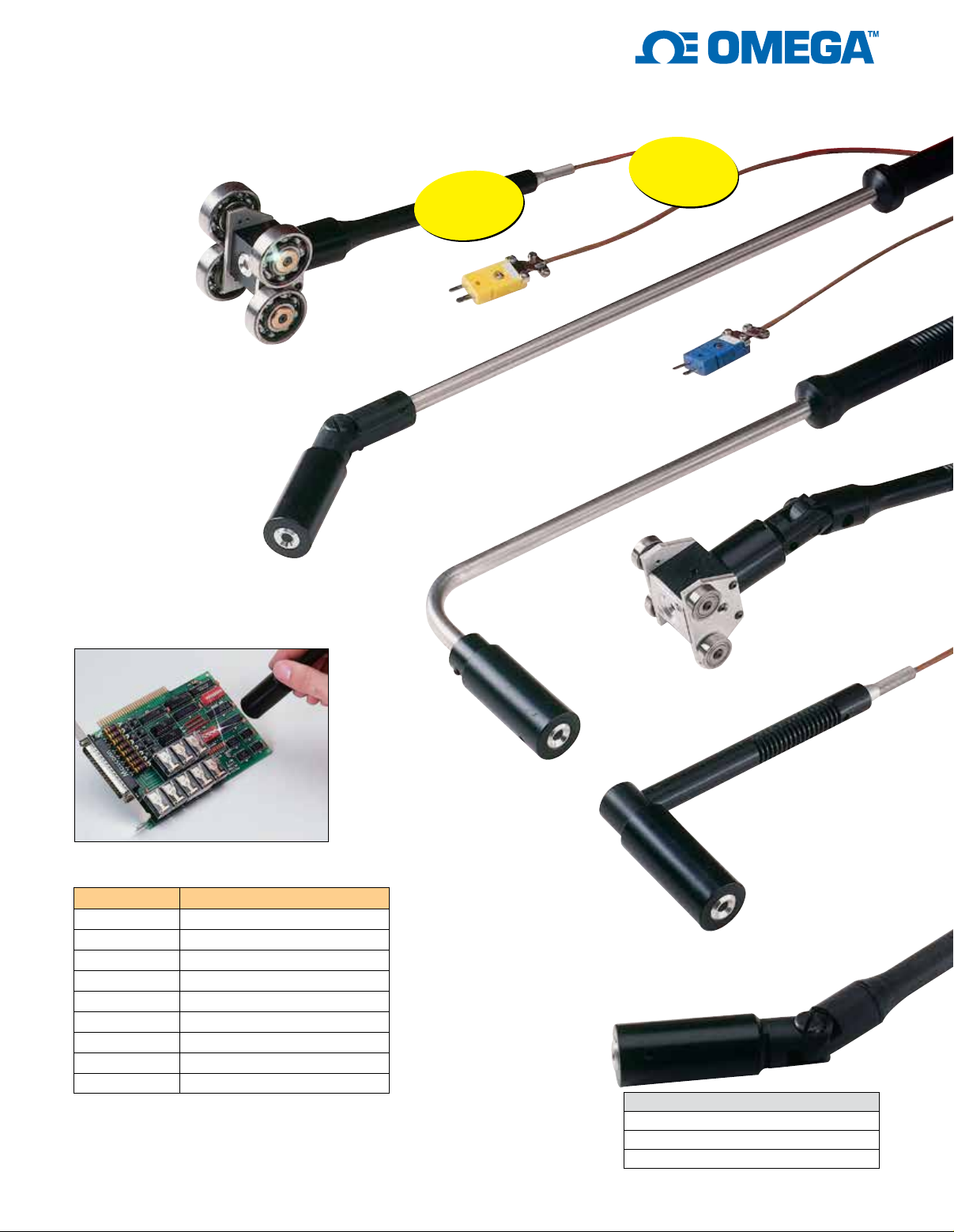

Infrared Thermocouples
Handheld Design—Very Accurate
Non-Contact Surface Measurement
TAS Adaptor
Model
OS-88202-(*)-(#)
(shown)
Model
OS-98202-(*)-(#)
With Swivel Head
A roller-surface probe, ideal for
measuring outside wall temperatures.
Can be used on moving or rotating
surfaces of 560 to 1500 mm (22 to 60")
Dia., with 90 m (300') per min max
surface velocity. Max 200°C (400°F)
surface temperature.
Model OS-88010-(*)-(#)
Model OS-98010-(*)-(#)
(shown)
With Swivel Head
Long, 300 mm (12") reach probe.
For use on ovens and furnaces.
160°C (325°F) max surface
temperature.
U 1.5 m (5') PFA Shielded Cable
U GMP Low Noise Miniature
U Mating Female
Model
OS-88107-(*)-(#)
Sold Separately
Connector Standard
Connector
Included
Model
OS-88201-(*)-(#)
Very High
Performance!
OS-98201-(*)-(#)
With Swivel Head
A roller-surface
probe, for use on
moving or rotating, smooth surfaces
with velocity up to 60 m (200')
per minute. 200°C (400°F)
max surface
temperature.
Model
Right angle, long reach probe
with 200 mm (8") sheath
length. 160°C (325°F) max
surface temperature.
Range Chart
Range Code Temperature Range
-50F -18 to 27°C (0 to 80°F)
- 80F 10 to 49°C (50 to 120°F)
-98.6F 16 to 39°C (60 to 102°F)
-140F 25 to 80°C (80 to 180°F)
-180F 70 to 104°C (160 to 220°F)
-240F 95 to 130°C (200 to 270°F)
-280F 125 to 155°C (260 to 310°F)
-340F 145 to 175°C (290 to 350°F)
-440F 170 to 250°C (340 to 480°F)
* Specify calibration: J, K, T or E. (#) Specify range code from range chart above.
Note: See complete dimensions on following page.
Ordering Example: OS-88001-K-140F, handheld infrared thermocouple for stationary
surface measurements. Type K thermocouple, 25 to 80°C (80 to 180°F) range.
Model OS-88001-(*)-(#)
Model OS-98001-(*)-(#)
(shown)
With Swivel Head
Standard probe for stationary
surface measurements.
Suited to molds, plates,
walls, glassware, etc.
160°C (325°F) max
surface temperature.
1
OS-88101-(*)-(#)
Model
Right angle design for
hard-to-reach inside
surfaces. For
measuring
stationary surface
temperatures.
160°C (325°F) max
surface temperature.
Adaptor Sold Separately
TAS-K-3
TAS-J-3
TAS-T-3
Page 2
220°C/440°F
170°C/340°F
140°C/280°F
120°C/240°F
90°C/180°F
60°C/140°F
27°C/80°F
10°C/50°F
37°C/98.6°F
050 100 150 200 250 300 °C
220
170
140
120
90
60
27
Infrared
Thermocouple Ranges
2% Accuracy Band
5% Accuracy Band
10
Special Calibration
1000 200 300 400 500 °F
Target Temperature

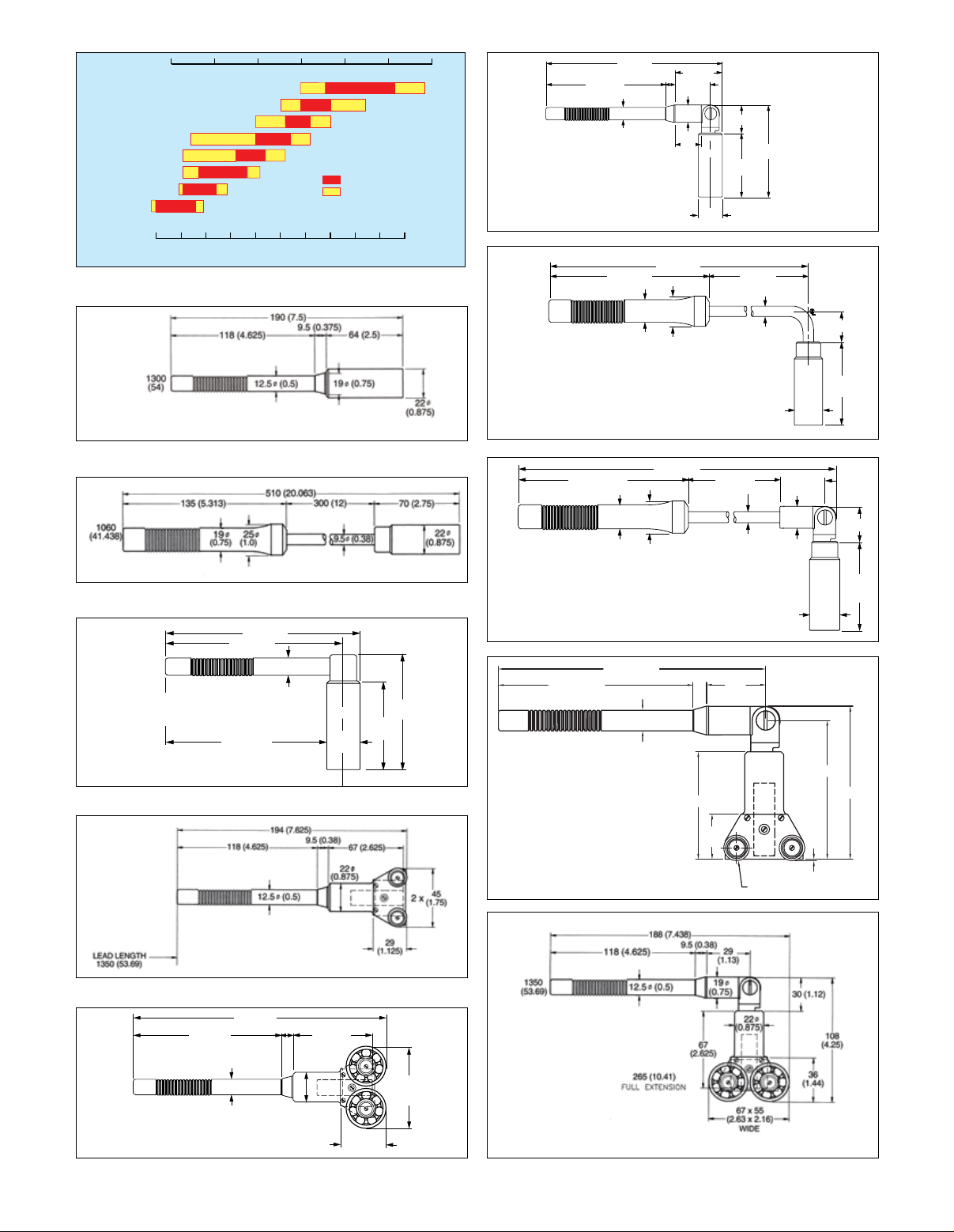

Dimensions: mm (in)
1300
(54)
OS-98001
1050
(42.313)
118 (4.625)
166 (6.56)
12.5 ø (0.5)
135 (5.313)
(0.75)
19 ø
9.5
(0.375)
363 (14.94)
25 ø
(1.0)
48 (1.56)
28 (1.13)
19 ø
(0.75)
19
(0.75)
22 ø
(0.875)
27 (1.06)
64 (2.5)
230 (9.0)
9.5ø (0.38)
(3.56)
90
C
L
38 (1.5)
OS-88001
OS-88010
1350
(53.69)
OS-88101
138 (5.41)
127 (4.97)
115 (4.531)
12.5 ø (0.5)
22 ø
(0.875)
64
(2.5)
83
(3.25)
990
(39.25)
OS-88107
OS-98010
119 (4.68)
OS-98201
135 (5.313)
(0.75)
163 (6.43)
19 ø
13 (0.50)
490 (19.22)
25 ø
(1.0)
66 (2.58)
(1.08)
305 (12.0)
9.5ø (0.38)
560 (22.22)
FULL EXTENSION
36
(1.42)
27
22 ø
(0.875)
28 (1.13)
19 ø
(0.75)
22 ø
(0.875)
85 (3.33)
70
(2.75)
27 (1.06)
70
(2.75)
93 (3.68)
OS-88202
1350
(53.69)
OS-88202
118 (4.625)
206 (8.125)
12.5 ø (0.5)
9.5 (0.38)
22 ø
(0.875)
67 (2.625)
36 (1.438)
65 x 55
(2.63 x 2.16)
WIDE
ø16 (0.625)
1 (0.04)
OS-98202
2
