OMEGA OS-836-301 User guide

Page 1
TM
U
ser’s Guide
Shop online
omega.com
e-mail:
latest product manuals:
www.omegamanual.info
OS836-Series
High Performance Infrared Thermometer
Page 2
En
gineering Service: 1
-
800-872-9436 (USA & Canada only)
Headquarters:
Tel: (203) 359
-
1660
Fax: (203) 359
-
7700
alter specifications without
notice.
U.S.A.
Servicing North America:
Omega Engineering, Inc. 800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854
Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only)
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to
Page 3
Table of Contents
Table of Contents ............................................................................................................................................. 3
1) Introduction .............................................................................................................................................. 4
1.1 How it works ....................................................................................................................................................4
1.2 Caution ............................................................................................................................................................5
2) Specifications ............................................................................................................................................ 6
3) Operating Instructions ............................................................................................................................... 6
3.1 Battery Installation: .........................................................................................................................................6
3.2 Product Layout: ................................................................................................................................................7
3.3 Button Layout: .................................................................................................................................................7
3.4 Operating Steps ...............................................................................................................................................8
3.5 Button function ................................................................................................................................................8
3.5.1 Setting Mode ........................................................................................................................................................ 8
3.5.2 Changing temperature units ................................................................................................................................ 8
3.5.3 Adjusting Laser ..................................................................................................................................................... 8
3.5.4 Activating “SCAN LOCK” Mode ............................................................................................................................. 8
3.5.5 Adjusting Emissivity .............................................................................................................................................. 8
3.5.6 Adjusting High/Low Alarm .................................................................................................................................... 8
3.6 Locating a Hotspot: ..........................................................................................................................................8
4) Maintenance ............................................................................................................................................. 8
Page 4
1) Introduction
The OS836-Series high performance infrared thermometer boasts 30 to 1 field of view and -50 to 1550°C (-58 to 2822°F) temperature range. This high performance easy to use device is great for non-contact measurement of surfaces that are far away and very high temperatures. Just aim, line up the laser, push the button and read the surface temperature in less than a second. The OS836-Series is great for situations where the temperatures are so hot that being too close can become a hazard or the location that needs measuring is hard to reach. Applications such as food preparation, safety and fire inspection, plastic molding, molten metals, asphalt, oil, rubber, concrete and many more. The 30:1 field of view, or distance to spot ratio, allows for precise measurement even from a larger distance.
1.1 How it works
The sensor determines temperature by focusing the infrared energy that is radiated from an object. The focused energy is converted into an electrical signal proportional to the energy emitted. A clean line of sight free of dust or mist is needed between the sensor and the object. For increased ease and accuracy, the laser pointer makes aiming even more precise.
Measurement:
When taking measurement, point thermometer toward the object to be measured and hold the black trigger. The object under test should be larger than the spot size calculated by the field of view diagram below.
Field of View:

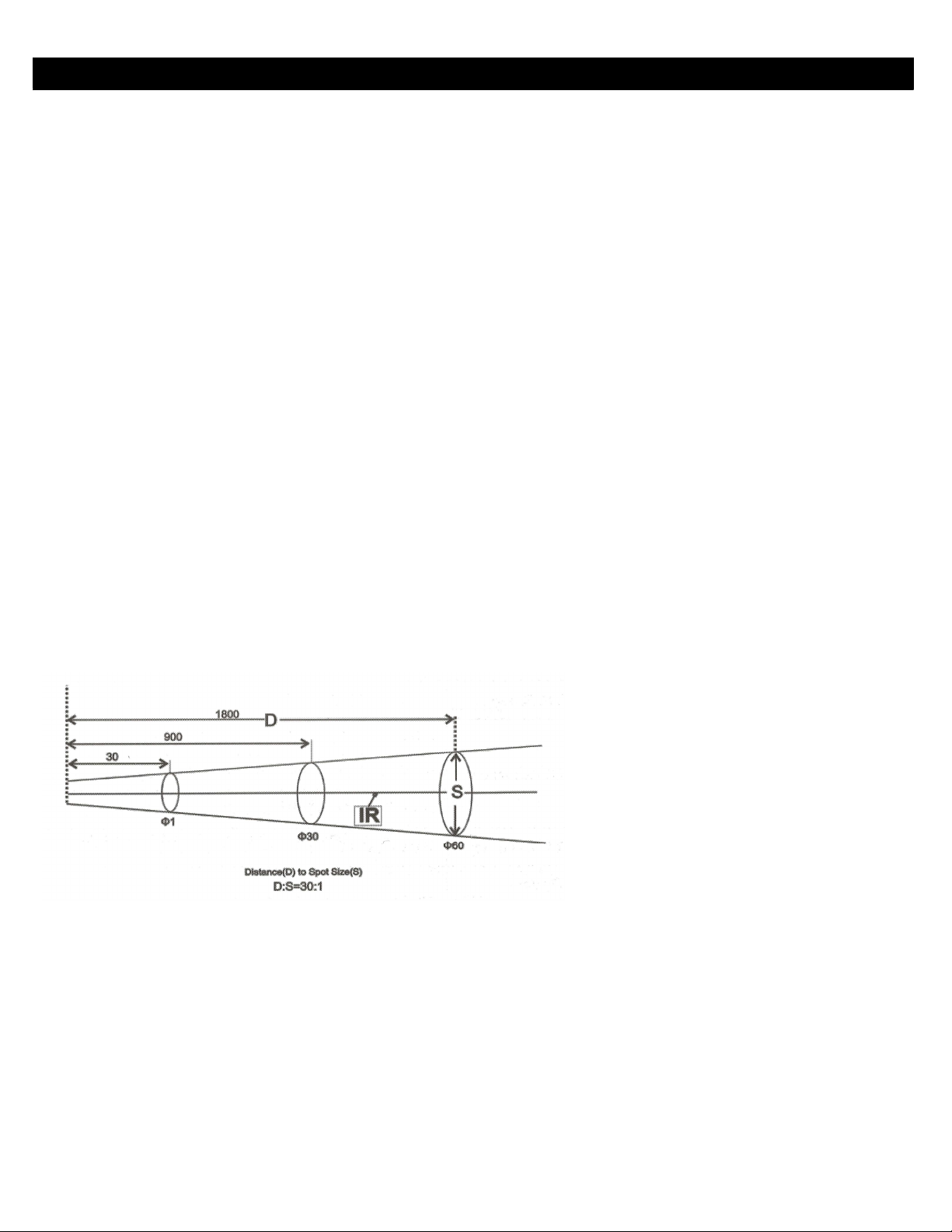

Field of view, or distance to spot ratio, is the size of an area that can be measured from a specified distance. As the distance from the object increases, the spot size of the measuring area becomes larger. Make sure the target is larger than the unit’s spot size. When accuracy is critical, make sure the target is at least twice as large as the spot size. Please see field of view diagram for the OS836-Series below.
*Units in mm
Emissivity:
Most organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cover the measured surface with masking tape of flat black paint. Measure the tape or painted surface when the tape or painted surface reaches the material temperature.
Page 5
Emissivity Table:
Material
Emissivity
Material
Emissivity
Aluminum
0.30 Iron 0.70 Asbestos
0.95 Lead
0.50 Asphalt
0.95 Limestone
0.98 Basalt
0.70 Oil 0.94 Brass
0.50 Paint
0.93 Brick
0.90 Paper
0.95 Carbon
0.85 Plastic
0.95 Ceramic
0.95 Rubber
0.95 Concrete
0.95 Sand
0.90 Copper
0.95 Skin 0.98 Dirt 0.94 Snow
0.90 Frozen Food
0.90 Steel
0.80 Hot food
0.93 Textiles
0.94 Glass (plate)
0.85 Water
0.93 Ice 0.98 Wood
0.94
1.2 Caution
Infrared thermometer should be protected for the following:
- EMF (electro-magnetic fields) from arc welders and induction heaters.
- Thermal shock (caused by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use).
- Do not leave the unit on or near objects of high temperature.

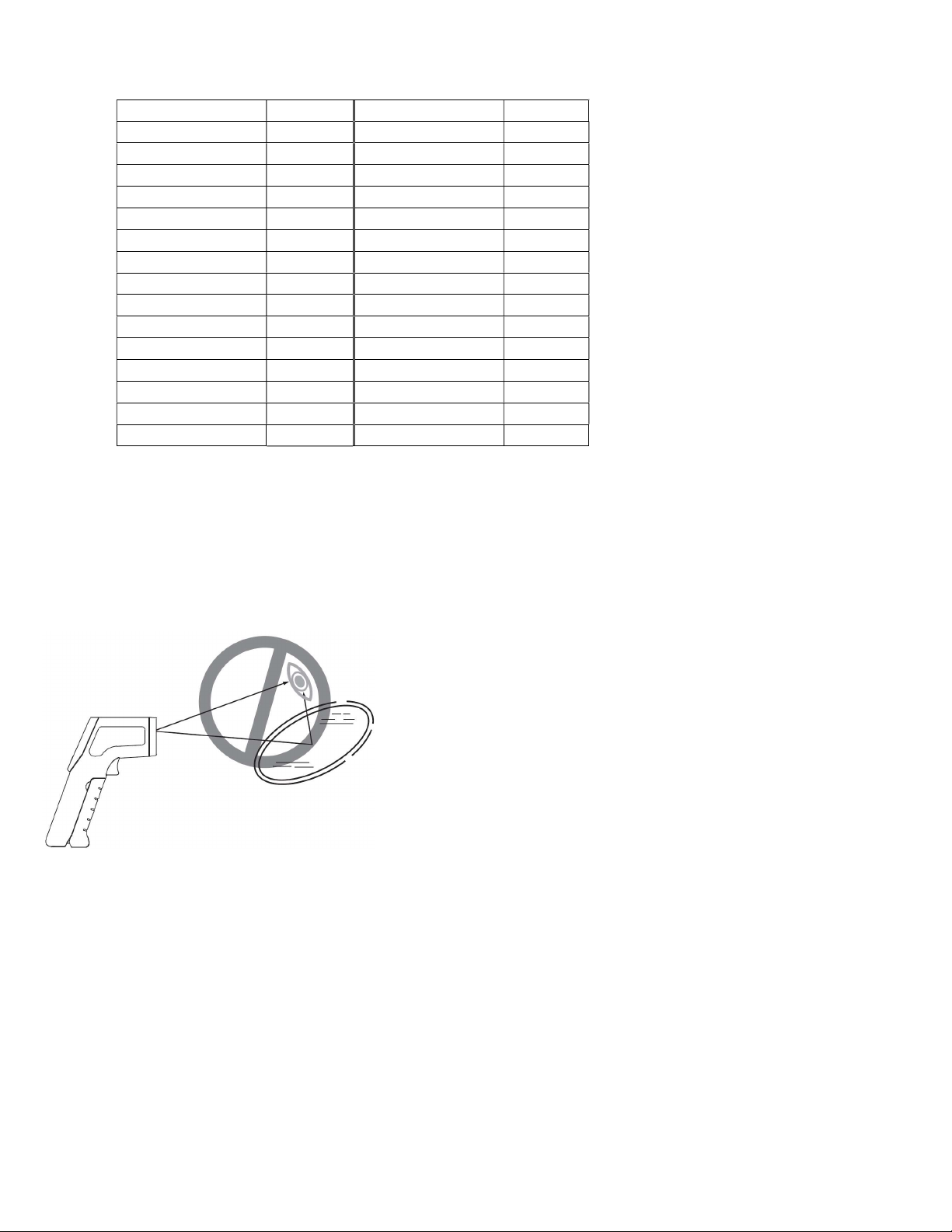

Warning: Do not point laser directly at eye or indirectly off reflective surfaces!
Page 6
2) Specifications
1
2 3
Temperature Range -50°C - 1550°C (-122°F - 2822°F) Thermocouple Range -50°C - 1370°C (-58°F - 2498°F) Accuracy ±4.0°C (7.2°F): -50°C - 0°C (-58°F - 32°F)
±1.5% ± 2.0°C (3.6°F): 0°C - 500°C (32°F - 932°F) ±2.0% ± 2.0°C (3.6°F): >500°C (932°F)
Thermocouple Accuracy ±1.5% or 2.0°C (3.6°F), whichever is greater Field of View 30:1 Repeatability 1% of reading or 1°C Response Time <250 ms (95% response) Spectral Response 8 – 14 µm Emissivity Adjustable emissivity 0.10 – 1.00 Operating Temperature Range 0 - 50°C (32 - 120°F) Relative Humidity 10 -90% RH, Storage <80% RH Storage Temperature -20 - 60°C (-4 - 140°F) Weight 286g Dimensions 7.80 x 4.72 x 2.32 in (198 x 120 x 59 mm) Record Memory 99 records Diode Laser Output < 1mW, 630-670nm, class 2 (II) Power 9V Battery Automatic Power Shutoff Automatic shutoff after 25 seconds Estimated Battery Life 16 Hours
3) Operating Instructions

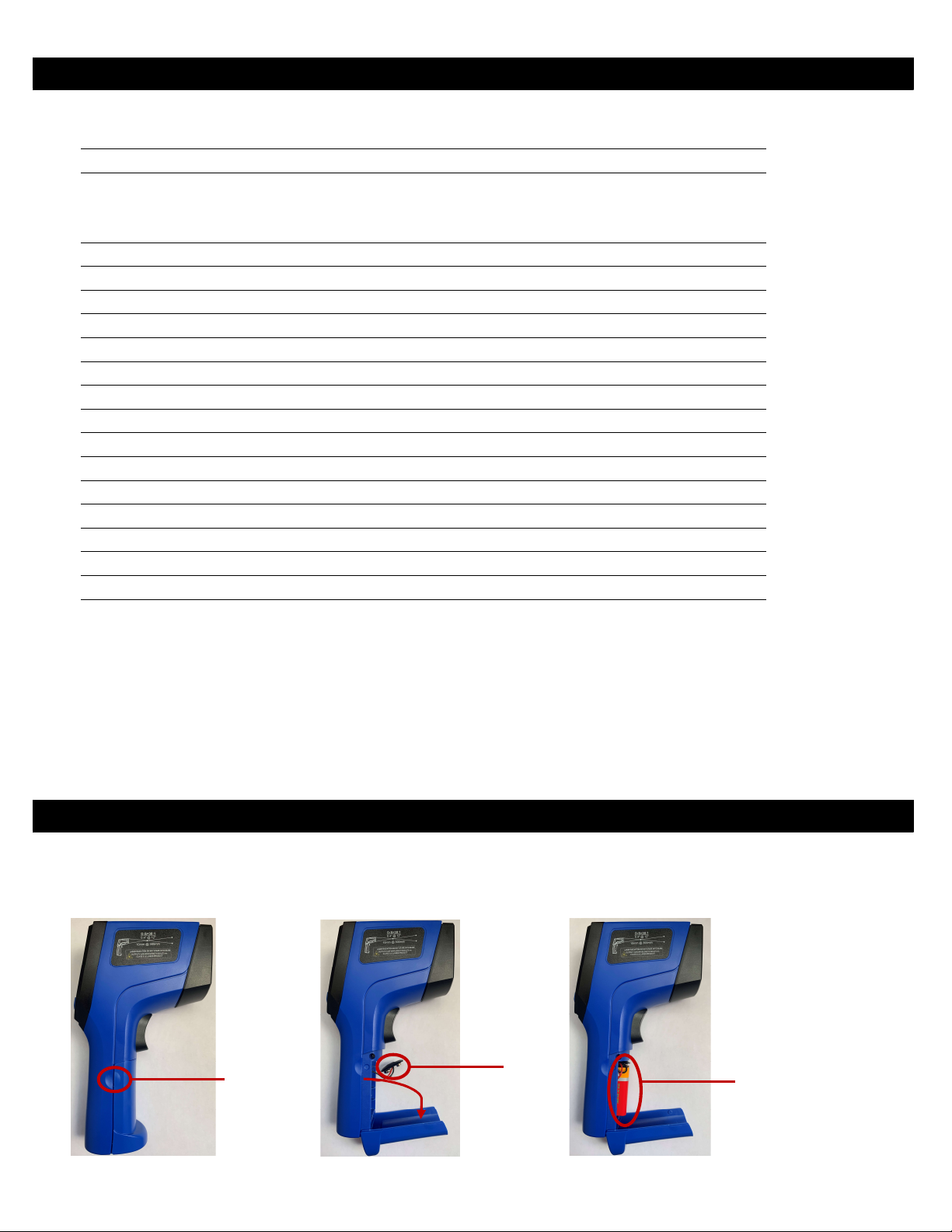

3.1 Battery Installation:
Pull open the battery compartment (1), connect 9V battery to the correct positive and negative terminals (2), place connected battery into battery compartment and close cover (3).
Page 7
8 1 2 3 4 5 14
13
12 11 10 9 7 6
1 2
3
4
5
6 7
8
9
10
11

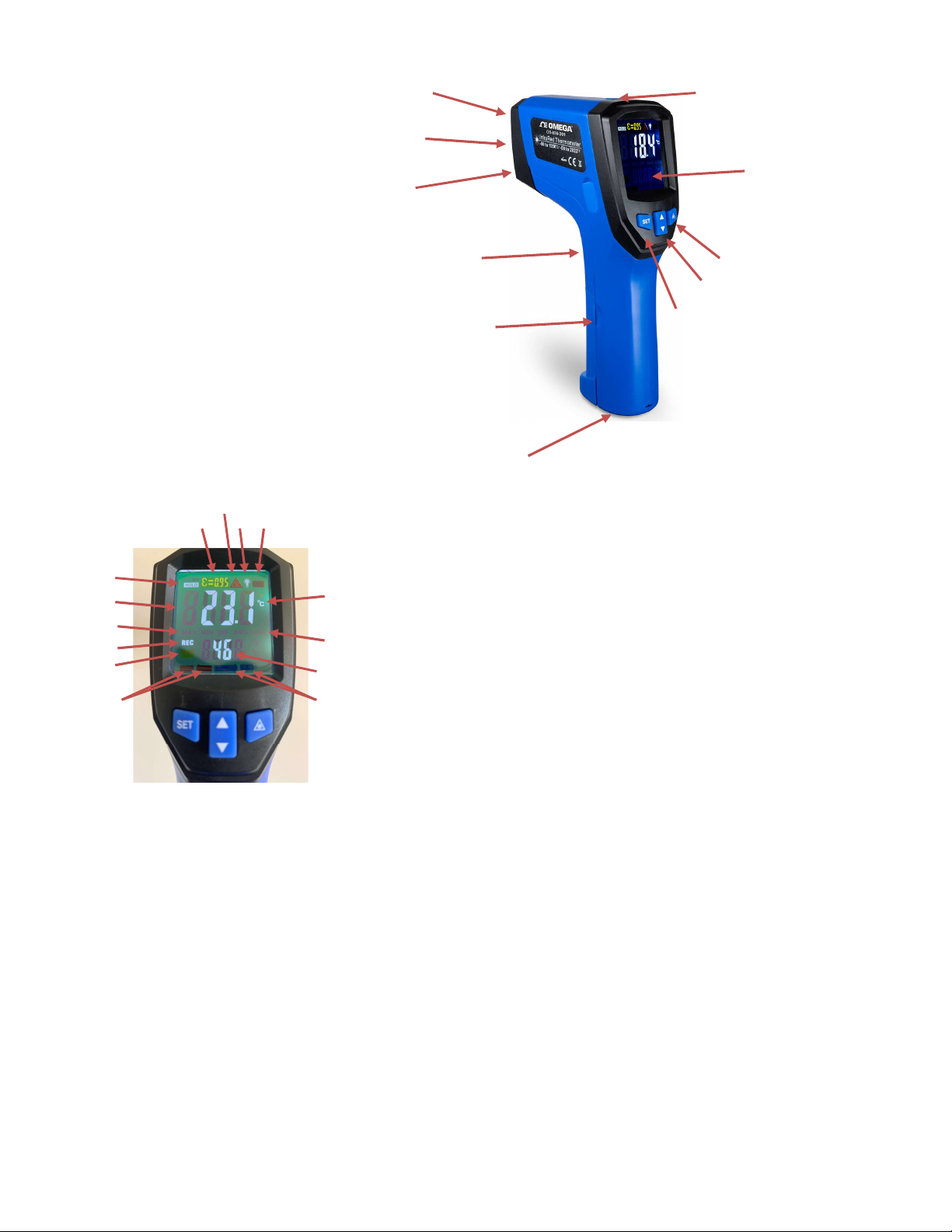

3.2 Product Layout:
1) Laser Pointer
2) IR Sensor
3) Laser Pointer
4) Measurement Trigger
5) Battery Cover
6) Tripod Mounting Hole (bottom of unit)
7) Up/Down Button
8) Laser On/Off
9) Set Button
10) LCD Display
11) K-type Probe Connection
3.3 Button Layout:
LCD Display:
1) Measurement Icon, Data Hold Icon
2) Current Temperature Values
3) Icon for MAX, MIN, DIF, AVG
4) Data Record Icon
5) Type-K Temperature Icon
6) High Alarm Icon
7) Low Alarm Icon
8) Temperature values for the MAX, MIN, DIF, AVG, HAL, LAL and REC
9) Trigger Lock Icon
10) Celsius (°C)/ Fahrenheit (°F) Icon
11) Low Battery Icon
12) Backlit Icon
13) Laser Icon
14) Emissivity
Page 8
3.4 Operating Steps
1) Hold the thermometer by the handle grip and point it towards the surface to be measured.
2) Pull and hold the trigger to turn the thermometer on, the “SCAN” icon will appear and blink when measurement starts.
3) The surface temperature being measured will be displayed on the LCD screen.
4) Release the trigger, the “HOLD” icon will appear and the reading will stay on the display screen.
5) The thermometer will automatically shut off 25 seconds after the trigger is released.
Note: If the thermometer is to be used in ambient temperature after a large temperature change wait 30 minutes for the thermometer to adjust to ambient temperature. The laser is designed for aiming only, it can be shut off while operating in shorter distances to save battery (Section 3.5.3).
3.5 Button function
3.5.1 Setting Mode
1) Press the “SET” key to cycle through the different modes.
2) In REC mode, press the “UP/DOWN” button to review the latest 99 records
3.5.2 Changing temperature units
1) In all other modes, press the “UP/DOWN” button to change temperature units. “UP” is Celsius and “DOWN” is Fahrenheit.
3.5.3 Adjusting Laser
1) While holding the trigger and activating “SCAN” mode, press the “LASER ON/OFF” button to toggle the dual laser pointer on and off.
3.5.4 Activating “SCAN LOCK” Mode
1) While holding the trigger and activating “SCAN” mode, hold the “LASER ON/OFF” button for 3 seconds to activate “LOCK” mode. This will lock the thermometer in “SCAN” mode.
2) Hold the “LASER ON/OFF” button for 3 seconds to deactivate “LOCK” mode.
3.5.5 Adjusting Emissivity
1) After turning on the unit, press and hold the “SET” button to access the “Є” emissivity mode. Use the “UP/DOWN” button to adjust emissivity to desired value.
2) Press and hold “SET” button until the “Є” stops blinking to exit emissivity mode.
3.5.6 Adjusting High/Low Alarm
1) Enter emissivity mode, press “SET” button to cycle to desired alarm. Once on desired alarm setting use “UP/DOWN” arrow to adjust alarm setting.
2) Press and hold “SET” button to exit emissivity/alarm setting mode
3.6 Locating a Hotspot:
To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot. (please turn on the laser for accurate measuring)
4) Maintenance
1) Lens cleaning : blow off loose particles using clean compressed air. Gently brush remaining debris away with a moist cotton cloth.
2) Case cleaning: clean the case with a damp sponge/cloth and mild soap.
Note: Do not use solvent to clean lens and do not submerge the unit into water or any other liquid.
