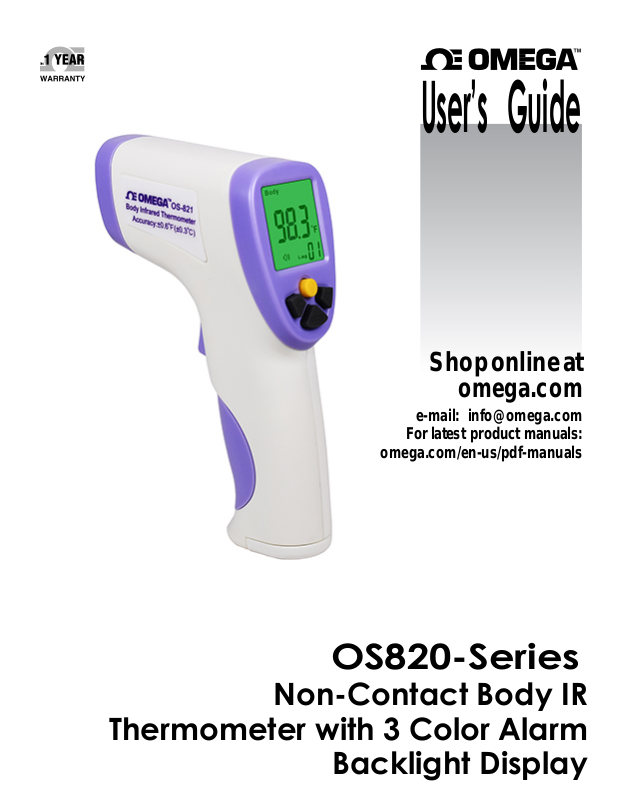

Page 1
User’s Guide
TM
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
omega.com/en-us/pdf-manuals
OS820-Series
Non-Contact Body IR
Thermometer with 3 Color Alarm
Backlight Display
Page 2
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: 800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3

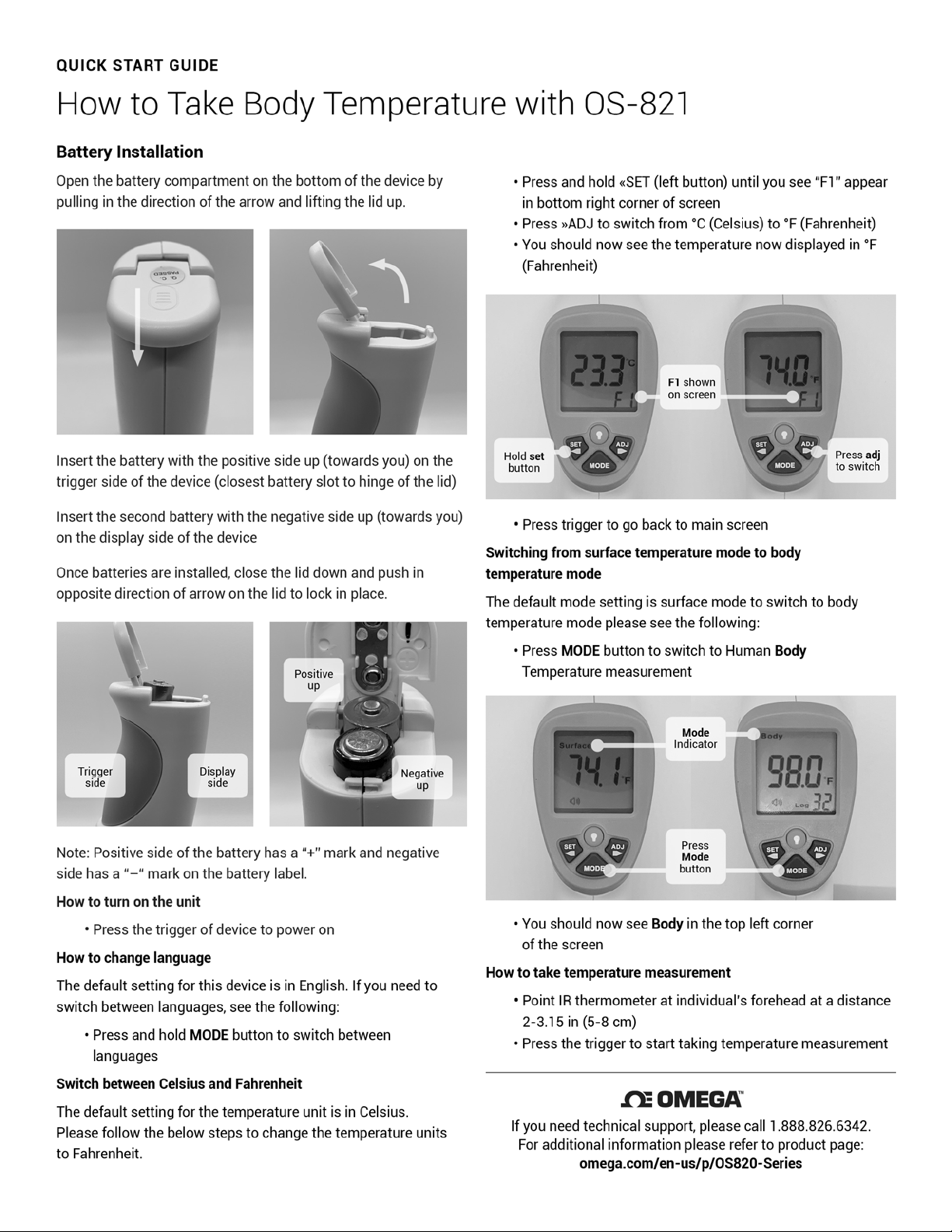

Page 4
Non-Contact Body IR Thermometer with 3 Color Alarm Backlight Display
14-140⁰F (-10-60⁰C
)
50-104⁰F (10-40⁰C)
Battery Voltage
2x AA
(1.5V x2) Batteries
, not
Pro
duct Weight
122g
Product Dimension
145 x
8
0 x 40 mm
2.
4.
5.
3. 7. 6.
8.
OS820-Series
User Manual
Features:
Two measurement modes: Human body
temperature and object surface
temperature
Data storage up to 34 temperature
records
3-color alarm backlight display: green,
orange and red

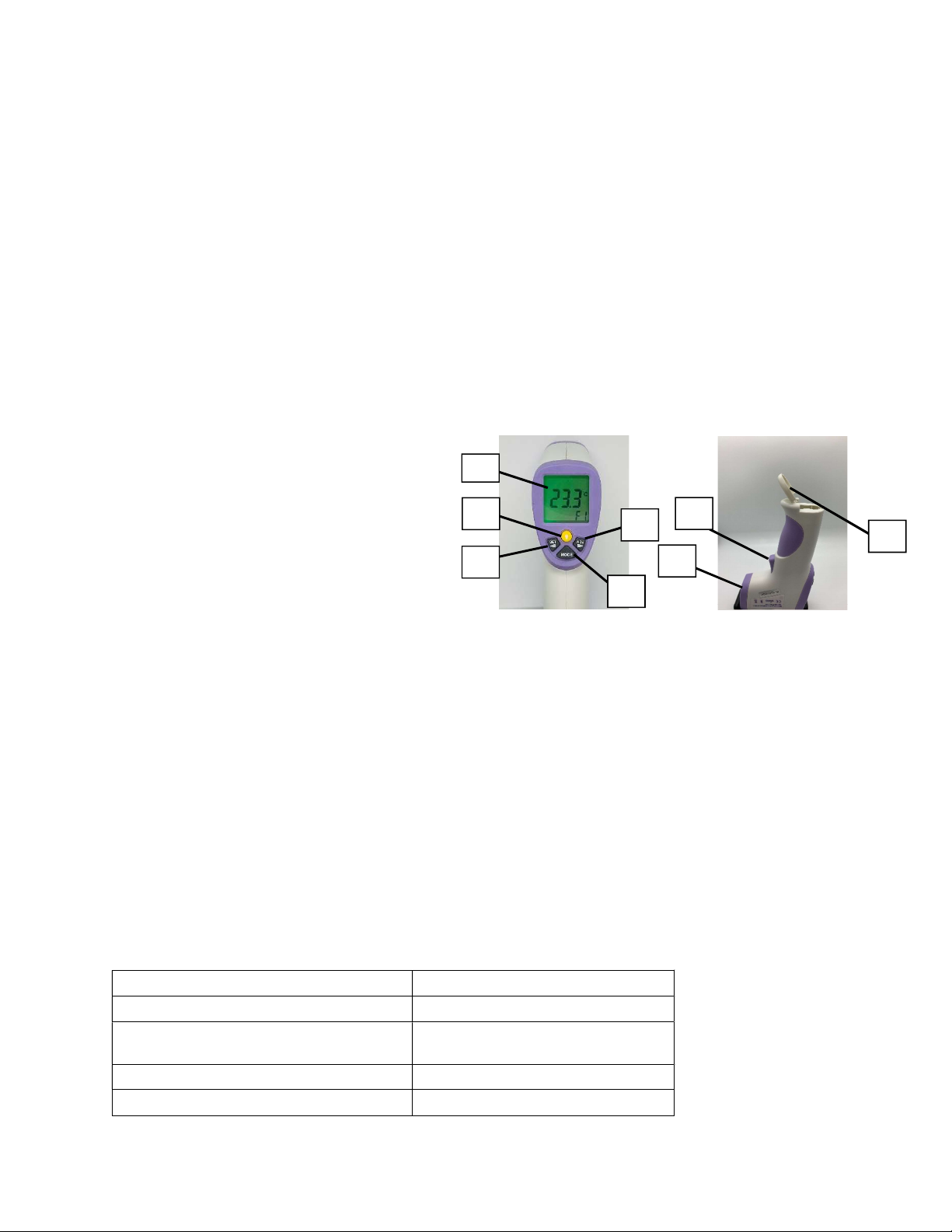

Product Description:
1. LCD Display: indicate measured
temperature
2. Backlight button: turn on/off backlight
(Hold to change)
3. Left Button: during the measurement
mode, page up the stored temperature
data records; activate the parameter
setting mode; or during the parameter
setting mode, navigate the settings
menu
4. Right Button: during the measurement
mode, page down the stored
temperature data records; or during the
parameter setting mode, adjust
parameters.
Product Introduction:
This product is a handheld non-contact infrared
thermometer, with two possible measurement
modes: human body temperature measurement
and object surface temperature measurement
modes. It features: temperature data storage
up to 34 records, high temperature alarming,
temperature range indication based on different
backlighting color, and auto shut-off.
5. Mode button: switch between
measurement modes or switch
between English and Chinese display.
6. IR sensor: point to the measuring object
during measurement
7. Trigger: start measurement and turn on
unit
8. Battery cover: open to change battery
Product Information:
Storage Temperature
Operating Temperature
included
Page 5

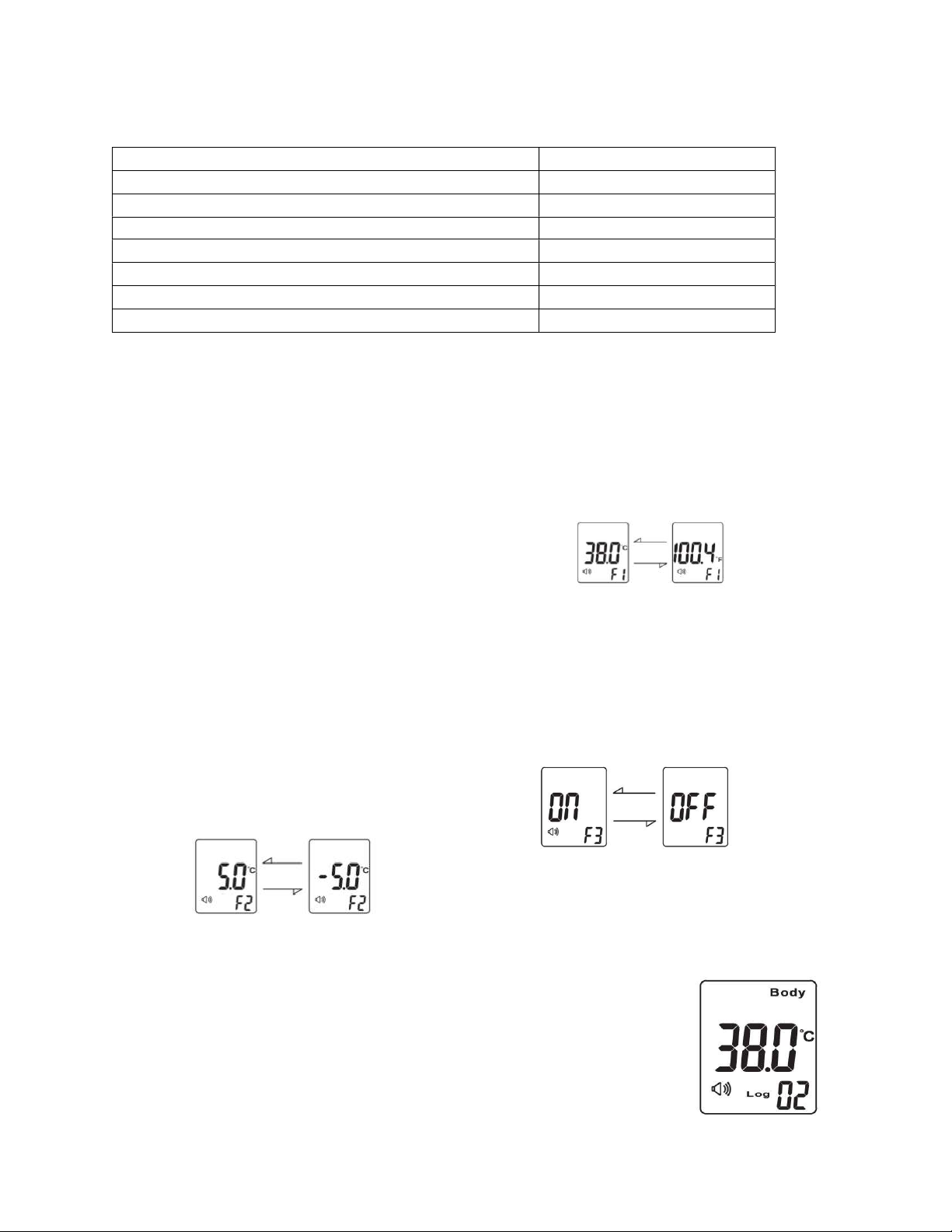

Technical Specification:
Human Body Temperature Measurement Range
89.6-10
8.5⁰F (32.0
-
42.5⁰C) Human Body Temperature Measurement Accuracy
±0.6⁰F (±0.3⁰C)
Object Surface Temperature
Measurement Range
32-
212⁰F (0-100⁰C)
Object Surface Temperature Measurement Accuracy
±1⁰
C (
±1.8⁰F)
Resolution
0.1⁰C (0.1
⁰F) Response Time
0.5s
Distance to Measuring object
1.9-3.2” (5-8 cm)
Auto shut
-
off 7s
Function Settings:
Press and hold «SET (left button) until you see
“F1” appear in bottom right corner of screen.
Press «SET (left button) to navigate between
the following setting menus: F1 (Unit) F2
(Temperature Offset) F3 (Audio On/Off)
Exit Setting Menu. See each setting section for
more details:
Temperature Offset Setting (F2)
With F2 Symbol showing in bottom right corner
of the display, press »ADJ (to increase) and
MODE (to decrease) to adjust the temperature
offset within the range of ±9⁰F ( ±5⁰C).
Note: This offset option only works for body
temperature mode.
Changing Temperature Units from C to F (F1)
Press and hold «SET (left button) until you see
“F1” appear in bottom right corner of screen.
While showing F1 Symbol in bottom right
corner of the display, press »ADJ to switch
between ⁰C and ⁰F.
Audio ON/OFF Setting (F3)
With F3 Symbol showing in bottom right corner
of the display, press »ADJ to turn on/off audio.
During the parameter setting mode, press the
trigger to directly exit from the setting mode.
Mode Switch
Press MODE button to switch between Human Body Temperature measurement
and Surface Temperature Measurement modes.
Press and hold MODE button to switch between display languages.
Page 6

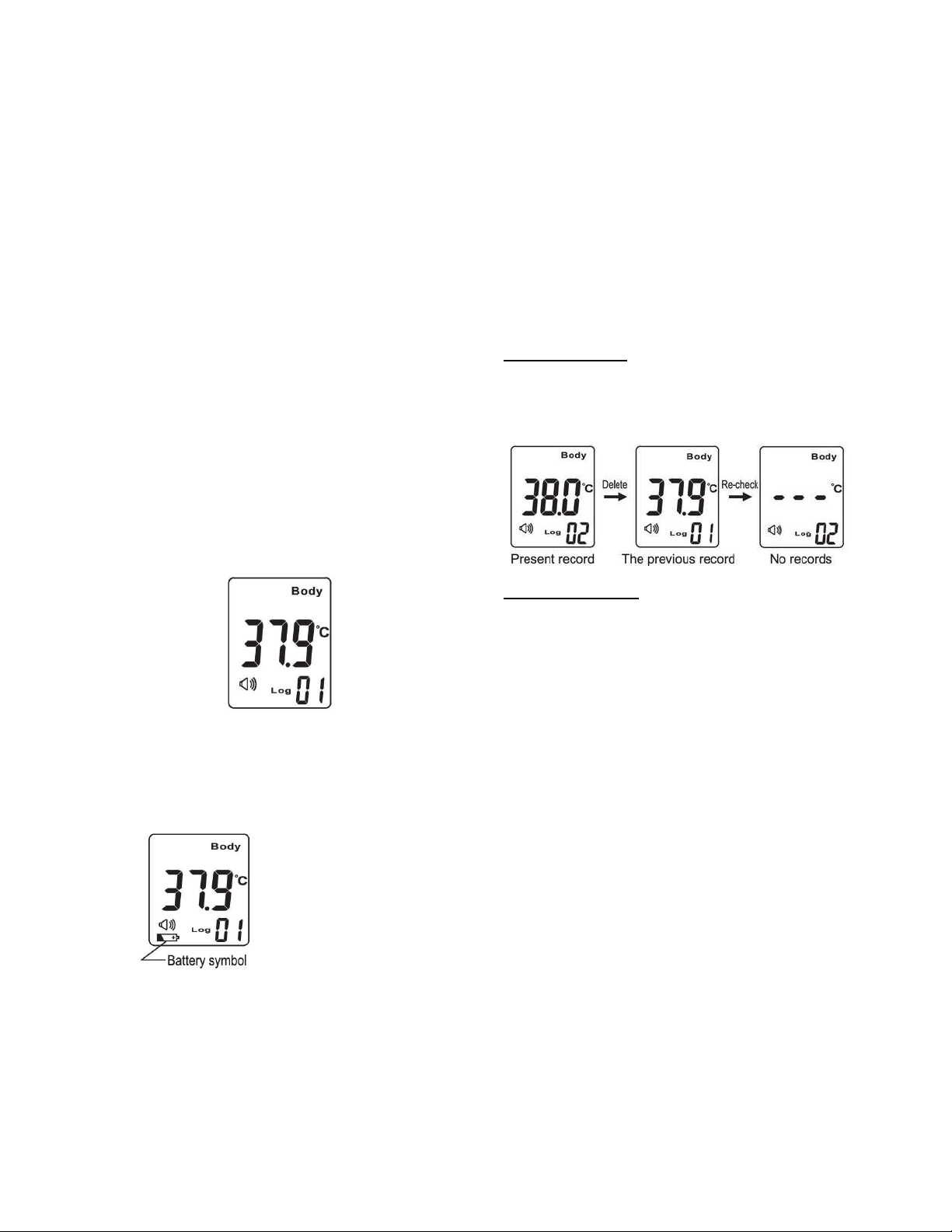

Temperature Measurement
Surface temperature measurement mode:
Point to the measuring object at a range of 1.9-
3.2” (5-8 cm) and press the trigger to begin the
measurement. The display screen will display
the temperature immediately within the
response time.
Body temperature measurement mode:
Press the trigger button once to take one
measurement. The number on the button left
corner shows the record number. The backlight
color indicates the different temperature range
as follows:
Green: Below 99.5⁰F (37.5⁰C)
Orange: 99.5-100.4⁰F (37.5⁰C-38⁰C)
Red: Above 100.4⁰F (38⁰C)
Keeping the trigger pressed, the display will
indicate the object surface temperature live
with green backlight.
Data Record Management:
View Data Record
Press «SET (left button) and use »ADJ (right
button) to page up and down among the data
records.
Delete Data Record
Press and hold »ADJ (right button) to delete the
current data record. If the audio is on, the
device will beep once.
Battery installation and replacement
When the battery is running low, the screen will display a battery symbol at bottom left corner.
Page 7
Precautions before first use
1. Install batteries before use
2. Before first use, warm up the device for about 10 minutes before installing the battery.
3. When using it for body temperature measurement point thermometer at the forehead. This is a
non-contact thermometer and the suggested measuring distance to the forehead is 2” (5 cm).
Press the trigger once to take one temperature measurement. Tip: temperature can also be
measured at an earlobe.
4. When measuring body temperature, please make sure there are no obstacles between the IR
sensor and forehead skin, e.g., move hair or sweat if obstructing measurement.
Warnings
The glass protector in front of the IR sensor is a critical but very fragile element of the device.
Use cotton and 70% rubbing alcohol for cleaning.
Please only use qualified battery. Do not charge batteries that are not rechargeable.
Do not use the thermometer under the sun or under water.
Maintenance
Please follow the instruction manual for troubleshooting. If the issue is not listed in the
manual, please contact our customer support.

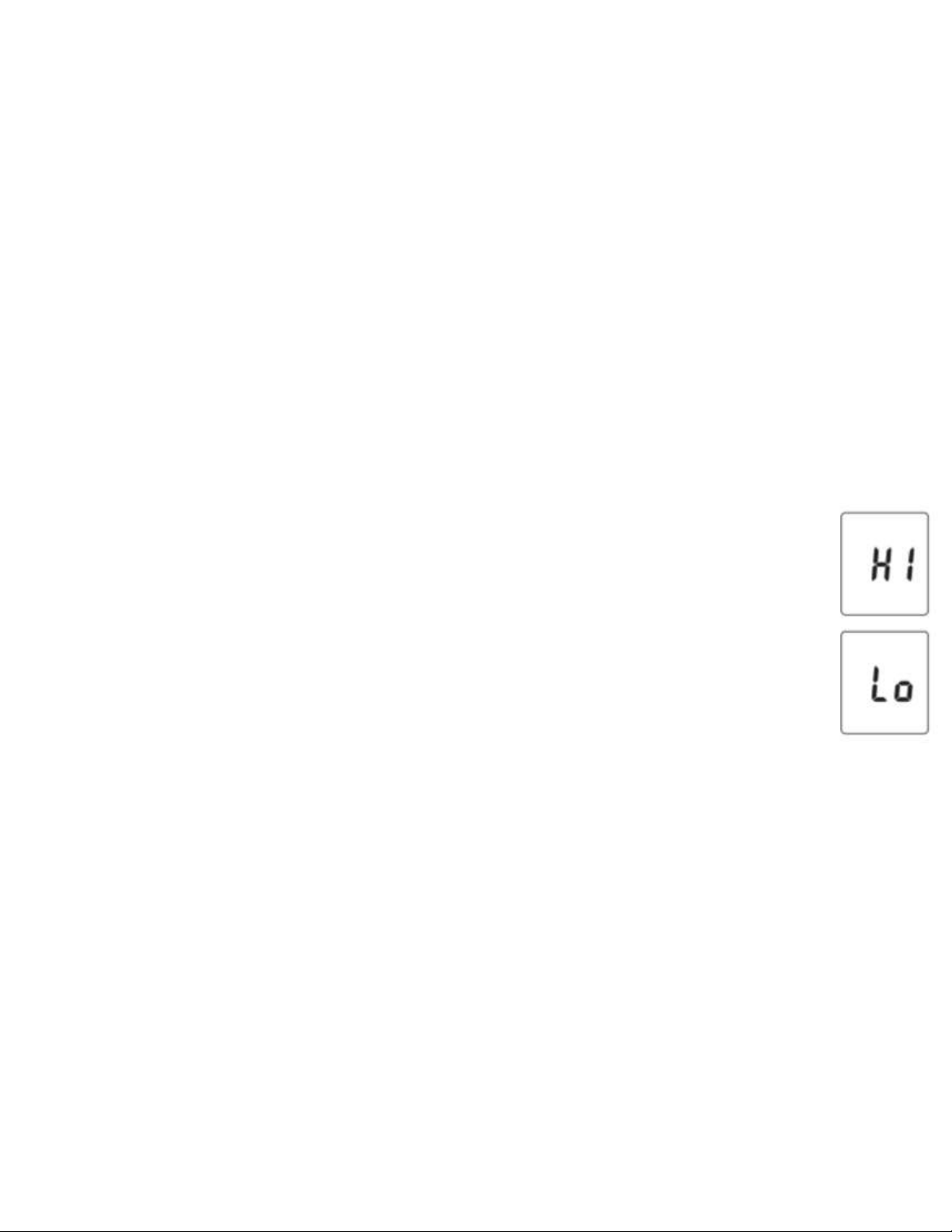

Warning sign “HI”
When using the thermometer for measuring body temperature, the “HI” warning sign may
come on. The warning sign indicates the temperature measured exceeds the maximum
allowed threshold 108.5⁰F (42.5⁰C).
Warning sign “LO”
When using the thermometer for measuring body temperature, the “LO” warning sign may
come one. The warning sign indicates the temperature measured exceeds the minimum
allowed threshold 89.6⁰F (32.0⁰C).
Troubleshooting
When using the thermometer in body temperature mode, if a “HI” or “Lo” warning sign is
displayed and it is suspected that the temperature is incorrect please follow these steps:
1.) Switch to surface temperature mode, measure temperature of any surface.
2.) If the temperature looks correct, then go to menu (F2).
3.) Check the offset, the offset should be set to 0⁰C (0⁰F).
4.) If offset not set to 0⁰C (0⁰F), then set offset to 0⁰C (0⁰F).
5.) Switch back to body temperature mode and measure body temperature again, body
temperature should now be accurate.
