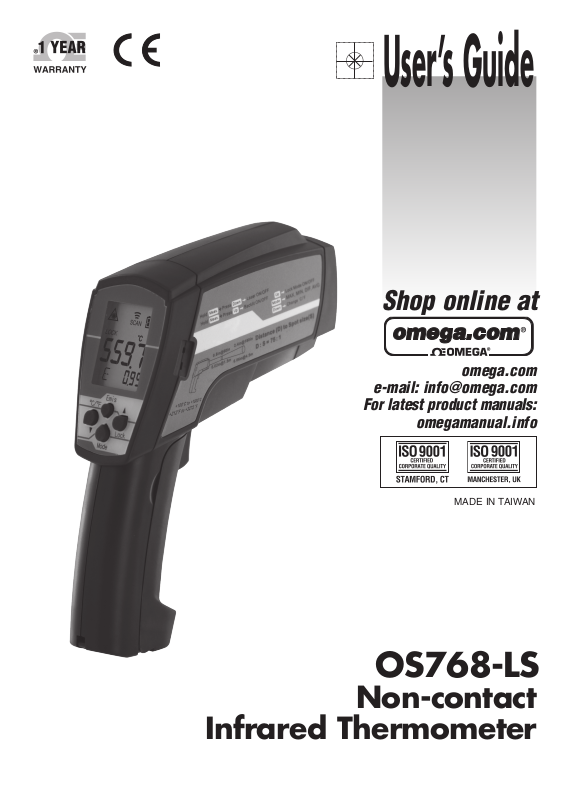

Omega OS768-LS User guide

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

MADE IN TAIWAN

OS768-LS

Non-contact

Infrared Thermometer

OS768-LSTThheerrmmoommeetteerr OOppeerraattiinngg IInnssttrruuccttiioonnss

Press Emissivity key (

), then press Up key (

) or Down key (

) to set the emissivity, then press Mode key (

) to confirm it. The

emissivity can be changed from 0.10 (10E) to 1 (100E).

Connect the thermocouple with Thermocouple socket (

) and put the probe in/on the target, the thermometer will display the

After measure high temp, the probe may remain HOT for a while.

After taking the temperature, press Mode key (

) for the Memory (M00), then press Meas. key (

) to save the measurement. Under

Up key (

), then press the Down key (

) for 2 seconds to clear the records.

Press Up key (

) for LOCK mode ON/OFF. The lock mode is particularly useful for continuous monitoring of

temperatures for up to 60 minutes.

Press Down key (

) for oC or oF transferred.

and press Down key (

) for laser function ON/OFF.

(With flash light be turned on in the same time as laser )

OS768-LS

For Model with thermocouple socket

The non-contact infrared thermometer is the ultimate tool for temperature measurements. It can measure from 100 to 1800 oC (212~3272 oF) in the
distance of 75:1 DS (Distance to Spot) ratio. Furthermore, the memory mode can record and display the specific measurement with emissivity. There are
many mathematical modes for the Infrared function.
* Please remember to keep away from children and don’t use it for safety related applications.

Simply aim the thermometer at the measure target with Lens (○11) and press Meas. key (○8) to display the surface temperature. The

Distance:Spot is 75:1. The two laser points are the reference for the target spot size. Please make sure the target area is within the field of view.

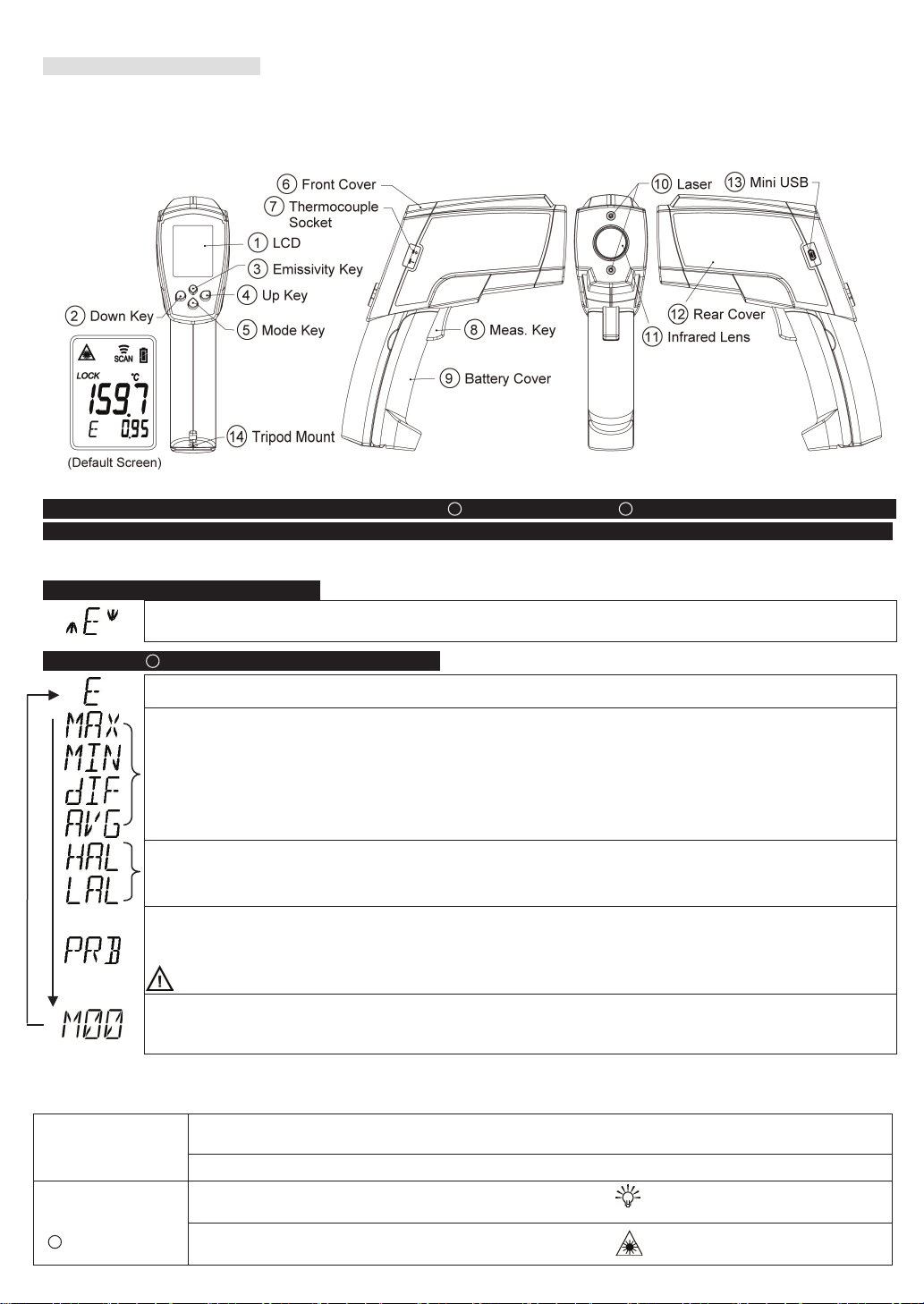

FUNCTION

Press Emissivity key (○3) for setting the emissivity

3

○

○

4

○

2

○

5

Press Mode key (○5) for scrolling more display function as follows.

Here will show the emissivity data. (The default emissivity is 0.95.)

Press Mode key (○5) for the Maximum (MAX), Minimum (MIN), Different between MAX and MIN (DIF) and Average (AVG) modes.
During the measurement, the special modes reading will be displayed beside the mode icon.

Press Up key (○4) or Down key (○2) to change the High Alarm (HAL) or Lo Alarm (LAL), then press Meas. key (○8) to confirm it.
When the reading is outside the High Alarm (HAL) or Lo Alarm (LAL) limit. The High or Low icon will flash and you will hear a beep
sound.

7

○

temperature automatically without pressing any button. To see the minimum or maximum data during the probe measurement, please

4

hold down the Up key (○

the Memory (M00) , press Up key (○4) or Down key (○2) key to display the record up to 24 sets. In “Memory” mode, press and hold the

○

4

) or Down key (○2).

2

○

○

5

○

8

** The thermometer will automatically shut off if left idle for more than 60sec, unless in PRB mode. (In PRB mode, it will shut off if left idle for more than 12
minutes.)

ADD VALUE

4

○

In MAX, MIN, DIF, AVG
mode:

○

2

4

In all modes: First
hold on the Meas. key

8

(○

)

and press Up key (○

) for backlight function ON/OFF

2

○

Ref.No.：022015

‘Er2’ is displayed when the thermometer is exposed to rapid changes in the ambient temperature. ‘Er3’ is displayed

time (minimum 30 minutes) to stabilize to the working/room temperature.

‘Battery OK’:

measurements are possible

‘Battery Low’: battery needs to be

replaced, measurements are still possible

‘Battery Exhausted’:

measurements are not possible

Thermocouple Probe Scan function
(K type; a bead wire included.)

K Type: -64 to +1400°C (-83.2 to +2552°F)
Bead : -50 to +250°C(-58 to +482°F)

Operating Range

Emissivity Range

USB Function

Please download the program from CD ( enclosed with the package)

Battery Life

Typ.100, min70 hours continuous use (Alkaline, without Laser and Back Light.)

Weight

355 grams(12.52 oz) including batteries (AAA*2pcs)

CAUTION

1. WHEN DEVICE IS IN USE, DO NOT LOOK DIRECTLY INTO THE TWO LASER BEAMS–PERMANENT EYE DAMAGE MAY RESULT.

2. USE EXTREME CAUTION WHEN OPERATING THE LASER.

3. NEVER POINT THE DEVICE TOWARDS ANYONE’S EYES.

4. KEEP OUT OF REACH OF ALL CHILDREN.

STORAGE & CLEANING

It should be stored at room temperature. The sensor lens is the most delicate part of the thermometer. The lens should be kept clean at all times, care
should be taken when cleaning the l

ens using only a soft cloth or cotton swab with water or medical alcohol. Allowing the lens to fully dry before using the

thermometer. Do not submerge any part of the thermometer.

LCD ERROR MESSAGES

The thermometer incorporates visual diagnostic messages as follows:

‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the settings of HAL and LAL.

「

」 「 」

when the ambient temperature exceeds 0oC (32°F) or +50oC (122°F). The thermometer should be allowed plenty of

Error 5~9, for all other error messages it is necessary to reset the thermometer. To reset it, wait for auto power off,

「 」

「

」「 」

remove the battery and wait for a minimum of one minute, reinsert the battery and turn on. If the error message
remains please contact the Service Department for further assistance.

‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the measurement range.

BATTERIES
The thermometer incorporates visual low battery indication as follows:

When the ‘Low Battery’ icon indicates the battery is low, the battery should be replaced immediately with AAA x 2 batteries.

Please note: It is important to turn the instrument off before replacing the battery otherwise the thermometer may malfunction.

Dispose of used battery promptly and keep away from children.

SPECIFICATION

Item Non-contact Infrared Scan function

Measurement Range

100 to +1800

o

C (212 to +3272 oF)

0 to +50°C (32 to +122°F)

Accuracy (Tamb=23±3°C)

±2% of reading

±1% of reading or 1°C (1.8°F) whichever is
greater (Test under Tamb=23±6°C)

0.95 default – adjustable 0.1 to 1 step .01

Resolution

0.1°C/0.1°F at -83.2 to 999.9(°C/°F), otherwise 1°C/1°F

Response Time (90%) 1 sec.

Distance:Spot

Memory

75:1

Detailed 24 Memories with Temperature & Emissivity

Dimensions

204.14*179.19*58.40 mm (8.04×7.05×2.30 inch)

EMC/RFI: Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of approximately 3 volts per meter,

but the performance of the instrument will not be permanently affected.

It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of
its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of
purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover
handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return
(AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or
replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to
mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if
the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current,
heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control.
Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any
omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information pro­vided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and
free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR
IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth here­in are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemni­fication, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event
shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC),
used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with
any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any
liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
