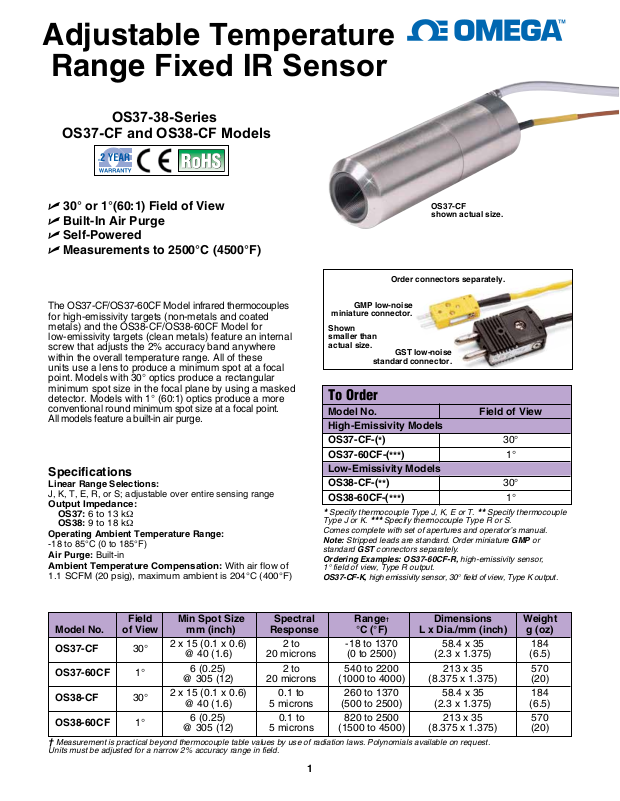

Page 1
Adjustable Temperature
Range Fixed IR Sensor
OS37-38-Series
OS37-CF and OS38-CF Models
U 30° or 1°(60:1) Field of View
U Built-In Air Purge
U Self-Powered
U Measurements to 2500°C (4500°F)
The OS37-CF/OS37-60CF Model infrared thermocouples
for high-emissivity targets (non-metals and coated
metals) and the OS38-CF/OS38-60CF Model for
low-emissivity targets (clean metals) feature an internal
screw that adjusts the 2% accuracy band anywhere
within the overall temperature range. All of these
units use a lens to produce a minimum spot at a focal
point. Models with 30° optics produce a rectangular
minimum spot size in the focal plane by using a masked
detector. Models with 1° (60:1) optics produce a more
conventional round minimum spot size at a focal point.
All models feature a built-in air purge.
Specifications
Linear Range Selections:
J, K, T, E, R, or S; adjustable over entire sensing range
Output Impedance:
OS37: 6 to 13 kΩ
OS38: 9 to 18 kΩ
Operating Ambient Temperature Range:
-18 to 85°C (0 to 185°F)
Air Purge: Built-in
Ambient Temperature Compensation: With air flow of
1.1 SCFM (20 psig), maximum ambient is 204°C (400°F)

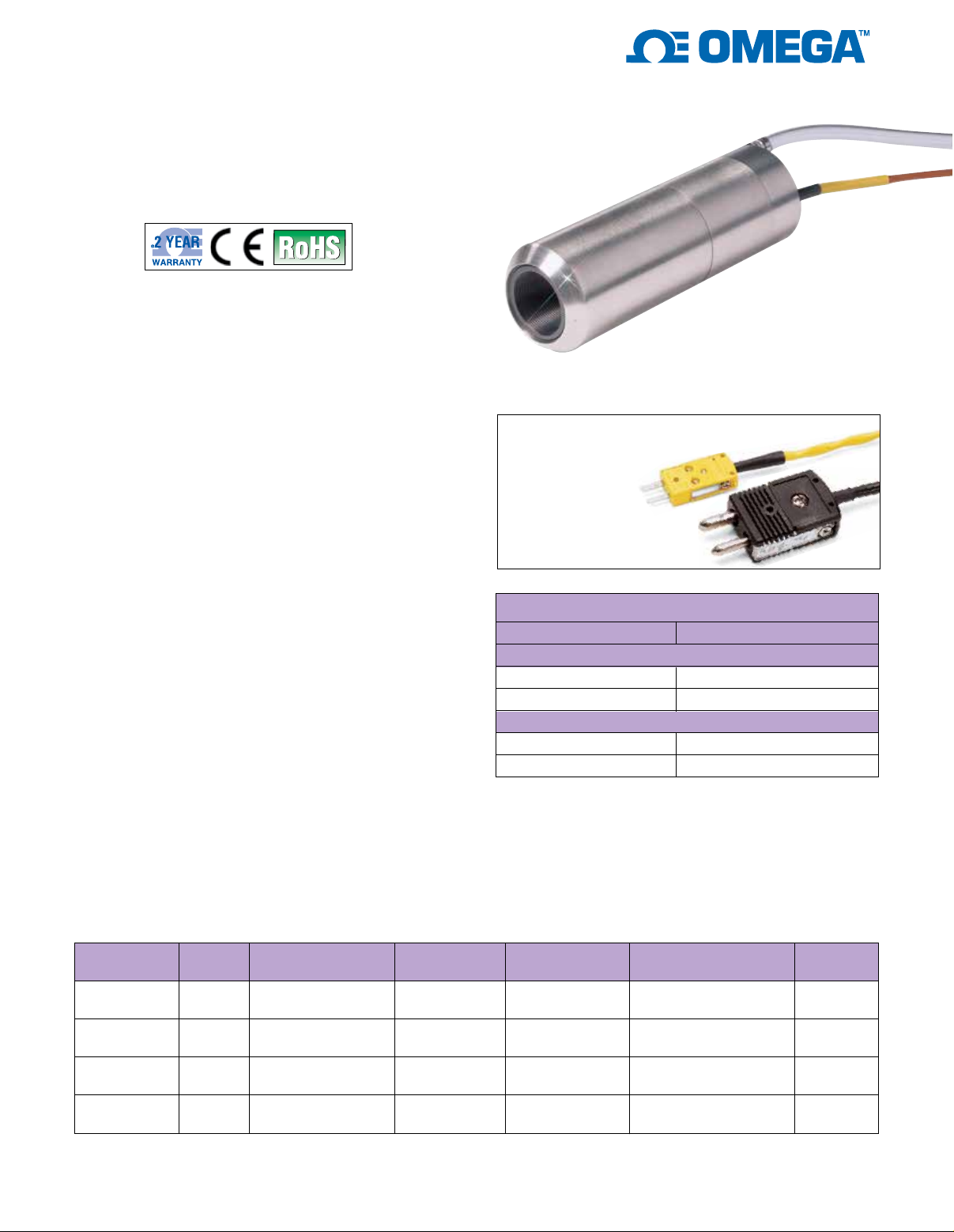

OS37-CF
shown actual size.
Order connectors separately.
GMP low-noise
miniature connector.
Shown
smaller than
actual size.
GST low-noise
standard connector.
To Order
Model No. Field of View
High-Emissivity Models
OS37-CF-(*) 30°
OS37-60CF-(
Low-Emissivity Models
OS38-CF-(**) 30°
OS38-60CF-(
Specify thermocouple Type J, K, E or T. ** Specify thermocouple
*
Type J or K.
Comes complete with set of apertures and operator’s manual.
Note: Stripped leads are standard. Order miniature GMP or
standard GST connectors separately.
Ordering Examples: OS37-60CF-R, high-emissivity sensor,
1° field of view, Type R output.
OS37-CF-K, high emissivity sensor, 30° field of view, Type K output.
***
) 1°
***
) 1°
***
Specify thermocouple Type R or S.
Field Min Spot Size Spectral Range† Dimensions Weight
Model No. of View mm (inch) Response °C (°F) L x Dia./mm (inch) g (oz)
OS37-CF 30°
@ 40 (1.6) 20 microns (0 to 2500) (2.3 x 1.375) (6.5)
OS37-60CF 1°
@ 305 (12) 20 microns (1000 to 4000) (8.375 x 1.375) (20)
OS38-CF 30°
@ 40 (1.6) 5 microns (500 to 2500) (2.3 x 1.375) (6.5)
OS38-60CF 1°
@ 305 (12) 5 microns (1500 to 4500) (8.375 x 1.375) (20)
† Measurement is practical beyond thermocouple table values by use of radiation laws. Polynomials available on request.
Units must be adjusted for a narrow 2% accuracy range in field.
2 x 15 (0.1 x 0.6) 2 to -18 to 1370 58.4 x 35 184
6 (0.25) 2 to 540 to 2200 213 x 35 570
2 x 15 (0.1 x 0.6) 0.1 to 260 to 1370 58.4 x 35 184
6 (0.25) 0.1 to 820 to 2500 213 x 35 570
1
Page 2
Adjustable Temperature
Range, Fixed IR Sensor
Connect yout OS37-38-Series
sensor to one of our reliable
OS37-38-Series
OS37 and OS38 Models
U 10:1, 20:1, or 100:1
Optics Available
U Built-In Air Purge
U J or K Thermocouple
Output Signal; R Type
for 100:1 Models
U Self-Powered
U Temperature Compensated
U Measurements to
2760°C (5000°F)

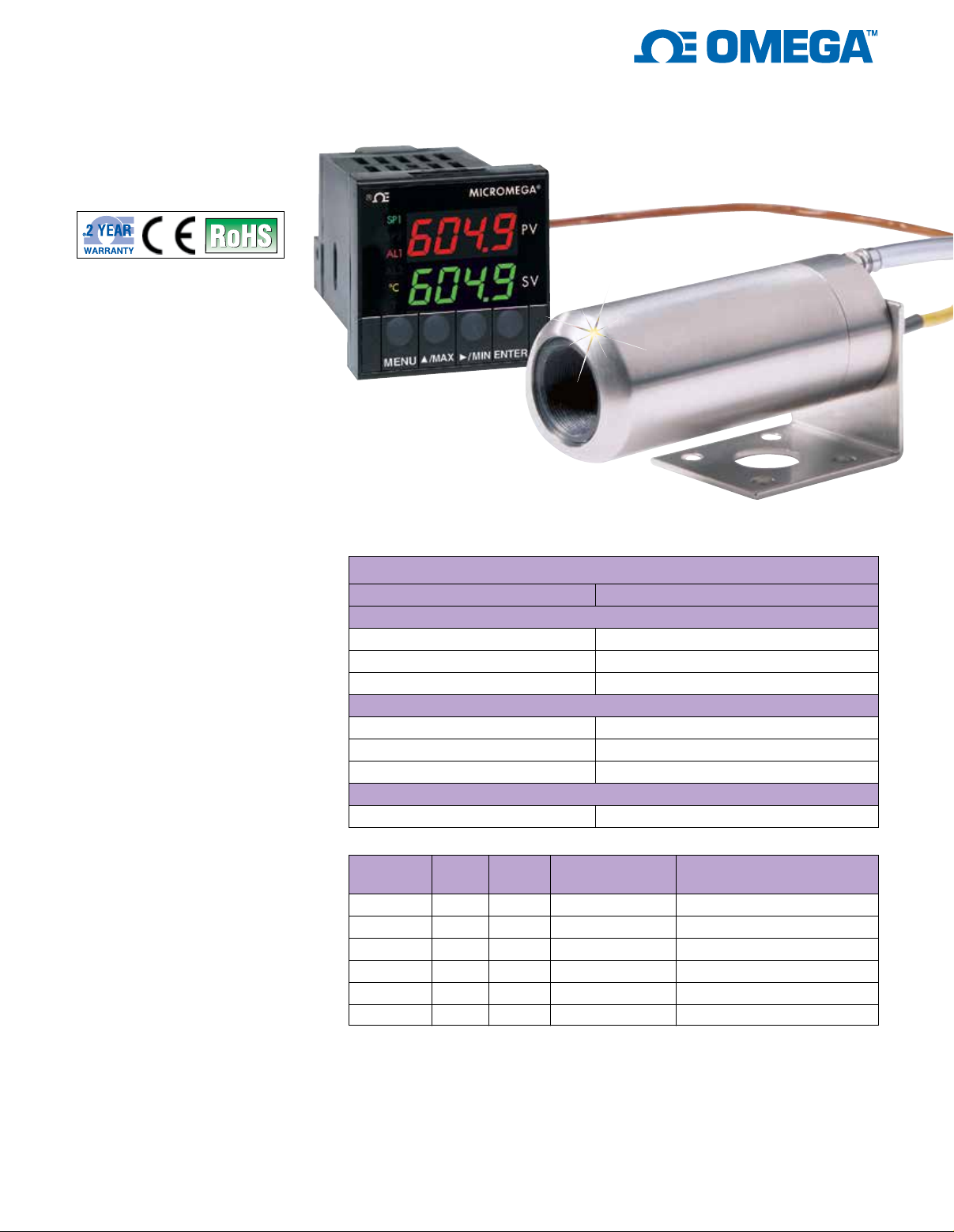

precision controller.
www.omega.com/c/controllers
OS37-10-K shown smaller
than actual size.
The OS37 Model infrared
thermocouples for high-emissivity
targets (non-metals and coated
metals) and OS38 Model lowemissivity units (clean metals)
feature an internal screw that
adjusts the 2% accuracy band
anywhere within the overall
temperature range. Both series
are available in 10:1, 20:1, or
100:1 optics. All models have
a built-in air purge collar that
conveniently and efficiently
maintains optical cleanliness in
harsh environments.
Specifications
Accuracy: 2%
Linear Range Selections: J, K or R;
adjustable over entire sensing range
Spectral Response:
OS37: 2 to 20 microns
OS38: 0.1 to 5 microns
Output Impedance:
OS37: 6 to 13 kΩ
OS38: 9 to 18 kΩ
Operating Ambient Temperature
Range: -18 to 85°C (0 to 185°F)
Air Purge: Built-in
Ambient Temperature
Compensation: With air flow of
1.1 SCFM (20 psig), maximum
ambient is 204°C (400°F)
Dimensions:
Length: 8.48 cm (3.34"), 10:1 optics;
10.54 cm (4.25"), 20:1 optics;
26.67 cm (10.5"), 100:1 optics
Diameter: 3.49 cm (1.375")
Weight: 184 g (6.5 oz), 10:1 optics;
230 g (8 oz), 20:1 optics;
570 g (20 oz), 100:1 optics
OS36-MB2 mounting bracket
sold separately.
To Order
Model No. Field of View
High-Emissivity Models
OS37-10-(*) 10:1
OS37-20-(*) 20:1
OS37-100-R 100:1
Low-Emissivity Models
OS38-10-(*) 10:1
OS38-20-(*) 20:1
OS38-100-R 100:1
Accessory
OS36-MB2 Mounting bracket
Field Min Spot
Model No. Optics of View Size: mm (inch) Range† °C (°F)
OS37-10 10:1 6° 13 (0.5) -45 to 1370 (-50 to 2500)
OS37-20 20:1 3° 6 (0.25) 260 to 1650 (500 to 3000)
OS37-100 100:1 0.6° 20 (0.8) 540 to 2760 (1000 to 5000)
OS38-10 10:1 6° 13 (0.5) 260 to 1370 (500 to 2500)
OS38-20 20:1 3° 6 (0.25) 540 to 1930 (1000 to 3500)
OS38-100 100:1 0.6° 20 (0.8) 820 to 2760 (1500 to 5000)
† Measurement is practical beyond thermocouple table values by use of radiation laws.
Polynomials available on request. Units must be adjusted for a narrow 2% accuracy
range in field.
Specify thermocouple Type J or K.
*
Comes complete with set of apertures and operator’s manual.
Note: Stripped leads are standard. Order miniature GMP or standard GST connectors
separately.
Ordering Examples: OS38-10-K, low-emissivity sensor, 10:1 optics.
OS37-10-K, high-emissivity sensor, 10:1 optics, Type K.
2
