Page 1
OS-310-501
Temperature Range
Accuracy
Field of
V
iew
Repeatability
Response Time
Spectral Response
Emissivity
Operating
R
ange
Relative
Humidity
Storage Temperature
Weight
Dimensions
Power

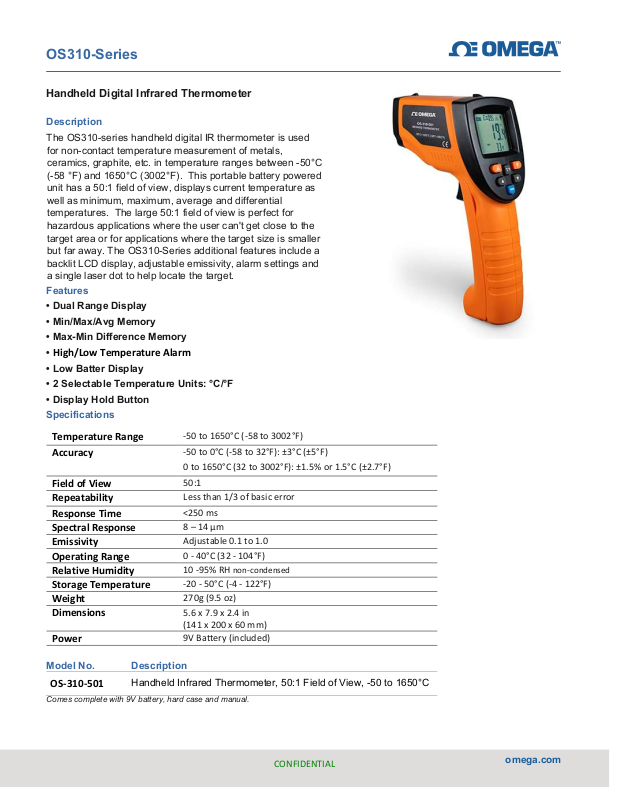

OS310-Series
Handheld Digital Infrared Thermometer
Description
The OS310-series handheld digital IR thermometer is used
for non-contact temperature measurement of metals,
ceramics, graphite, etc. in temperature ranges between -50°C
(-58 °F) and 1650°C (3002°F). This portable battery powered
unit has a 50:1 field of view, displays current temperature as
well as minimum, maximum, average and differential
temperatures. The large 50:1 field of view is perfect for
hazardous applications where the user can't get close to the
target area or for applications where the target size is smaller
but far away. The OS310-Series additional features include a
backlit LCD display, adjustable emissivity, alarm settings and
a single laser dot to help locate the target.
Features
• Dual Range Display
• Min/Max/Avg Memory
• Max-Min Difference Memory
• High/Low Temperature Alarm
• Low Batter Display
• 2 Selectable Temperature Units: °C/°F
• Display Hold Button
Specifications
-50 to 1650°C (-58 to 3002°F)
-50 to 0°C (-58 to 32°F): ±3°C (±5°F)
0 to 1650°C (32 to 3002°F): ±1.5% or 1.5°C (±2.7°F)
50:1
Less than 1/3 of basic error
<250 ms
8 – 14 µm
Adjustable 0.1 to 1.0
0 - 40°C (32 - 104°F)
10 -95% RH non-condensed
-20 - 50°C (-4 - 122°F)
270g (9.5 oz)
5.6 x 7.9 x 2.4 in
(141 x 200 x 60 mm)
9V Battery (included)
Model No. Description
Handheld Infrared Thermometer, 50:1 Field of View, -50 to 1650°C
Comes complete with 9V battery, hard case and manual.
