OS303-Series
Essential Infrared Thermometer
Page 2
En
gineering Service: 1
-
800-872-9436 (USA & Canada only)
Headquarters:
Tel: (203) 359
-
1660
Fax: (203) 359
-
7700
alter specifications without
notice.
U.S.A.
omega.com [email protected]
Servicing North America:
Omega Engineering, Inc.
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
e-mail: [email protected]
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to
Page 3
Table of Contents
Table of Contents ............................................................................................................................................. 3
1) Introduction .............................................................................................................................................. 4
1.1 How it works ....................................................................................................................................................4
1.2 Caution ............................................................................................................................................................5
2) Specifications ............................................................................................................................................ 6
3) Operating Instructions ............................................................................................................................... 6
3.1 Battery Installation: .........................................................................................................................................6
3.2 Button Layout: .................................................................................................................................................7
3.3 Locating a Hotspot: ..........................................................................................................................................7
3.4 Diagram Description ............................................................................................... Error! Bookmark not defined.
4) Maintenance ............................................................................................................................................. 7
Page 4
1) Introduction
The OS303-Series essential infrared thermometer boasts 12 to 1 field of view, -32 to 530°C temperature range and ±2%
accuracy above 0°C. This compact easy to use device is great for non-contact measurement of surfaces that are far away
and very high temperatures. Just aim, line up the laser, push the button and read the surface temperature in less than a
second. The OS303-Series is great for situations where the temperatures are so hot that being too close can become a
hazard or the location that needs measuring is hard to reach.
This units is great for applications such as asphalt, oil, rubber, concrete and many more. The 12:1 field of view, or distance
to spot ratio, allows for precise measurement even from a larger distance.
1.1 How it works
The sensor determines temperature by focusing the infrared energy that is radiated from an object. The focused energy is
converted into an electrical signal proportional to the energy emitted. A clean line of sight free of dust or mist is needed
between the sensor and the object. For increased ease and accuracy, the laser pointer makes aiming even more precise.
Measurement:
When taking measurement, point thermometer toward the object to be measured and hold the trigger. The object under
test should be larger than the spot size calculated by the field of view diagram below.

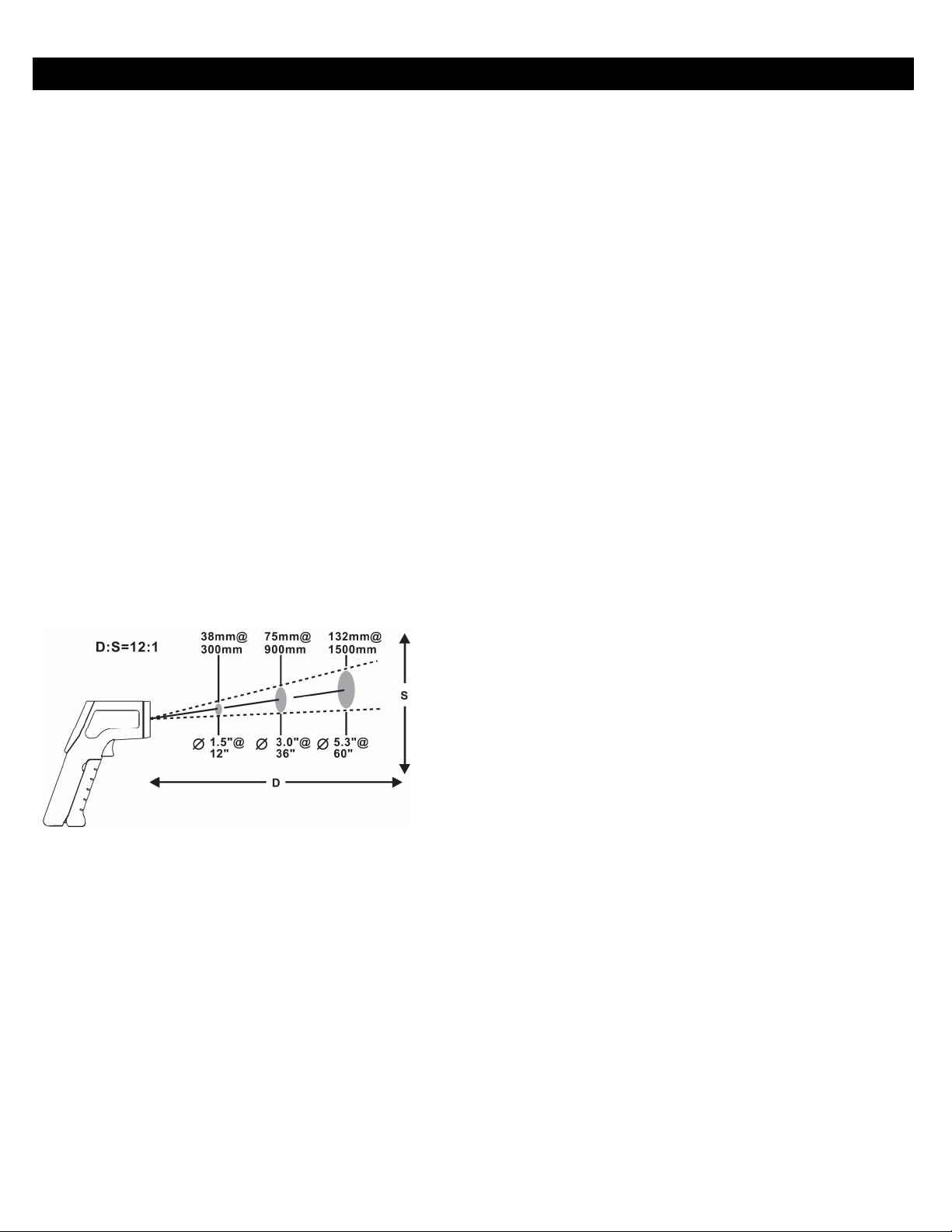

Field of View:
Field of view, or distance to spot ratio, is the size of an area that can be measured from a specified distance. As the distance
from the object increases, the spot size of the measuring area becomes larger. Make sure the target is larger than the unit’s
spot size. When accuracy is critical, make sure the target is at least twice as large as the spot size. Please see field of view
diagram for the OS303-Series below.
Emissivity:
Most organic materials and painted or oxidized surfaces have an emissivity of 0.95 (fixed for this unit). Inaccurate readings
will result from measuring shiny or polished metal surfaces. To compensate, cover the measured surface with masking tape
of flat black paint. Measure the tape or painted surface when the tape or painted surface reaches the material
temperature.
Page 5
Material
Emissivity
Material
Emissivity
Aluminum
0.30 Iron 0.70 Asbestos
0.95 Lead
0.50 Asphalt
0.95 Limestone
0.98 Basalt
0.70 Oil 0.94 Brass
0.50 Paint
0.93 Brick
0.90 Paper
0.95 Carbon
0.85 Plastic
0.95 Ceramic
0.95 Rubber
0.95 Concrete
0.95 Sand
0.90 Copper
0.95 Skin 0.98 Dirt 0.94 Snow
0.90 Frozen Food
0.90 Steel
0.80 Hot food
0.93 Textiles
0.94 Glass (plate)
0.85 Water
0.93 Ice 0.98 Wood
0.94

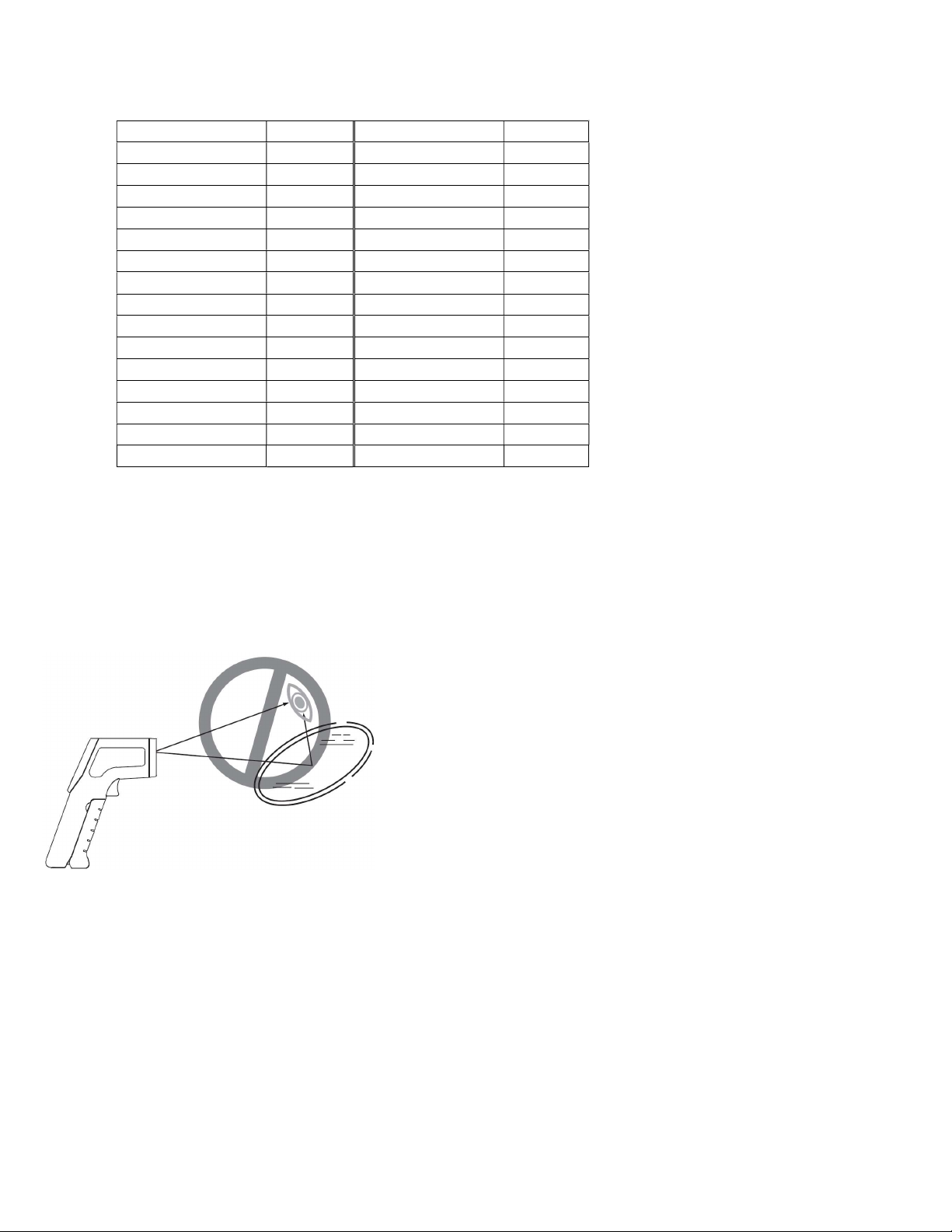

Emissivity Table:
1.2 Caution
Infrared thermometer should be protected for the following:
- EMF (electro-magnetic fields) from arc welders and induction heaters.
- Thermal shock (caused by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize
before use).
- Do not leave the unit on or near objects of high temperature.
Warning: Do not point laser directly at eye or indirectly off reflective surfaces!
Page 6
2) Specifications
1 2 3
Temperature Range -32 - 530°C (-26 - 986°F)
Accuracy ±2°C or 2%, whichever is greater
Field of View 12:1
Repeatability 1% of reading or 1°C
Response Time 500 ms (95% response)
Spectral Response 5 – 14 µm
Emissivity Fixed 0.95
Operating Temperature Range 0 - 50°C (32 - 120°F)
Relative Humidity 10 -95% RH
Storage Temperature -20 - 60°C (-4 - 140°F)
Weight 145g
Dimensions 5.98 x 5.12 x 1.50 in (152 x 130 x 38 mm)
Power 9V Battery
Estimated Battery Life 16 Hours
3) Operating Instructions
3.1 Battery Installation:

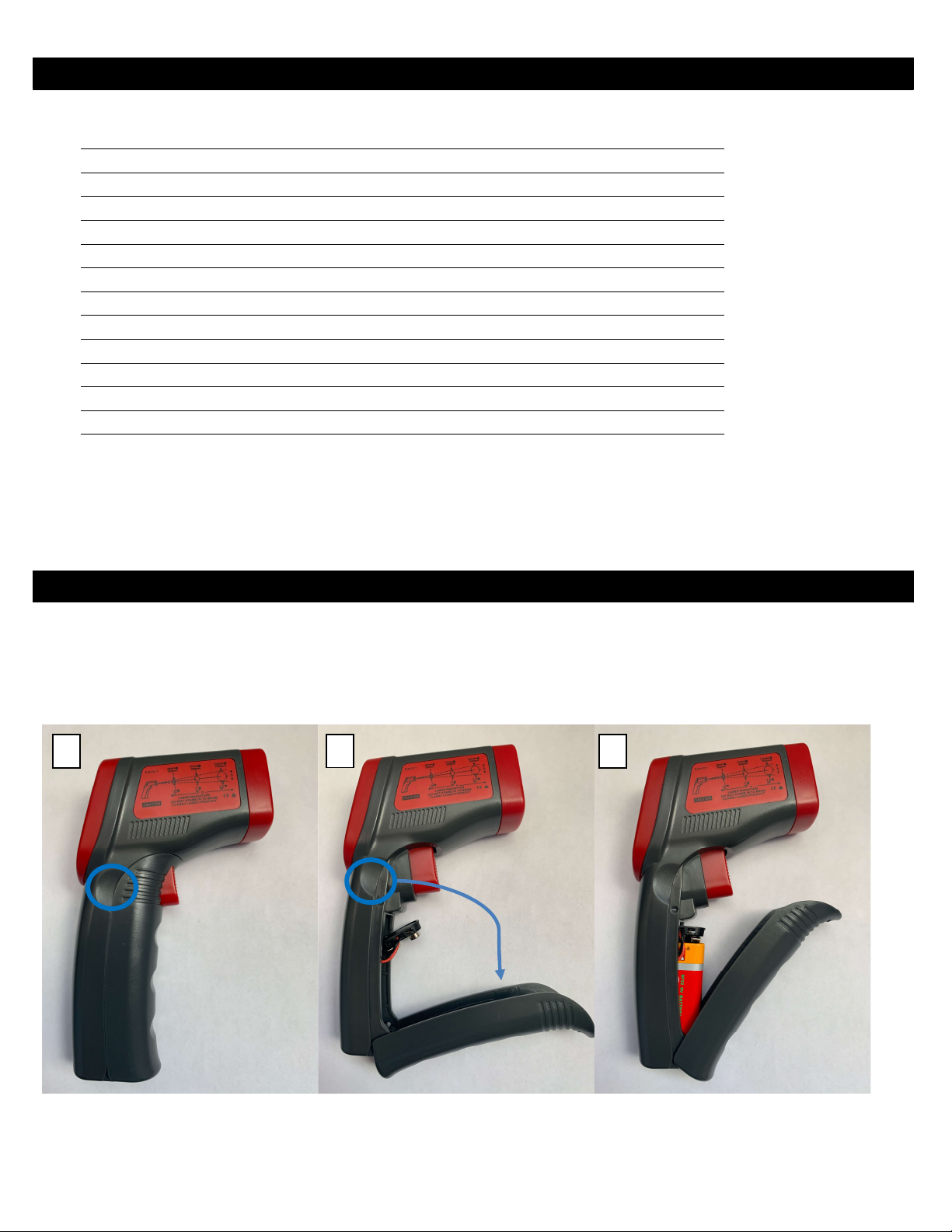

Grab the sides of the battery compartment (1) and pull open (2). Install battery correctly to positive and negative terminals,
insert into battery compartment and close compartment door (3). Pull the trigger and LCD display will turn on and display
reading and battery icon.
Page 7
3.2 Display Layout:

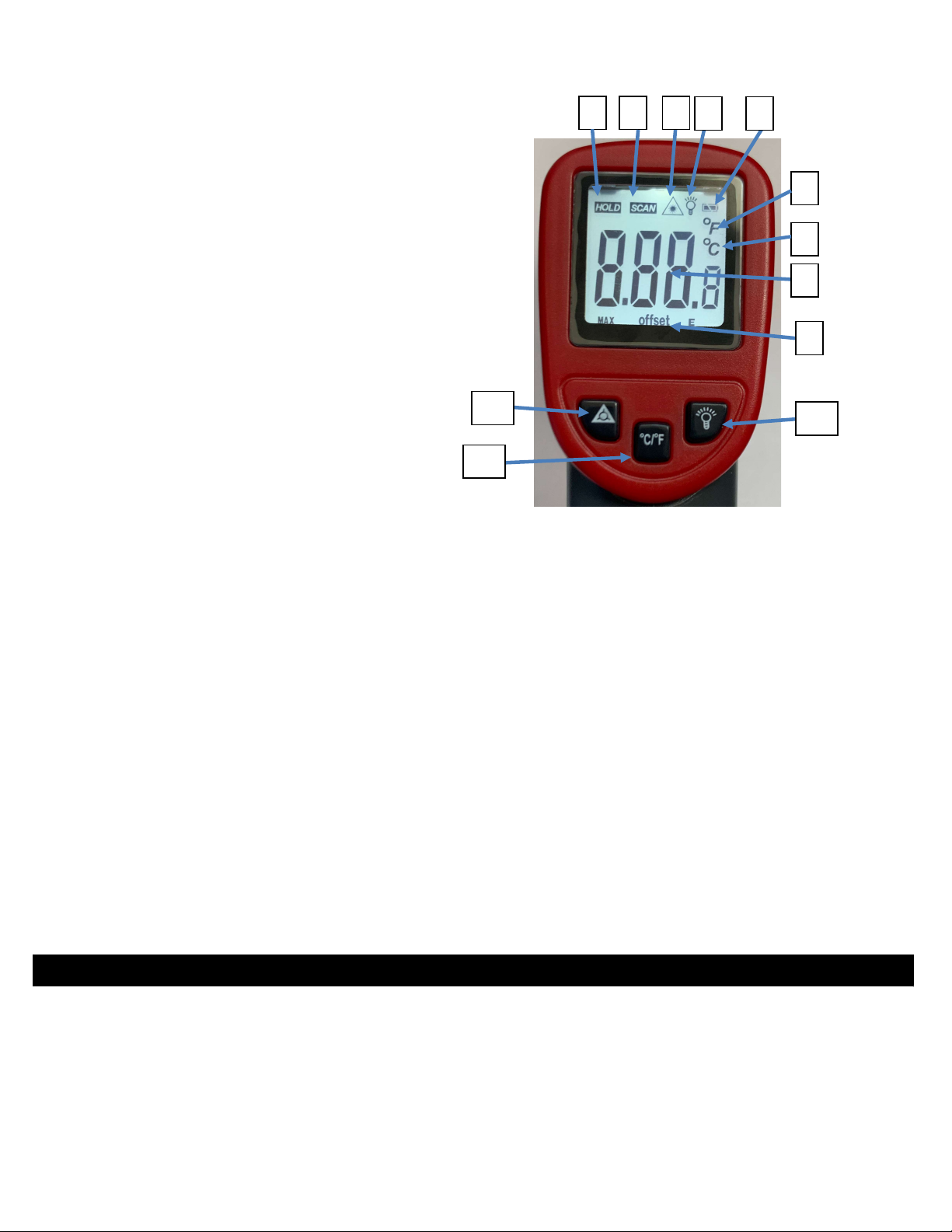

1 2 3 4 5 7 6 8 9 10 11 12
LCD Display:
1) Data hold icon
2) Scanning icon
3) Laser on icon
4) Backlight icon
5) Battery power icon
6) (°F) Celsius units
7) (°C) Fahrenheit units
8) Temperature reading
9) Offset icon
3.3 Button Layout:
10) Backlight On/Off
11) Temperature unit switch
12) Laser On/Off
3.4 Operating Instructions:
1) Changing temperature units
Press “Temperature unit switch” button to toggle between Celsius and Fahrenheit.
2) Turning laser On/Off
Press “Laser On/Off” button to toggle laser on and off.
3) Turning backlight On/Off
Press “Backlight On/Off” button to toggle LCD backlight on and off.
4) Changing offset
Press and hold “Temperature unit switch” button for 3 seconds, this will enter the offset menu. Use the
“Laser On/Off” button to adjust offset up and use the “Backlight On/Off” button to adjust offset down.
Don’t press any buttons for 5 seconds to exit offset menu. When out of offset menu the word offset will
disappear from the bottom of the screen.
3.5 Locating a Hotspot:
To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you
locate the hot spot. (please turn on the laser for accurate measuring).
4) Maintenance
1) Lens cleaning : blow off loose particles using clean compressed air. Gently brush remaining debris away with a moist
cotton cloth.
2) Case cleaning: clean the case with a damp sponge/cloth and mild soap.
Note: Do not use solvent to clean lens and do not submerge the unit into water or any other liquid.
