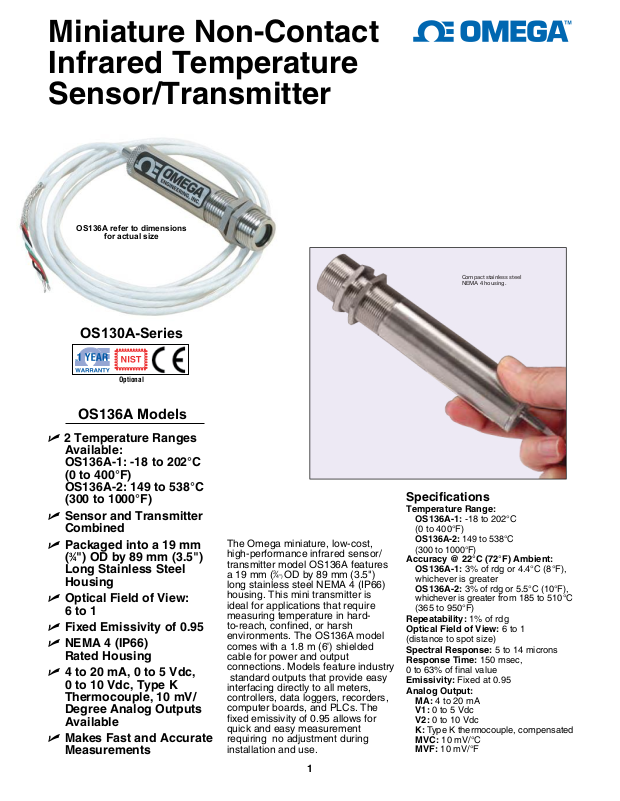

Miniature Non-Contact
Infrared Temperature
Sensor/Transmitter
OS136A refer to dimensions
for actual size
OS130A-Series
Compact stainless steel
NEMA 4 housing.
Optional
OS136A Models
U
2 Temperature Ranges
Available:
OS136A-1: -18 to 202°C
(0 to 400°F)
OS136A-2: 149 to 538°C
(300 to 1000°F)
U Sensor and Transmitter
Combined
U Packaged into a 19 mm
3
(
⁄4") OD by 89 mm (3.5")
Long Stainless Steel
Housing
U Optical Field of View:
6 to 1
U Fixed Emissivity of 0.95
U NEMA 4 (IP66)
Rated Housing
U 4 to 20 mA, 0 to 5 Vdc,
0 to 10 Vdc, Type K
Thermocouple, 10 mV/
Degree Analog Outputs
Available
U Makes Fast and Accurate
Measurements
The Omega miniature, low-cost,
high-performance infrared sensor/
transmitter model OS136A features
a 19 mm (
long stainless steel NEMA 4 (IP66)
housing. This mini transmitter is
ideal for applications that require
measuring temperature in hardto-reach, confined, or harsh
environments. The OS136A model
comes with a 1.8 m (6') shielded
cable for power and output
connections. Models feature industry
standard outputs that provide easy
interfacing directly to all meters,
controllers, data loggers, recorders,
computer boards, and PLCs. The
fixed emissivity of 0.95 allows for
quick and easy measurement
requiring no adjustment during
installation and use.
3
⁄4") OD by 89 mm (3.5")
1
Specifications
Temperature Range:
OS136A-1: -18 to 202°C
(0 to 400°F)
OS136A-2: 149 to 538°C
(300 to 1000°F)
Accuracy @ 22°C (72°F) Ambient:
OS136A-1: 3% of rdg or 4.4°C (8°F),
whichever is greater
OS136A-2: 3% of rdg or 5.5°C (10°F),
whichever is greater from 185 to 510°C
(365 to 950°F)
Repeatability: 1% of rdg

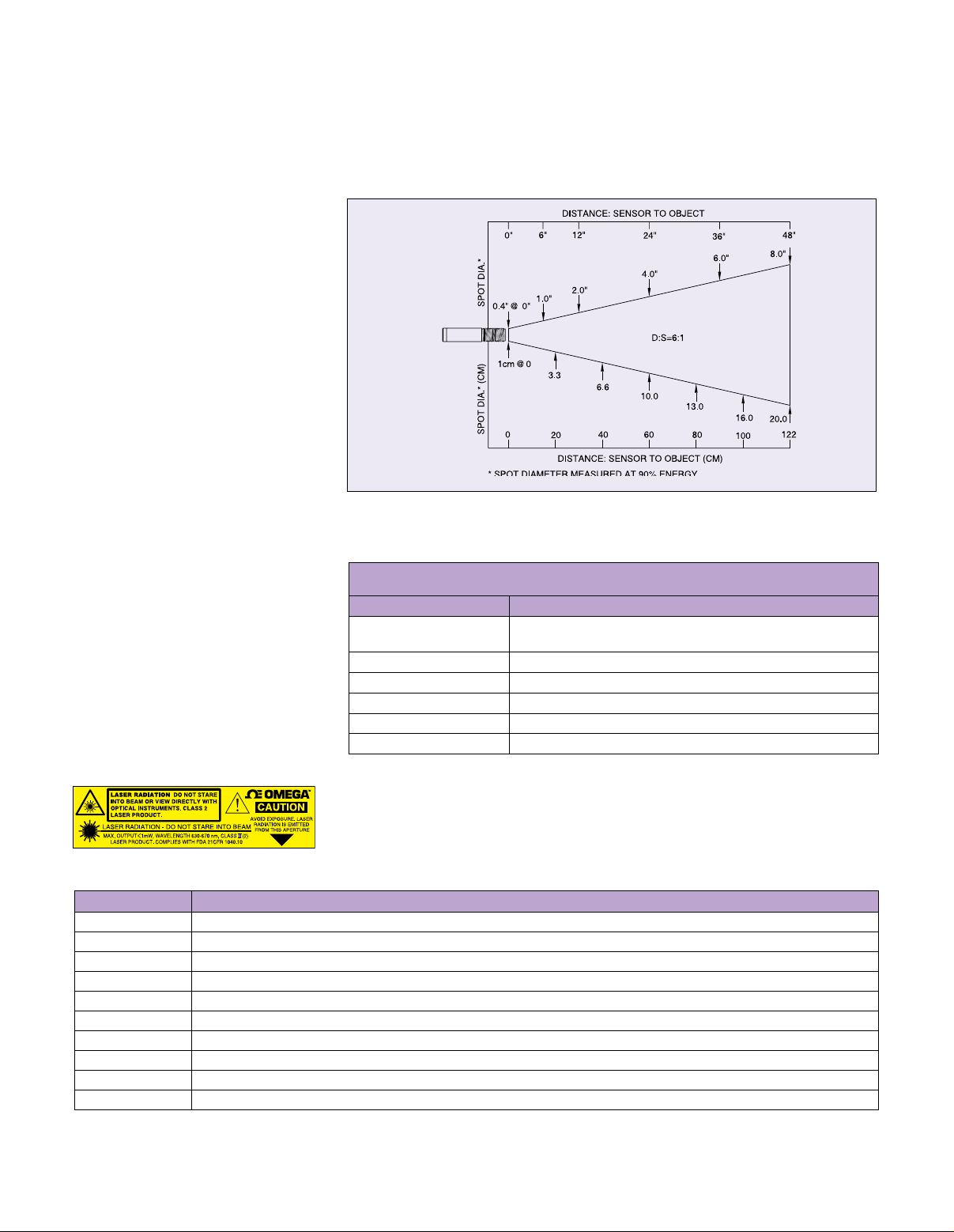

Optical Field of View: 6 to 1
(distance to spot size)
Spectral Response: 5 to 14 microns
Response Time: 150 msec,
0 to 63% of final value
Emissivity: Fixed at 0.95
Analog Output:
MA: 4 to 20 mA
V1: 0 to 5 Vdc
V2: 0 to 10 Vdc
K: Type K thermocouple, compensated
MVC: 10 mV/°C
MVF: 10 mV/°F
Page 2
Output Load Requirements:
Min Load (0 to 5 Vdc): 1 kΩ
Min Load (0 to 10 Vdc): 2 kΩ
Max Load (4 to 20 mA):
(Power supply – 4) / 20 mA
Min Load (10 mV/Deg): 10 kΩ
Min Load (K T/C): 100 kΩ
Operating Ambient Temperature:
No Water Cooling: 0 to 70°C
(32 to 158°F)
With Water Cooling (OS136-WC):
0 to 200°C (32 to 392°F)
With Air Cooling (OS136-WC):
0 to 110°C (32 to 230°F)
Operating Relative Humidity:
Less than 95% RH, non-condensing
Water Flow Rate for OS136-WC:
0.25 GPM, room temperature, minimum
Air Flow Rate for OS136-WC: 5 CFM
(2.4 liters/sec)
Warm-Up Period: 1 to 2 minutes
Thermal Shock: About 30 minutes for
25°C abrupt ambient temperature change
Air Flow Rate for Air Purge Collar:
1 CFM (0.5 liters/sec)
Transmitter Housing:
316 SS, NEMA 4 (IP66) rated
Power: 12 to 24 Vdc @ 50 mA
Dimensions: 19 OD x 89 mm L
(0.75 x 3.5")
Weight: 181 g (0.40 lb)
Laser Sight Accessory
Specifications
Laser Wavelength (Color):
630 to 670 nm (red)
Operating Distance: Up to 9.1 m (30')
Max Laser Power Output:
Less than 1 mW @ 22°C ambient
Safety Classification:
Class 2 EN60825-1/11.2001
FDA Classification: Class II laser
product; complies with 21 CFR 1040.10
Laser Beam Diameter:
Less than 5 mm (0.2")
Beam Divergence: Less than 2 mrad
Each unit includes 2 hex mounting nuts,
1.8 m (6') shielded cable and operator’s manual.
(INCH)
(INCH)
To Order
Model No. Description
OS136A-(
output
OS136A-(
OS136A-(
OS136A-(*)-MA Infrared transmitter with 4 to 20 mA output
OS136A-(*)-V1 Infrared transmitter with 0 to 5 Vdc output
OS136A-(*)-V2 Infrared transmitter with 0 to 10 Vdc output
Comes complete with 2 hex mounting nuts, 1.8 m (6') shielded cable and operator’s manual.
Insert “1” for -18 to 202°C (0 to 400°F); insert “2” for 149 to 538°C (300 to 1000°F).
*
Ordering Examples: OS136A-1-MA, infrared transmitter with temperature range of
-18 to 202°C (0 to 400°F) and 4 to 20 mA output.
)-K Infrared transmitter with Type K thermocouple
*
)-MV-F Infrared transmitter with 10 mV/°F output
*
)-MV-C Infrared transmitter with 10 mV/°C output
*
Accessories
Model No. Description
OS100-MB Mounting bracket
OS100-AP Air purge collar
OS136-WC Water/air cool jacket
OS100-LS
†
Laser sighting
TX4W-50 4-conductor shielded high-temp cable, 15 m (50')
TX4-100 4-conductor shielded cable, 30 m (100')
PSR-24S
PSR-24L
PSR-24L-230
Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, screw terminals, UL
Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL
Regulated power supply, European plug, 230 Vac input, 24 Vdc output, 400 mA, stripped leads, CE
PSU-93 Unregulated power supply, 16 to 23 Vdc, 300 mA max, screw terminal
†
OS100-LS laser sighting: 1 unit suitable for aligning multiple heads. Used during installation only.
Ordering Example: OS100-MB, mounting bracket.
2
Page 3
Miniature Non-Contact
Infrared Temperature
Sensor/Transmitter

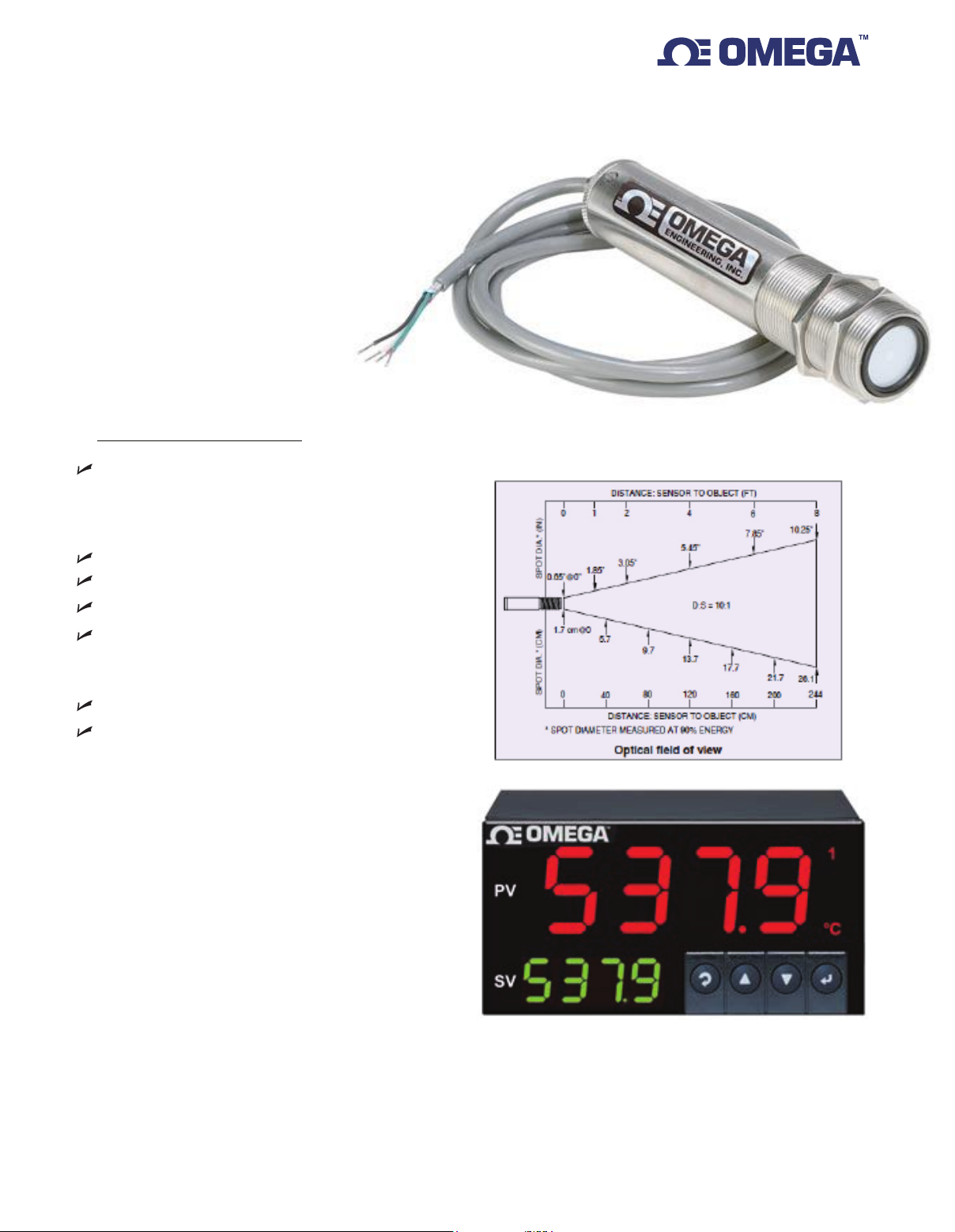

OS137A Models
3 Temperature Ranges Available:
OS137A-1: 0 to 100°C (32 to 212°F)
OS137A-2: -18 to 260°C (0 to 500°F)
OS137A-3: -18 to 538°C (0 to 1000°F)
Sensor and Transmitter Combined
Adjustable Emissivity
Adjustable Alarm Setpoint and Output
OS137A
refer to dimensions
for actual size
Packaged in a 25 mm (1.0") OD by
127 mm (5.0") Long Stainless Steel
NEMA 4 (IP65) Rated Housing
10:1 Optical Field of View
4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc,
10 mV/Deg, and Type K Thermocouple
Outputs Available
The Omega compact high performance industrial
infrared sensor/transmitter model OS137A
provides variety of features and options packaged
into a small stainless steel housing. The standard
features are adjustable emissivity, 10 to 1 optical
field of view, adjustable alarm set point and
voltage output to drive external relays, and 6
pre-selected analog outputs that can easily be
interfaced to all meters, controllers, data loggers,
recorders, computer boards, and PLCs. The unit
comes with 2 hex nuts, 1.8 m (6') shielded cable
for power and output connections, and
operator’s manual.
Connect your OS130A Series sensor to one of
our reliable precision controller.
www.omega.com/c/controllers
3
Page 4
Specifications
Temp Range:
OS137A-1: 0 to 100°C (32 to 212°F)
OS137A-2: -18 to 260°C (0 to 500°F)
OS137A-3: -18 to 538°C (0 to 1000°F)
Accuracy:
OS137A-1:
OS137A-2:
OS137A-3:
Repeatability: 1% rdg or 2°F (1°C)
Field of View: 10 to 1
Spectral Response: 5.5 to 14 microns
Emissivity: 0.5 to 1.0, adjustable via a
single turn pot
Response Time: 150 msec, 0 to 63% of
final value
Outputs:
-MA: 4 to 20 mA
-V1: 0 to 5 Vdc
-V2: 0 to 10 Vdc
-K: K thermocouple
-MVF: 10 mV/°F
-MVC: 10 mV/°C
Alarm Output: Voltage, 100 mA drive
Alarm Set Point: 0 to 100 % adj,
set via pot
Power: 12 to 24 Vdc @ 50 mA
Operating Temperature:
With No Cooling: 0 to 70°C
With Water Cooling: 0 to 200°C
With Air Cooling: 0 to 110°C
Operating Relative Humidity:
Less than 95% RH, non-condensing
Housing: Stainless steel,
NEMA 4 (IP65)
Dimensions: 25.4 OD x 127 mm L
(1 x 5")
Weight: 226 g (0.5 lb)
LASER SIGHTING
Wavelength (Color): 630-670 nm (red)
Operating Distance: Up to 9.1 m (30')
Max Laser Power Output:
Less than 1 mW
European Classification:
Class 2, EN60825-1/11.2001
FDA Classification: Class II, complies
with 21 CFR 1040.10
Laser Beam Diameter: Less than 5 mm
Beam Divergence: Less than 2 mrad
Power Switch: Slide switch on the
battery pack
Power Indicator: Red LED
Caution and Certification Label:
Located on the head circumference
Aperture and Identification Label:
Located on the head circumference
3% of Rdg or 4.4°C (8°F)
whichever is greater
3% of Rdg or 4.4°C (8°F)
whichever is greater
3% of Rdg or 5.5°C (10°F)
whichever is greater
To Order
Model No.
OS137A-(*)-K
OS137A-(*)-MV-F
OS137A-(*)-MV-C
OS137A-(*)-MA
OS137A-(*)-V1
OS137A-(*)-V2
* Insert “1” for 0 to 100°C (32 to 212°F); Insert “2” for -18 to 260°C (0 to 500°F);
Insert “3” for -18 to 538°C (0 to 1000°F).
Comes complete with two mounting nuts and operator’s manual.
To order with longer power/output cable, up to 30 m (100'), add suffix “-(**)FT” to model
number, and add an additional cost for each additional foot over 1.8 m (6').
** Specify length in feet.
Ordering Examples: OS137A-1-MA, infrared transmitter with temperature range of 0 to 100°C
(32 to 212°F) and 4 to 20 mA output.
OS137A-1-V1 and CNi8DH33, infrared transmitter with temperature range of 0 to 100°C
(32 to 212°F) and 0 to 5 Vdc output, and 1⁄8 DIN temperature controller.
OS137A-1-V1-26FT, OS137A with 26 feet of power/output cable.
Description
Infrared transmitter with K thermocouple output
Infrared transmitter with 10 mV/°F output
Infrared transmitter with 10 mV/°C output
Infrared transmitter with 4 to 20 mA output
Infrared transmitter with 0 to 5 Vdc output
Infrared transmitter with 0 to 10 Vdc output
Accessories
Model No.
OS137-MB
OS137-AP
OS137-WC
OS137-LS†
PSR-24S
PSR-24L
PSR-24L-230
Description
Mounting bracket
Air purge collar
Water/air cool jacket
Laser sighting
Regulated power supply, 24 Vdc, 400 mA, screw
terminal
Regulated power supply, 24 Vdc, 400 mA, UL,
stripped leads
Regulated power supply, 24 Vdc, 400 mA, 6' cord
with stripped leads, 230 Vac input, CE
PSU-93
Unregulated power supply, 16 to 23 Vdc, 300 mA
max, screw terminal
† OS137-LS laser sighting: 1 unit suitable for aligning multiple heads. Used during
installation only.
Ordering Example: OS137-MB, mounting bracket.
4
