Page 1
Measurement Range
Accuracy
Display
Resolution
Response Time
Spectral Response:
Emissivity
Field of View
Power
Battery Life
Dimensions
Weight

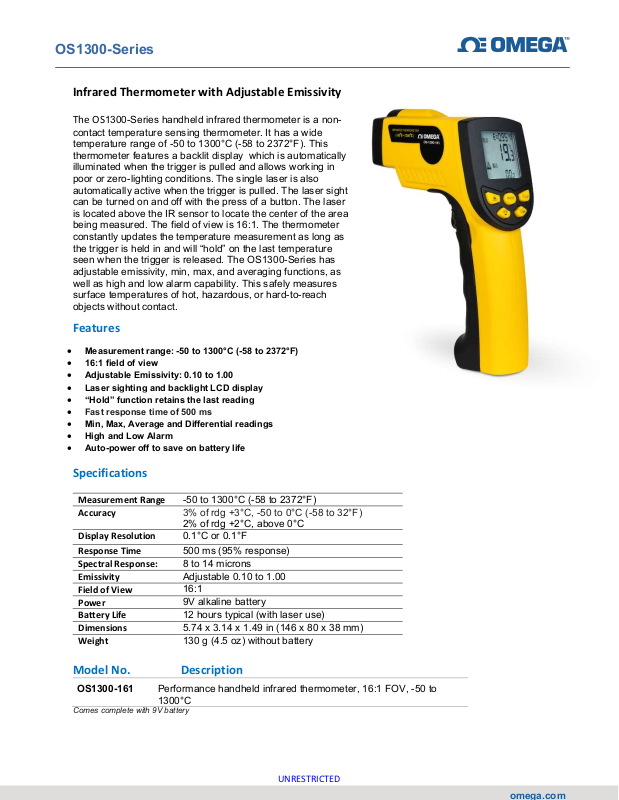

OS1300-Series
omega.com
Infrared Thermometer with Adjustable Emissivity
The OS1300-Series handheld infrared thermometer is a non-
contact temperature sensing thermometer. It has a wide
temperature range of -50 to 1300°C (-58 to 2372°F). This
thermometer features a backlit display which is automatically
illuminated when the trigger is pulled and allows working in
poor or zero-lighting conditions. The single laser is also
automatically active when the trigger is pulled. The laser sight
can be turned on and off with the press of a button. The laser
is located above the IR sensor to locate the center of the area
being measured. The field of view is 16:1. The thermometer
constantly updates the temperature measurement as long as
the trigger is held in and will “hold” on the last temperature
seen when the trigger is released. The OS1300-Series has
adjustable emissivity, min, max, and averaging functions, as
well as high and low alarm capability. This safely measures
surface temperatures of hot, hazardous, or hard-to-reach
objects without contact.
Features
Measurement range: -50 to 1300°C (-58 to 2372°F)
16:1 field of view
Adjustable Emissivity: 0.10 to 1.00
Laser sighting and backlight LCD display
“Hold” function retains the last reading
Fast response time of 500 ms
Min, Max, Average and Differential readings
High and Low Alarm
Auto-power off to save on battery life
Specifications
-50 to 1300°C (-58 to 2372°F)
3% of rdg +3°C, -50 to 0°C (-58 to 32°F)
2% of rdg +2°C, above 0°C
0.1°C or 0.1°F
500 ms (95% response)
8 to 14 microns
Adjustable 0.10 to 1.00
16:1
9V alkaline battery
12 hours typical (with laser use)
5.74 x 3.14 x 1.49 in (146 x 80 x 38 mm)
130 g (4.5 oz) without battery
Model No. Description
OS1300-161
Comes complete with 9V battery
Performance handheld infrared thermometer, 16:1 FOV, -50 to
1300°C
UNRESTRICTED
