Omega OS101 User guide

TM

NORWALK, CT

User’s Guide

Shop online at

omega.com

e-mail: [e-mail]

For latest product manuals:

www.omegamanual.info

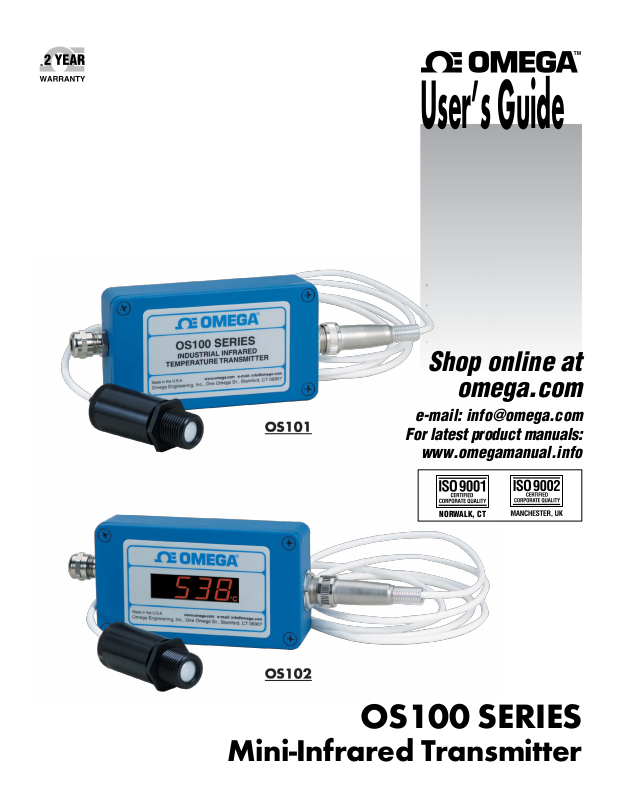

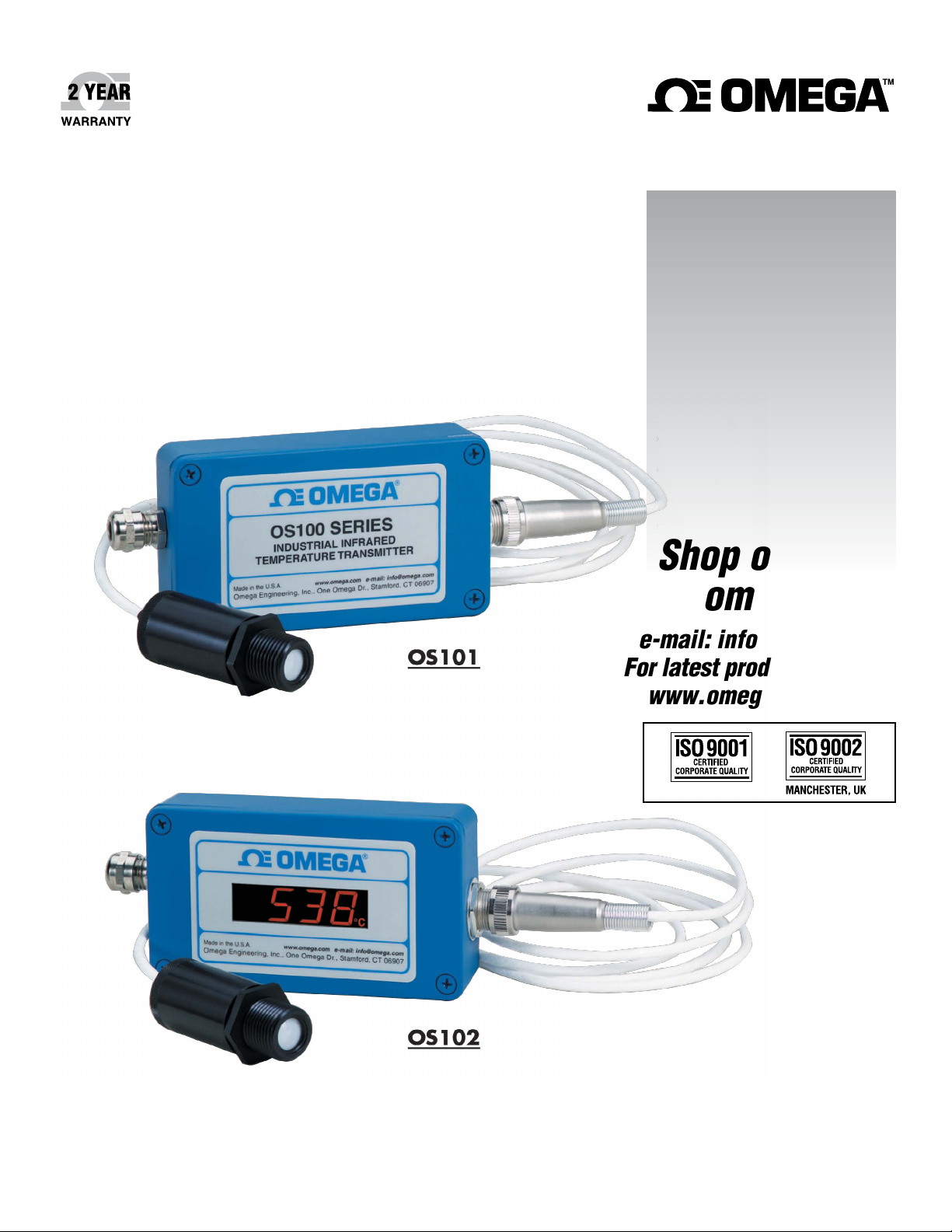

OS100 SERIES

Mini-Infrared Transmitter

omega.com [email protected]

Servicing North America:

U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.

i

Table of Contents

Section ................................................................... Page

Safety Warnings and IEC Symbols ............................. iii

Caution and Safety Information .................................. iii

Section 1 Introduction .................................................................... 1-1

Section 2 Installation ...................................................................... 1-1

2.1 Unpacking and Inspection ...................................... 1-1

2.2 Electrical Connection .............................................. 2-1

Section 3 Operation ........................................................................ 3-1

3.1 Main Board ................................................................ 3-1

3.2 Ambient Temperature .............................................. 3-2

3.3 Atmospheric Quality ................................................ 3-3

3.4 Measuring Temperature .......................................... 3-3

3.5 Alarm Setting ............................................................ 3-4

3.6 Adding Extension Cable........................................... 3-4

Section 4 Laser Sight Accessory ................................................... 4-1

4.1 Warning and Cautions ............................................. 4-1

4.2 Operating the Laser Sight Accessory ..................... 4-1

Section 5 Specifications ................................................................. 5-1

5.1 General ....................................................................... 5-1

5.2 Laser Sight Accessory (OS100-LS) .......................... 5-2

Section 6 Emissivity Table ............................................................. 6-1

OS100 Series Infrared Transmitter

Table of

Contents

ii

Table of Figures

Figure Description Page

2-1 Power Supply & Analog Output Connections .......... 2-1

2-2 Alarm Output Connection ............................................ 2-1

3-1 Main PC Board ............................................................... 3-2

3-2 Sensor Housing .............................................................. 3-2

3-3 Optical Field of View ..................................................... 3-4

3-4 Setting the Temperature Engineering Unit.................. 3-4

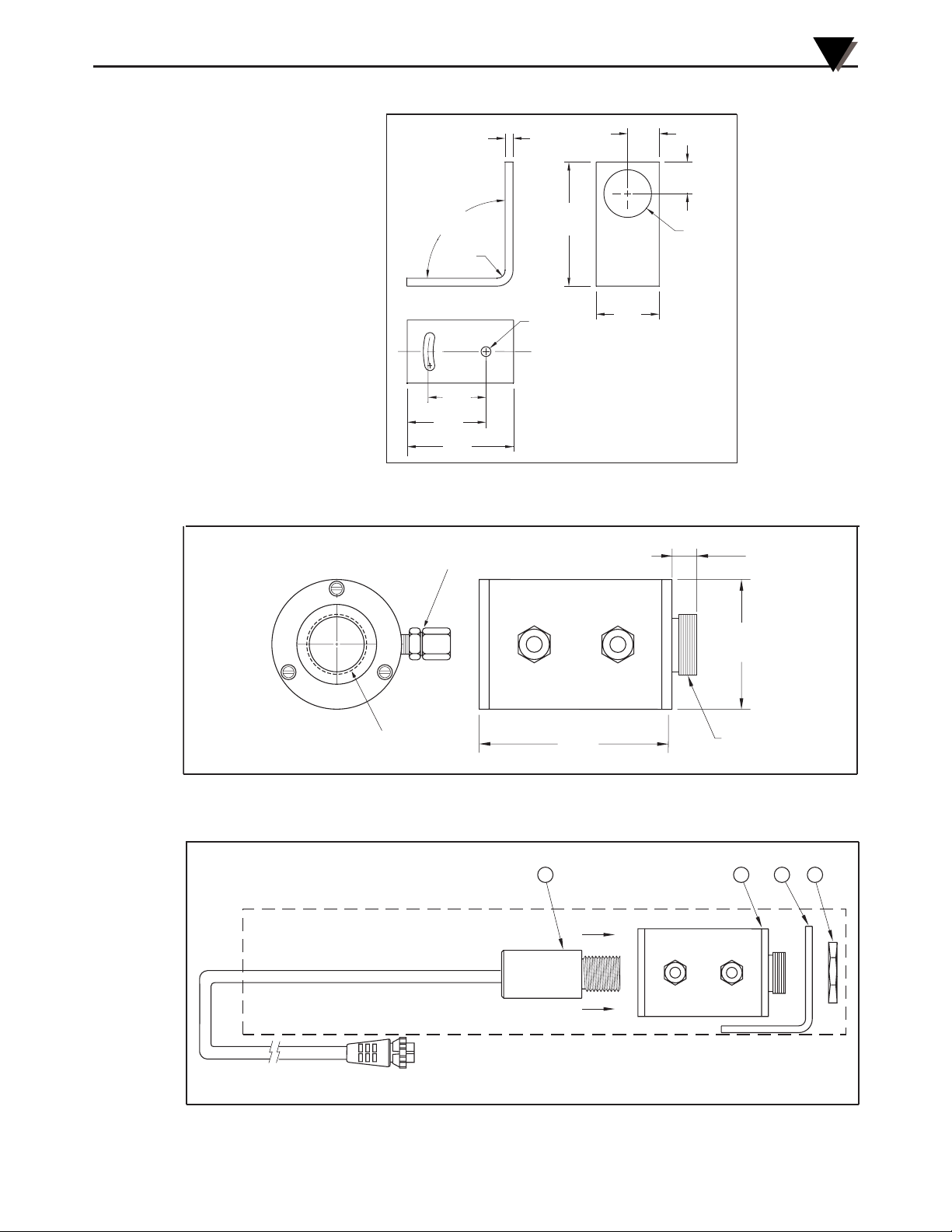

3-5 Mounting Bracket OS100-MB ....................................... 3-5

3-6 Water Cooling Jacket, OS100-WC ................................ 3-5

3-7 Typical Water Cool Jacket Assembly ........................... 3-5

3-8 Air Purge Collar, OS100-AP .......................................... 3-6

3-9 DIN Rail Mounting Adapter, OS100-DR .................... 3-6

3-10 NEMA-4 Aluminum Enclosure .................................... 3-6

4-1 Laser Sighting Accessory, OS100-LS ............................ 4-2

4-2 Laser Warning Label ...................................................... 4-2

OS100 Series Infrared Transmitter

Table of

Figures

Safety Warnings and IEC Symbols

This device is marked with international safety and hazard symbols in
accordance with IEC 1010. It is important to read and follow all precautions and
instructions in this manual before operating or commissioning this device as it
contains important information relating to safety and EMC. Failure to follow all
safety precautions may result in injury and or damage to your calibrator.

IEC symbols Description

Caution and Safety Information

• If the equipment is used in a manner not specified in this manual, the
protection provided by the equipment may be impaired.

• The installation category is one (1).

• There are no user replaceable fuses in this product

• The output terminals of this product are for use with equipment (digital
meters, chart recorders, etc,) which have no accessible five parts. Such
equipment should comply with all the applicable safety requirements.

• Do not operate the equipment in flammable or explosive environments.

• All connections to the thermometer should be made via a shielded
cable, 24 AWG stranded wire with the following ratings: 300V, 105°C
(221°F), PVC insulation.

• Power must be disconnected before making any electrical connections.

• The power supply used to power the thermometer should be VDE or
UL approved with the following ratings: 12 to 24vdc @150mA with
overload protection of 500mA.

OS100 Series

iii

Caution, refer to accompanying
documents

Direct Current

Laser Symbol

Frame or Chassis

NOTES:

OS100 Series

iv

Section 1 - Introduction

The low cost OS101 mini-infrared transmitter provides non-contact
temperature measurement for industrial applications. The unit measures a
temperature range of -18 to 538°C (0-1000°F) and provides a linear analog
output of either 4-20 mA, 0-5 VDC, K type TC, 1 mV/°C, or 1 mV/°F.

The new OS102 mini-infrared transmitter has all the functions of OS101
plus a built-in LED display that shows the measured temperature in
degrees F or degrees C which is switchable in the field.

The miniature sensor head design 2.5 cm dia. x 6.3 cm Length (1" x 2.5") is
ideal for measuring temperature in confined, and hard to reach places.
The aluminum sensor head as well as the rugged electronic housing (Die
cast Aluminum) are NEMA-4 rated.

The sensor head is connected to the electronic housing via a 1.82 m (6 feet)
shielded cable as standard. The unit provides field adjustable alarm
output.

Section 2 - Installation

2.1 Unpacking

Remove the packing list and verify that you have received all your
equipment. If you have any questions about the shipment, please call
Customer Service at:

1-800-622-2378 or 203-359-1660. We can also be reached on the internet:
omega.com e-mail: [email protected]

When you receive the shipment, inspect the container and equipment for
any signs of damage. Note any evidence of rough handling in transit.
Immediately report any damage to the shipping agent.

The carrier will not honor any damage claims unless all the shipping materials are saved for
inspection. After examination and removing contents, save packing material and carton in the
event reshipment is necessary.

The following items are supplied in the box:

• The infrared transmitter including the sensor head and the 1.82 m
(6 feet) shielded cable

• User's Manual

• Mounting Nut

OS100 Series - Introduction

1

1-1

NOTE:

OS100 Series - Installation

2

The following describes the ordering information:

OS102 or OS101 - MA - *, **, where

The following optional accessories are available:

Here are the Features of OS101 and OS102 infrared transmitters:

2.2 Electrical Connection

Sensor Head Cable - The Sensor head is pre-wired to a 1.8 m (6 feet)
shielded cable. Plug & lock-in the male connector to the mating female
connector on the aluminum housing.

Power & Output Connection - Open the cover of the main aluminum
housing. Slide the cable through the strain relief and connect the wires to
the terminal block on the board as shown in Fig. 2-1. For Alarm output
connection, refer to Fig. 2-2.

2-1

Model No. Description

OS100-MB Mounting Bracket
OS100-DR DIN Rail Mounting adapter
OS100-WC Water Cooling jacket
OS100-AP Air purge collar
OS100-LS Laser Sighting
OS100-CA15FT Sensor Head Extension Cable (4.6 m, 15")
OS100-CA25FT Sensor Head Extension Cable (7.6 m, 25')
TX8-100 8 Conductor stranded Shielded cable (30 m, 100')
PSU-93 Unregulated 16-24 VDC Power Supply
CAL3-IR NIST Traceable Calibration

Features OS101 OS102

Accuracy 2% Rdg or 4°F (2.2°C)
Temp Range 0-1000°F (-18 to 538°C)
Emissivity 0.1 to 0.99 Adj.
Field of View 6 to 1
Alarm Output Standard
1mV/Deg. Output Standard
4-20mA Output Standard
0/5 VDC Output Standard
K Type T/C Std. ––
LED Display –– Std.
Main Housing 65.5 x 30.5 x 115.3 mm 65.5 x 55.9 x 115.3 mm

(2.58" x 1.2" x 4.54") 2.58" x 2.2" x 4.54"

MA - 4/20 mA output
V1 - 0 to 5 VDC output
K - Thermocouple output, K type
MV - Millivolt output

C - 1 mV/°C output
F - 1 mV/°F output

HT- High
temperature
sensor head

OS100 Series - Operation

3

3-1

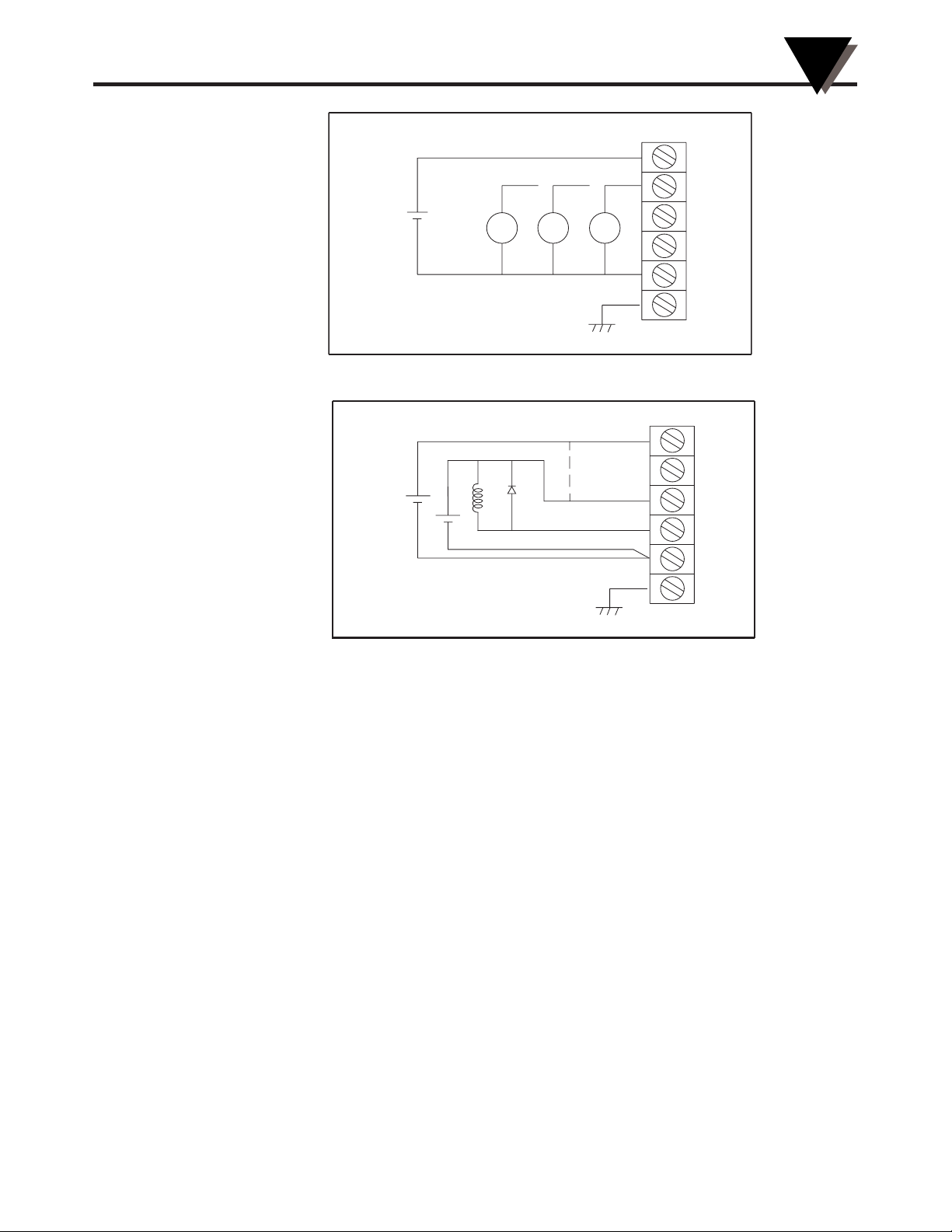

Figure 2-1. Power Supply & Analog Output Connections

Figure 2-2. Alarm Output Connection

Section 3 - Operation

3-1 Main Board

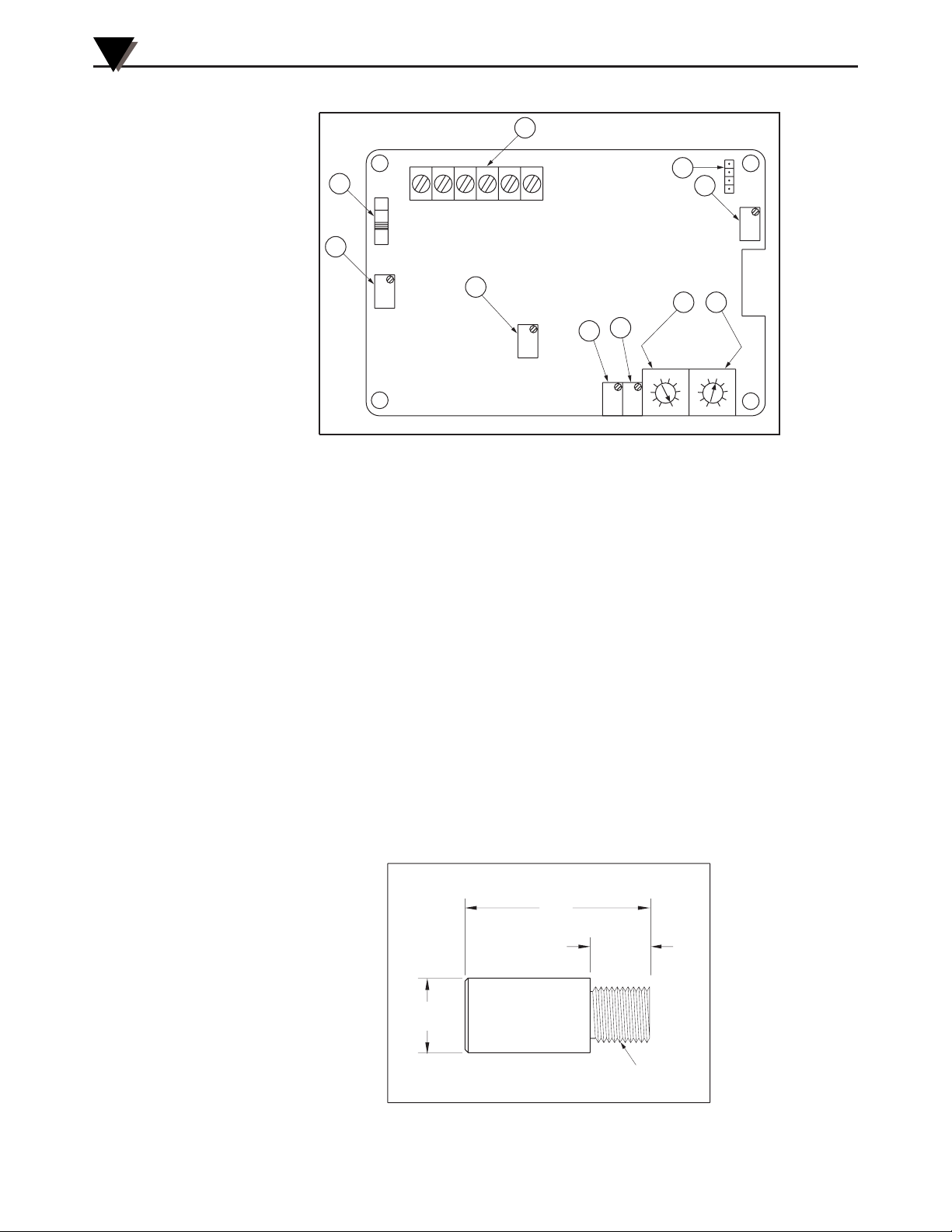

The Main Board is shown in Fig. 3-1. Here are the important components
on the board:

(1) - Terminal Block for Power & Output connections

(2) - Single Turn Potentiometer to adjust Emissivity in tenths (0.x_)

(3) - Single Turn Potentiometer to adjust Emissivity in hundreds (0._x)

(4) - Slide switch to select between real time (Normal Operation) and alarm

set point

(5) - Alarm set point adjust, P4

(6) - Sensor Head connection

(7) - Input Zero adjust, P3

(8) - Input Span adjust, P2

(9) - Output Zero adjust, P5

(10) - Output Span adjust, P6

ANALOG
OUTPUTS

K

4/20mA

+

+

1mV/Deg
0-5VDC

T/C

A

V

+

--

+

POWER
SUPPLY
12-24VDC

CHASSIS

6

5

4

3

2

1

5-24VDC

+

CHASSIS

POWER
SUPPLY
12-24VDC

--

+

6

5

4

3

2

1

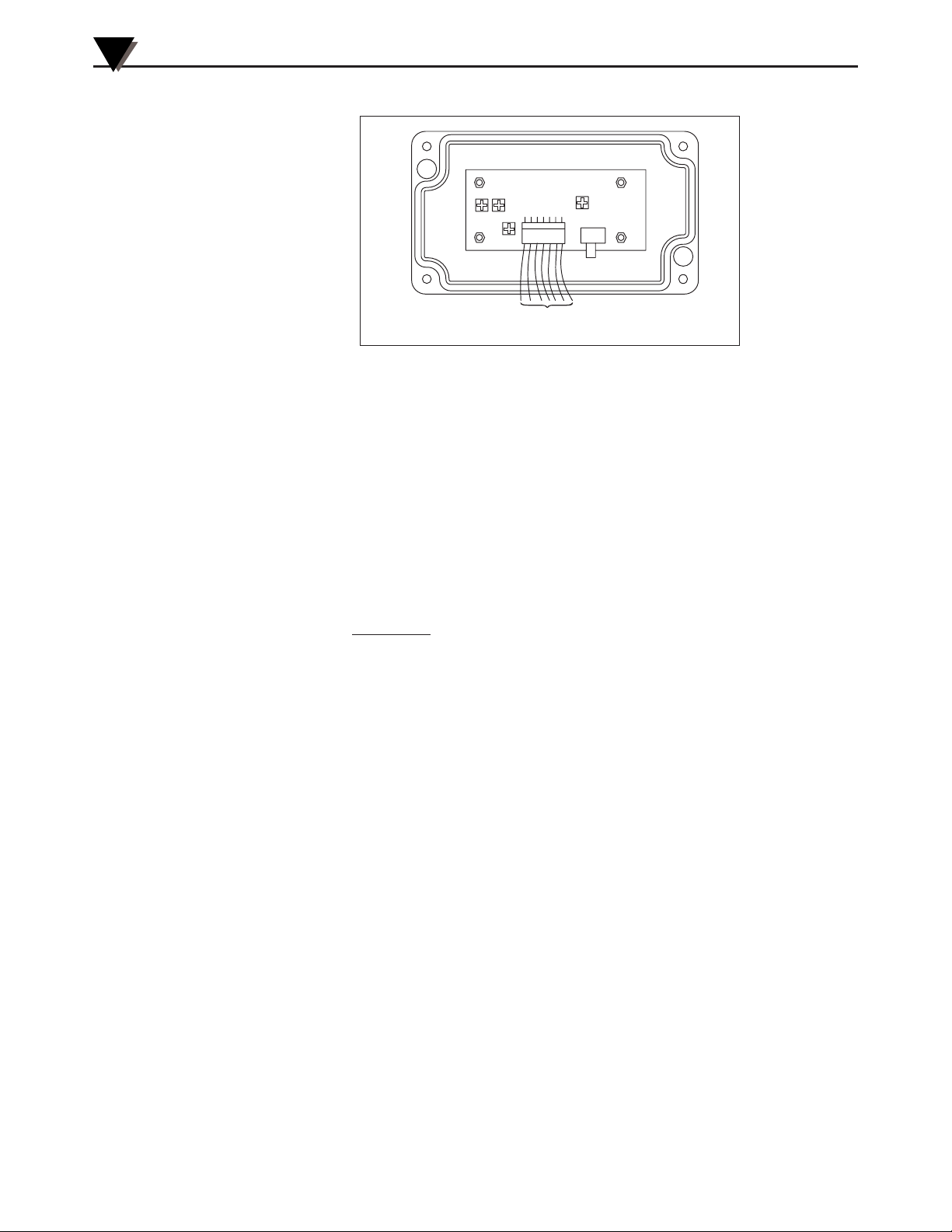

Figure 3-1. Main PC Board

3.2 Ambient Temperature

The Sensing head can operate in an ambient temperature of 0 to 70°C (32
to 158°F). The Sensing head in the high temperature model (-HT) can
operate in an ambient temperature of 0 to 85°C (32 to 185°F) without any
cooling required. The Sensing head can operate up to 200°C (392°F) using
the water cool jacket accessory OS100-WC (See Fig. 3-6).

There is a warm up period of 3 minutes after power up. After the warm
up period, temperature measurement can be made.

When the ambient temperature around the sensor head changes abruptly,
the sensor head goes through thermal shock. It takes a certain amount of
time for the sensor head to stabilize to the new ambient temperature. For
example, it takes about 30 minutes for the sensor head to stabilize going
from 25°C to 50°C (77 to 122°F) ambient temperature.

The sensor head dimensions are shown in Fig. 3-2.

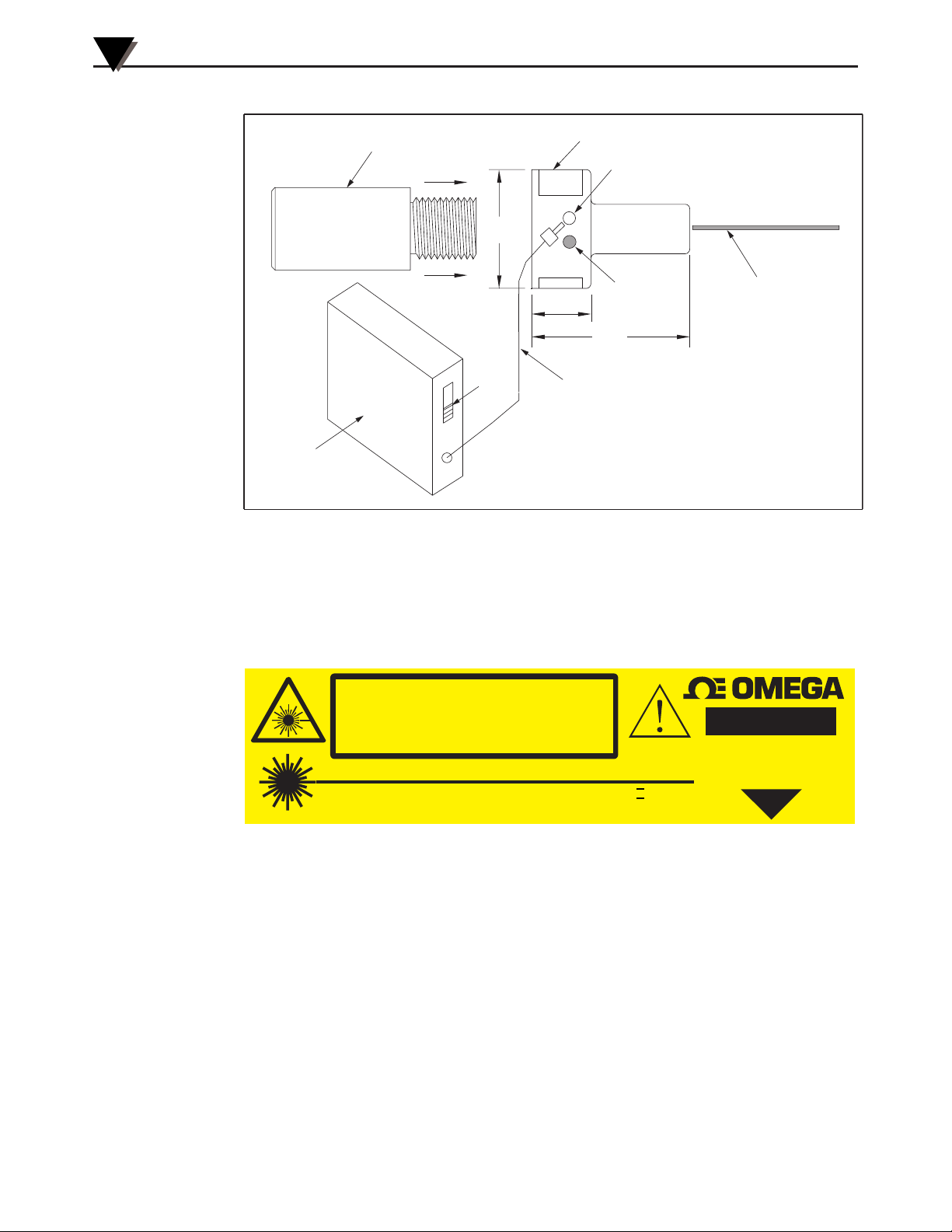

Figure 3-2. Sensor Housing

OS100 Series - Operation

3

3-2

3/4-16 UNF

25

(1.0)

20

(0.8)

63.5
(2.5)

Dimensions mm (in.)

SW1

P6

P2P3

P5

P4

REAL
TIME

E=0.95

10

9

8

7

6

5

4

3

2

J2

ALARM
ADJUST

1

ALARM

9

8

7

6

5

4

3

2

1

0

9

8

7

6

5

4

3

2

1

0

6

5

43

2

1

OS100 Series - Operation

3

3-3

3.3 Atmospheric Quality

Environments with smoke, dust, and fumes dirty up the optical lens, and
cause erroneous temperature readings. To keep the surface of the optical
lens clean, the air purge collar accessory is recommended, OS100-AP, See
Fig. 3-7.

3.4 Measuring Temperature

Before starting to measure temperature, make sure that the following
check list is met:

 The power and analog output connections are made (Fig. 2-1).

 The sensor head is connected to the main unit.

 The slide switch (SW1) on the main board is set to real time (Fig. 3-1).

 The target is larger than the optical field of view of the sensor head

(Fig. 3- 3 ).

 The emissivity adjustment on the main board is set properly (Fig. 3-1).

 The output load is within the product specification.

On OS102 transmitters, follow these additional steps:

 The temperature display is set to °F or °C (Fig. 3-4)

 For 4-20mA output models, make sure an output load is added, ie. 250

ohms.

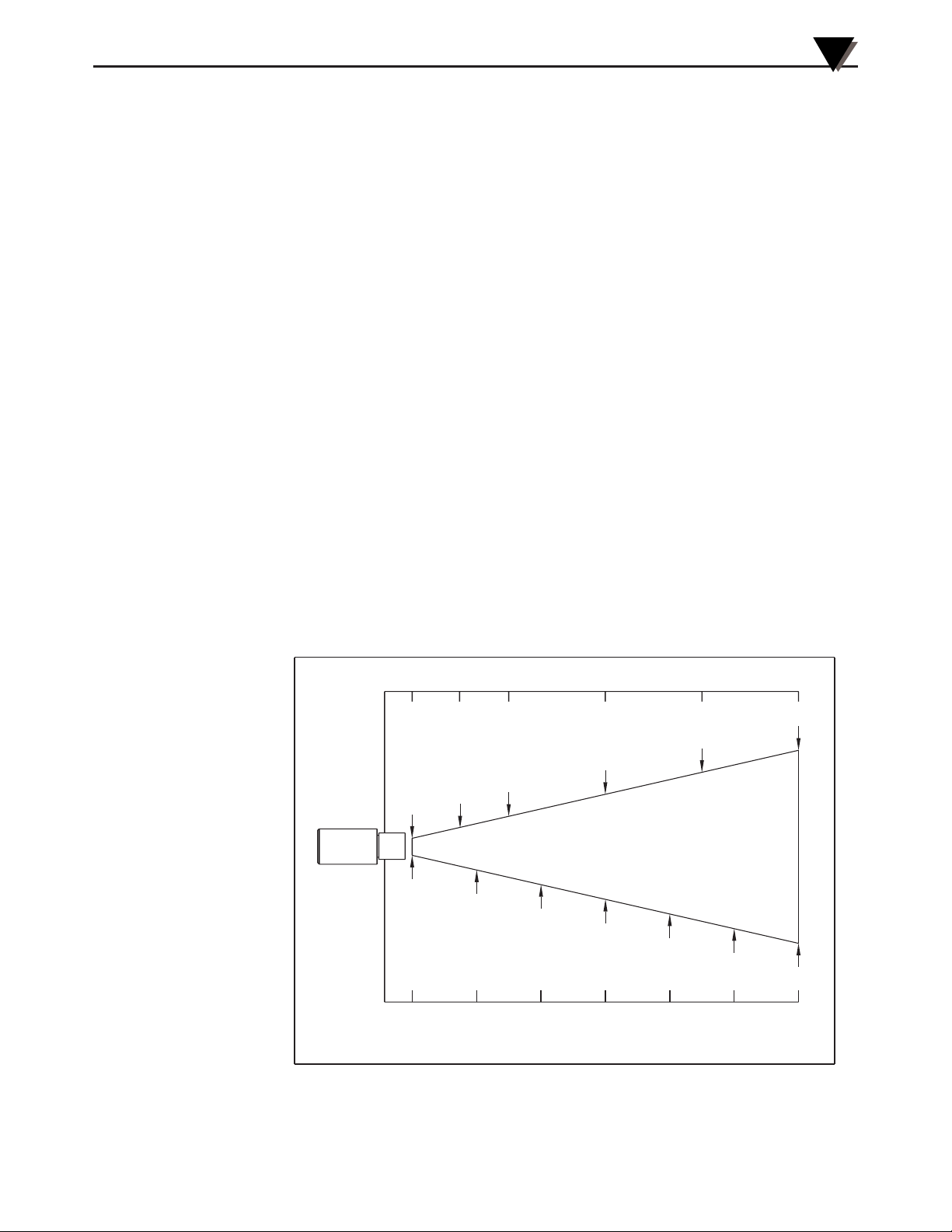

Figure 3-3. Optical Field Of View

SPOT DIA.* (CM)

SPOT DIA.* (IN)

DISTANCE: SENSOR TO OBJECT (IN)

D:S=6:1

1cm@0

0

20

3.3

40

6.6

60

10.0

80

13.0

100

16.0

122

20.0

0.4"@0"

2.0"

1.0"

4.0"

6.0"

8.0"

48"

36"

24"

12"6"

0"

DISTANCE: SENSOR TO OBJECT (CM)

* SPOT DIAMETER MEASURED AT 90% ENERGY

Figure 3-4. Setting the Temperature Engineering Unit

3.5 Alarm Setting

The unit provides 0-100% alarm set point adjustment. Here is an example
of an alarm setting.

• An OS101-MA (4/20 mA output), the alarm is to be set at 400°F

temperature.

• Connect the alarm output as shown in Fig. 2-2.

• Set the slide switch (SW1) on the main board to the Alarm position.

• Measure the analog output, and set the Potentiometer P4 until the
output reads 10.4 mA which is 40% (400°F) of the temperature range.

40 x (20-4)

[10.4mA =

100

+ 4]

• Set the slide switch (SW1) back to the Real Time position.

• If the temperature reading is below the alarm set point, the alarm
output stays high, otherwise it goes low.

On the OS102, you can set the alarm set point directly based on the
temperature display.

3.6 Adding Extension Cable

You can add extension cable between the Sensor Head and the main
electronic housing up to 15.2 m (50 feet). After adding the extension cable,
the Zero input potentiometer, P3 may be re-adjusted. (See Fig. 3-1, for
proper analog output reading)

The following figures show the mounting bracket (OS100-MB), Water
cooling jacket (OS100-WC), Air purge collar (OS100-AP), DIN Rail
Mounting adapter (OS-100-DR), and the main aluminum enclosure. The
DIN Rail Mounting adapter (OS100-DR) is mounted to the bottom of the
main aluminum enclosure using two 4-40 screws.

A typical water cool jacket assembly is shown in Fig. 3-7, on the following page.

1. Mounting Nut

2. Mounting Bracket

3. Water Cool Jacket

4. Sensor Head

OS100 Series - Operation

3

3-4

F

J1

COVER

71

SW1

TO MAIN BOARD

NOTE: OPEN THE
COVER OF THE
MAIN HOUSING & SET THE SLIDE SWITCH SW1 TO F OR C.

C

P1 P2

P3

P4

3-5

Figure 3-5. Mounting Bracket OS100-MB

Figure 3-6. Water Cooling Jacket, OS100-WC

Figure 3-7. Typical Water Cool Jacket Assembly

OS100 Series - Operation

3

23.3

(.919)

Ø 19

(0.755)

Ø 4

(0.156)

31.8

(1.25)

90

3.2

(1/8)

12.7

(0.5)

12.7
(0.5)

50.0

(1.97)

3.2

(1/8)

25.4
(1)

42.9

(1.69)

Dimensions mm (in.)

INLET

OUTLET

1/8 NPT COMPRESSION

FITTING , 2 PLCS.

3/4-16 UNF-2B 3/4-16 UNF

41.3
(1.625)

8

(.312)

60.3

(2.375)

Dimensions mm (in.)

INLET

OUTLET

TO MAIN HOUSING

UP TO 200C (392F) AMBIENT TEMPERATURE

4 3 2 1

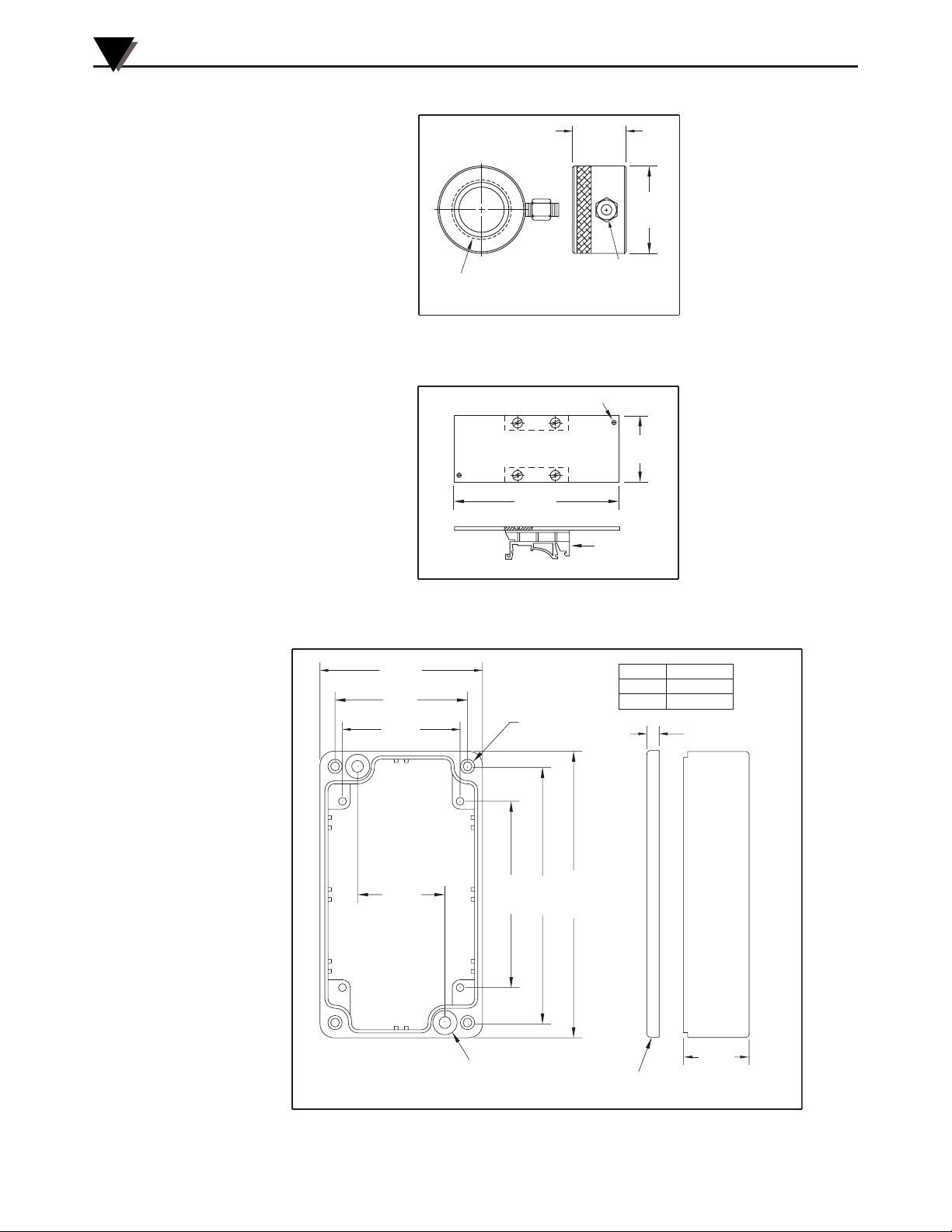

Figure 3-8. Air Purge Collar, OS100-AP

Figure 3-9. DIN Rail Mounting Adapter, OS-100-DR

Figure 3-10. NEMA-4 Aluminum Enclosure

OS100 Series - Operation

3

3-6

COVER

MAIN HOUSING

35.5

(1.400)

53.3

(2.10)

103.4

(4.07)

DIM A

78.0
(3.07)

47.7

(1.880)

5.0

(0.20)

5.7 (0.225) DIA.
(4) HOLES

8.6 (0.340) DIA. x

22.6 (0.890) DEEP
(2) PLACES

65.5

(2.578)

115.4
(4.545)

Dimensions mm (in.)

DIM A
OS101 26.4 (1.04)
OS102 51.8 (2.04)

44.5
(1.75)

109.5

(4.3125)

4-40 THRD. HOLE, 2 PLCS.

DIN RAIL
SNAP FEET

Dimensions mm (in.)

28.6
(1.125)

1/16 NPT

COMPRESSION

FITTING

3/4-16 UNF 2B

THRU.

17.5

(0.69)

Section 4 - Laser Sight Accessory

4.1 Warning and Cautions

You may receive harmful laser radiation exposure if you do not adhere to the warnings listed
below:

• Use of controls or adjustments or performance of procedures other

than those specified here may result in hazardous radiation exposure.

• Do not look at the laser beam coming out of the lens or view directly
with optical instruments - eye damage can result.

• Use extreme caution when operation the laser sight accessory

• Never point the laser accessory at a person

• Keep out of the reach of all children

Do not attempt to open the laser sight accessory. There are no user serviceable parts inside.

4.2 Operating the Laser Sight Accessory

The laser sight accessory screws onto the front of the sensor head. This
accessory is only used for alignment of the sensor head to the target area.
After the alignment process, the accessory has to be removed from the
front of the sensor head before temperature measurement.

The laser sight accessory is powered from a small compact battery pack
(included with the accessory). Connect the battery pack to the accessory
using the cable provided. Aim at the target, and turn on the battery power
using the slide switch on the battery pack. Adjust the sensor head position
so that the laser beam points to the center of the target area. Turn off the
battery pack, and remove the laser sighting accessory from the sensor
head. See Fig. 4-1 for reference.

OS100 Series - Laser Sight Accessory

4

4-1

CAUTION:

WARNING:

OS100 Series - Laser Sight Accessory

4

4-2

Figure 4-1. Laser Sighting Accessory, OS100-LS

Figure 4-2. Laser Warning Label

LED LASER
POWER
INDICATOR

LASER WARNING LABEL

SENSOR HEAD

LASER BEAM

DC POWER JACK

POWER CABLE

SWITCH

ON/OFF

BATTERY PACK
POWER SUPPLY

50.8
(2.0)

19

(.75)

38.1

(1.5 )

Dimensions mm (in.)

OUTPUT <1 mW, WAVELENGTH 630-670 nm, CLASS II (2) LASER
PRODUCT. COMPLIES WITH FDA 21CFR 1040.10 & EN60825-1/11.2001

LASER RADIATION - DO NOT STARE INTO BEAM

LASER RADIATION DO NOT STARE
INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS. CLASS 2
LASER PRODUCT.

TM

CAUTION

AVOID EXPOSURE. LASER

RADIATION IS EMITTED
FROM THIS APERTURE.

Section 5 - Specifications

5.1 - General

Temperature Range -18 to 538°C (0 to 1000°F)

Accuracy @ 22°C (72°F) ± 2% of Rdg. or 2.2°C (4°F) whichever is

ambient temperature & greater
emissivity of 0.95 or greater

Optical Field of View 6:1 (Distance/Spot Size)

Repeatability ± 1% of Rdg.

Spectral Response 5 to 14 microns

Response Time 150 msec (0 to 63% of final value)

Emissivity Range 0.1 to 0.99, adjustable

Operating Ambient Temperature

Main Transmitter 0 to 50°C (32 to 122°F)
Sensor Head 0 to 70°C (32 to 158°F)
Sensor Head (-HT Model) 0 to 85°C (32 to 185°F)
Sensor Head with OS100-WC
(Water Cooling Jacket) 0 to 200°C (32 to 392°F)

Operating Relative Humidity Less than 95% RH, non-condensing

Water Flow Rate for OS100-WC 0.25 GPM, room temperature

Thermal Shock About 30 minutes for 25°C

abrupt ambient temperature change

Warm Up Period 3 minutes

Air Flow Rate for OS100-AP 1 CFM (0.5 Liters/sec.)

Power 12 to 24 VDC @ 100 mA

Analog Outputs

MV-F 1 mV/°F
MV-C 1 mV/°C
K K Type TC - OS101 only
MA 4 to 20 mA
V1 0 to 5 VDC

Output Load requirements

Min. Load (0 to 5VDC) 1 K-Ohms
Max. Load (4 to 20 mA) (Supply Power - 4 )/20 mA

Transmitter Housing NEMA-4 & IP65, Die Cast Aluminum

Sensor Head Housing NEMA-4 , Aluminum

Alarm Output Open Drain, 100 mA

Alarm Set Point 0 to 100% , Adjustable via P4

Alarm Deadband 14°C (25°F)

OS100 Series - Specifications

5

5-1

OS100 Series - Specifications

5

5-2

5.1 - General Con’t.

Dimensions

Sensor Head 25.4 OD. x 63.5 mm L (1" OD. x 2.5" L)
Main Housing, OS101 65.5 W x 30.5 H x 115.3 mm L

(2.58" W x 1.2" H x 4.54" L)

Main Housing, OS102 65.5 W x 55.9 H x 115.3 mm L

(2.58" W x 2.2" H x 4.54" L)

Weight 272 g (0.6 lb)

5.2 Laser Sight Accessory (OS100-LS)

Wavelength (Color) 630 - 670 nm (Red)

Operating Distance (Laser Dot) Up to 9.1 m (30 ft.)

Max. Output Optical Power Less than 1 mW at 22°F ambient

temperature.

European Classification Class 2, EN60825-1/11.2001

Maximum Operating current 45 mA at 3 VDC

FDA Classification Complies with 21 CFR 1040.10,

Class II Laser Product

Beam Diameter 5 mm

Beam Divergence < 2 mrad

Operating Temperature 0 to 50°C (32 to 122°F)

Operating Relative Humidity Less than 95% RH, non-condensing

Power Switch ON / OFF , Slide switch on the Battery

Pack

Power Indicator Red LED

Power Battery Pack, 3 VDC (Consists of two 1.5

VDC AA size Lithium Batteries)

Laser Warning Label Located on the head sight circumference

Identification Label Located on the head sight circumference

Dimensions 38 DIA x 50.8 mm L (1.5" DIA x 2" L)

Section 6 - Emissivity Table

OS100 Series - Emissivity Table

6

6-1

Material Emissivity (ε)

Aluminum – pure highly polished plate . . . . . . . . . . . . . . . . . . . . . . . . 0.04 to 0.06

Aluminum

– heavily oxidized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.20 to 0.31

Aluminum

– commercial sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.09

Brass

– dull plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.22

Brass

– highly polished, 73.2% Cu, 26.7% Zn . . . . . . . . . . . . . . . . . . . . . . . . . 0.03

Chr

omium – polished. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.08 to 0.36

Copper

– polished. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05

Copper

– heated at 600°C (1112°F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.57

Gold

– pure, highly polished or liquid. . . . . . . . . . . . . . . . . . . . . . . . . 0.02 to 0.04

Ir

on and steel (excluding stainless) – polished iron . . . . . . . . . . . . . . . . 0.14 to 0.38

Ir

on and steel (excluding stainless) – polished cast iron. . . . . . . . . . . . . . . . . . . 0.21

Ir

on and steel (excluding stainless) – polished wrought iron . . . . . . . . . . . . . . . 0.28

Ir

on and steel (excluding stainless) – oxidized dull wrought iron . . . . . . . . . . . . 0.94

Ir

on and steel (excluding stainless) – rusted iron plate . . . . . . . . . . . . . . . . . . . 0.69

Ir

on and steel (excluding stainless) – polished steel. . . . . . . . . . . . . . . . . . . . . . 0.07

Ir

on and steel (excluding stainless) – polished steel oxidized at

600°C (1112°F). . . . . . . . . . . . . . . . . . . . 0.79

Ir

on and steel (excluding stainless) – rolled sheet steel . . . . . . . . . . . . . . . . . . . 0.66

Ir

on and steel (excluding stainless) – rough steel plate . . . . . . . . . . . . . 0.94 to 0.97

Lead

– gray and oxidized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.28

Mer

cury . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.09 to 0.12

Molybdenum filament

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.10 to 0.20

Nickel

– polished . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.07

Nickel

– oxidized at 649 to 1254°C (1200°F to 2290°F) . . . . . . . . . . . 0.59 to 0.86

Platinum

– pure polished plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05 to 0.10

Platinum

– wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.07 to 0.18

Silver

– pure and polished . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.02 to 0.03

Stainless steel

– polished . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.07

Stainless steel

– Type 301 at 232 to 942°C (450°F to 1725°F) . . . . . . . 0.54 to 0.63

T

in – bright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.06

T

ungsten – filament . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.39

Zinc

– polished commercial pure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05

Zinc

– galvanized sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.23

METALS

OS100 Series - Emissivity Table

6

6-2

Material Emissivity (ε)

Asbestos Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.96

Asphalt, tar

, pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.95 to 1.00

Brick

– red and rough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.93

Brick

– fireclay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75

Carbon

– filament . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.53

Carbon

– lampblack - rough deposit . . . . . . . . . . . . . . . . . . . . . . . . . . 0.78 to 0.84

Glass

- Pyrex, lead, soda . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.85 to 0.95

Marble

– polished light gray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.93

Paints, lacquers, and var

nishes – Black matte shellac . . . . . . . . . . . . . . . . . . . . 0.91

Paints, lacquers, and var

nishes – aluminum paints . . . . . . . . . . . . . . . . 0.27 to 0.67

Paints, lacquers, and var

nishes – flat black lacquer . . . . . . . . . . . . . . . 0.96 to 0.98

Paints, lacquers, and var

nishes – white enamel varnish . . . . . . . . . . . . . . . . . . 0.91

Por

celain – glazed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.92

Quar

tz – opaque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.68 to 0.92

Roofing Paper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.91

T

ape – Masking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.95

W

ater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.95 to 0.96

W

ood – planed oak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.90

NONMETALS

NOTES:

OS100 Series

6-3

NOTES:

OS100 Series

6-4

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 25 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace
period to the normal two (2) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR WARRANTY RETURNS, please have the
following information available BEFORE contacting
OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.

OMEGA is a trademark of OMEGA ENGINEERING, INC.
© Copyright 2017 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior
written consent of OMEGA ENGINEERING, INC.

FOR NON-WARRANTY REPAIRS, consult
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

MU

Thermocouple, RTD & Thermistor Probes, Connectors,

Panels & Assemblies

MU

Wire: Thermocouple, RTD & Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters & Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers & Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators & Pumps

MU

Industrial pH & Conductivity Equipment

DATA ACQUISITION

MU

Communications-Based Acquisition Systems

MU

Data Logging Systems

MU

Wireless Sensors, Transmitters, & Receivers

MU

Signal Conditioners

MU

Data Acquisition Software

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater Treatment

MU

pH, Conductivity & Dissolved Oxygen Instruments

M3572/1217
