ORCN-37

Microprocessor-Based ORP Controller

MADE IN

USA

Page 2

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as the guide contains important information relating to safety and EMC.

OMEGAnet® On-Line Service

www.omega.com

Internet e-mail

[email protected]

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

TEL: (203) 359-1660 FAX: (203) 359-7700 e-mail: [email protected]

Canada: 976 Bergar Laval (Quebec) H7L 5A1 TEL: (514) 856-6928 FAX: (514) 856-6886 e-mail: [email protected]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

Mexico and TEL: (001)800-TC-OMEGA® FAX: (001) 203-359-7807 Latin America: En Español: (001) 203-359-7803

e-mail: [email protected]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands TEL: +31 20 3472121 FAX: +31 20 6434643 Toll Free in Benelux: 0800 0993344 e-mail: [email protected]

Czech Republic:

TEL: +420 59 6311899 FAX: +420 59 6311114

e-mail: [email protected]

France: 11, rue Jacques Cartier, 78280 Guyancourt TEL: +33 1 61 37 29 00 FAX: +33 1 30 57 54 27 Toll Free in France: 0800 466 342

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany TEL: +49 7056 9398-0 FAX: +49 7056 9398-29 Toll Free in Germany: 0800 639 7678

e-mail: [email protected]

United Kingdom: One Omega Drive

ISO 9002 Certified River Bend Technology Centre

Northbank, Irlam Manchester M44 5BD United Kingdom TEL: +44 161 777 6611 FAX: +44 161 777 6622 Toll Free in England: 0800 488 488

Frystatska 184, 733 01 Karviná

e-mail: [email protected]

Page 3

Preface

PREFACE

Manual Objectives

This manual shows you how to set up and use the Programmable Digital Meter.

Standard Procedures:

* Checking voltage jumpers, or changing voltage power * Mounting the panel * Selecting a decimal point position * Configuring calibration parameters * Performing two point calibration * Setting the setpoint's active band * Selecting a latched or unlatched operation * Setting setpoint’s deadbands * Enabling/disabling analog output * Selecting analog output as current or voltage * Scaling analog output

Page 4

Preface

Table A-1. Sections of the Manual

If you want to read about:

Unpacking; safety considerations

Meter description and features

Main board power jumpers; panel mounting, input, main power and analog and relay output

Setpoint value, decimal point position, calibration, setpoint configuration; setpoint deadbands, analog output configuration and scaling

Setpoint values

Display messages

Meter menu/sub-menu messages

Setpoint configuration messages

Specifications

Factory Preset Values

Refer to section

Introduction

About the Meter

Getting Started

Configuring the Meter

Selecting Setpoint Values

Display Messages

Menu Configuration

Setpoint Configuration Displays

Specifications

Factory Default Setup as Shipped

Page 5

iii

Preface

Table of Contents

Section Page

SEC 1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.2 Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SEC 2 ABOUT THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2.3 Available Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2.4 Front of the Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.4.1 Meter Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.5 Front Panel Button Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.5.1 Jumper Lock Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.5.2 Push Button Lock Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.6 Back of Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.7 Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SEC 3 GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.1 Rating/Product Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.2 Main Board Power Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.3 Main Board Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.4 Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.5 Connecting Sensor Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.6 Connecting Main Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3.7 Connecting Analog and Relay Outputs . . . . . . . . . . . . . . . . . . . . . . . . . .18

SEC 4 CONFIGURING THE METER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4.1 Configuring Decimal Point ("DEC.P") . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4.2 Using Reading Configuration ("RD.CF") . . . . . . . . . . . . . . . . . . . . . . . . .20

4.3 Performing 2 Point Calibration ("CAL.2") . . . . . . . . . . . . . . . . . . . . . . . . .21

4.4 Using Setpoint 1 Configuration ("S1.CF") . . . . . . . . . . . . . . . . . . . . . . . .22

4.5 Using Setpoint 2 Configuration ("S2.CF") . . . . . . . . . . . . . . . . . . . . . . . .23

4.6 Setting Deadband or Hysteresis for Setpoint 1 ("S1.DB") . . . . . . . . . . . .23

4.7 Setting Deadband or Hysteresis for Setpoint 2 ("S2.DB") . . . . . . . . . . . .23

Page 6

Preface

Table of Contents

Section Page

4.8 Using Output Configuration ("OT.CF") . . . . . . . . . . . . . . . . . . . . . . . . . . .25

4.9 Using Output Scale and Offset ("OT.S.O") . . . . . . . . . . . . . . . . . . . . . . .25

4.10 Using Lockout Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

SEC 5 SELECTING SETPOINT VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

SEC 6 DISPLAY MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

SEC 7 MENU CONFIGURATION DISPLAYS . . . . . . . . . . . . . . . . . . . . . . . . . .30

SEC 8 SETPOINT CONFIGURATION DISPLAYS . . . . . . . . . . . . . . . . . . . . . . .33

SEC 9 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

SEC 10 FACTORY PRESET VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

CE APPROVAL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Page 7

Preface

List of Figures

Figure Page

2-1 Front of Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2-2 ac Power Connector Label (with dc-Power Detail) . . . . . . . . . . . . . . . . . .9

3-1 Main Board Power Jumpers (W1, W2, W3) . . . . . . . . . . . . . . . . . . . . . .12

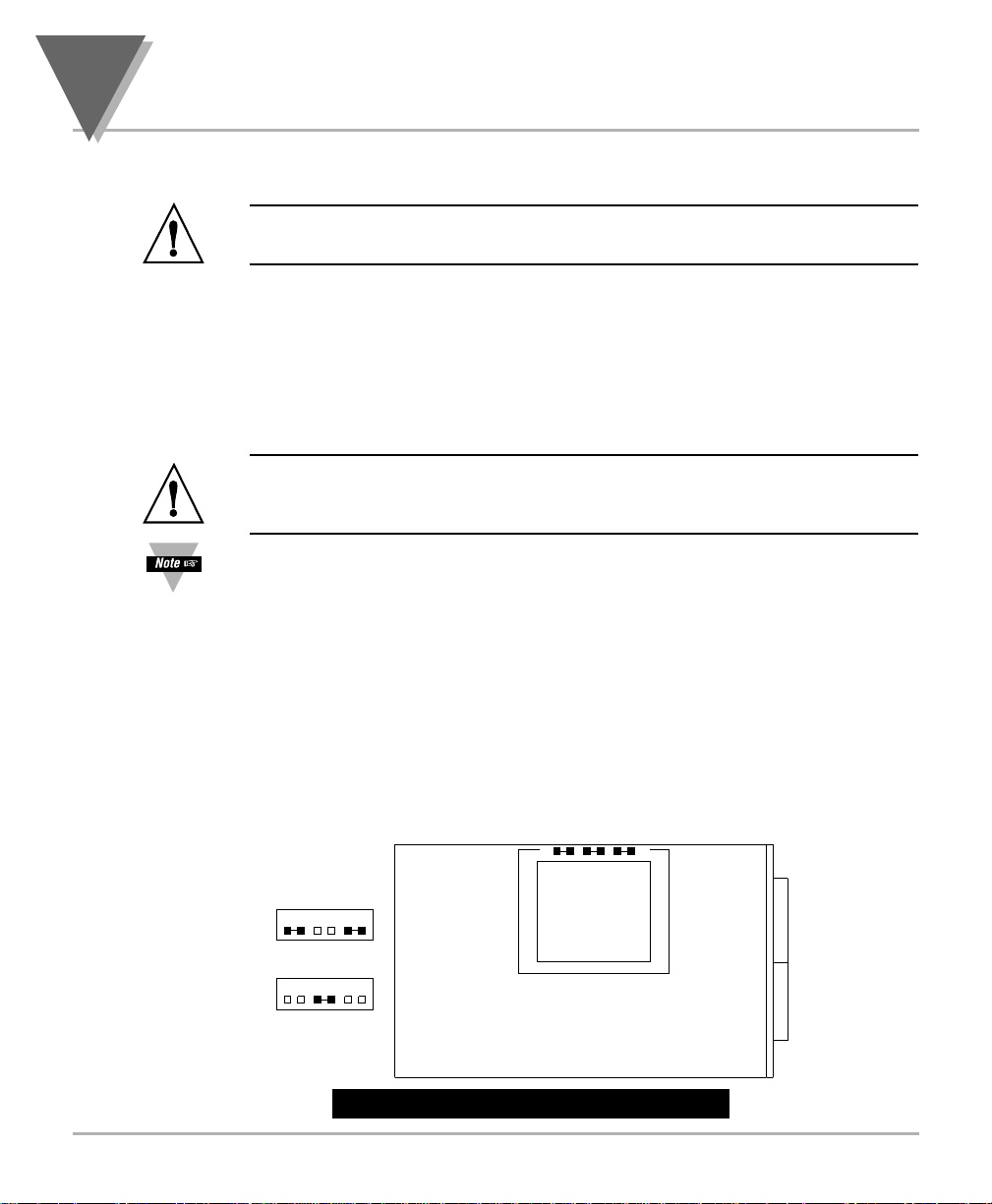

3-2 Main Board Jumper Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3-3 Upper Option Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3-4 Meter - Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3-5 Panel Cut-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

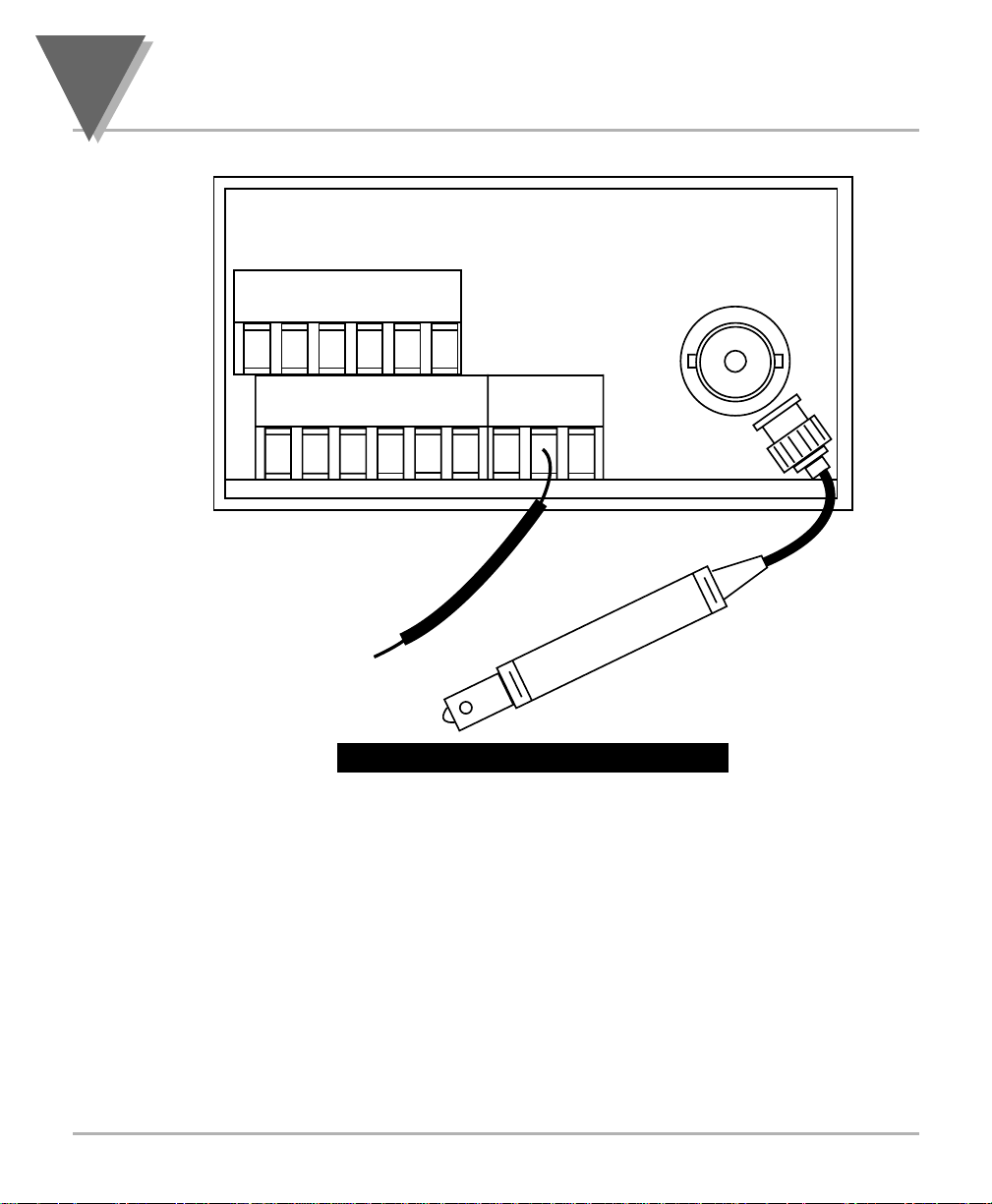

3-6 pH and RTD Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3-7 Main Power Connections - ac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

3-8 Main Power Connections -dc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

3-9 Relay Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

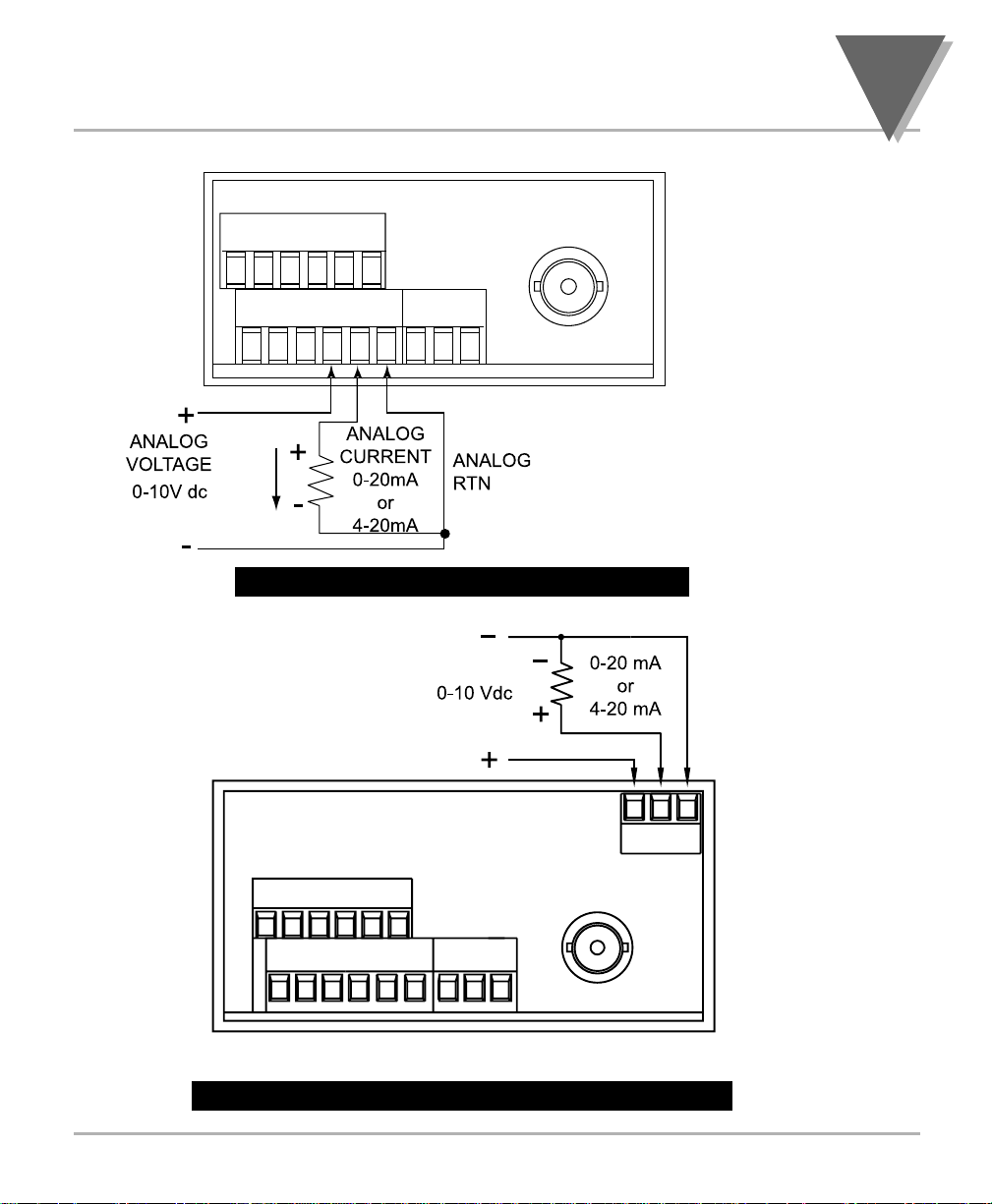

3-10 Analog Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

3-11 Isolated Analog Output Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4-1 Alarm Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

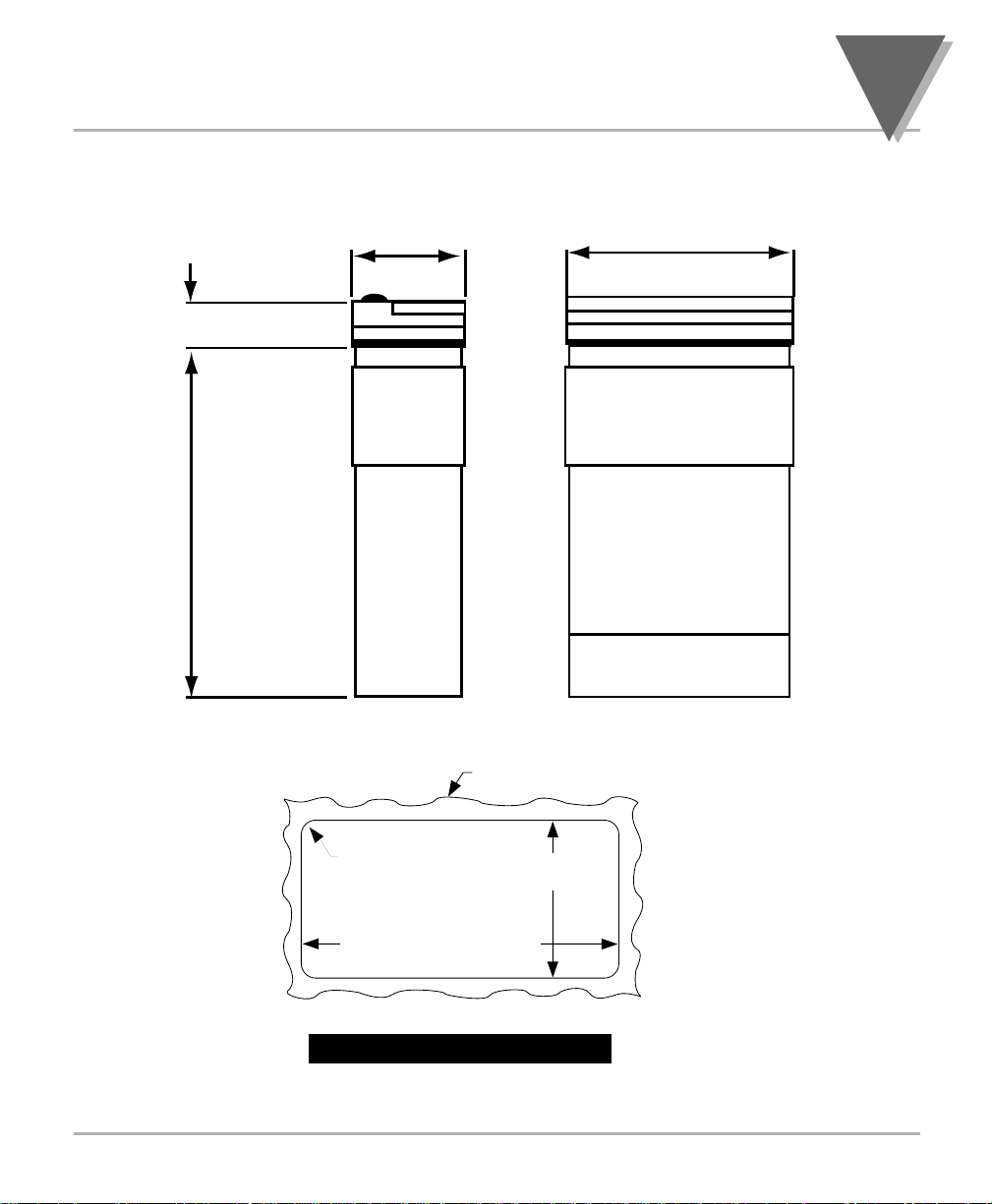

9-1 Dimensions/Panel Cutout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

List of Tables

Table Page

A-1 Sections of the Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

2-1 Accessories and Add-Ons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2-2 Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3-1 Jumper Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3-2 ac-Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

6-1 Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

7-1 Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

7-2 Run Mode Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

8-1 Setpoint Configuration Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

10-1 Factory Preset Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Page 8

NOTES, WARNINGS and CAUTIONS

Information that is especially important to note is identified by three labels:

• NOTE

• WARNING

• CAUTION

• IMPORTANT

NOTE: provides you with information that is important to successfully setup and

use the Programmable Digital Meter.

CAUTION or WARNING: tells you about the risk of electric shock.

CAUTION, WARNING or IMPORTANT: tells you of circumstances or practices

that can effect the meter's functionality and must refer to accompanying documents.

Preface

Page 9

Introduction

SECTION 1. INTRODUCTION

1.1 UNPACKING

Remove the Packing List and verify that all equipment has been received. If there are any questions about the shipment, use the phone number for the Customer Service Department nearest you.

Upon receipt of shipment, inspect the container and equipment for any signs of damage. Take particular note of any evidence of rough handling in transit. Immediately report any damage to the shipping agent.

The carrier will not honor any claims unless all shipping material is saved for their examination. After examining and removing contents, save packing material and carton in the event reshipment is necessary.

Verify that you receive the following items in the shipping box:

QTY DESCRIPTION

1 Programmable Digital Meter indicator/controller with all applicable

connectors attached.

1 Owner's Manual

1 Set Mounting brackets

If you ordered any of the available options (except the “BL” blank Lens option), they will be shipped in a separate container to avoid any damage to your indicator/controller.

Page 10

Introduction

1.2 SAFETY CONSIDERATIONS

This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains

important information relating to Safety and EMC (Electromagnetic Compatibility).

This instrument is a panel mount device protected in accordance with EN 610101:2001, electrical safety requirements for electrical equipment for measurement, control and laboratory. Installation of this instrument should be done by qualified personnel. In order to ensure safe operation, the following instructions should be followed.

This instrument has no power-on switch. An external switch or circuit-breaker shall be included in the building installation as a disconnecting device. It shall be marked to indicate this function, and it shall be in close proximity to the equipment within easy reach of the operator. The switch or circuit-breaker shall not interrupt the Protective Conductor (Earth wire), and it shall meet the relevant requirements of IEC 947–1 and IEC 947-3 (International Electrotechnical Commission). The switch shall not be incorporated in the main supply cord.

Furthermore, to provide protection against excessive energy being drawn from the main supply in case of a fault in the equipment, an overcurrent protection device shall be installed.

• Do not exceed voltage rating on the label located on the top of the instrument housing.

• Always disconnect power before changing signal and power connections.

• Do not use this instrument on a work bench without its case for safety reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

• Do not expose this instrument to rain or moisture.

• Unit mounting should allow for adequate ventilation to ensure instrument does not exceed operating temperature rating.

• Use electrical wires with adequate size to handle mechanical strain and power requirements. Install without exposing bare wire outside the connector to minimize electrical shock hazards.

EMC Considerations

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.

Failure to follow all instructions and warnings may result in injury!

Note

☞

Page 11

About The Meter

SECTION 2. ABOUT THE METER

2.1 DESCRIPTION

This Digital Programmable meter is a microprocessor-based ORP controller. This controller includes a fully scalable analog output and also two dual 5 amp, form C relay outputs for alarm or control of acid or base additions.

2.2 FEATURES

The following is a list of standard features:

* 4-digit 14-segment LED display - red or green display * NEMA-4/Tyoe 4 front panel bezel * ±0.1 mV accuracy * online 2 point calibration * Non-volatile memory-no battery backup * Dual 5 amp, form C relay outputs * Scalable non-isolated analog outputs * 115 or 230 Vac 50/60 Hz power supply

or 10-32 Vdc or 26-56 Vdc

The following is a list of optional features:

* Scalable isolated analog output

Page 12

About The Meter

2.3 AVAILABLE ACCESSORIES

Table 2-1. Accessories and Add-Ons

Add-On Options

FS Special Calibration/Configuration SPC4 NEMA-4 Splash Proof Cover SPC18 NEMA-4 Splash Proof Cover, NEW

Accessories

TP1A Trimplate panel adaptor.

Adapts DIN1A/DIN2A cases to larger panel cutouts RP18 19-In. Rack Panel for one (1) 1/8 DIN instrument RP28 19-In. Rack Panel for two (2) 1/8 DIN instrument RP38 19-In. Rack Panel for three (3) 1/8 DIN instrument

Page 13

About The Meter

2.4 FRONT OF THE METER

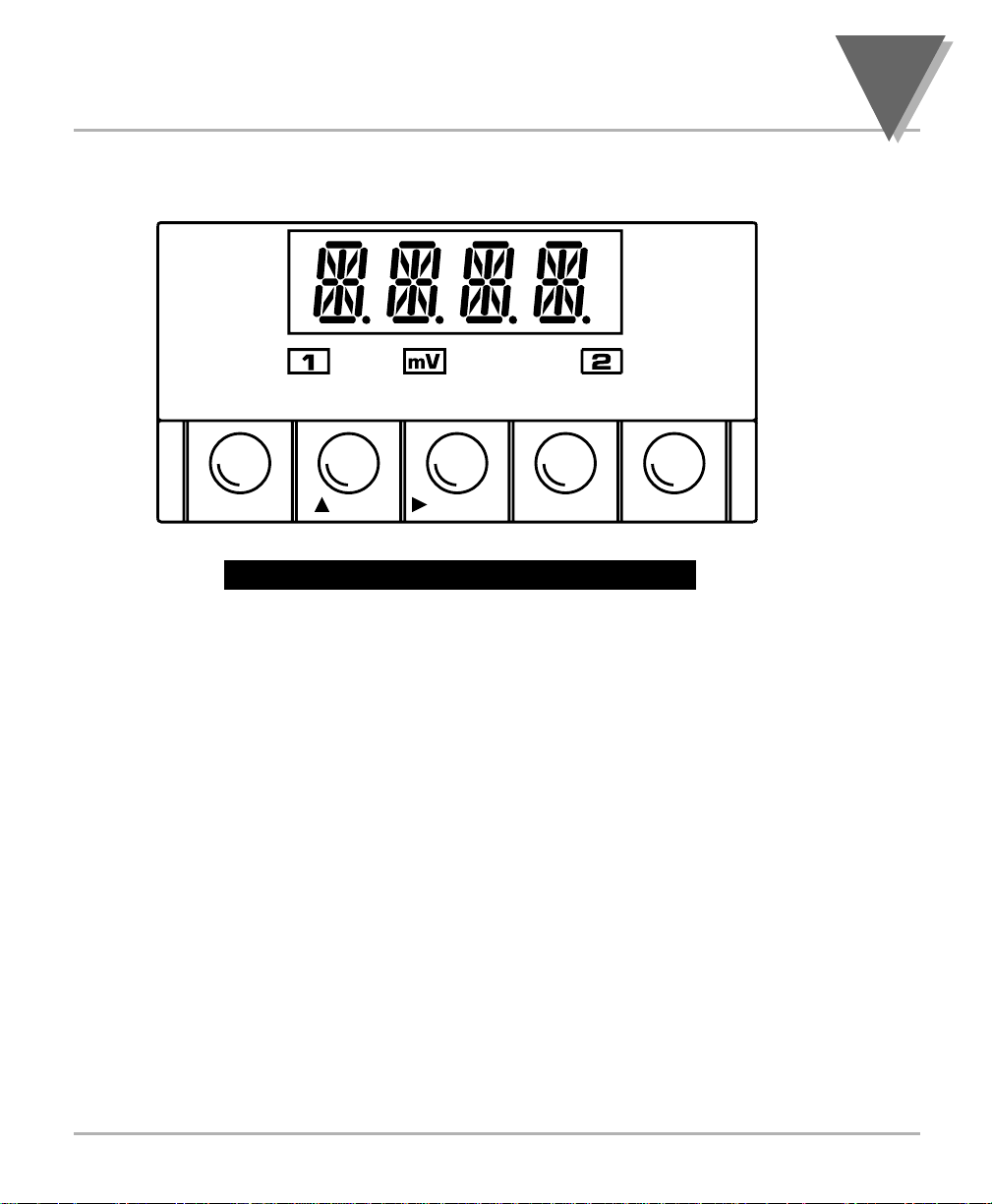

Figure 2-1 Front of meter - ORP Controller

METER DISPLAY:

Digital LED display

-1.9.9.9. or 9.9.9.9. 4-digit 14 segment, 0.54" high LED display with programmable decimal point.

These meter display windows light when appropriate:

1 Setpoint 1 status

2 Setpoint 2 status

mV mV displays

SETPTS

/RAW mV

MENU RESET/ORP

Page 14

About The Meter

2.4.1 METER BUTTONS

SETPTS Button

In the run mode, this button will sequentially recall the previous setpoint settings. As necessary, use the /ORP and /RAW mV buttons to alter these settings, then press the SETPTS button to store new values.

Unless you press the SETPTS,



/ORP, or /RAW mV button within 20 seconds, the

meter will scroll to setpoint 2 and then to the run mode.



/ORP Button

In the run mode, this button will view ORP value.

In the configuration mode, press this button to change the value of the flashing digit shown on the display and/or toggle between menu choices, such as “R.1=F” or “R.1=C” on RD.CF menu. When configuring your setpoint values, press the /ORP button to advance the flashing digit's value from 0 to 9 by 1.



/RAW mV Button

In the run mode press the /RAW mV button to view raw input in millivolts

In the configuration mode, press this button to scroll to the next digit.

Page 15

About The Meter

2.4.1 METER BUTTONS (Continued)

MENU Button

In the run mode, press the MENU button to terminate the current measuring process and enter you into the configuration mode.

In the configuration mode, press the MENU button to store changes in the nonvolatile memory and then advance you to the next menu item.

RESET Button

If you hard reset (press the MENU button followed by the RESET button) or power off/on the meter, it shows “RST”, followed by “ORP”.

In the run mode, press the RESET button to reset the latched setpoints. The meter shows “SP.RS” and returns to the run mode.

In the configuration mode, press the RESET button once to review the previous menu. Press the RESET button twice to perform a hard reset and return to the run mode.

In the setpoint mode, press the RESET button to enter the run mode. The meter shows "RUN" and enters the run mode.

When in setpoint or configuration mode, if the meter shows 9999 or

-1999 with all flashing digits, the value has overflowed. Press the



/ORP

button to start a new value.

Page 16

About The Meter

2.5 FRONT-PANEL BUTTON LOCK OUT (For Security Purposes)

2.5.1 Jumper Lock Out

To lock all front-panel buttons, remove the S3-A jumper (refer to Figure 3-2).

To lock the MENU button only, verify that the S3-B jumper is removed, then install the

S3-A and S3-E jumpers (refer to Table 3-1). If you press the MENU button, the meter shows “LOCK” and returns to the run mode.

2.5.2 Push Button Lock Out

To lock the RESET, MENU and SETPTS buttons only, verify that the S3-A jumper is installed and the S3-E jumper is not installed, then follow these steps:

In the run mode -

1. Press and hold down the RESET button. The meter shows “SP.RS” or “RUN”. Do not release the RESET button.

2. Press the MENU button and hold the RESET button down (3-5 seconds) until the meter shows “LOCK”.

3. Release both buttons.

To unlock the RESET, MENU and SETPTS buttons, follow these steps:

1. Press and hold down the RESET button. The meter shows “LOCK”. Do not release the RESET button.

2. Press the MENU button and hold the RESET button down (3-5 seconds) until the meter shows “UN.LK”.

3. Release both buttons.

Page 17

About The Meter

2.6 BACK OF THE METER

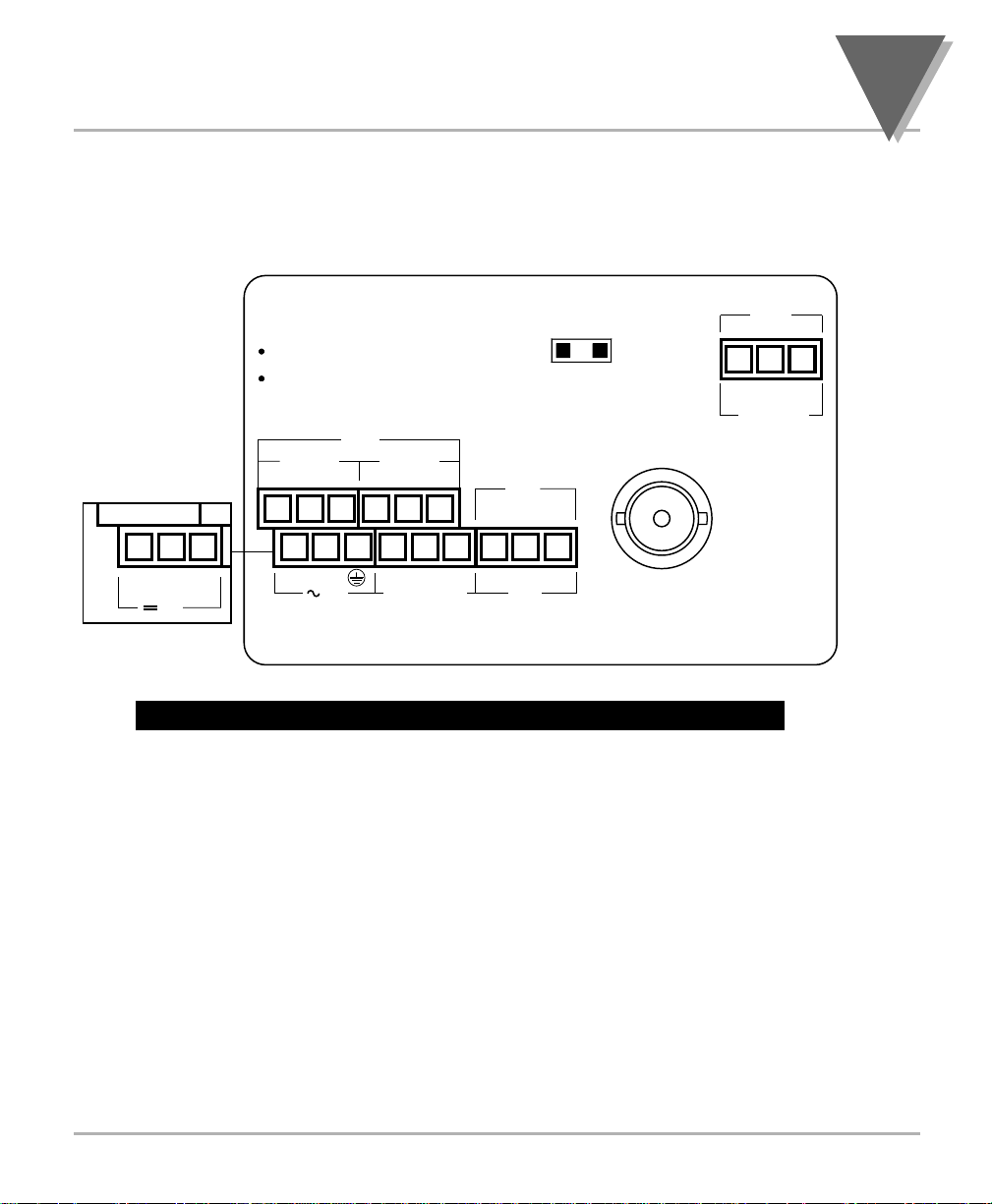

Figure 2-2 shows the label describing the connectors on the back of the meter. Table 2-1 on the following page gives a brief description of each connector at the back of the meter.

Figure 2-2. ac Power Connector Label (with dc Power detail)

TB1

987

N/C

dc-power connector

label detail

POWER & INPUT CONNECTIONS (OR)

NO EXT SENSOR RETURN: INSTALL S4-A

EXT SENSOR RETURN: REMOVE S4-A

TB1

RELAY 1

RELAY 2

N.C.2N.C.1N.O.1 COM1 COM2N.O.2

321 654

987

VOLT RTNCURR

ANALOG OUT*

= CONNECT TO LOW VOLTAGE LIMITED ENERGY CIRCUITRY ONLY.

12*11*10* 3*2*1*

TB2

N/C

EXT

SENSOR

RTN*

ORP INPUT*

N/C-ORP

TB5

3*2*1*

RTNVOLT CURR

ISOLATED*

ANALOG OUT

Page 18

About The Meter

2.6 BACK OF THE METER (Continued)

Table 2-2. Connector Description

Connector Description

TB1-1 Setpoint 1: Normally Open (N.O.1) connection TB1-2 Setpoint 1: Normally Closed (N.C.1) connection TB1-3 Setpoint 1: Common (COM1) connection TB1-4 Setpoint 2: Normally Open (N.O.2) connection TB1-5 Setpoint 2: Normally Closed (N.C.2) connection TB1-6 Setpoint 2: Common (COM2) connection TB1-7 ac Line connection (no connections on dc-powered units) TB1-8 ac Neutral connection (+ Input on dc-powered units) TB1-9 ac Earth ground (dc-power Return on dc-powered units) TB1-10 Analog Voltage Output connection TB1-11 Analog Current Output connection TB1-12 Analog Return connection TB2-1 no connection TB2-2 -ORP: Electrode solution ground wire connection TB2-3 no connection TB5-1 Isolated Analog Voltage Output connection TB5-2 Isolated Analog Current Output connection TB5-3 Isolated Analog Output Return connection

J3 Main pH or pH/ORP input BNC connector

Page 19

About The Meter

2.7 DISASSEMBLY

You may need to open up the meter for one of the following reasons:

• To check or change the 115 or 230 Vac power jumpers.

• To install or remove jumpers on the main board.

Disconnect the power supply before proceeding.

To remove and access the main board, follow these steps:

• Disconnect the main power from the meter.

• Remove the back case cover.

• Lift the back of the main board upwards and let it slide out of the case.

Page 20

Getting Started

SECTION 3. GETTING STARTED

Caution: The meter has no power-on switch, so it will be in operation as

soon you apply power.

If you power off/on the meter, or perform a hard reset (press the RESET button twice), the meter shows “RST”, followed by "ORP".

3.1 RATING/PRODUCT LABEL

This label is located on top of the meter housing (refer to Figure 3-4).

3.2 MAIN BOARD POWER JUMPERS (refer to Figure 3-1)

Important: If you want to change the Factory preset jumpers, do the

following steps; otherwise go to section 3.3.

Disconnect the power from the unit before proceeding.

1. Remove the main board from the case. Refer to Section 2.7.

2. Locate the solder jumpers W1, W2, and W3 (located near the edge of the main board alongside the transformer).

3. If your power requirement is 115 V ac, solder jumpers W1 and W3 should be

wired, but jumper W2 should not. If your power requirement is 230 V ac, solder jumper W2 should be wired, but jumpers W1 and W3 should not.

Figure 3-1 shows the location of solder jumpers W1 through W3.

Figure 3.1 Main Board Power Jumpers

W3 W2 W1

115V ac

W3 W1

230V ac

TRANSFORMER

DISPLAY BOARD

Page 21

Getting Started

3.3 MAIN BOARD JUMPERS

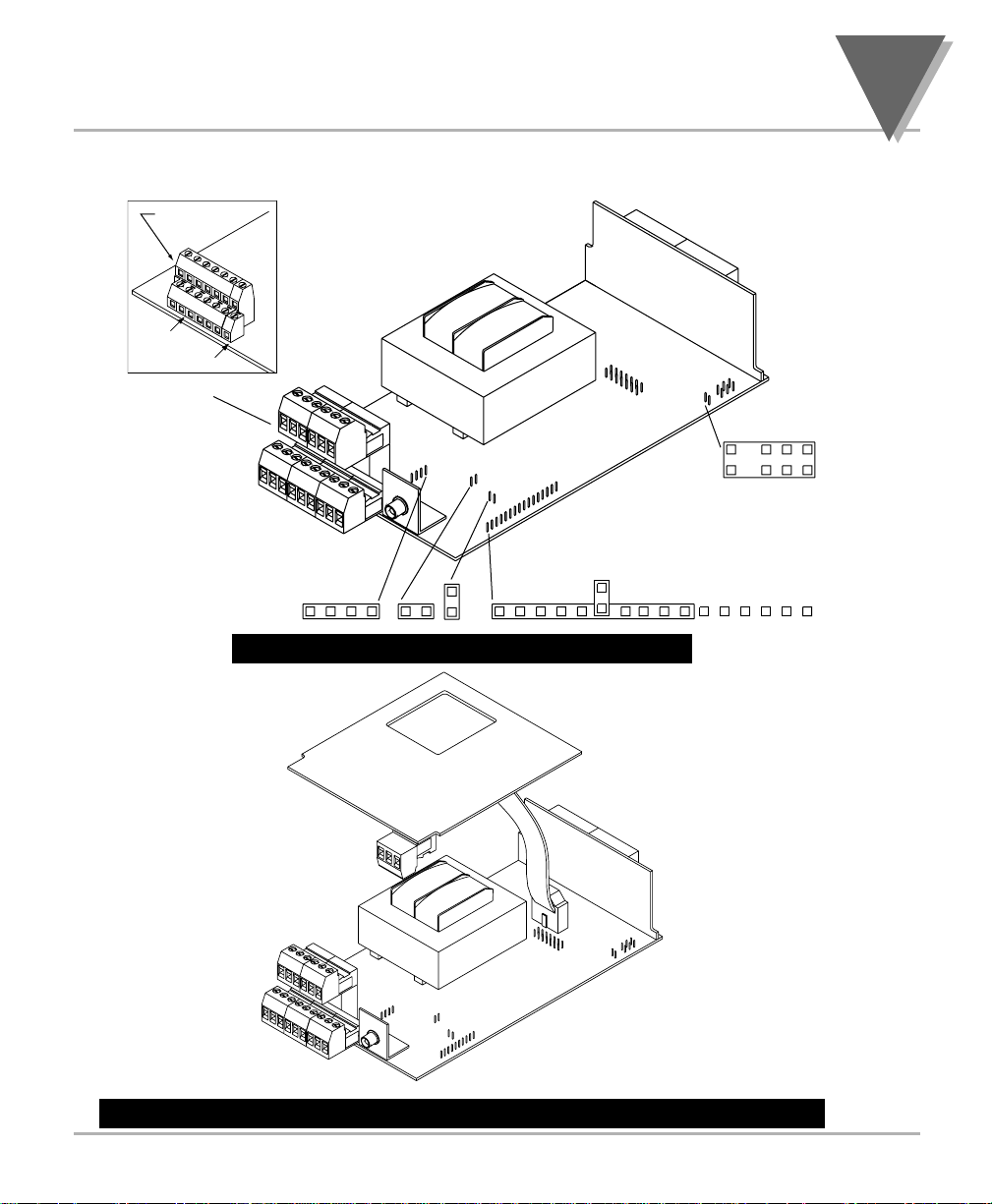

Figure 3-2 shows the location jumper positions on the main board.

Figure 3-2. Main Board Jumper Positions

Figure 3-3. Upper Isolated Analog Output Option Board Installation

Version with Non-Removable connectors.

DISPLAY

TB1

TB2

Newer version with upper & lower level pull-out connector plugs

TB1

TB2

MAIN

BOARD

TP1-6

BOARD

EBCA

BCADEF

TP1

TP2 TP3

TP4

TP5

TB5

BOARD

MAIN

DISPLAY

BOARD

TP6

Page 22

Getting Started

3.3 MAIN BOARD JUMPERS (Continued)

S1 and S2 jumpers are for factory use only.

Do not install or remove them, as reading errors may result

S3 jumpers are used for the following: (Refer to Figure 3-2)

* To enable or disable the front panel push-buttons * To allow for an extremely low resistance load for analog output * To disable the MENU button * To perform calibration procedure

S4 jumpers allow you to use electrode solution ground wire or internal ground for measurement purposes.

S5 jumpers allow you to use 100 ohm or 1000 ohm RTD sensors.

Table 3-1. Jumper Functions

Jumper Description

S3-A Install to enable front panel push-buttons.

Remove to disable all front panel push-buttons S3-B Removed. Install for meter calibration. S3-C Normally removed. Install for analog output when load is

less than 1 K Ω impedance. Care should be taken when

installing this jumper. S3-D Removed. Not used. S3-E If installed without S3-B, the MENU button locks out.

If you press the MENU button, the meter shows “LOCK”. S4-A Install when using internal ground.

Remove when using electrode solution ground wire. S5-A Install for 100 ohm RTD sensor.

Remove for 1000 ohm RTD sensor.

Page 23

Getting Started

3.4 PANEL MOUNTING

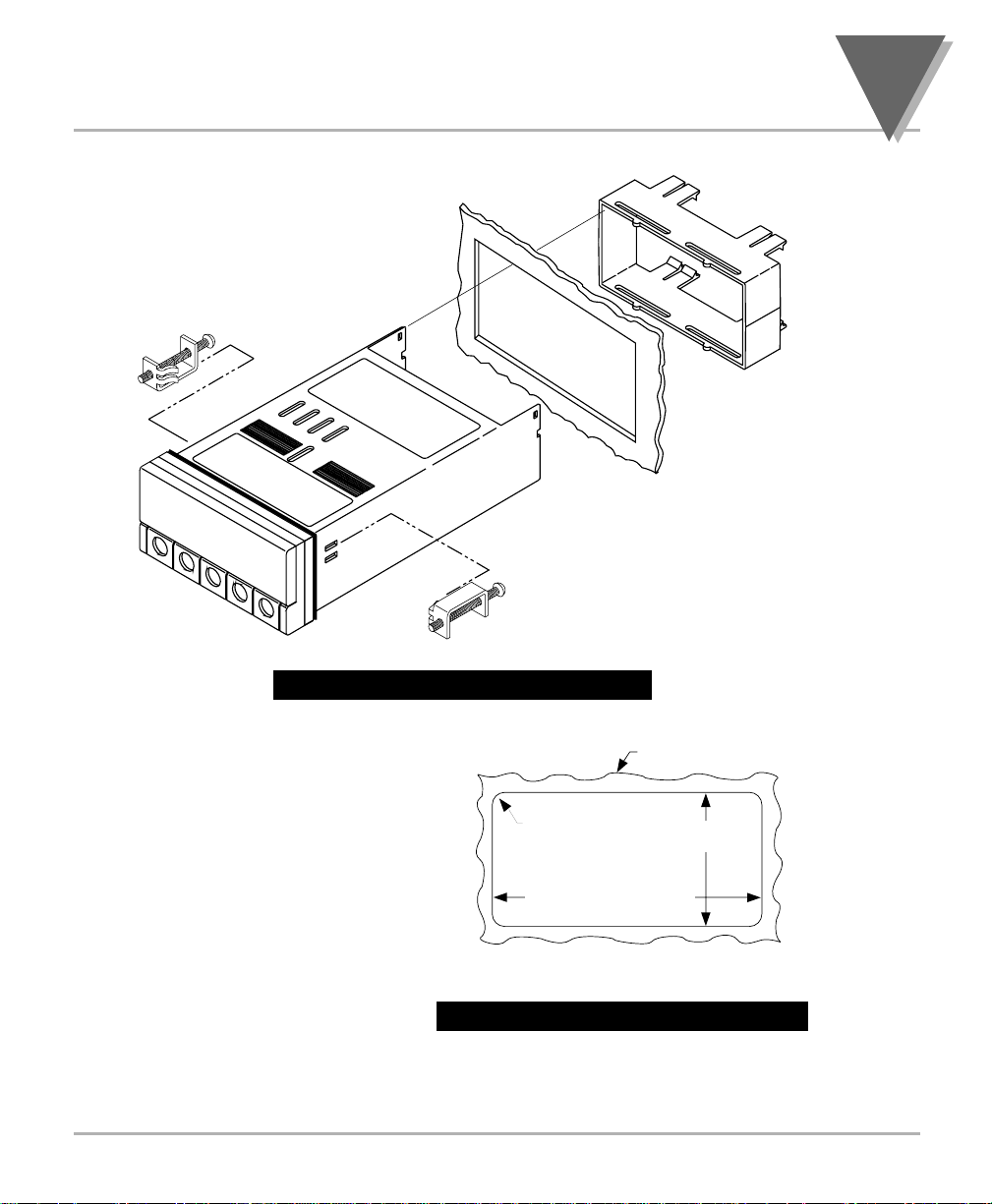

Figure 3-4. Meter - Exploded View

1. Cut a hole in your panel, as shown in Figure 3-4. For specific dimensions refer to Figure 3-5.

2. Insert the meter into the hole. Be sure the front bezel gasket is flush to the panel.

3. Slide on mounting bracket to secure.

4. Proceed to Section 3.5 to connect your sensor input and main power.

Figure Figure 3-5. Panel Cut-Out

CONNECTOR

LABEL

REAR COVER

(REMOVED)

PANEL

CUT-O

"NEW

UNTING

BRACKET

" STYLE

PRODUCT

LABEL

GASKET

FRONT BEZEL

CASE

LDER" STYLE

UNTING

BRACKET 2 PCS

PANEL THICKNESS

6,4 (.25) MAX 0,8 (.03) MIN

1,5

R(.06)

4 PLCS

92,00 + 0,81/–0,00

(3.622 + .032/–.000)

NOTE: Dimensions in Millimeters (Inches)

45,00 + 0,61/-0,00

(1.772 + .024/–.000)

Page 24

Getting Started

3.5 CONNECTING SENSOR INPUTS

Figure 3-6. ORP Input Connections

TB1

123456

7 8 9 10 1 2* 311 12

Electrode Solution

Ground Wire

ORP INPUT*

TB2

ORP Probe

Page 25

Getting Started

3.6 CONNECTING MAIN POWER

Connect the ac main power connections as shown in Figure 3-7.

Warning: Do not connect AC power to your device until you have completed all input and output connections. This device must only be installed by a specially trained electrician with corresponding qualifications. Failure to follow all instructions and warnings may result in injury!

Figure 3-7. Main Power Connections - ac

Table 3-2. ac-Power Connections

WIRE COLORS

TB1 AC POWER EUROPE USA

~ ac Line Brown Black

~ ac Neutral Blue White

9 ~ ac Earth Green/Yellow Green

TB1

123456

78910 12

ORP INPUT

TB2

NEUTRAL

EARTH

LINE

SWITCH

GREEN WIRE

Check for proper Earth grounding in the power distribution system (single phase).

FUSE

(N) NEUTRAL

EARTH GROUND

(L) LINE

AC Power

Page 26

Getting Started

3.6 CONNECTING MAIN POWER (Continued)

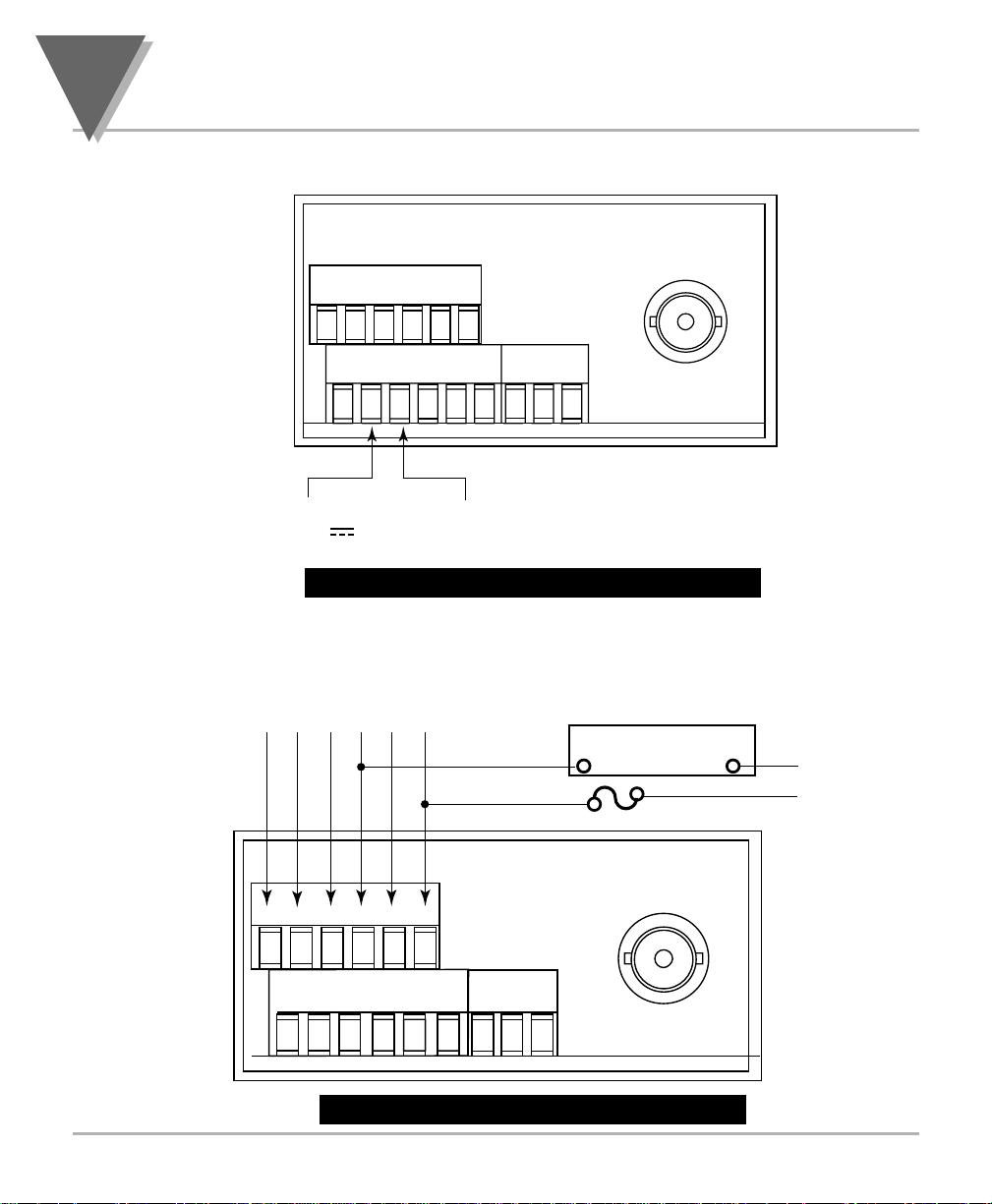

Connect the dc main power connections as shown in Figure 3-8.

Figure 3-8. Main Power Connections - DC

3.7 CONNECTING ANALOG AND RELAY OUTPUTS

Figure 3-9. Relay Output Connections

TB1

123456

TB2

78910 12311

+ DC

DC POWER

Relay 1 Relay 2

}

N.O.1

N.C.1

COM1

N.O.2

N.C.2

- DC

}

COM2

NO2

COM2

EXTERNAL LOAD

ORP INPUT

FUSE

TB1

123456

78910

11 12

TB2

ORP INPUT

Page 27

Getting Started

3.7 CONNECTING ANALOG AND RELAY OUTPUTS (Continued)

Figure 3-10. Analog Output Connections

Figure 3-11. Isolated Analog Output Connections

TB1

123456

TB2

7 8 9 10* 1 2 311*12*

*\ = CONNECT TO LOW VOLTAGE \ LIMITED ENERGY CIRCUITRY ONLY.

ORP INPUT

TB1

1234

ORP INPUT

TB2

7891011

* = CONNECT TO LOW VOLTAGE LIMITED ENERGY CIRCUITRY ONLY.

123

1* 2* 3*

TB5

Page 28

Configuring The Meter

2020

SECTION 4. CONFIGURING THE METER

• Refer to Table 7-1 for a summary list of menu configuration.

• Factory defaults are in bold and italics.

4.1 Configuring Decimal Point ("DEC.P")

Under this menu there are two choices:

FFFF. The meter's resolution is configured for mV - default.

FFF.F The meter's resolution is configured for 0.1 mV.

1. Press the RAW/mV button once, the current decimal point resolution is displayed.

2. Press the



/ORP button to select the desired resolution, then press the Menu button to store this value. The "STRD" momentarily appears then the next menu will automatically appear on the display.

Setpoint value and deadband’s decimal points are automatically updated when you change the decimal point. If any of these values are overflowed, then the meter will flash "ER 2", momentarily warning that one of these values has been corrupted. Then go to the next menu. New decimal point will be substituted.

4.2 Using Reading Configuration ("RD.CF")

Under this menu there is 1 submenu and 2 choices for the submenu:

R.1=F For filtered ORP values - default.

R.1=U For unfiltered values.

1. Press the RAW/mV button once. R.1=F or R.1=U will flash.

2. Press the



/ORP button to select desired choice.

3. Press the MENU button to store this value. The "STRD" momentarily displays, followed by "CAL.2".

Page 29

Configuring The Meter

4.3 Performing 2 Point Calibration ("CAL.2")

There are two methods to calibrate the meter to display readings.

4.3.1. Online Calibration

In this method, meter will display the actual output values of the ORP probe. You will enter the two desired points for the display reading:

1. Immerse the ORP probe in a known solution (low point).

2. Press the MENU button until "CAL.2" displays.

3. Press the /RAW mVbutton. "IN 1" (input 1) displays.

4. Press the RAW/mV button again. The last input 1 stored value displays with the fourth digit flashing.

5. Press the RAW/mV button once more. Actual signal being received by your meter displays with no flashing digits.

6. Press the MENU button to store this value as "IN 1" (input 1).

7. "RD 1" displays.

8. Press the RAW/mV button. The last "RD 1" value stored displays with the fourth digit flashing.

9. Press the



/ORP button to change the value of your digits.

10.Press the RAW/mV button to scroll horizontally to the next digit.

11.Press the MENU button to store value as "RD 1". "IN 2" (input 2) displays.

12.Immerse the ORP probe in the next solution (high point) and wait for it to settle.

13.Press the RAW/mV button again. The last input 2 stored value displays with the fourth digit flashing.

14.Press the RAW/mV button once more. Actual signal being received by your meter displays.

15.Press the MENU button to store input 2 value, then "RD 2" (Read 2) displays.

16.Press the RAW/mV button. The last "RD 2" value stored displays.

17.Press the



/ORP button to change the value of your digits.

18.Press the RAW/mV button to scroll horizontally to the next digit.

19.Press the MENU button to store value as "RD 2" (Read 2). "STRD" momentarily displays, followed by "S1.CF". Meter scaling is now complete.

If all digits are flashing during the calibration it means the value is overflowed. Press /ORP button to start new value.

Page 30

Configuring The Meter

4.3 Performing 2 Point Calibration ("CAL.2") (Continued)

4.3.2 Manual Calibration

In this method you will enter all four points required for 2 point calibration.

1. Press the MENU button until "CAL.2" displays.

2. Press the RAW/mV button. "IN 1" displays.

3. Press the RAW/mV button again. Meter displays the last input 1 value, with fourth digit flashing.

4. Press the



/ORP button to change the value of your digits.

5. Press the RAW/mV button to scroll horizontally to the next digit.

6. Press the MENU button to store this value. "RD 1" displays.

7. Press the RAW/mV button. The last read 1 value stored displays.

Repeat steps 4 - 7 until "RD 1", "IN 2", and "RD 2" have been displayed, verified, changed (if necessary), and stored. At the last "menu" the meter momentarily displays "STRD" followed by "S1.CF". The meter scaling is completed.

If all digits are flashing during the calibration it means the value is overflowed. Press /ORP button to start new value.

4.4 Using Setpoint 1 Configuration ("S1.CF")

This menu configures the Setpoint 1 relay. The "S1.CF" has two submenus and there are two choices for each submenu. They are:

S.1=A Relay activates above the deadband (Hi alarm) - default.

S.1=B Relay activates below the deadband (Low alarm).

S.2=U Unlatched (The relay will energize or de-energize normally).On/OFF

applications will normally use this mode - default.

S.2=L Latched (The relay will remain activated until reset manually). Most

applications utilizing audible or visual alarms or batch processing will use this mode.

1. Press the RAW/mV button once. The S.1=A or S.1=B submenu will flash.

2. Press the



/ORP button until the desired value is selected.

3. Press the RAW/mV button once. The S.2=U or S.2=L submenu will flash.

4. Press the /ORP button until the desired value is selected.

5. Press the Menu button once. The meter will display "STRD" momentarily and then will display the "S2.CF" menu.

Page 31

Configuring The Meter

4.5 Using Setpoint 2 Configuration ("S2.CF")

This menu configures the Setpoint 2 relay. The "S2.CF" has two submenus and there are two choices for each submenu. They are:

S.1=A Relay activates above the deadband value (Hi alarm) - default.

S.1=B Relay activates below the deadband value (Low alarm).

S.2=U Unlatched (The relay will energize and de-energize normally. On/Off

applications will normally use this mode) - default.

S.2=L Latched (The relay will remain activated until reset manually. Most

applications utilizing audible or visual alarms or batch processing will use this mode).

1. Press the RAW/mV button once. The S.1=A or S.1=B submenu will flash.

2. Press the



/ORP button until the desired value is selected.

3. Press the RAW/mV button once. The S.2=U or S.2=L submenu will flash.

4. Press the /ORP button until the desired value is selected.

5. Press the Menu button once. The meter will display "STRD" momentarily and then will display the "S1.DB" menu.

4.6 Setting Deadband or Hysteresis for Setpoint 1 ("S1.DB")

This menu sets the deadband or hysteresis for Setpoint 1. The deadband's resolution value is dependent upon the decimal point value previously set-up in Section 6.3.

1. Press the RAW/mV button once to observe the current value of "S1.DB".

2. Press the /ORP button to select the desired value.

3. Press the RAW/mV button once to advance to the next digit.

4. Repeat Steps 2 and 3 until the desired "S1.DB" value is displayed.

5. Press the Menu button once. The meter will momentarily display "STRD" and then will display the "S2.DB" menu.

4.7 Setting Deadband or Hysteresis for Setpoint 2 ("S2.DB")

This menu sets the deadband or hysteresis for Setpoint 2. The deadband's resolution is dependent upon the decimal point value previously set up in Section 6.3.

1. Press the RAW/mV button once to observe the current value of "S2.DB".

2. Press the /ORP button to select the desired value.

3. Press the RAW/mV button once to advance to the next digit

4. Repeat steps 2 and 3 until the desired "S2.DB" value is displayed.

5. Press the Menu button once. The meter will momentarily display "STRD" then it will display the "OT.CF" menu.

Page 32

Configuring The Meter

To reset latched alarms you must:

1. Input a signal “OUT” of the alarm zone

2. Then press SETPTS and then, RESET button

Figure 4-1. Alarm Example

SIGNAL LEVEL

ON ONOFF

ACTIVE BELOW ACTIVE ABOVE

DEADBAND

SIGNAL LEVEL

NOTE: DEADBAND WORKS AS HYSTERISIS

SIGNAL LEVEL

OFF

ACTIVE BELOW

WITH DEADBAND 3

OFF OFF

ONOFF OFF

ACTIVE ABOVE

WITH DEADBAND 3

SETPOINT

ON ON ON ON ON

ACTIVE BELOW LATCHED ACTIVE ABOVE LATCHED

OFF

Page 33

Configuring The Meter

4.8 Using Output Configuration ("OT.CF")

This menu has 2 submenus. There are two choices for each submenu. These 2 submenus disable or enable the meter's output and configures the signal type to be either current or voltage. They are:

0.1=D: Analog out is disabled ( No output ).

0.1=E: Analog out is enabled - default.

and

0.2=V: Analog output type is voltage.

0.2=C: Analog output type is current - default.

1. Press the RAW/mV button once. The 0.1=D or 0.1=E submenu will flash.

2. Press the



/ORP button until the desired value is selected.

3. Press the RAW/mV button once. The 0.2=V or 0.2=C submenu will flash.

4. Press the /ORP button until the desired value is selected.

5. Press the Menu button once. The meter will display "STRD" momentarily, then "OT.S.O" will be displayed.

4.9 Using Output Scale and Offset ("OT.S.O")

This menu scales your analog output to be equal to the meter’s display and/or any engineering units you require. You many scale the output for direct (4-20 mA, 0-10 V, etc) or reverse acting (20-4 mA, 10-0 V, etc.)

1. Press the Menu button until the "OT.S.O" menu is displayed.

2. Press the RAW/mV button once. The meter displays "RD.1" (Reading 1).

3. Press the RAW/mV button once. The meter displays the current low value output ORP point with fourth digit flashing.

4. Press the



/ORP button until the desired value is selected.

5. Press the RAW/mV button to advance to the next digit.

6. Repeat Steps 4 and 5 until the desired value is selected.

7. Press the Menu button once. The meter will display "OUT.1" (Low Output).

8. Press the RAW/mV button once. The meter displays the current low volt or current out.

9. Press the



/ORP button until the desired value is selected.

10.Press the RAW/mV button to advance to the next digit.

Page 34

Configuring The Meter

4.9 Using Output Scale and Offset ("OT.S.O") (continued)

11.Repeat Steps 9 and 10 until the desired value is selected.

12.Press the Menu button once. The meter will display "RD.2" (Reading 2).

13.Press the RAW/mV button once to display the current high output ORP value.

14.Press the /ORP button until the desired value is selected.

15.Press the RAW/mV button to advance to the next digit.

16.Repeat Steps 14 and 15 until the desired value is selected.

17.Press the Menu button once. The meter will display "OUT.2" (High Output).

18.Press the RAW/mV button once.

19.Press the



/ORP button until the desired value is selected.

20.Press the RAW/mV button to advance to the next digit.

21.Repeat Steps 19 and 20 until the desired value is selected.

22.Press the Menu button once. The meter will momentarily display

"STRD", then "RST" and then the meter will enter into the "RUN" Mode (Normal Operation).

1: When all digits flash, it means the value overflowed. Press



/ORP to start

new value.

2: The maximum values that can be entered for Out.1 and Out.2 are 20.00 for current and 10.00 for volt.

4.9.1 Example for Output Scale and Offset

You want to send 4-20 mA output for 0.00 to 2000 mV. The meter has 1 mV resolution. Complete the following steps:

1. Press the MENU button until the meter shows “OT.S.O”.

2. Press the



RAW/mV button. The meter shows “RD 1” (Read 1).

3. Press the



RAW/mV button again to show the existing value.

4. Change the value of “RD 1” to 00 by pressing the



/ORP and RAW/mV

buttons.

5. Press the MENU button to store your selection. The meter shows “OUT.1” (Output 1).

6. Press the



RAW/mV button again to show the existing value.

Page 35

Configuring The Meter

4.9.1 Example for Output Scale and Offset (continued)

7. Change the value of “OUT.1” to 04.00 by pressing the /ORP and RAW/mV buttons.

8. Press the MENU button to store your selection. The meter shows “RD 2” (Read 2).

9 Press the



RAW/mV button to show the existing value.

10.Change the value of “RD 2” to 2000 mV by pressing the



/ORP and



RAW/mV buttons.

11.Press the MENU button to store your selection. The meter shows “OUT.2” (Output 2).

12.Press the



RAW/mV button to show the existing value.

13.Change the value of “OUT.2” to 20.00 by pressing the



/ORP and RAW/mV

buttons.

14.Press the MENU button to store your selection. The meter shows “STRD”.

4.10 Using Lockout Configuration

To lock the RESET, MENU, and SETPTS buttons, follow these steps:

In the RUN mode-

1. Press and hold down the RESET button. The meter shows “SP.RS”. Do not release the RESET button.

2. Press the MENU button while continuing the hold the RESET button down (3 - 5 seconds) until the meter shows “LOCK”.

3. Release both buttons. Meter goes into the Run mode.

To unlock the RESET, MENU, and SETPTS buttons, follow these steps:

1. Press and hold down the RESET button. The meter shows “LOCK”. Do not release the RESET button.

2. Press the MENU button while continuing the hold the RESET button down (3 - 5 seconds) until the meter shows “UN.LK”.

3. Release both buttons. Meter goes into the Run mode.

Page 36

Selecting Setpoint Values

SECTION 5. SELECTING SETPOINT VALUES

Follow the steps below to select values for Setpoint 1 and Setpoint 2.

1. Press the SETPTS button. The meter momentarily shows “SP1” (Setpoint 1), followed by the last stored value with flashing 4th digit. The factory default for “SP1” is 000.0.

2. Press the



/ORP button to change the value of Setpoint 1.

3. Press the



RAW/mV button to scroll to the next digit.

4. Press the SETPTS button to store your selection. The meter momentarily shows “SP2” (Setpoint 2), followed by the last stored value with flashing 4th digit. The factory default for “SP2” is 000.0.

5. Press the



/ORP button to change the value of Setpoint 2.

6. Press the



RAW/mV button to scroll to the next digit.

7. Press the SETPTS button to store new values. The meter momentarily shows “STRD”, “RUN” and then enters the run mode.

You may press the RESET button anytime during this routine to return to the run mode.

Page 37

Display Messages

SECTION 6. DISPLAY MESSAGES

Table 6-1. Display Messages

MESSAGE DESCRIPTION

CAL.2 2 point Calibration

DEC.P Decimal point

ORP Oxidation Reduction Potential

OT.CF Output configuration OT.S.O Output scale and offset RAW.V Raw Value Direct from the Probe in mV

RD.CF Reading configuration

RST Hard (power-on) Reset S1.CF Setpoint 1 configuration S2.CF Setpoint 2 configuration S1.DB Setpoint 1 deadband S2.DB Setpoint 2 deadband SP.RS Reset setpoints

SP1 Setpoint 1 value

SP2 Setpoint 2 value

±LMT ±ORP over limit-flashing

9999 Value overflow in setpoint/menu routines-flashing

-1999 Value overflow in setpoint/menu routines-flashing ER1 2 coordinate format programming error-flashing ER2 One of setpoint values or setpoint deadbands overflowed

due to decimal point change-flashing OV.SC Reading Over Scale-flashing RS.OF Reading Over Flow-flashing

±OL ±Overload Signal-flashing

LOCK Lock for RESET, MENU and SETPTS buttons

UN.LK Unlock for RESET, MENU and SETPTS buttons

Page 38

Menu Configuration Displays

SECTION 7. MENU CONFIGURATION DISPLAYS

Table 7-1. Configuration Menu

(Defaults in Bold and

DEC.P

Decimal Point

RD.CF

Reading Configuration

S1.CF

Setpoint 1 Configurations

S2.CF

Setpoint 2 Configurations

S1.DB

Setpoint 1 Configurations

S2.DB

Setpoint 2 Configurations

CAL.2

Two-Point Calibration

IN 1

Input new value and

show “RD 1”

Enter new value and

show “IN 2”

Enter new value and

show “RD 2”



/RAW/mV

Show decimal point position

R.1

S.1

S.2

S.1

S.2

Scroll right one digit

Show IN 1, prior and actual

value

Scroll right one digit

Show prior value

Scroll right one digit

Show prior value

Scroll right one digit



/ORP

FFFF.

FFF.F

F: Filtered ORP

U: Unfiltered ORP

A: Active above

B: Active below

U: Unlatched

L: Latched

A: Active above

B: Active below

U: Unlatched

L: Latched

Change flashing digit’s value

Page 39

Menu Configuration Displays

OT.CF

Output Configuration

Analog Output Option

OT.S.O

Output Scale & Offset

Enter new value & show

“OUT1”

Enter new value & show

“RD 2”

Enter new value & show

“OUT2”



RAW/mV

0.1

0.2

Show “RD 1” & prior value

Scroll right one digit

Show prior value

Scroll right one digit

Show prior value

Scroll right one digit



/pH

D: Disabled

E: Enabled

V: Voltage Analog out

C: Current Analog out

Change flashing digit’s value

Table 7-1. Configuration Menu (continued)

(Defaults in Bold and Italics)

Page 40

Menu Configuration Displays

DISPLAY

RAW.V

Raw

Input

SP.RS

LATCHED

RESET

Press RESET button to reset your setpoints.



RAW/mV

/ORP

Shows raw value direct from probe in mV.

Table 7-2. Run Mode Display

Page 41

Setpoint Configuration Displays

SP 1

Setpoint 1

SP 2

Setpoint 2



RAW/mV

Scroll right one digit



/ORP

Change flashing digit’s value

DESCRIPTION

Select from -1999 through 9999

SECTION 8. SETPOINT CONFIGURATION DISPLAYS

Table 8-1. Setpoint Configuration Display

Page 42

Specifications

SECTION 9. SPECIFICATIONS

INPUT SIGNAL

ORP Specification

Range: - 2V to + 2V

Resolution: 0.1mV or 1mV

Accuracy: ± 0.1mV

Calibration: Two Point online or manual

Decimal Point: 2 position

Input Impedance: >1012ohm

ISOLATION

Isolation: Dielectric strength to 2500V transient per 3mm spacing

based on EN 61010 for 260Vrms or dc working voltage

Noise Rejection: Normal Mode Rejection (NMR) = 60dB

Common Mode Rejection (CMR) = 120dB

DISPLAY

Display: LED 14-segment, 13.8 mm (0.54”)

Symbol:

Page 43

Specifications

SECTION 9. SPECIFICATIONS (Continued)

ANALOG TO DIGITAL

Technique: Dual Slope Internal Resolution: 15 bits Read Rate: 3 per second

RELAY OUTPUTS

2 Form "C" on/off relays. Configurable for latched and unlatched by software.

Max current: 5 A, resistive load Max voltage: 250 Vac or 30 Vd

ANALOG OUTPUT

Signal Type: Current or voltage

Signal Level: Current: 10 V max compliance at 20 mA output

Voltage: 20 mA max for 0-10 V output

Function: May be assigned to a display range or proportional

control output with setpoint #1 when used as a control output.

Linearity: 0.2%

Step Response Time: 2 - 3 seconds to 99% of the final value

ISOLATED ANALOG OUTPUT (TB5, if applicable)

Same as non-isolated analog output except isolated to 1000 Vdc.

Signal Type: Current or voltage

Signal Level: Current: 10 V max compliance at 20 mA output

Voltage: 20 mA max for 0-10 V output

Function: May be assigned to a display range or proportional

control output with setpoint #1 when used as a control output.

Linearity: 0.2%

Step Response Time: 2 - 3 seconds to 99% of the final value

Only one analog output is available on each unit and it must be factory installed.

Page 44

Specifications

SECTION 9. SPECIFICATIONS (Continued)

INPUT POWER INFORMATION

External Fuse Protection Recommended:

IEC 127-2/III

Power Fuse

115 V 125 mA @ 250 (T)

230 V 63 mA @ 250 (T)

UL 248-14 (Listed Fuse)

Power Fuse

115 V 175 mA @ 250 V Slow-Blow

230 V 80 mA @ 250 V Slow-Blow

ENVIRONMENT

Operating temperature: 0° to 50°C (32° to 122°F)

Storage temperature: -40° to 85°C (-40° to 185° F)

Relative humidity: 90% at 40°C (non-condensing)

MECHANICAL

Panel cutout: 1/8 DIN 3.62 x 1.78" (45 x 92mm)

Weight: 1.27 lb (575 g)

Case material: Polycarbonate, 94 V-O UL rated

~ AC units 115/230 V~(AC) ±10%, 50/60 Hz

7 W max, power consumption (Non-Isolated Analog Output) 8 W max, power consumption (Isolated Analog Output)

DC units 9.5 at 750 mA to 32 Vdc at 200mA dc

6 W max, power consumption (Non-Isolated Analog Output) 7 W max, power consumption (Isolated Analog Output)

Page 45

Specifications

SECTION 9. SPECIFICATIONS (Continued)

Figure 9-1

Figure 9-1.

Dimensions/ Panel Cutout

20,3 (.80)

151,4 (5.96)

96,0 (3.78)48,0 (1.89)

FRONT BEZEL

RETAINER

CASE

SIDE VIEW

6,4 (.25) MAX 0,8 (.03) MIN

1,5

R(.06)

4 PLCS

92,00 + 0,81/–0,00

(3.622 + .032/–.000)

NOTE: Dimensions in Millimeters (Inches)

45,00 + 0,61/-0,00

(1.772 + .024/–.000)

REAR COVER

TOP VIEW

Page 46

Factory Preset Values

SECTION 10. FACTORY PRESET VALUES

Table 10-1. Factory Preset Values

MENU ITEM FACTORY PRESET VALUES

DEC.P Decimal Point Position: FFFF. RD.CF Reading Configuration:

R.1=F

S1.CF Setpoint 1 Configuration:

S.1=A (Setpoint is active above) S.2=U (Setpoint is unlatched)

S2.CF Setpoint 2 Configuration:

S.1=A (Setpoint is active above)

S.2=U (Setpoint is unlatched) S1.DB Setpoint 1 Deadband: 10 S2.DB Setpoint 2 Deadband: 10 OT.CF Output Configuration:

O.1=E (Analog output is enabled)

O.2=C (Analog output is current) OT.S.O Output Scale and Offset:

0-10000. = 4-20 mA SP1 Setpoint 1 Value: 0000. SP2 Setpoint 2 Value: 0000.

Page 47

CE APPROVALS INFORMATION

This product conforms to the EMC directive 89/336/EEC amended by 93/68/EEC, and with the European Low Voltage Directive 72/23/EEC.

Electrical Safety EN61010-1:2001

Safety requirements for electrical equipment for measurement, control and laboratory.

Double Insulation Pollution Degree 2 Dielectric withstand Test per 1 min

• Power to Input/Output: 2300 Vac (3250 Vdc)

• Power to Input/Output: 500 Vac (720 Vdc)

(Low Voltage dc Power Option*)

• Power to Relays Output: 2300 Vac (3250 Vdc)

• Relay 1 to Relay 2: 2300 Vac (3250 Vdc)

• Isolated Analog to Inputs: 1000 Vac (1420 Vdc)

• Analog to Inputs: No Isolation

Measurement Category I

Category I are measurements performed on circuits not directly connected to the Mains Supply (power). Maximum Line-to-Neutral working voltage is 50 Vac/dc. This unit should not be used in Measurement Categories II, III, IV.

Transients Overvoltage Surge (1.2 / 50uS pulse)

• Input Power: 2500 V

• Input Power: 500 V

(Low Voltage dc Power Option*)

• Isolated Analog: 500 V

• Input/Output Signals: 500 V

Note: *Units configured for external low power dc voltage, 10-32 Vdc (Basic Insulation)

EMC EN61326:1997 + and A1:1998 + A2:2001

Immunity and Emissions requirements for electrical equipment for measurement, control and laboratory.

• EMC Emissions Table 4, Class B of EN61326

• EMC Immunity** Table 1 of EN61326

Note: **I/O signal and control lines require shielded cables and these cables

must be located on conductive cable trays or in conduits. Furthermore, the length of these cables should not exceed 30 meters

Refer to the EMC and Safety installation considerations (Guidelines) of this manual for additional information.

Page 48

NOTES

Page 49

NOTES

Page 50

NOTES

Page 51

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition to OMEGA’s standard warranty period, OMEGA Engineering will extend the

warranty period for four (4) additional years if the warranty card enclosed with each instrument is returned to OMEGA.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2. Model and serial number of the product under warranty, and

3. Repair instructions and/or specific problems relative to the product.

FOR NON-W

ARRANTY REPAIRS,

consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.

© Copyright 2006 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

PATENT NOTICE: This product is covered by one or more of the following patents: U.S. Pat. No. Des. 336,895; 5,274,577 / CANADA 2052599; 2052600 / ITALY 1249456; 1250938 / FRANCE BREVET No. 91 12756 / SPAIN 2039150; 2048066 / UK PATENT No. GB2 249 837; GB2 248 954 / GERMANY DE 41 34398 C2.

The “Meter Case Bezel Design” is a trademark of

NEWPORT Electronics, Inc., registered in the U.S.

USED UNDER LICENSE. Other US and International Patents pending or applied for.

Page 52

M2237/0306 12712ML-97 Rev. B

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop on line at omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gauges



Load Cells & Pressure Gauges



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
