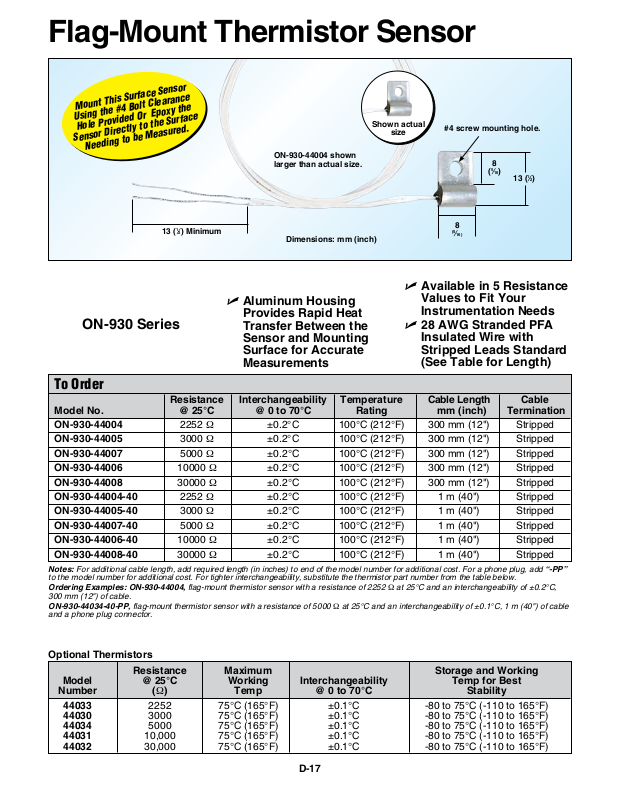

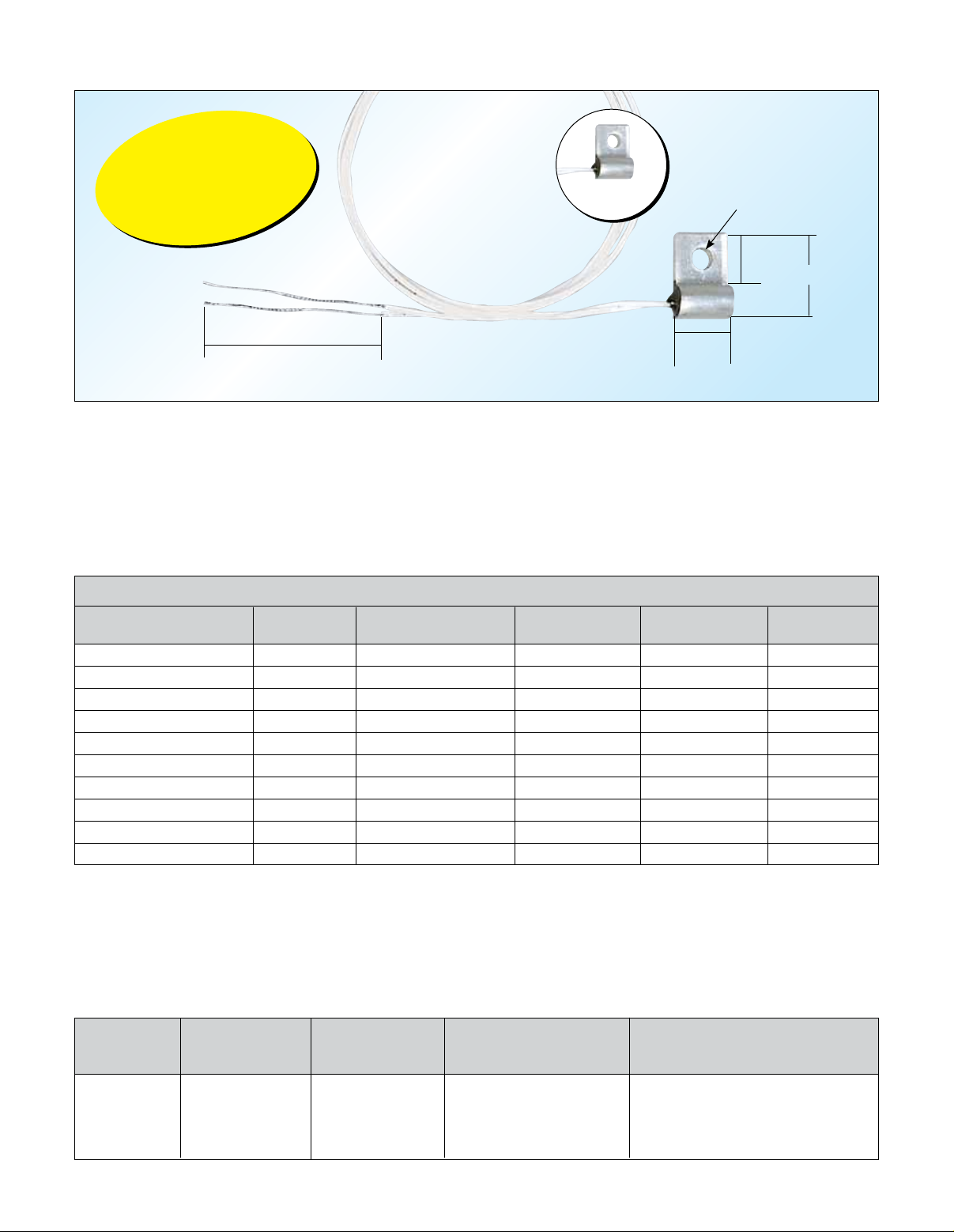

Flag-Mount Thermistor Sensor
Mount This Surface Sensor
Using the #4 Bolt Clearance
Hole Provided Or Epoxy the
Sensor Directly to the Surface
Needing to be Measured.
Shown actual
size
ON-930-44004 shown
larger than actual size.
#4 screw mounting hole.
8
(5⁄16)
13 (1⁄2)
1
13 (
⁄2) Minimum
Dimensions: mm (inch)
8
(5
⁄16)
U Available in 5 Resistance
Values to Fit Your
Instrumentation Needs
U 28 AWG Stranded PFA
Insulated Wire with
Stripped Leads Standard
(See Table for Length)
ON-930 Series
U Aluminum Housing
Provides Rapid Heat
Transfer Between the
Sensor and Mounting
Surface for Accurate
Measurements
To Order
Resistance Interchangeability Temperature Cable Length Cable
Model No. @ 25°C @ 0 to 70°C Rating mm (inch) Termination
ON-930-44004 2252 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-930-44005 3000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-930-44007 5000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-930-44006 10000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-930-44008 30000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-930-44004-40 2252 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-930-44005-40 3000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-930-44007-40 5000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-930-44006-40 10000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-930-44008-40 30000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
Notes: For additional cable length, add required length (in inches) to end of the model number for additional cost. For a phone plug, add “-PP”
to the model number for additional cost. For tighter interchangeability, substitute the thermistor part number from the table below.
Ordering Examples: ON-930-44004, flag-mount thermistor sensor with a resistance of 2252 Ω at 25°C and an interchangeability of ±0.2°C,
300 mm (12") of cable.
ON-930-44034-40-PP, flag-mount thermistor sensor with a resistance of 5000 Ω at 25°C and an interchangeability of ±0.1°C, 1 m (40") of cable
and a phone plug connector.
Optional Thermistors
Resistance Maximum Storage and Working
Model @ 25°C Working Interchangeability Temp for Best
Number (Ω) Temp @ 0 to 70°C Stability
44033 2252 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44030 3000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44034 5000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44031 10,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44032 30,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
D-17
