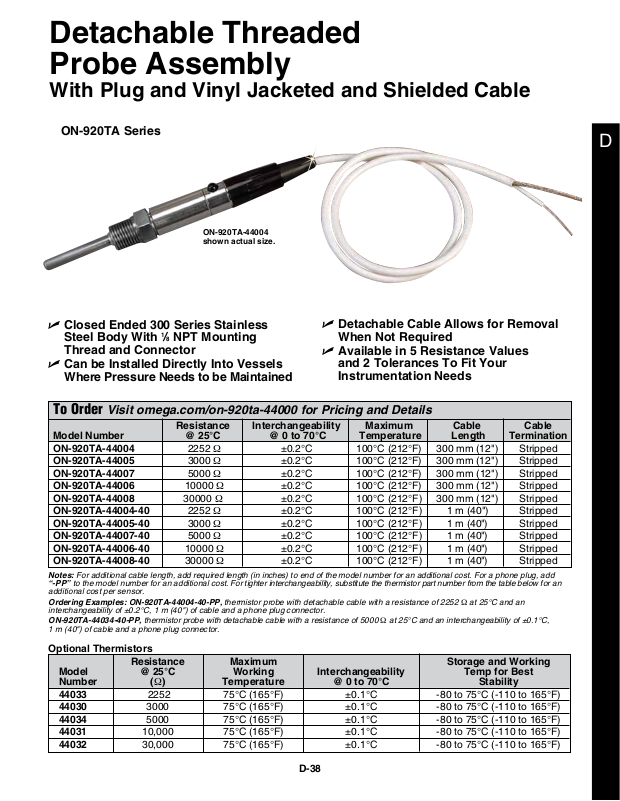

Detachable Threaded
Probe Assembly
With Plug and Vinyl Jacketed and Shielded Cable
ON-920TA Series
ON-920TA-44004
shown actual size.
D
U Closed Ended 300 Series Stainless
Steel Body With 1/
8 NPT Mounting
Thread and Connector
U Can be Installed Directly Into Vessels
Where Pressure Needs to be Maintained
U Detachable Cable Allows for Removal
When Not Required
U Available in 5 Resistance Values
and 2 Tolerances To Fit Your
Instrumentation Needs
To Order Visit omega.com/on-920ta-44000 for Pricing and Details
Resistance Interchangeability Maximum Cable Cable
Model Number @ 25°C @ 0 to 70°C Temperature Length Termination
ON-920TA-44004 2252 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-920TA-44005 3000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-920TA-44007 5000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-920TA-44006 10000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-920TA-44008 30000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-920TA-44004-40 2252 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-920TA-44005-40 3000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-920TA-44007-40 5000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-920TA-44006-40 10000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-920TA-44008-40 30000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
Notes: For additional cable length, add required length (in inches) to end of the model number for an additional cost. For a phone plug, add
“-PP” to the model number for an additional cost. For tighter interchangeability, substitute the thermistor part number from the table below for an
additional cost per sensor.
Ordering Examples: ON-920TA-44004-40-PP, thermistor probe with detachable cable with a resistance of 2252 Ω at 25°C and an
interchangeability of ±0.2°C, 1 m (40") of cable and a phone plug connector.
ON-920TA-44034-40-PP, thermistor probe with detachable cable with a resistance of 5000 Ω at 25°C and an interchangeability of ±0.1°C,
1 m (40") of cable and a phone plug connector.
Optional Thermistors
Resistance Maximum Storage and Working
Model @ 25°C Working Interchangeability Temp for Best
Number (Ω) Temperature @ 0 to 70°C Stability
44033 2252 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44030 3000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44034 5000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44031 10,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44032 30,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
D-38
