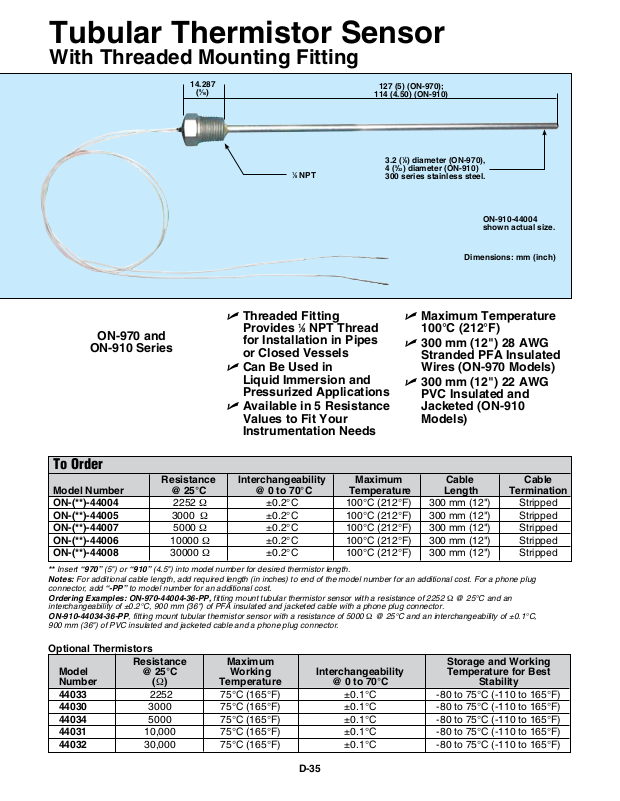

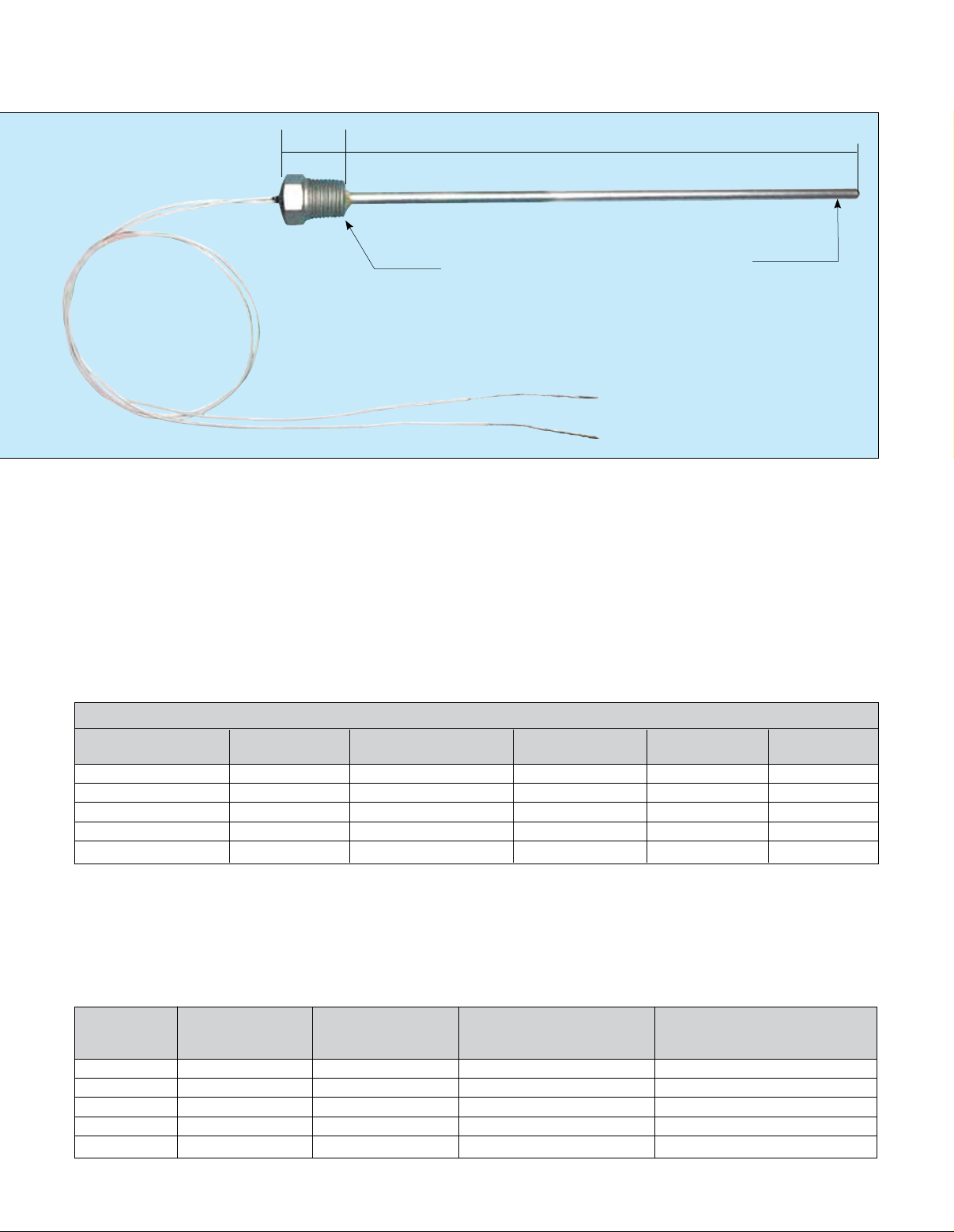

Tubular Thermistor Sensor
With Threaded Mounting Fitting
ON-970 and
ON-910 Series
14.287
(9⁄16)
127 (5) (ON-970);
114 (4.50) (ON-910)
3.2 (1/
1
⁄8 NPT
U Threaded Fitting
Provides
1
⁄8 NPT Thread
4 (5/
300 series stainless steel.
for Installation in Pipes
or Closed Vessels
U Can Be Used in
Liquid Immersion and
Pressurized Applications
U Available in 5 Resistance
Values to Fit Your
Instrumentation Needs
8) diameter (ON-970),
32) diameter (ON-910)
ON-910-44004
shown actual size.
Dimensions: mm (inch)
U Maximum Temperature
100°C (212°F)
U 300 mm (12") 28 AWG
Stranded PFA Insulated
Wires (ON-970 Models)
U 300 mm (12") 22 AWG
PVC Insulated and
Jacketed (ON-910
Models)
To Order
Resistance Interchangeability Maximum Cable Cable
Model Number @ 25°C @ 0 to 70°C Temperature Length Termination
ON-(**)-44004 2252 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-(**)-44005 3000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-(**)-44007 5000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-(**)-44006 10000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-(**)-44008 30000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
** Insert “970” (5") or “910” (4.5") into model number for desired thermistor length.
Notes: For additional cable length, add required length (in inches) to end of the model number for an additional cost. For a phone plug
connector, add “-PP” to model number for an additional cost.
Ordering Examples: ON-970-44004-36-PP, fitting mount tubular thermistor sensor with a resistance of 2252 Ω @ 25°C and an
interchangeability of ±0.2°C, 900 mm (36") of PFA insulated and jacketed cable with a phone plug connector.
ON-910-44034-36-PP, fitting mount tubular thermistor sensor with a resistance of 5000 Ω @ 25°C and an interchangeability of ±0.1°C,
900 mm (36") of PVC insulated and jacketed cable and a phone plug connector.
Optional Thermistors
Resistance Maximum Storage and Working
Model @ 25°C Working Interchangeability Temperature for Best
Number (Ω) Temperature @ 0 to 70°C Stability
44033 2252 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44030 3000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44034 5000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44031 10,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44032 30,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
D-35
