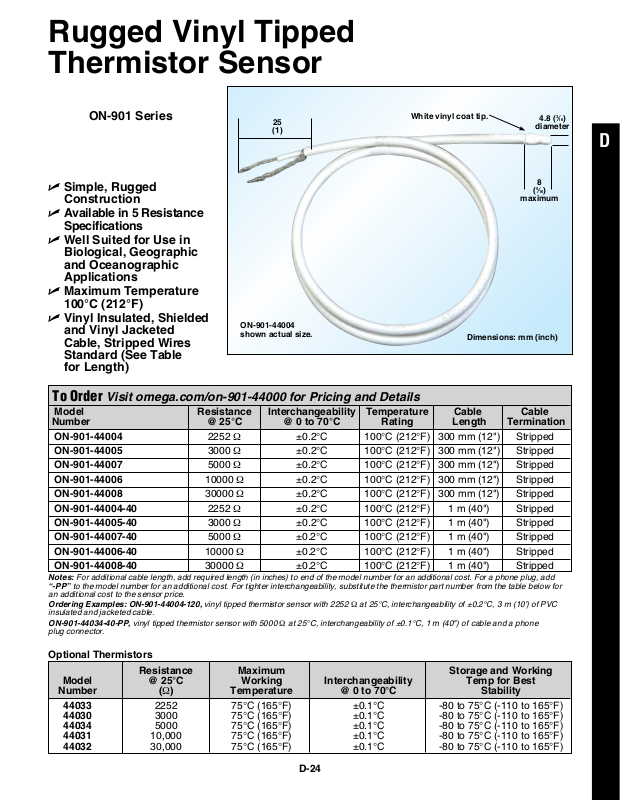

Rugged Vinyl Tipped
Thermistor Sensor
ON-901 Series
U Simple, Rugged
Construction
25
(1)
White vinyl coat tip.
4.8 (3⁄16)
diameter
8
5
(
⁄16)
maximum
U Available in 5 Resistance
Specifications
U Well Suited for Use in
Biological, Geographic
and Oceanographic
Applications
U Maximum Temperature
100°C (212°F)
U Vinyl Insulated, Shielded
and Vinyl Jacketed
Cable, Stripped Wires
ON-901-44004
shown actual size.
Dimensions: mm (inch)
Standard (See Table
for Length)
To Order Visit omega.com/on-901-44000 for Pricing and Details
Model Resistance Interchangeability Temperature Cable Cable
Number @ 25°C @ 0 to 70°C Rating Length Termination
ON-901-44004 2252 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-901-44005 3000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-901-44007 5000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-901-44006 10000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-901-44008 30000 Ω ±0.2°C 100°C (212°F) 300 mm (12") Stripped
ON-901-44004-40 2252 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-901-44005-40 3000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-901-44007-40 5000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-901-44006-40 10000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
ON-901-44008-40 30000 Ω ±0.2°C 100°C (212°F) 1 m (40") Stripped
Notes: For additional cable length, add required length (in inches) to end of the model number for an additional cost. For a phone plug, add
“-PP” to the model number for an additional cost. For tighter interchangeability, substitute the thermistor part number from the table below for
an additional cost to the sensor price.
Ordering Examples: ON-901-44004-120, vinyl tipped thermistor sensor with 2252 Ω at 25°C, interchangeability of ±0.2°C, 3 m (10') of PVC
insulated and jacketed cable.
ON-901-44034-40-PP, vinyl tipped thermistor sensor with 5000 Ω at 25°C, interchangeability of ±0.1°C, 1 m (40") of cable and a phone
plug connector.
D
Optional Thermistors
Resistance Maximum Storage and Working
Model @ 25°C Working Interchangeability Temp for Best
Number (Ω) Temperature @ 0 to 70°C Stability
44033 2252 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44030 3000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44034 5000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44031 10,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
44032 30,000 75°C (165°F) ±0.1°C -80 to 75°C (-110 to 165°F)
D-24
