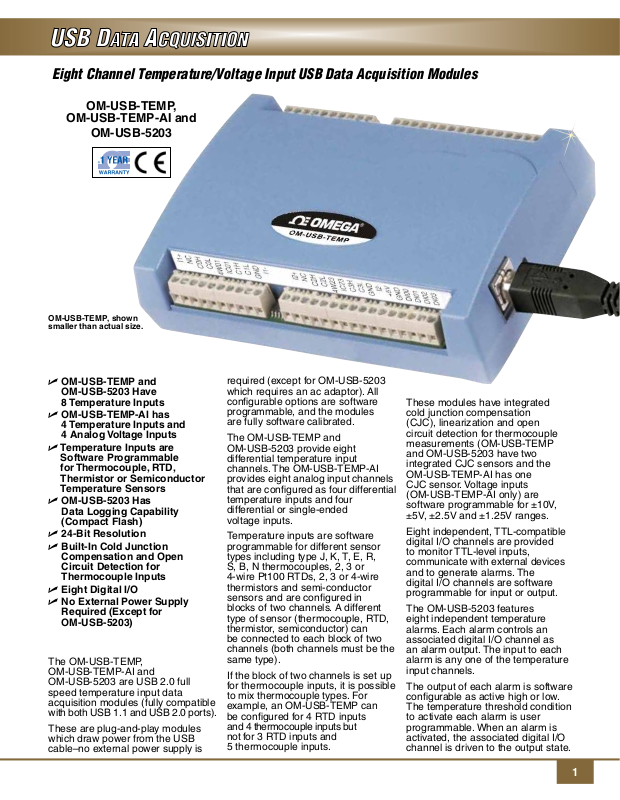

Eight Channel Temperature/Voltage Input USB Data Acquisition Modules
OM-USB-TEMP,
OM-USB-TEMP-AI and
OM-USB-5203

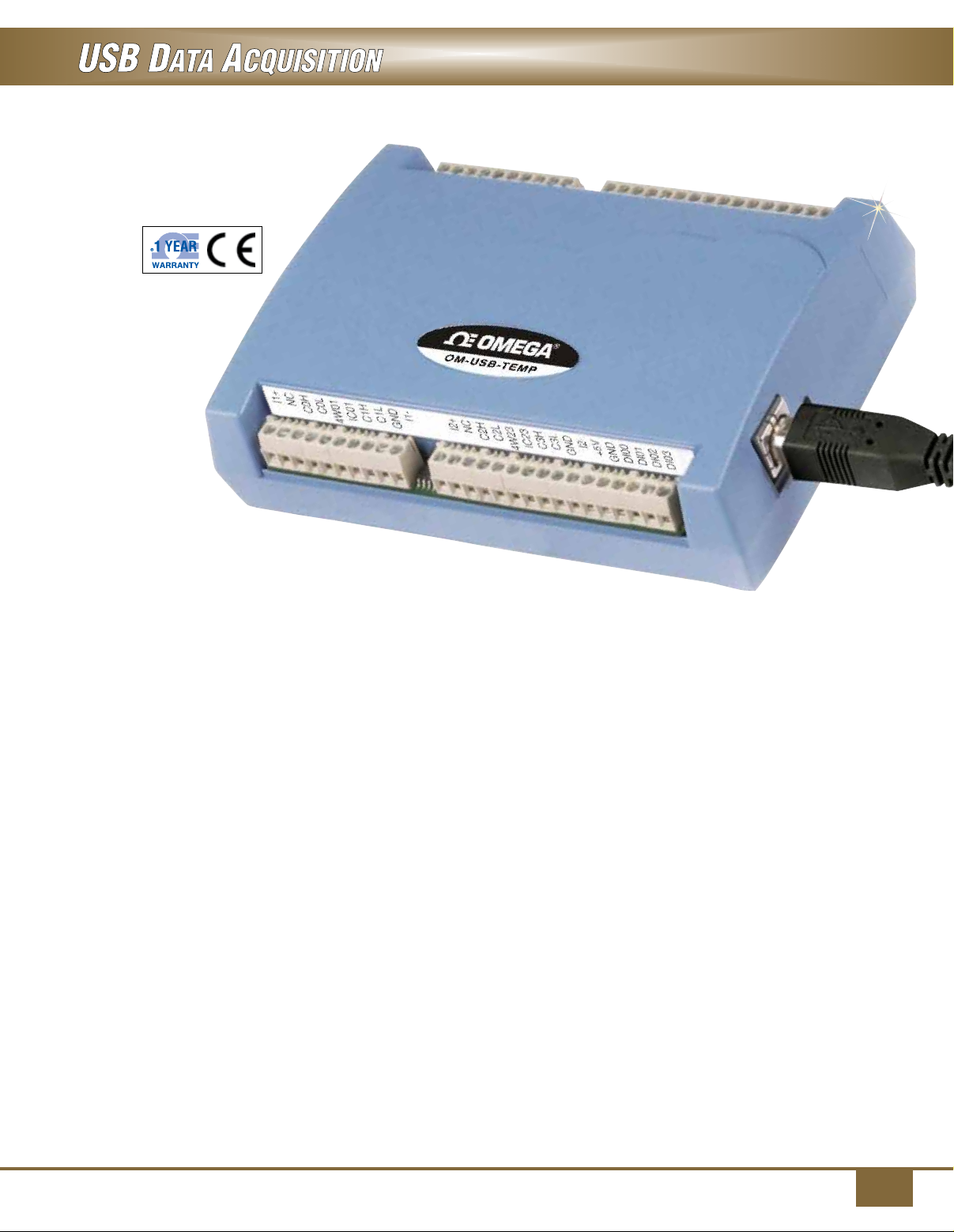

OM-USB-TEMP, shown
smaller than actual size.
U OM-USB-TEMP and
OM-USB-5203 Have
8 Temperature Inputs
U OM-USB-TEMP-AI has
4 Temperature Inputs and
4 Analog Voltage Inputs
U Temperature Inputs are
Software Programmable
for Thermocouple, RTD,
Thermistor or Semiconductor
Temperature Sensors
U OM-USB-5203 Has
Data Logging Capability
(Compact Flash)
U 24-Bit Resolution
U Built-In Cold Junction
Compensation and Open
Circuit Detection for
Thermocouple Inputs
U Eight Digital I/O
U No External Power Supply
Required (Except for
OM-USB-5203)
The OM-USB-TEMP,
OM-USB-TEMP-AI and
OM-USB-5203 are USB 2.0 full
speed temperature input data
acquisition modules (fully compatible
with both USB 1.1 and USB 2.0 ports).
These are plug-and-play modules
which draw power from the USB
cable–no external power supply is
required (except for OM-USB-5203
which requires an ac adaptor). All
configurable options are software
programmable, and the modules
are fully software calibrated.
The OM-USB-TEMP and
OM-USB-5203 provide eight
differential temperature input
channels. The OM-USB-TEMP-AI
provides eight analog input channels
that are configured as four differential
temperature inputs and four
differential or single-ended
voltage inputs.
Temperature inputs are software
programmable for different sensor
types including type J, K, T, E, R,
S, B, N thermocouples, 2, 3 or
4-wire Pt100 RTDs, 2, 3 or 4-wire
thermistors and semi-conductor
sensors and are configured in
blocks of two channels. A different
type of sensor (thermocouple, RTD,
thermistor, semiconductor) can
be connected to each block of two
channels (both channels must be the
same type).
If the block of two channels is set up
for thermocouple inputs, it is possible
to mix thermocouple types. For
example, an OM-USB-TEMP can
be configured for 4 RTD inputs
and 4 thermocouple inputs but
not for 3 RTD inputs and
5 thermocouple inputs.
These modules have integrated
cold junction compensation
(CJC), linearization and open
circuit detection for thermocouple
measurements (OM-USB-TEMP
and OM-USB-5203 have two
integrated CJC sensors and the
OM-USB-TEMP-AI has one
CJC sensor. Voltage inputs
(OM-USB-TEMP-AI only) are
software programmable for ±10V,
±5V, ±2.5V and ±1.25V ranges.
Eight independent, TTL-compatible
digital I/O channels are provided
to monitor TTL-level inputs,
communicate with external devices
and to generate alarms. The
digital I/O channels are software
programmable for input or output.
The OM-USB-5203 features
eight independent temperature
alarms. Each alarm controls an
associated digital I/O channel as
an alarm output. The input to each
alarm is any one of the temperature
input channels.
The output of each alarm is software
configurable as active high or low.
The temperature threshold condition
to activate each alarm is user
programmable. When an alarm is
activated, the associated digital I/O
channel is driven to the output state.
1
Page 2

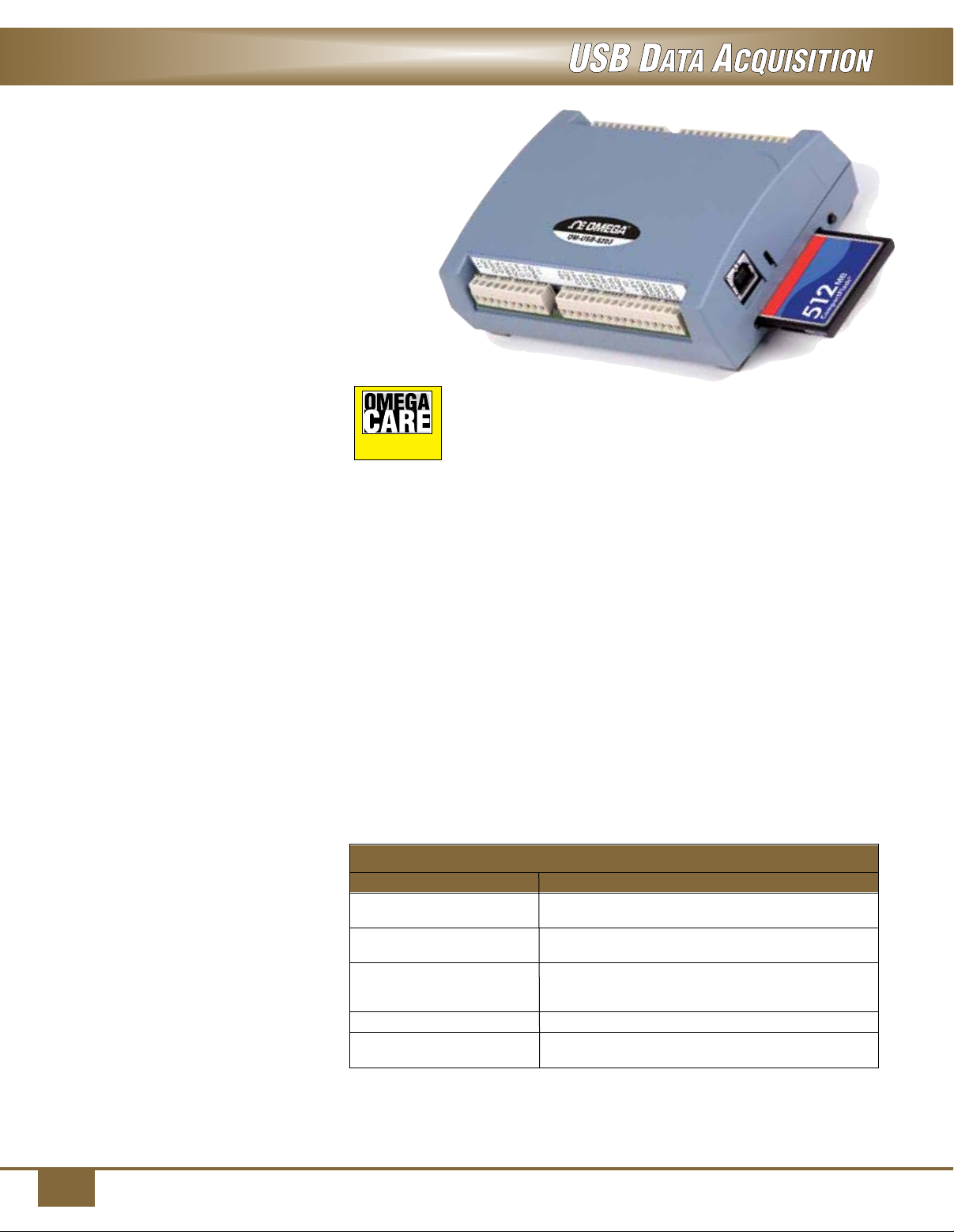

The OM-USB-5203 also has data
logging capability. Measurements
can be logged to a standard
CompactFlash memory card (a 512
MB CompactFlash memory card is
included with the OM-USB-5203).
Data logging can only be done when
the
OM-USB-5203 is disconnected
from the computer. External power
is required for data logging via
the included ac adaptor. User
programmable settings in data
logging mode include sampling
interval and logging start mode (on
power up, on button press or at a
specified data
and time).
Software
The OM-USB-TEMP,
OM-USB-TEMP-AI and
OM-USB-5203 modules ship with
an impressive array of software,
including TracerDAQ®, a full-featured,
out-of-the-box data logging, viewing,
and analysis application. Driver
support and detailed example
programs are included for Universal
Library programming libraries
for Microsoft® Visual Studio®
programming languages, and other
languages, including DASYLab®, and
ULx for NI LabVIEW® (comprehensive
library of VIs and example programs
compatible with 32-bit and 64bit LabVIEW 2010 or later) and
InstaCalTM installation, calibration
and test utility-powerful solutions for
programmers and nonprogrammers
alike. These modules operate under
Microsoft Windows® VISTA/7/8/10
(32-bit and 64-bit) operating systems.
The The OM-USB-TEMP,
OM-USB-TEMP-AI and
OM-USB-5203data acquisition
modules are supplied with TracerDAQ
software which is a collection of four
virtual instrument applications used
to graphically display and store input
data and generate output signals:
•StripChart—Logandgraph
values acquire from analog inputs,
digital inputs, temperature inputs
and counter inputs
•Oscilloscope—Displayvalues
acquired from analog inputs
•FunctionGenerator—Generate
waveforms for analog outputs
•RateGenerator—Generate
waveforms for counter outputs

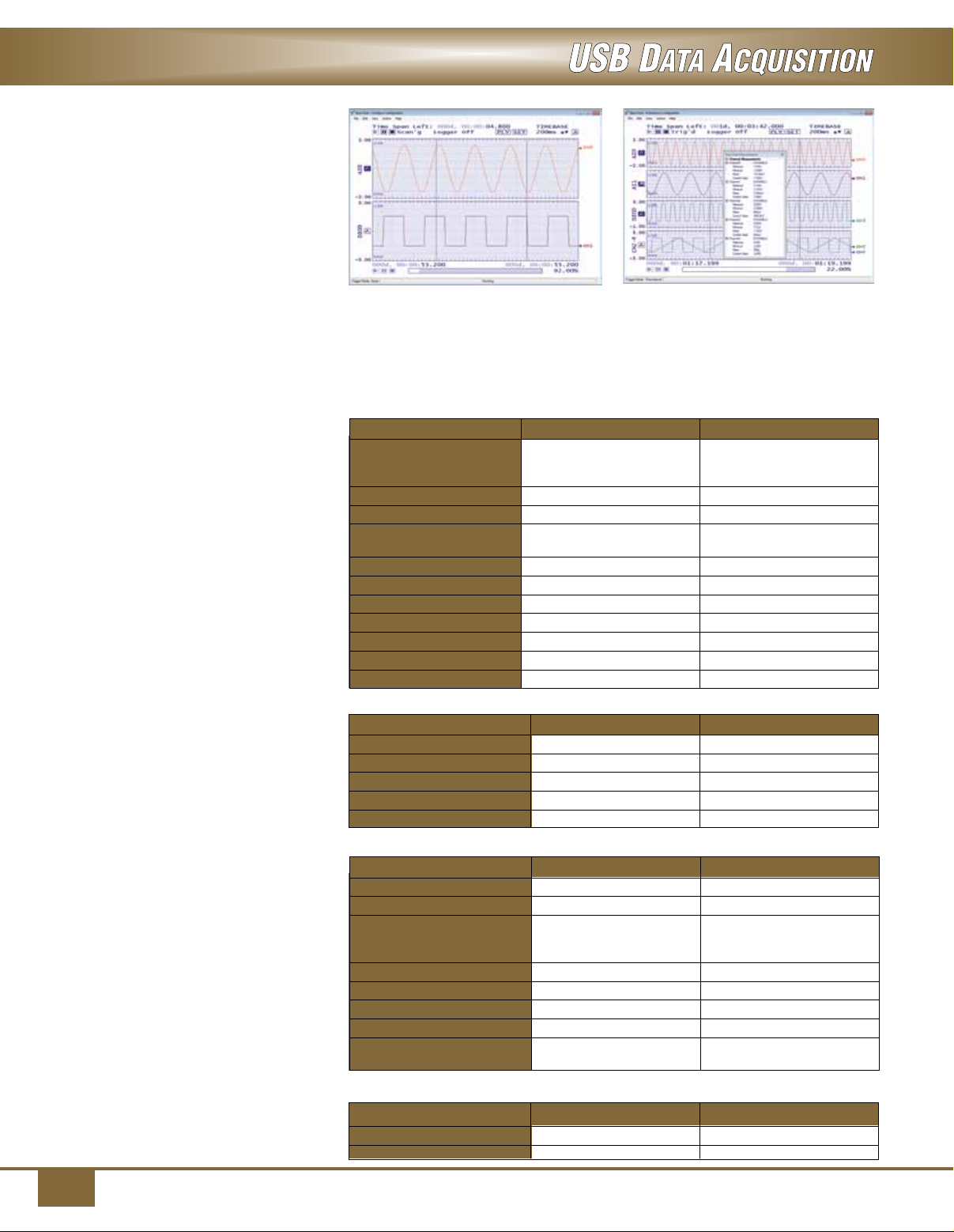

TracerDAQ Strip Chart. TracerDAQ Pro Strip Chart
with Measurements.
TracerDAQ PRO is an enhanced
version of TracerDAQ and is
available as a purchased upgrade
(SWD-TRACERDAQ-PRO).
A comparison of some of the
features included in TracerDAQ vs
TracerDAQ PRO is shown below.
Strip Chart
Feature TracerDAQ TracerDAQ PRO
Channel Types
Temperature Input, Digital Input, Digital Input,
Input, Event Counter Event Counter
Number of Channels
Number of Lanes
Maximum Samples
Per Channel
Alarm Conditions
Measurements Window
Enter Annotations
Software Triggering
Hardware Triggering
Time-of-Day Triggering
Linear Scaling
Analog Input, Temperature Analog Input, Temperature
8 48
2 8
No Yes
No Yes
No Yes
No Yes
No Yes
No Yes
No Yes
32,000 1 milllion
Oscilloscope
Feature TracerDAQ TracerDAQ PRO
Channel Type Analog input Analog input
Number of Channels 2 4
Measurements Window No Yes
Reference Channel No Yes
Math Channel No Yes
Function Generator
Feature TracerDAQ TracerDAQ PRO
Channel Type Analog output Analog output
Number of Channels 1 16
Waveform Types Sine
flat, pulse, ramp,
random, Arbitrary
Duty Cycle No Yes
Phase No Yes
Gate Ratio No Yes
Rate Multiplier No Yes
Sweep (Linear and
Exponential) No Yes
Sine, square, triangle,
Rate Generator
Feature TracerDAQ TracerDAQ PRO
Channel Type Counter output Counter output
Number of Channels 1 20
2
Page 3
SPECIFICATIONS
ANALOG INPUTS
A/D Converter:
OM-USB-TEMP/OM-USB-5203:
Four dual 24-bit sigma delta
A/D converters
OM-USB-TEMP-AI: Dual 24-bit
sigma-delta A/D converters
Input Isolation: 500 Vdc minimum
between field wiring and USB
interface
Number of Channels:
OM-USB-TEMP/OM-USB-5203:
8 differential temperature inputs
OM-USB-TEMP-AI: 4 differential
temperature inputs and
4 differential or single-ended
voltage inputs
Thermocouple Input: Software
programmable for type J, K, T, E,
R, S, B, N
Pt100 RTD Input: 2, 3 or 4-wire
DIN 43760, a = 0.00385, SAMA,
a = 0.003911, ITS-90/IEC751,
a = 0.0038505
Thermistor Input: 2, 3 or 4-wire
standard 2252 through 30,000 Ω
Semiconductor Sensor:
TMP36 or equivalent
Maximum Input Voltage:
Temperature inputs; ±25V
(power on), ±40V (power off):
voltage inputs; ±25V (power on),
±15V (power off)
Throughput Rate: 2 samples/sec
max for all active channels
Input Impedance:
Temperatureinputs;5GΩ
(power on), 1 MΩ (power off):
voltageinputs;10GΩ
(power on), 2.49 KΩ
(power off)
Input Leakage Current:
Thermocouples inputs;
105 nA maximum (with open
thermocouple detection
enabled), 30 nA maximum
(with open thermocouple
detection disabled): voltage
inputs; ±1.5 nA typ,
±25 nA max
Maximum Working
Voltage (OM-USB-TEMP-AI
Voltage Inputs): ±10.25V
max (input signal
+ common mode)
Common Mode
Rejection Ratio:
Temperature inputs,
100 dB minimum;
voltage inputs,
83 dB minimum
Warm-Up Time:
30 minutes maximum
Thermistor Measurement Accuracy
OM-USB-TEMP,
OM-USB-5203 OM-USB-TEMP-AI
Thermistor Temperature Range Maximum Error (°C) Maximum Error (°C)
2252 Ω -40 to 120ºC (-40 to 248ºF) ± 0.05 ± 0.001 @ -40ºC, ±3.47 @ 120ºC
3000 Ω -40to120ºC(-40to248ºF) ±0.05 —
5000 Ω -35 to 120ºC (-31 to 248ºF) ± 0.05 ± 0.001 @ -35ºC, ±1.54 @ 120ºC
10000 Ω -25 to 120ºC (-13 to 248ºF) ± 0.05 ± 0.001 @ -25ºC, ±0.77 @ 120ºC
30000 Ω -10 to 120ºC (14 to 248ºF) ± 0.05 ± 0.001 @ -10ºC, ±0.27 @ 120ºC
Compatible Thermocouple Input Types
Accuracy* (Typical, °C)
Temperature OM-USB-TEMP
Type
Range OM-USB-TEMP-AI OM-USB-5203
±0.71 @ -210°C ±0.51 (-210 to 0°C)
-210 to 1200°C (-346 to 2192°F) ±0.28 @ 0°C ±0.31 (0 to 1200°C)
±0.29 @ 1200°C
±0.76 @ -210°C ±0.54 (-210 to 0°C)
-210 to 1372°C (-346 to 2502°F) ±0.28 @ 0°C ±0.35 (0 to 1372°C)
±0.39 @ 1372°C
±0.74 @ -200°C ±0.51 (-200 to 0°C)
-200 to 400°C (-328 to 752°F) ±0.29 @ 0°C ±0.26 (0 to 400°C)
±0.21 @ 400°C
±0.68 @ -200°C ±0.46 (-200 to 0°C)
-200 to 1000°C (-328 to 1832°F) ±0.32 @ 0°C ±0.25 (0 to 1000°C)
±0.24 @ 1000°C
±0.46 @ -50°C ±0.65 (-50 to 250°C)
-50 to 1768°C (-58 to 3214°F) ±0.19 @ 250°C ±0.36 (250 to 1768°C)
±0.13 @ 1768°C
±0.44 @ -50°C ±0.65 (-50 to 250°C)
-50 to 1768°C (-58 to 3214°F) ±0.20 @ 250°C ±0.40 (250 to 1768°C)
±0.16 @ 1768°C
±2.19 @ 250°C ±0.58 (250 to 700°C)
250 to 1820°C (482 to 3308°F) ±0.82 @ 700°C ±0.37 (700 to 1820°C)
±0.47 @ 1820°C
±0.76 @ -200°C ±0.50 (-200 to 0°C)
-200 to 1300°C (-328 to 2372°F) ±0.28 @ 0°C ±0.27 (0 to 1000°C)
±0.25 @ 1300°C
Includes cold junction compensation measurement error. Dependent on A/D data rate.
*
Semiconductor Sensor Measurement Accuracy
Sensor Type Temperature Range Maximum Error
TMP36 or Equivalent -40 to 150ºC (-40 to 302ºF) ± 0.50ºC
DC Voltage Input Ranges
Open Thermocouple Detection:
Automatically enabled when
a channel is configured for a
thermocouple sensor
CJC Sensor Accuracy: ±0.25ºC
typical, ±0.5ºC max (15 to 35ºC);
-1.0 to 0.75ºC max (0 to 70ºC)
RTD Measurement Accuracy
OM-USB-TEMP
OM-USB-5203 OM -USB-TEMP-AI
Temperature Range Typical Error (°C) Typical Error (°C)
-200 to -150ºC (-328 to -238ºF) ± 2.59 ± 2.78 @-200ºC, ±1.07 @-150ºC
-150 to -100ºC (-238 to -148ºF) ± 0.97 ± 1.07 @-150ºC, ±0.35 @-100ºC
-100 to 0ºC (-148 to 32ºF) ± 0.31 ± 0.35 @-100ºC, ±0.12 @0ºC
0 to 100ºC (32 to 212ºF) ± 0.11 ± 0.12 @ 0ºC, ±0.13 @ 100ºC
100 to 300ºC (212 to 572ºF) ± 0.12 ± 0.13 @100ºC, ±0.14 @ 300ºC
300 to 600ºC (572 to 1112ºF) ± 0.12 ± 0.14 @300ºC, ±0.15 @ 600ºC
(OM-USB-TEMP-AI Only)
Absolute
Range Accuracy (mV)
± 10V ± 2.78
± 5V ± 1.40
± 2.5V ± 0.71
±1.25V ± 0.36
3
Page 4
DIGITAL I/O
Number of Digital I/O Channels: 8
Type: CMOS
Configuration: Each DI/O bit can
be independently configured for
input or output. Power on reset is
input mode.
Pull-Up/Pull-Down Configuration:
All pins pulled up to +5V via
47 kΩ resistors (default). Pull-down
toground(GND)alsoavailable.
Digital I/O Transfer Rate
(Software Paced): Digital input;
50 port reads or single bit reads
per second (typical), digital output;
100 port writes or single bit writes
per second (typical).
Input High Voltage:
2.0V min, 5.5V absolute maximum
Input Low Voltage:
0.8V min, -0.5V absolute minimum
Output High Voltage:
0.7V maximum (IOL = 2.5 mA)
Output Low Voltage:
3.8V minimum (IOH = -2.5 mA)
COUNTER
(OM-USB-TEMP-AI ONLY)
Number of Channels: 1
Resolution: 32-bit
Counter Type: Event counter
Input Type: TTL, rising edge
triggered
Counter Read/Write Rates
(Software Paced, System
Dependent): 33 to 1000 read/writes
per second
Schmitt Trigger Hysteresis:
20 mV to 100 mV
Input Leakage Current:
±1.0 µA typical
Input Frequency: 1 MHz maximum
High Pulse Width: 500 ns minimum
Low Pulse Width: 500 ns minimum
Input High Voltage: 4.0V minimum,
5.5V absolute maximum
Input Low Voltage: 1.0V maximum,
-0.5V absolute minimum
DATA LOGGING
(OM-USB-5203 ONLY)
Memory Card Type: CompactFlash
(512 MB card included)
Logging Rate: 1 sec up to 232
seconds (1 sec intervals)
Logging Start Method: On power
up, on button press or at specified
date/time (user programmable)
Logging Stop Method:
Button press
GENERAL
Power Supply Voltage (Supplied
by USB Port): 4.75V minimum to
5.25V maximum
OM-USB-5203,
shown smaller than
actual size.
Extended Warranty
Program
SM
OMEGACARESM extended warranty program
is available for models shown on this page.
Ask your sales representative for full details
when placing an order. OMEGACARE
covers parts, labor and equivalent loaners.
SM
Power Supply Current (Supplied
by USB Port): <100 mA typical
(USB enumeration); 270 mA typical
(continuous input with all inputs
configured for disabled mode)
User 5V Output Voltage Range
(connected to self-powered hub):
OM-USB-TEMP/OM-USB-5203;
4.75V min to 5.25V maximum
OM-USB-TEMP-AI; 4.9 V minimum
to 5.1 V maximum
User 5V Output Current
(bus powered and connected
to self-powered hub):
OM-USB-TEMP/OM-USB-5203;
10 mA maximum
OM-USB-TEMP-AI; 5 mA maximum
Isolation: 500 Vdc minimum
measurement system to PC
USB Device Type: USB 2.0
(full-speed)
To Order
MODEL NO. DESCRIPTION
OM-USB-TEMP 8-channel temperature input USB data
OM-USB-TEMP-AI 8-channel temperature/voltage input
OM-USB-5203 8 channel temperature input USB
SWD-TRACERDAQ-PRO TracerDAQ Pro software
OM-USB-5200-ADAPTOR Spare 100/240 Vac 50/60 Hz ac adaptor
Comes complete with 2 m (6') USB cable and software and operator’s manual on CD.
OM-USB-5203 also includes 100/240 Vac 50/60 Hz ac adaptor (USA plug) and 512 MB
Compact Flash card.
Ordering Example: OM-USB-TEMP, 8-channel temperature input USB data acquisition
module and OMEGACARESM OCW-1, 1 year extended warranty adds 1 year to standard
1 year warranty.
Visit omega.com/om-usb-temp for Pricing and Details
acquisition module
USB data acquisition module
data acquisition module with data
logging capability
for OM-USB-5203 (USA plug)
Device Compatibility:
USB 1.1, USB 2.0
USB Cable Length:
3 m (10') maximum
Dimensions:
127 L x 89 W x 36 mm H
(5.0 x 3.5 x 1.4")
Input Connections: Screw terminal
blocks(accept16to30AWGwire)
Operating Temperature: 0 to 50ºC
(32 to 122ºF), 0 to 90% RH
non-condensing
Storage Temperature: -40 to 85ºC
(-40 to 185ºF)
Weight:
OM-USB-TEMP/OM-USB-TEMP-AI:
182 g (6.4 oz)
OM-USB-5203: 227 g (8.0 oz)
4
Loading...
