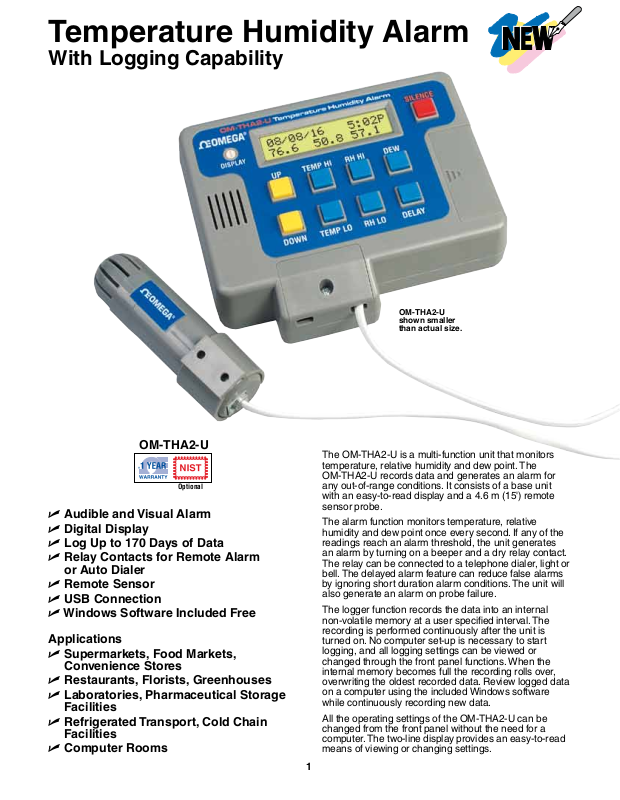

Temperature Humidity Alarm
With Logging Capability
OM-THA2-U
shown smaller
than actual size.
OM-THA2-U
Optional
U Audible and Visual Alarm
U Digital Display
U Log Up to 170 Days of Data
U Relay Contacts for Remote Alarm
or Auto Dialer
U Remote Sensor
U USB Connection
U Windows Software Included Free
Applications
U Supermarkets, Food Markets,
Convenience Stores
U Restaurants, Florists, Greenhouses
U Laboratories, Pharmaceutical Storage
Facilities
U Refrigerated Transport, Cold Chain
Facilities
U Computer Rooms
The OM-THA2-U is a multi-function unit that monitors
temperature, relative humidity and dew point. The
OM-THA2-U records data and generates an alarm for
any out-of-range conditions. It consists of a base unit
with an easy-to-read display and a 4.6 m (15') remote
sensor probe.
The alarm function monitors temperature, relative
humidity and dew point once every second. If any of the
readings reach an alarm threshold, the unit generates
an alarm by turning on a beeper and a dry relay contact.
The relay can be connected to a telephone dialer, light or
bell. The delayed alarm feature can reduce false alarms
by ignoring short duration alarm conditions. The unit will
also generate an alarm on probe failure.
The logger function records the data into an internal
non-volatile memory at a user specified interval. The
recording is performed continuously after the unit is
turned on. No computer set-up is necessary to start
logging, and all logging settings can be viewed or
changed through the front panel functions. When the
internal memory becomes full the recording rolls over,
overwriting the oldest recorded data. Review logged data
on a computer using the included Windows software
while continuously recording new data.
All the operating settings of the OM-THA2-U can be
changed from the front panel without the need for a
computer. The two-line display provides an easy-to-read
means of viewing or changing settings.
1
Page 2
Windows software displays data in graphical or tabular format.
Specifications
SENSOR PROBE
Operating Temperature Range: -40 to 60°C (-40 to 140°F)
Operating Humidity Range: 0 to 90% RH non-condensing
Temperature Accuracy: ±1°C (±2°F)
Temperature Resolution: 0.1°C (0.1°F)
Humidity Accuracy: ±2% RH
Humidity Resolution: 0.1% RH
Calibration: User calibration for temperature and relative
humidity
Dimensions: 9.65 L x 2.79 cm dia (3.8 x 1.1")
Weight: 25 g (0.9 oz)
Cable Length: 4.6 m (15')
BASE UNIT
Operating Temperature Range: 0 to 54°C (32 to 132°F)
Storage Temperature: -18 to 54°C (0 to 130°F)
Operating Humidity: 0 to 90% RH, non-condensing
Power: 12 to 24 Vac/Vdc, 0.78W alarm active
Battery Backup: 9V alkaline battery for 25 hrs operation
during power outage
Relay: 5A/250V NO/NC dry contact, resistive load
Dimensions: 14 L x 11.4 W x 4.1 cm dia (5.5 x 4.5 x 1.6")
Weight: 245 g (8.6 oz)
ALARM
Temperature/Relative Humidity Alarm: High/low
temperature and humidity alarms, condensation alarm
Alarm Delay: Up to 2 hrs, user-selectable
Alarm Indication: Audible/visual/relay
LOGGING
Sample Rate: 1 sec to 30 min, user-selectable
Data History Storage: 2 hrs to 170 days, depending on
sample rate
Memory Capacity: 8150 samples for temperature, humidity
and dew point
Software Compatibility: Windows XP/Vista/7/8/10 (32-bit
and 64-bit)
SM
OMEGACARESM extended warranty program is
available for models shown on this page. Ask
your sales representative for full details when
Extended Warranty
Program
placing an order. OMEGACARE
labor and equivalent loaners.
To Order
Model No. Description
OM-THA2-U
OM-THA2-U-CAL-3-HU
OM-THA2P
OM-THA2-ADAP
OM-THA2-ADAP-220V
Comes complete with user guide, Windows software on CD, USB interface cable and 115 Vac power adaptor.
Ordering Example: OM-THA2-U, temperature/humidity alarm and OCW-1 OMEGACARE
to standard 1-year warranty).
Temperature/humidity alarm
Temperature/humidity alarm with NIST calibration certificate
Replacement remote sensor probe
Replacement 115 Vac power adaptor
Replacement 220 Vac power adaptor
SM
1-year extended warranty for OM-THA2 (adds 1 year
SM
covers parts,
