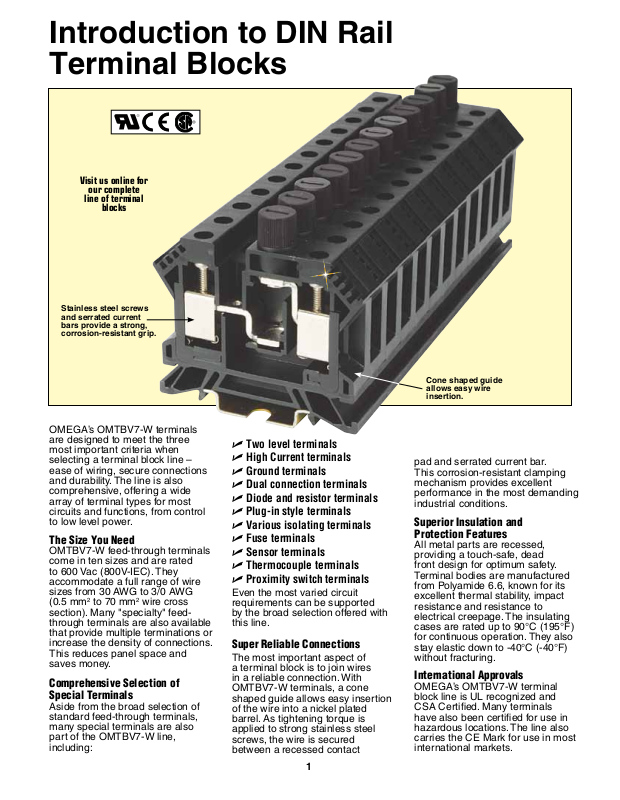

Introduction to DIN Rail
Terminal Blocks
Visit us online for
our complete
line of terminal
blocks

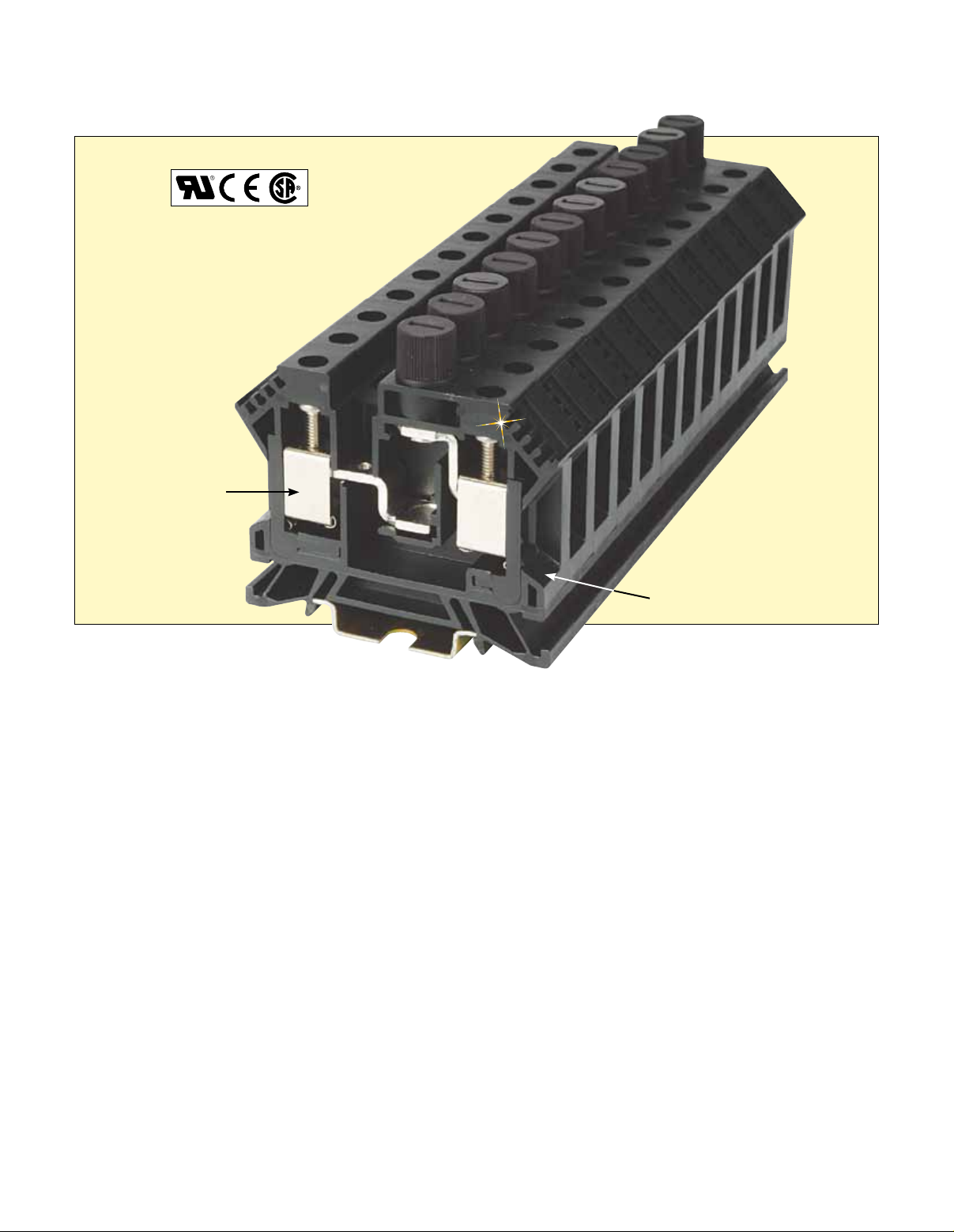

Stainless steel screws
and serrated current
bars provide a strong,
corrosion-resistant grip.
OMEGA’s OMTBV7-W terminals
are designed to meet the three
most important criteria when
selecting a terminal block line –
ease of wiring, secure connections
and durability. The line is also
comprehensive, offering a wide
array of terminal types for most
circuits and functions, from control
to low level power.
The Size You Need
OMTBV7-W feed-through terminals
come in ten sizes and are rated
to 600 Vac (800V-IEC). They
accommodate a full range of wire
sizes from 30 AWG to 3/0 AWG
(0.5 mm
section). Many "specialty" feedthrough terminals are also available
that provide multiple terminations or
increase the density of connections.
This reduces panel space and
saves money.
2
to 70 mm2 wire cross
Comprehensive Selection of
Special Terminals
Aside from the broad selection of
standard feed-through terminals,
many special terminals are also
part of the OMTBV7-W line,
including:
U Two level terminals
U High Current terminals
U Ground terminals
U Dual connection terminals
U Diode and resistor terminals
U Plug-in style terminals
U Various isolating terminals
U Fuse terminals
U Sensor terminals
U Thermocouple terminals
U Proximity switch terminals
Even the most varied circuit
requirements can be supported
by the broad selection offered with
this line.
Super Reliable Connections
The most important aspect of
a terminal block is to join wires
in a reliable connection. With
OMTBV7-W terminals, a cone
shaped guide allows easy insertion
of the wire into a nickel plated
barrel. As tightening torque is
applied to strong stainless steel
screws, the wire is secured
between a recessed contact
1
Cone shaped guide
allows easy wire
insertion.
pad and serrated current bar.
This corrosion-resistant clamping
mechanism provides excellent
performance in the most demanding
industrial conditions.
Superior Insulation and
Protection Features
All metal parts are recessed,
providing a touch-safe, dead
front design for optimum safety.
Terminal bodies are manufactured
from Polyamide 6.6, known for its
excellent thermal stability, impact
resistance and resistance to
electrical creepage. The insulating
cases are rated up to 90°C (195°F)
for continuous operation. They also
stay elastic down to -40°C (-40°F)
without fracturing.
International Approvals
OMEGA’s OMTBV7-W terminal
block line is UL recognized and
CSA Certified. Many terminals
have also been certified for use in
hazardous locations. The line also
carries the CE Mark for use in most
international markets.
Page 2

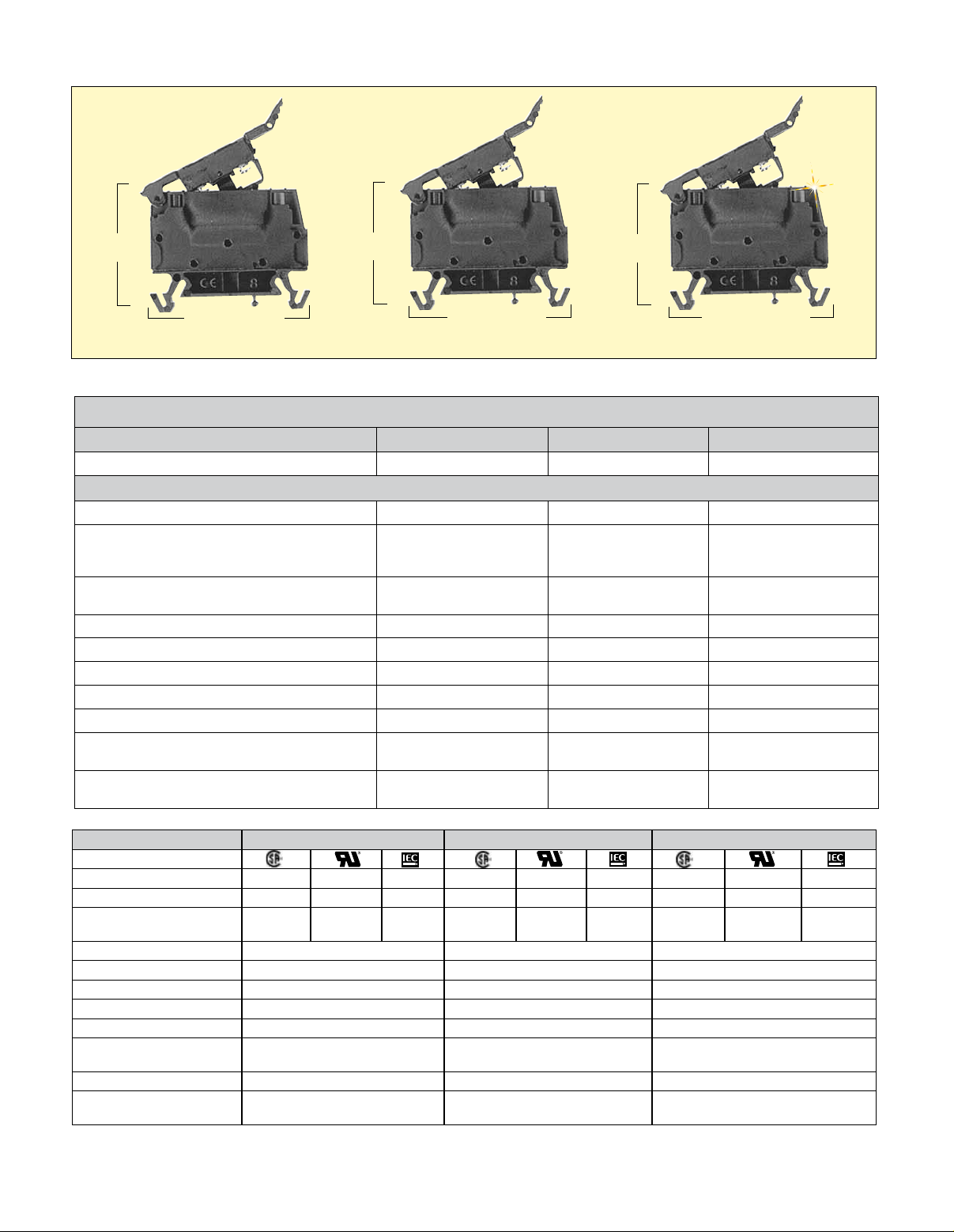

DIN Rail Fuse Terminal Blocks
OMTBV7-WFB424-10
39.4 mm
(1.55")
Single circuit fuse block with
LED blown fuse indication
2
4 mm
50.7 mm (2.0")
OMTBV7-WFB4250-10
2
4 mm
39.4 mm
(1.55")
50.7 mm (2.0")
Single circuit fuse block fuse block
with neon blown fuse indication
39.4 mm
(1.55")
OMTBV7-WFB4-10
2
4 mm
50.7 mm (2.0")
Single circuit fuse block
Standard Fuse Blocks
To Order
Terminal Model No. Model No. Model No.
Black (Pkg of 10) OMTBV7-WFB4-10 OMTBV7-WFB424-10 OMTBV7-WFB4250-10
Accessories
End Barrier Not Required Not Required Not Required
End Anchors -50 (pkg of 50) -10 (pkg of 10)
Screw Type—Normal Duty
Screw Type—Heavy Duty
Jumpers (Pkg of 10)
Side Jumper (10-pole Insulated) OMTBV7-SJFB8-10-10
DIN rail, 35 x 7.5 mm x 2 m,
DIN rail, 35 x 7.5 mm x 2 m,
DIN rail, 35 x 15 mm x 2 m,
slotted XBANS3575P – –
solid XBANS3575U – –
slotted XBANS3515P – –
DIN rail, 35 x 15 mm x 2 m, solid
Blank marking tags,
Blank marking tags,
8 x 12 mm, cards of 100 OMTBV7-SM8X12 OMTBV7-SM8X1 OMTBV7-SM8X12
6 x 9 mm,
cards of 100, for fuse handle OMTBV7-SM6X9 OMTBV7-SM6X9 OMTBV7-SM6X9
Pre-printed marking tabs,
single digit (0...9), sticks of 10 OMTBV7-MP OMTBV7-MP OMTBV7-MP
OMTBV7-EA35-50
OMTBV7-EAH35-10
OMTBV7-EA35-50
OMTBV7-EAH35-10
OMTBV7-EA35-50
OMTBV7-EAH35-10
OMTBV7-SJFB8-10-10 OMTBV7-SJFB8-10-10
XBANS3515U – –
SPECIFICATIONS OMTBV7-WFB4-10 OMTBV7-WFB424-10 OMTBV7-WFB4250-10
Approvals
Voltage Rating (AC/DC) 300V 300 VC 500V 300V 300V 500V 300V 300V 500V
Maximum Current 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A
Wire Range #22 to #22 to 0.05 to #22 to #22 to 0.05 to #22 to #22 to 0.05
(Rated Cross Section) #12 AWG #12 AWG 4 mm2 #12 AWG #12 AWG 4 mm2 #12 AWG #12 AWG to 4 mm
Indicator Type Non-Indicating LED Neon
Leakage Current — 2 mA @ 24V 1 mA @ 264 Vac
Working Voltage Per Fuse Rating 10 to 57 Vac/Vdc 85 to 264 Vac
Fuse Size (not supplied) 5 x 20 mm 5 x 20 mm 5 x 20 mm
Wire Strip Length 8 mm (0.31") 8 mm (0.31") 8 mm (0.31")
Recommended 0.6 Nm (5.0 to 5.6 lb-in.) 0.6 Nm (5.0 to 5.6 lb-in.) 0.6 Nm (5.0 to 5.6 lb-in.)
Tightening Torque
Density 125/m (38 pcs./ft) 125/m (38 pcs./ft) 125/m (38 pcs./ft)
Insulation -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F)
Temperature Range
Fuses not included.
Ordering Examples: OMTBV7-WFB4-10, single circuit fuse block, pkg of 10, OMTBV7-EAH35-10, end anchors, and OMTBV7-SJFB8-10-10,
jumpers. OMTBV7-WFB4250-10, single circuit fuse block with neon blown fuse indicator, 10 pack.
