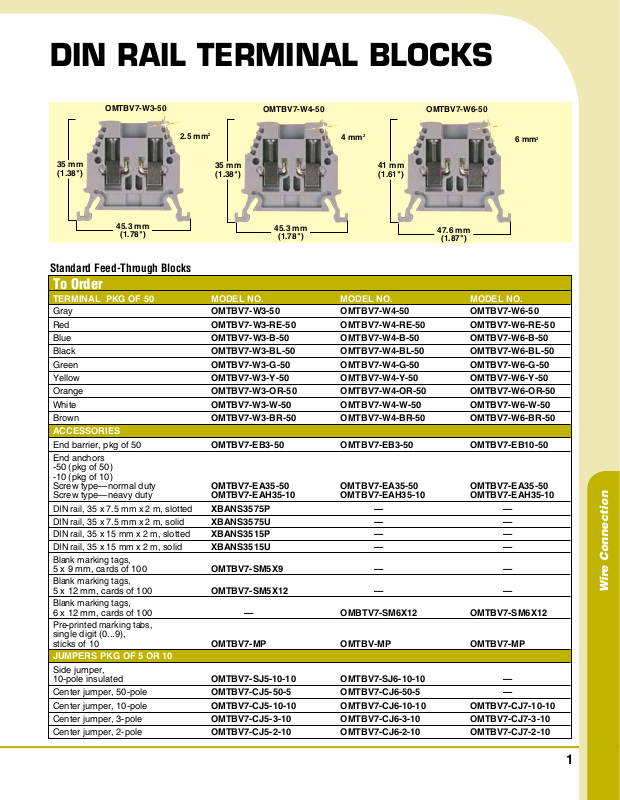

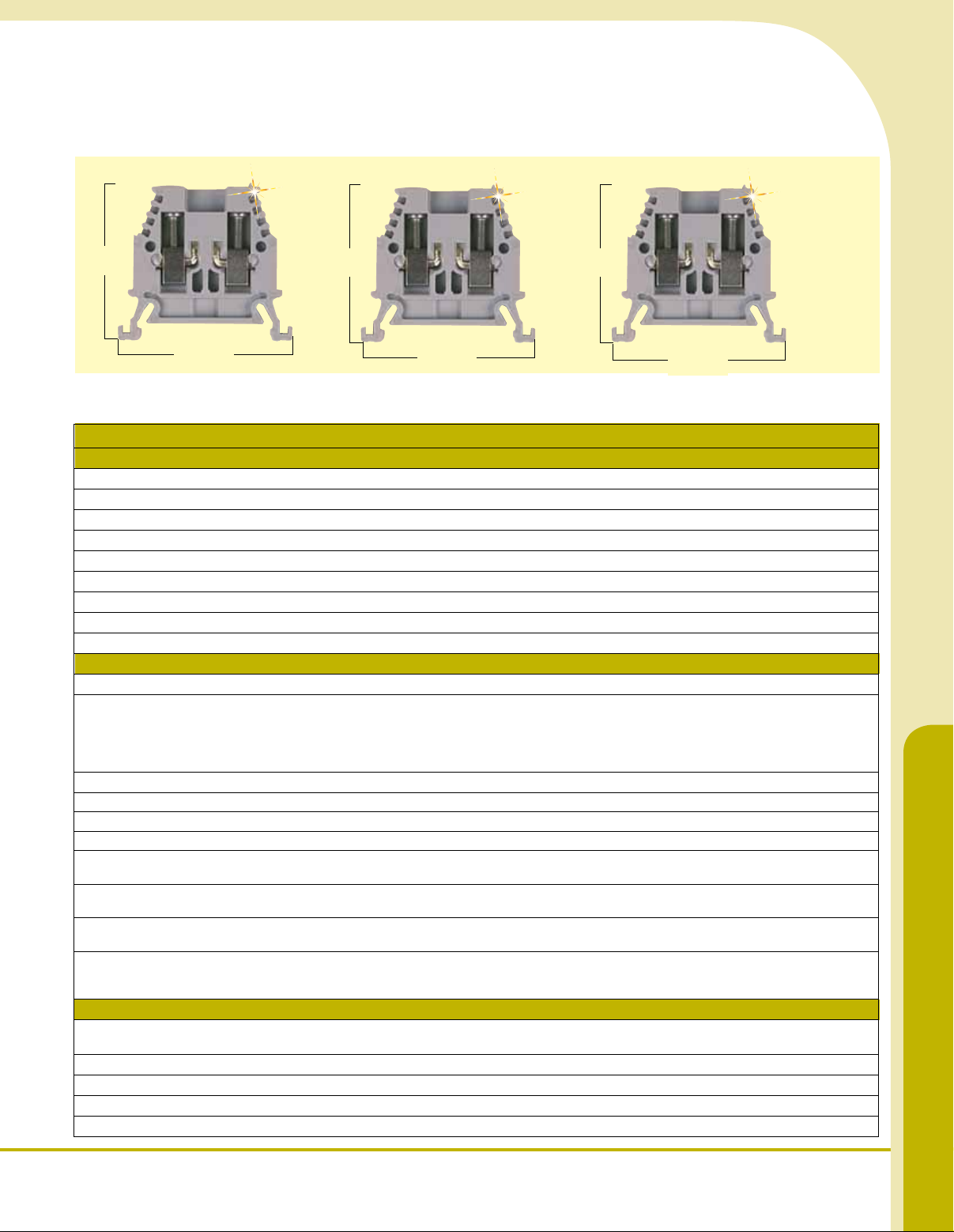

Page 1
din rail terminal blocks
35 mm
(1.38")
OMTBV7-W3-50
45.3 mm
(1.78")
2.5 mm
2
35 mm
(1.38")
OMTBV7-W4-50 OMTBV7-W6-50
2
4 mm
41 mm
(1.61")
45.3 mm
(1.78")
47.6 mm
(1.87")
6 mm
2
Standard Feed-Through Blocks
To Order
TERMINAL PKG OF 50 MODEL NO. MODEL NO. MODEL NO.
Gray OMTBV7-W3-50 OMTBV7-W4-50 OMTBV7-W6-50
Red OMTBV7-W3-RE-50 OMTBV7-W4-RE-50 OMTBV7-W6-RE-50
Blue OMTBV7-W3-B-50 OMTBV7-W4-B-50 OMTBV7-W6-B-50
Black OMTBV7-W3-BL-50 OMTBV7-W4-BL-50 OMTBV7-W6-BL-50
Green OMTBV7-W3-G-50 OMTBV7-W4-G-50 OMTBV7-W6-G-50
Yellow OMTBV7-W3-Y-50 OMTBV7-W4-Y-50 OMTBV7-W6-Y-50
Orange OMTBV7-W3-OR-50 OMTBV7-W4-OR-50 OMTBV7-W6-OR-50
White OMTBV7-W3-W-50 OMTBV7-W4-W-50 OMTBV7-W6-W-50
Brown OMTBV7-W3-BR-50 OMTBV7-W4-BR-50 OMTBV7-W6-BR-50
ACCESSORIES
End barrier, pkg of 50 OMTBV7-EB3-50 OMTBV7-EB3-50 OMTBV7-EB10-50
End anchors
-50 (pkg of 50)
-10 (pkg of 10)
Screw type—normal duty OMTBV7-EA35-50 OMTBV7-EA35-50 OMTBV7-EA35-50
Screw type—neavy duty OMTBV7-EAH35-10 OMTBV7-EAH35-10 OMTBV7-EAH35-10
DIN rail, 35 x 7.5 mm x 2 m,
DIN rail, 35 x 7.5 mm x 2 m,
DIN rail, 35 x 15 mm x 2 m,
DIN rail, 35 x 15 mm x 2 m,
Blank marking tags,
5 x 9 mm, cards of 100 OMTBV7-SM5X9 — —
Blank marking tags,
5 x 12 mm, cards of 100 OMTBV7-SM5X12 — —
Blank marking tags,
6 x 12 mm, cards of 100 — OMBTV7-SM6X12 OMTBV7-SM6X12
Pre-printed marking tabs,
single digit (0...9),
sticks of 10 OMTBV7-MP OMTBV-MP OMTBV7-MP
JUMPERS PKG OF 5 OR 10
Side jumper,
10-pole insulated OMTBV7-SJ5-10-10 OMTBV7-SJ6-10-10 —
Center jumper, 50-pole OMTBV7-CJ5-50-5 OMTBV7-CJ6-50-5 —
Center jumper, 10-pole OMTBV7-CJ5-10-10 OMTBV7-CJ6-10-10 OMTBV7-CJ7-10-10
Center jumper, 3-pole OMTBV7-CJ5-3-10 OMTBV7-CJ6-3-10 OMTBV7-CJ7-3-10
Center jumper, 2-pole OMTBV7-CJ5-2-10 OMTBV7-CJ6-2-10 OMTBV7-CJ7-2-10
slotted XBANS3575P — —
solid XBANS3575U — —
slotted XBANS3515P — —
solid XBANS3515U — —
Wire Connection
1

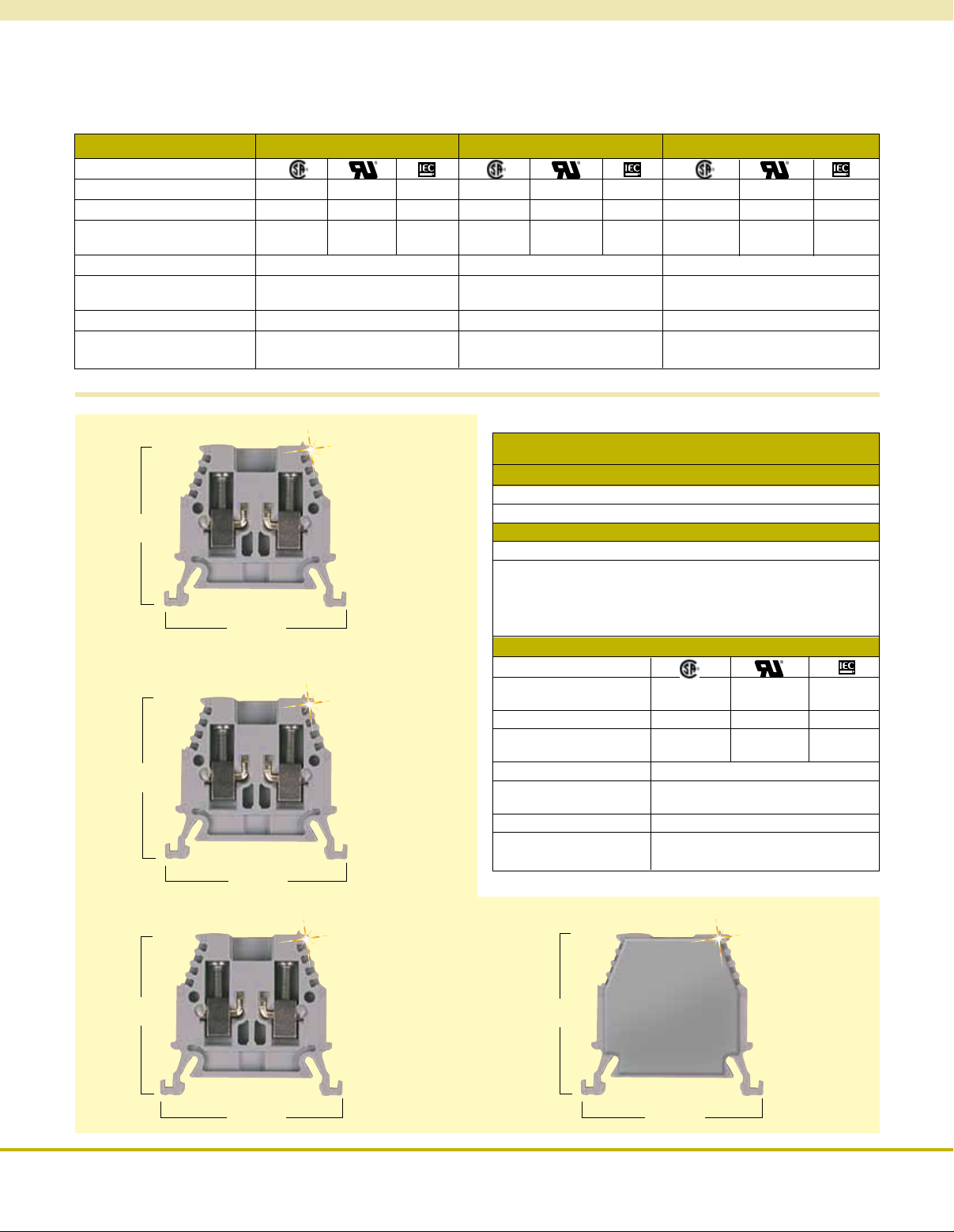

Page 2
SPECIFICATIONS OMTBV7-W3 OMTBV7-W4 OMTBV7-W6
Approvals
Voltage Rating (AC/DC) 600V 600V 800V 600V 600V 800V 600V 600V 800V
Maximum Current 20 A 20 A 24 A 30 A 30 A 32 A 40 A 40 A 41 A
Wire Range #22 to #30 to 0.5 to #22 to #22 to 0.5 to #22 to #22 to 0.5 to
(Rated Cross Section) #14 AWG #14 AWG 2.5 mm
2
#10 AWG #10 AWG 4 mm2 #10 AWG #10 AWG 6 mm
Wire Strip Length 10 mm (0.39") 10 mm (0.39") 12 mm (0.47")
Recommended 0.6 Nm (5.0 to 5.6 lb-in.) 0.6 Nm (5.0 to 5.6 lb-in.) 0.7 Nm (5.6 to 6.8 lb-in.)
Tightening Torque
Density 200/m (61 pcs./ft) 166/m (50 pcs./ft) 142/m (43 pcs./ft )
Insulation -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F)
Temperature Range
Standard Feed-Through Blocks
To Order
TERMINAL PKG OF 5 MODEL NO.
41 mm
(1.61”)
71 mm
(2.8”)
47.6 mm
(1.87”)
60 mm
(2.36”)
OMTBV7-W10-50
2
10 mm
OMTBV7-W35-10
35 mm
2
Gray OMTBV7-W70-5
Blue OMTBV7-W70-B-5
ACCESSORIES
End barrier Not Required
End anchors
-50 (pkg of 50)
-10 (pkg of 10)
Srew type—normal duty —
Srew type—heavy duty OMTBV7-EAH35-10
SPECIFICATIONS
Approvals
Voltage Rating 600V 600V 750V
(AC/DC)
Maximum Current 310 A 200 A 175 A
Wire Range #4... #4... 4...70
(Rated Cross Section) #3/0 AWG #3/0 AWG mm
2
Wire Strip Length 26 mm (1.02")
Recommended 15 Nm (132.8 lb-in.)
Tightening Torque
Density 43/m (38 pcs./ft)
Insulation -40 to 90°C (-40 to 195°F)
Temperature Range
2
41 mm
(1.61”)
47.6 mm
(1.87”)
OMTBV7-W16S-50
16 mm
2
71 mm
(2.8”)
74 mm
(2.91”)
OMTBV7-W70-5
70 mm
2
2
Page 3
Standard Feed-Through Blocks
To Order
TERMINAL MODEL NO. MODEL NO. MODEL NO.
Gray OMTBV7-W10-50 OMTBV7-W16S-50 OMTBV7-W35-10
Red OMTBV7-W10-RE-50 OMTBV7-W16S-RE-50
Blue OMTBV7-W10-B-50 OMTBV7-W16S-B-50 OMTBV7-W35-B-10
Black OMTBV7-W10-BL-50 OMTBV7-W16S-BL-50
Green OMTBV7-W10-G-50 OMTBV7-W16S-G-50
Yellow OMTBV7-W10-Y-50 OMTBV7-W16S-Y-50
Orange OMTBV7-W10-OR-50 OMTBV7-W16S-OR-50
White OMTBV7-W10-W-50 OMTBV7-W16S-W-50
Brown OMTBV7-W10-BR-50 OMTBV7-W16S-BR-50
ACCESSORIES
End barrier pkg of 50 OMTBV7-EB10-50 OMTBV7-EB10-50 OMTBV7-EB35-50
End anchors
-50 (pkg of 50)
-10 (pkg of 10)
Screw type—normal duty OMTBV7-EA35-50 OMTBV7-EA35-50 OMTBV7-EA35-50
Screw type—heavy duty OMTBV7-EAH35-10 OMTBV7-EAH35-10 OMTBV7-EAH35-10
DIN rail,
35 x 7.5 mm x 2 m,
DIN rail,
35 x 7.5 mm x 2 m,
DIN rail,
35 x 15 mm x 2 m,
DIN rail,
35 x 15 mm x 2 m,
Blank marking tags,
6 x 12 mm, cards of 100 — OMTBV7-SM6X12 OMTBV7-SM6X12
Blank marking tags,
8 x 12 mm, cards of 100 OMTBV7-SM8X12 — —
Pre-printed marking tabs,
single digit (0...9), sticks of 10 OMTBV7-MP OMTBV7-MP OMTBV7-MP
CENTER JUMPERS PKG OF 10
3-pole — OMTBV7-CJS11-3-10 OMTBV7-CJ14-3-10
2-pole — OMTBV7-CJS11-2-10 OMTBV7-CJ14-2-10
SPECIFICATIONS OMTBV7-W10 OMTBV7-W16S OMTBV7-W35
Approvals
Voltage Rating 600V 600V 800V 600V 600V 800V 600V 600V 750V
(AC/DC)
Maximum Current 50 A 50 A 57A 85A 85A 76A 140A 125A 138A
Wire Range #22 to #22 to 0.5 to #14 to #14 to #2.5 to #14... 2.5...35 4...70
(Rated Cross Section) #8 AWG #8 AWG 10 mm2 #4 AWG #4 AWG #16 AWG
Wire Strip Length 13 mm (0.51”) 13 mm (0.51”) 17 mm (0.67”)
Recommended 1.4 Nm (12.2 to 13.4 lb-in.) 2.1 Nm (18 to 20 lb-in.) 2.5 Nm (22.1 lb-in.)
Tightening Torque
Density 125/m (38 pcs./ft) 90/m (27 pcs./ft) 71/m (21 pcs./ft)
Insulation -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F) -40 to 90°C (-40 to 195°F)
Temperature Range
Ordering Examples: OMTBV7-W10-50, 50 pieces of 600V feed through terminal blocks for #22-18 AWG rated for 50 A, OMTBV7-EB10-50,
50 pieces end barriers
OMTBV7-W35-10, 10 pieces of 600V feed through terminal blocks for #3/0 AWG rated for 125 A
slotted XBANS3575P XBANS3575P XBANS3575P
solid XBANS3575U XBANS3575U XBANS3575U
slotted XBANS3515P XBANS3515P XBANS3515P
solid XBANS3515U XBANS3515U XBANS3515U
#3/0 AWG
#3/0 AWG mm
2
Wire Connection
3
