Page 1
User’s Guide
SGD 43-A DK+
4.3” PanelPilotACE Compatible Development Kit and Display
SGD 43-A-DK+ is a development kit for the SGD 43-A
PanelPilotACE compatible display. The development board itself
provides switches, dials, LEDs and screw terminal connections
to quickly connect to and test all of the input/ouput
functionality of the SGD 43-A.
Shop online at
e-mail: [email protected]
For latest product manuals:
omega.com
®
www.omegamanual.info
OM-SGD-43-A-DK-PLUS
Development Kit for OM-SGD-43-A
Smart Graphics Display
Page 2
Page 3
SGD 43-A DK+
4.3” PanelPilotACE Compatible Development Kit and Display
SGD 43-A-DK+ is a development kit for the SGD 43-A
PanelPilotACE compatible display. The development board itself
provides switches, dials, LEDs and screw terminal connections
to quickly connect to and test all of the input/ouput
functionality of the SGD 43-A.
OM-SGD-43-A-DK-PLUS
Development Kit for OM-SGD-43-A Smart Graphics Display
OM-SGD-43-A-DK-PLUS is a development kit for the OM-SGD-43-A
display. The development board itself provides switches, dials, LEDs and
screw terminal connections to quickly connect to and test all of
the input/ouput functionality of the OM-SGD-43-A.
The OM-SGD-43-A-DK-PLUS is a PanelPilotACE development kit. The kit includes a 4.3” OM-SGD-43-A display, a USB cable
and a development board which provides connecons to all of the input/output funconality of the display. This includes
LED’s and switches for digital I/O’s, four potenometers to generate analogue inputs, variable brightness LED’s for PWM
outputs and a prototyping area for tesng circuitry. Connecons are also available for the display’s RS232, SPI and I²C
funconality which will be made available for use in a future soware update.
Please consult the OM-OM-SGD-43-A technical data sheet for further informaon.
Specifications
Analogue Inputs 4 x analog inputs each with ±5Vd.c. analogue dial and screw terminals for external inputs
Digital Input/Outputs 8 x digital I/O’s each with input switch, status LED and pin headers to connect external circuitry
PWM Outputs 4 x PWM outputs each with LED indicaon and pin headers to connect external circuitry
Alarm Outputs 2 x alarm outputs with status LED and pin headers to connect external circuitry
Serial Bus Connecons RS232 serial connector and pin headers for SPI and I²C serial bus.*
Supply 5 to 30V d.c. (300mA typical at 5V d.c.)
Outside Dimensions 181 x 147x 64 mm (dimension of development board with OM-SGD-43-A connected)
* Hardware capability, but not available in soware at launch
www.omega.com
Specications liable to change without prior warning Data Sheet - Issue 1 SL
Page 4
OM-SGD-43-A-DK-PLUS
Development Kit for OM-SGD-43-A Smart Graphics Display

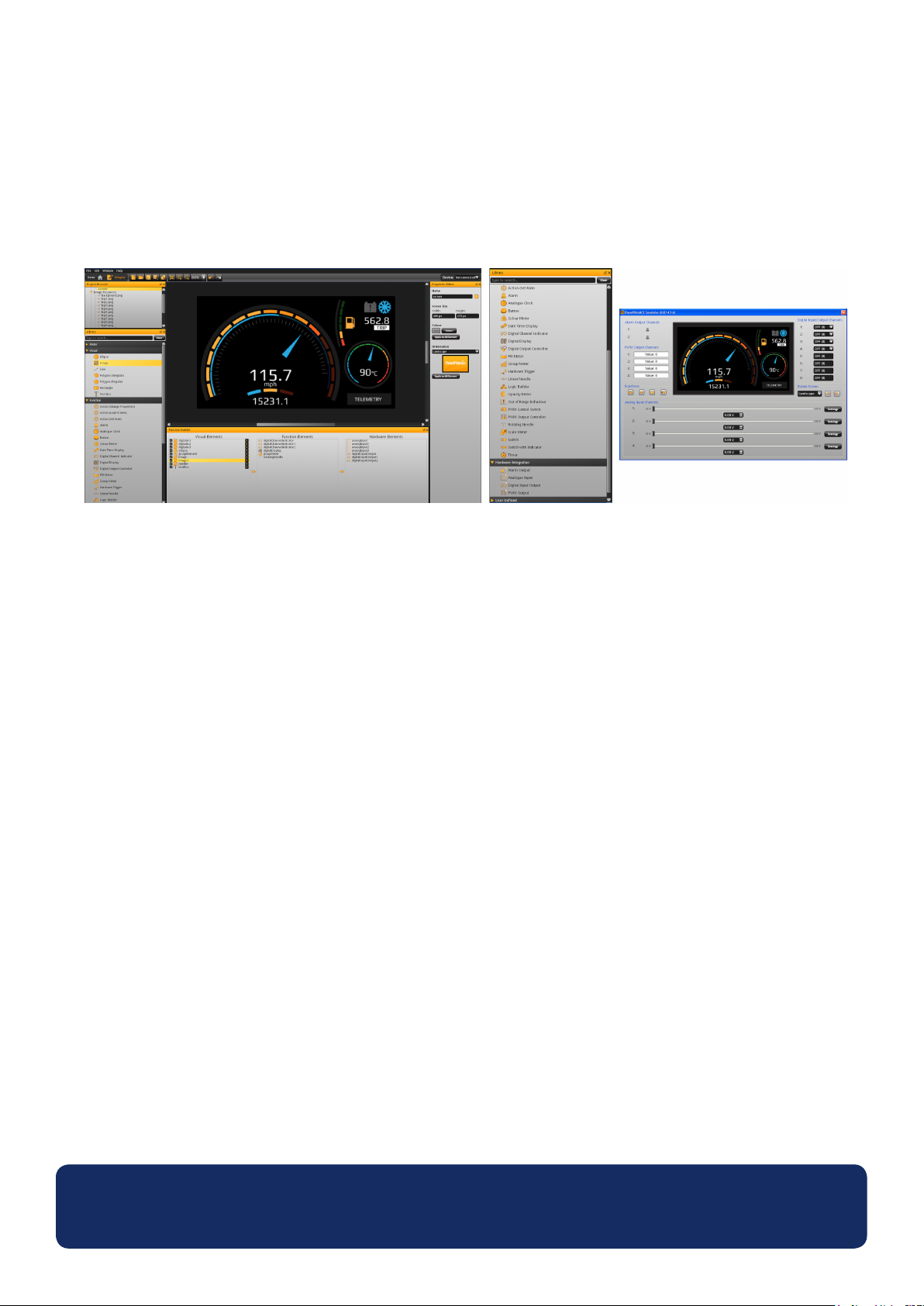

PanelPilotACE Design Studio
Making Industrial User Interface Design Simple
The design soware provides a number of building blocks which allow users to drag-and-drop elements onto the screen
to quickly create advanced user interfaces. From background images to text elements, analogue style meters, touchscreen navigaon elements and even complex logic statements, users can build up mul-screen interfaces without
needing to write a line of code.
There is a library of predened elements such as meters, buons and switches, and users can create their own content
by combining elements or imporng graphics in a number of formats (including jpg, png, f, bmp and gif). The soware
includes support for transparency and mulple-layers.
Hardware interfacing is similarly intuive, with hardware elements being dragged into a funcon builder where
associaons with graphical elements (such as a needle on a meter) can be dened. Here users can determine scaling for
analogue inputs, dene alarm triggers, behaviours for digital inputs and outputs and congure PWM outputs.
Previewing and Uploading Projects
The soware includes a ‘Preview in Emulator’ funcon which emulates the hardware inputs/outputs allowing users to
test their projects prior to upload. Projects are uploaded to the OM-SGD-43-A via USB.
PanelPilotACE Design Studio is compatible with Windows XP, Vista, 7 and 8 and can be downloaded free from
www.omega.com.
www.omega.com
Specications liable to change without prior warning Data Sheet - Issue 1 SL
Page 5
OM-SGD-43-A-DK-PLUS
Development Kit for OM-SGD-43-A Smart Graphics Display
Connections
2 x Alarm Outputs labelled ALM1 to ALM2
LED indicates output status
Remove corresponding jumper link to connect
external circuitry in place.
PL11
8 x Digital I/O labelled IO0 to IO7
LED indicates output or switch to generate input
Remove corresponding jumper link to connect
external circuitry in place.
PL4 PL5
4 x PWM Outputs labelled PWM1 to PWM4
Variable LED indicates PWM output level
Remove corresponding jumper link to connect
external circuitry in place.
Power Supply (when not using USB)
Screw terminals (VIN and 0V)
2.1mm DC Power Socket
Both 5 to 30V d.c.
WARNING: CONNECT VOLTAGE TO EITHER
SCREW TERMINALS OR DC POWER PLUG
- NOT BOTH
RS232
Connecon via 9-way D-Sub plug
OM-SGD-43-A & USB for upload & power
Plug OM-SGD-43-A to this locaon
Hole for USB connecvity
Opon to power board using USB via OM-SGD-43-A
4 x Analogue Inputs
4 x ±5Vd.c. variable inputs
Screw terminals for external voltage input
(IN1 to IN4 & 0V)
Remove jumper link JIN1 to JIN4 to use screw
terminals
The main connecon is that of the OM-SGD-43-A supplied as part of the OM-SGD-43-A-DK-PLUS development kit. The
board can be powered directly by connecng a USB cable to the rear of the display. Whilst connected the USB will provide
power to both the display and the development board.
When providing power externally using either the screw terminals or 2.1mm DC power plug do not connect more than
one external supply as this could damage one or both of these.
The pin-outs for PL4, PL5 and PL11 can be found on the OM-SGD-43-A data sheet together with further applicaon
informaon relevant when connecng external circuitry via the development board.
