Page 1

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

www.omegamanual.info

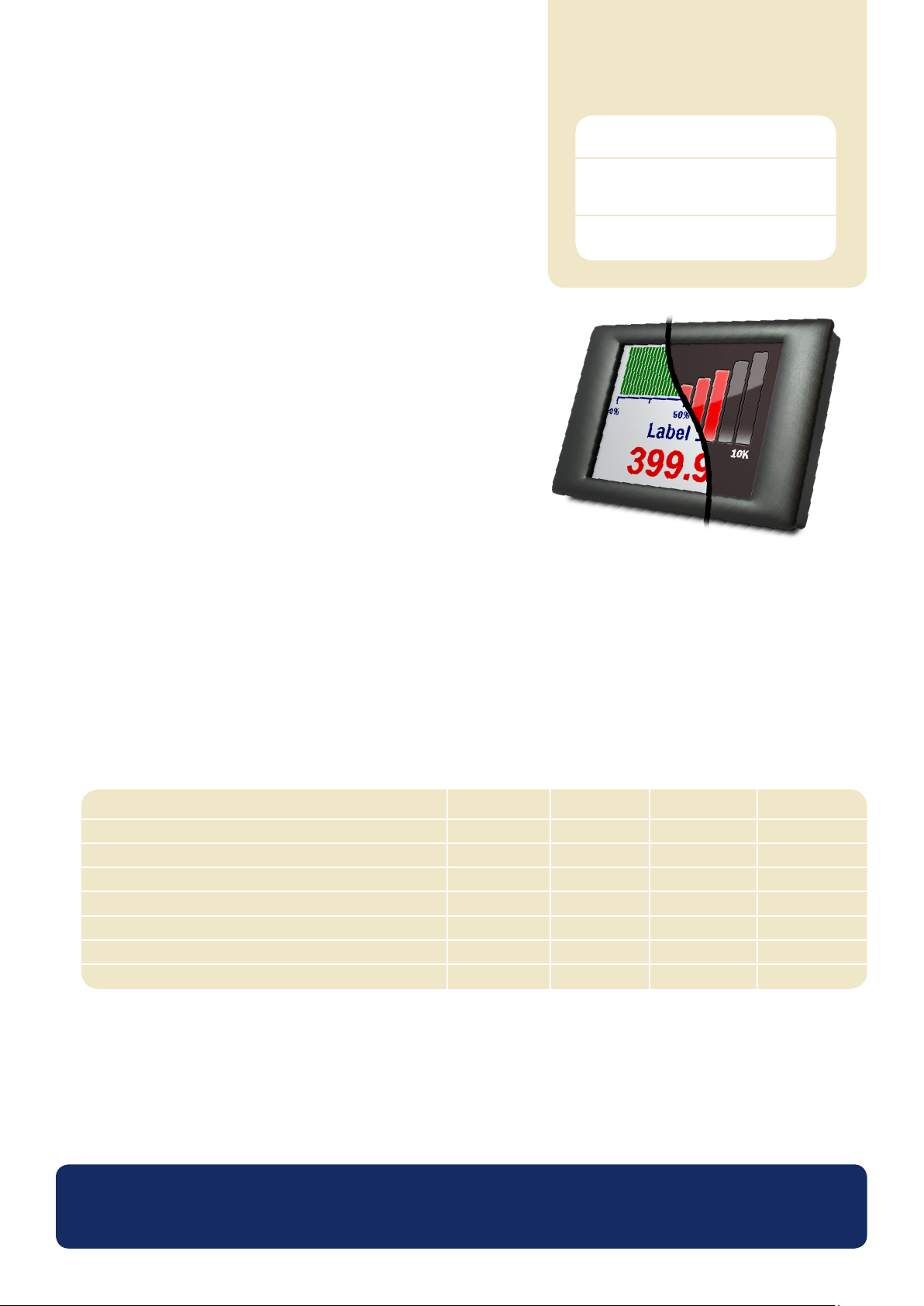

OM-SGD-35-M

Smart Graphics Display

Page 2

Page 3

OM-SGD-35-M

Smart Graphics Display

• 3.5” color TFT screen

ORDERING INFORMATION

Standard Display

(Panel meter, xing kit, quick start guide)

USB Cable

(Type A to mini-B)

• Use PanelPilot software, to setup and customize the display

• Compatible with Windows XP, 2000, Vista and Windows 7

• Over 40 meter templates to choose from

• New templates automatically download in PanelPilot software

• Programmable via the USB interface

• Simple panel mounting solution

• Wide operating voltage of 4V – 30V d.c.

• Measures voltage from 0 – 40V d.c.

• Digital hold

The OM-SGD-35-M is a smart graphics display

with a 320 x 240 pixel (QVGA) color display and USB programming interface.

Using the PanelPilot software (available for Windows XP, 2000, Vista and 7),

users are able to choose from an ever-increasing number of congurations (six voltmeters at launch)

which can then be customized to their needs.

OM-SGD-35-M

OM-CABLE-USB-A-MF

Colors, text labels, splash screen and input voltage scaling can all be customized by the user through the software and then uploaded to

the OM-SGD-35-M through the USB connection.

Panel or enclosure installation of the display is simple, using a panel xing clip to mount the display, and 4 screw terminals to connect

the inputs.

SPECIFICATIONS

Accuracy

Linearity

Sample rate

Operating temperature range

Supply voltage

Measurement voltage (single ended only)**

Supply current ***

* Depending on user calibration settings ** The OM-SGD-35-M uses a programmable gain amplier. There are 8 different voltage ranges, to optimise the resolution. See page 2 for details. *** Voltage dependent. See graph on Page 2.

Minimum UnitTypical Maximum

0.05

0 (+32)

0.1

±1*

+40 (+104)

300

Count

Samples / second

°C (°F)

V d.c.

www.omega.com

Specications liable to change without prior warning Data Sheet - Issue 1 SL

Page 4

OM-SGD-35-M

300

Current (mA)

Voltage (V)

Smart Graphics Display

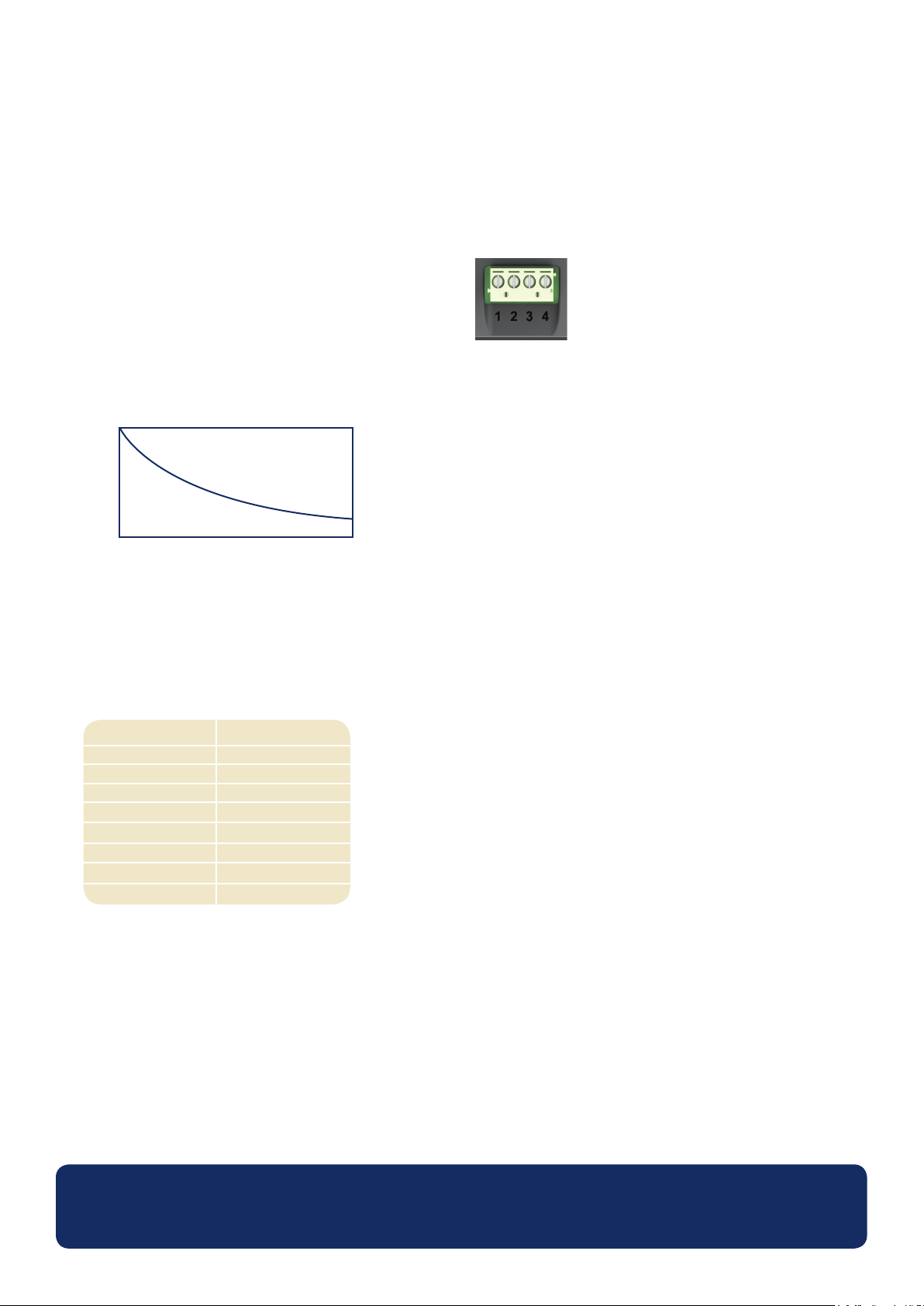

HARDWARE

Screw Terminal Functions

1 IN2 Analog voltage input 2 (maximum of 40V d.c.)

2 IN1 Analog voltage input 1 (maximum of 40V d.c.)

3 0V 0V power supply input

4 V+ Positive power supply input (4V – 30V d.c.)

Typical Supply Current

150

Voltage Input

The OM-SGD-35-M features 2 voltage inputs, which use a Programmable Gain Amplier (PGA) to make the best use of available resolution

(the smallest voltage range offers the highest resolution). Each channel can be programmed independently, with the option of eight different

input voltage ranges:

Voltage Range (V)

0 - 1.25

0 - 2.5

0 - 4 0 - 5

0 - 8

0 - 10

0 - 20

0 - 40

Note: V+, IN1 and IN2 share a common ground (i.e. not oating or isolated from each other).

Resolution (mV)

0.3

0.6

1.0

1.2

2.0

2.4

4.9

9.8

The input voltage range is decided using the two voltages that the user enters in the scaling section of the Panel Pilot software. The software uses the smallest range available, which can accommodate both of the voltages entered by the user. The

absolute maximum voltage input is 40V d.c.

For example:

Entering a voltage scale of 0 – 30V in the software will use the 0 – 40V range. Entering a voltage scale of 0 – 3V in the software will use the 0 – 4V range. Entering a voltage scale of 5 – 15V in the software will use the 0 – 20V range.

USB connection

A ‘Type A to Mini-B’ USB cable is required to program and customize the OM-SGD-35-M. It typically takes 10 seconds to send a conguration,

with an additional 5 seconds needed for the hardware to reset.

The OM-SGD-35-M can be powered directly from USB and is compatible with both USB 1.1 and USB 2.0. The screw terminals and advanced

connector can remain connected whilst using USB, but it is not necessary for V+ to be powered.

www.omega.com

Specications liable to change without prior warning Data Sheet - Issue 1 SL

Page 5

OM-SGD-35-M

WIRE SIZE = 16-26 AWG

Smart Graphics Display

Display

The display is a 3.5” TFT panel, with a resolution of 320 x 240 pixels and a 16-bit color depth. Any graphics that are uploaded to the

meter are automatically converted to this specication. A resistive touchscreen is tted, for use with supporting applications. Clean the

screen with a damp, soft, lint free cloth.

Panel Mounting

The OM-SGD-35-M can be tted into panels 1mm - 3mm deep.

A silicone seal is included to improve tting on thin panels.

Panel cut-out is 92mm x 74mm.

NOTE: The display is NOT protected against moisture or dust.

Advanced Connector

DIGI6 DIGI4 DIGI2 ALM2

IN2

14 13

V+

DAC1 DIGI5 DIGI3 DIGI1 ALM1 0V IN1

The DIL IDC socket provides an alternative connection method to the

screw-teminals (V+, 0V, IN1 and IN2 are duplicated). It also includes

provision for future expansion using data buses (SPI and I2C) and

alarm ouputs. Some expansion options may require an additional

interface board - Visit www.omega.com for information on which

features are currently supported.

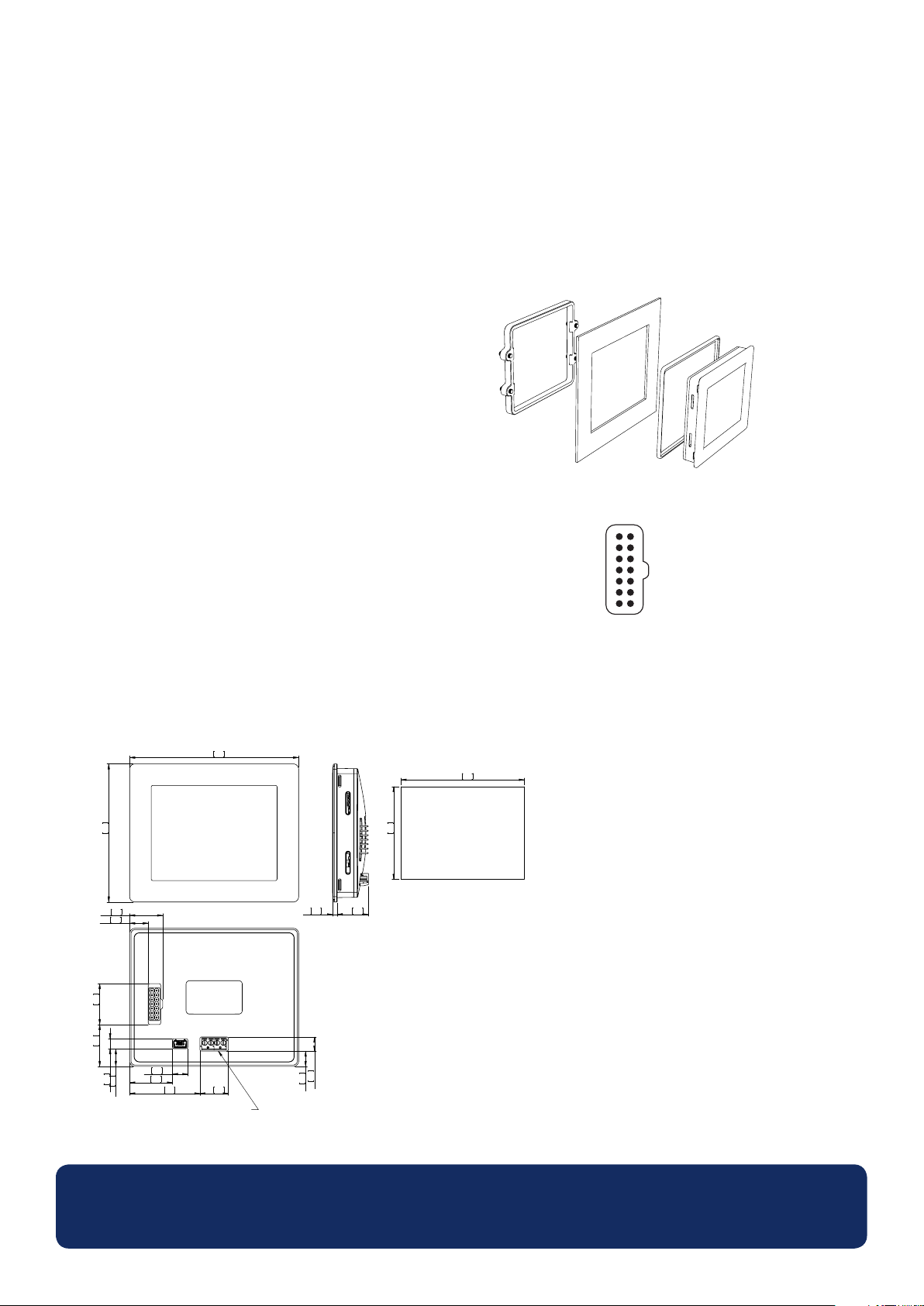

DIMENSIONS

All dimensions in mm (inches)

96.0 3.8

78.5 3.1

18.7 0.7

10.5 0.4

23.3 0.923.8 0.9

8.7 0.3

24.3 1.0

5.7 0.2

10.0 0.4

16.2 0.639.9 1.6

TERMINALS USE

70.1 2.8

52.7 2.1

Viewing Area

17.7 0.72.7 0.1

8.0 0.3

8.7 0.3

Panel Cut-out: 92 x 75 (3.62 x 2.95)

www.omega.com

Specications liable to change without prior warning Data Sheet - Issue 1 SL

Page 6

OM-SGD-35-M

Smart Graphics Display

PANELPILOT SOFTWARE

Omega’s PanelPilot software is available for download free of charge from www.omega.com. Easy to install and use, the control software

runs under Windows 2000, XP, Vista and 7. The software is used to setup the appearance and operation of the meter and then upload these

settings to the meter.

The software allows the following parameters to be congured:

• Meter type

• Text labels (including units and graph labels)

• Background, graph segment and text colors

• Input scaling / calibration (at two points)

• Decimal points (entered during scaling)

• Splashscreen image selection (to display a user image, such as a logo, when the meter is powered up)

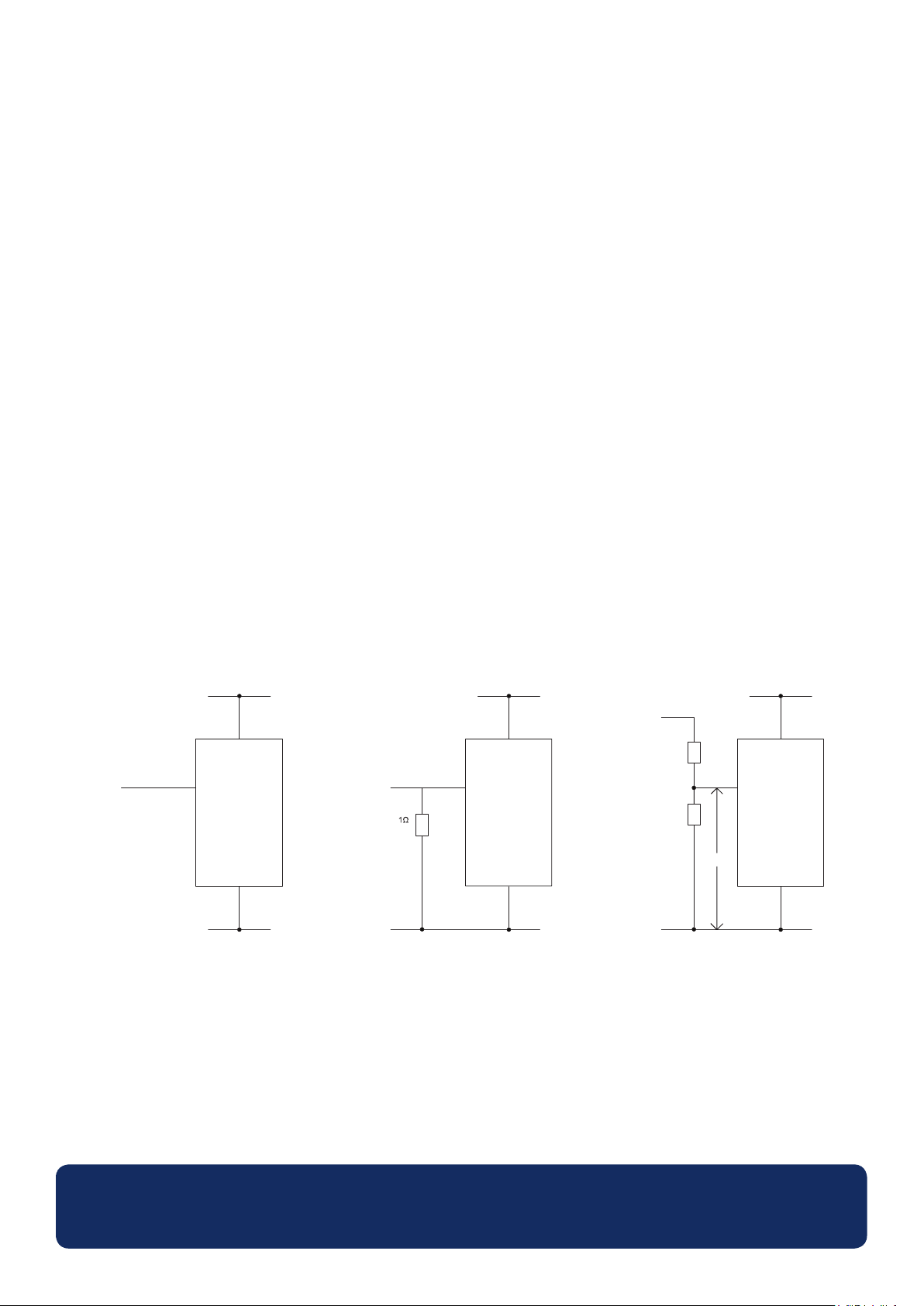

VARIOUS OPERATING MODES

4 - 30 V

V+

0 - 40V

Measuring a voltage source

IN1

4 - 30V

V+

0 - 2A

Measuring 0 - 2 amps current range.

Use a 1 Ω resistor, with a 4W rating.

Setup scaling in software: 0V = 0.00 and 2V = 2.00

IN1

4 - 30V

0 - 100V

(V1)

910K

100K

Measuring 0 - 100V (d.c. only).

Input a known voltage of between 0 and 100V (V1)

Measure the voltage between IN1 and 0V (V2)

Setup scaling in software: 0V = 0.0

V2 = V1 (Enter with the same number of decimal points,

i.e 50.0)

V+

IN1

www.omega.com

Specications liable to change without prior warning Data Sheet - Issue 1 SL

Page 7

OM-SGD-35-M

Smart Graphics Display

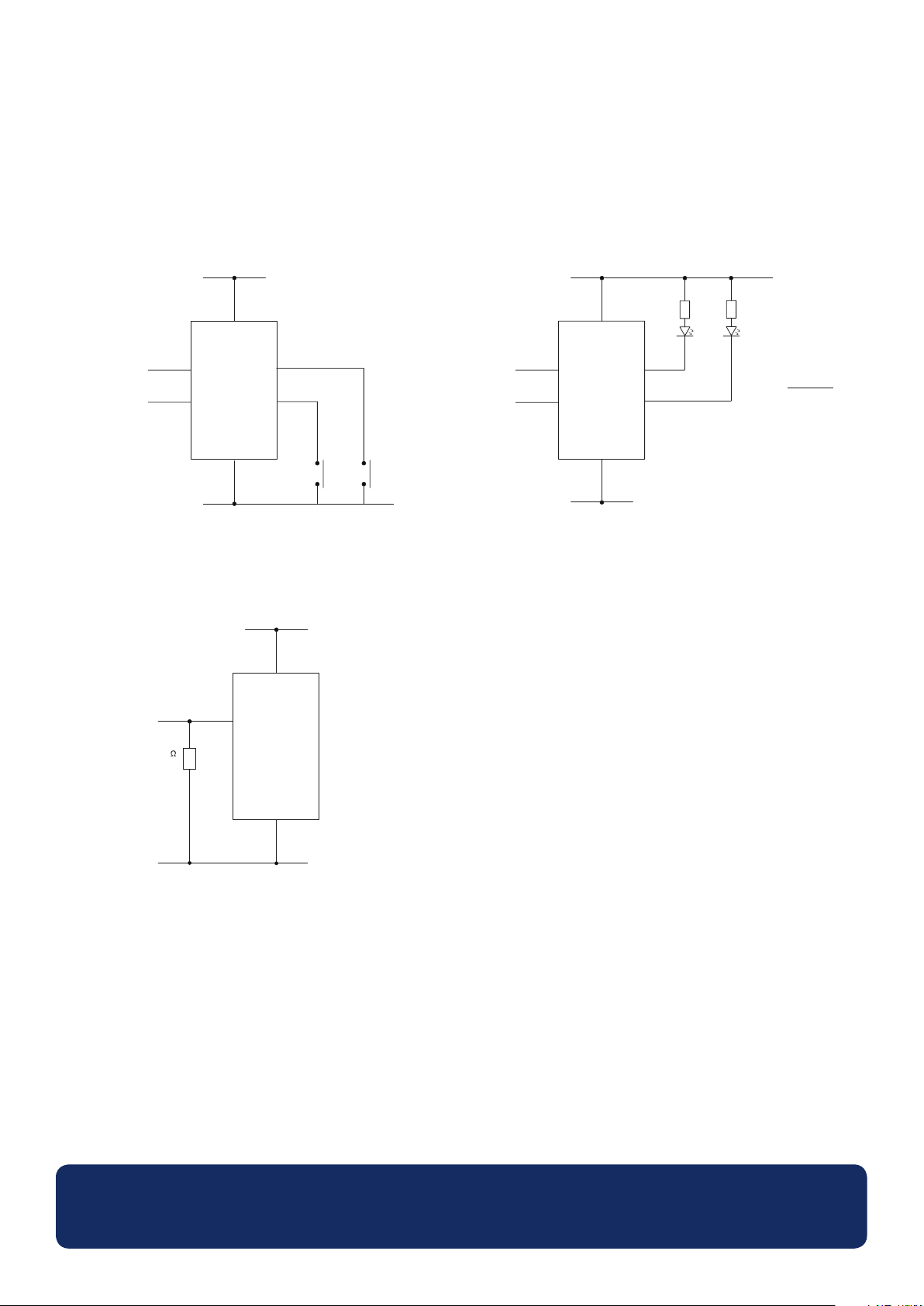

VARIOUS OPERATING MODES

0 - 40V

4 - 20mA

4 - 30V

IN1

IN2

DIGITAL HOLD

DIGI1 will hold the display for IN1 DIGI2 will hold the display for IN2

DIGI1

DIGI2

V-

IN1

4 - 30V

0 - 40V

IN1

IN2

ALARM OUTPUTS

Applications that feature an alarm can be connected as above.

ALM1 and ALM2 must not sink more than 10mA maximum each.

If supply voltage varies, use an appropriate voltage regulator.

ALM1

ALM2

R = (VS - VL)

VS = Supply voltage V

= LED Voltage drop

= LED current

200mW

MEASURING 4-20mA

Use a 50 Ω resistor with a 200mW rating.

Setup scaling in software 0.2V=4.0 and 1V=20.0 Cannot be loop powered. Supply must be isolated from current loop.

www.omega.com
