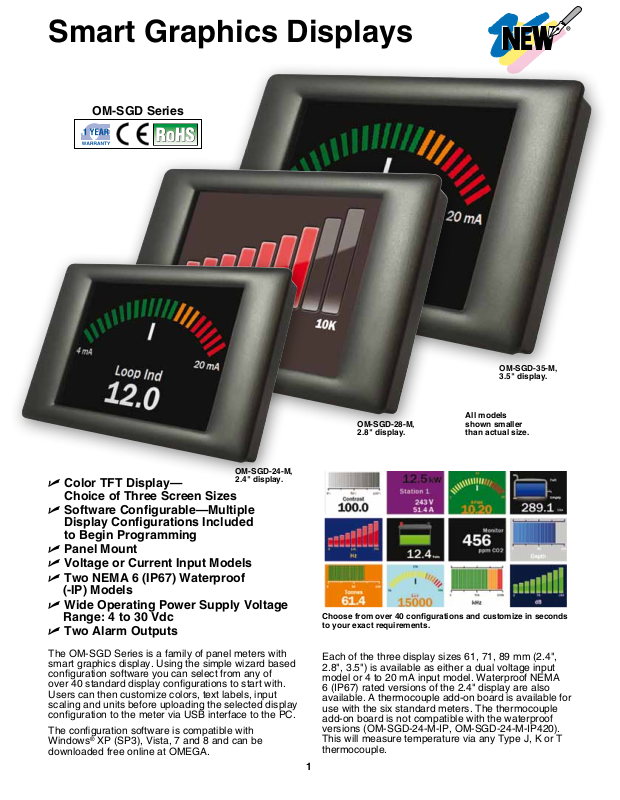

Smart Graphics Displays
OM-SGD Series
OM-SGD-24-M,
U Color TFT Display—
2.4" display.
Choice of Three Screen Sizes
U Software Configurable—Multiple
Display Configurations Included
to Begin Programming
U Panel Mount
U Voltage or Current Input Models
U Two NEMA 6 (IP67) Waterproof
(-IP) Models
U Wide Operating Power Supply Voltage
Range: 4 to 30 Vdc
U Two Alarm Outputs
The OM-SGD Series is a family of panel meters with
smart graphics display. Using the simple wizard based
configuration software you can select from any of
over 40 standard display configurations to start with.
Users can then customize colors, text labels, input
scaling and units before uploading the selected display
configuration to the meter via USB interface to the PC.
The configuration software is compatible with
Windows® XP (SP3), Vista, 7 and 8 and can be
downloaded free online at OMEGA.

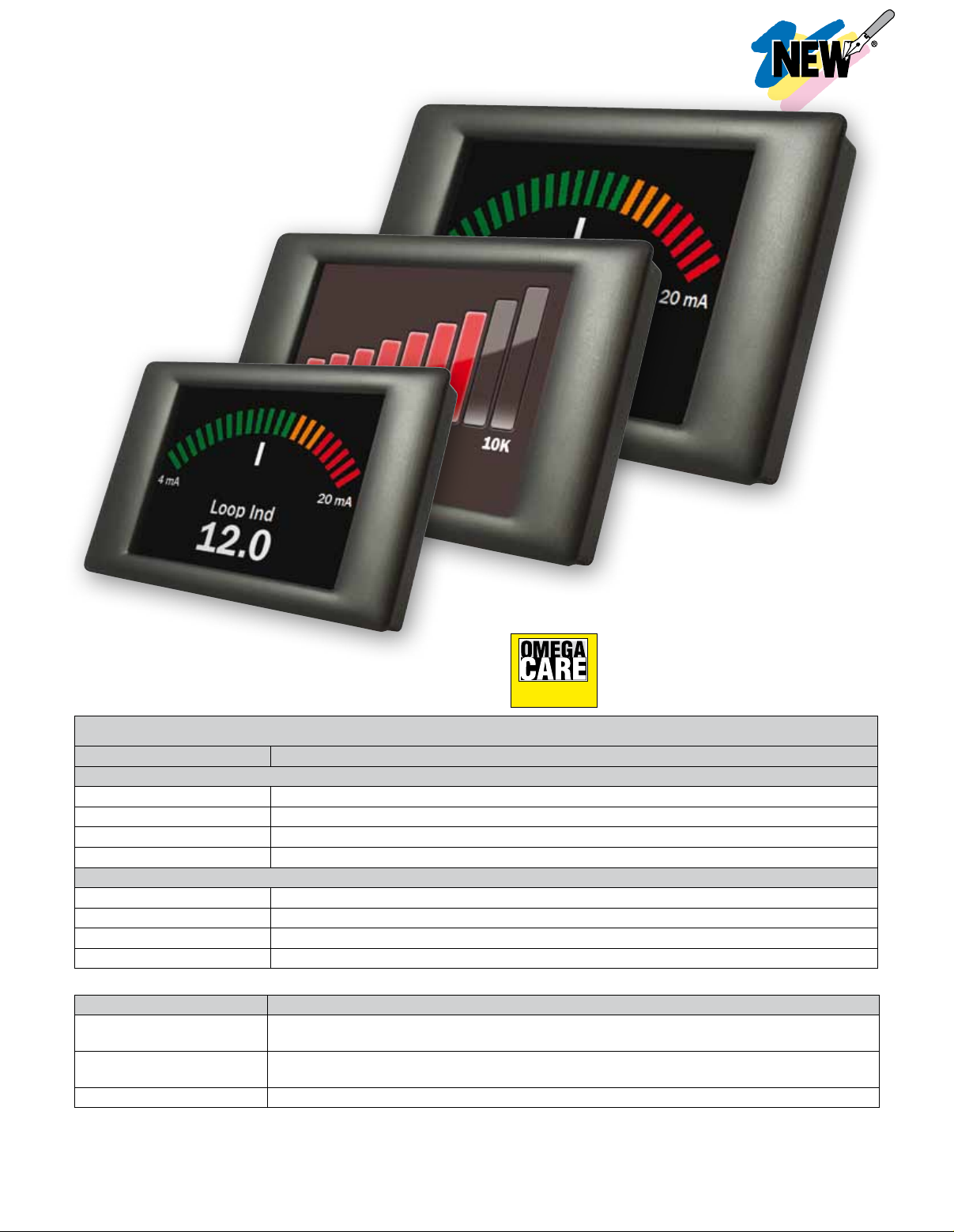

OM-SGD-35-M,
3.5" display.
All models
OM-SGD-28-M,
2.8" display.
Choose from over 40 configurations and customize in seconds
to your exact requirements.
Each of the three display sizes 61, 71, 89 mm (2.4",
2.8", 3.5") is available as either a dual voltage input
model or 4 to 20 mA input model. Waterproof NEMA
6 (IP67) rated versions of the 2.4" display are also
available. A thermocouple add-on board is available for
use with the six standard meters. The thermocouple
add-on board is not compatible with the waterproof
versions (OM-SGD-24-M-IP, OM-SGD-24-M-IP420).
This will measure temperature via any Type J, K or T
thermocouple.
1
shown smaller
than actual size.
Page 2
0
100
200
417
30
Current (mA)
Voltage (V)

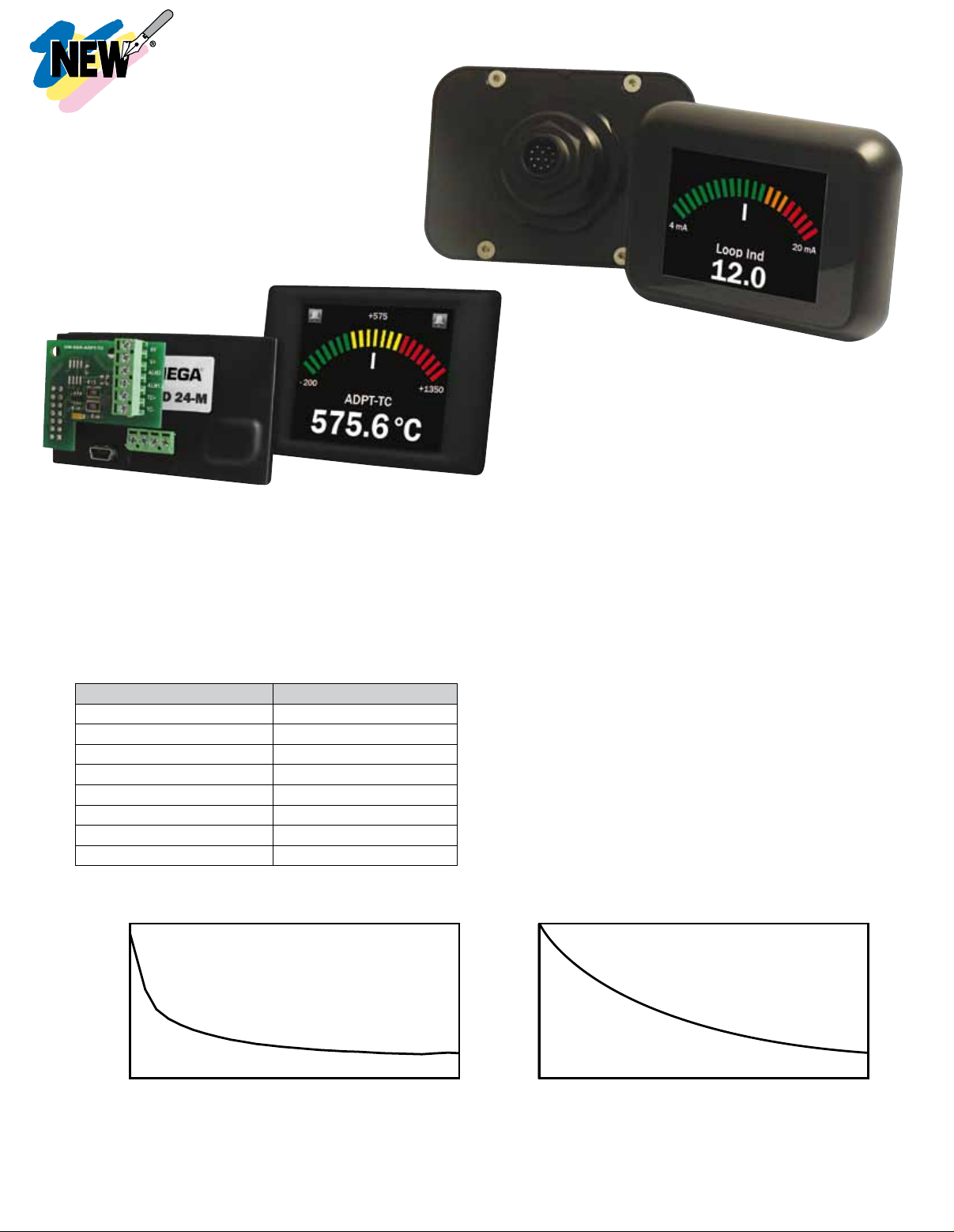

OM-SGD-ADPT-TC, thermocouple adapter available
for temperature monitoring applications shown
connected to the back of the OM-SGD-24-M display.
Shown smaller than actual size.
Specifications
INPUT
Voltage Input (OM-SGD-24-M, OM-SGD-24-M-IP,
OM-SGD-28-M, OM-SGD-35-M): Accepts 2 voltage inputs,
each channel can be programmed independently from
8 available ranges; voltage inputs are single-ended (power
supply V+, Input 1 and Input 2 share a common ground)
Voltage Range (V) Resolution (mV)
0 to 1.25 0.3
0 to 2.5 0.6
0 to 4 1.0
0 to 5 1.2
0 to 8 2.0
0 to 10 2.4
0 to 20 4.9
0 to 40 9.8
OM-SGD-24-M-IP,
waterproof smart graphics
display, shown smaller than actual size.
Current Input (OM-SGD-24-M-420, OM-SGD-24-M-IP420,
OM-SGD-28-M-420, OM-SGD-35-M-420): 4 to 20 mA typical,
0 mA min, 50 mA max
Loop Voltage Drop (Current Input Models): 0.4 to 2.0V
typical, 0V min, 5.0V max
Input Connection: Screw terminals for all models except
waterproof models OM-SGD-24-M-IP and OM-SGD-24-M-IP420
which have NEMA 6 (IP67) 12-way connection
Alarm Outputs: 2 open-collector outputs (sink up to 10 mA
max each)
Accuracy: 0.05% typical, 0.1% max
Linearity: ±1 count max (depends on user calibration settings)
Sample Rate: 3 samples/sec max
Display: Color TFT, 320 x 240 pixel, 16-bit color
Software: Windows
Operating Temperature Range: 0 to 40°C (32 to 104°F)
Weight:
OM-SGD-24-M, OM-SGD-24-M-420: 96 g (3.4 oz)
OM-SGD-24-M-IP, OM-SGD-24-M-IP420: 255 g (9.0 oz)
OM-SGD-28-M, OM-SGD-28-M-420: 114 g (4.0 oz)
OM-SGD-35-M, OM-SGD-35-M-420: 162 g (5.7 oz)
®
XP/Vista/7/8
POWER
Supply Voltage: 4 to 30 Vdc (from external power supply or
via USB connection, compatible with USB 1.0 and 2.0)
Supply Current (Voltage Dependent): 35 to 190 mA for all
models except OM-SGD-35-M which is 50 to 300 mA
Typical supply current for all models
200
100
Current (mA)
0
417
(except OM-SGD-35-M)
Voltage (V)
30
300
150
Current (mA)
2
Typical supply current for OM-SGD-35-M
0
4
13
Voltage (V)
30
Page 3

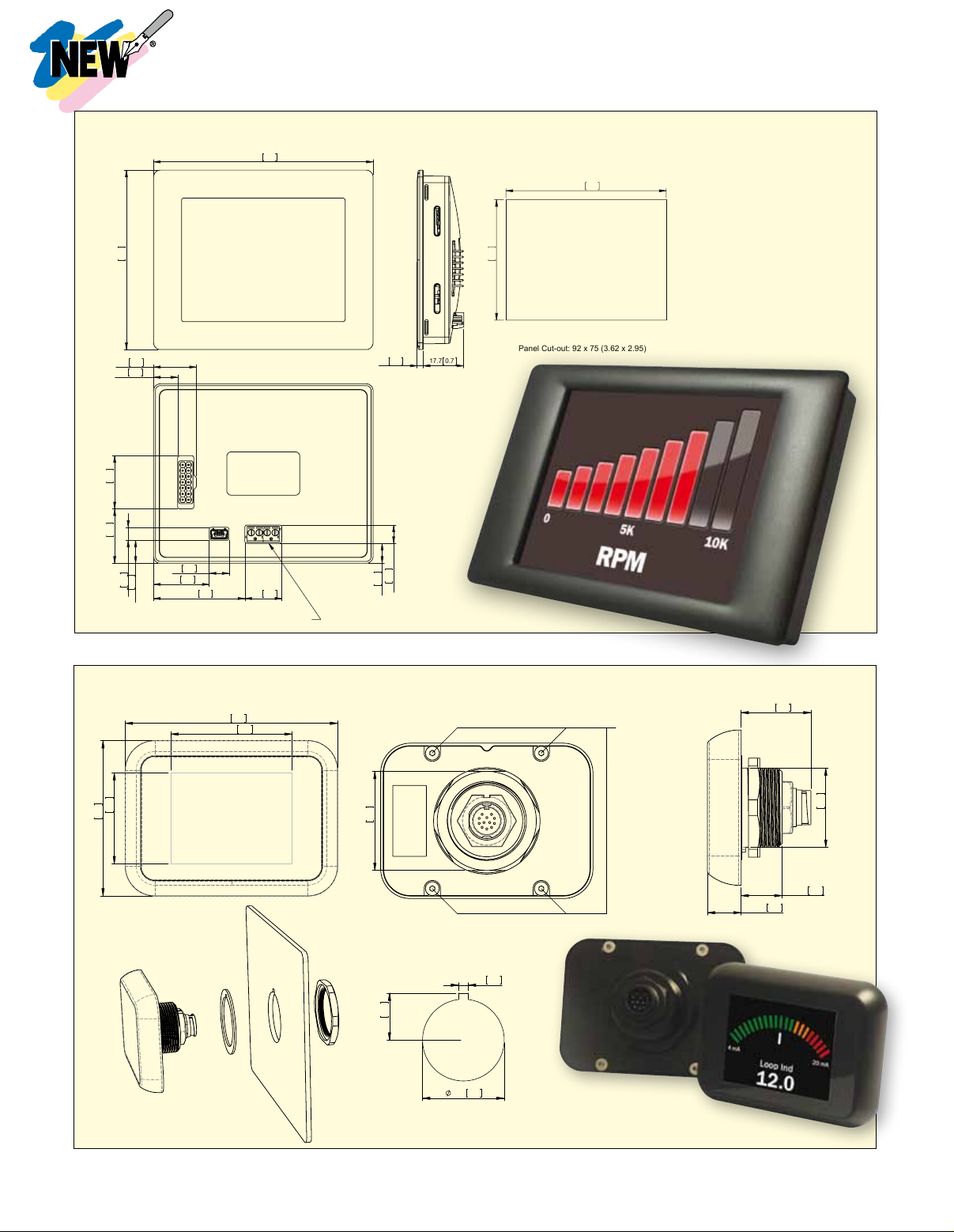

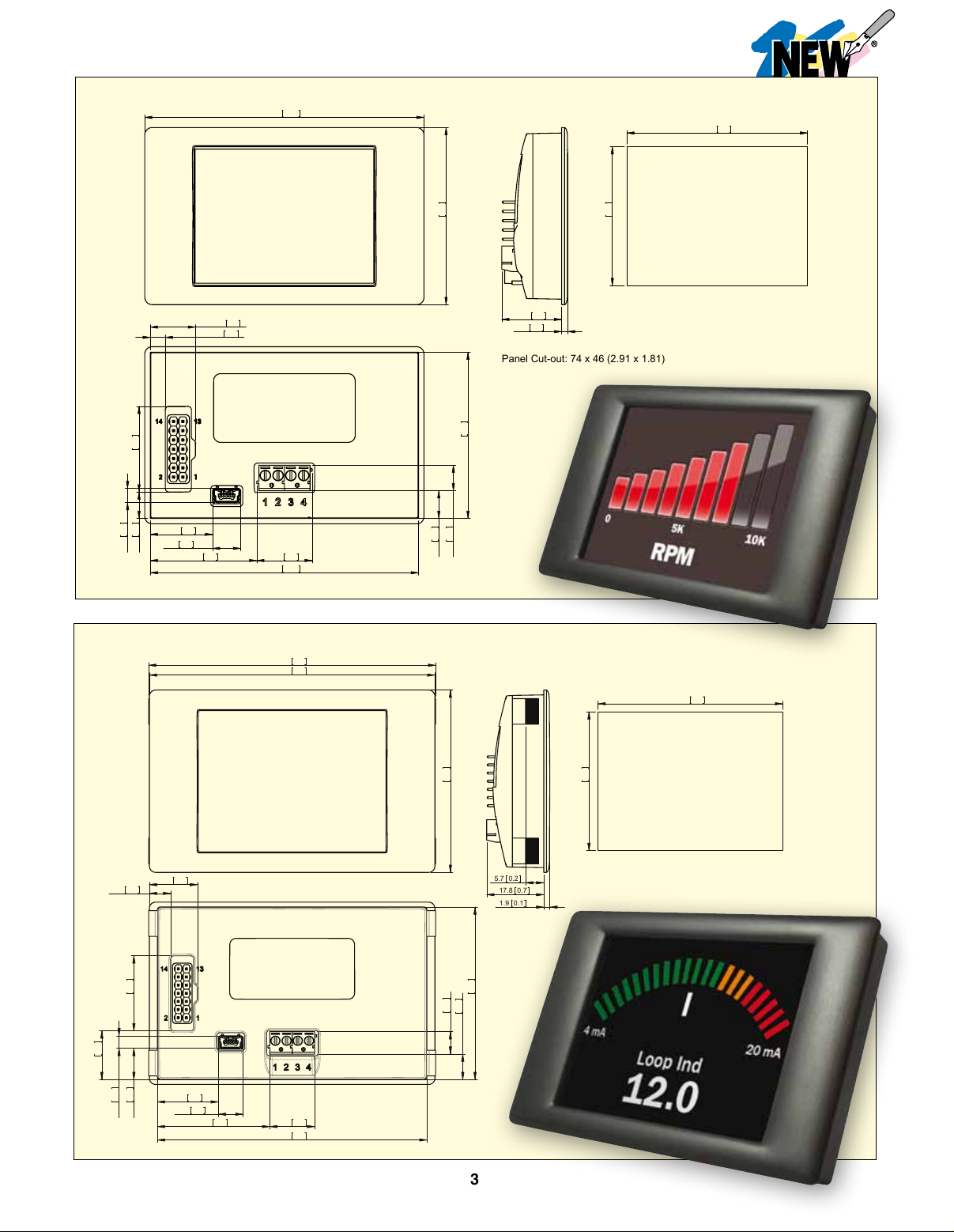

Dimensions: mm (inch)
OM-SGD-24-M and OM-SGD-24-M-420
76.5 3.01
49.5 1.9
12.4 0.5
23.5 0.97.2 0.3
17.1 0.7
7.7 0.3
3.9 0.2
29.2 1.1 15.2 0.6
Dimensions: mm (inch)
4.1 0.2
73.5 2.89
WIRE SIZE = 16-26 AWG
89.5 3.5
89.1 3.5
48.5 1.9
16.4 0.6
1.6 0.1
Panel Cut-out: 74 x 46 (2.91 x 1.81)
45.5 1.8
7.5 0.3
7.0 0.3
OM-SGD-28-M and OM-SGD-28-M-420
38.0 1.5
Viewing Area showing
display in TEST mode
57.6 2.3
56.8 2.2
43.2 1.7
Viewing Area
15.0 0.6
6.70.3
23.4 0.9
15.2 0.6
19.0 0.7
7.70.3
9.80.4
3.90.2
14.0 0.635.1 1.4
84.1 3.3
WIRE SIZE: 16-26AWG
5.70.2
17.8 0.7
1.90.1
53.8 2.1
7.00.3
7.9 0.3
Panel Cut-Out: 87 x 54.5 (3.43 x 2.15)
3
Page 4
Dimensions: mm (inch)
13.7 0.5
16.5 0.6
32.0 1.3
28.2 1.1
33.0 1.3
4.0 0.2
19.0 0.7
85.8 3.4
V.A 49.0
1.9
V.A 36.7
1.4
13.7 0.5
16.5 0.6
32.0 1.3
28.2 1.1
33.0 1.3
4.0 0.2
19.0 0.7
33.0 1.3
4.0 0.2
19.0 0.7
16.5 0.6
32.0 1.3
28.2 1.1
33.0 1.3
4.0 0.2
19.0 0.7
OM-SGD-35-M and OM-SGD-35-M-420
96.0 3.8
70.1 2.8
78.5 3.1
18.7 0.7
10.5 0.4
23.3 0.923.8 0.9
8.70.3
24.3 1.0
5.70.2
10.0 0.4
Dimensions: mm (inch)
Ø=diameter
V.A 49.0
16.2 0.639.9 1.6
TERMINALS USE
WIRE SIZE = 16-26 AWG
85.8 3.4
1.9
52.7 2.1
Viewing Area
17.7 0.72.70.1
8.00.3
8.7 0.3
Panel Cut-out: 92 x 75 (3.62 x 2.95)
OM-SGD-24-M-IP and OM-SGD-24-M-IP420
28.2 1.1
4 x M3 Screws
1.4
62.7 2.5
V.A 36.7
Panel mounting
40.0 1.6
19.0 0.7
4.0 0.2
33.0 1.3
Panel cut-out
4
32.0 1.3
16.5 0.6
13.7 0.5
Page 5
All models
shown smaller
than actual size.
OM-SGD-35-M,
3.5" display.
OM-SGD-28-M,
2.8" display.
SM
extended warranty program is
SM
covers parts,
OM-SGD-24-M,
2.4" display.
Extended Warranty
Program
SM
OMEGACARE
available for models shown on this page. Ask
your sales representative for full details when
placing an order. OMEGACARE
labor and equivalent loaners.
To Order
Model No. Description
Voltage Input (2 inputs)
OM-SGD-24-M
OM-SGD-24-M-IP
OM-SGD-28-M
OM-SGD-35-M
Current Input (1 input)
OM-SGD-24-M-420
OM-SGD-24-M-IP420
OM-SGD-28-M-420
OM-SGD-35-M-420
Accessories
Model No. Description
OM-SGD-ADPT-TC
OM-CABLE-IP-12W-RA
OM-CABLE-USB-A-MF
Comes complete with quick start manual. Waterproof models OM-SGD-24-M-IP and OM-SGD-24-M-IP420 include 32 mm mounting nut and
IP67 connector. All other models include panel mounting clip. USB interface cable is required for programming and is sold separately.
Ordering Example: OM-SGD-35-M 3.5" smart graphics display and OCW-1, OMEGACARESM extends standard 1-year warranty to a total of 2
years.
2.4" smart graphics display
2.4" waterproof smart graphics display
2.8" smart graphics display
3.5" smart graphics display
2.4" smart graphics display
2.4" waterproof smart graphics display
2.8" smart graphics display
3.5" smart graphics display
Thermocouple input module (for use with all models except waterproof models
OM-SGD-24-M-IP and OM-SGD-24-M-IP420)
Right angle waterproof connector cable for OM-SGD-24-M-IP and
OM-SGD-24-M-IP420, 2 m (6.6') length
0.45 m (1.5') USB cable, type A to mini B
