INTRODUCTION

This reference guide is designed to aid OM-PQR1010 users in the interpretation of AC power line problems.

This unit will detect a wide range of power disturbances including spikes, sags, surges, common mode noise, dropouts,

and high frequency noise on 2 phases of voltage and 1 DC Channel, as well as test the Temperature, Humidity, and Current.

The OM-PQR1010 is one of a series of practical power line monitors, designed and priced to be outfitted to everyone
who services or installs three phase electrical, and electronic equipment.

Electronic equipment is damaged more often by power disturbances than by fire, theft, and vandalism combined.
Intermittent power problems are the most expensive hidden expense to the owners of microprocessor based equipment.

The OM-PQR1010 is easy to use and provides immediate and long term information for the technician and customer to
understand
power line disturbances.

To monitor the AC and DC circuits with the OM-PQR1010, connect the test leads between the circuits to be tested, and
the connectors located on the back of the unit. Plug the line cord provided into a standard 110 volt or 220 volt outlet. After
running an internal self test, the unit will start testing.

Model OM-PQR1010

Page 6

Ver 1.2 - March 2010

Included with the OM-PQR1010

Each OM-PQR1010 is supplied with a 6 foot power cord, RS232
communications cable with DB9F termination, Windows 98/NT/XP
data analysis software, temperature probe, one set of AC voltage test
leads and one set of DC voltage test leads. Humidity probe must be
ordered separately, model no. OM-PQR-HUMIDITY

CALIBRATION

The OM-PQR1010 monitors are designed to test the Power Line
with a high degree of accuracy. In this unit all measurements are
referenced to a state of the art, temperature compensated voltage
source. It is recommended that each unit be calibrated annually by the
factory as certain components may require calibration. Contact
OMEGA for details on returning your unit for calibration.

Model OM-PQR1010

Page 7

Ver 1.2 - March 2010

 User - Friendly
 Multi Channel - AC Voltage, DC Voltage, Current,

Humidity and Temperature

 Disturbance Recorder and Voltage Logger
 Easy to Understand Reports
 Simple connection to a Computer or Terminal
 Made in USA

The OM-PQR1010 Power Quality Recorder is a state of the

art, fully integrated instrument which measures, records, and
reports power disturbances, aiding in the analysis of power
quality in medical, commercial and industrial applications.
Disturbances detected on multiple channels are recorded by
their time, date, magnitude, and duration in a non-volatile RAM
memory. This data is then retrieved from the analyzer through
its’ serial communications port.
Connections to the OM-PQR1010 are made between the
safety connectors on the back of the unit, and the circuit panel to
be tested. The power to operate the unit comes from any standard

110v / 220v AC outlet. Once
plugged in, the OM-PQR1010
immediately begins testing the
signals on the input connectors.

Power and Environmental

Quality Monitor

Model OM-PQR1010

Page 8

Ver 1.2 - March 2010

Monitor 2 AC Channels,

DC, Temperature and Humidity and Current
(with optional probes)

 User - Friendly
 Programmable
 Multiple Phase Monitoring
 Fast Impulse Detection
 Easy to Understand Reports
 Made in USA

The OM-PQR1010 Power Line Analyzer provides a complete analysis of
your AC Power for a fraction of the cost of other Monitors.
Disturbances detected on the Hot and Neutral Lines , as well as
Temperature and Humidity channels are recorded by their time, date,
magnitude, and duration in a non-volatile RAM memory. This data is then
retrieved from the analyzer through it’s serial communications port.
The power to operate the unit comes from any standard 110v / 220v AC
outlet. Once plugged in, the OM-PQR1010 immediately begins testing the
signals on the input connectors.

Model OM-PQR1010

Page 9

Ver 1.2 - March 2010

GRAPHICS SOFTWARE INCLUDED!

Provided with the OM-PQR1010 is the PQR HOST
COMMUNICATIONS Software. This software allows you to easily

download the data and display or print the DATALOG chart over
time, the PIE CHART of the summary of events or the

HISTOGRAM of the detail of events.

Features

 Measures all types of disturbances

* Spikes * AC Voltage
* Sags * Common Mode Noise
* Line Frequency * High Frequency Noise
* Dropouts * Power Failures
* Surges * Temperature
* Humidity

 Simple to operate

1) Plug the power cord into a grounded outlet

2) Periodically connect to a computer for reports

 Stores Disturbance events in non-volatile RAM

* 32,000 Events in all
* Will Data log all channels up to 32,000 readings
(22.75 Days @ 1 sample per minute)

In addition to full Text Detail
and Summary reports, event
information such as the
Magnitude, Time, and Date of
each of the disturbances is also
reported.

Model OM-PQR1010

Page 10

Ver 1.2 - March 2010

All signals to be tested are applied to the TEST input

jacks located on the back of the OM-PQR1010.

Apply AC voltage to the AC inputs at AC-1 and AC-2,
Apply the DC inputs to Port marked DC-1,

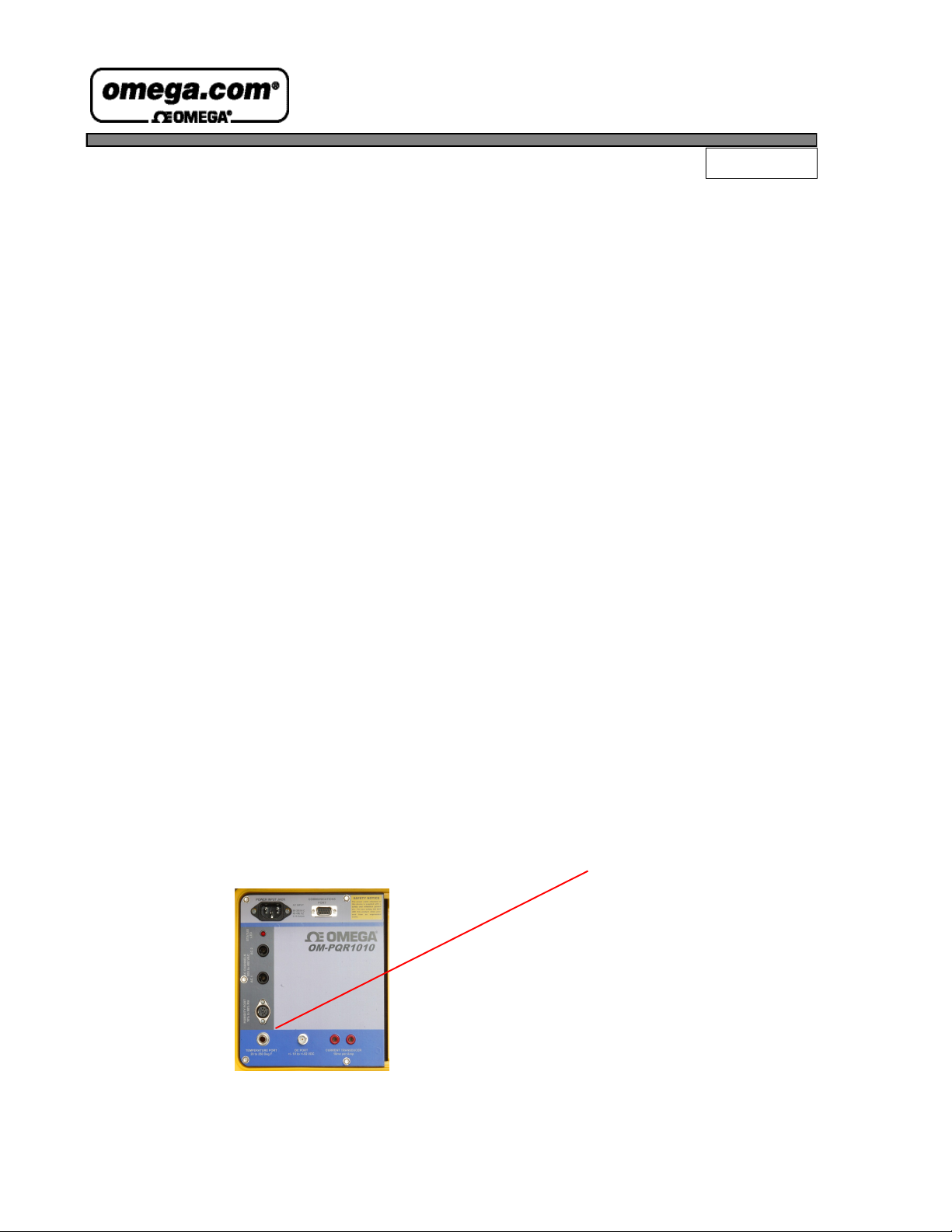

Plug the Optional Current Probe into jacks marked CURRENT,
Plug the temp probe into the port marked AUXILIARY,
Plug the Optional Humidity probe into the port marked HUMIDITY.

Note:
All signals are referenced to the safety ground of the unit.
For both Safety reasons, and for the unit to measure
signals properly, The unit MUST have a safety ground.
(Plugging the OM-PQR1010 into a grounded outlet will
take care of this)

Apply the Test Signals:

The Voltages you are testing can KILL ! Only a

Licensed Electrician can connect the test

leads to a distribution panel. Please use Care

Model OM-PQR1010

Page 11

Ver 1.2 - March 2010

Testing AC Voltage with the OM-PQR1010

The OM-PQR1010 has two channels of AC Voltage power
line analyzing which are designed to obtain the maximum amount of
useful data from the circuit under test, while requiring the minimum
amount of setup time.

Data from the two AC input connectors starts being
collected as soon as power is applied to the AC power connector
located on the back of the unit. Data will continue to be gathered
until the unit is powered down.

Long term voltage recording is known as Data Logging.
The OM-PQR1010 samples the voltage on each of the AC inputs
continuously , and stores the average reading once each minute (or
at other selected intervals). There is enough data storage capacity in
the unit to collect these readings on both channels for 11 days.

The OM-PQR1010 will continuously test the two phases of
voltage for Sags, Surges, Power Failures, Dropouts, Impulses, High
Frequency Noise, Line Frequency, and Phase changes. Any power
quality problems that exceed the preset thresholds will be recorded
in battery backed RAM, with the time and date stamp of the event.
There is enough data storage capacity in the unit to collect up to
1500 of these readings on both channels.

AC Inputs

OM-PQR1010 Top Panel

Model OM-PQR1010

Page 12

Ver 1.2 - March 2010

Testing DC Voltage with the OM-PQR1010

The OM-PQR1010 has one channels for analyzing DC
Voltage. This channel has a maximum input of +/-50V for testing
low voltage supplies.

Data from the DC input connector starts being collected as
soon as power is applied to the AC power connector located on the
back of the unit. Data will continue to be gathered until the unit is
powered down.

The OM-PQR1010 samples the voltage on the DC input
continuously, and stores the average reading once each minute (or at
other selected intervals). There is enough data storage capacity in
the unit to collect these readings on this channel for 11 days.

The OM-PQR1010 will continuously test the DC input for
Sags, Surges, Power Failures, Dropouts, Impulses, and High
Frequency Noise. Any power quality problems that exceed the
preset thresholds will be recorded in battery backed RAM, with the
time and date stamp of the event. There is enough data storage
capacity in the unit to collect up to 1500 of these readings.

DC Input

+/-50V

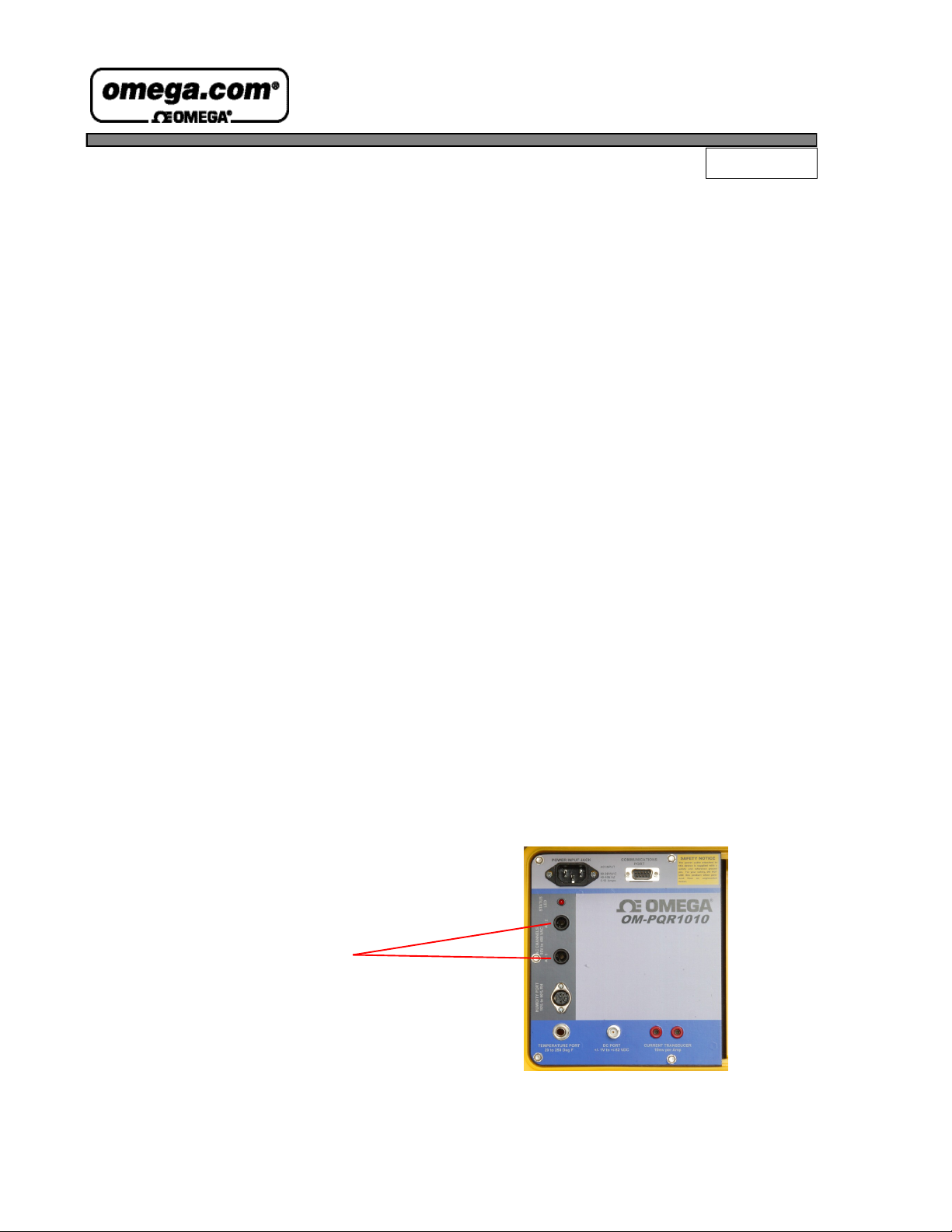

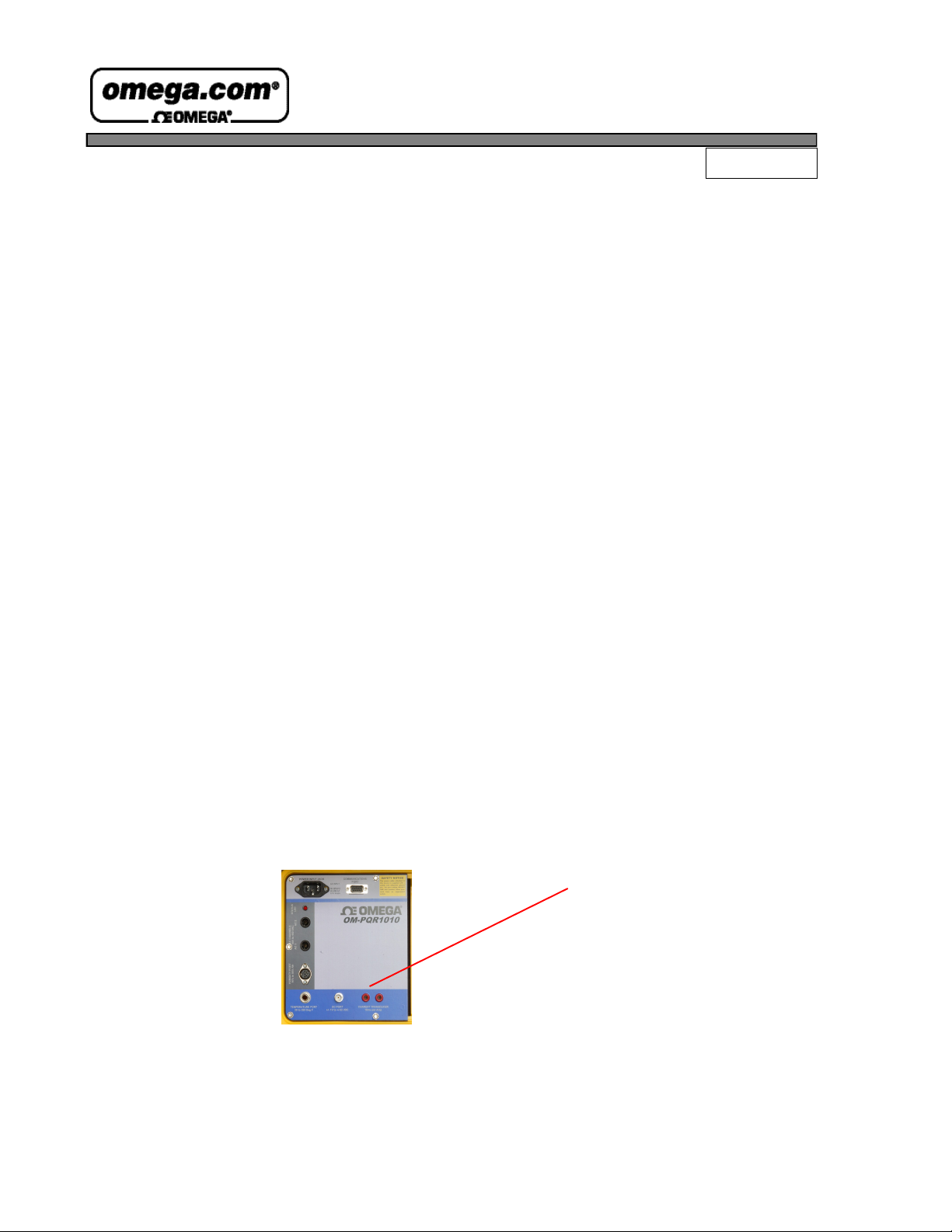

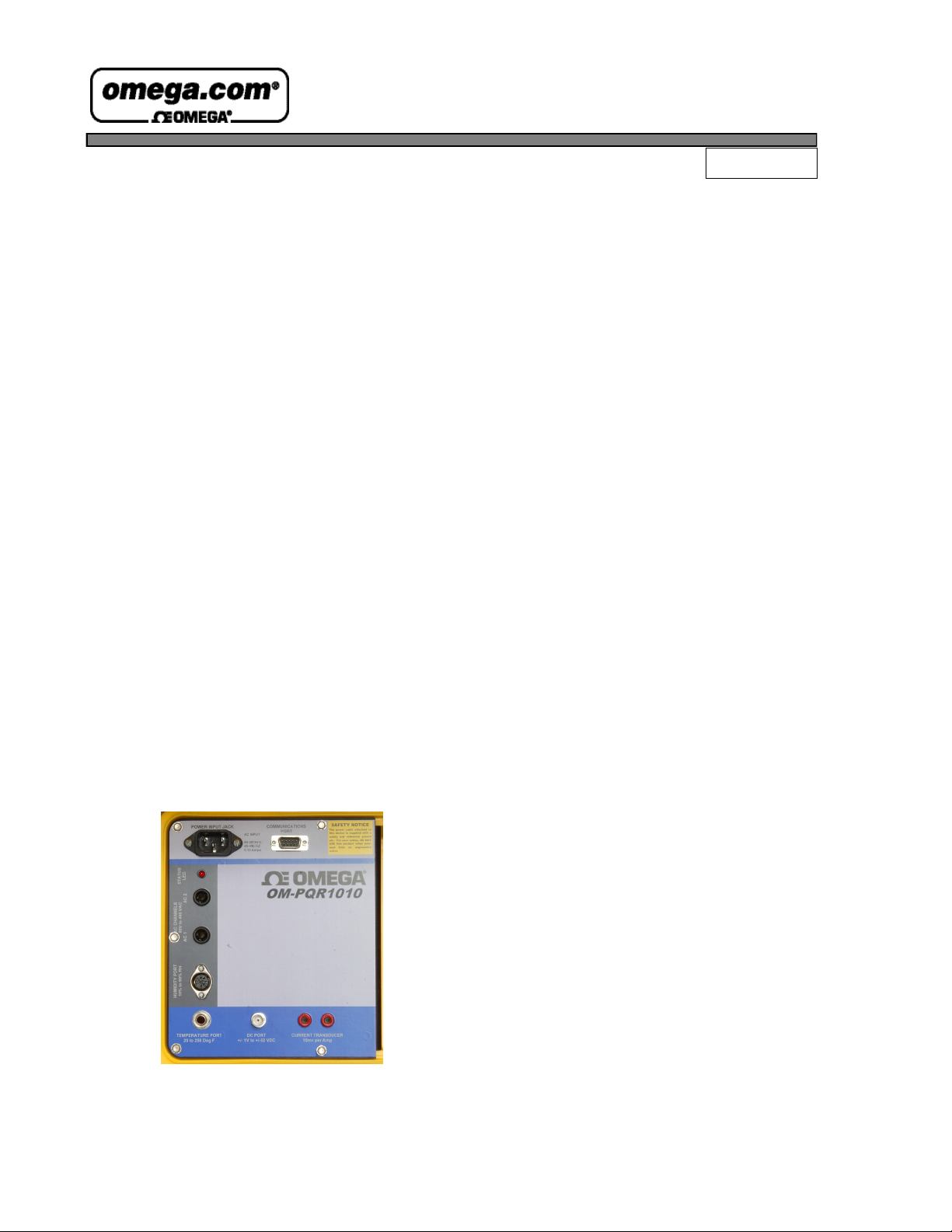

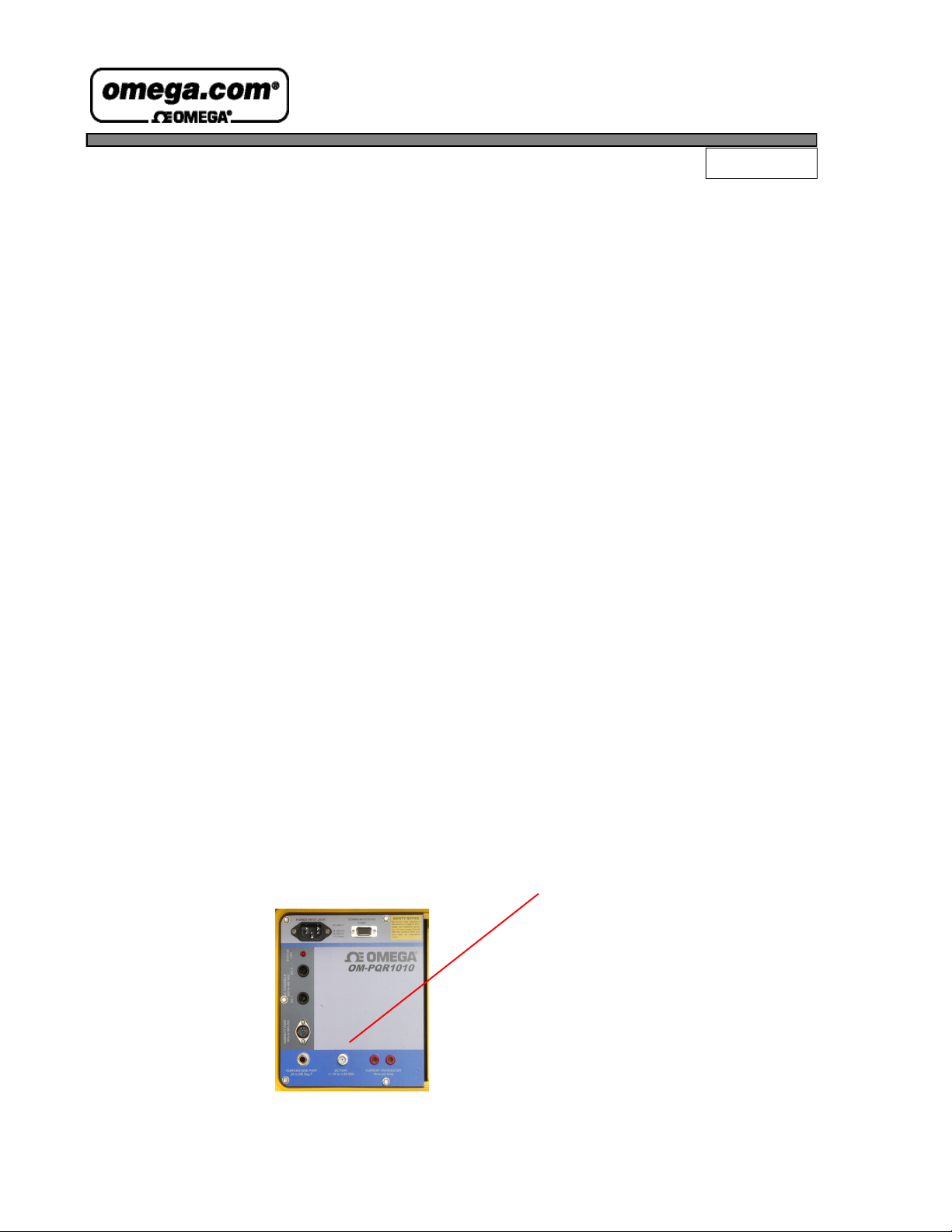

OM-PQR1010 Back Panel

Model OM-PQR1010

Page 13

Ver 1.2 - March 2010

Testing Temperature with the OM-PQR1010

The OM-PQR1010 is equipped with a temperature input
port. The included Temperature probe may be plugged into this port
to provide Data logging and fault detection of the ambient
temperature.

Data from the Temperature input port starts being collected
as soon as power is applied to the AC power connector located on
the back of the unit. Data will continue to be gathered until the unit
is powered down.

The OM-PQR1010 samples the temperature port
continuously, and stores the average reading once each minute (Data
Logging) (or at other selected intervals). There is enough data
storage capacity in the unit to collect these readings for 11 days.

The OM-PQR1010 will continuously test the Temperature
input for Sags, and Surges. Any deviations that exceed the preset
thresholds will be recorded in battery backed RAM, with the time
and date stamp of the event. There is enough data storage capacity
in the unit to collect up to 1500 of these readings.

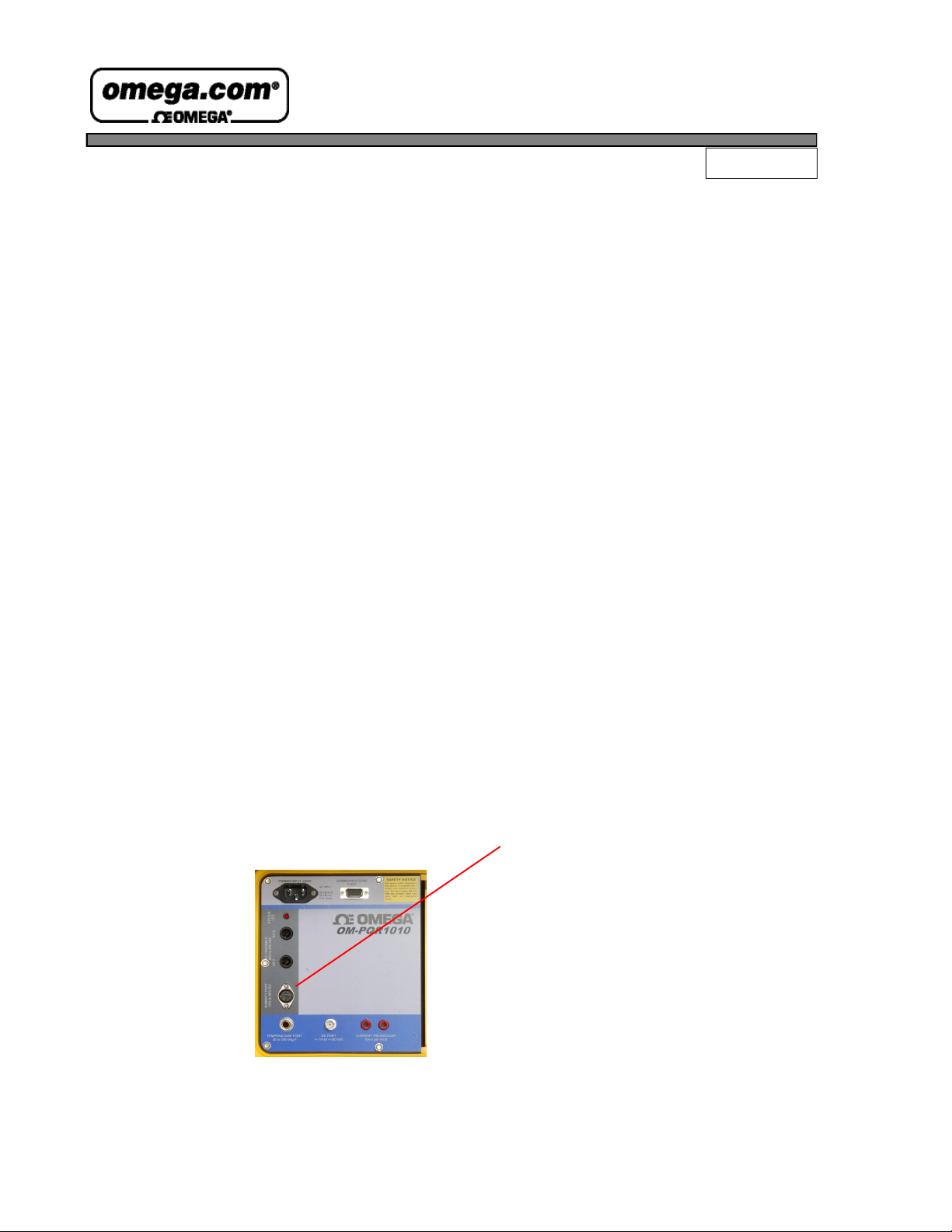

Temperature Port Input

OM-PQR1010 Back Panel

Model OM-PQR1010

Page 14

Ver 1.2 - March 2010

Testing Humidity with the OM-PQR1010

The OM-PQR1010 is equipped with a Humidity input port.
The optional Humidity probe may be plugged into this port to
provide Data logging and fault detection of the ambient Humidity.

Data from the Humidity input port starts being collected as
soon as power is applied to the AC power connector located on the
back of the unit. Data will continue to be gathered until the unit is
powered down.

The OM-PQR1010 samples the Humidity port
continuously, and stores the average reading once each minute (Data
Logging) (or at other selected intervals). There is enough data
storage capacity in the unit to collect these readings for 11 days.

The OM-PQR1010 will continuously test the Humidity
input for Sags, and Surges. Any deviations that exceed the preset
thresholds will be recorded in battery backed RAM, with the time
and date stamp of the event. There is enough data storage capacity
in the unit to collect up to 1500 of these readings.

OM-PQR1010 Back Panel

Humidity Port Input

Model OM-PQR1010

Page 15

Ver 1.2 - March 2010

Testing Current with the OM-PQR1010

The OM-PQR1010 is equipped with a pair of banana jacks
designed to accept a Current Transducer (CT) The output of the CT
will provide the signal necessary for the OM-PQR1010 to record
data about the quality of the line being tested.

Data from the CT starts being collected as soon as power is
applied to the AC power connector located on the back of the unit.
Data will continue to be gathered until the unit is powered down.

The OM-PQR1010 samples the Current channel
continuously, and stores the average reading once each minute (or at
other selected intervals). There is enough data storage capacity in
the unit to collect these readings for 11 days.

The OM-PQR1010 will continuously test the Current
Channel for Sags, and Surges. Any deviations that exceed the
preset thresholds will be recorded in battery backed RAM, with the
time and date stamp of the event. There is enough data storage
capacity in the unit to collect up to 1500 of these readings.

Current Transducer

(CT) Input

OM-PQR1010 Side Panel

Model OM-PQR1010

Page 16

Ver 1.2 - March 2010

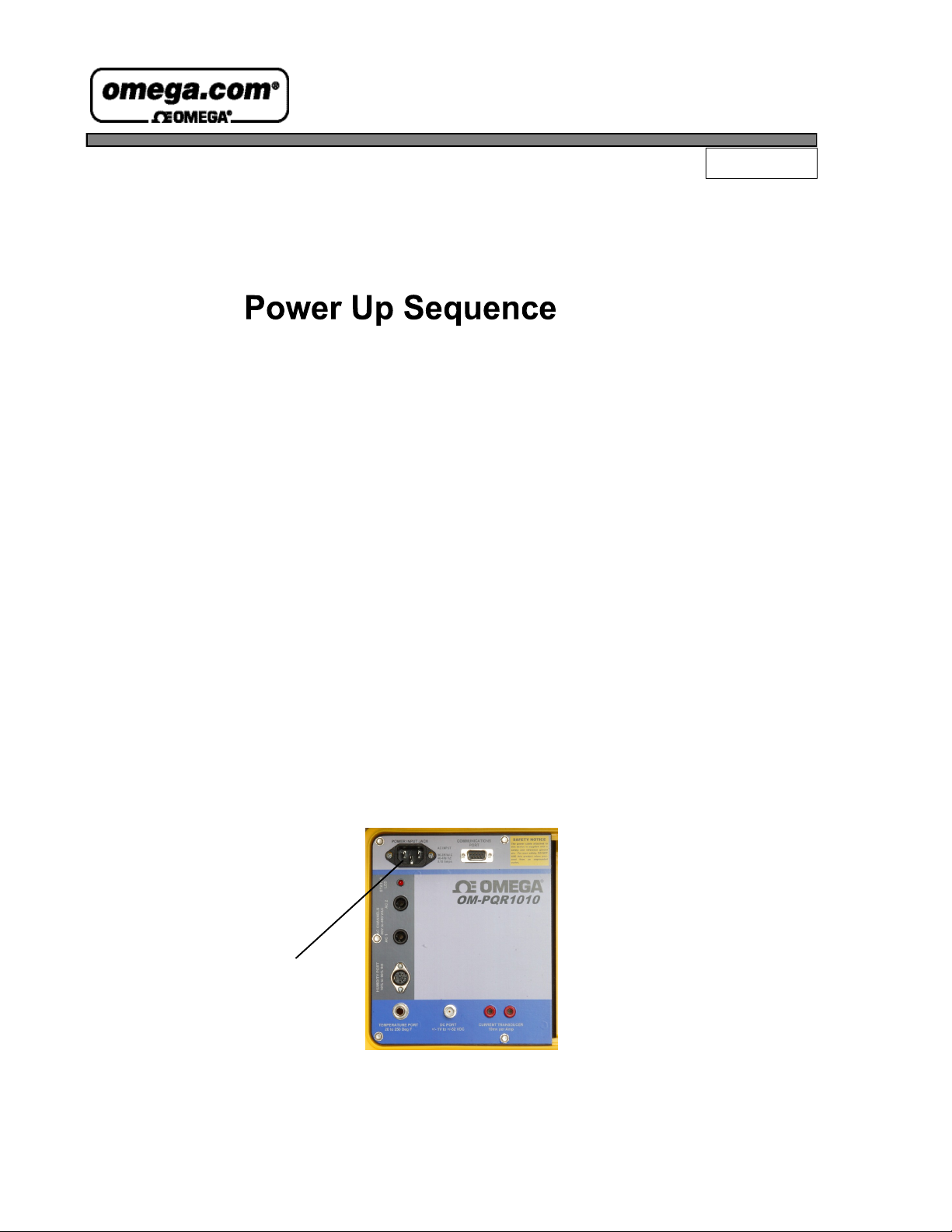

PQR Power

AC

Apply AC or DC Power:

There is a Unit Status LED on the back of the OM-PQR1010.
This led is used to indicate system diagnostics status, and Channel
operational status.

When the OM-PQR1010 is first connected to AC or DC power
(110VAC or 220 VAC, or 12/24V DC), it will go through a series of
power on diagnostics. The status of these tests can be seen in the
Channel Status LED located on the back panel. While the initial
tests are being executed, (approximately 10 seconds long) the Red
LED will be blinking. After the tests are completed, the LED will
turn off briefly, and then turn on steady.

The LED will blink for ten seconds, whenever there is a
disturbance detected on any input, or the serial port has been
accessed.

As soon as the diagnostics have completed, the OM-PQR1010 is
on-line, and monitoring the input channels. The unit should be left
on-line testing for at least a 72 hour period.

OM-PQR1010 Side Panel

Model OM-PQR1010

Page 17

Ver 1.2 - March 2010

Connecting to the OM-PQR1010

DIRECT:

The serial port connector on the back of the OM-PQR1010 is a 9 pin
DB style RS232. the pinout is a s follows:

Pin 2 Receive Data
Pin 3 Transmit Data
Pin 5 Ground

To establish a connection with this port and a PC, a Null modem cable
must be used. This type of cable connects the Transmit Data pin on
the PC to the Receive Data pin on the OM-PQR1010, and the
Transmit Data pin on the OM-PQR1010 to the Receive Data pin on
the PC. It also connects the Ground pins together.

The OM-PQR1010 is configured to operate at 19,200 baud, with 8
data bits, 1 stop bit, and no parity checking.

MODEM:

Use a straight cable (not a null modem) when connecting to a modem.

Power the OM-PQR1010 and the Modem up at the same time after
connecting the cable, and the OM-PQR1010 will auto config the
Hayse compatible Modem for auto answer mode, at 19,200 baud. If
the modem is not Hayse compatible, configure it to answer the phone
on 2 rings, with a Baud rate of 19,200, 8 data bits, 1 stop bit, and no
parity checking.

Model OM-PQR1010

Page 18

Ver 1.2 - March 2010

PQR Host Communications Software:

The OM-PQR1010 is provided with the Powertronics Host Communications Software. When the OM-PQR1010 is
connected to a computer with a null modem cable, the Host software provides several functions:

 Automatically connect to the OM-PQR1010
 Configure the OM-PQR1010’s settings
 Download data from the OM-PQR1010 and Save on the computer
 Generate Reports, Charts and Graphs from the downloaded data

Model OM-PQR1010

Page 19

Ver 1.2 - March 2010

Installing the PQR Host Communications Software

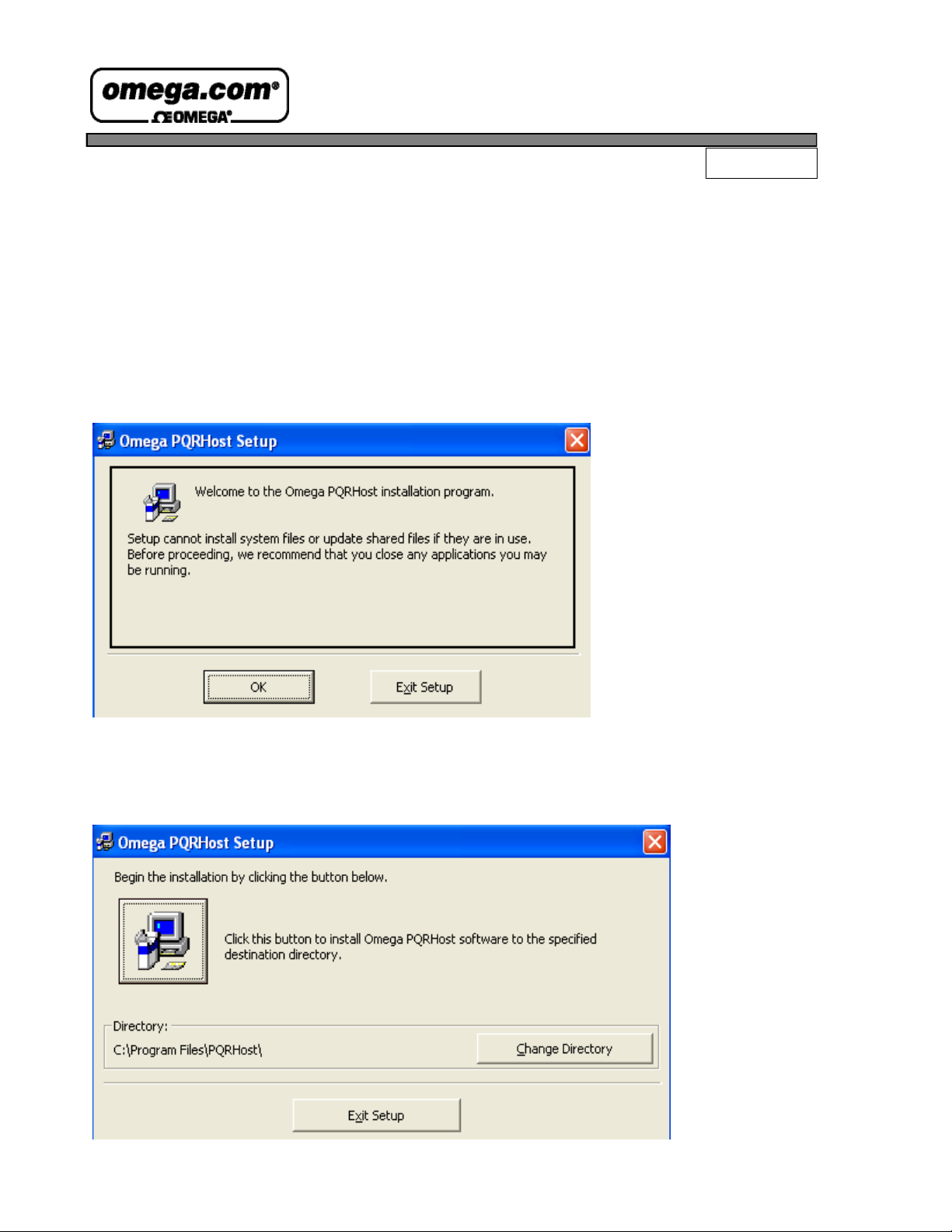

 Put Disk 1 provided with your unit into your disk drive.

Select or Double click on SETUP

A series of files will be copied to your computer’s RAM

To prevent any software conflicts, you should close any other applications programs running before
continuing with the PQR Host software installation, then click on OK.

Click on the Computer Button to start the installation.

Model OM-PQR1010

Page 20

Ver 1.2 - March 2010

Clicking on CONTINUE
will allow the installation to
complete.

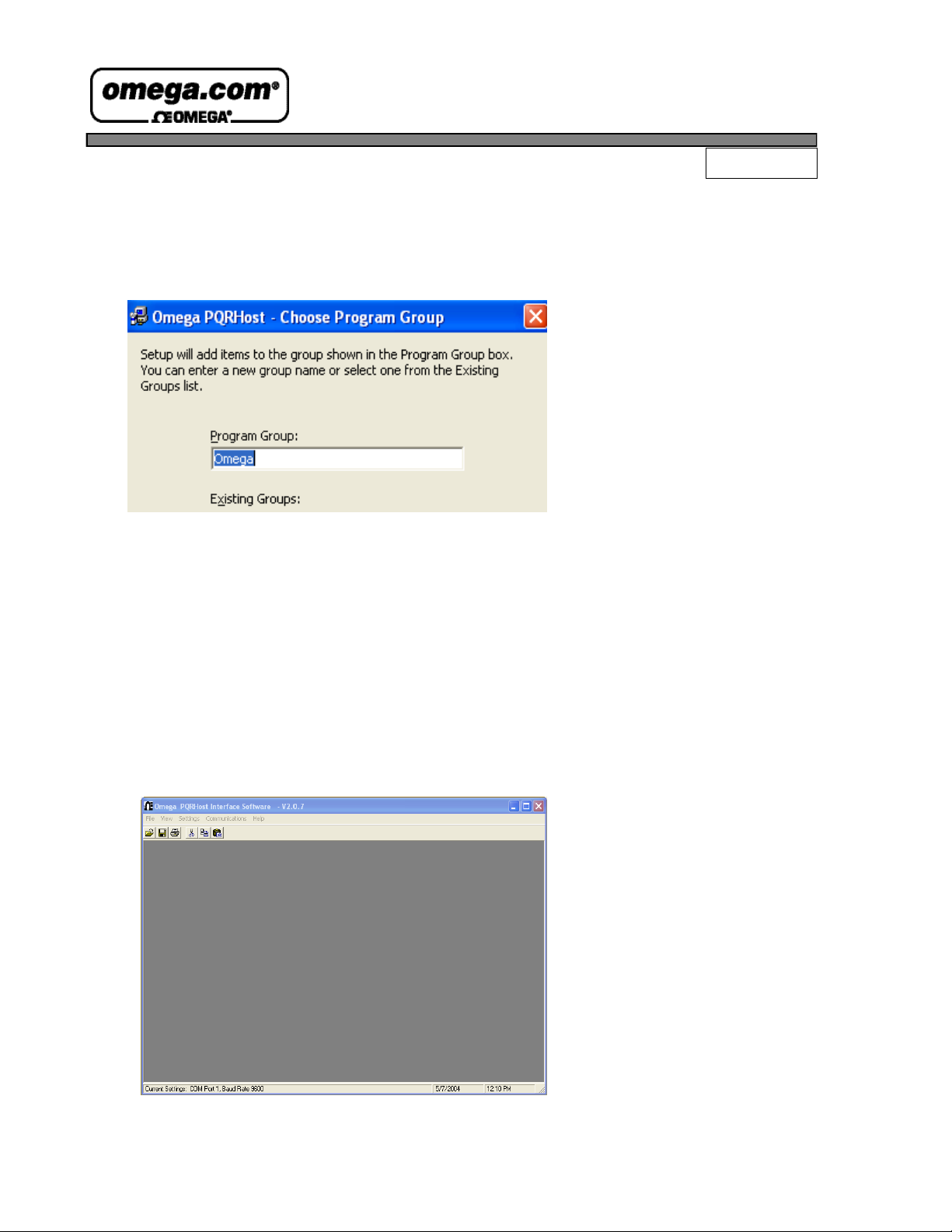

The PQR Host communications software can now be started.

 Click on START
 Select PROGRAMS
 Select POWERTRONICS

This Screen is the starting
point for working with the
OM-PQR1010.

Model OM-PQR1010

Page 21

Ver 1.2 - March 2010

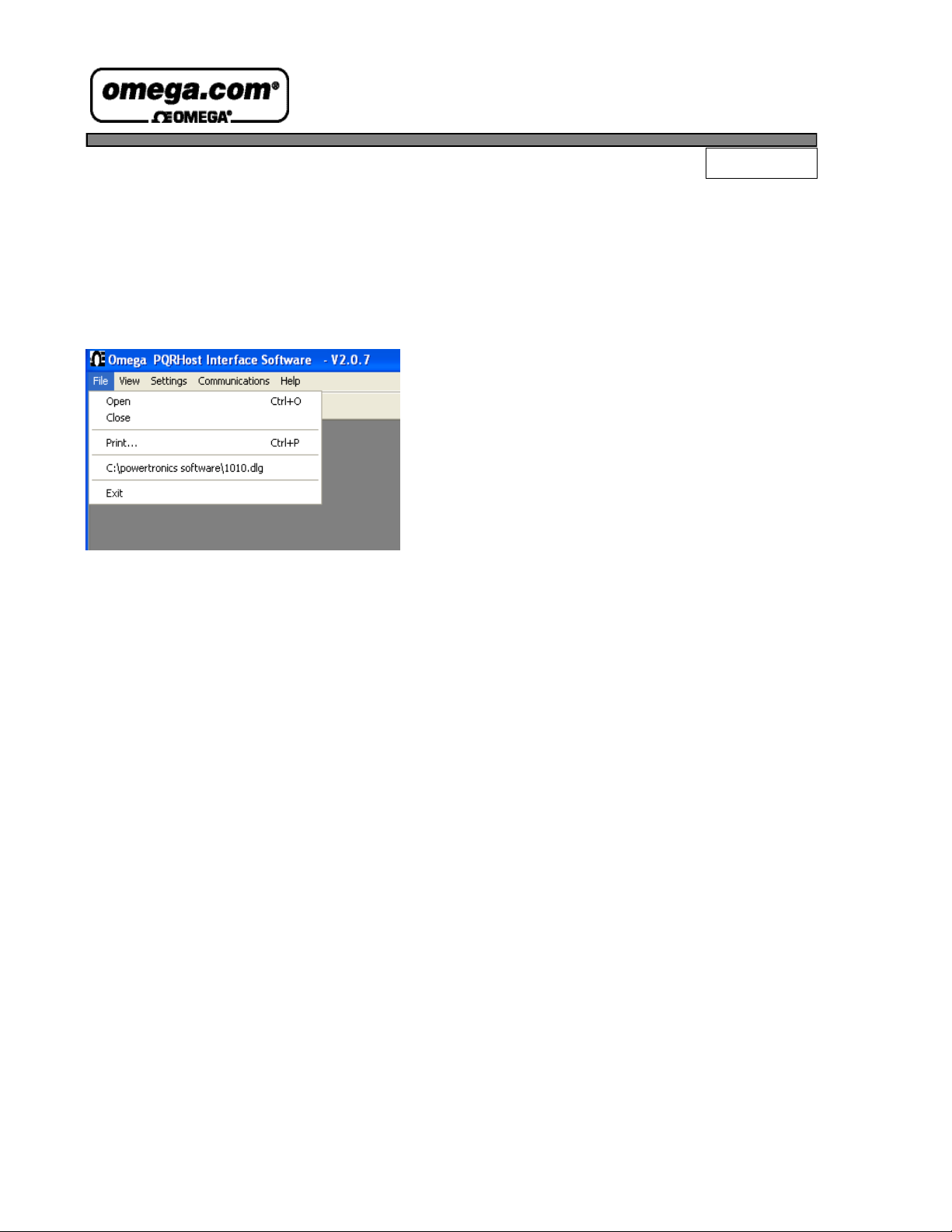

File Menu

The "File" menu contains options for using data files that are stored on disk.

Open

Select the "Open" menu item to open a data
log, detail report, or summary report that is
stored on disk. After specifying the desired
file, the program will open a window that
contains the data from the file.

Close

Select the "Close" menu item to close the
active window.

Print

Select the "Print" option to send the active window to a printer. This menu item will display a
Print Dialog for the user to select which printer to use and to specify the desired settings.

Memory Files

The program will keep track of the last four files that have been used, and keep their names and
locations in memory. To reopen any of these files, simply select the menu item with the desired
file's name. The program will display the contents of the file in a new window.

Exit

Select the "Exit" menu item to close all windows and exit the program.

Other options that are sometimes shown:

Save

Select the "Save" menu item to save the active data file to its current file name and location.

Save As...
Select the "Save As..." menu item to save the active data file to a new file name and location.

Model OM-PQR1010

Page 22

Ver 1.2 - March 2010

View Menu

The "View" menu contains items used to control what tools are visible and available to the user
in the main program window.

Toolbar

Select the "Toolbar" menu item to toggle the toolbar. The toolbar contains the buttons for
opening and printing files.

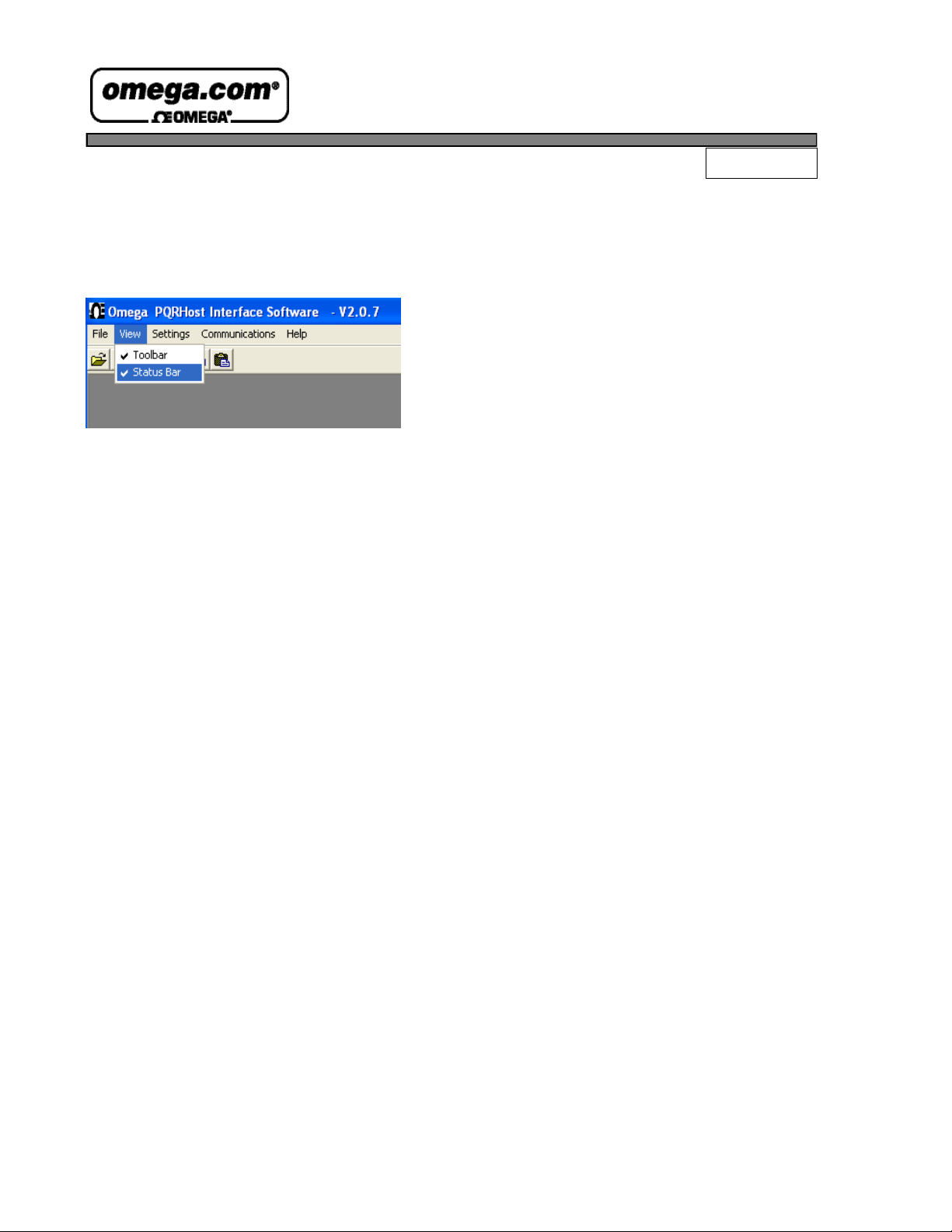

Status Bar

Select the "Status Bar" menu item to toggle the status bar at the bottom of the main program
window. The status bar displays the program's current COM port and baud rate settings.

Model OM-PQR1010

Page 23

Ver 1.2 - March 2010

Settings Menu

The "Settings" menu contains items that allow the
user to specify certain settings for communication
between the software and the PQR device. The
menu also provides an interface for setting the
PQR device parameters.

COM Port 1 - COM Port 4

The "COM Port" menu items are used to specify which computer COM port the PQR device is
connected to. Selecting one of the options will change the program setting to that particular
port. The current settings are indicated by a check mark next in the Settings menu. The current
COM port setting is also displayed in the status bar at the bottom of the main program window.

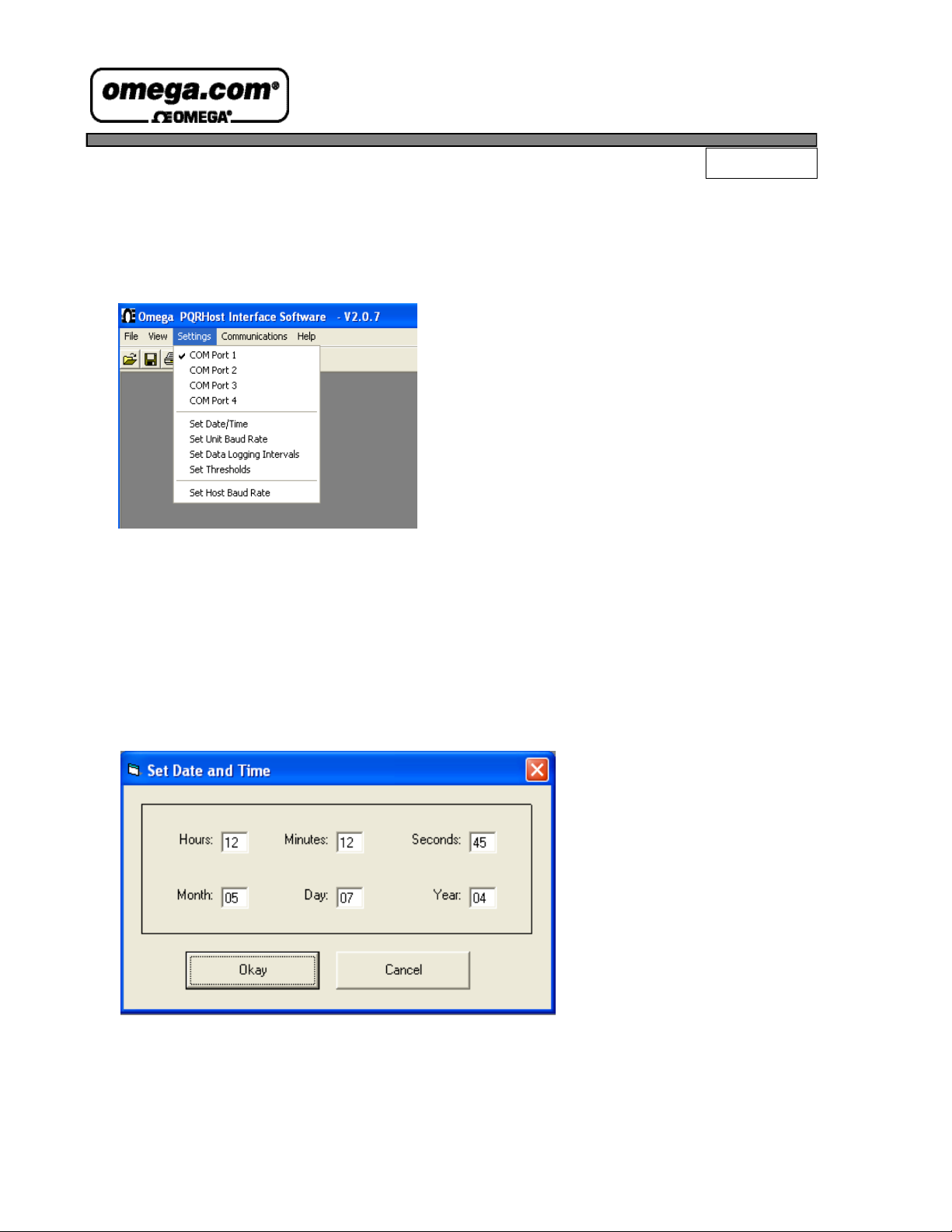

Set Date/Time

Select the "Set Date/Time" menu
item to set the device date and
time.

A dialog box will be displayed that
provides the user an interface with
which to specify the date and time.
The settings will be defaulted to
the current date and time, or to the
date and time specified previously
in the same program session.

After inputting the desired date
and time, pressing the "Okay" button will instruct the program to set the device to the specified
settings. This process may take a few seconds.

Model OM-PQR1010

Page 24

Ver 1.2 - March 2010

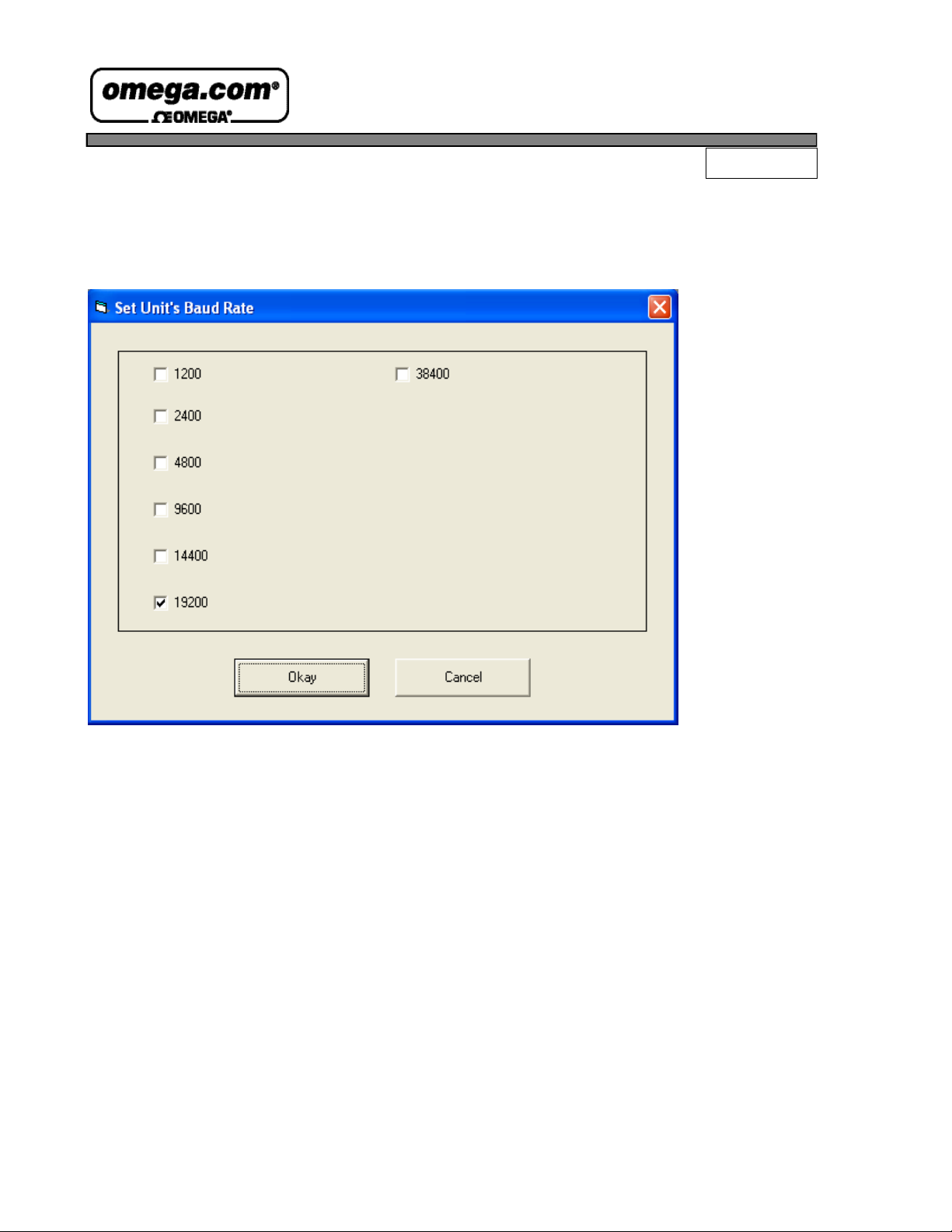

Set Baud Rate

The "Set Baud Rate" menu option allows the user to specify the data rate to be used when
communicating with the device. The program will display a dialog box with the six valid baud
rates to select from: 1200, 2400, 4800, 9600, 14400, 19200 and 38400. After selecting the
desired baud rate, pressing the "Okay" button will instruct the program to set the device baud
rate. This process may take a few seconds. The program baud rate setting will also be set to the
selected setting.

When the rate is changed, the new setting is saved in FLASH RAM, and is used as the power up
default until the next time the setting is changed.

Model OM-PQR1010

Page 25

Ver 1.2 - March 2010

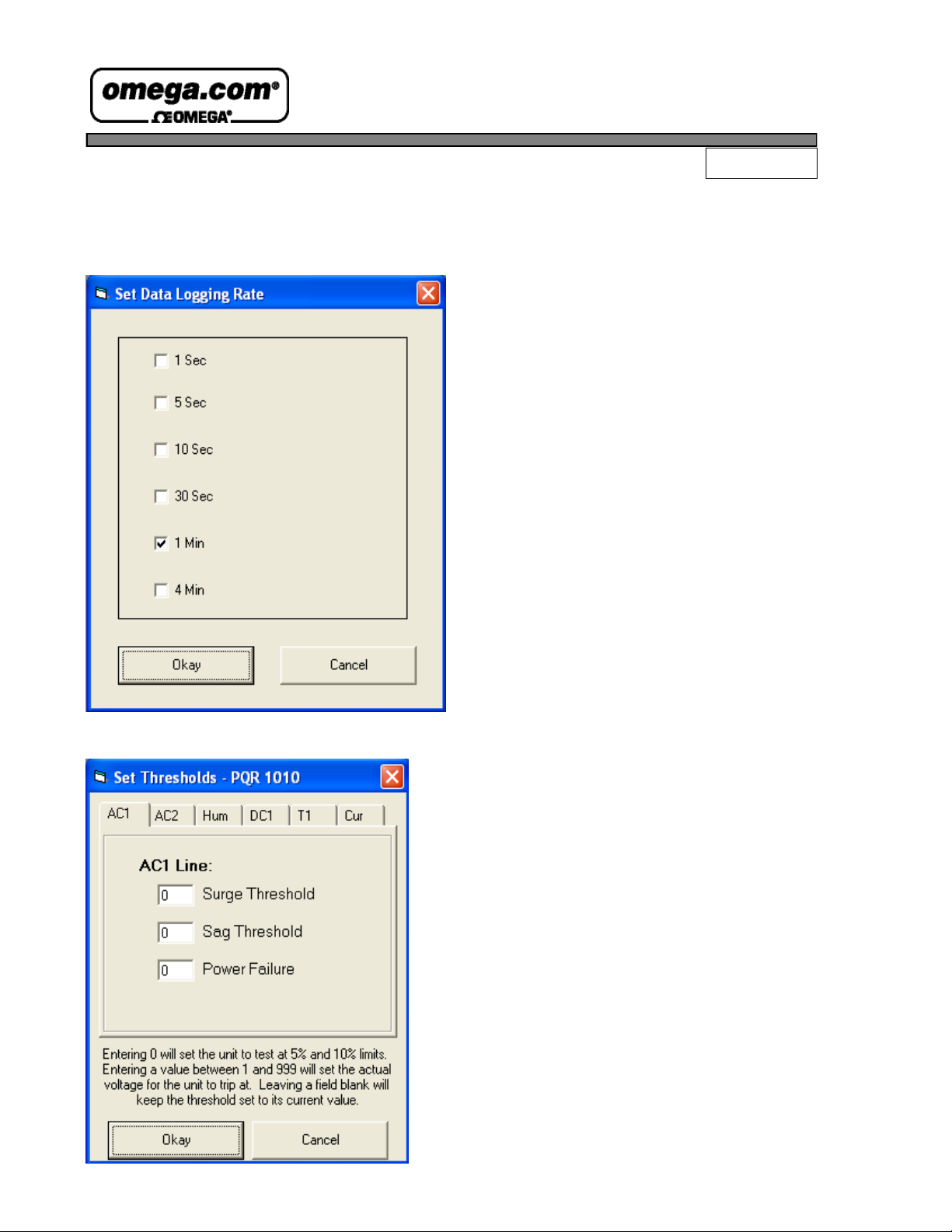

Set Data Logger

The "Set Data Logger" menu item allows the
user to specify the device data logging rate, or
the time in between data log samples. The user
will be provided six choices: 1 second, 5
seconds, 10 seconds, 30 seconds, 1 minute, or 4
minutes. After selecting the desired logging
interval, pressing the "Okay" button will
instruct the program to set the device setting.
This process may take a few seconds.

When the rate is changed, the setting is NOT
saved in non-volatile RAM. The power up
default is one sample per minute.

Set Thresholds

The "Set Thresholds" menu item allows the user to
specify the thresholds at which the device will
trigger events. The user will be provided a dialog
box with input fields to specify the surge, sag, and
power failure thresholds for all available lines.
Entering zero will set the unit to test at 5% and 10%
limits. Entering a value between 1 and 999 will set
the actual voltage for the unit to trip at. Leaving a
field blank will keep the threshold set to its current
value. After specifying the desired settings, pressing
the "Okay" button will instruct the program to set
the device settings. This process may take a few
seconds

Model OM-PQR1010

Page 26

Ver 1.2 - March 2010

Communications Menu

The "Communications" menu contains
items that allow the user to retrieve data
from the PQR device.

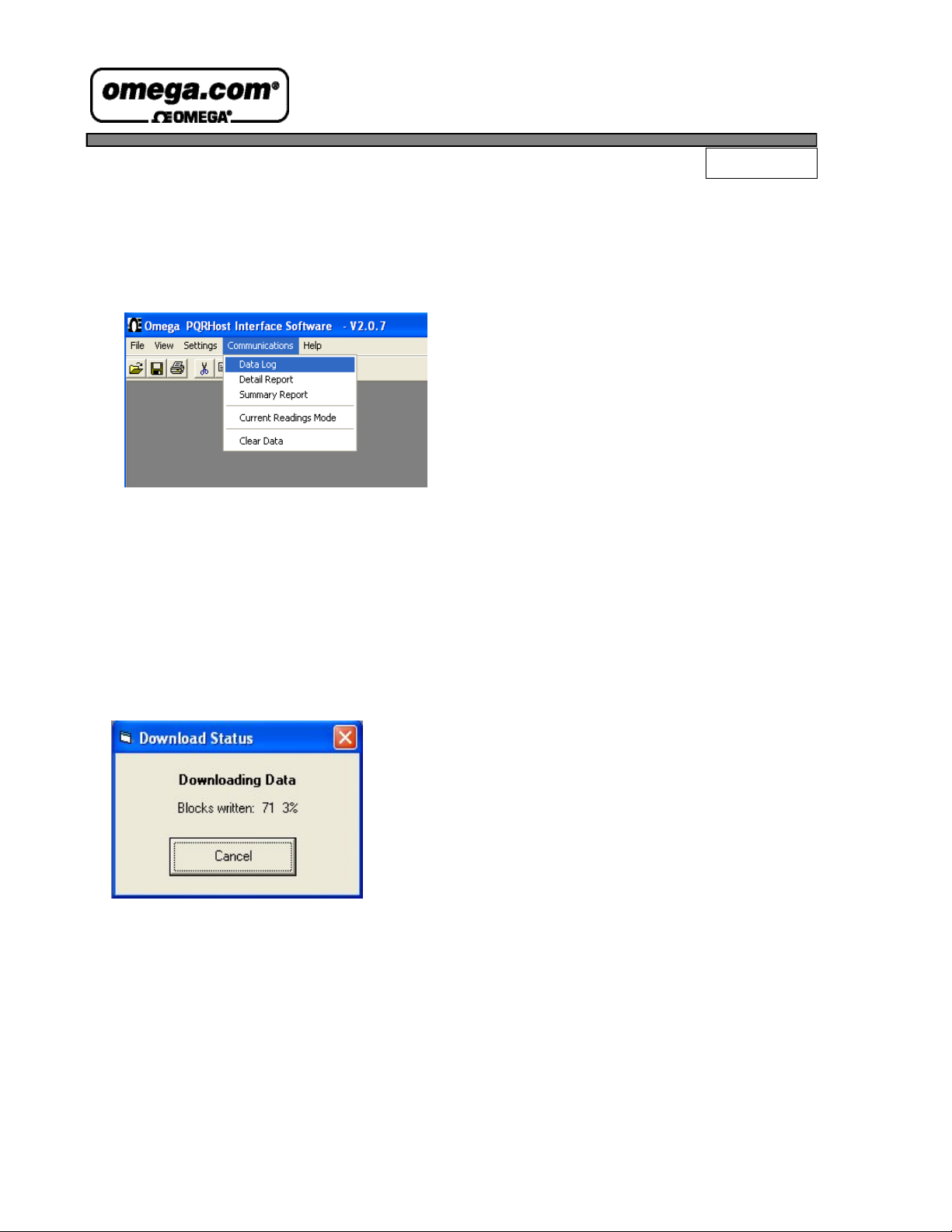

When you click on any of these functions, the PQR Host Communications software will
automatically scan your serial ports looking for the connected PQR D52. The software will
attempt to match the communications settings to the PQR D52, and will then perform the
selected function.

For example, when you click on the Data Log report, the software will locate the PQR D52, and
start downloading the data. The status of the download is reported as:

The blocks will count up until all of the data is downloaded and saved in the data file.

Model OM-PQR1010

Page 27

Ver 1.2 - March 2010

Data Log

Selecting the "Data Log" menu item will download a listing of the voltages measured on all of
the input channels since the unit was put on-line and the RAM was cleared. Before starting the
transmission, the user will be asked to specify the name and location of a file to write the data to.
After the transfer is complete, the program will automatically open a data window containing the
downloaded data.

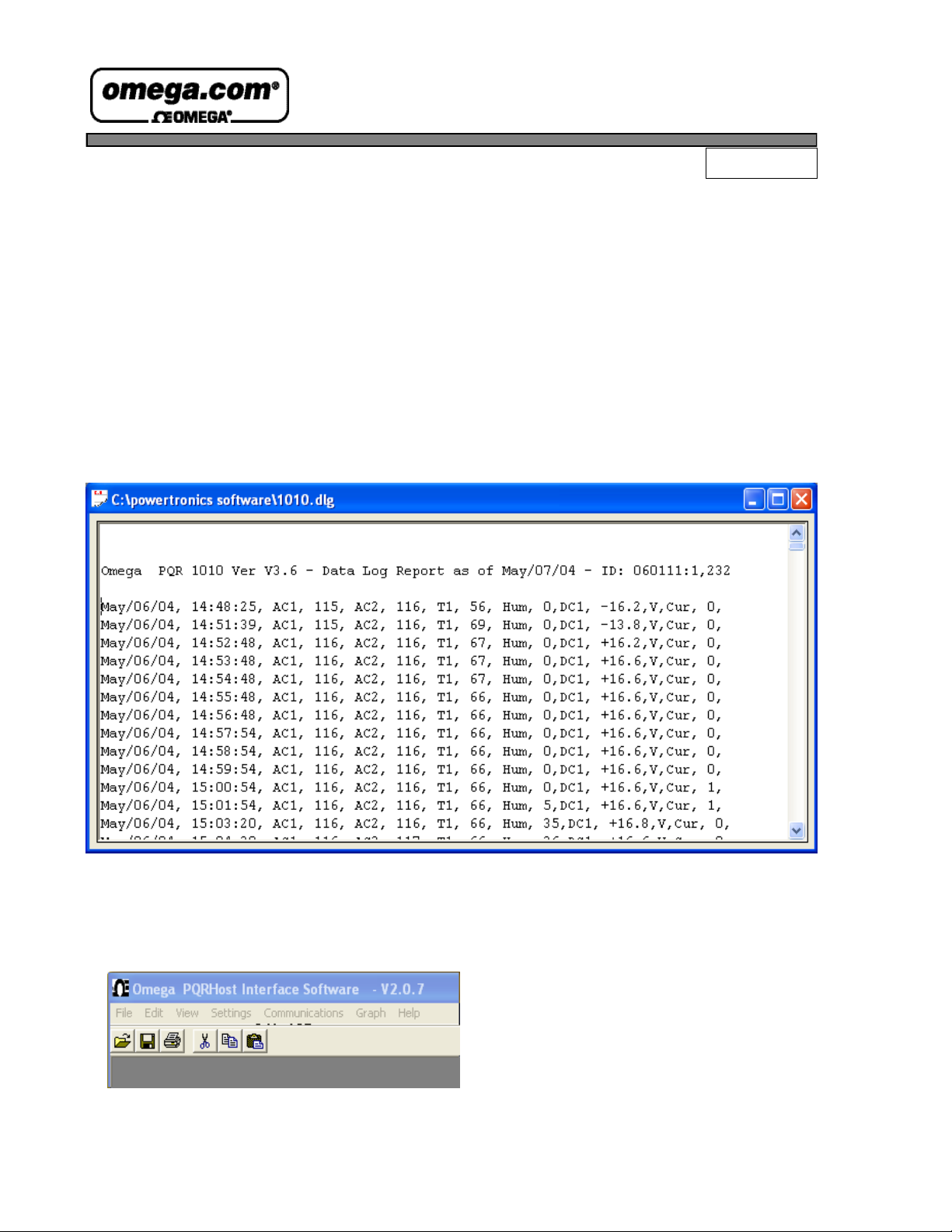

This is the text report showing the Date and Time of the reading, the voltage on each of the Hot

and Neutral Lines as well as the readings from the Temperature and Humidity sensors.

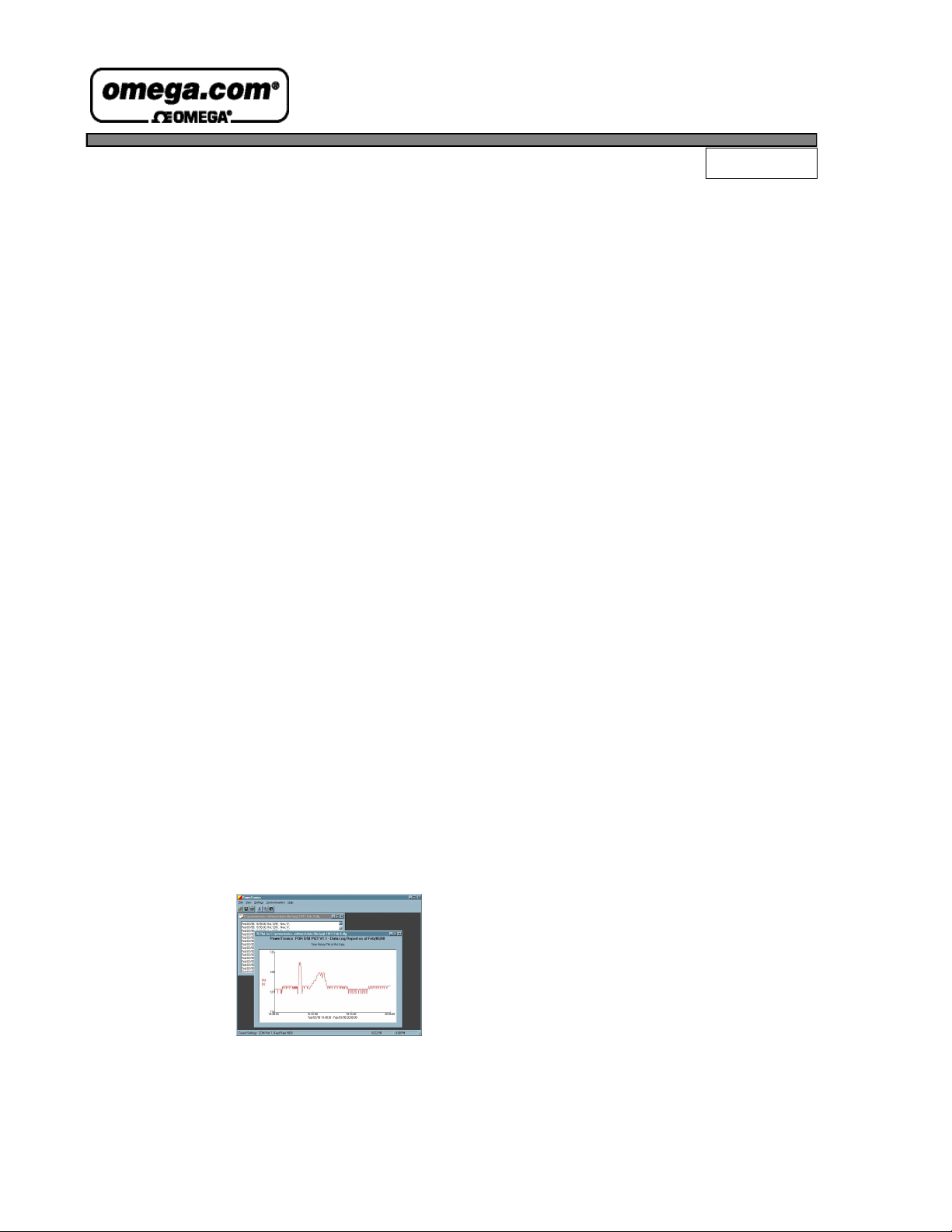

Notice that the Graph option now shows up
on your toolbar. Since you now have data
available, you can generate the charts and
graphs that represent that data.

Model OM-PQR1010

Page 28

Ver 1.2 - March 2010

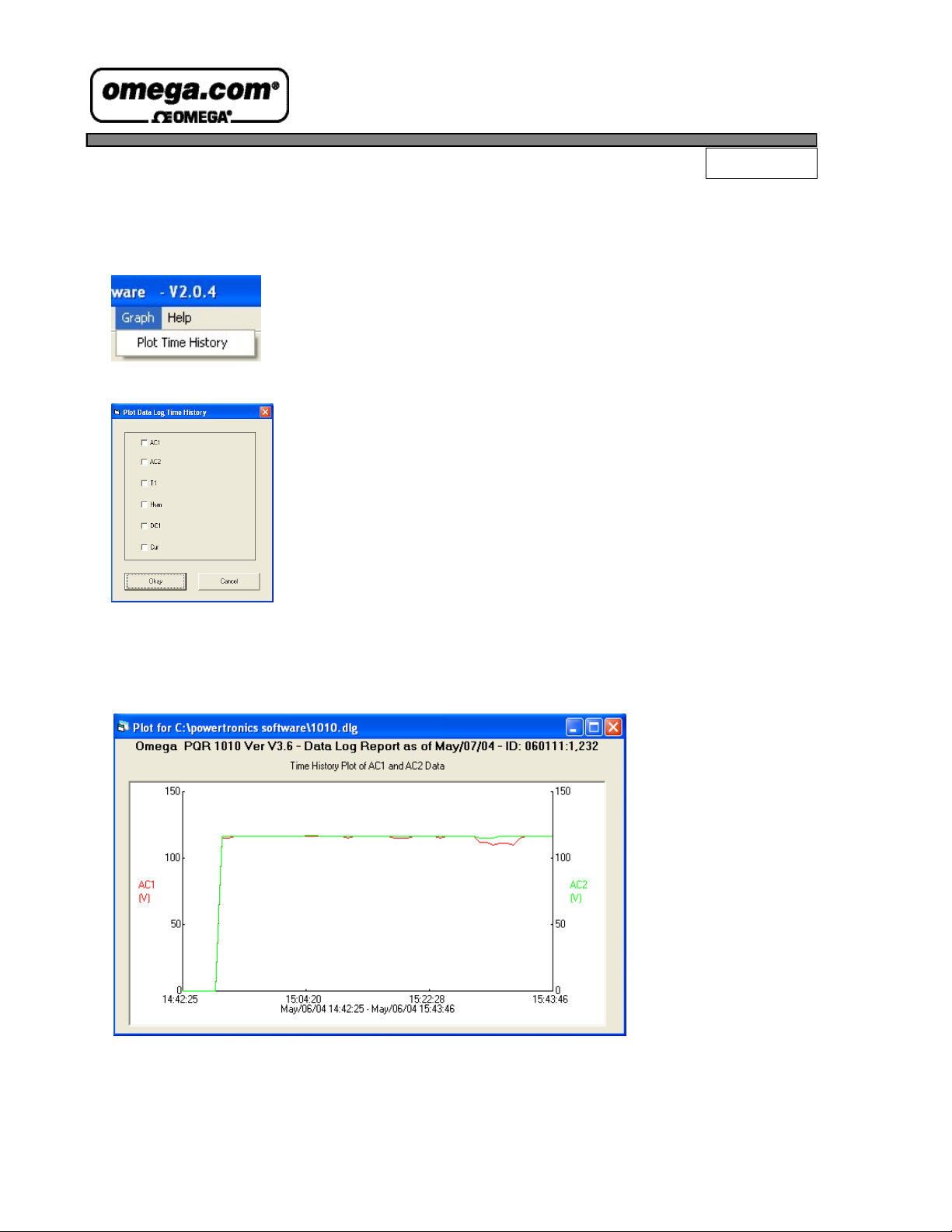

Data Log Graph

Select the Plot Time History selection under Graph

Select 1 or 2 of the available channels to graph

Once the channels are selected, and the Okay button is clicked, the software will scan the data
file and generate a chart showing the data in chart form.

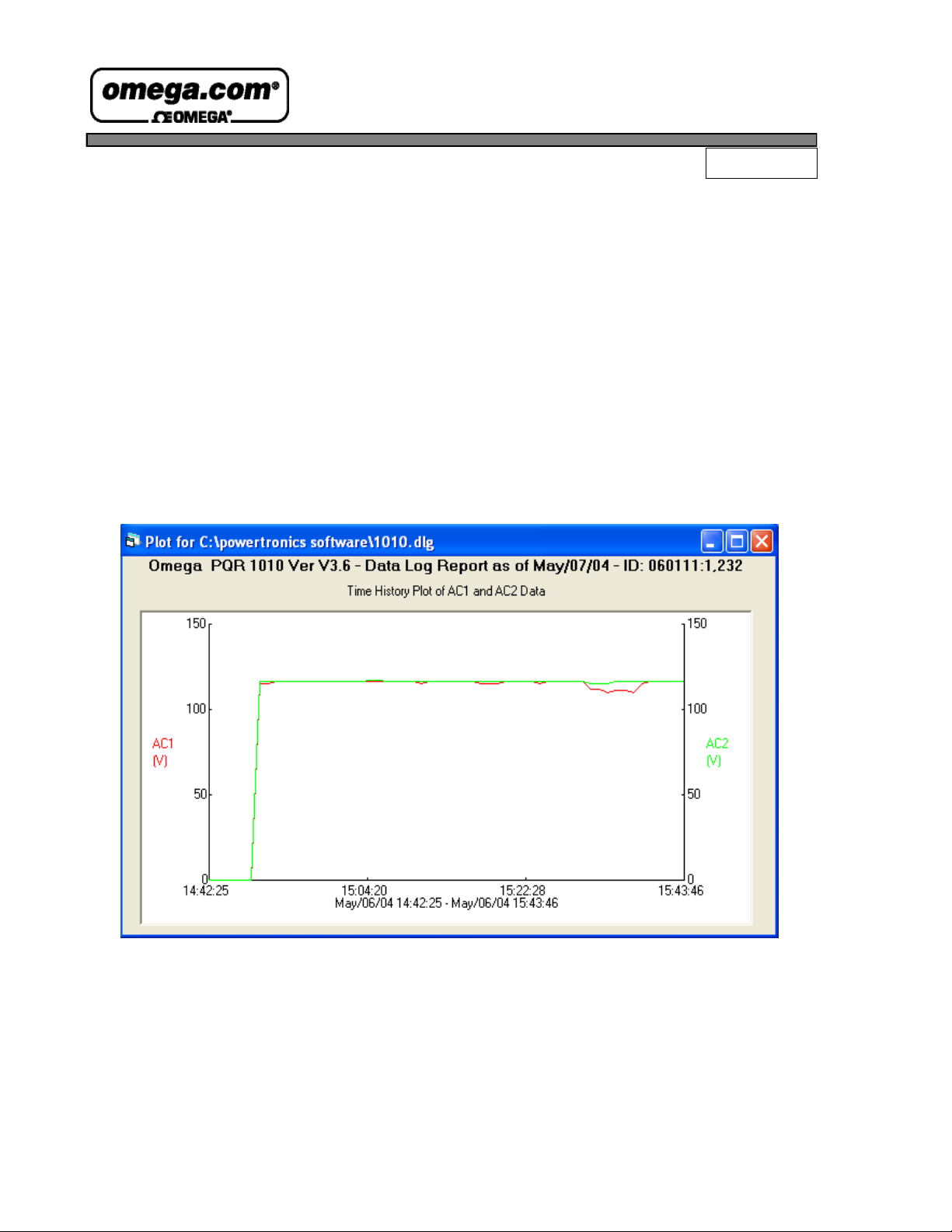

Data Log chart of Voltage on AC1 and AC2 Channels

Model OM-PQR1010

Page 29

Ver 1.2 - March 2010

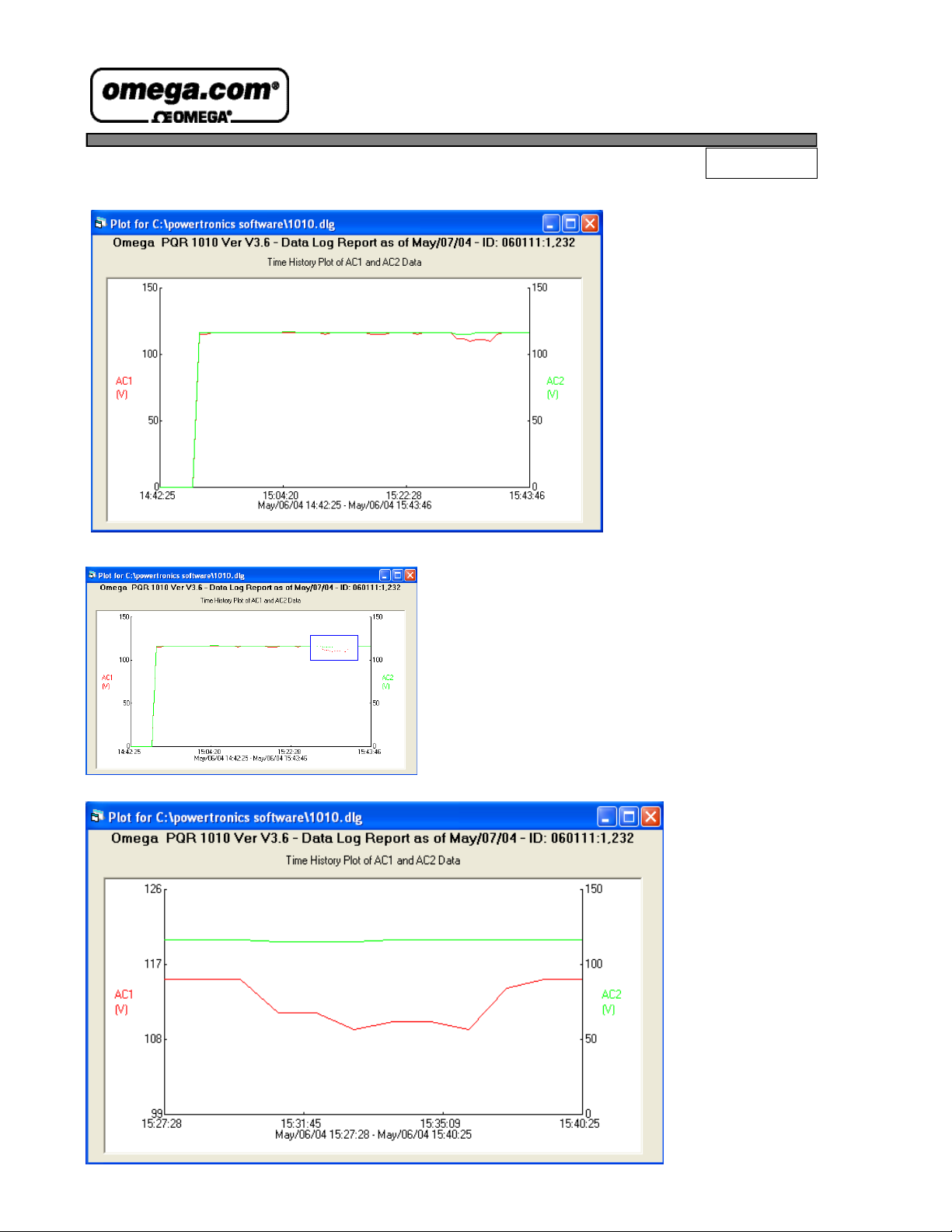

This is the chart
generated from a days
worth of data logging on
a 120V AC Line.

By holding down your Left Mouse Button you
create a selection box. You can drag your
mouse, and create a ZOOM Area around your
data. When you release the mouse button, the
data in the ZOOM area is expanded to fill the
screen area.

Double clicking on the chart will return it to
original size.

Model OM-PQR1010

Page 30

Ver 1.2 - March 2010

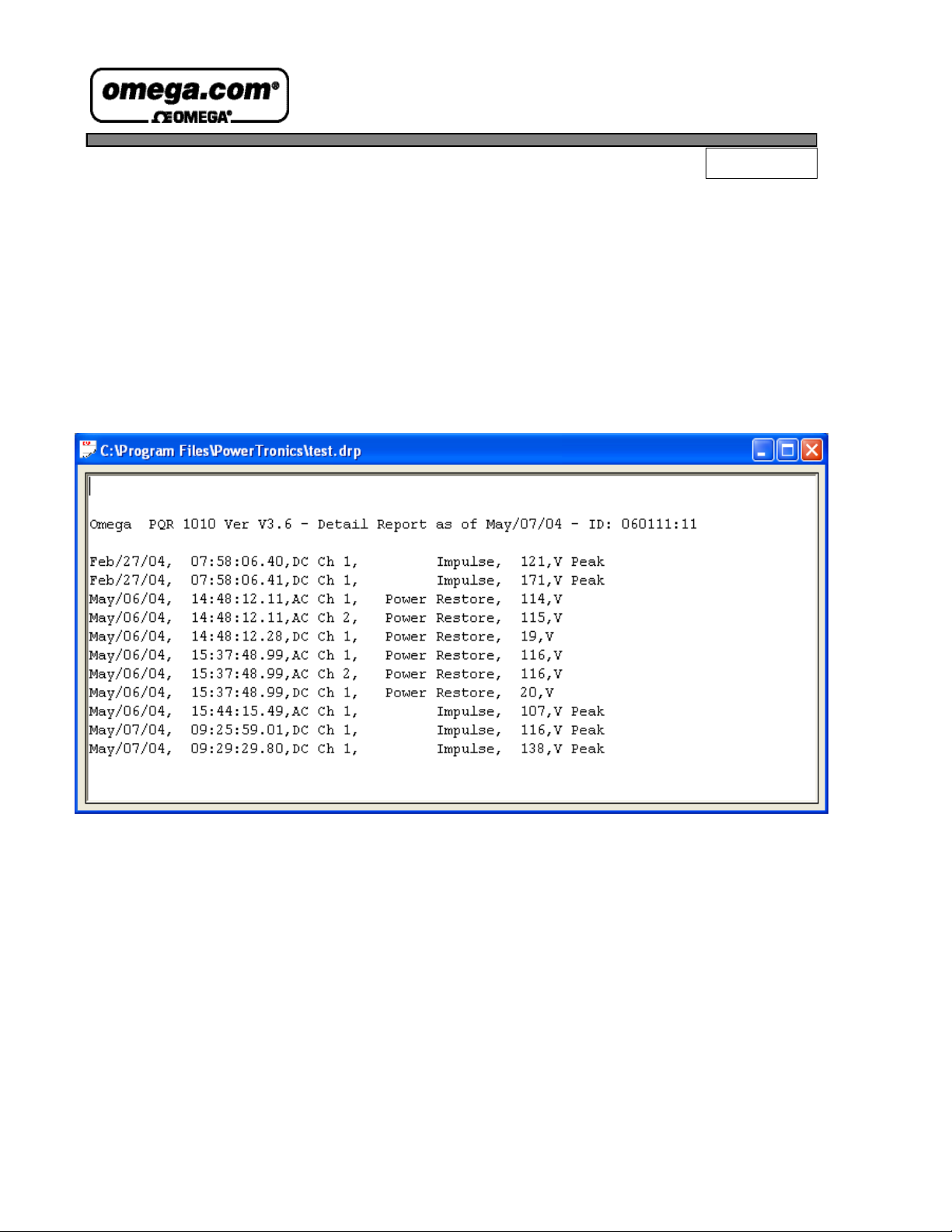

Detail Report

Selecting the "Detail Report" menu item will download a listing of all the disturbances saved since
the unit was put on-line and the RAM was cleared. Before starting the transmission, the user will be
asked to specify the name and location of a file to write the data to. After the transfer is complete,
the program will automatically open a data window containing the downloaded data. Each event is
described by the date, time, phase, event type, and magnitude of that disturbance..

Model OM-PQR1010

Page 31

Ver 1.2 - March 2010

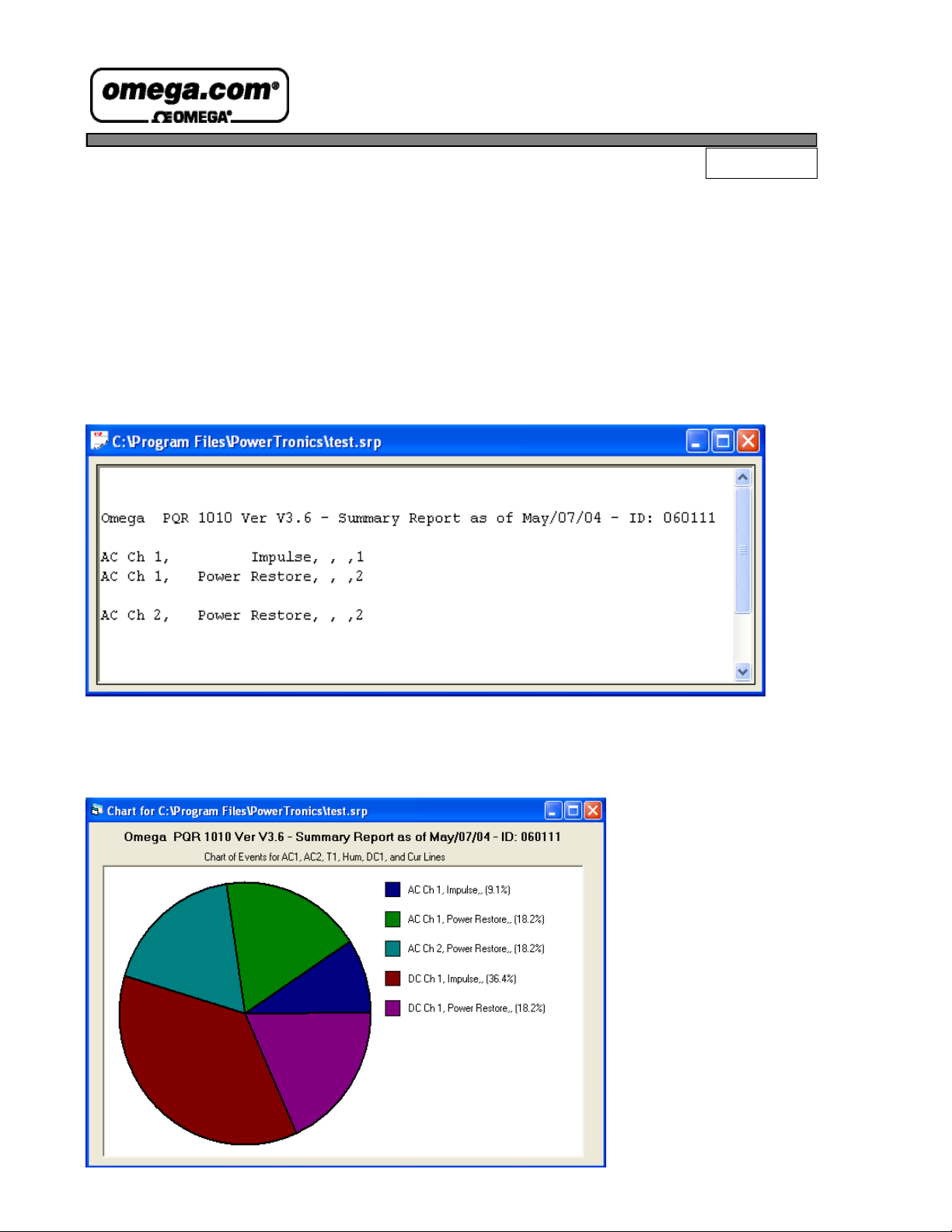

Summary Report

Selecting the "Summary Report" menu item will download a listing of counts of all the disturbances
detected since the unit was put on-line and the RAM was cleared. Before starting the transmission,
the user will be asked to specify the name and location of a file to write the data to. After the
transfer is complete, the program will automatically open a data window containing the downloaded
data. Each event is described by the phase, event type, magnitude, and quantity of that disturbance.

Selecting the Chart options from this report allows you to generate a pie chart showing the
distribution of the detected events.

Model OM-PQR1010

Page 32

Ver 1.2 - March 2010

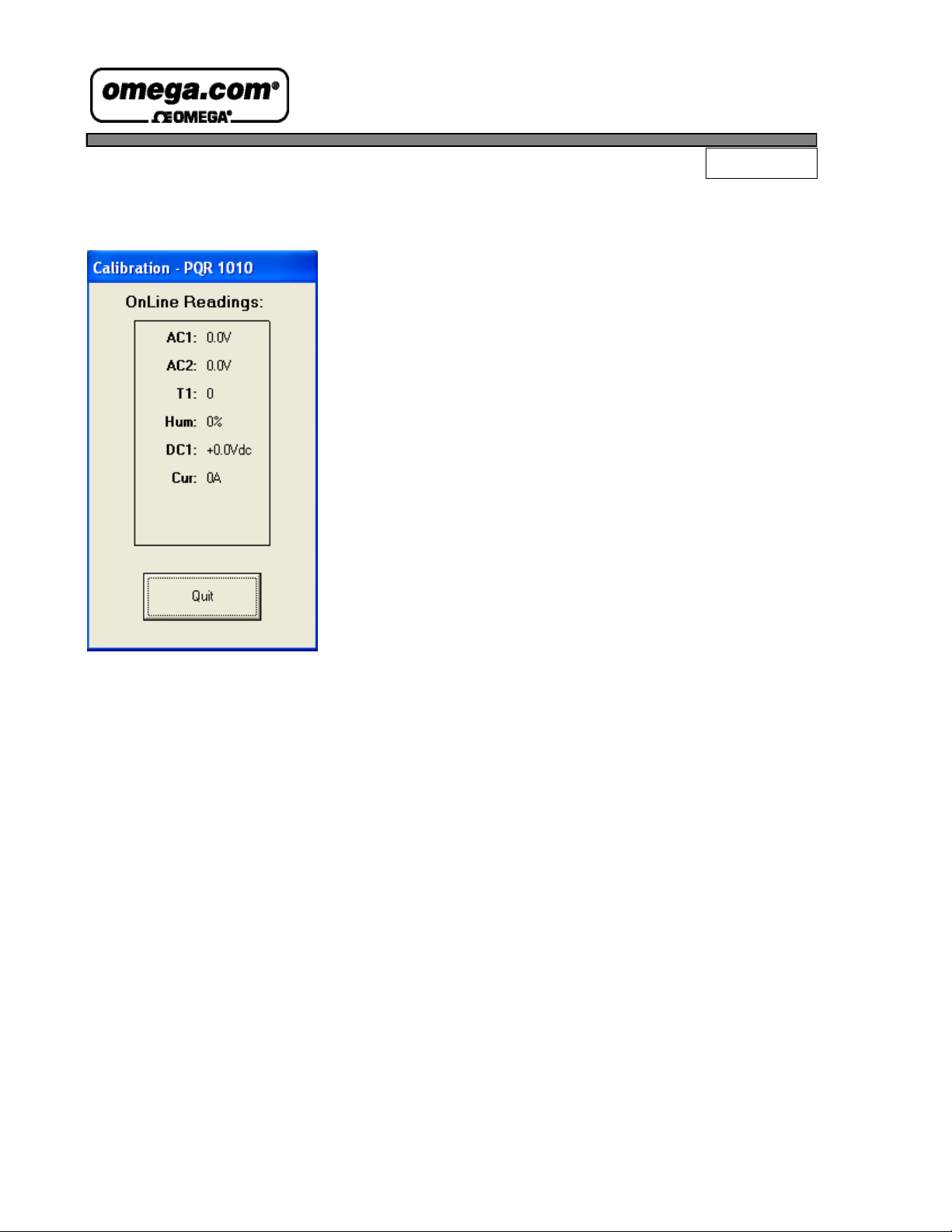

Calibration Mode

Selecting the "Calibration Mode" menu item will
command the device to begin transmitting the current
voltage readings to the computer. The voltage readings
are then displayed in a special window. The voltage
readings will be updated approximately once a second.
No other command can be performed while the
program is in calibration mode. To end the
transmission, user must press the "Stop Transmission"
button; otherwise, the transmission will automatically
stop after about two minutes.

Clear Data

Selecting the "Clear Data" menu item will clear all of the events and data log information stored
in the internal battery backed RAM in the device. The summary report quantities will be reset
to zero, and the data logging will start tracking voltage again. The program will ask the user for
confirmation before transmitting the "Clear" command to the device.

Note: A large amount of time may be necessary in the cases where data is transmitted from the
device to the computer. The exact duration is dependent upon the baud rate setting and the
amount of data being downloaded. In these cases ("Data Log", "Detail Report", and "Summary
Report"), a status window is displayed allowing the user to modify the progress of the
transmission. The status window shows a running count of blocks written to disk during the
current transmission. The block count provides an approximate measure of the amount of data
that has been transferred, and the actual size of a block depends on the baud rate setting. The
user can cut a transmission short by simply pressing the "Cancel" button.

Model OM-PQR1010

Page 33

Ver 1.2 - March 2010

In the event that you would like to communicate with the PQR 1010 without using the PQR Host
Communications software, you can connect using most other terminal emulator software.

Commands:

The PQR 1010 will respond to commands received through the serial port. All commands are
started with a C. Entering C, followed by the command number will initiate the function.

The commands are as follows:

C0 Transmit the Command Menu
C1 Transmit the Unit Version number

C2 Transmit a Summary Report
C3 Transmit a Detail Report
C4 Transmit a Data Log of recorded voltage

C5 Clear all events, and data log
C6 Set the Date and Time

C90 Continuous transmission of channels readings

CX Hang up the phone .

After the PQR 1010 has completed the task initiated by the operator command, it returns on-line
to it’s monitoring duties. Each of the commands are detailed in the following pages.

Other Communications

Model OM-PQR1010

Page 34

Ver 1.2 - March 2010

C0 - Transmit the Command Menu:

This command will transmit the Command Menu back to the operator through the serial port. This is
usually the first command to be issued when the operator is connected to the OM-PQR1010.

Transmit or type: C0, or CONNECT

The OM-PQR1010 will respond after after several seconds with:

This Menu can be called up any time the operator is connected to the unit, and the Menu is transmitted automatically upon
receipt of the word CONNECT from a modem.

Omega PQR 1010 Ver V3.6 May/07/04 09:30:28 - ID: 060111

These are your Command Options:

C 0 - Display this Command List
C 1 - Display Unit Version Number

C 2 - Summary of all Detected Events
C 3 - Detail Report of Stored Events
C 4 - Data Log Report of all Channels
ESC - Will STOP data transfer
SPACE Will Pause data transfers

C 5 - Clear All Events
C 6 - Configure the PQR Hardware
C X - Hang up

Model OM-PQR1010

Page 35

Ver 1.2 - March 2010

C1 - Transmit the Version Number:

This command will transmit the Model Name and Version Number back to the operator through the
serial port.

Transmit or type: C1

The OM-PQR1010 will respond with:

The Version Number refers to the Firmware Program stored in the PROM located inside the unit. This number is needed
whenever the operator contacts OMEGA technical support specialists.

Omega PQR 1010 Ver V3.6 ** PQR SERIES ** May/07/04 - ID: 060111

Model OM-PQR1010

Page 36

Ver 1.2 - March 2010

C2 - Transmit a Summary Report:

Transmit or type: C2

The OM-PQR1010 will respond by transmitting a report that is a count of all the disturbances detected since the
unit was put on-line, and the RAM was cleared:

Each event type is described by the Channel Number, Event Type, Magnitude, and Quantity of that disturbance.

Typing, or Transmitting the Escape character at any time will terminate the transmission of this report.

Omega PQR 1010 Ver V3.6 - Summary Report as of May/07/04 - ID: 060111

AC Ch 1, Impulse, , ,1
AC Ch 1, Power Restore, , ,1

AC Ch 2, Power Restore, , ,1

DC Ch 1, Impulse, , ,4
DC Ch 1, Power Restore, , ,1

Model OM-PQR1010

Page 37

Ver 1.2 - March 2010

C3 - Transmit a Detail Report:

Transmit or type: C3

The OM-PQR1010 will respond by transmitting the Detail Report of all disturbances saved since the unit was put
on-line, and the RAM was cleared:
Each event is described by the Time, Date, Channel Number, Event Type, and Magnitude of that disturbance.

Typing, or Transmitting the Escape character at any time will terminate the transmission of this report.

Typing the Space bar will Pause or re-start the report.

Omega PQR 1010 Ver V3.6 - Detail Report as of May/07/04 - ID: 060111:8

May/05/04, 07:58:06.40,DC Ch 1, Impulse, 121,V Peak
May/05/04, 07:58:06.41,DC Ch 1, Impulse, 171,V Peak
May/06/04, 14:48:12.11,AC Ch 1, Power Restore, 114,V
May/06/04, 14:48:12.11,AC Ch 2, Power Restore, 115,V
May/06/04, 14:48:12.28,DC Ch 1, Power Restore, 19,V
May/06/04, 15:44:15.49,AC Ch 1, Impulse, 107,V Peak
May/07/04, 09:25:59.01,DC Ch 1, Impulse, 116,V Peak
May/07/04, 09:29:29.80,DC Ch 1, Impulse, 138,V Peak

Model OM-PQR1010

Page 38

Ver 1.2 - March 2010

C4 - Transmit a Data Log Report:

Transmit or type: C4

The OM-PQR1010 will respond by transmitting the Listing of the voltages measured on all input channels each
minute (or at other programmed time) since the unit was put on-line, and the RAM was cleared:

Each line of the transmission has the Time and Date that the data was recorded, and the sample of the average
reading summed for one minute.

Typing, or Transmitting the Escape character at any time will terminate the transmission of this report.

Typing the Space bar will Pause or re-start the report.

Omega PQR 1010 Ver V3.6 - Data Log Report as of May/07/04 - ID: 060111:1,061

May/06/04, 14:42:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:43:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:44:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:45:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:46:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:47:25, AC1, 0, AC2, 0, T1, 0, Hum, 0,DC1, +0.0,V,Cur, 0,
May/06/04, 14:48:25, AC1, 115, AC2, 116, T1, 56, Hum, 0,DC1, -16.2,V,Cur, 0,
May/06/04, 14:51:39, AC1, 115, AC2, 116, T1, 69, Hum, 0,DC1, -13.8,V,Cur, 0,
May/06/04, 14:52:48, AC1, 116, AC2, 116, T1, 67, Hum, 0,DC1, +16.2,V,Cur, 0,
May/06/04, 14:53:48, AC1, 116, AC2, 116, T1, 67, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:54:48, AC1, 116, AC2, 116, T1, 67, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:55:48, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:56:48, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:57:54, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:58:54, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 14:59:54, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 0,
May/06/04, 15:00:54, AC1, 116, AC2, 116, T1, 66, Hum, 0,DC1, +16.6,V,Cur, 1,
May/06/04, 15:01:54, AC1, 116, AC2, 116, T1, 66, Hum, 5,DC1, +16.6,V,Cur, 1,
May/06/04, 15:03:20, AC1, 116, AC2, 116, T1, 66, Hum, 35,DC1, +16.8,V,Cur, 0,

Model OM-PQR1010

Page 39

Ver 1.2 - March 2010

C5 - Clear all events, and data log:

This Command will clear all of the events, and all of the Data log information stored in the internal
Battery backed RAM. The summary report quantities will be reset to zero, and the Data Logging will start
tracking voltage again.

Transmit or type: C5

The OM-PQR1010 will respond by transmitting the following message

To clear the data, answer this question with a CAPITAL Y

The unit will then test and clear all internal RAM.
The following text will be transmitted during the RAM clear operation.

Are You Sure you want to CLEAR ALL DATA on this board ? Y

Are You Sure you want to CLEAR ALL DATA on this board ? Y
Testing RAM |————————————| - Ram test Passed

Clearing Ram ......................... Done

Model OM-PQR1010

Page 40

Ver 1.2 - March 2010

C6 - Configure the PQR Hardware:

This command will transmit the Setup Command Menu back to the operator through the serial port.

Transmit or type: C6

The OM-PQR1010 will respond with:

This Menu can be called up any time the operator is connected to the unit.

The Current Settings show how the OM-PQR1010 is configured at that time.

These are your Setup Options: Current
Settings:

1 - Set the Date and Time May/07/04 09:30:49
2 - Set the Baud Rate 19,200 Baud
3 - Select a Data Logging Sample rate 1 Minute
4 - Set the Sag, Surge, and Power fail thresholds

ESC - Exit this Menu

Model OM-PQR1010

Page 41

Ver 1.2 - March 2010

C6 - (Option 1) Set the Date and Time:

This Command allows the operator to change the Time and Date setting inside the OM-PQR1010.

Select Option 1: 1

The OM-PQR1010 will respond by transmitting the following message

MM = Month, Jan = 01, Feb = 02, Mar = 03,

Apr = 04, May = 05, Jun = 06,
Jul = 07, Aug = 08, Sep = 09,
Oct = 10, Nov = 11, Dec = 12

DD = Day 1st = 01, ... 31st = 31

YY = Year 2001 = 01

HH = Hour 1:00 AM = 01, 1:00 PM = 13

MM = Minute 0 = 00, 59 = 59

SS = Second 0 = 00, 59 = 59

The data must be entered in the format shown, including commas slashes, and colons. After entering the Time and
Date, enter a Carriage Return.

Input the Date and Time in the format MM/DD/YY,HH:MM:SS

Model OM-PQR1010

Page 42

Ver 1.2 - March 2010

C6 - (Option 2) Set the Baud Rate:

This Command allows the operator to change the communications Baud rate setting inside the OM­PQR1010.

Select Option 2: 2

The OM-PQR1010 will respond by transmitting the following message

Typing the number indicated next to the desired rate will change the rate of the OM-PQR1010 immediately to the
new rate

Note:
Changing the baud rate breaks the connection between the OM-PQR1010 and the communications device

it is connected to. The rate on the connected device must be changed to match the new rate of the OM-PQR1010.

When the rate is changed, the new setting is saved in Non-Volatile RAM, and is used as the power up
default until the next time the setting is changed.

Select a Baud Rate - Currently set to 19,200 Baud

1) 1200 2) 2400 3) 4800

4) 9600 5) 14400 6) 19200

7) 38400

WARNING - You will need to change the rate on your terminal to match the PQR

New Rate :

Model OM-PQR1010

Page 43

Ver 1.2 - March 2010

C6 - (Option 3) Set the Data Logger:

This Command allows the operator to change the interval between data logger readings inside the OM­PQR1010.

Select Option 3: 3

The OM-PQR1010 will respond by transmitting the following message

Typing the number indicated next to the desired rate will change the rate of the OM-PQR1010 immediately to the
new rate

Note:

When the rate is changed, the new setting is saved in Non-Volatile RAM, and is used as the power up
default until the next time the setting is changed.

Enter the number of seconds between Data log samples

1) 1 Sec 2) 5 Sec 3) 10 Sec

4) 30 Sec 5) 1 Min 6) 4 Min

Any other choice sets rate to 1 Minute (default).

New Rate :

Model OM-PQR1010

Page 44

Ver 1.2 - March 2010

C6 - (Option 4) Set the Surge, Sag, and Power Fail:

This Command allows the operator to change the threshold points for the OM-PQR1010 events.

Select Option 4: 4

The OM-PQR1010 will respond by transmitting the following message

To set a fixed threshold, type the desired number of the setting:

To set the Temperature Surge setting to 98 degrees, type 98 at

Temp channel - Surge Threshold .... : (5%,10%) .. : 98 followed by a carriage return.

The OM-PQR1010 will calculate the nearest trip point, and respond (96d), indicating that it will now trip at 96
degrees.

To set the Temperature Surge setting to trip at 5% and 10%, type 0 at

Temp channel - Surge Threshold .... : (5%,10%) .. : 0 followed by a carriage return.

The OM-PQR1010 will respond (5%,10%), indicating that it will now trip at 5% and 10% above the average value.

Note:

These settings are saved in Non-Volatile RAM, and are used as the power up default.

AC channel 1 - Surge Threshold ..... : (5%,10%) .. :

AC channel 1 - Sag Threshold ....... : (5%,10%) .. :

AC channel 1 - Power Failure ....... : (5%,10%) .. :

AC channel 2 - Surge Threshold ..... : (5%,10%) .. :

AC channel 2 - Sag Threshold ....... : (5%,10%) .. :

AC channel 2 - Power Failure ....... : (5%,10%) .. :

Humidity Ch. - Surge Threshold ..... : (5%,10%) .. :

Humidity Ch. - Sag Threshold ....... : (5%,10%) .. :

DC Channel - Surge Threshold ..... : (5%,10%) .. :

DC Channel - Sag Threshold ....... : (5%,10%) .. :

DC Channel - Power Failure ....... : (5%,10%) .. :

Temp channel - Surge Threshold ..... : (5%,10%) .. :

Temp channel - Sag Threshold ....... : (5%,10%) .. :

Current Channel - Surge Threshold .. : (5%,10%) .. :

Current Channel - Sag Threshold .... : (5%,10%) .. :

Current Channel - Power Failure .... : (5%,10%) .. :

Setup Completed-

Model OM-PQR1010

Page 45

Ver 1.2 - March 2010

C90 - Continuous Transmission of channels voltage:

This Command allows the operator to view the readings present on each of the AC, DC Aux, and Current
channels.

Transmit or type: C90

The OM-PQR1010 will respond by transmitting the following:

The unit will send this reading continuously, resulting in the screen being updated about three times a second.

This command is helpful in confirming the unit is properly connected to the signals under test. If there is no signal
attached to the test input, the reading will be zero.

To quit the test, send any character to the unit, or wait for 30 seconds when the unit will return to the on -line

testing mode on it’s own.

Unit Off-Line - entering Calibration mode

Ph1: 120V Ph2: 117V Aux: 68 DC1 +6.3V DC2: 413V Cur: 11A
Unit returning to On-Line mode

Model OM-PQR1010

Page 46

Ver 1.2 - March 2010

CX - Hang up the phone:

This Command allows the operator to disconnect the signal
from a phone line on a Modem attached to the OM-PQR1010.

Transmit or type: CX

The OM-PQR1010 will respond by transmitting the following:

Having sent this message, the unit then sends the hang-up command to the modem. If there is a modem connected,
and it had the phone off-hook, it would put the phone on-hook.

Thank you, and good bye.
+++ ATH0

Model OM-PQR1010

Page 47

Ver 1.2 - March 2010

AC Channels Specifications

RMS Voltage (Data Logging):

 Range: 80 - 480 Vac RMS
 Accuracy: +/- 1.5%
 Sample rate: Programmable - range 1 reading per

second to 1 reading per 4 minutes

Sags/Surges:

 Threshold: 5% and 10% of average RMS
 Duration limits: 1 cycle or 20 milliseconds
 Accuracy: +/- 1.5%

Dropouts:

 Threshold: Less than 10V rms
 Duration limits: Longer than 8 ms, Shorter than 80ms

Power Failure:

 Threshold: Less than 10V rms
 Duration limits: Longer than 80ms

Impulses:

 2 Channels: 20V to > 2500 Vpeak
 Resolution: thresholds 5 volt steps
 Accuracy: +/- 10%
 Pulse detection: 500 nano seconds above threshold

High Frequency Noise:

 Range: 2 volts peak, 10 Khz - 10 Mhz
 Accuracy: +/- 10%
 Response time: 1 milli second

Line Frequency:

 Range: 40 - 400 Hz
 Accuracy: +/- 1%
 Response time: 1 AC cycle
 Threshold: +/- 2% deviation from average

Model OM-PQR1010

Page 48

Ver 1.2 - March 2010

DC Channel Specifications

RMS Voltage (Data Logging):

 Ch #1 Range: +/-1 to +/-52 Vdc
 Accuracy: +/- 1.5%
 Sample rate: Programmable - range 1 reading per

second to 1 reading per 4 minutes

Sags/Surges:

 Threshold: 5% and 10% of average
 Duration limits: 20 milliseconds
 Accuracy: +/- 1.5%

Dropouts:

 Threshold: Less than 10% of average
 Duration limits: Longer than 8 ms, Shorter than 80ms

Power Failure:

 Threshold: Less than 10% of average
 Duration limits: Longer than 80ms

Impulses:

 2 Channels: 20V to > 2500 Vpeak
 Resolution: thresholds 5V steps
 Accuracy: +/- 10%
 Pulse detection: 500 nano seconds above threshold

High Frequency Noise:

 Range: 2 volts peak, 10 Khz - 10 Mhz
 Accuracy: +/- 10%
 Response time: 1 milli second

Model OM-PQR1010

Page 49

Ver 1.2 - March 2010

Current Channel

RMS Current (Data Logging):

 Range: 0.2 amps to 1000 amps rms
 Accuracy: +/- 1.5%
 Sample rate: Programmable - range 1 reading per

second to 1 reading per 4 minutes

Sags/Surges:

 Threshold: 5% and 10% of average
 Duration limits: 20 milliseconds
 Accuracy: +/- 1.5%

Dropouts:

 Threshold: Less than 10% of average
 Duration limits: Longer than 8 ms, Shorter than 80ms

Power Failure:

 Threshold: Less than 10% of average
 Duration limits: Longer than 80ms

Temperature Channel

Temperature: (Data Logging):

 Range: 20 to 250 degrees (0.02 - 2.5 vdc)
 Accuracy: +/- 1%
 Sample rate: Programmable - range 1 reading per

second to 1 reading per 4 minutes

Sags/Surges:

 Threshold: 5% and 10% of average
 Duration limits: 2 seconds
 Accuracy: +/- 1.5%

Model OM-PQR1010

Page 50

Ver 1.2 - March 2010

Humidity Channel

Humidity: (Data Logging):

 Range: 20 to 250 degrees (0.02 - 2.5 vdc)
 Accuracy: +/- 1%
 Sample rate: Programmable - range 1 reading per

second to 1 reading per 4 minutes

Sags/Surges:

 Threshold: 5% and 10% of average
 Duration limits: 2 seconds
 Accuracy: +/- 1.5%

Mechanical Specifications

 Weight: 4 pounds
 Size: 8” wide x 10” deep, x 2” high
 Power Cord: 6 feet

Operating Specifications

 Temperature: 0 - 50 degrees C
 Humidity: 10% to 80% (non condensing)
 AC Voltage : 80 - 260 volts ac
 DC Voltage: 12 - 30 volts dc
 Current : 0.1 amp
 Line Frequency: DC - 400 Hz

Serial Interface Specifications

 Connector: DB9 - RS 232C
 Baud Rate: Programmable - 1200 to 19,200 baud
 Protocol 8 Data, 1 Stop, No Parity bits

Data Storage Specifications

 Summary Event Count: 56,000 of each event type
 Detail Storage: 56,000 events total
 Data Retention: 99 Years without power

Model OM-PQR1010

Page 51

Ver 1.2 - March 2010

Figure PT 1 Typical AC Waveform

Types of Power Problems

and what they look like.

There are many types of power problems that can affect
the quality of the AC power being delivered to a piece of
equipment. Different types of problems will have different effects
on the operation, or even life expectancy of this equipment.
Knowing what these problems are, and what some of the
consequences are of having these problems, can help in the process
of identifying what can be done to help protect this equipment.

The following pages describe several of the more common
types of Power disturbances, and list what some of the causes are.

 Dropout - Power Failure
 Sag
 Impulse
 Common Mode Noise
 Surge
 High Frequency Noise

Model OM-PQR1010

Page 52

Ver 1.2 - March 2010

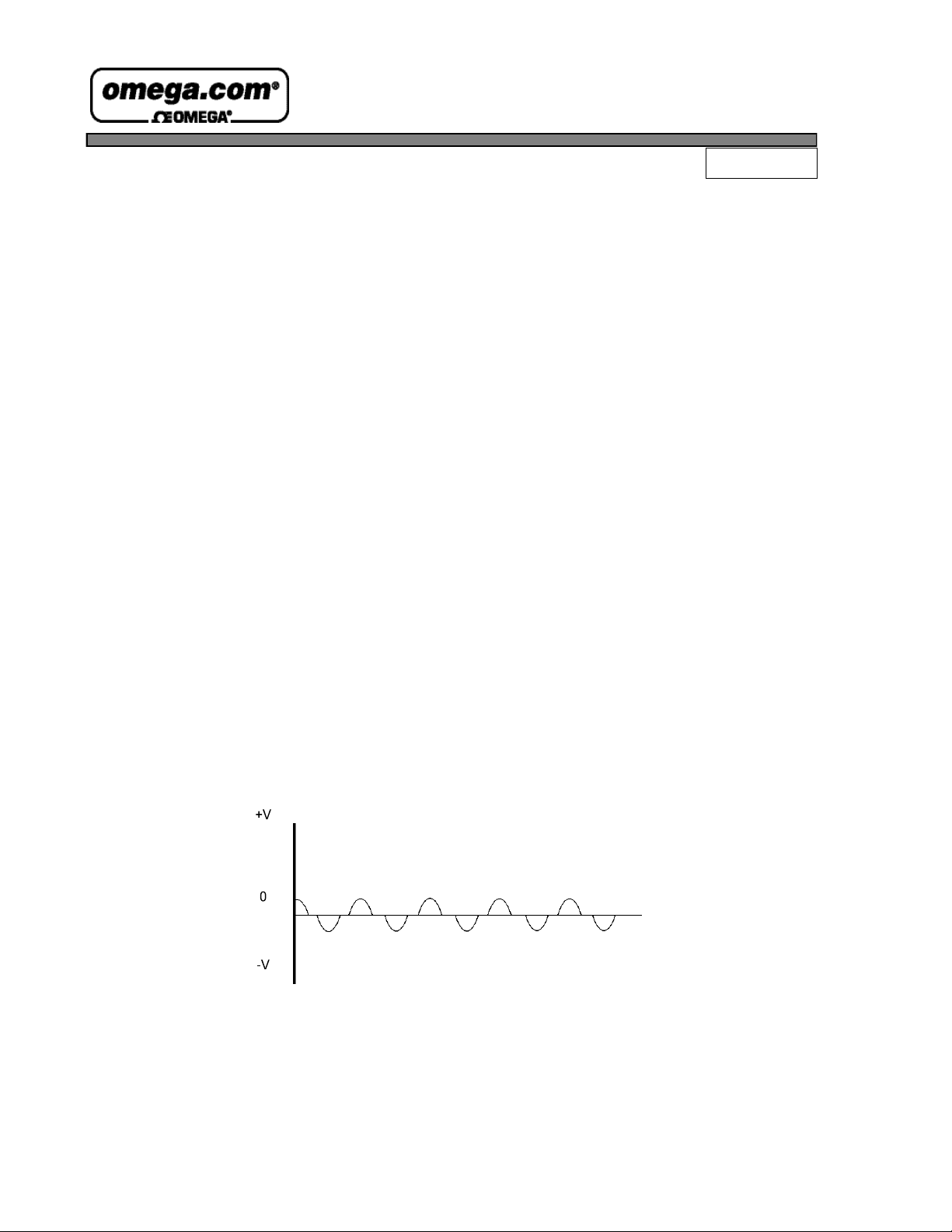

DROPOUT (NOTCH)

A condition where a portion of the sine wave has a lower
than expected value or is missing entirely, usually for a
portion of a cycle. These types of problems can be caused
when large motors are started, Lightning arresters are
employed (during a lightning hit), or when electrical
equipment fails. Dropouts can lead to failures in
computers and electronic equipment , reduced life of
motors and flickering lights.

POWER FAILURE

When the duration of a dropout exceeds 1 cycle it is
usually referred to as a Power Failure, or Blackout. This
problem is the easiest to observe.

Figure PT 2 - Dropout

Model OM-PQR1010

Page 53

Ver 1.2 - March 2010

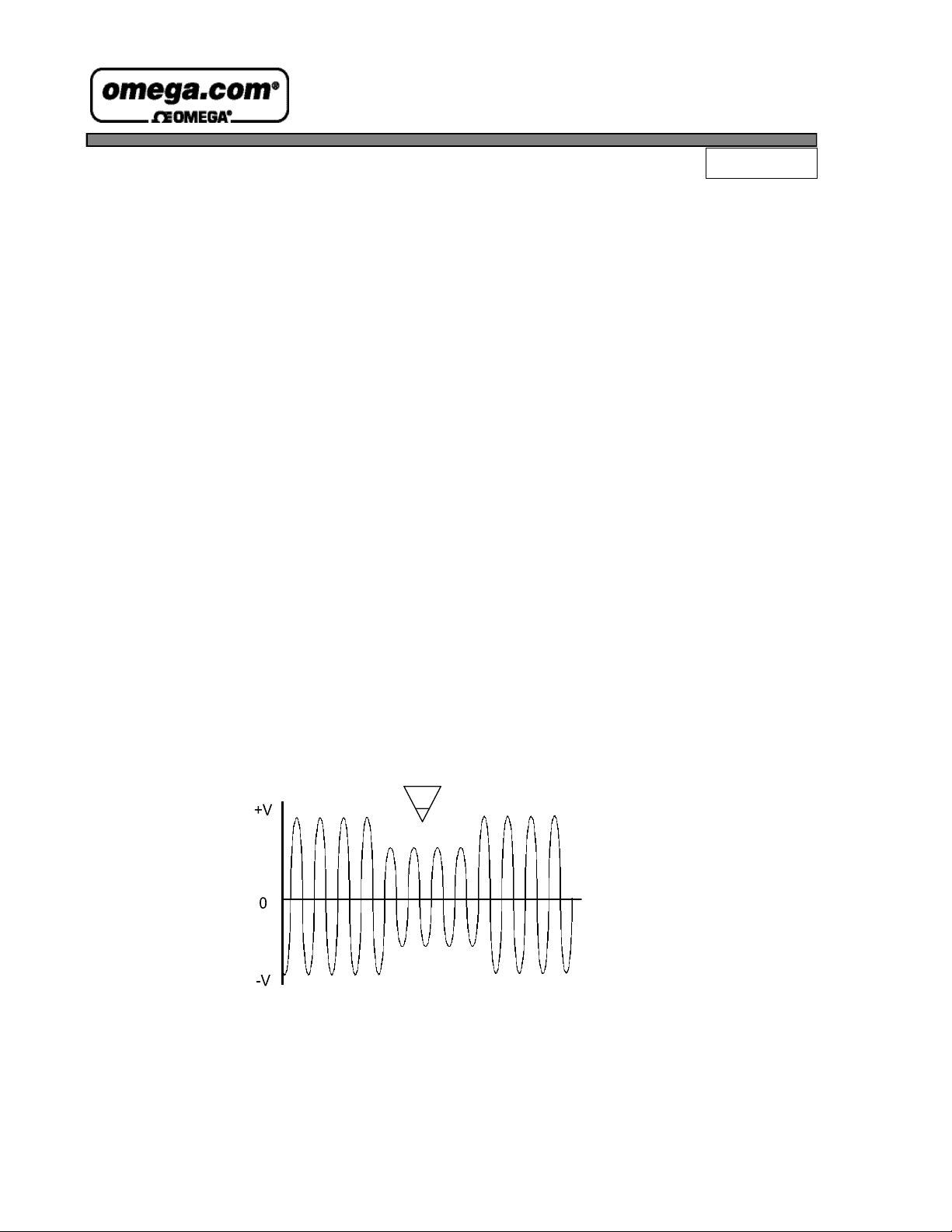

SAG

(UNDER-VOLTAGE, DIP, or BROWNOUT)

A power sag (or low line voltage) is a decrease in line
voltage of at least 10% of the average line voltage for half
a cycle or longer. The power sag is often caused by large
inductive equipment (e.g. photocopy, postage equipment)
being applied on the same AC line as is being tested. Sags
can be caused by external factors as well, such as large
power draining equipment used in other buildings. Sags
can be particularly detrimental to electronic equipment
because of the malfunctions caused by the sudden
decrease of available voltage to the power supply.
Complete failure rarely occurs, and often the equipment
user continues to operate the device, unaware of the
potential logic circuit problems that may have occurred.

Figure PT 3 - Sag

Model OM-PQR1010

Page 54

Ver 1.2 - March 2010

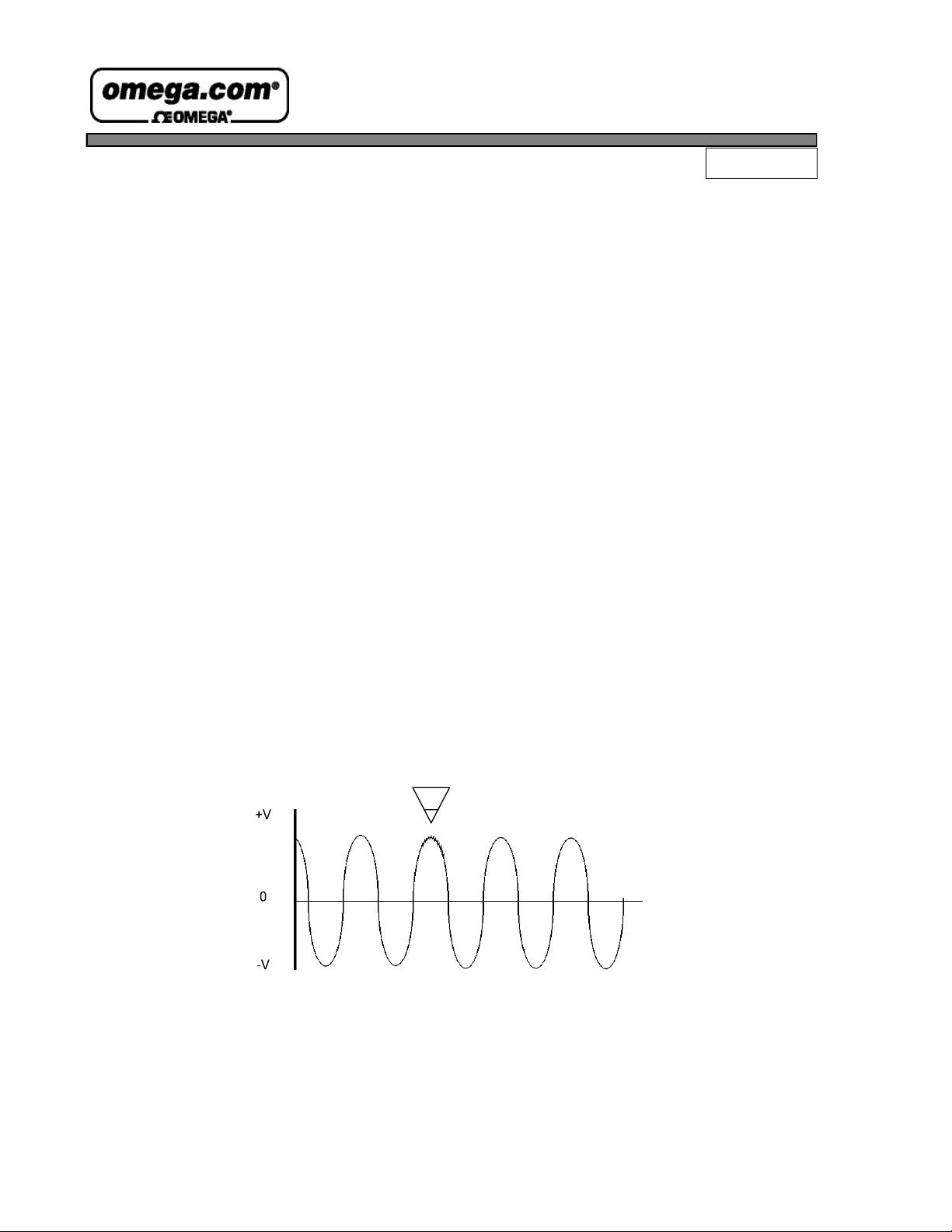

IMPULSE

(SPIKE, SURGE)

The spike is a surge of energy superimposed on the AC
line, usually with a relatively short duration. Spikes can
potentially have the most serious effects on electronic
equipment due to their high energy content, and the
Integrated Circuits inability to absorb the energy. Many
events can cause spikes, such as lightning bolts, utility
grid switching, switching inductive loads on and off, and
SCR (Silicon Control Rectifier) dimmers. Although
properly designed equipment has some built-in spike
protection, repeated hits by high energy spikes can
eventually render these components useless.

Figure PT 4 - Impulse

Model OM-PQR1010

Page 55

Ver 1.2 - March 2010

COMMON MODE NOISE

In single phase power systems, as found in many
countries such as the USA, the load (computer or
equipment) is connected between the hot and neutral
line. Usually the neutral line is connected to earth
ground at the service entrance, so that in effect the
neutral line should have 0 volts at the load. At a typical
site, voltage is induced onto the neutral line by other
equipment. This voltage can appear in the form of
impulses, or a continuous pseudo sine wave.

Figure PT 5 - Common Mode Noise

Model OM-PQR1010

Page 56

Ver 1.2 - March 2010

SURGE

(SWELL OR OVER-VOLTAGE)

A power surge is the opposite of a sag and is often
referred to as "High Line Voltage". A surge is defined as
an increase in line voltage above 128 volts (on a 115V
Line) for a half cycle or longer. Like the sag, the power
surge is often caused by large inductive loads being
applied on the same line. Power surges cause some of the
most dangerous occurrences, and their results are the most
difficult to correct.

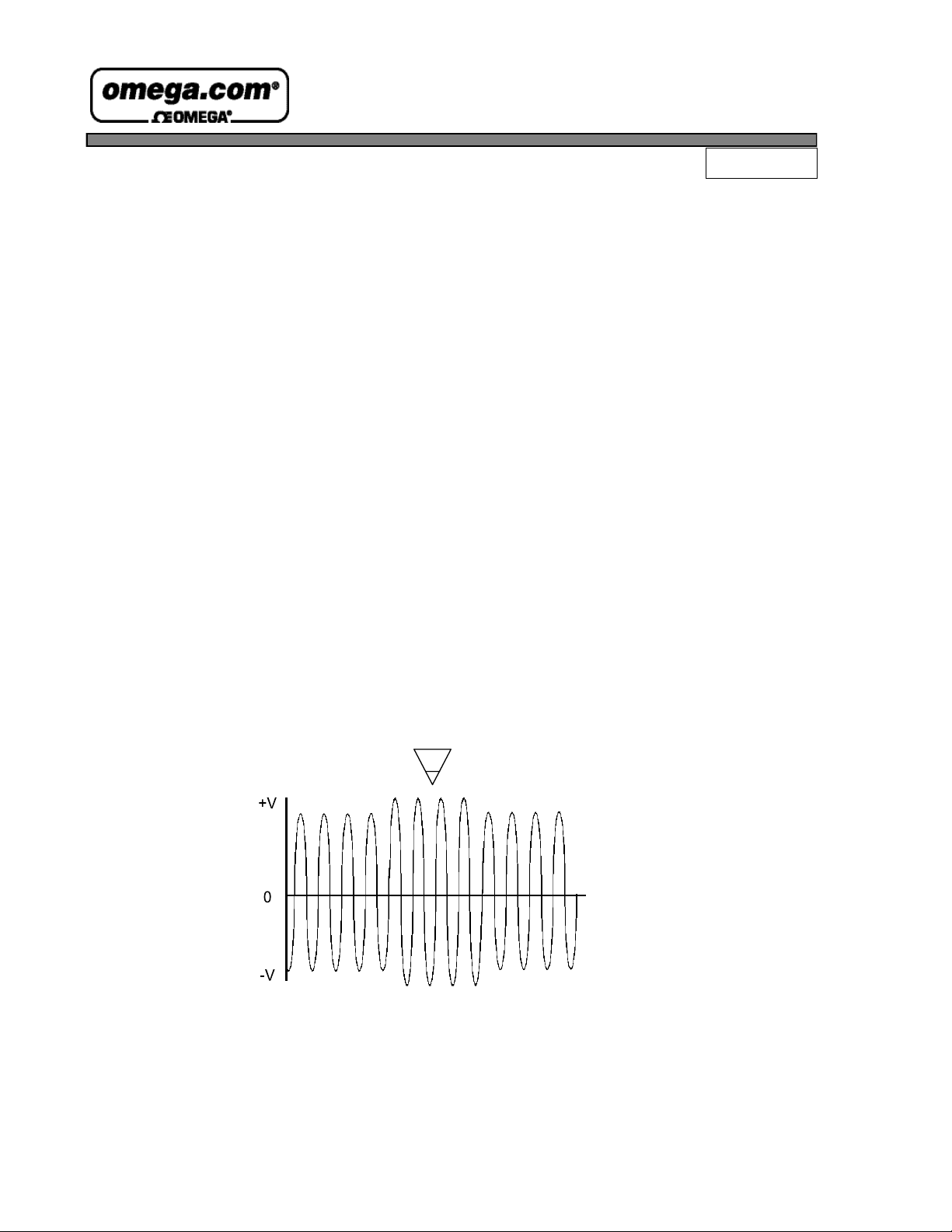

Figure PT 6 Surge

Model OM-PQR1010

Page 57

Ver 1.2 - March 2010

HIGH FREQUENCY NOISE

High frequency noise can be caused by electronic
equipment feeding internal noise back onto the power line,
or logic induced noise from switching power supplies.
This noise is transferred to the AC line causing
disturbances greater than 2V peak-to-peak superimposed
on the AC sine wave (normal mode noise). This noise can
cause internal component degradation and eventual
system failure. During this degradation period, system
lockups, resets and data transfer will increase.

Figure PT 7 - High Frequency Noise

Model OM-PQR1010

Page 58

Ver 1.2 - March 2010

Model OM-PQR1010

Page 59

Ver 1.2 - March 2010
