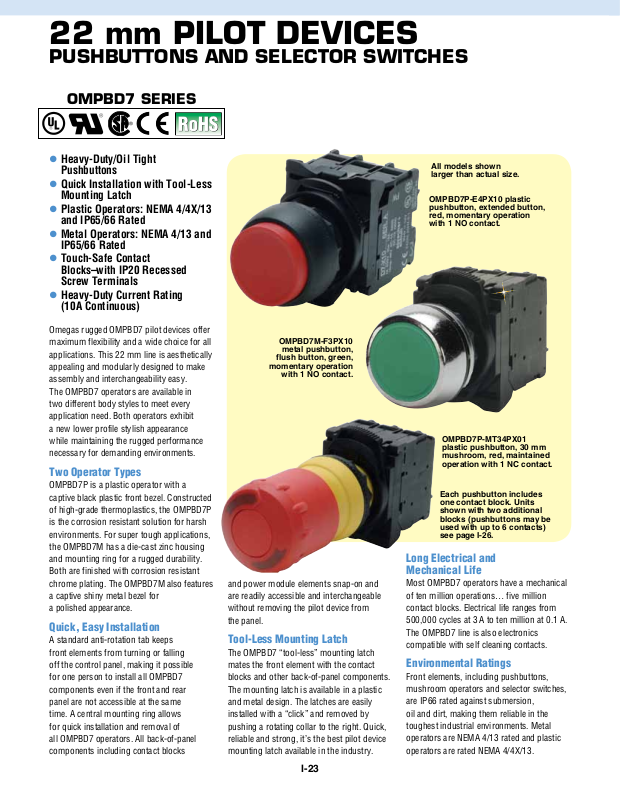

Page 1
22 mm PILOT DEVICES
PUSHBUTTONS AND SELECTOR SWITCHES
OMPBD7 SERIES
l Heavy-Duty/Oil Tight
Pushbuttons
l Quick Installation with Tool-Less
Mounting Latch
l Plastic Operators: NEMA 4/4X/13
and IP65/66 Rated
l Metal Operators: NEMA 4/13 and
IP65/66 Rated
l Touch-Safe Contact
Blocks–with IP20 Recessed
Screw Terminals
l Heavy-Duty Current Rating
(10A Continuous)
Omegas rugged OMPBD7 pilot devices offer
maximum flexibility and a wide choice for all
applications. This 22 mm line is aesthetically
appealing and modularly designed to make
assembly and interchangeability easy.
The OMPBD7 operators are available in
two different body styles to meet every
application need. Both operators exhibit
a new lower profile stylish appearance
while maintaining the rugged performance
necessary for demanding environments.
Two Operator Types
OMPBD7P is a plastic operator with a
captive black plastic front bezel. Constructed
of high-grade thermoplastics, the OMPBD7P
is the corrosion resistant solution for harsh
environments. For super tough applications,
the OMPBD7M has a die-cast zinc housing
and mounting ring for a rugged durability.
Both are finished with corrosion resistant
chrome plating. The OMPBD7M also features
a captive shiny metal bezel for
a polished appearance.
Quick, Easy Installation
A standard anti-rotation tab keeps
front elements from turning or falling
off the control panel, making it possible
for one person to install all OMPBD7
components even if the front and rear
panel are not accessible at the same
time. A central mounting ring allows
for quick installation and removal of
all OMPBD7 operators. All back-of-panel
components including contact blocks
OMPBD7M-F3PX10
metal pushbutton,
flush button, green,
momentary operation
with 1 NO contact.
and power module elements snap-on and
are readily accessible and interchangeable
without removing the pilot device from
the panel.
Tool-Less Mounting Latch
The OMPBD7 “tool-less” mounting latch
mates the front element with the contact
blocks and other back-of-panel components.
The mounting latch is available in a plastic
and metal design. The latches are easily
installed with a “click” and removed by
pushing a rotating collar to the right. Quick,
reliable and strong, it’s the best pilot device
mounting latch available in the industry.

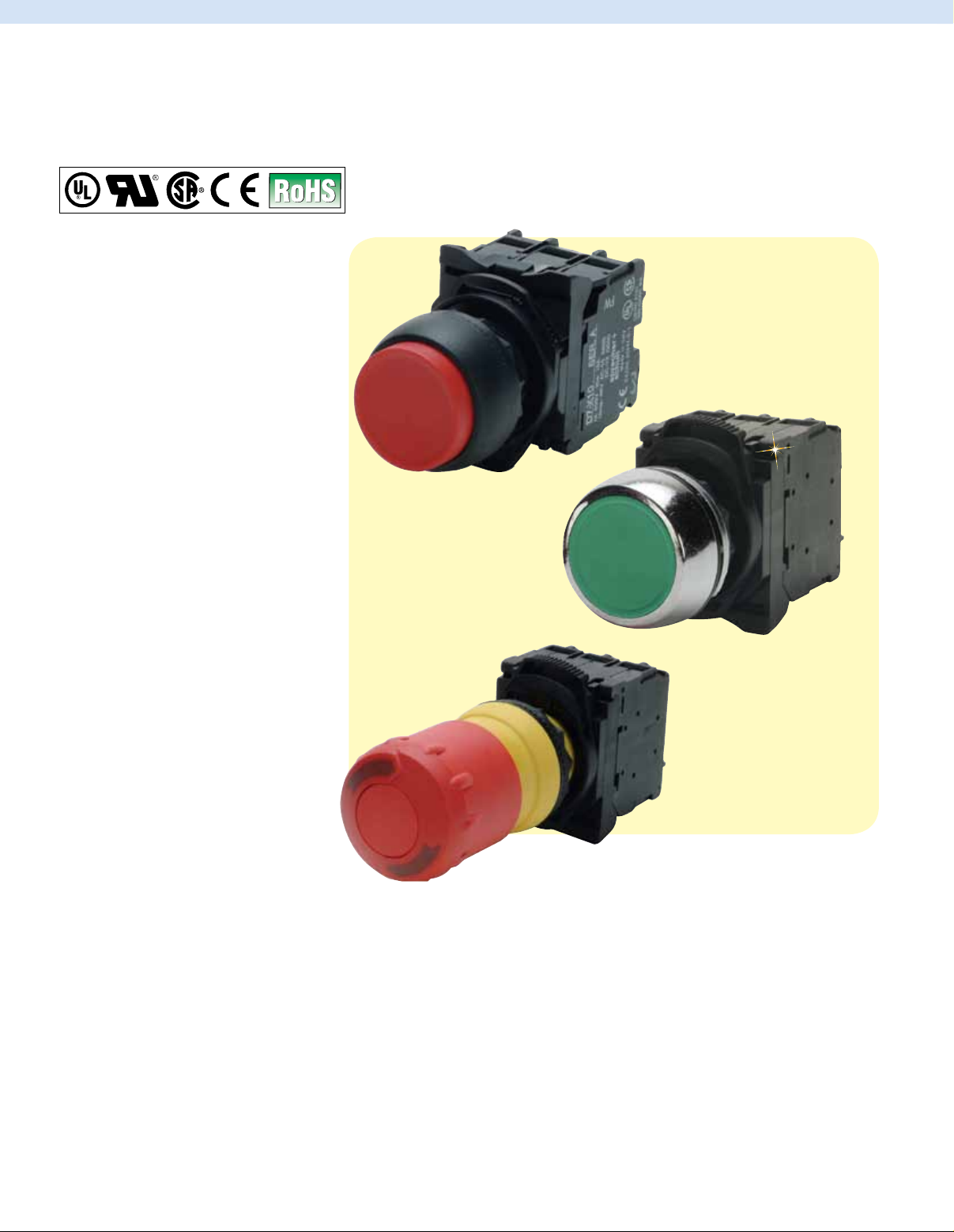

All models shown
larger than actual size.
OMPBD7P-E4PX10 plastic
pushbutton, extended button,
red, momentary operation
with 1 NO contact.
OMPBD7P-MT34PX01
plastic pushbutton, 30 mm
mushroom, red, maintained
operation with 1 NC contact.
Each pushbutton includes
one contact block. Units
shown with two additional
blocks (pushbuttons may be
used with up to 6 contacts)
see page I-26.
Long Electrical and
Mechanical Life
Most OMPBD7 operators have a mechanical
of ten million operations… five million
contact blocks. Electrical life ranges from
500,000 cycles at 3 A to ten million at 0.1 A.
The OMPBD7 line is also electronics
compatible with self cleaning contacts.
Environmental Ratings
Front elements, including pushbuttons,
mushroom operators and selector switches,
are IP66 rated against submersion,
oil and dirt, making them reliable in the
toughest industrial environments. Metal
operators are NEMA 4/13 rated and plastic
operators are rated NEMA 4/4X/13.
I-23
Page 2

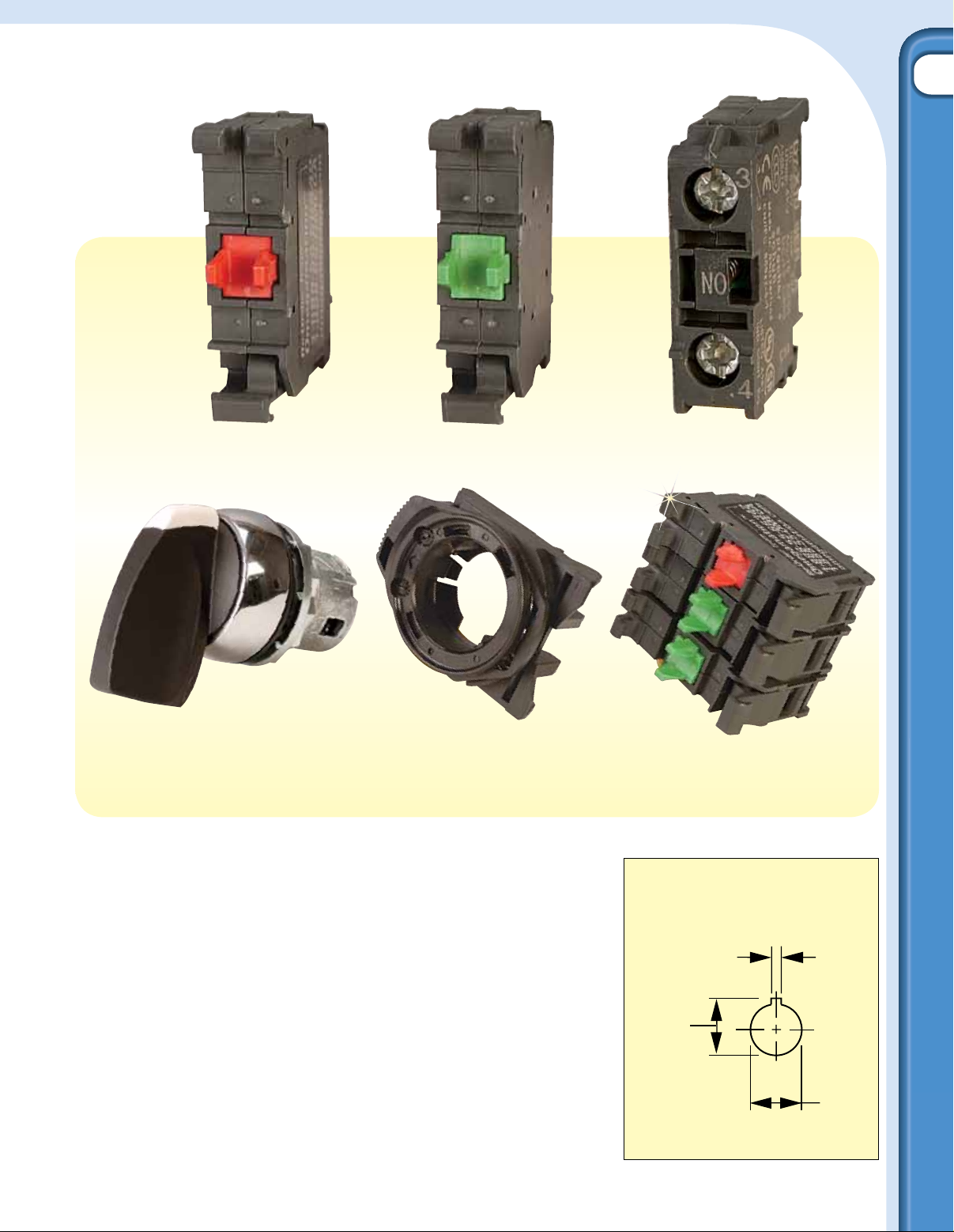

OPTION
=
CONTACT BLOCKS
OMPBD7-X01
All shown larger
than actual size.
Red = normally closed.
OMPBD7-X10
Green = normally open.
I
Pushbuttons and Lights
Rear view.
OMPBD7M-HM22PX01, two way metal selector switch with long knob.
Each unit includes tool-less mounting latch and one normally closed contact block.
Shown with two additional (up to 6 total per operator possible) normally open
contact blocks, model OMPBD7-X10.
H-Bridge & Gold Plated Contacts—
By doubling the available paths for current
Additional Features
and Options
Heavy-Duty Ratings—The OMPBD7 line
is UL 46E, NEMA A600 and Q600 listed.
All components carry a 10 Amp continuous
current rating, covering all industrial
control needs.
All Major Approvals—OMPBD7 front
elements are UL Recognized, while all
OMPBD7 assemblies are UL Approved.
The line is also approved by every major
international agency making them
ideal for export requirements.
to pass through the contacts, the standard
H-bridge design provides a cleaner current
flow. Gold plated contacts quadruple the
current paths for increased contact reliability
in low voltage applications.
Touch-Safe—Back of panel components
are finger safe, with IP20 protection.
Long Lasting Integral LED Assemblies—
Our new LED lamps last up to 11 years!
They are conveniently offered as a complete
unit for all illuminated operators which
include the one piece Integral LED Module.
They come in five different colors: amber,
blue, green, red and white.
I-24
Panel Hole Dimensions: mm (inch)
(0.126)
+0,4
–0
24.1
(0.95)
(0.88)
3.2
22.3
+0,2
–0
+0,4
–0
Page 3

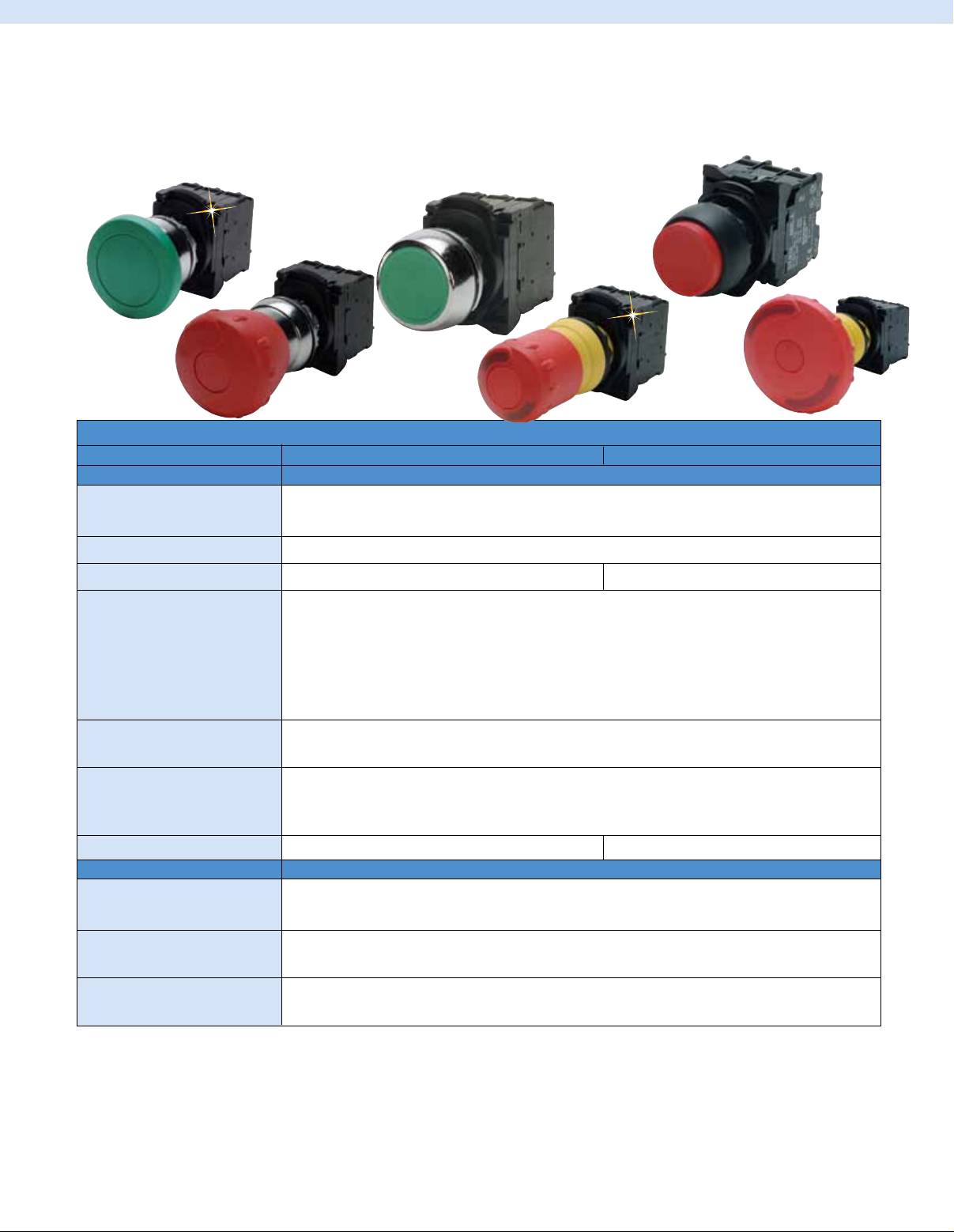

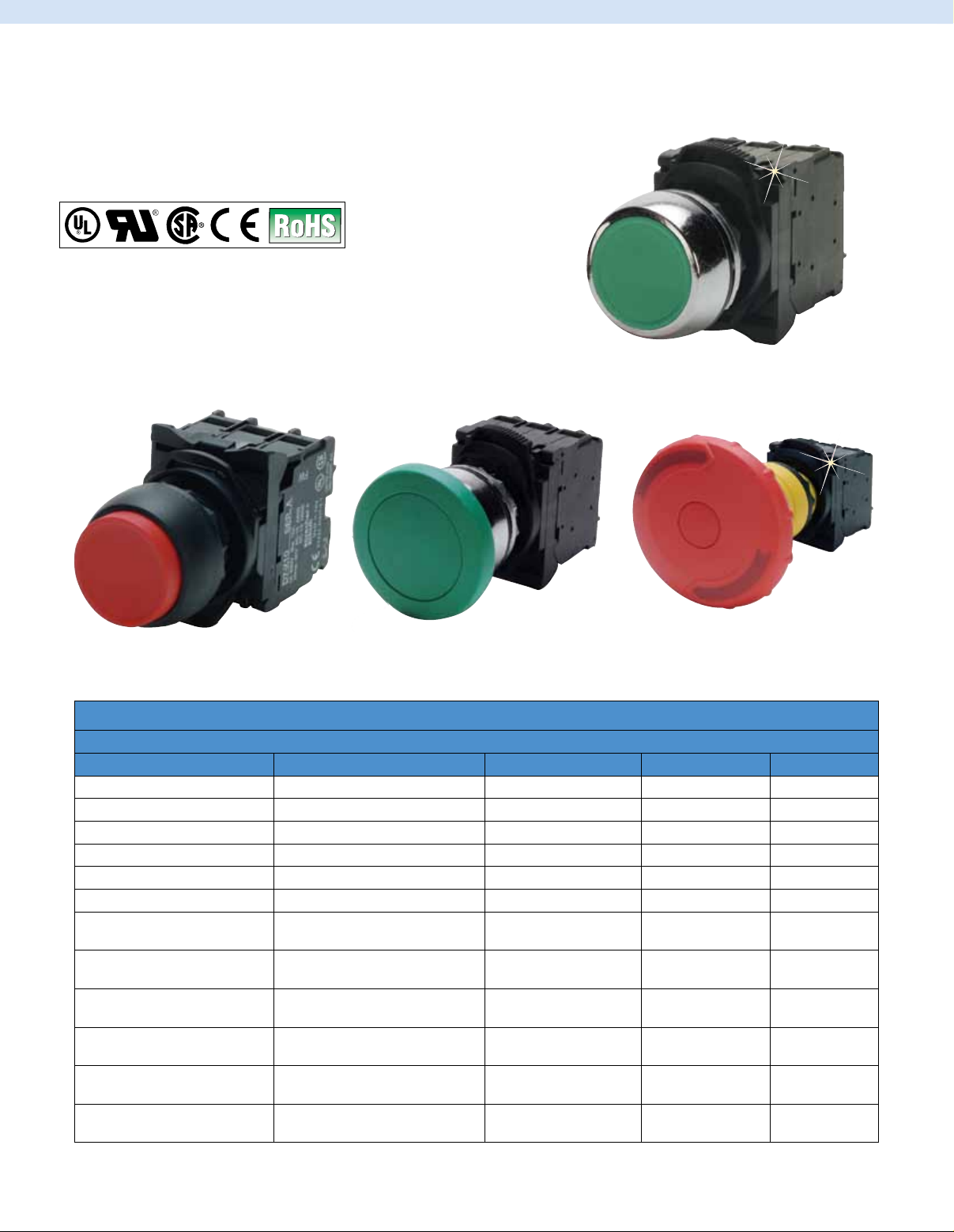

22 mm PUSHBUTTONS
NON-ILLUMINATED PUSHBUTTONS AND E-STOPS
OMPBD7-NL Series
OMPBD7P-E4PX10
plastic pushbutton, extended
button, red, momentary
operation with one NO contact.
metal pushbutton, flush button,
OMPBD7M-F3PX10
green, momentary operation
with one NO contact.
Each pushbutton includes
one contact block. Units shown
with two additional blocks
(pushbuttons may be used with
up to 6 contacts), see page I-26.
OMPBD7M-MM43PX01
metal pushbutton, 40 mm
mushroom, green, momentary
operation with one NC contact.
All models shown
larger than actual size.
OMPBD7P-MT64PX10
plastic pushbutton, 60 mm
mushroom, red, maintained
operation with one NO contact.
To Order Visit omega.com/ompbd7_mush2 for Pricing and Details
NON-ILLUMINATED PUSHBUTTONS—COMPLETE WITH LATCH AND ONE CONTACT BLOCK
METAL OPERATOR PLASTIC OPERATOR BUTTON STYLE OPERATION CONTACT
OMPBD7M-E(*)PX01 OMPBD7P-E(*)PX01 Extended Momentary 1 NC
OMPBD7M-E(*)PX10 OMPBD7P-E(*) PX10 Extended Momentary 1 NO
OMPBD7M-F(*)PX01 OMPBD7P-F(*) PX01 Flush Momentary 1 NC
OMPBD7M-F(*)PX10 OMPBD7P-F(*)PX10 Flush Momentary 1 NO
OMPBD7M-FA(*) PX01 OMPBD7P-FA(*)PX01 Flush Maintained 1 NC
OMPBD7M-FA(*) PX10E OMPBD7P-FA(*)PX10E Flush Maintained 1 NOEM
OMPBD7M-MM4(*)PX01 OMPBD7P-MM4(*) PX01 40 mm Momentary 1 NC
mushroom
OMPBD7M-MM4(*)PX10 OMPBD7P-MM4(*)PX10 40 mm Momentary 1 NO
mushroom
OMPBD7M-MM6 (*)PX01 OMPBD7P-MM6 (*)PX01 60 mm Momentary 1 NC
mushroom
OMPBD7M-MM6 (*)PX10 OMPBD7P-MM6(*)PX10 60 mm Momentary 1 NO
mushroom
OMPBD7M-MP4(*)PX01 OMPBD7P-MP4(*)PX01 40 mm Maintained 1 NC
push-pull
OMPBD7M-MP4(*)PX10 OMPBD7P-MP4(*)PX10 40 mm Maintained 1 NO
push-pull
Insert number for color selection, 2 = black, 3 = green, 4 = red, 5 = yellow, 6 = blue, 9 = no caps for inscription caps on flush models only.
*
I-25
Page 4
To Order Visit omega.com/ompbd7_mush2 for Pricing and Details
TWIST-TO-RELEASE E-STOP PUSHBUTTONS —COMPLETE WITH LATCH AND ONE CONTACT BLOCK
METALOPERATOR PLASTIC OPERATOR BUTTON
MODEL NO. MODEL NO. STYLE OPERATION CONTACT
OMPBD7M-MT34PX01 OMPBD7P-MT34PX01 30 mm mushroom Maintained 1 NC
OMPBD7M-MT34PX10 OMPBD7P-MT34PX10 30 mm mushroom Maintained 1 NO
OMPBD7M-MT34PX01S OMPBD7P-MT34PX01S 30 mm mushroom Maintained 1 GCB
OMPBD7M-MT44PX01 OMPBD7P-MT44PX01 40 mm mushroom Maintained 1 NC
OMPBD7M-MT44PX10 OMPBD7P-MT44PX10 40 mm mushroom Maintained 1 NO
OMPBD7M-MT44PX01S OMPBD7P-MT44PX01S 40 mm mushroom Maintained 1 GCB
OMPBD7M-MT64PX01 OMPBD7P-MT64PX01 60 mm mushroom Maintained 1 NC
OMPBD7M-MT64PX10 OMPBD7P-MT64PX10 60 mm mushroom Maintained 1 NO
OMPBD7M-MT64PX01S OMPBD7P-MT64PX01S 60 mm mushroom Maintained 1 GCB
OMPBD7M-MK44PX01 OMPBD7P-MK44PX01 Keyed 40 mm Maintained 1 NC
OMPBD7M-MK44PX10 OMPBD7P-MK44PX10 Keyed 40 mm Maintained 1 NO
OMPBD7M-MK44PX01S OMPBD7P-MK44PX01S Keyed 40 mm Maintained 1 GCB
Come complete with one operator, one tool-less latch and one contact block.
Up to 6 contact blocks can be used per operator.
ACCESSORIES
MODEL NO. DESCRIPTION
OMPBD7-N2 22.5 mm (0.89") hole plug
OMPBD7-AW2 Mounting ring wrench for plastic or metal operators.
OMPBD7-AKR3825 Additional set of keys
CONTACT BLOCKS, UP TO 6 PER OPERATOR
MODEL NO. DESCRIPTION
OMPBD7-X01 One NC contact block
OMPBD7-X10 One NO contact block
OMPBD7-X01L One NCLB, late break contact block
OMPBD7-X10E One NOEM, early make contact block
OMPBD7-X01V One NC low voltage contact block
OMPBD7-X10V One NO low voltage contact block
OMPBD7-X01S GCB—Guardian Contact Block for E-stops
INSCRIPTION CAPS FOR NO CAP PUSHBUTTONS
MODEL NO. DESCRIPTION
OMPBD7-AF301 Green “START” cap for flush momentary pushbuttons
OMPBD7-AF306 Green “I” cap for flush momentary pushbuttons
OMPBD7-AF402 Red “O” cap for flush momentary pushbuttons
OMPBD7-AF405 Red “STOP” cap for flush momentary pushbuttons
OMPBD7-AF3CE166 Green “ON” cap for flush momentary pushbuttons
OMPBD7-AE402 Red “O” cap for flush momentary pushbuttons
OMPBD7-AE405 Red “STOP” cap for flush momentary pushbuttons
LEGENDS—BLACK WITH WHITE LETTERS
MODEL NO. LEGEND MODEL NO. LEGEND
OMPBD7-34BE101 AUTO OMPBD7-34BE163 OFF
OMPBD7-34BE107 CLOSE OMPBD7-34BE166 ON
OMPBD7-34BE110 DOWN OMPBD7-34BE170 OPEN
OMPBD7-34BE113 FAULT OMPBD7-34BE188 REVERSE
OMPBD7-34BE114 FAST OMPBD7-34BE193 RUN
OMPBD7-34BE120 FORWARD OMPBD7-34BE201 SLOW
OMPBD7-34BE126 HAND OMPBD7-34BE208 START
OMPBD7-34BE129 HIGH OMPBD7-34BE212 STOP
OMPBD7-34BE14 LOW OMPBD7-34BE223 UP
I
Pushbuttons and Lights
I-26
Page 5
22 mm PILOT DEVICES
HEAVY-DUTY/OIL TIGHT PUSHBUTTONS
AND SELECTOR SWITCHES OMPBD7 SERIES
Non-illuminated
pushbuttons, shown
on pages I-25 and I-26.
Front-of-Panel (Operators)
DESCRIPTION PLASTIC (OMPBD7P) METAL (OMPBD7M)
MECHANICAL RATINGS
Vibration [G] Tested at 10 ...2000 Hz, 1.52 mm displacement (peak-to-peak)
(assembled to panel) max/10 G max for 3 hr duration, no damage
Shock [G] Tested at 1/2 cycle sine wave for 11 ms; no damage at 100 G
Degree of Protection
Mechanical Durability 10,000,000 Cycles Momentary push buttons, momentary mushroom
per EN 60947-5-1 (Annex C) 1,000,000 Cycles Multi-function, Selector Switch, Key Selector Switch,
500,000 Cycles Selector Jog Non-illuminated Push-Pull E-Stop
300,000 Cycles Twist-to-Release E-Stop, Illuminated Push-Pull E-Stop,
Maintained Push Buttons, selector switches
100,000 Cycles Potentiometer, Toggle Switch
Operating Forces (typical [N] Flush/extended = 5N; E-stop = 36N; Mushroom = 9N
with one contact block)
Operating Torque (typical
application with one [N·m] Selector switch = 0.25 N·m (2.2 lb-in.)
contact block)
Mounting Torque [N·m] 1.7N•m(15lb-in) 4.4N•m(40lb-in)
MECHANICAL RATINGS
2
UL Type 3/3R/4/4X/12/13 (IP65/66) UL Type 3/3R/4/12/13 (IP65/66)
1
Temperature Range [°C] -25 to 70°C (-13 to 158°F)
(operating)
Temperature range [°C] -40 to 85°C (-40 to 185°F)
(short-term storage)
Humidity [%] 50 to 95% RH from 25 to 60°C (77 to 140°F) per:
Procedure IV of MIL-STD-810C, Method 507.1 cycling test
Notes:
1 Performance data given in this publication is provided only as a guide for the user in determining suitability and do not constitute a
performance warranty of any kind. Such data may represent the results of accelerated testing at elevated stress levels, and the user is
responsible for correlating the data to actual application requirements. ALL WARRANTIES AS TO ACTUAL PERFORMANCE, WHETHER
EXPRESS OR IMPLIED, ARE EXPRESSLY DISCLAIMED.
2 Momentary mushroom operators are IP65, multi-function operators are not Type 13 rated. Plastic operators with keys are not Type 4X rated.
3 Operating temperatures below 0°C (32°F) are based on the absence of freezing moisture and liquids, UL recognized to 55°C (131°F)
incandescent module, max 40°C (104°F).
3
I-27
Page 6
I
Back-of-Panel Components
1
DESCRIPTION PLASTIC (OMPBD7P) METAL (OMPBD7M)
ELECTRICAL RATINGS
Standard Contact A600, Q600,
Block Ratings 600 Vac,
AC15, DC 13 to EN 60947-5-1 and UL 508, 17V, 5 mA min
Low Voltage Contact 5V, 1mA DC min.
Block Ratings
4
C300, R150, AC 15, DC 13 to EN 60947-5-1 and UL 508
Nominal Voltage Range Current Draw Frequency
24 Vac 0 to 29 Vac 31 mA 50/60 Hz
LED Module Ratings 24 Vdc 10 to 30 Vdc 24 mA DC
120 Vac 70 to 132 Vac 25 mA 50/60 Hz
240 Vac 180 to 264 Vac 22 mA 50/60 Hz
Thermal Current [A] 10 A max enclosed (40°C ambient) to UL 508, EN 60947-5-1
Wire Capacity
Screw terminal
Spring-clamp terminal [AWG] #18 to 14 AWG (0.75 to 1.5 mm
5
[AWG] #18 to 12 AWG (0.75 to 2.5 mm2) Max (2) #14 AWG or (1) #12 AWG
2
)
Recommended Tightening
Torque on Screw Terminals [N] 0.7to0.9N•m(6to8lb-in)
Insulation Voltage [Ui] Ui = 690 V (screw terminal)
Ui = 300 V (screwless terminal)
Dielectric Strength (Min) [V] 2500 V for one minute
External Short Circuit
Protection
Standard blocks
10 A type gL/gG cartridge fuse to EN 60269-2-1 or gN (Class J to UL 248-8 or Class C to UL 248-4)
Low voltage
Contact blocks
6 A type gL/gG cartridge fuse to EN 60269-2-1 or gN (Class J to UL 248-8 or Class C to UL 248-4
)
Electrical Shock Protection Finger-safe conforming to IP2X
MECHANICAL RATINGS
Vibration [G] 10 to 2000 Hz, 1.52 mm displacement (peak-to-peak) max/10 G max 6 hr
(Assembled to Panel)
Shock [G] Tested at 1/2 cycle sine wave for 11 ms and no damage at 100 G max
Contact durability per
EN 60947-5-1 (Annex C) 10,000,000 cycles
NO Slow double make and break
NC Slow double make and break - positive opening
Contact Operation NOEM Double break/double make/early make
NCLB Double break/double make, late break - positive opening
NCEB Double break/double make, early break - positive opening
Push Button Travel to
NC and NOEM 1.5 mm (0.060 in)
Change Electrical State NO and NCLB 2.5 mm (0.1 in)
Operating Forces (Typical) [N] 3.4 N: each single circuit contact block
5 to 6.5 N: each dual circuit contact block
Notes:
1 Performance data given in this publication is provided only as a guide for the user in determining suitability and do not constitute a
performance warranty of any kind. Such data may represent the results of accelerated testing at elevated stress levels, and the user is
responsible for correlating the data to actual application requirements. ALL WARRANTIES AS TO ACTUAL PERFORMANCE, WHETHER
EXPRESS OR IMPLIED, ARE EXPRESSLY DISCLAIMED.
4 Low voltage contacts are recommended for applications below 17 V, 5 mA.
5 Wires less than #18 (0.75 mm2) may not hold in terminal securely.
Pushbuttons and Lights
I-28
Loading...
