Omega MicroLab Lite Installation Guide

This document contains instructions for downloading and installing the MicroLab Lite
software, supporting Omega Engineering’s MicroLite USB data logger.

System Requirements

To work with MicroLab Lite your system should be configured with the following:

Software

• Windows 98 SE, Windows 2000, Windows XP, Server 2003 and Vista

• Internet Explorer 5.0 or higher

Hardware

• Pentium 200 MHz or higher

• 32 MB RAM (64 MB recommended)

• 10 MB available disk space for the MicroLab Lite application

Installation Procedure

1. Browse to the Omega website to download MicroLab Lite.
You may either:

a. Click Save to save the MicroLabLite_setup.exe file to your PC and then

double click the file icon to launch the Installation Wizard.

b. Click Run to install the software directly from the Omega website.

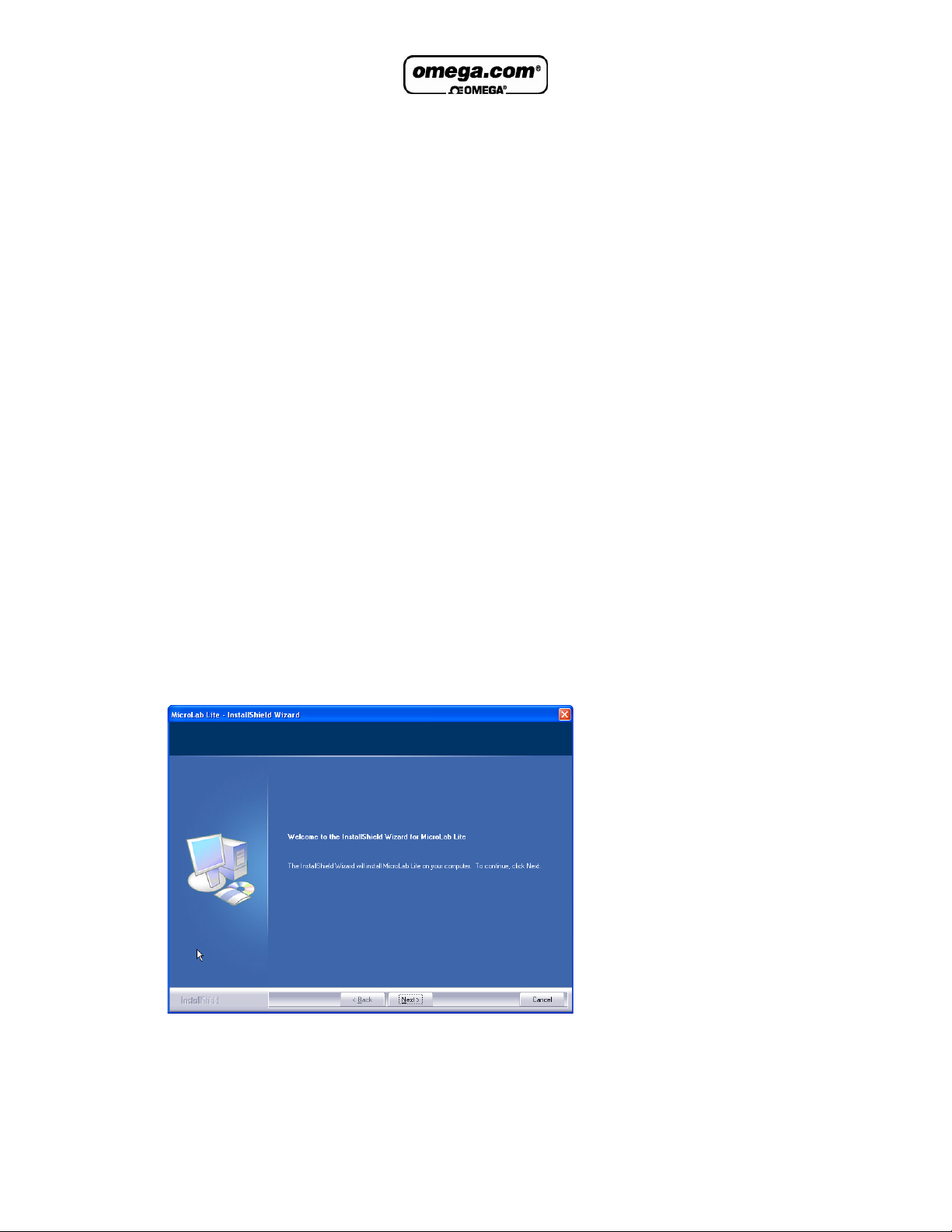

2. The MicroLab Lite software will first be installed. Follow the on-screen instructions
to continue the installation process.

3. Once the MicroLab Lite software has been installed the Silicon Laboratories USB
driver installation will begin automatically. The driver is necessary for the computer
to detect the MicroLite logger.

1

4. Follow the on-screen instructions to continue the installation process. The default
installation location is C:\SiLabs.

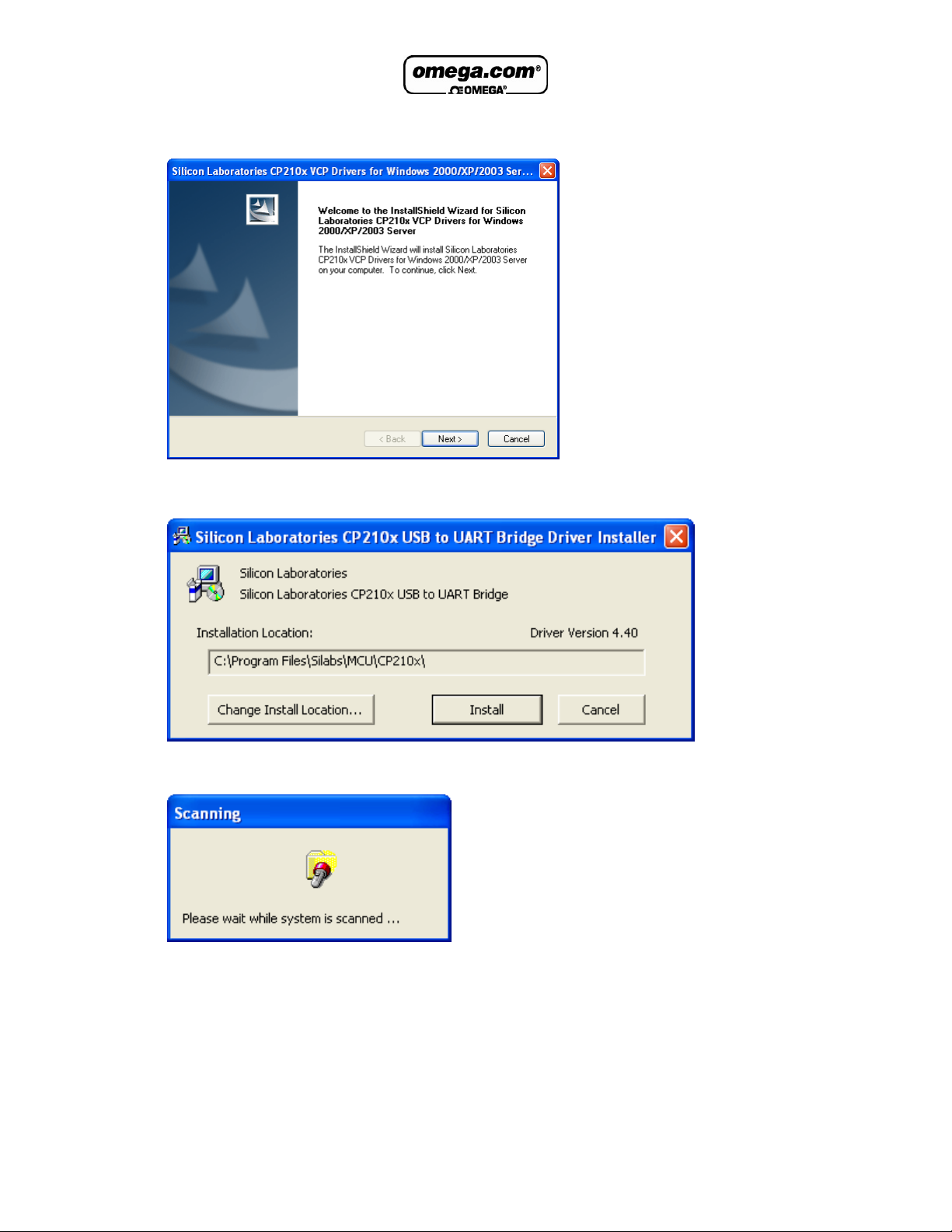

5. When the following dialog pops up, click Install.

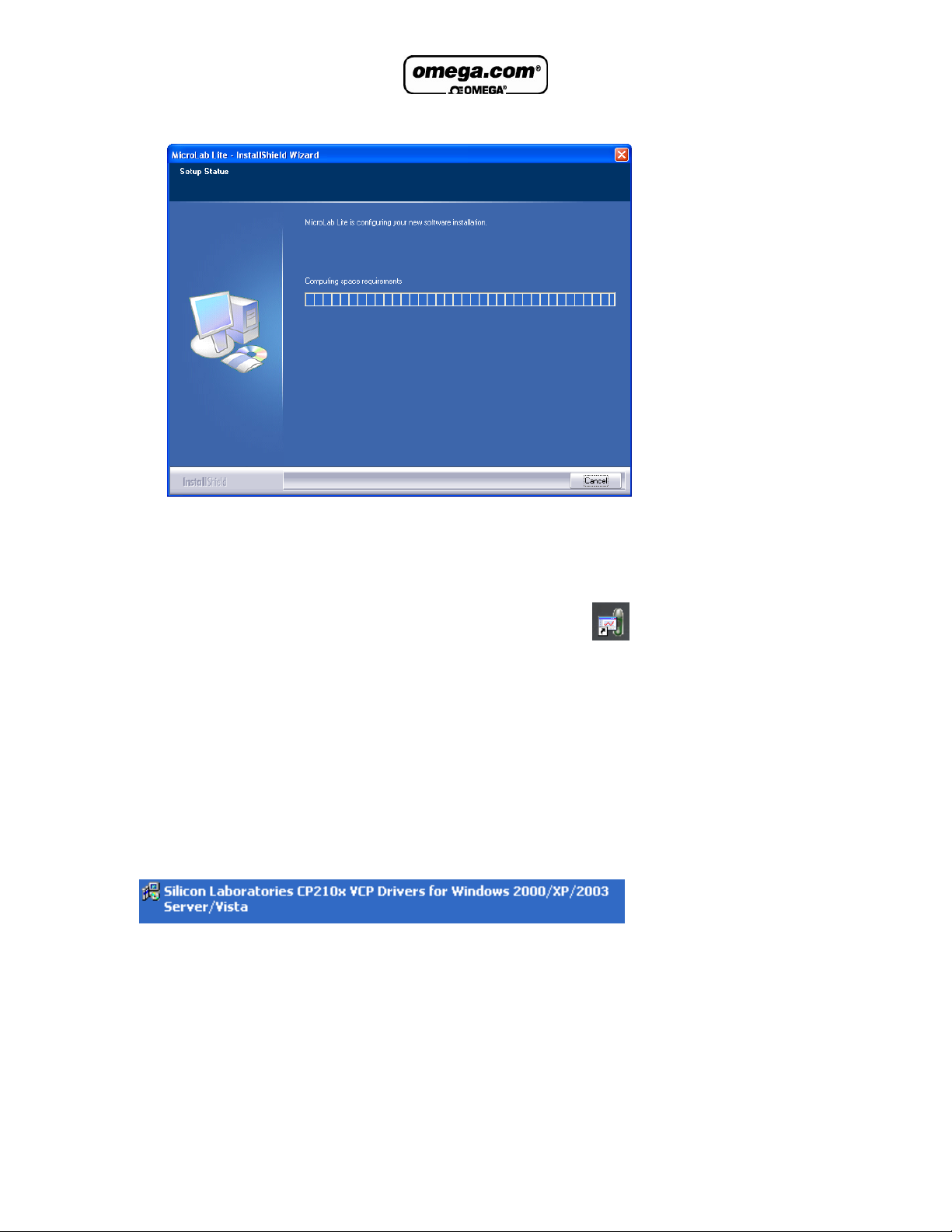

6. The installation of the driver could take up to one minute or more, depending on
the system.

Once installed, click Finish to close the USB driver Install Wizard dialog.

2

7. The main MicroLab Lite InstallShield Wizard now resumes.

8. After a few more seconds, the installation process is completed. Click Finish.

9. Connect the MicroLite to a USB port on your PC. The PC will automatically detect
the MicroLite as new hardware. After a few seconds you will see a message
stating that the device is ready for use.

10. Double click the MicroLab Lite shortcut on your desktop
software. If the MicroLite is connected to the PC the software will automatically
detect it.

Troubleshooting

When connected to the PC USB port the MicroLite was not detected by the software.

Ensure that the USB driver was installed properly.
If it is, then the MicroLite LED will light green when connected to the USB.

Go to Control Panel > Add/Remove Programs (in WinXP), and check that the driver is
installed:

If not, you must rerun the MicroLite setup.exe to install the driver.

If the driver is installed, ensure that there is no other device sharing the USB com port
with the MicroLite.

to launch the

3
