Introduction and Installation

Introduction

Overview

The OMG-PCI-DIO96 provides twelve eight-bit ports compatible with 8255
mode 0. Each port may be individually configured as inputs or outputs.

What’s Included

The OMG-PCI -DIO96 is shipped with the following items. If any of these items
is missing or damaged, contact the supplier.

• OMG-PCI-DIO96 Adapter

• Software CD

Industry Standard Relay Rack Cables and options are available:

• Part number CA135 for Edge Connection

• Part number CA167 for IDC Connection

• Part number TB07-50 pin terminal block

Installation

Card Setup

The OMG-PCI -DIO96 is a fully compliant PCI ‘Plug and Play’ adapter. All card
resources (i.e. I/O address, IRQ selection) are auto-assigned by either your
system BIOS or your ‘Plug and Play’ operating system.

Software Installation

For proper operation install software first. To install the software place the CD in
your CD-ROM tray and the auto-run program will start. If auto-run is not
available browse the CD and choose “index.htm”. Choose Install Software at the
beginning of the CD. Select the Digital I/O software drivers and install SeaIO
prior to installing hardware.

Linux Users

Refer to the installation instructions at the beginning of the CD for details on
installing digital I/O cards in Linux.

OMG-PCI -DIO96 Page 1

Introduction and Installation

System Installation

The OMG-PCI -DIO96 can be installed in any of the PCI expansion slots.

1. Turn off PC power. Disconnect the power cord.

2. Remove the PC case cover.

3. Locate an available PCI slot and remove the blank metal slot cover.

4. Remove the clamping portion of the bracket from the card.

5. Gently insert the OMG-PCI-DIO96 into the slot. Make sure that the

adapter is seated properly.

6. Feed the four 50-pin ribbon cables through the cutout bracket and
connect them to the card.

7. Replace the bracket retaining screw.

8. Install the clamping portion of the bracket

9. Replace the computer cover.

10. Connect the power cord. Installation is complete.

OMG-PCI -DIO96 Page 2

Technical Description

Technical Description

The OMG-PCI -DIO96 provides 96 channels of digital I/O configurable as inputs or outputs, which
can be utilized for PC based control and automation including sensors, switches, satellite antenna
control systems, video and audio studio automation, security control systems, and other industrial
automation systems.

Software

The OMG-PCI-DIO96 ships with the SeaI/O suite of Windows 98/NT/ME/2000 drivers. SeaI/O
provides the user with a consistent and straightforward API, allowing the developer to concentrate
on the details of the application as opposed to low level driver development. Popular development
environments, including Visual C++, Visual Basic, and Delphi, are supported for application
development. SeaI/O includes sample applications and a utility for configuring the driver
parameters under Windows, further simplifying installation.

Linux Users

The OMG-PCI-DIO96 ships with software for Linux, including a kernel-mode driver, API, and the
SeaIOTst diagnostic tool. The kernel-mode driver is provided as a module, so future driver
upgrades may be performed with minimal (usually zero) downtime. The Linux API is identical to its
Windows counterpart, facilitating quick and easy ports of existing SeaI/O -aware applications to the
Linux operating system. All source code for the Linux software suite is provided under the GNU
Public License (GPL v2.0), to assist in "roll-your-own"-type applications.

OM G-PCI-DIO96 Page 3

Technical Description

3rd Party Software Support

Third party software support for many HMI/MMI and other process control software is included
on the product installation CD. For the most up to date information on third party software support,
please visit http://www.omega.com.

OM G-PCI-DIO96 Page 4

Technical Description

Electrical Characteristics

The Table , below provides the electrical characteristics of each Input/Output. Each port is buffered
with a 74LS245 octal bi-directional transceiver. Each input is capable of sinking up to 24 mA, while
each output can source up to 15 mA.

Recommended Operating Conditions

Min Max

Input 0 V 5.25 V

Source 15 mA

Sink 24 mA

Electrical Characteristics

High Level Input Voltage Min 2 V

Low Level Input Voltage Max 0.8 V

High Level Output Voltage

Typically 3.4 V at 3 mA

Low Level Output Voltage Max 0.55 V at 24 mA

Min 2 V at 15 mA

Figure 1-Electrical Characteristics

OM G-PCI-DIO96 Page 5

Technical Description

Pull Ups

Ten pin bussed resistor packs are installed to provide pull-ups to the input ports. These are
installed on all ports. The pull-up resistor packs are rated at 10K ohms. Figure 2 below provides the
bussed resistor and corresponding port. The resistors insure that no line is floating which is not
connected. This provides consistent biasing on all un-terminated lines.

Bussed Corresponding

Resistor Port Resistor Port

RP1 Port A1 RP7 Port A3
RP2 Port B1 RP8 Port B3
RP3 Port C1 RP9 Port C3
RP4 Port A2 RP10 Port A4
RP5 Port B2 RP11 Port B4
RP6 Port C2 RP12 Port C4

Bussed Corresponding

Figure 2-Pull Up Resistors

OM G-PCI-DIO96 Page 6

Technical Description

50 pin ribbon cable pin out

Figure 3-50 Pin Ribbon Cable Pin Out

Description Pin #

Port A
A0 47
A1 45
A2 43
A3 41
A4 39
A5 37
A6 35
A7 33

Port B
B0 31
B1 29
B2 27
B3 25
B4 23
B5 21
B6 19
B7 17

Port C
C0 15
C1 13
C2 11
C3 9
C4 7
C5 5
C6 3
C7 1

GND All Even pins
+5V 49

OM G-PCI-DIO96 Page 7

Programming

Programming

Application Programmers Interface (API)

Most modern operating systems do not allow direct hardware access. The SeaIO driver and API
have been included to provide control over the hardware in Windows and Linux environments.
The purpose of this section of the manual is to help the customer with the mapping of the API to
the actual inputs for the OMG-PCI -DIO96 specifically. Complete documentation of the API can be
found in its accompanying help file.

Presetting an Output Port:

Each port has an output register associated with it. This register may be written and retains its
value whether the port is configured as an input or an output. To preset the value of an output port
the program should write to the port when it is configured as an input then configure it as an
output. Inputs cannot be written to with relative addressing, absolute addressing must be used.
See Relative Addressing vs. Absolute Addressing below.

Interrupts:

Interrupt sampling can be set up in the API. Port A1 bit zero is the interrupt source (pin 47) . Refer
to the API section in the SeaI/O help file for more detailed information.

Port Configuration:

Each eight-bit port can be configured as inputs or outputs. The API provides a set adapter state
call to access the control words. For this device, four control word is used. Refer to the following
table.

Note: The control panel also allows you to configure the device. Your program can over ride the
control panel configuration when executed, but the control panel configuration will be the default
on powe r up. The default settings are based on the settings in the control panel application when
last changed and saved after re-booting.

Control Word 0: Bank 1 (A1, B1, C1)
Control Word 1: Bank 2 (A2, B2, C2)
Control Word 2: Bank 3 (A3, B3, C3)
Control Word 3: Bank 4 (A4, B4, C4)

Control Words
I/O Configuration

OMG-PCI -DIO96 Page 8

Programming

CWnD0 Port C1 see below 1 on power up
CWnD1 Port B1 1 = input 0 = output 1 on power up
CWnD2 0 or 1 (no effect)
CWnD3 Port C1 see below 1 on power up
CWnD4 Port A1 1 = input 1 on power up
CWnD5 0 or 1 (no effect)
CWnD6 0 or 1 (no effect)
CWnD7 Always a 1
n = port number

CWnD3 CWnD0 Port C direction

0 0 output
0 1 input
1 0 input
1 1 input

Figure 4-Control Words/Port Direction

OMG-PCI -DIO96 Page 9

Programming

Relative Addressing vs. Absolute Addressing

The SeaIO API makes a distinction between “absolute” and “relative” addressing modes. In
absolute addressing mode, the Port argument to the API function acts as a simple byte offset from
the base I/O address of the device. For instance, Port #0 refers to the I/O address base + 0; Port #1
refers to the I/O address base + 1.
Relative addressing mode, on the other hand, refers to input and output ports in a logical fashion.
With a Port argument of 0 and an API function meant to output data, the first (0
the device will be utilized. Likewise, with a Port argument of 0 and an API function designed to
input data, the first (0

th

) input port of the device will be utilized.
In all addressing modes, port numbers are zero -indexed; that is, the first port is port #0, the second
port is #1, the third #2, and so on.

th

) output port on

OMG-PCI -DIO96 Page 10

Programming

Tables : API Port/bit reference numbers for Absolute and Relative Addressing
R = Read
W = Write
R/W = Read or Write

Port API Port # Absolute Address (function)

A1 0 ( R/W )
B1 1 ( R/W )
C1 2 ( R/W )
A2 8 ( R/W )
B2 9 ( R/W )
C2 10 ( R/W )
A3 16 ( R/W )
B3 17 ( R/W )
C3 18 ( R/W )
A4 24 ( R/W )
B4 25 ( R/W )
C4 26 ( R/W )

Figure 5-Absolute byte Address (any configuration)

Port API Port # Relative Address

(function)

A1 0 ( R ) Input

B1 1 ( R ) Input
C1 2 ( R ) Input

A2 0 ( W ) Output

B2 1 ( W ) Output
C2 2 ( W ) Output

A3 3 ( W ) Output

B3 4 ( W ) Output
C3 5 ( W ) Output

A4 3 ( R ) Input

B4 6 ( W ) Output
C4 7 ( W ) Output

Figure 6-Relative byte Address

Given: Inputs A1, B1, C1, A4

Outputs A2, B2, C2, A3, B3, C3, B4, C4

OMG-PCI -DIO96 Page 11

Port Type

Programming

Addressing Continued

Bank 1 – P2 Bank 2 – P3 Bank 3 – P4 Bank 4 – P5

Address Port-Bit Address Port-Bit Address Port-Bit Addres

s

0 A1-0 64 A2-0 128 A3-0 192 A4-0
1 A1-1 65 A2-1 129 A3-1 193 A4-1
2 A1-2 66 A2-2 130 A3-2 194 A4-2
3 A1-3 67 A2-3 131 A3-3 195 A4-3
4 A1-4 68 A2-4 132 A3-4 196 A4-4
5 A1-5 69 A2-5 133 A3-5 197 A4-5
6 A1-6 70 A2-6 134 A3-6 198 A4-6
7 A1-7 71 A2-7 135 A3-7 199 A4-7

8 B1-0 72 B2-0 136 B3-0 200 B4-0

9 B1-1 73 B2-1 137 B3-1 201 B4-1
10 B1-2 74 B2-2 138 B3-2 202 B4-2
11 B1-3 75 B2-3 139 B3-3 203 B4-3
12 B1-4 76 B2-4 140 B3-4 204 B4-4
13 B1-5 77 B2-5 141 B3-5 205 B4-5
14 B1-6 78 B2-6 142 B3-6 206 B4-6
15 B1-7 79 B2-7 143 B3-7 207 B4-7

16 C1-0 80 C2-0 144 C3-0 208 C4-0
17 C1-1 81 C2-1 145 C3-1 209 C4-1
18 C1-2 82 C2-2 146 C3-2 210 C4-2
19 C1-3 83 C2-3 147 C3-3 211 C4-3
20 C1-4 84 C2-4 148 C3-4 212 C4-4
21 C1-5 85 C2-5 149 C3-5 213 C4-5
22 C1-6 86 C2-6 150 C3-6 214 C4-6
23 C1-7 87 C2-7 151 C3-7 215 C4-7

Port-Bit

Figure 7-Absolute Bit Address (Same for any configuration)

OMG-PCI -DIO96 Page 12

Programming

The following two tables are provided for the user in the event that he/she wishes to record their
particular relative addressing setup, provided its constant. Print this page and fill in the tables
starting in the top left corner of each and work from top to bottom, left to right. Start with zero on
the first input and increment by one on each additional input. Next move to outputs and again start
with zero and increment by one on each additional output.

Bank 1 – P2 Bank 2 – P3 Bank 3 – P4 Bank 4 – P5

Address Port Address Port Address Port Address Port

A1 A2 A3 A4
B1 B2 B3 B4
C1 C2 C3 C4

Figure 8-Relative Byte Address (Print and fill in for your configuration)

Bank 1 – P2 Bank 2 – P3 Bank 3 – P4 Bank 4 – P5

Address Port-Bit Address Port-Bit Address Port-Bit Address Port-Bit

A1-0 A2-0 A3-0 A4-0
A1-1 A2-1 A3-1 A4-1
A1-2 A2-2 A3-2 A4-2
A1-3 A2-3 A3-3 A4-3
A1-4 A2-4 A3-4 A4-4
A1-5 A2-5 A3-5 A4-5
A1-6 A2-6 A3-6 A4-6
A1-7 A2-7 A3-7 A4-7

B1-0 B2-0 B3-0 B4-0
B1-1 B2-1 B3-1 B4-1
B1-2 B2-2 B3-2 B4-2
B1-3 B2-3 B3-3 B4-3
B1-4 B2-4 B3-4 B4-4
B1-5 B2-5 B3-5 B4-5
B1-6 B2-6 B3-6 B4-6
B1-7 B2-7 B3-7 B4-7

C1-0 C2-0 C3-0 C4-0
C1-1 C2-1 C3-1 C4-1
C1-2 C2-2 C3-2 C4-2
C1-3 C2-3 C3-3 C4-3
C1-4 C2-4 C3-4 C4-4
C1-5 C2-5 C3-5 C4-5

OMG-PCI -DIO96 Page 13

Programming

C1-6 C2-6 C3-6 C4-6
C1-7 C2-7 C3-7 C4-7

Figure 9-Bit Relative Address (Print and fill in for your configuration)

Direct Hardware Control

In systems where the users program has direct access to the hardware (DOS) the tables below
gives the mapping and functions that the OMG-PCI -DIO96 provide. The address of each eight-bit
port is calculated as shown in the table on the following page, the cards base address plus an
offset.

Reading the Inputs:

The inputs are active high. If an input is driven high (2V to 5.25 V) it will read as a logical one, if
driven low (0V to 0.8V) it will read as a logical zero. If an input is not driven it will read as a one due
to the 10K ohm pull up resistors on each port.

Reading the Outputs:

The value that is currently being used to drive the outputs will be returned.

Presetting an Output Port:

Each port has an output register associated with it. This register may be written and retains its
value whether the port is configured as an input or an output. To preset the value of an output port
the program should write to the port when it is configured as an input then configure it as an
output.

Writing the Outputs:

The outputs are active high. Writing a one (1) corresponds to 5V while writing a zero (0)
corresponds to 0V, at the output.

Port Configuration:

Each port can be configured as an input or an output by writing to its direction control bit, refer to
the tables below.

Interrupts

Interrupts can be set up as shown in the tables below.

OMG-PCI -DIO96 Page 14

Programming

configuration

Control Word

configuration

Control Word

configuration

Base+1A

Base+1B

Control Word

Base+1C

configuration

Register Description (for direct hardware control)

Address

Hex
Base+0 Port A1 RD/WR PA1D7 PA1D6 PA1D5 PA1D4 PA1D3 PA1D2 PA1D1 PA1D0
Base+1 Port B1 RD/WR PB1D7 PB1D6 PB1D5 PB1D4 PB1D3 PB1D2 PB1D1 PB1D0
Base+2 Port C1 RD/WR PC1D7 PC1D6 PC1D5 PC1D4 PC1D3 PC1D2 PC1D1 PC1D0
Base+3 Control Word

Base+4 Interrupt

Mode D7 D6 D5 D4 D3 D2 D1 D0

WR CW1D7 0 0 CW1D4 CW1D3 CW1D2 CW1D1 CW1D0

Port 1

RD/WR

0 0 0 0 0 IRQEN1 IRQC11 IRQC10

Port 1

Base+5 Interrupt

RD 0 0 0 0 IRQST4

IRQST3 IRQST2

IRQST1
status for
Port 1 -- 4

Base+8 Port A2 RD/WR PA2D7 PA2D6 PA2D5 PA2D4 PA2D3 PA2D2 PA2D1 PA2D0
Base+9 Port B2 RD/WR PB2D7 PB2D6 PB2D5 PB2D4 PB2D3 PB2D2 PB2D1 PB2D0

Base+A
Base+B

Port C2 RD/WR

WR CW2D7

PC2D7 PC2D6 PC2D5 PC2D4 PC2D3 PC2D2 PC2D1 PC2D0

0 0 CW2D4 CW2D3 CW2D2 CW2D1 CW2D0

Port 2

Base+C

Interrupt

RD/WR

0 0 0 0 0 IRQEN2 IRQC21 IRQC20

Port 2

Base+10
Base+11
Base+12 Port C3 RD/WR PC3D7 PC3D6 PC3D5 PC3D4 PC3D3 PC3D2 PC3D1 PC3D0
Base+13

Port A3 RD/WR

Port B3 RD/WR

WR CW3D7

PA3D7 PA3D6 PA3D5 PA3D4 PA3D3 PA3D2 PA3D1 PA3D0
PB3D7 PB3D6 PB3D5 PB3D4 PB3D3 PB3D2 PB3D1 PB3D0

0 0 CW3D4 CW3D3 CW3D2 CW3D1 CW3D0

Port 3

Base+14 Interrupt

RD/WR

0 0 0 0 0 IRQEN3 IRQC31 IRQC30

Port 3

Base+18
Base+19

Port A4 RD/WR

Port B4 RD/WR
Port C4 RD/WR

WR CW4D7

PA4D7 PA4D6 PA4D5 PA4D4 PA4D3 PA4D2 PA4D1 PA4D0
PB4D7 PB4D6 PB4D5 PB4D4 PB4D3 PB4D2 PB4D1 PB4D0
PC4D7 PC4D6 PC4D5 PC4D4 PC4D3 PC4D2 PC4D1 PC4D0

0 0 CW4D4 CW4D3 CW4D2 CW4D1 CW4D0

Port 4

Interrupt

RD/WR

0 0 0 0 0 IRQEN4 IRQC41 IRQC40

Port 4

OMG-PCI -DIO96 Page 15

Programming

Control Words
I/O Configuration

Figure 10-I/O Configuration

CWnD0 Port C1 see below 1 on power up
CWnD1 Port B1 1 = input 0 = output 1 on power up
CWnD2 0 or 1 (no effect)
CWnD3 Port C1 see below 1 on power up
CWnD4 Port A1 1 = input 1 on power up
CWnD5 0 or 1 (no effect)
CWnD6 0 or 1 (no effect)
CWnD7 Always a 1
n = port number

CWnD3 CWnD0 Port C direction

0 0 output
0 1 input
1 0 input
1 1 input

Control Word (X = 0) Hex Value Port Setup

7 6 5 4 3 2 1 0 A B C Upper C Lower
1 X X 0 0 X 0 0 80 Out Out Out Out
1 X X 0 0 X 0 1 81 Out Out In In
1 X X 0 0 X 1 0 82 Out In Out Out
1 X X 0 0 X 1 1 83 Out In In In
1 X X 0 1 X 0 0 88 Out Out In In
1 X X 0 1 X 0 1 89 Out Out In In
1 X X 0 1 X 1 0 8A Out In In In
1 X X 0 1 X 1 1 8B Out In In In
1 X X 1 0 X 0 0 90 In Out Out Out
1 X X 1 0 X 0 1 91 In Out In In
1 X X 1 0 X 1 0 92 In In Out Out
1 X X 1 0 X 1 1 93 In In In In
1 X X 1 1 X 0 0 98 In Out In In
1 X X 1 1 X 0 1 99 In Out In In
1 X X 1 1 X 1 0 9A In In In In
1 X X 1 1 X 1 1 9B In In In In

OMG-PCI -DIO96 Page 16

Programming

Interrupt Control

When enabled interrupts are generated on port bit D0 of each A port.
n = port number

IRQENn interrupt enable 1 = enabled 0 = disabled ( 0 on power up )
IRQCn0
IRQCn1

Interrupt mode select see table
Interrupt mode select see table

Figure 11-Interrupt Control

Interrupt mode select table

IRQCn1 IRQCn0 INT Type
0 0 Low level
0 1 High level
1 0 Falling edge
1 1 Rising edge

Figure 12-Interrupt Mode Select

Interrupt Read

(reading this port clears the interrupt)

IRQST1 (D0) Interrupt status 1 = interrupt pending, 0 = none
IRQST2 (D1) Interrupt status 1 = interrupt pending, 0 = none
IRQST3 (D2) Interrupt status 1 = interrupt pending, 0 = none
IRQST4 (D3) Interrupt status 1 = interrupt pending, 0 = none

Figure 13-Interrupt Read

OMG-PCI -DIO96 Page 17

Specifications

Specifications

Environmental Specifications

Specification Operating Storage

Temperature Range

Humidity Range 10 to 90% R.H.

Power Consumption

Supply line +5 VDC

Rating 1000 mA

Mean Time Between Failures (MTBF)

Greater than 150,000 hours. (Calculated)

0º to 50º C

(32º to 122º F)

Non-Condensing

-20º to 70º C

(-4º to 158º F)

10 to 90% R.H.

Non-Condensing

Physical Dimensions

Board Length 6.800 inches (15.494 cm.)
Board Height including Goldfingers 4.200 inches (10.414 cm.)
Board Height excluding Goldfingers 3.875 inches (11.494 cm.)

OMG-PCI -DIO96 Page 18

Appendix A - Troubleshooting

Appendix A - Troubleshooting

Following these simple steps can eliminate most common problems.
Install software first. After installing the software then proceed to adding the

hardware. This places the required installation files in the correct locations.

1. Read this manual thoroughly before attempting to install the adapter in your
system.

2. Use Device Manager under Windows to verify proper installation.

3. Use the SeaIO control panel applet for card identification and configuration.

4. If these steps do not solve your problem, please call Omega Technical
Support, 1-800-DAS-IEEE. Our technical support is free and available from
8:30AM-6PM Eastern Time Monday through Friday.

OMG-PCI -DIO96 Page 19

Appendix B - How To Get Assistance

Appendix B - How To Get Assistance

Please refer to Troubleshooting Guide prior to calling Technical Support.

1. Begin by reading through the Trouble Shooting Guide in Appendix
A. If assistance is still needed please see below.

2. When calling for technical assistance, please have your user
manual and current adapter settings. If possible, please have the
adapter installed in a computer ready to run diagnostics.

3. Omega Engineering maintains a Home page on the Internet. Our
home page address is www.omega.com. The latest software
updates, and newest manuals are available via our FTP site that can
be accessed from our home page.

4. Technical support is available Monday to Friday from 8:30 a.m. to
6:00 p.m. Eastern time. Technical support can be reached at 1-800­DAS-IEEE.

RETURN AUTHORIZATION MUST BE OBTAINED FROM OMEGA BEFORE
RETURNED MERCHANDISE WILL BE ACCEPTED. AUTHORIZATION CAN
BE OBTAINED BY CALLING OMEGA CUSTOMER SERVICE AND
REQUESTING AN AUTHORIZED RETURN (AR) NUMBER.

OMG-PCI -DIO96 Page 20

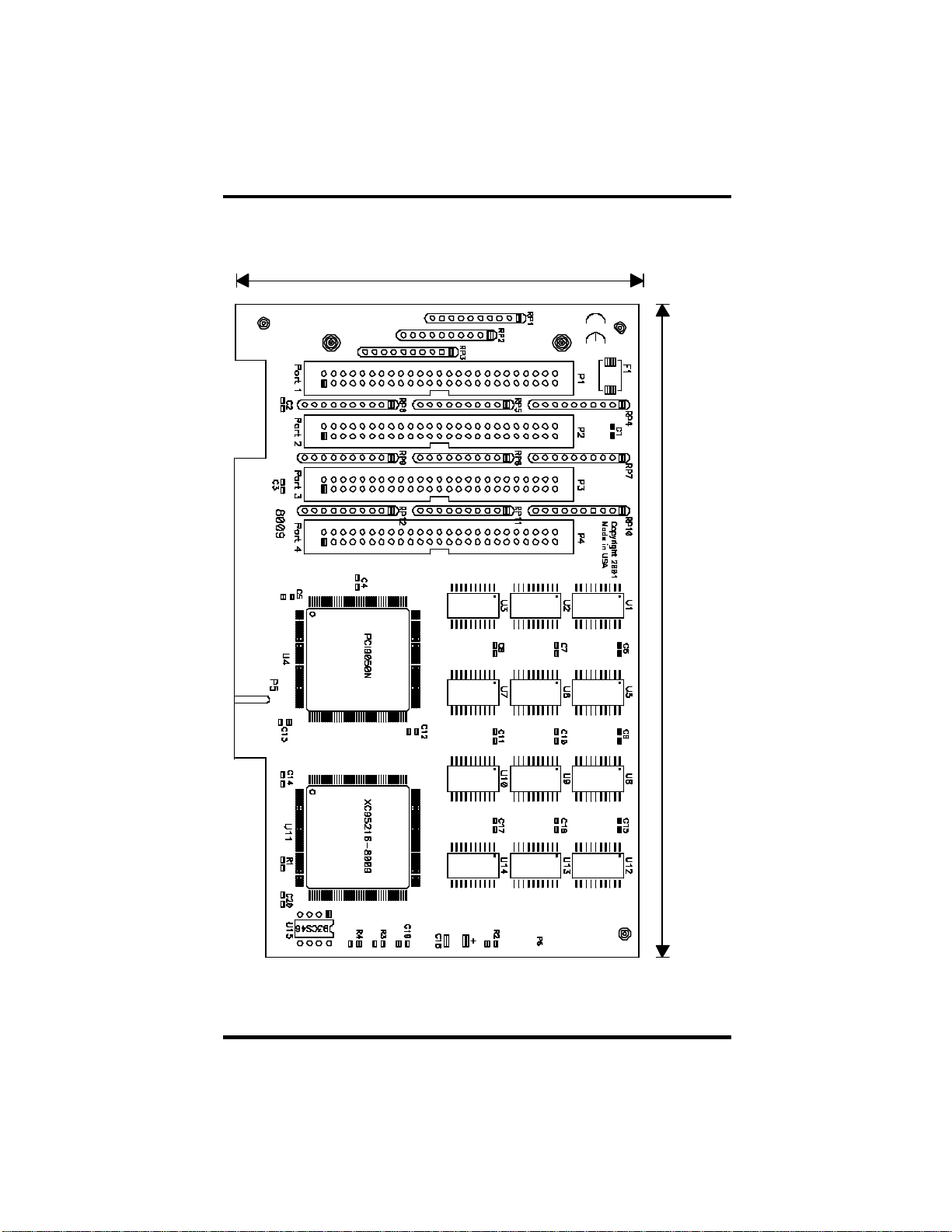

Appendix C - Silk-Screen

Appendix C - Silk -Screen

4.20"

6.80"

OMG-PCI -DIO96 Page 21

Appendix D - Compliance Notices

Appendix D - Compliance Notices

Federal Communications Commission Statement

FCC - This equipment has been tested and found to comply with the limits for
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference. In such case the user will be required to correct the
interference at his own expense.

EMC Directive Statement

Products bearing the CE Label fulfill the requirements of the
EMC directive (89/336/EEC) and of the low-voltage directive
(73/23/EEC) issued by the European Commission.

To obey these directives, the following European standards must be met:

• EN55022 Class A - “Limits and methods of measurement of radio

interference characteristics of information technology equipment”

• EN55024 -'Information technology equipment Immunity characteristics

Limits and methods of measurement'

• EN60950 (IEC950) - “Safety of information technology
equipment, including electrical business equipment”

Warning
This is a Class A Product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Always use cabling provided with this product if possible. If no cable is
provided or if an alternate cable is required, use high quality shielded cabling to
maintain compliance with FCC/EMC directives.

OMG-PCI -DIO96 Page 22

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’sWARRANTY does not apply to defects resulting from any action of the purchaser, includ­ing but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in suc h a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY

RETURNS, please have the

following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

FOR NON-W

ARRANTY

REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

M3892/0303

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at www.omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
