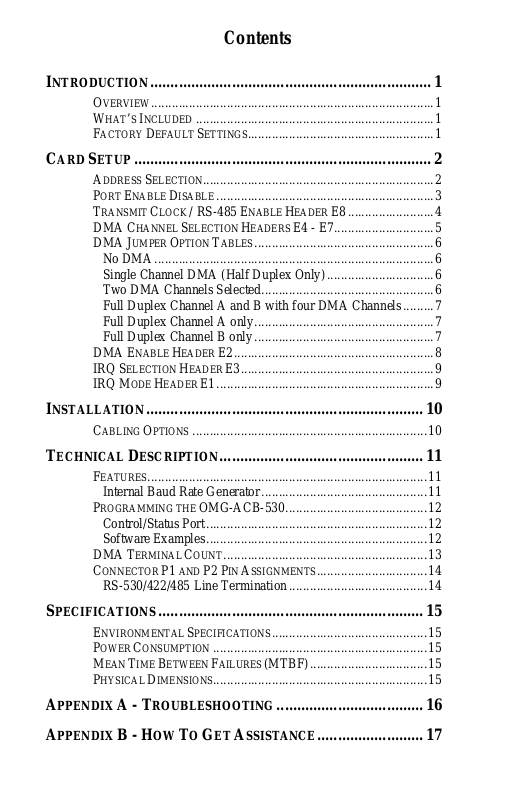

Contents
INTRODUCTION.....................................................................1
OVERVIEW..................................................................................1
WHAT’S INCLUDED ..................................................................... 1
FACTORY DEFAULT SETTINGS...................................................... 1
CARD SETUP .........................................................................2
ADDRESS SELECTION................................................................... 2
PORT ENABLE DISABLE ...............................................................3
TRANSMIT CLOCK / RS-485 ENABLE HEADER E8.........................4
DMA CHANNEL SELECTION HEADERS E4 - E7.............................5
DMA JUMPER OPTION TABLES....................................................6
No DMA.................................................................................6
Single Channel DMA (Half Duplex Only)...............................6
Two DMA Channels Selected..................................................6
Full Duplex Channel A and B with four DMA Channels.........7
Full Duplex Channel A only ....................................................7
Full Duplex Channel B only.................................................... 7
DMA ENABLE HEADER E2..........................................................8
IRQ SELECTION HEADER E3........................................................9
IRQ MODE HEADER E1...............................................................9
INSTALLATION....................................................................10
CABLING OPTIONS ....................................................................10
TECHNICAL DESCRIPTION..................................................11
FEATURES.................................................................................11
Internal Baud Rate Generator................................................11
PROGRAMMING THE OMG-ACB-530.........................................12
Control/Status Port................................................................12
Software Examples................................................................12
DMA TERMINAL COUNT...........................................................13
CONNECTOR P1 AND P2 PIN ASSIGNMENTS................................14
RS-530/422/485 Line Termination........................................14
SPECIFICATIONS ................................................................. 15
ENVIRONMENTAL SPECIFICATIONS.............................................15
POWER CONSUMPTION ..............................................................15
MEAN TIME BETWEEN FAILURES (MTBF)..................................15
PHYSICAL DIMENSIONS..............................................................15
APPENDIX A - TROUBLESHOOTING .................................... 16
APPENDIX B - HOW TO GET ASSISTANCE.......................... 17
Page 2
APPENDIX C - ELECTRICAL INTERFACE ............................18
RS-422.....................................................................................18
RS-530.....................................................................................18
RS-449.....................................................................................18
RS-485.....................................................................................19
APPENDIX D - DIRECT MEMORY ACCESS .......................... 20
APPENDIX E - ASYNCHRONOUS AND SYNCHRONOUS
COMMUNICATIONS .............................................................21
ASYNCHRONOUS COMMUNICATIONS..........................................21
SYNCHRONOUS COMMUNICATIONS ............................................23
APPENDIX F - ACB DEVELOPER TOOLKIT DISKETTE AND ACB
RESOURCE KIT ................................................................... 25
APPENDIX G - SILK-SCREEN .............................................. 26
APPENDIX H - COMPLIANCE NOTICES...............................27
FEDERAL COMMUNICATIONS COMMISSION STATEMENT..............27
EMC DIRECTIVE STATEMENT....................................................27
WARRANTY......................................................................... 28
Figures
Figure 1 - Address Selection Table........................................................2
Figure 2 - DIP-switch Illustration..........................................................2
Figure 3 - Clock Option / RS-485 Enable Selection Header E8 ...........4
Figure 4 - DMA Selection Headers E4 - E7 ..........................................5
Figure 5 - DMA Enable Header E2 .......................................................8
Figure 6 - IRQ Header E3..................................................................... 9
Figure 7 - IRQ Mode Header................................................................9

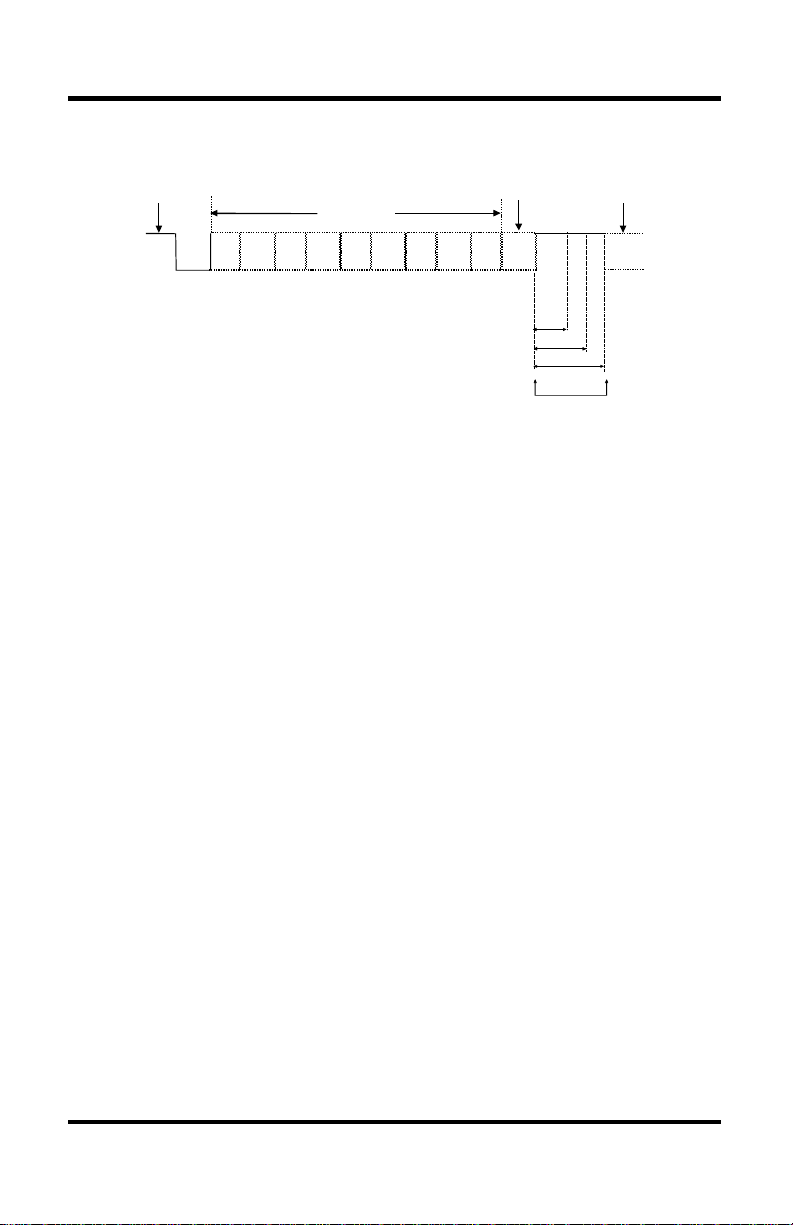

Figure 8 - Asynchronous Communications Bit Diagram ....................22

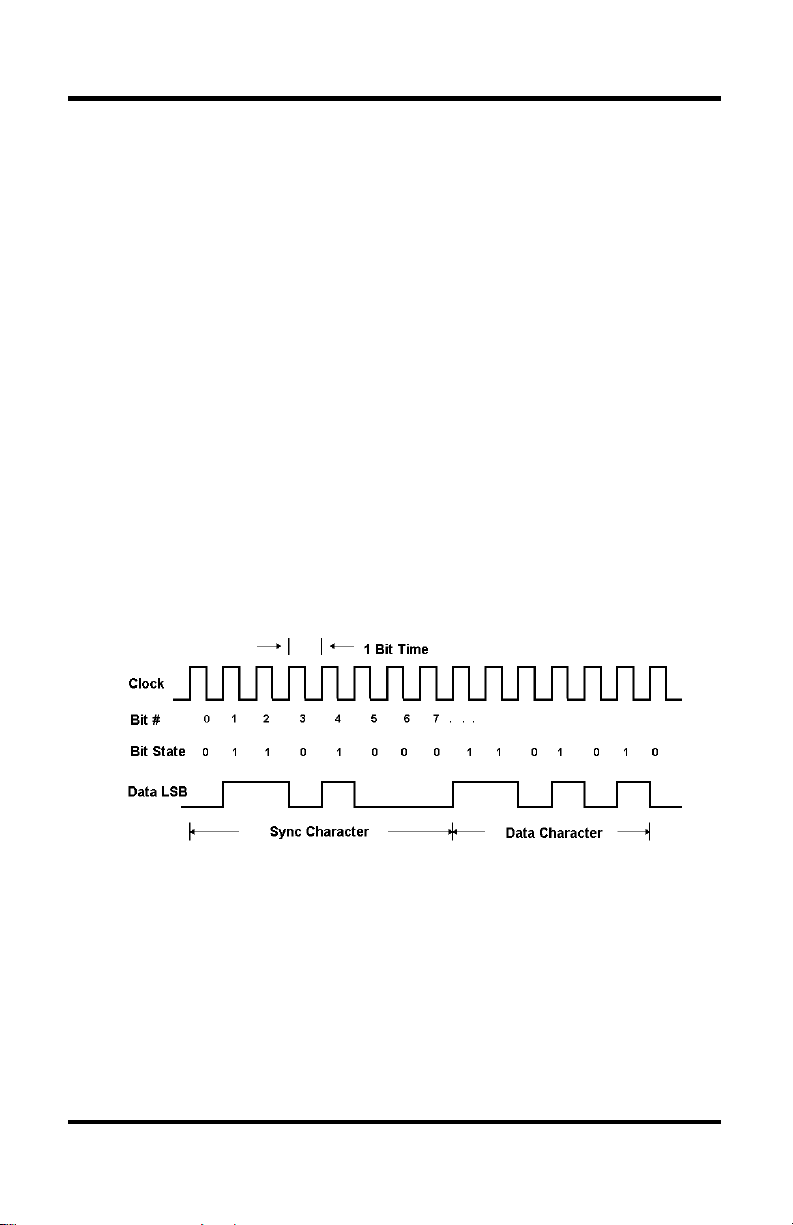

Figure 9 - Synchronous Communications Bit Diagram.......................23
© 1997j Omega Engineering, Incorporated. All rights reserved.
Page 3
Introduction
Introduction
Overview
The Omega Engineering OMG-ACB-530 provides the PC with two high-speed
RS-530/422/485 synchronous/asynchronous ports. The OMG-ACB-530 can be
used in a variety of sophisticated communications applications such as SDLC,
HDLC, X.25, Bi-Sync, Mono-Sync, and high-speed asynchronous.
What’s Included
The OMG-ACB-530 is shipped with the following items. If any of these items
are missing or damaged, contact the supplier.
• OMG-ACB-530 Serial Interface Adapter
• 3.5″ ACB Developers Toolkit Diskette
• Channel B Interface Cable
• User Manual
Factory Default Settings
The OMG-ACB-530 factory default settings are as follows:
Base
Address
238 TX: 1 / RX: 3 TX: 0 / RX: 2 5 RS-530/422
To install the OMG-ACB-530 using factory default settings, refer to the
section on Installation.
For your reference, record installed OMG-ACB-530 settings below:
Base
Address
Omega Engineering OMG-ACB-530 Page 1
DMA Port A DMA Port B IRQ Electrical
Specification
DMA Port A DMA Port B IRQ Electrical
Specification
Page 4
Installation
Card Setup
The OMG-ACB-530 contains several jumper straps for each port, which must
be set for proper operation.
Address Selection
The OMG-ACB-530 occupies 8 consecutive I/O locations. A DIP-switch
(SW1) is used to set the base address for these locations. The OMG-ACB-530
can reside in any I/O location between 100 and 3F8 Hex. Be careful when
selecting the base address as some selections conflict with existing PC ports.
The following table shows several examples that usually do not cause a conflict.
Address Binary Switch Settings
A9----------A0 1 2 3 4 5 6 7
238-23F 1000111XXX Off On On On Off Off Off
280-287 1010000XXX Off On Off On On On On
2A0-2A7 1010100XXX Off On Off On Off On On
2E8-2EF 1011101XXX Off On Off Off Off On Off
300-307 1100000XXX Off Off On On On On On
328-32F 1100101XXX Off Off On On Off On Off
3E8-3EF 1111101XXX Off Off Off Off Off On Off

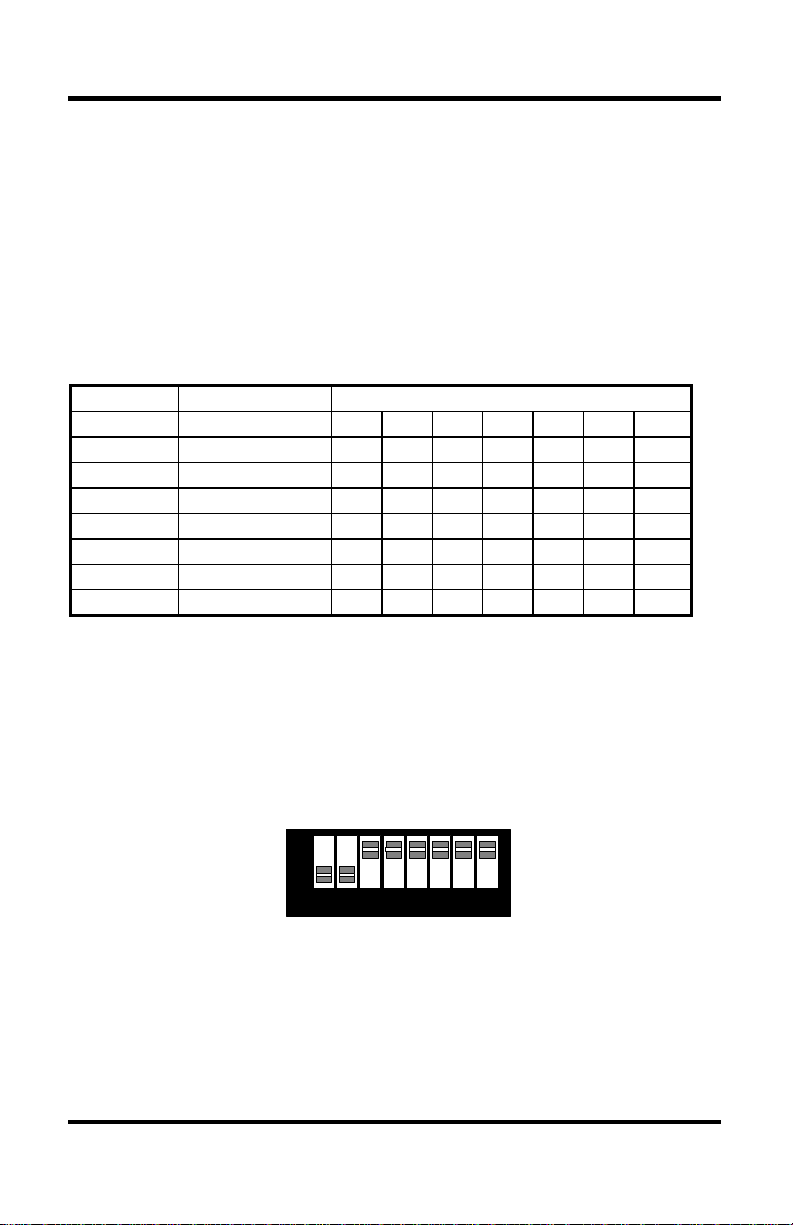

Figure 1 - Address Selection Table
The following illustration shows the correlation between the DIP-switch setting
and the address bits used to determine the base address. In the example below,
the address 300 Hex through 307 Hex is selected. 300 Hex = 11 0000 0XXX in
binary representation.
A9
ON
OFF
A38E
1 2 3 4 5 6 7
Figure 2 - DIP-switch Illustration
Note: Setting the switch ‘On’ or ‘Closed’ corresponds to a ‘0’ in the address,
while leaving it ‘Off’ or ‘Open’ corresponds to a ‘1’.
Omega Engineering OMG-ACB-530 Page 2
Page 5
Installation
The relative I/O address of the OMG-ACB-530 registers are as follows:
• Base+0 Channel A Data Port
• Base+1 Channel A Control Port
• Base+2 Channel B Data Port
• Base+3 Channel B Control Port
• Base+4 Board Control / Status Port
• Base+5 Reset TCIRQ
Port Enable Disable
The OMG-ACB-530 can be enabled or disabled with switch position 8 on the
DIP-switch. The port is enabled with the switch ‘On’ or ‘Closed’ and disabled
when ‘Off’ or ‘Open’.
Omega Engineering OMG-ACB-530 Page 3
Page 6
Installation

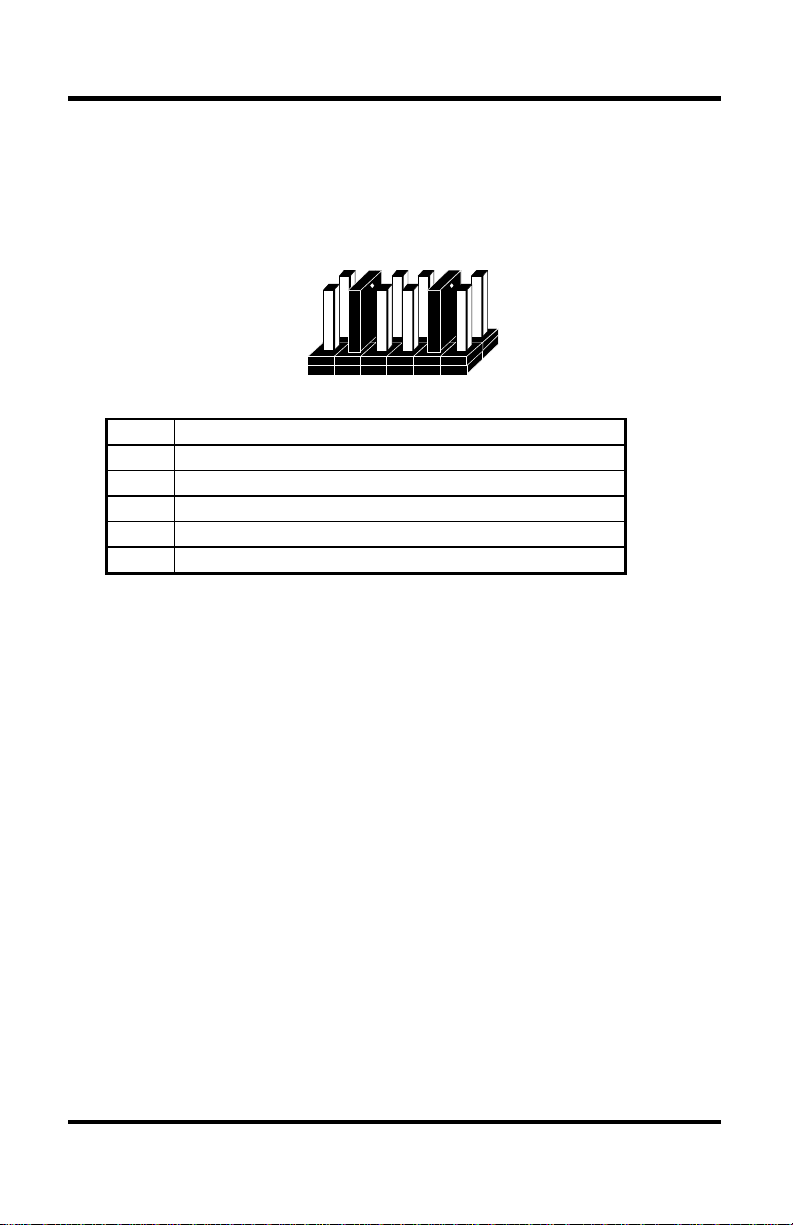

Transmit Clock / RS-485 Enable Header E8
Header E8 sets the input/output clock modes for the transmit clock (TXC) and
RS-485 driver enable. Please note that setting a jumper in position ‘I’ and
position ‘O’ at the same time is not a valid option.
E O I E O I
A B
E8
E CH. A RTS Enable (For RS-485 Mode Only)
O Transmit Clock Output Channel A
I Transmit Clock Input Channel A
E CH B. RTS Enable (For RS-485 Mode Only)
O Transmit Clock Output Channel B
I Transmit Clock Input Channel B
Figure 3 - Clock Option / RS-485 Enable Selection Header E8
In addition to RS-530, the OMG-ACB-530 is capable of RS-422 and RS-485
communications. E8 position ‘E’ determines whether the RS-530 (and RS-485)
transmit driver is enabled by the Enhanced Serial Communications Controller
(ESCC) signal Request To Send (RTS) or always enabled. With the jumper
installed, RTS enables the driver. Removing the jumper enables the driver
regardless of RTS. This jumper should only be installed if you are running the
board in a multi-drop polled environment such as RS-485, and you have
software that knows how to ‘talk’ on the RS-485 bus. For normal point-to-
point RS-530 and RS-422, remove this jumper.
Omega Engineering OMG-ACB-530 Page 4
Page 7
Installation

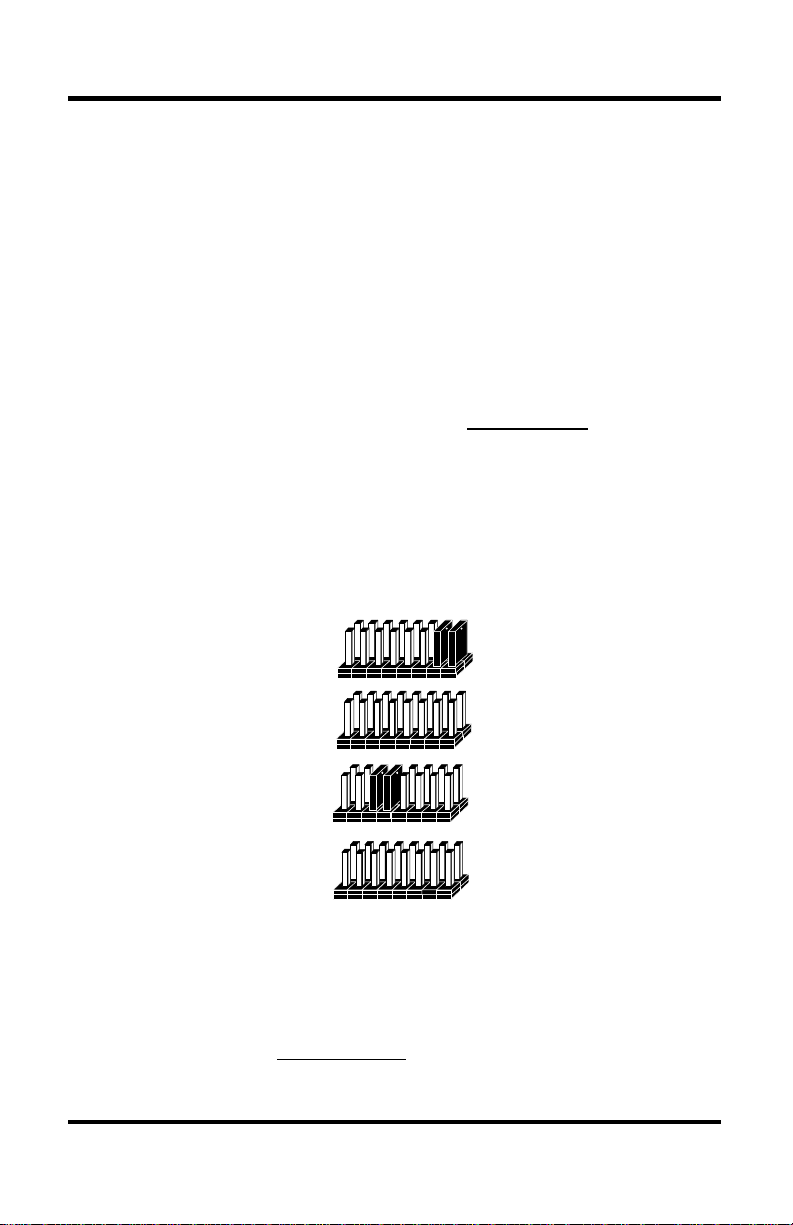

DMA Channel Selection Headers E4 - E7
Headers E4 - E7 select Direct Memory Access (DMA) mode of operation. Each
channel of the Enhanced Serial Communications Controller (ESCC) will
function in half duplex or full duplex DMA modes. Full duplex means that
DMA can be used for simultaneous transmit and receive. Half-duplex DMA
means that you can either transmit, or receive with DMA, but not
simultaneously. The 85230 has two signals that correspond to DMA request
signals, WAIT/REQ and DTR/REQ. E5 & E7 correspond to WAIT/REQ and
E4 & E6 correspond to DTR/REQ. WAIT/REQ and DTR/REQ can be
programmed to serve as DMA request lines (DRQ) by setting the appropriate
bits in Write Register 1 and Write Register 14 in the 85230. WAIT/REQ (E5 &
E7) can be programmed for Transmit or Receive DMA transfers and
DTR/REQ (E4 & E6) can be programmed for Transmit Only. For additional
information on the programming of the 85230 please refer to the Zilog ESCC
Users Manual. Please note that each DMA channel is selected by two jumpers.
Only one DMA channel may be selected for each header block. Also refer to
page 8 for the DMA enable (Software enable, Always enabled or Never
enabled) option Header E2.
Note: If DMA is not used, remove all of the jumpers on E4 - E7 and install a
jumper in position ‘N’ of E2
B-FD / HD
E7
E6
E5
E4
0 0 1 1 2 2 3 3
B-FD
A-FD / HD
A-FD
Figure 4 - DMA Selection Headers E4 - E7
E4 and E5 select the DMA Channel for Channel A of the ESCC.
E6 and E7 select the DMA Channel for Channel B of the ESCC.
Note: DMA Channel 0 is not available on ‘XT’ class machines, and DMA
Channel 2 can only be used if the floppy disk DMA drivers are turned
off. Please refer to the toolkit disk for software examples.
Omega Engineering OMG-ACB-530 Page 5
Page 8
Installation
DMA Jumper Option Tables
The following tables show the jumper setting examples for each mode of DMA:
No DMA
Option E4 E5 E6 E7
Ch.A No DMA; Ch.B No DMA None None None None
Single Channel DMA (Half Duplex Only)
Option E4 E5 E6 E7
Ch.A DMA Ch.0 Half-Duplex Ch.B No DMA None 00 None None
Ch.A DMA Ch.1 Half-Duplex Ch.B No DMA None 11 None None
Ch.A DMA Ch.2 Half-Duplex Ch.B No DMA None 22 None None
Ch.A DMA Ch.3 Half-Duplex Ch.B No DMA None 33 None None
Ch.B DMA Ch.0 Half-Duplex Ch.A No DMA None None None 00
Ch.B DMA Ch.1 Half-Duplex Ch.A No DMA None None None 11
Ch.B DMA Ch.2 Half-Duplex Ch.A No DMA None None None 22
Ch.B DMA Ch.3 Half-Duplex Ch.A No DMA None None None 33
Two DMA Channels Selected
Option E4 E5 E6 E7
Ch.A DMA Ch.1 Half-Duplex
Ch.B DMA Ch.3 Half-Duplex
Ch.A DMA Ch.0 Half-Duplex
Ch.B DMA Ch.2 Half-Duplex
Omega Engineering OMG-ACB-530 Page 6
None 11 None 33
None 00 None 22
Page 9
Installation
Full Duplex Channel A and B with four DMA Channels
Option E4 E5 E6 E7
Ch.A DMA Ch.1 Receive Data
Ch.A DMA Ch.3 Transmit Data
Ch.B DMA Ch.0 Receive Data
Ch.B DMA Ch.2 Transmit Data
Full Duplex Channel A only
Option E4 E5 E6 E7
Ch.A DMA Ch.1 Receive Data
Ch.A DMA Ch.3 Transmit Data
Full Duplex Channel B only
Option E4 E5 E6 E7
Ch.B DMA Ch.1 Receive Data
Ch.B DMA Ch.3 Transmit Data
33 11 22 00
33 11 None None
None None 33 11
Omega Engineering OMG-ACB-530 Page 7
Page 10
Installation

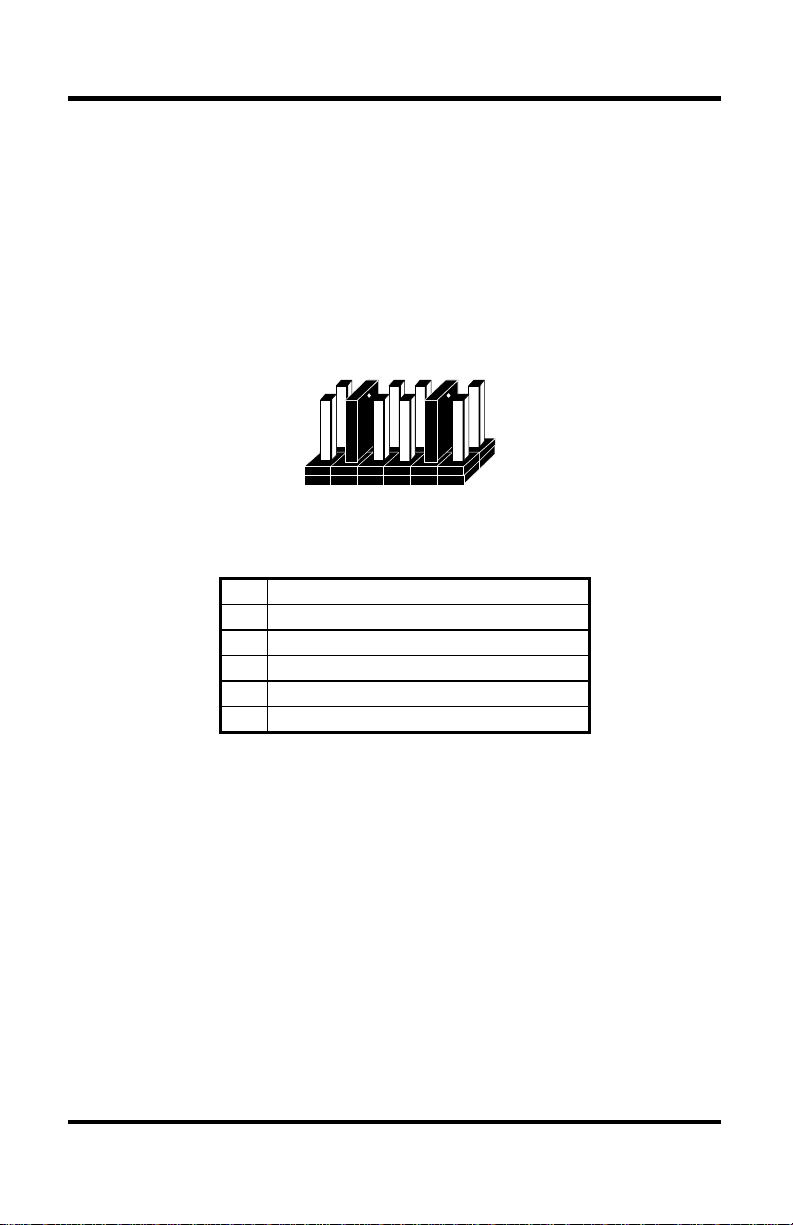

DMA Enable Header E2
Header E2 selects whether the DMA tri-state drivers are enabled permanently,
disabled permanently, or whether the DMA enable control port bit is used to
enable the DMA hardware request and acknowledge signals. Moving the
jumper to position ‘N’ disables the drivers and no DMA can be performed.
Note: The power on reset signal resets or disables the DMA software enable
signal.
S A N S A N
A B
E2
Figure 5 - DMA Enable Header E2
S Selects Software Enable Channel A
A Selects Always Enable Channel A
N Selects No DMA Channel A
S Selects Software Enable Channel B
A Selects Always Enable Channel B
N Selects No DMA Channel B
Note: Please refer to section 4 for software bit definitions and examples of
DMA driver control.
Omega Engineering OMG-ACB-530 Page 8
Page 11
Installation
2
3
457
101112
15

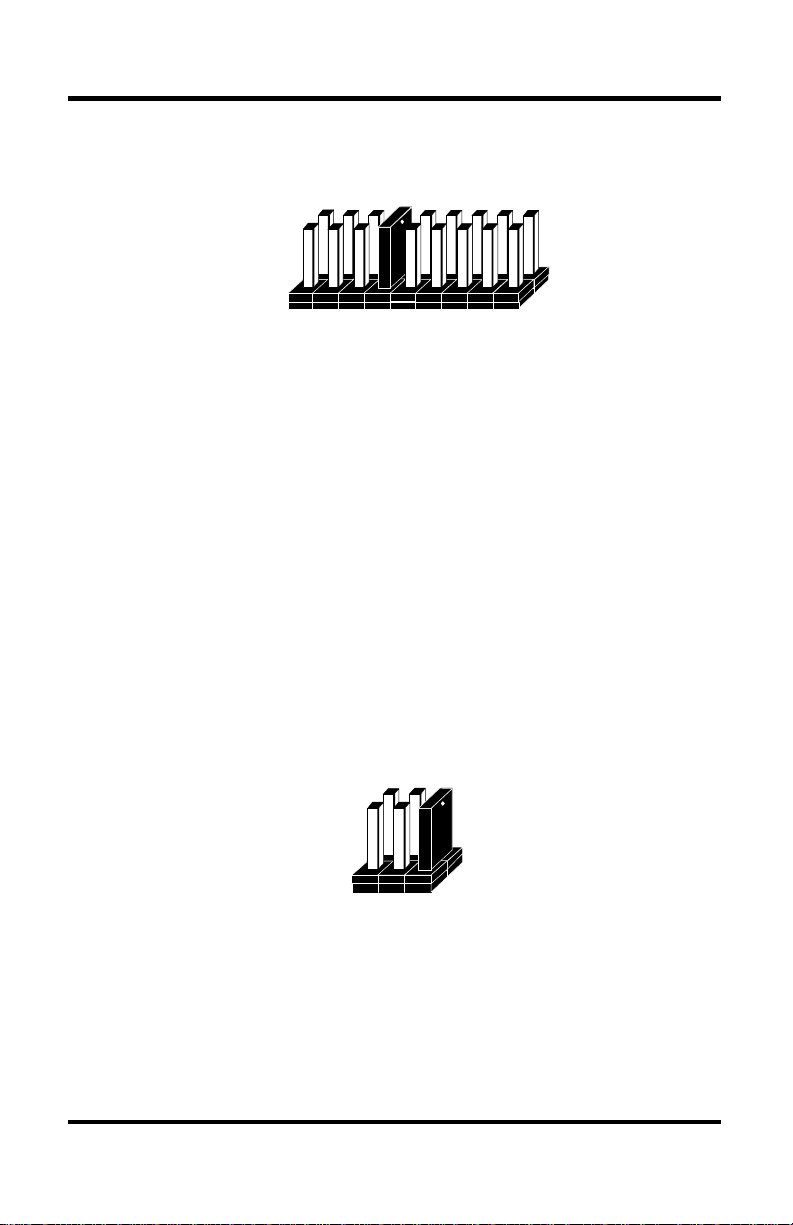

IRQ Selection Header E3
Header E3 selects the interrupt request (IRQ) line for the card. If no interrupt is
desired, remove the jumper.
E3
Figure 6 - IRQ Header E3
IRQ Mode Header E1
Header E1 ‘N’ indicates the (N)ormal, single interrupt mode. Position ‘M’
indicates the inclusion of a 1K ohm pull-down resistor required on one port
when sharing interrupts with another card. For shared interrupt mode, set one
board to ‘M’ and the other(s) with the jumper removed. This mode allows more
than one board to access a single IRQ. Position ‘T’ on E1 enables the DMA
Terminal Count Interrupt. Setting this jumper allows the selected DMA
channel to generate an interrupt once the DMA Terminal Count has been
reached. See Section 4 for the status bit (TC STAT) position and refer to the
toolkit disk for software examples.
Note: When using multiple cards on one IRQ in shared mode, be sure that only
one port has the ‘M’ jumper set, providing the necessary pull-down
resistor.
E1
T N M
Figure 7 - IRQ Mode Header
Omega Engineering OMG-ACB-530 Page 9
Page 12
Installation
Installation
The OMG-ACB-530 can be installed in any of the PC expansion slots The
OMG-ACB-530 contains several jumper straps for each port, which must be
set for proper operation.
1. Turn off PC power. Disconnect the power cord.
2. Remove the PC case cover.
3. Locate two available slots and remove the blank metal slot covers.
4. Install the Channel B cable into Box Header E4. This cable is keyed to
prevent improper installation. Gently insert the OMG-ACB-530 into the
slot. Make sure that the adapter is seated properly. Attach the Channel B
cable to the adjacent slot with the retaining screw. (If Channel B of the
OMG-ACB-530 is not used, the adapter cable is not required).
5. Replace the cover.
6. Connect the power cord.
Installation is complete.
Cabling Options
The OMG-ACB-530 has a number of cabling options available. These options
include:
• CA-104 - This cable provides a 6′ extension for use with RS-530/422
• CA-107 - This cable provides a simple interface to the RS-449, DB-37 type
connector. RS-530 was designed as a replacement for RS-449.
Omega Engineering OMG-ACB-530 Page 10
Page 13
Technical Description
Technical Description
The OMG-ACB-530 utilizes the Zilog 85230 Enhanced Serial
Communications Controller (ESCC). This chip features programmable baud
rate, data format and interrupt control, as well as DMA control. Refer to the
ESCC Users Manual for details on programming the 85230 ESCC chip.
Features
• Two channels of sync/async communications using 85230 chip
• DMA supports data rate greater than 1 million bits per second (bps)
• Selectable Port Address, IRQ level (2/9, 3, 4, 5, 7, 10 , 11, 12, 15)
• Selectable DMA channels (0, 1, 2, 3)
• EIA-530/422 interface with full modem control supports TD, RD, RTS,
CTS, DSR, DCD, DTR, TXC, RXC, LL, RL, TM, TSET signals
• Jumper options for clock source and Input / Output modes
• Software programmable baud rate
Internal Baud Rate Generator
The baud rate of the ESCC is programmed under software control. The
standard oscillator supplied with the board is 7.3728 MHz. However, other
oscillator values can be substituted to achieve different baud rates.
Omega Engineering OMG-ACB-530 Page 11
Page 14
Technical Description
Programming the OMG-ACB-530
Control/Status Port
The OMG-ACB-530 occupies eight Input/Output (I/O) addresses. The ESCC
chip uses the first four, while the fifth address (Base+4) is the address of the
on-board Control/Status Port. This port is used to set the Data Terminal
Ready (DTR), Remote Loopback (RL), Local Loopback (LL) signals, and to
enable or disable DMA under program control, and to monitor the Data Set
Ready (DSR) input signals from the modem.
Bit Output Port Bits Input Port Bits
0 DTR A 1=On, 0=Off DSR A 1=Off, 0=On
1 DTR B 1=On, 0=Off DSR B 1=Off, 0=On
2 LL A 1=On, 0=Off TM A 1=Off, 0=On
3 RL A 1=On, 0=Off ESCC INT 1=Off, 0=On
4 LL B 1=On, 0=Off TM B 1=Off, 0=On
5 RL B 1=On, 0=Off TC STAT 1=Off, 0=On
6 CH. B DMA Enable
ESCC CH.B 1=On, 0=Off
7 CH. A DMA Enable
ESCC CH.A 1=On, 0=Off
Ch.B DMA 1=Off, 0=On
Ch.A DMA 1=Off, 0=On
Software Examples
Function Program Bits
Turn On CH.A DTR Out (Base+4), XXXX XXX1
Turn On CH.B DTR Out (Base+4), XXXX XX1X
Turn Off CH.A DTR Out (Base+4), XXXX XXX0
Turn Off CH.B DTR Out (Base+4), XXXX XX0X
Turn On CH.A LL Out (Base+4), XXXX X1XX
Turn On CH.B LL Out (Base+4), XXX1 XXXX
Turn On CH.A RL Out (Base+4), XXXX 1XXX
Turn On CH.B RL Out (Base+4), XX1X XXXX
Turn Off CH.A LL Out (Base+4), XXXX X0XX
Turn Off CH.B RL Out (Base+4), XX0X XXXX
Enable DMA Drivers Out (Base+4), 1XXX XXXX
Disable DMA Drivers Out (Base+4), 0XXX XXXX
Test CH.A DSR In (Base+4), Mask=0000 0001
Test CH.B DSR In (Base+4), Mask=0000 0010
Test CH.A TM In (Base+4), Mask=0000 0100
Test CH.B TM In (Base+4), Mask=0001 0000
Omega Engineering OMG-ACB-530 Page 12
Page 15
Technical Description
DMA Terminal Count
The OMG-ACB-530 can be setup to operate using a polling method,
interrupts, or system DMA. The most efficient method is a combination of
DMA and interrupts. The OMG-ACB-530 has been optimized to generate an
interrupt at the end of a DMA transfer. This will allow for DMA initialization
and buffer management to take place at interrupt time and provide a virtually
seamless communication channel. If the ‘T’ option on header E1 is selected, an
onboard latch will be set when Terminal Count for the selected DMA
channel(s) is reached. This latch will cause an interrupt to be generated and
program execution will be transferred to the application Interrupt Service
Routine (ISR). The DMA Terminal Count Interrupt condition should be reset
from the ISR by writing to BASE+5. The value that is written to this I/O
location is irrelevant. If your application or driver is interrupting on multiple
conditions, reading the Status Register located at Base+4 will determine the
source of the interrupt (ESCC or DMA Terminal Count generated). Bit D3 in
the Status Port corresponds to a ESCC generated interrupt and bit D5
corresponds to an interrupt generated by the end of a DMA transfer. Bit D3 can
only be reset by polling the ESCC to determine the interrupt source and
required action necessary to reset the interrupt. Please refer to the Software
Toolkit and the 85230 Technical Manual for details and examples on interrupt
driven and DMA programming examples.
Omega Engineering OMG-ACB-530 Page 13
Page 16
Technical Description
Connector P1 and P2 Pin Assignments
Signal Name Pin # Mode
GND Ground 7
RDB RX+ Receive Positive 16 Input
RDA RX- Receive Negative 3 Input
CTSB CTS+ Clear To Send Positive 13 Input
CTSA CTS- Clear To Send Negative 5 Input
DSRB DSR+ Data Set Ready Positive 22 Input
DSRA DSR- Data Set Ready Negative 6 Input
DCDB DCD+ Data Carrier Detect Positive 10 Input
DCDA DCD Data Carrier Detect Negative 8 Input
TDB TX+ Transmit Positive 14 Output
TDA TX- Transmit Negative 2 Output
RTSB RTS+ Request To Send Positive 19 Output
RTSA RTS- Request To Send Negative 4 Output
DTRB DTR+ Data Terminal. Ready Positive 23 Output
DTRA DTR- Data Terminal Ready Negative 20 Output
TXCB TXC+ Transmit Clock Positive 12 Input
TXCA TXC- Transmit Clock Negative 15 Input
RXCB RXC+ Receive Clock Positive 9 Input
RXCA RXC- Receive Clock Negative 17 Input
TSETB TSET+ Terminal Timing Positive 11 Output
TSETA TSET- Terminal Timing Negative 24 Output
LL Local Loop-Back 18 Output
RL Remote Loop-Back 21 Output
TM Test Mode 25 Input
RS-530/422/485 Line Termination
Typically, each end of the RS-530/422/485 bus must have line-terminating
resistors. A 100-ohm resistor is across each RS-530/422/485 input in addition
to a 1K ohm pull-up/pull-down combination that biases the receiver inputs.
The RS-530 specification calls for a 100-ohm 1/2-watt resistor between the
signal ground and the chassis ground. On the IBM PC, these two grounds are
already connected together, therefore this resistor is omitted.
Omega Engineering OMG-ACB-530 Page 14
Page 17
Specifications
Environmental Specifications
Specification Operating Storage
Temperature
Range
Humidity Range
Power Consumption
0º to 50º C
(32º to 122º F)
10 to 90% R.H.
Non-Condensing
Specifications
-20º to 70º C
(-4º to 158º F)
10 to 90% R.H.
Non-Condensing
Supply line
Rating
+5 VDC
900 mA
Mean Time Between Failures (MTBF)
Greater than 150,000 hours. (Calculated)
Physical Dimensions
Board length 5.8 inches (14.73 cm)
Board Height including Goldfingers 4.2 inches (10.66 cm)
Board Height excluding Goldfingers 3.9 inches (9.91 cm)
Please see Appendix G for board layout and dimensions.
Omega Engineering OMG-ACB-530 Page 15
Page 18
Appendix A - Troubleshooting
Appendix A - Troubleshooting
An ACB Developers Toolkit Diskette is supplied with the Omega Engineering
adapter and will be used in the troubleshooting procedures. By using this
diskette and following these simple steps, most common problems can be
eliminated without the need to call Technical Support.
1. Identify all I/O adapters currently installed in your system. This includes
your on-board serial ports, controller cards, sound cards etc. The I/O
addresses used by these adapters, as well as the IRQ (if any) should be
identified.
2. Configure your Omega Engineering adapter so that there is no conflict
with currently installed adapters. No two adapters can occupy the same I/O
address.
3. Make sure the Omega Engineering adapter is using a unique IRQ. While
the Omega Engineering adapter does allow the sharing of IRQ’s, many
other adapters (i.e. SCSI adapters & on-board serial ports) do not. The IRQ
is typically selected via an on-board header block. Refer to the section on
Card Setup for help in choosing an I/O address and IRQ.
4. Make sure the Omega Engineering adapter is securely installed in a
motherboard slot.
5. Use the supplied diskette and User Manual to verify that the Omega
Engineering adapter is configured correctly. The supplied diskette contains
a diagnostic program ‘SSDACB’ that will verify if an adapter is configured
properly. Refer to the ‘UTIL.txt’ file found in the \UTIL sub-directory on
the supplied diskette for detailed instructions on using ‘SSDACB’.
6. The following are known I/O conflicts:
• 3F8-3FF is typically reserved for COM1:
• 2F8-2FF is typically reserved for COM2:
• 3E8-3EF is typically reserved for COM3:
• 2E8-2EF is typically reserved for COM4:. This is a valid setup
option for the OMG-ACB-530. However, since only 10 address
lines are actually decoded, a possible conflict with an advanced
video card emulating the IBM XGA adapter (8514 register set)
may occur.
Omega Engineering OMG-ACB-530 Page 16
Page 19
Appendix B - How To Get Assistance
Appendix B - How To Get Assistance
Please refer to Appendix A - Troubleshooting prior to calling Technical
Support.
1. Read this manual thoroughly before attempting to install the
adapter in your system.
2. When calling for technical assistance, please have your user
manual and current adapter settings. If possible, please have the
adapter installed in a computer ready to run diagnostics.
3. Omega Engineering maintains a home page on the World Wide
Web, www.omega.com, providing utilities and new product
information.
4. Technical support is available Monday to Friday from 8:30 a.m. to
6:00 p.m. Eastern time. Technical support can be reached at (800)
826-6342 x2295.
RETURN AUTHORIZATION MUST BE OBTAINED FROM OMEGA
ENGINEERING BEFORE RETURNED MERCHANDISE WILL BE
ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING
OMEGA ENGINEERING AND REQUESTING A RETURN
MERCHANDISE AUTHORIZATION (RMA) NUMBER.
Omega Engineering OMG-ACB-530 Page 17
Page 20
Appendix C - Electrical Interface
Appendix C - Electrical Interface
RS-422
The RS-422 specification defines the electrical characteristics of balanced
voltage digital interface circuits. RS-422 is a differential interface that defines
voltage levels and driver/receiver electrical specifications. On a differential
interface, logic levels are defined by the difference in voltage between a pair of
outputs or inputs. In contrast, a single ended interface, for example RS-232,
defines the logic levels as the difference in voltage between a single signal and
a common ground connection. Differential interfaces are typically more
immune to noise or voltage spikes that may occur on the communication lines.
Differential interfaces also have greater drive capabilities that allow for longer
cable lengths. RS-422 is rated up to 10 Megabits per second and can have
cabling 4000 feet long. RS-422 also defines driver and receiver electrical
characteristics that will allow 1 driver and up to 32 receivers on the line at
once. RS-422 signal levels range from 0 to +5 volts. RS-422 does not define a
physical connector.
RS-530
RS-530 (a.k.a. EIA-530) compatibility means that RS-422 signal levels are met,
and the pin-out for the DB-25 connector is specified. The Electronic Industry
Association (EIA) created the RS-530 specification to detail the pin-out, and
define a full set of modem control signals that can be used for regulating flow
control and line status. The RS-530 specification defines two types of interface
circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating
Equipment (DCE). The Omega Engineering adapter is a DTE interface.
RS-449
RS-449 (a.k.a. EIA-449) compatibility means that RS-422 signal levels are met,
and the pin-out for the DB-37 connector is specified. The EIA created the
RS-449 specification to detail the pin-out, and define a full set of modem
control signals that can be used for regulating flow control and line status.
Omega Engineering OMG-ACB-530 Page 18
Page 21
Appendix C - Electrical Interface
RS-485
RS-485 is backwardly compatible with RS-422; however, it is optimized for
partyline or multi-drop applications. The output of the RS-422/485 driver is
capable of being Active (enabled) or Tri-State (disabled). This capability
allows multiple ports to be connected in a multi-drop bus and selectively polled.
RS-485 allows cable lengths up to 4000 feet and data rates up to 10 Megabits
per second. The signal levels for RS-485 are the same as those defined by
RS-422. RS-485 has electrical characteristics that allow for 32 drivers and 32
receivers to be connected to one line. This interface is ideal for multi-drop or
network environments. RS-485 tri-state driver (not dual-state) will allow the
electrical presence of the driver to be removed from the line. The driver is in a
tri-state or high impedance condition when this occurs. Only one driver may be
active at a time and the other driver(s) must be tri-stated. The output modem
control signal Request to Send (RTS) controls the state of the driver. Some
communication software packages refer to RS-485 as RTS enable or RTS block
mode transfer. RS-485 can be cabled in two ways, two wire and four wire
mode. Two wire mode does not allow for full duplex communication, and
requires that data be transferred in only one direction at a time. For half-duplex
operation, the two transmit pins should be connected to the two receive pins
(Tx+ to Rx+ and Tx- to Rx-). Four wire mode allows full duplex data transfers.
RS-485 does not define a connector pin-out or a set of modem control signals.
RS-485 does not define a physical connector.
Omega Engineering OMG-ACB-530 Page 19
Page 22
Appendix D - Direct Memory Access
Appendix D - Direct Memory Access
In many instances it is necessary to transmit and receive data at greater rates
than would be possible with simple port I/O. In order to provide a means for
higher rate data transfers, a special function called Direct Memory Access
(DMA) was built into the original IBM PC. The DMA function allows the
OMG-ACB-530 (or any other DMA compatible interface) to read or write data
to or from memory without using the Microprocessor. This function was
originally controlled by the Intel 8237 DMA controller chip, but may now be a
combined function of the peripheral support chip sets (i.e. Chips & Technology
or Symphony chip sets).
During a DMA cycle, the DMA controller chip is driving the system bus in
place of the Microprocessor, providing address and control information. When
an interface uses DMA, it activates a DMA request signal (DRQ) to the DMA
controller, which in turn sends a DMA hold request to the Microprocessor.
When the Microprocessor receives the hold request it will respond with an
acknowledge to the DMA controller chip. The DMA controller chip then
becomes the owner of the system bus providing the necessary control signals to
complete a Memory to I/O or I/O to Memory transfer. When the data transfer is
started, an acknowledge signal (DACK) is sent by the DMA controller chip to
the OMG-ACB-530. Once the data has been transferred to or from the OMG-
ACB-530, the DMA controller returns control to the Microprocessor.
To use DMA with the OMG-ACB-530 requires a thorough understanding of
the PC DMA functions. The ACB Developers Toolkit demonstrates the setup
and use of DMA with several source code and high-level language demo
programs. Please refer to the ESCC User’s Manual for more information.
Omega Engineering OMG-ACB-530 Page 20
Page 23
Appendix E - Asynchronous and Synchronous Communications
Appendix E - Asynchronous and Synchronous
Communications
Serial data communications implies that individual bits of a character are
transmitted consecutively to a receiver that assembles the bits back into a
character. Data rate, error checking, handshaking, and character framing
(start/stop bits or sync characters) are pre-defined and must correspond at both
the transmitting and receiving ends. The techniques used for serial
communications can be divided two groups, asynchronous and synchronous.
When contrasting asynchronous and synchronous serial communications, the
fundamental differences deal with how each method defines the beginning and
end of a character or group of characters. The method of determining the
duration of each bit in the data stream is also an important difference between
asynchronous and synchronous communications. The remainder of this section
is devoted to detailing the differences between character framing and bit
duration implemented in asynchronous and synchronous communications.
Asynchronous Communications
Asynchronous communications is the standard means of serial data
communication for PC compatibles and PS/2 computers. The original PC was
equipped with a communication or COM: port that was designed around an
8250 Universal Asynchronous Receiver Transmitter (UART). This device
allows asynchronous serial data to be transferred through a simple and
straightforward programming interface. Character boundaries for asynchronous
communications are defined by a starting bit followed by a pre-defined number
of data bits (5, 6, 7, or 8). The end of the character is defined by the
transmission of a pre-defined number of stop bits (usual 1, 1.5 or 2). An extra
bit used for error detection is often appended before the stop bits.
Omega Engineering OMG-ACB-530 Page 21
Page 24
Appendix E - Asynchronous and Synchronous Communications
Idle State
of
Line
1
0
5 to 8 Data Bits
Even
or
Unused
Parity
Bit
1
1.5
2
Stop Bits
Remain Idle
or
Next Start Bit
Odd
Figure 8 - Asynchronous Communications Bit Diagram
This special bit is called the parity bit. Parity is a simple method of determining
if a data bit has been lost or corrupted during transmission. There are several
methods for implementing a parity check to guard against data corruption.
Common methods are called (E)ven Parity or (O)dd Parity. Sometimes parity is
not used to detect errors on the data stream. This is referred to as (N)o parity.
Because each bit in asynchronous communications is sent consecutively, it is
easy to generalize asynchronous communications by stating that each character
is wrapped (framed) by pre-defined bits to mark the beginning and end of the
serial transmission of the character. The data rate and communication
parameters for asynchronous communications have to be the same at both the
transmitting and receiving ends. The communication parameters are baud rate,
parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1).
Omega Engineering OMG-ACB-530 Page 22
Page 25
Appendix E - Asynchronous and Synchronous Communications
Synchronous Communications
Synchronous Communications is used for applications that require higher data
rates and greater error checking procedures. Character synchronization and bit
duration are handled differently than asynchronous communications. Bit
duration in synchronous communications is not necessarily pre-defined at both
the transmitting and receiving ends. Typically, in addition to the data signal, a
clock signal is provided. This clock signal will mark the beginning of a bit cell
on a pre-defined transmission. The source of the clock is predetermined and
sometimes multiple clock signals are available. For example, if two nodes want
to establish synchronous communications, point A could supply a clock to point
B that would define all bit boundaries that A transmitted to B. Point B could
also supply a clock to point A that would correspond to the data that A received
from B. This example demonstrates how communications could take place
between two nodes at completely different data rates. Character synchronization
with synchronous communications is also very different than the asynchronous
method of using start and stop bits to define the beginning and end of a
character. When using synchronous communications a pre-defined character or
sequence of characters is used to let the receiving end know when to start
character assembly.
Figure 9 - Synchronous Communications Bit Diagram
Omega Engineering OMG-ACB-530 Page 23
Page 26
Appendix E - Asynchronous and Synchronous Communications
This pre-defined character is called a sync character or sync flag. Once the sync
flag is received, the communications device will start character assembly. Sync
characters are typically transmitted while the communications line is idle or
immediately before a block of information is transmitted. To illustrate with an
example, let's assume that we are communicating using eight bits per character.
Point A is receiving a clock from point B and sampling the receive data pin on
every upward clock transition. Once point A receives the pre-defined bit pattern
(sync flag), the next eight bits are assembled into a valid character. The
following eight bits are also assembled into a character. This will repeat until
another pre-defined sequence of bits is received (either another sync flag or a
bit combination that signals the end of the text, e.g., EOT). The actual sync flag
and protocol varies depending on the sync format (SDLC, BISYNC, etc.).
For a detailed explanation of serial communications, please refer to the book
Technical Aspects of Data Communications by John E. McNamara, published
by Digital Press (DEC) 1982.
Omega Engineering OMG-ACB-530 Page 24
Page 27
Appendix F - ACB Developer Toolkit Diskette and ACB Resource Kit
Appendix F - ACB Developer Toolkit Diskette and
ACB Resource Kit
The ACB Developer Toolkit diskette provides sample software, a DOS version
of the SeaMAC Driver, and technical insight to aid in the development of
reliable applications for the ACB family of communication cards. The goal in
publishing this collection of source code and technical information is two fold.
First, to provide the developer with ample information to develop ACB based
applications. Second, to provide a channel for suggestions into the technical
support efforts. The ACB Resource Kit provides a detailed overview of the
ACB product line and is available at your request. Topics concerning
applications and integration are covered to provide a complete overview of the
versatile ACB family. During ACB development, if any questions, comments,
or suggestions arise, please contact Technical Support at the numbers listed at
the end of this manual.
Omega Engineering OMG-ACB-530 Page 25
Page 28

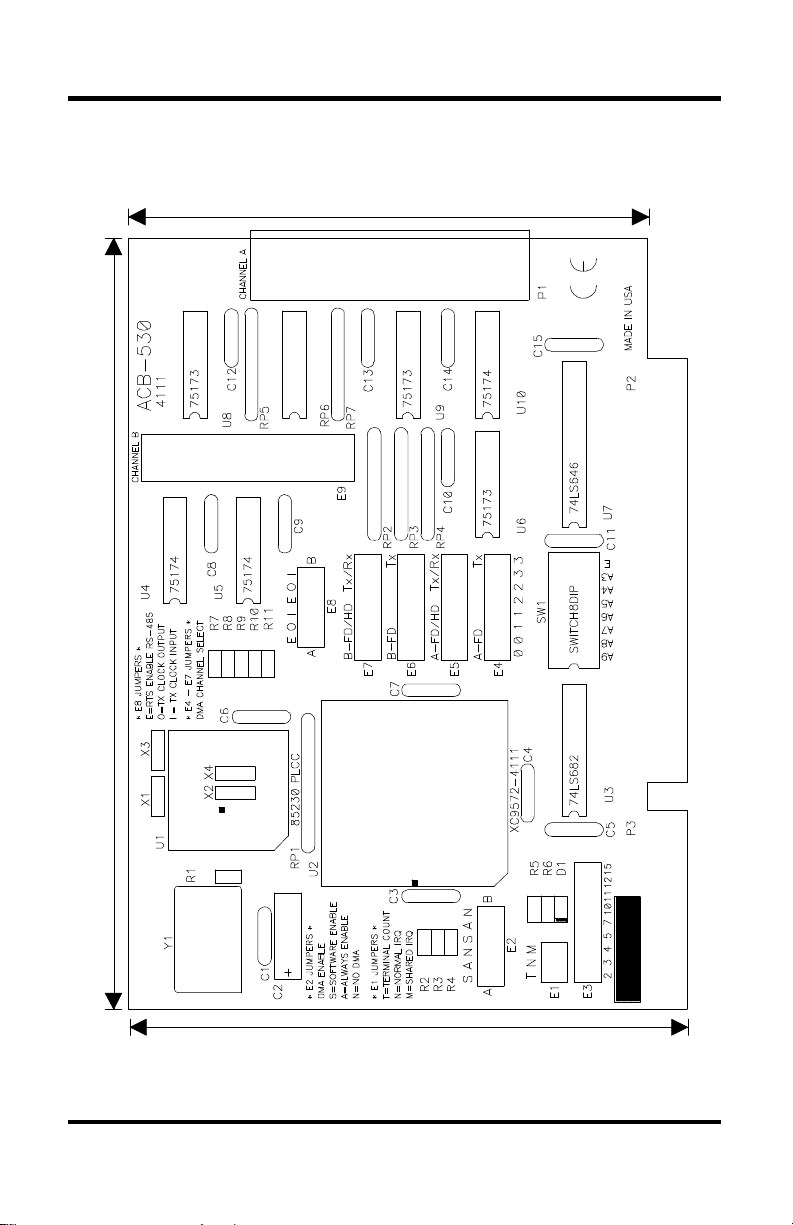

5.8"
Appendix G - Silk-Screen
Appendix G - Silk-Screen
3.9"
4.2"
Omega Engineering OMG-ACB-530 Page 26
Page 29
Appendix H - Compliance Notices
Appendix H - Compliance Notices
Federal Communications Commission Statement
FCC - This equipment has been tested and found to comply with the limits for
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in such case the user will
be required to correct the interference at his own expense.
EMC Directive Statement
Products bearing the CE Label fulfill the requirements of the
EMC directive (89/336/EEC) and of the low-voltage
directive (73/23/EEC) issued by the European Commission.
To obey these directives, the following European standards must be met:
• EN55022 Class A - ‘Limits and methods of measurement of radio
interference characteristics of information technology equipment’
• EN50082-1 - ‘Electromagnetic compatibility - Generic immunity
standard’ Part 1: Residential, commercial and light industry
• EN60950 (IEC950) - ‘Safety of information technology
equipment, including electrical business equipment’
Warning
This is a Class A Product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Always use cabling provided with this product if possible. If no cable is
provided or if an alternate cable is required, use high quality shielded cabling to
maintain compliance with FCC/EMC directives.
Omega Engineering OMG-ACB-530 Page 27
Page 30
Warranty
Warranty
Omega Engineering, Inc. warrants this product to be in good working order for
a period of one year from the date of purchase. Should this product fail to be in
good working order at any time during this period, Omega Engineering will, at
it's option, replace or repair it at no additional charge except as set forth in the
following terms. This warranty does not apply to products damaged by misuse,
modifications, accident or disaster.
Omega Engineering assumes no liability for any damages, lost profits, lost
savings or any other incidental or consequential damage resulting from the use,
misuse of, or inability to use this product. Omega Engineering will not be liable
for any claim made by any other related party.
RETURN AUTHORIZATION MUST BE OBTAINED FROM OMEGA
ENGINEERING BEFORE RETURNED MERCHANDISE WILL BE
ACCEPTED. AUTHORIZATION CAN BE OBTAINED BY CALLING
OMEGA ENGINEERING AND REQUESTING A RETURN
MERCHANDISE AUTHORIZATION (RMA) NUMBER.
Omega Engineering, Incorporated
One Omega Drive
PO Box 4047
Stamford, CT 06907
(800)826-6342 FAX: (203)359-7990
email: Internet: [email protected]
Web Site: www.omega.com
Technical Support is available from 8:30 a.m. to 6 p.m. Eastern time.
Monday - Friday
Trademarks
Omega Engineering, Incorporated acknowledges that all trademarks referenced
in this manual are the service mark, trademark, or registered trademark of the
respective company.
OMG-ACB-530 is a trademark of Omega Engineering, Incorporated.
Omega Engineering OMG-ACB-530 Page 28
Loading...
