1 Overview

OME-WISE-7000 Rule Utility is an easy-to-use software tool specially
designed for OME-WISE-7000 controller, it enables user to perform the
following operations:

 Import OME-WISE-7000 IF-THEN-ELSE Rule file from a

OME-WISE-7000 module to PC

 Export IF-THEN-ELSE Rule file from PC to a remote

OME-WISE-7000 module

By OME-WISE-7000 Rule Utility, the user can easily retrieve the
IF-THEN-ELSE Rule file from a specific OME-WISE-7000 module and this
file can be copied to multiple OME-WISE-7000 modules that require the
same Rule file, therefore, there is no need to set up rules for each
OME-WISE-7000 module individually.

3

2 Install/Uninstall OME-WISE-7000 Rule Utility

2.1 Install OME-WISE-7000 Rule Utility
Follow the steps below to install OME-WISE-7000 Rule Utility:

 Obtain the OME-WISE-7000 Rule Utility setup file

(OME-WISE-7000 Rule Utility Setup 1.x.exe).

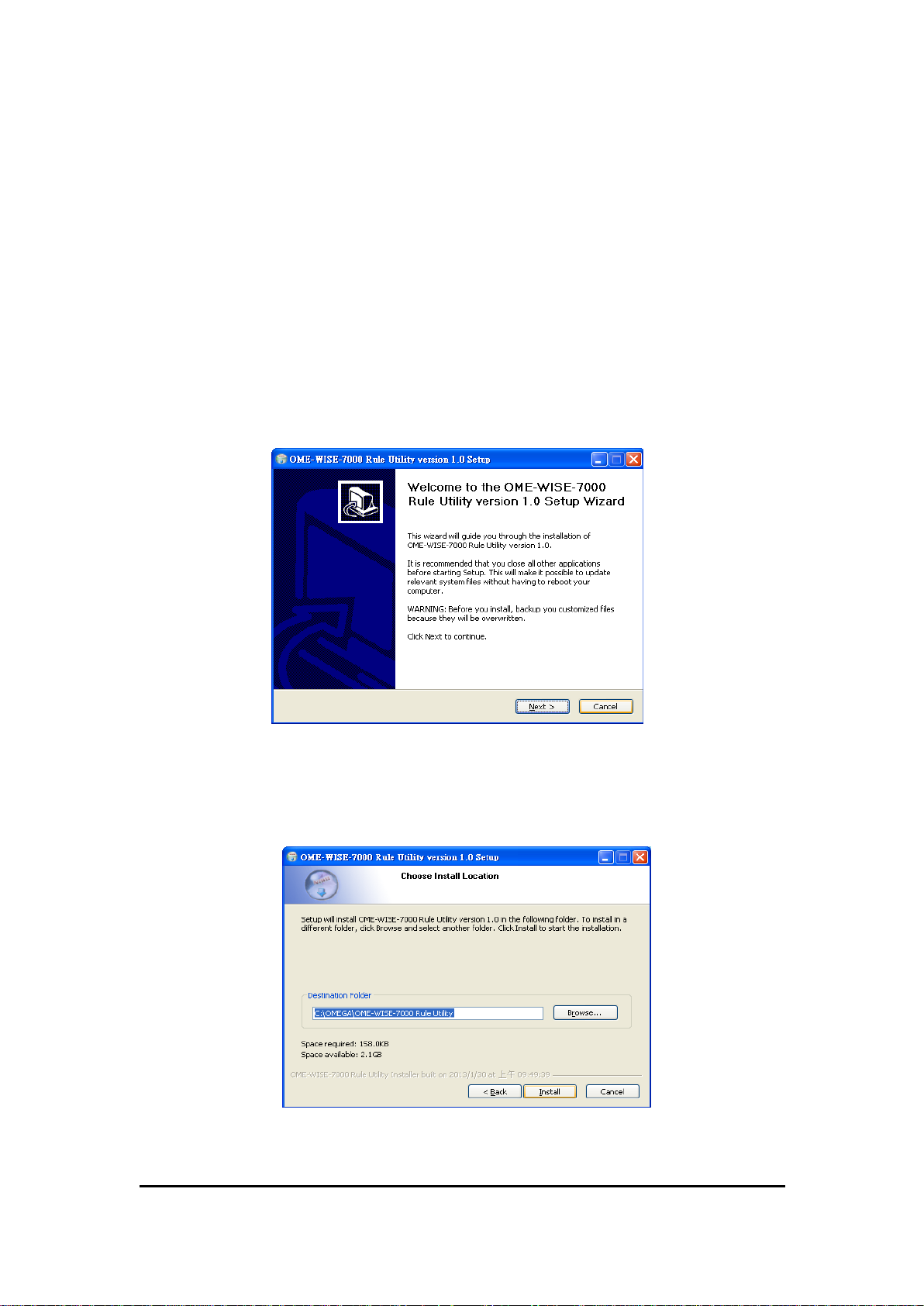

 Double click the setup file to install the file, you will see a

window pop up as below, click [Next] to continue.

 Choose the installation location to install ME-WISE-7000 Rule

Utility. Click [Install] to start the installation.

4

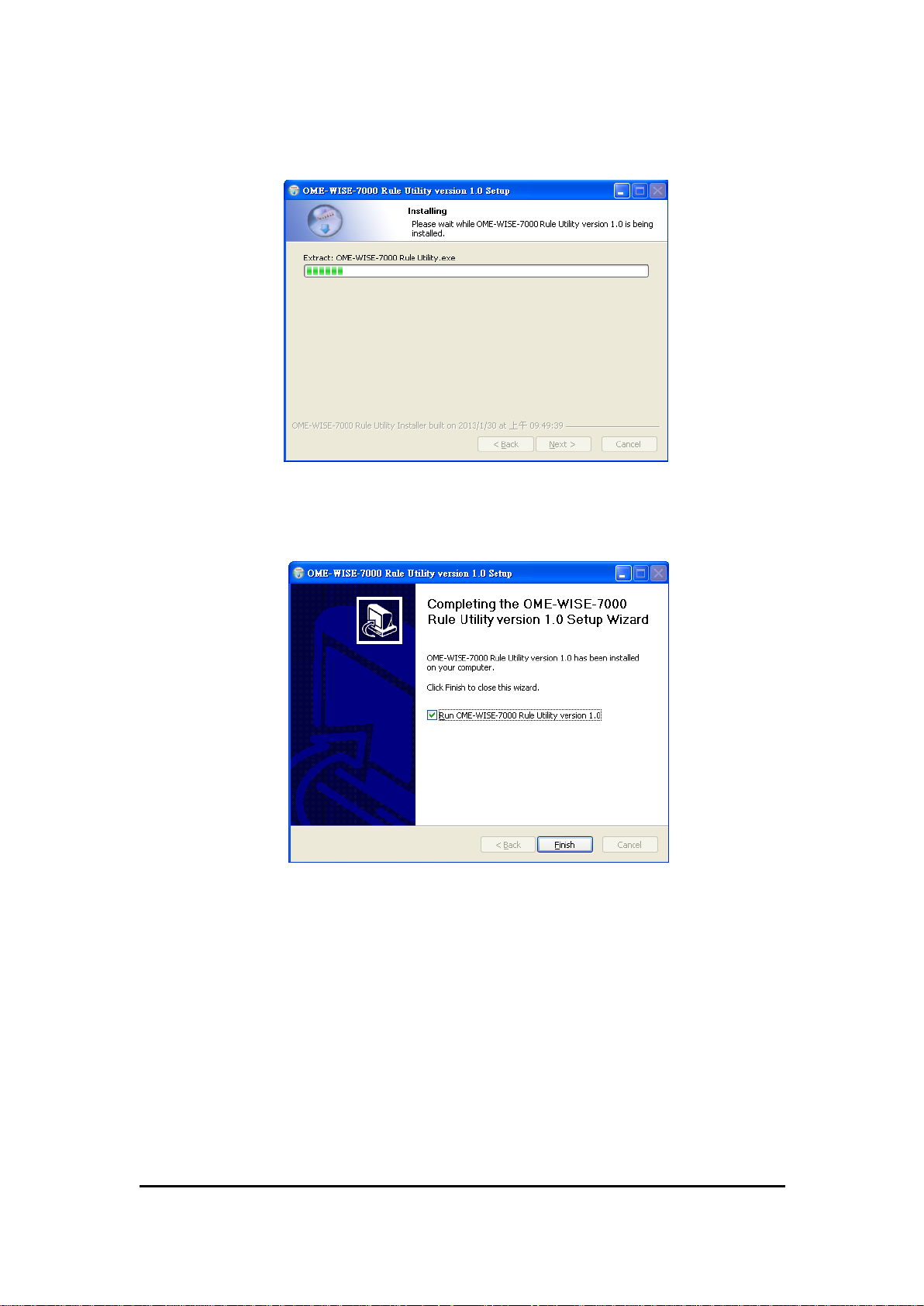

 The installation progress will be shown as below; please wait

till the installation is completed.

 When the installation is completed, click [Finish] to close the

process.

2.2 Execute OME-WISE-7000 Rule Utility
Follow the steps below to execute OME-WISE-7000 Rule Utility:
 Taking Windows XP as an example: click [Start]  [All

Programs]  [OMEGA] [OME-WISE-7000 Rule Utility], and
then click “OME-WISE-7000 Rule Utility” under the
[OME-WISE-7000 Rule Utility] category to start the program.

5

2.3 Uninstall OME-WISE-7000 Rule Utility
Follow the steps below to uninstall OME-WISE-7000 Rule Utility:

 Click [Start] [All Programs][OMEGA] [OME-WISE-7000

Rule Utility], and then click “Uninstall” under the [O
OME-WISE-7000 Rule Utility] category.

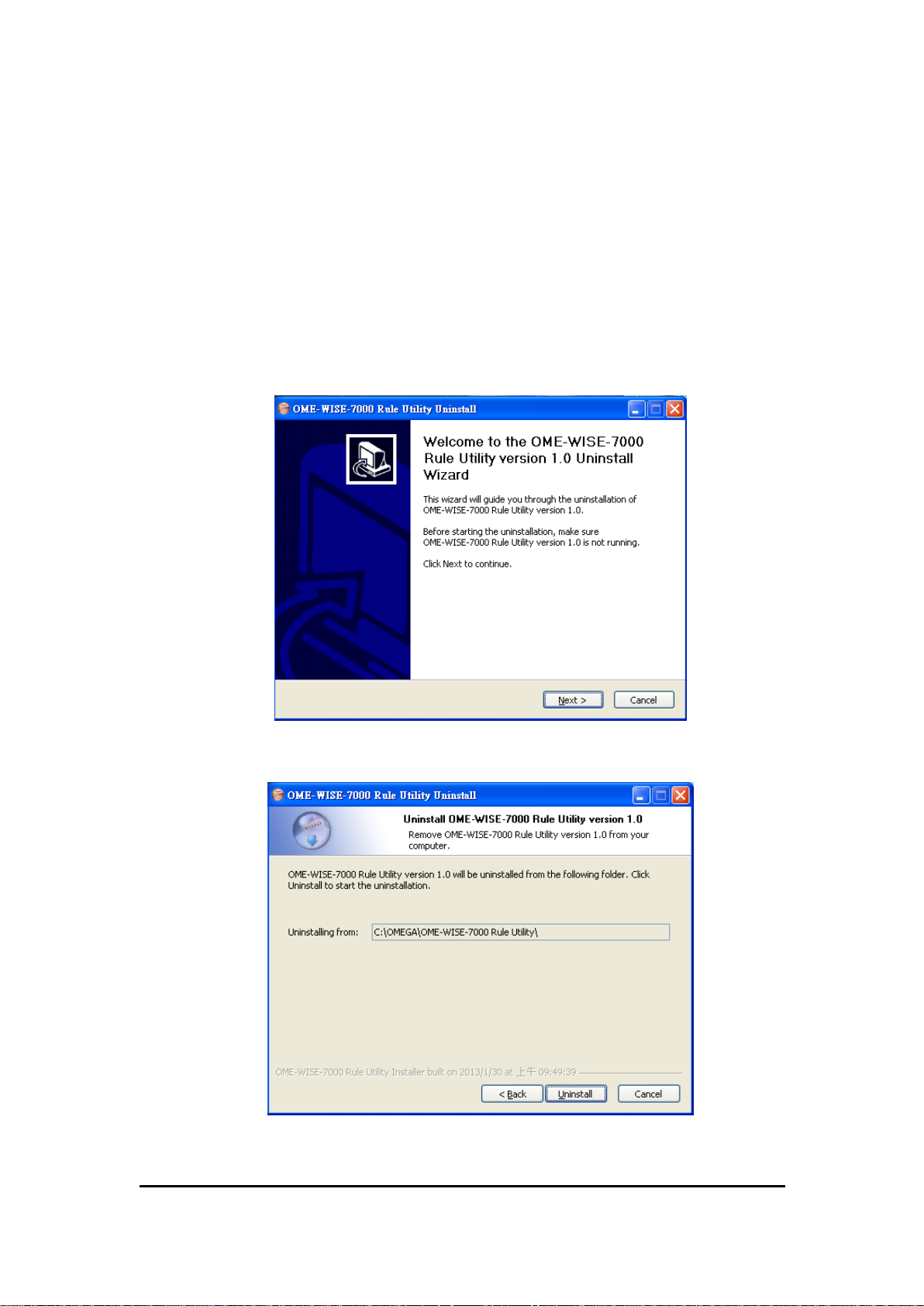

 You will see a window pop up as below, click [Next] to

continue.

 Click [Uninstall] to uninstall the program.

6

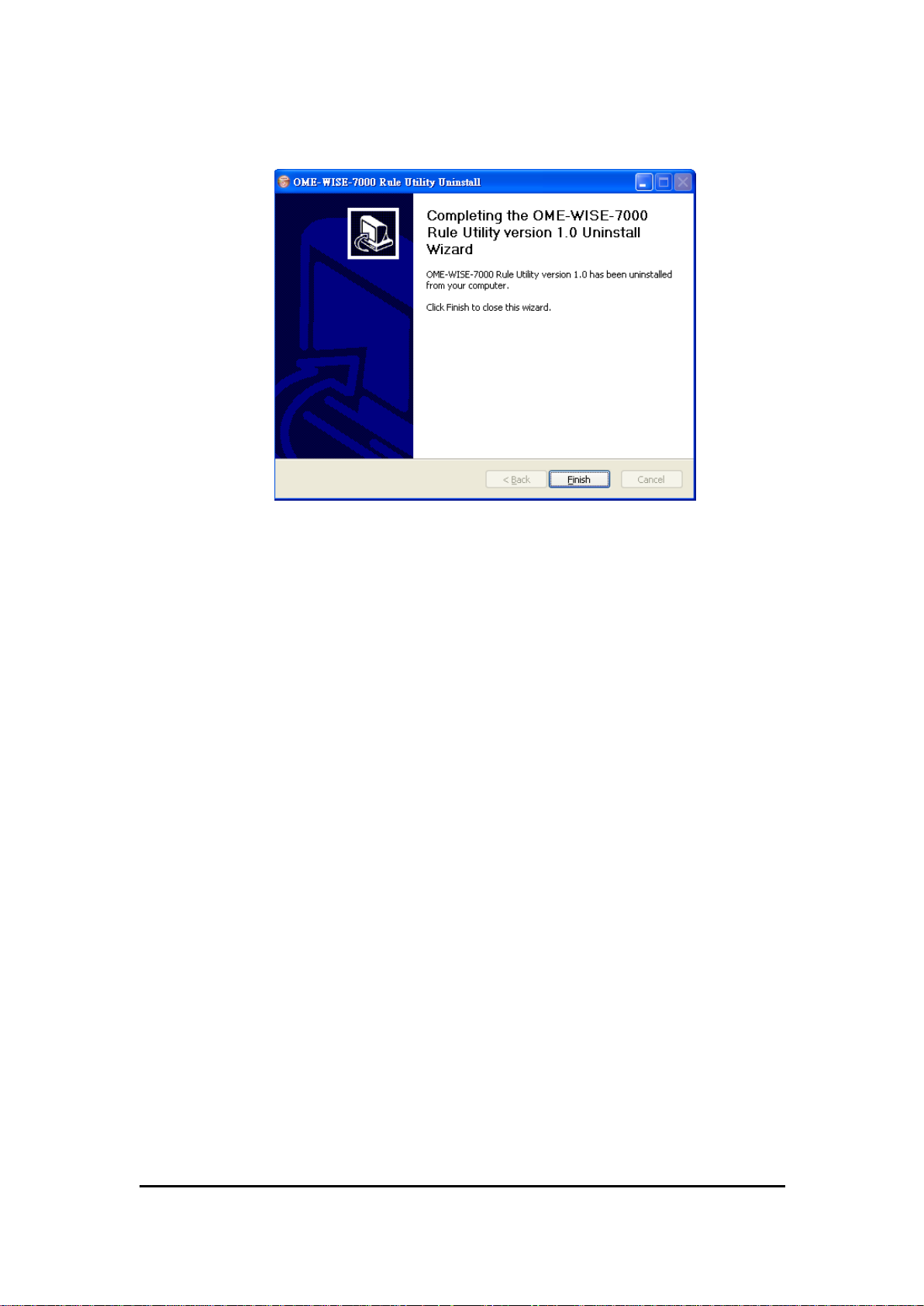

 When the uninstall process is completed, click [Finish] to

finish the uninstallation.

7

3 Import Rule from a OME-WISE-7000 module to PC

Follow the steps below to import Rule from a OME-WISE-7000
module to PC.

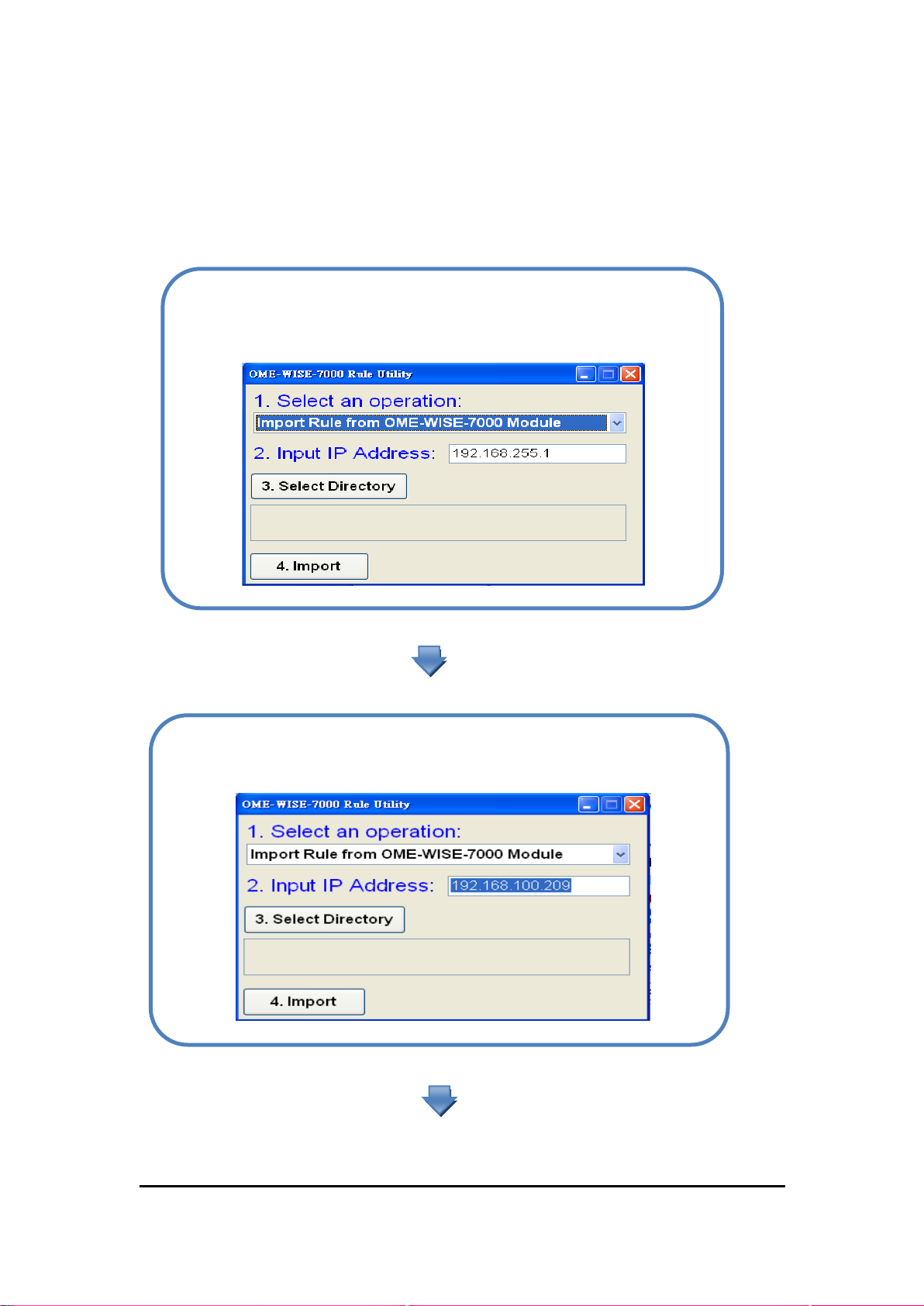

STEP 1: Select an operation

Select the operation “Import Rule from OME-WISE-7000 Module”
from the dropdown list.

STEP 2: Input IP Address

Input your OME-WISE-7000 module IP Address in the text box.

8

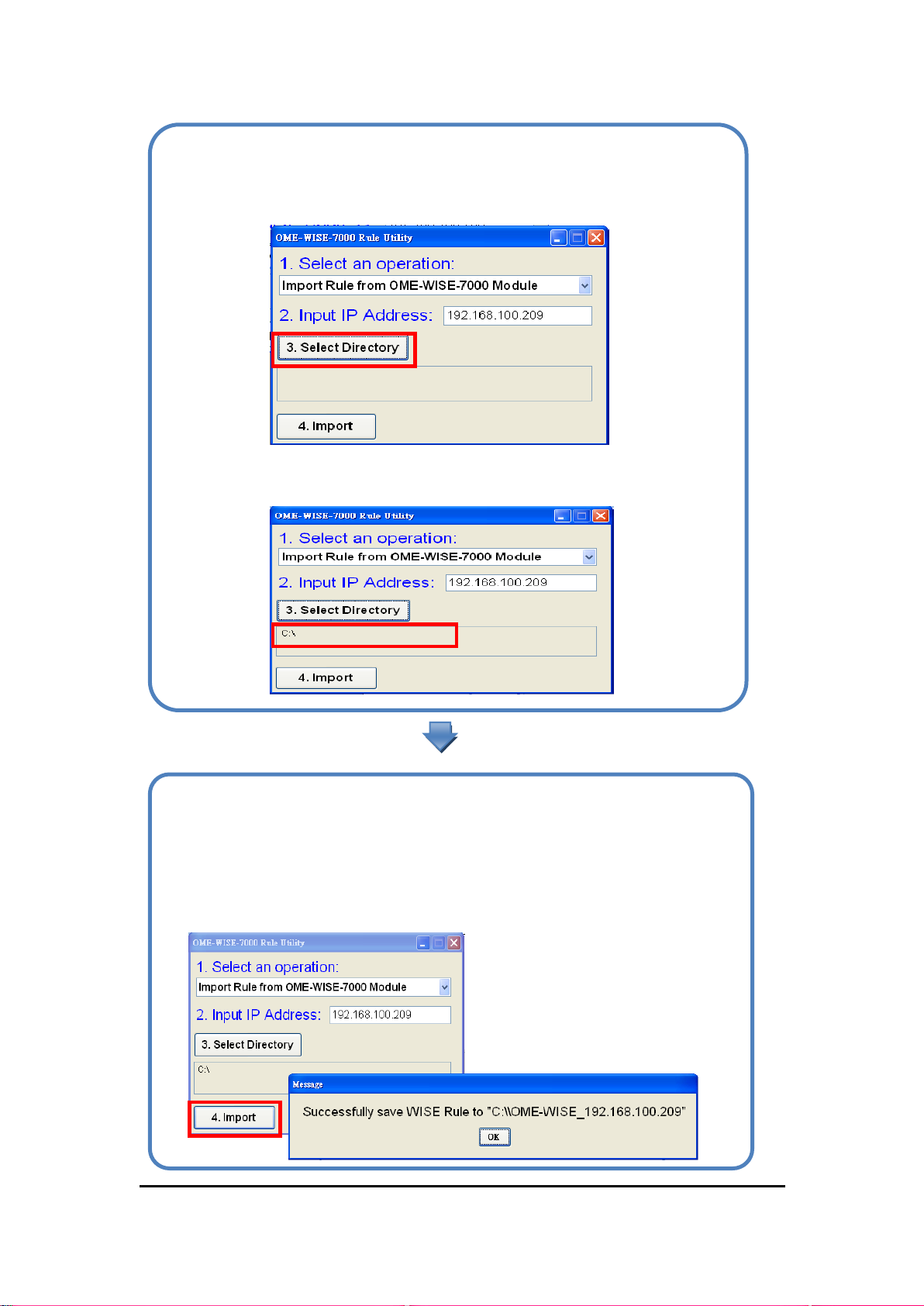

STEP 3: Select the Directory path

1. Click the Select Directory button to bring up the Browse Folders
window to select the location for rule file saving operation.

2. The selected directory path will be shown in the middle of the utility
window.

STEP 4: Import WISE Rule

Click the Import button to execute the operation. Then
OME-WISE-7000 Rule Utility will automatically create a folder
named OME-WISE_[IP Address] under the specified directory
path; and OME-WISE-7000 rule files will be saved to this folder.

9

4 Export Rule from PC to a OME-WISE-7000 module

Follow the steps below to export Rule from PC to a OME-WISE-7000
module.

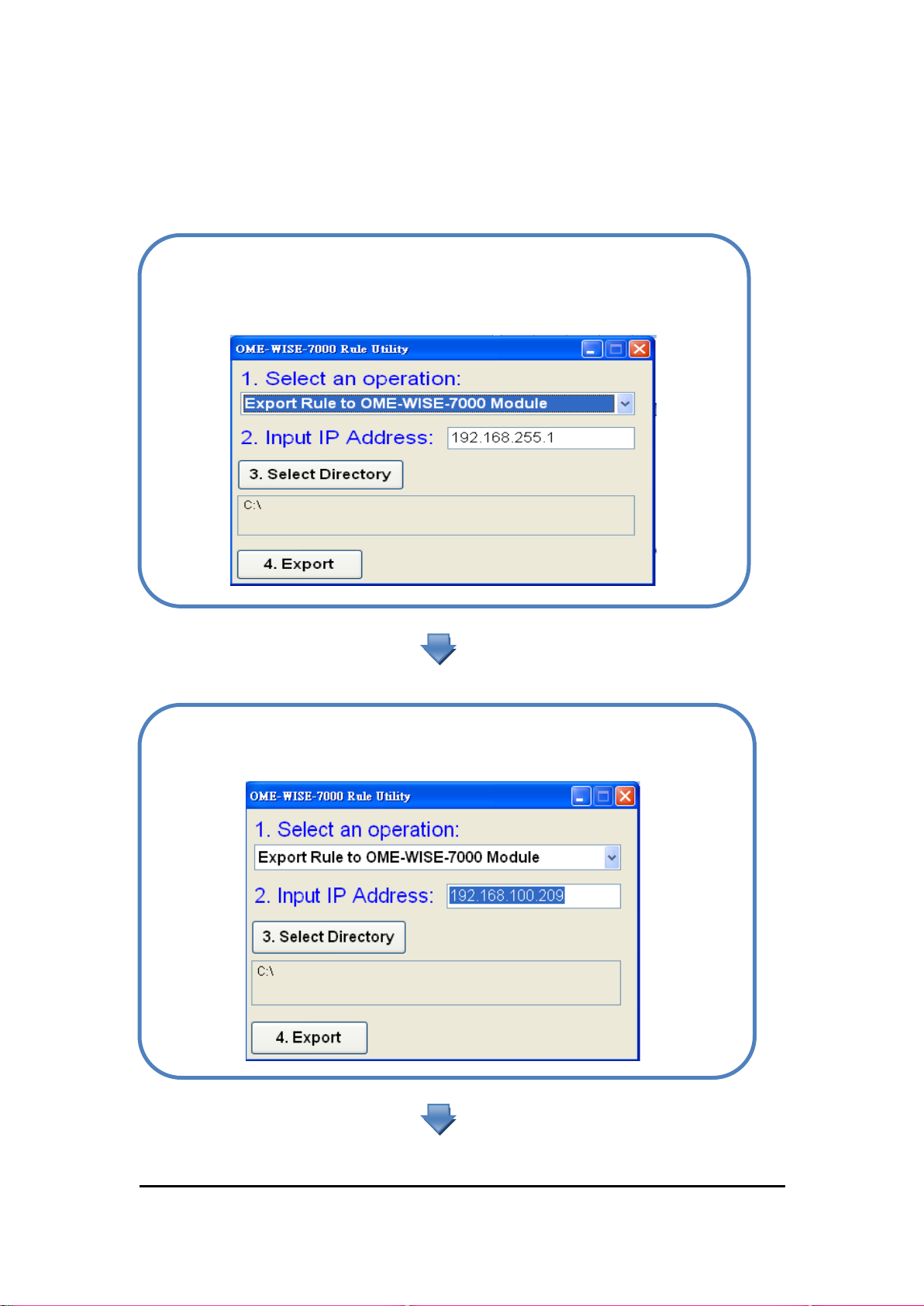

STEP 1: Select an operation

Select the operation “Export Rule to OME-WISE-7000 Module” from the
dropdown list.

STEP 2: Input IP Address

Input your OME-WISE-7000 module IP Address in the text box.

10

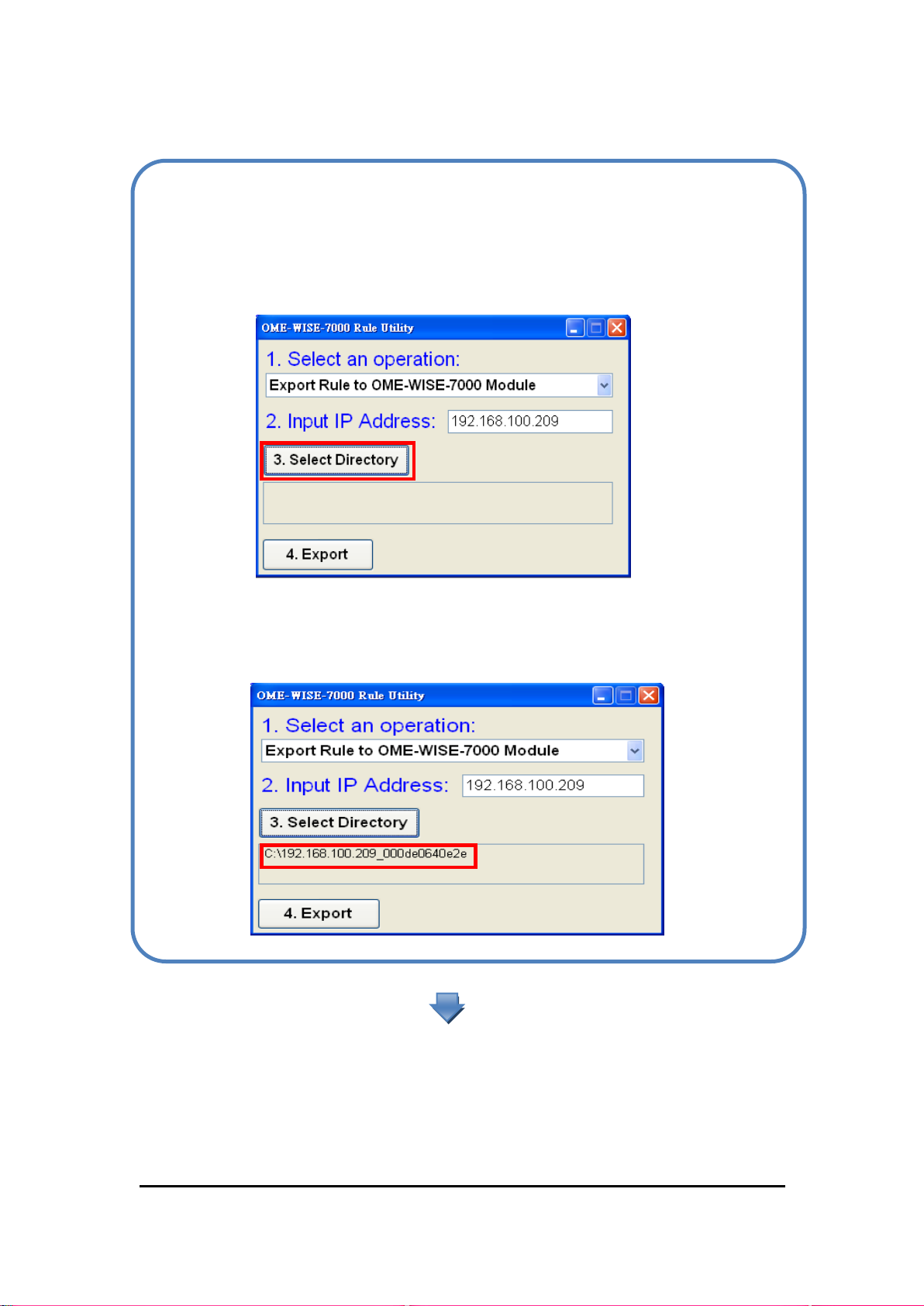

STEP 3: Select the Directory path

1. Click the Select Directory button to bring up the Browse Folders
window to select the location of rule file.

Please note: this directory must contain these two files:
rules.ini and channel.ini.

2. The selected directory path will be shown in the middle of the utility
window.

11

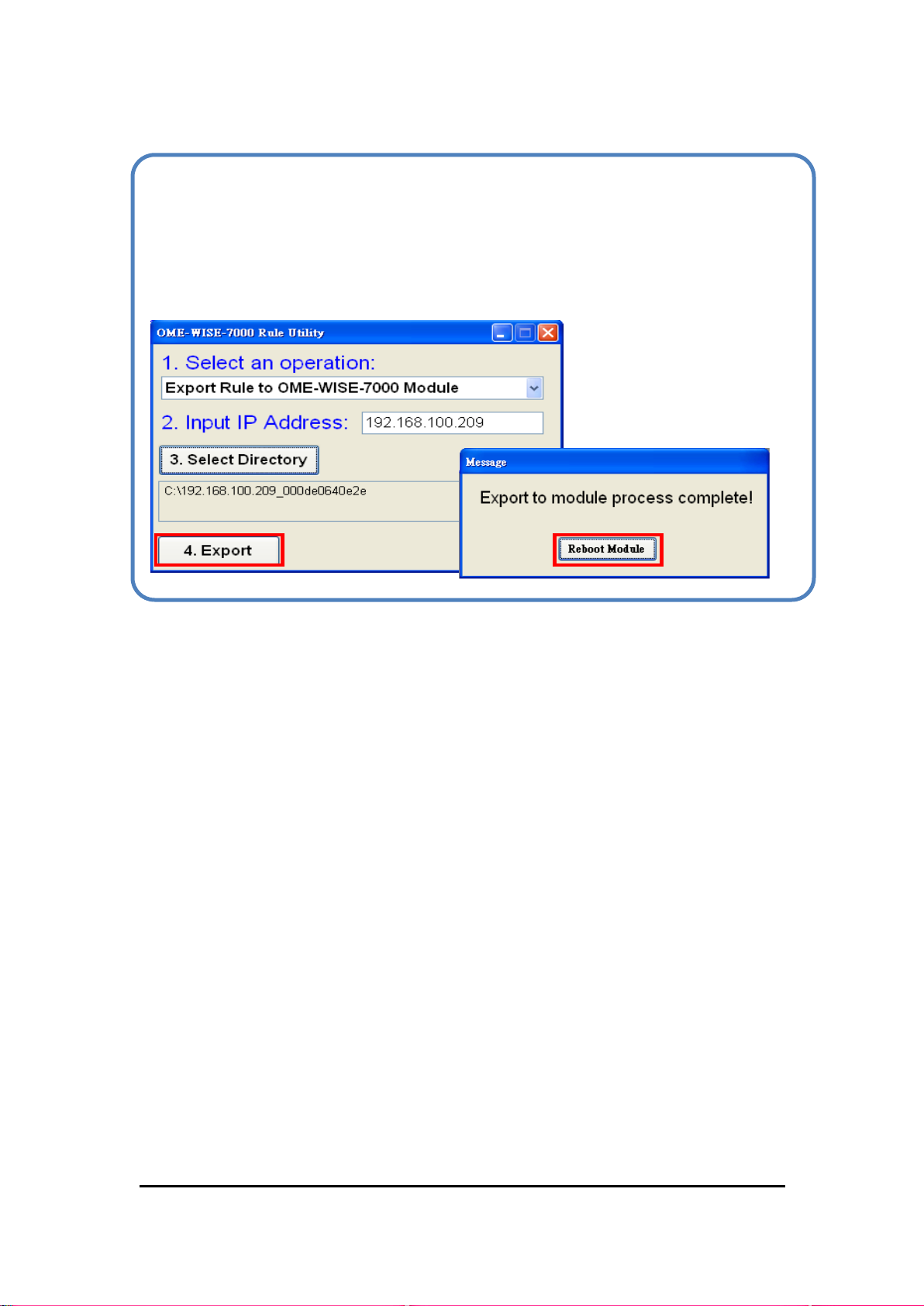

STEP 4: Export Rule

Click the “Export” button to execute the operation. Then
OME-WISE-7000 Rule Utility will automatically upload rule files to the
OME-WISE-7000 module. Click the Reset Module button to, then
OME-WISE-7000 module will reboot and execute the new rule file.
