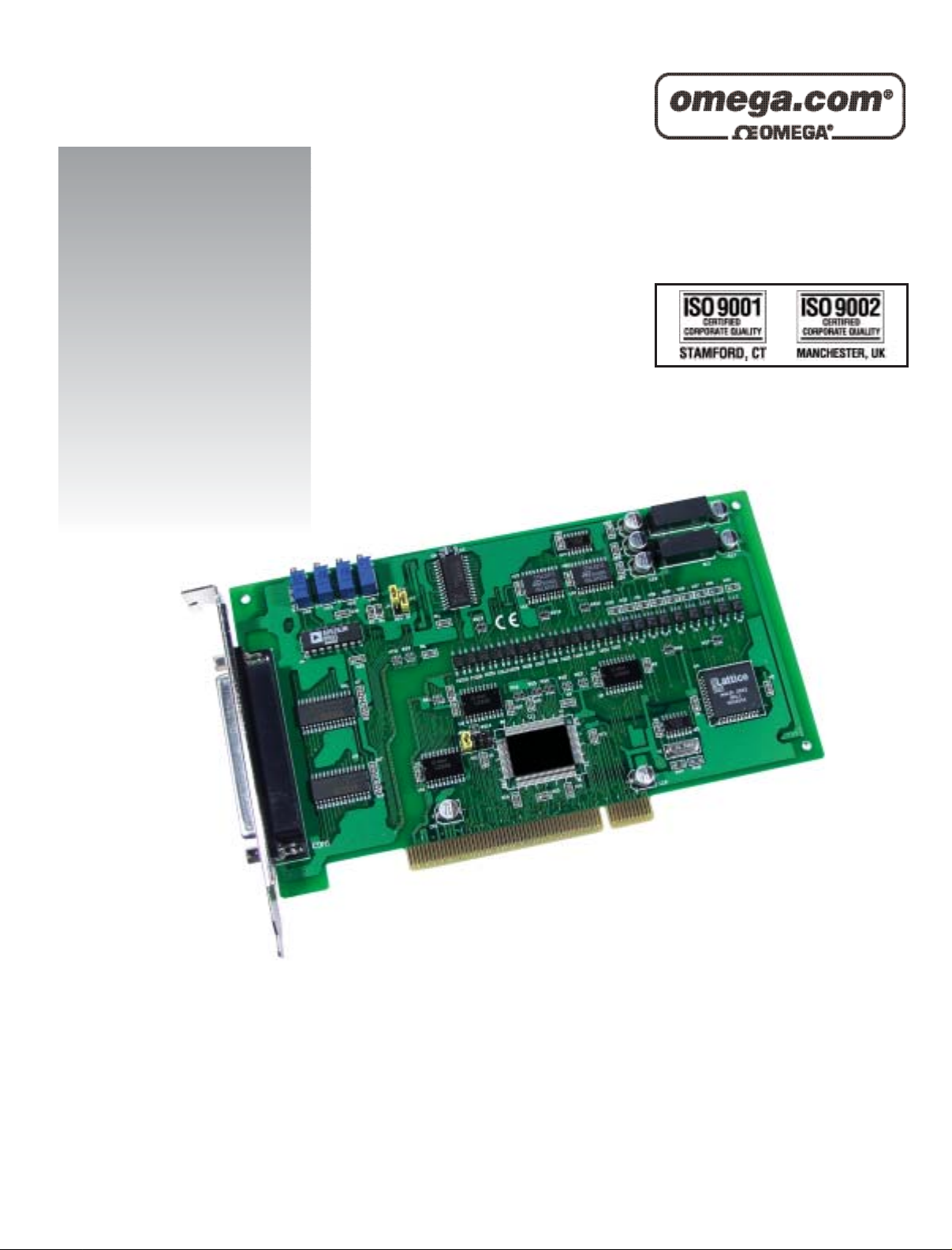

1. Introduction

The OME-PISO-813 is a bus-type isolated 12-bit A/D board for the PCI bus for
IBM or compatible PC. It features a 10 KHz data acquisition rate under DOS and
Windows. The OME-PISO-813 provides 32 single-ended analog input channels. It also
provides 3000 volts of electrical isolation between the computer and card. The OME­PISO-813 has one 37-pin D-type connector. It can be installed in a 5V PCI slot and is
fully “Plug & Play” compatible.

1.1 Features

• 32 single-ended analog input channels

• 12 bit A/D converter

• 3000Vdc optical isolation protection

• Analog input range

Bipolar: ±10V, ±5V, ±2.5V, ±1.25V, ±0.625V

Unipolar: 0 to 10V; 0 to 5V; 0 to 2.5V; 0 to 1.25V; 0 to 0.625V

• Programmable gain control: 1, 2, 4, 8, 16

• A/D trigger mode: software trigger

• A/D data transfer mode: polling

• PCI Bus

• One 37-pin D-type connector for analog inputs

• SMD, short card

• Automatic detection by Windows

5

1.2 Specifications

Analog Input Specifications

• No. of Channel: 32 single-ended

• Resolution: 12 bits

• Conversion rate: 10KS/s max.

• Input impedance: 10MΩ

• Overvoltage protection: ±35V

• Accuracy: 0.01% of reading ±1 bit

• Linearity: ±1bit

• On chip sample & hold

• Zero drift: ±25 PPM/ºC of FS max.

Power Requirements: 860mA/+5V max.
General Environmental

• Operating temp.: 0 to 50ºC

• Storage temp.: -20ºC to 70ºC

• Humidity: 0 to 90% non-condensing

• Dimensions: 180mm×105mm

1.3 Order Description

• OME-PISO-813: 32 channel isolated analog input board with Windows driver

software

1.3.1 Options

• OME-DB-8325: Daughter board

• OME-DN-37: I/O connector block with DIN-Rail mounting and 37-pin D-type

connector

• OME-DB-37: 37-pin D-type connector pin to pin screw terminal for any 37 pin

D-type connector of I/O board

1.3.2 OME PCI Data Acquisition Family

The OME family of PCI-BUS data acquisition cards includes the following

models:

• OME- PCI-1002/1202/1800/1802/1602: multi-function family, non-isolated

• OME-PCI-TMC12: timer/counter card, non-isolated

• OME-PIO-D144/D96/D64/D56/D48/D24: D/I/O family

6

• OME-PIO-DA16/DA8/DA4: D/A family

• OME-PISO-813: A/D card

7

Hardware configuration

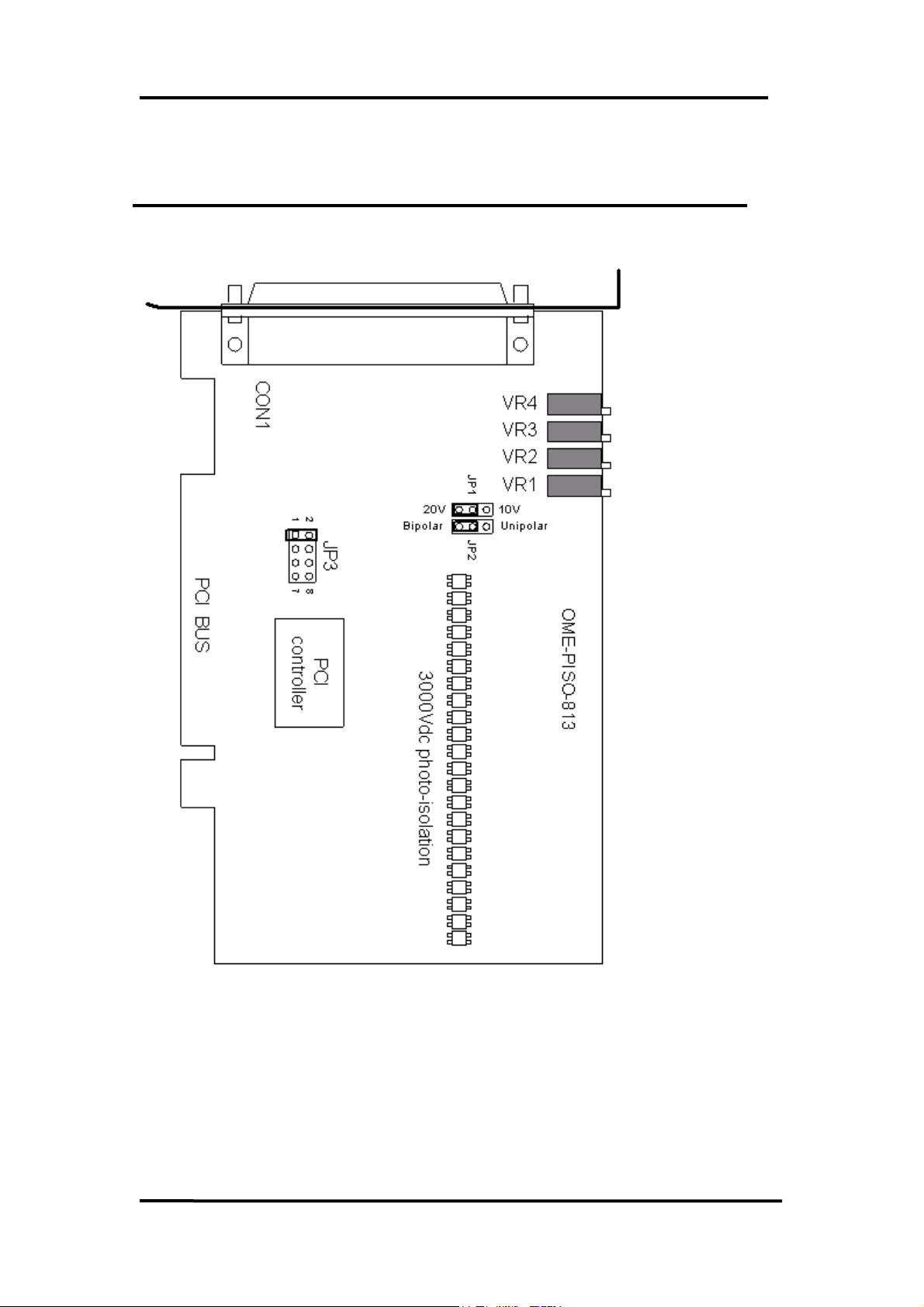

1.4 Board Layout

CON1: 32 channels analog input

JP1: Input range setting

JP2: Unipolar/Bipolar setting

JP3: Reserved

VR1 to VR4: For factory calibration

8

1.5 A/D Converter Operation

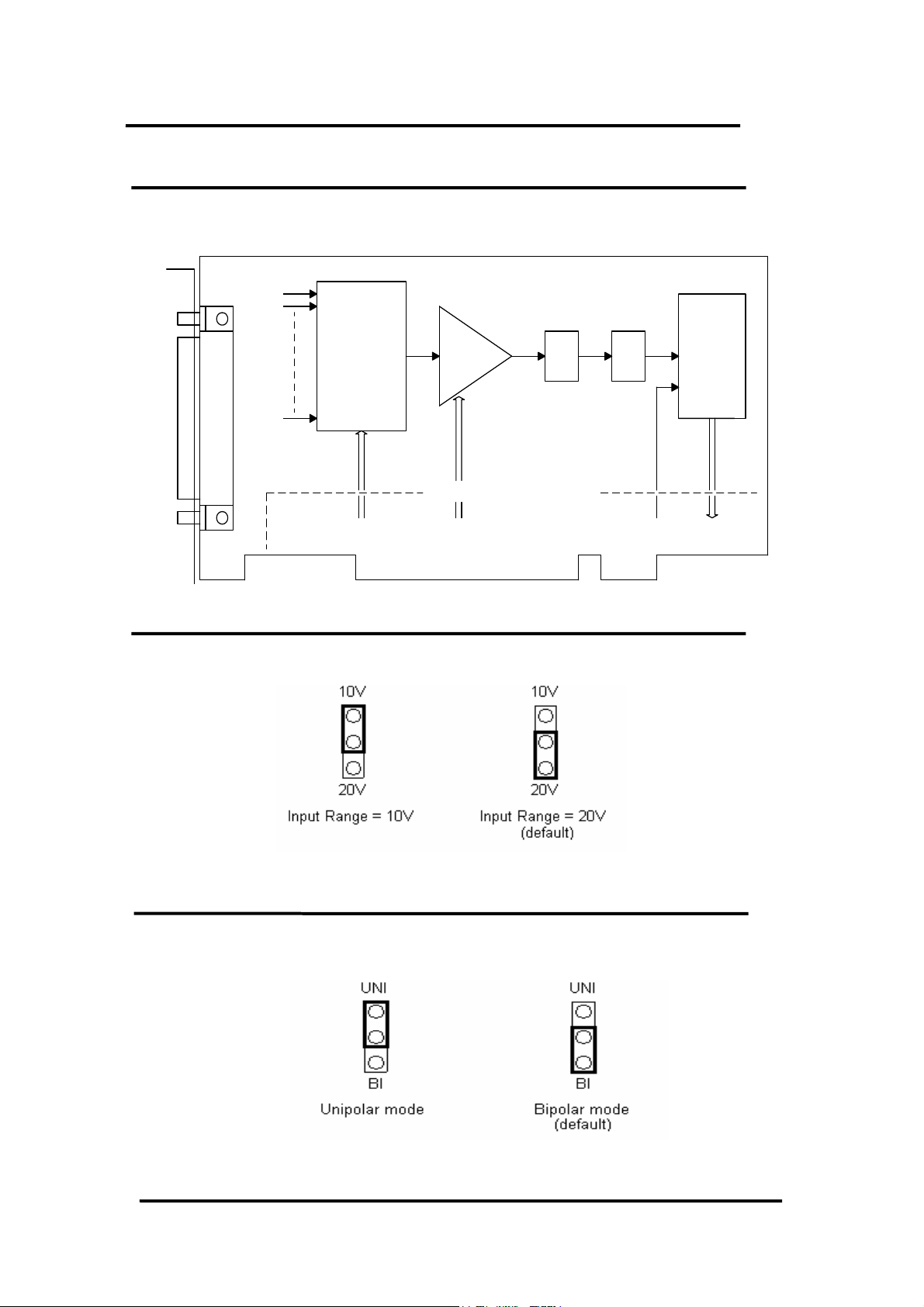

1.5.1 A/D Conversion Block Diagram

Analog Input

AI0
AI1

AI31

32-Channel

Analog

Multiplexer

D4~D0

Channel

select

Programmable

Gain Amplifier

PGA

G2~G0

Gain

Code

Input
Range
Select

JP1

Photocouple isolation

Polarity

Select

JP2

Converter

Trigger

Status&D11~D0

Control Logic

1.5.2 JP1: Analog Input Range Selection

A/D

1.5.3 JP2: Analog Input Polarity Selection

9

1.5.4 Jumper Setting Reference

Analog Input

-10V to +10V Bipolar 20V 1

-5V to + 5V Bipolar

-2.5V to +2.5V Bipolar

-1.25V to +1.25V Bipolar

-0.625 to +0.625V Bipolar

0 to 10V Unipolar 10V 1

0 to 5V Unipolar 10V 2

0 to 2.5V Unipolar 10V 4

0 to 1.25V Unipolar 10V 8

0 to 0.625V Unipolar 10V 16

NOTE: Refer to Sec.3.3.4 for further information about gain setting

JP2

Polarity

JP1

Range

20V 2
10V 1
20V 4
10V 2
20V 8
10V 4
20V 16
10V 8

Gain

1.5.5 Steps for Making an A/D Conversion

Step 1. Find address of OME-PISO-813. (Refer to Sec.3.1)

Step 2. Enable the OME-PISO-813. (Refer to Sec.3.3.1)

Step 3. Select the proper range and polarity of the analog input signal.

As show in Sec.2.2.4.

Step 4. Select input channel. (Refer to Sec.3.3.3)

Step 5. delay 10µS. (for optocoupler propagation delay and analog multiplexer settling

time)

Step 6. Trigger A/D converter. (Refer to Sec.3.3.5)

Step 7. Delay 70µS. (for optocoupler propagation delay and A/D conversion time)

Step 8. Read high byte of A/D conversion data. Check the status of A/D converter until

conversion ready. (Refer to Sec.3.3.2)

Step 9. Read low byte of A/D conversion data. (Refer to Sec.3.3.2)

Step10. A/D conversion complete

Refer to DEMO1.C

10

1.6 Pin Assignment

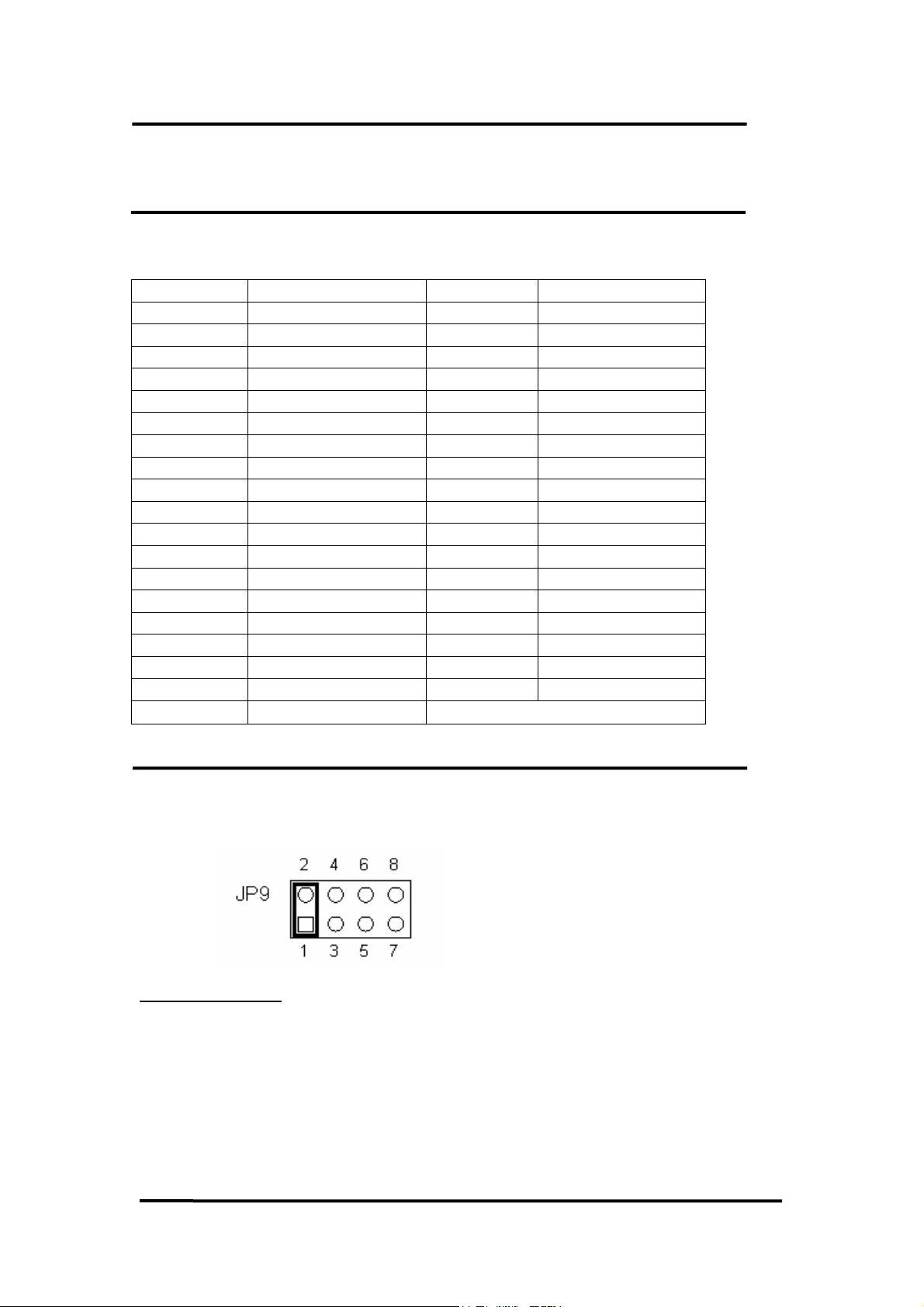

1.6.1 Analog Input Connector

CON1: 37-pin D-type female connector

Pin Number Description Pin Number Description

1 AI0 20 AI1
2 AI2 21 AI3
3 AI4 22 AI5
4 AI6 23 AI7
5 AI8 24 AI9
6 AI10 25 AI11
7 AI12 26 AI13
8 AI14 27 AI15

9 AGND 28 AGND
10 AGND 29 AGND
11 AI16 30 AI17
12 AI18 31 AI19
13 AI20 32 AI21
14 AI22 33 AI23
15 AI24 34 AI25
16 AI26 35 AI27
17 AI28 36 AI29
18 AI30 37 AI31
19 AGND

×

1.6.2 JP9 Reserved

Note: Reserved

11

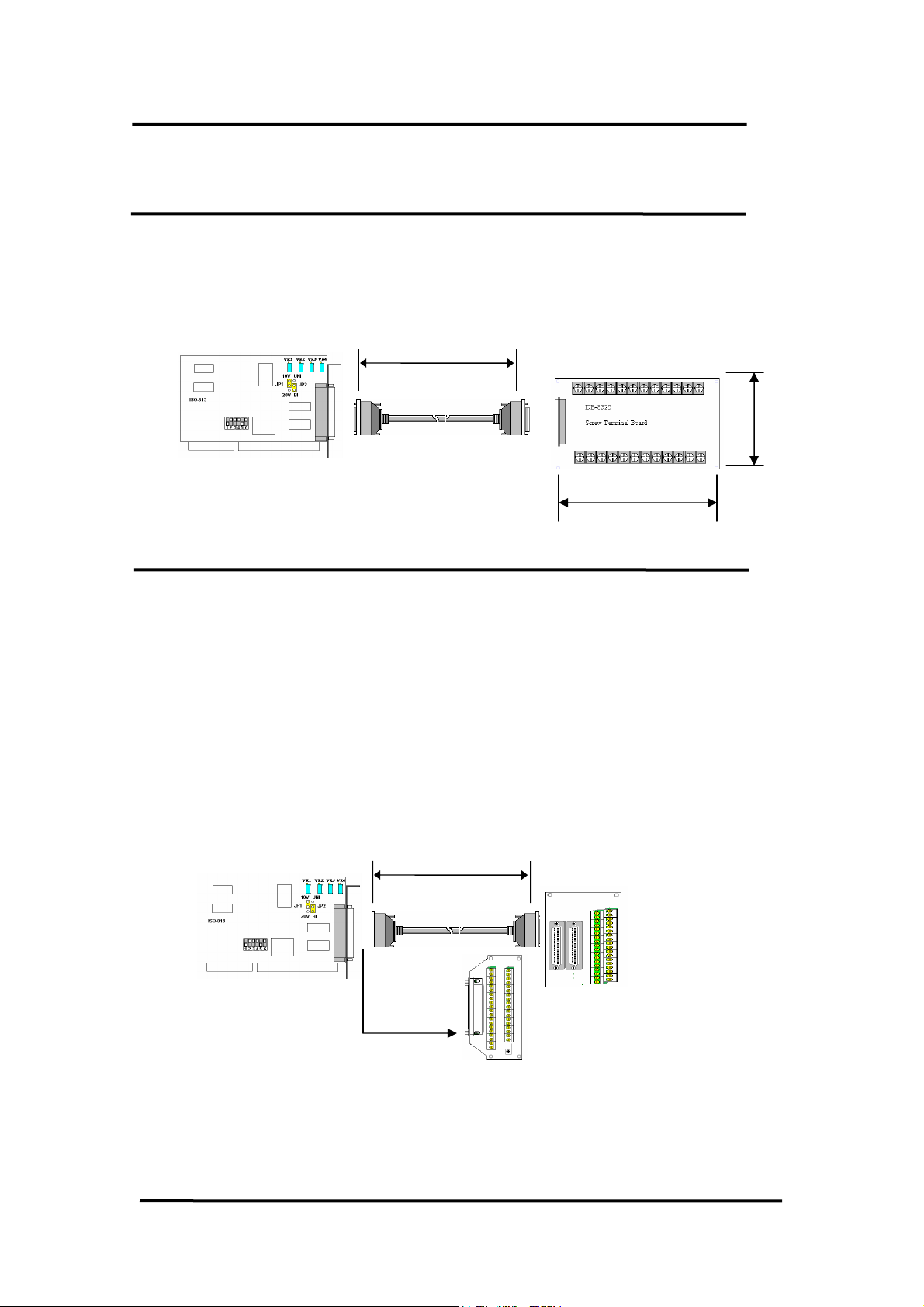

1.7 Daughter Boards

1.7.1 OME-DB-8325 Screw Terminal Board

OME-PISO-813

37pin cable

100/200mm

114mm

220mm

1.7.2 OME-DB-37/ OME-DN-37 General Purpose

Screw Terminal Boards

The OME-DB-37/OME-DN-37 is a general purpose terminal board. The OME-DB-

37 directly connects to a 37-pin D-sub connector. The OME-DN-37 connects via 37-pin

D-sub cable connection.

OME-PISO-813

37pin cable

100/200mm

OME-DN-37

OME-DB-37

12

2. I/O Control Register

2.1 How to Find the I/O Address

During the power-up stage, the plug & play BIOS will assign a valid I/O address

to every OME-PISO series card. The fixed IDs of OME-PISO series card are given as

follows:

• Vendor ID = 0xE159

• Device ID = 0x0002

The sub IDs of OME-PISO-813 are given as follows:

• Sub-vendor ID = 0x80

• Sub-device ID = 0x0A

• Sub-aux ID = 0x00

The following software functions are provided:

1. PIO_DriverInit(&wBoard, wSubVendor, wSubDevice, wSubAux)

2. PIO_GetConfigAddressSpace(wBoardNo,*wBase,*wIrq, *wSubVendor,

*wSubDevice, *wSubAux, *wSlotBus, *wSlotDevice)

3. Show_PIO_PISO(wSubVendor, wSubDevice, wSubAux)

All functions are defined in PIO.H. Refer to Chapter 4 for further details. The function

parameters are described below

1. Resource information:

• wBase : BASE I/O address of the card

• wIrq: IRQ channel number allocated

2. OME-PISO identification information:

• wSubVendor: subVendor ID of this board

• wSubDevice: subDevice ID of this board

• wSubAux: subAux ID of this board

3. PC’s physical slot information:

• wSlotBus: hardware slot ID1

• wSlotDevice: hardware slot ID2

The utility program, OME-PIO_PISO.EXE, will detect & show all OME-PISO cards

installed in this PC. Refer to Sec. 4.1 for more information.

13

2.1.1 PIO_DriverInit

PIO_DriverInit(&wBoards, wSubVendor,wSubDevice,wSubAux)

• wBoards=0 to N Æ number of boards found in this PC

• wSubVendor Æ subVendor ID of board to find

• wSubDevice Æ subDevice ID of board to find

• wSubAux Æ subAux ID of board to find

This function can detect all OME-PIO/PISO series card in the system. It is

implemented based on the PCI plug & play mechanism-1. It will find all OME-

PIO/PISO series cards installed in this system and save their resource in the library.

Sample program 1: find all OME-PISO-813 in this PC

wSubVendor=0x80; wSubDevice=0xa; wSubAux=0x00;/* for OME-PISO-813 */

wRetVal=PIO_DriverInit(&wBoards, wSubVendor,wSubDevice,wSubAux);

printf("There are %d OME-PISO-813 Cards in this PC\n",wBoards);

/* step2: save resource of all OME-PISO-813 cards installed in this PC */

for (i=0; i<wBoards; i++)

{

PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wID1,&wID2,&wID3,

&wID4,&wID5);

printf("\nCard_%d: wBase=%x, wIrq=%x", i,wBase,wIrq);

wConfigSpace[i][0]=wBaseAddress; /*save all resource of this card */

wConfigSpace[i][1]=wIrq; /* save all resource of this card */

}

Sample program 2: find all OME-PIO/PISO in this PC(refer to Sec. 4.1 for more

information)

wRetVal=PIO_DriverInit(&wBoards,0xff,0xff,0xff); /*find all OME-PIO_PISO*/

printf("\nThrer are %d OME-PIO_PISO Cards in this PC",wBoards);
if (wBoards==0 ) exit(0);

printf("\n-----------------------------------------------------");
for(i=0; i<wBoards; i++)
{
PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor,
&wSubDevice,&wSubAux,&wSlotBus,&wSlotDevice);

printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x],
SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice,
wSubAux,wSlotBus,wSlotDevice);

14

printf(" --> ");
ShowPioPiso(wSubVendor,wSubDevice,wSubAux);
}

15

The sub-IDs of OME-PIO/PISO series card are given as follows:

OME-PIO/PISO

Description Sub_vendor Sub_device Sub_AUX

series card

OME-PIO-D144 144 * D/I/O 80 01 00
OME-PIO-D96 96 * D/I/O 80 01 10
OME-PIO-D64 64 * D/I/O 80 01 20
OME-PIO-D56 24* D/I/O +

80 01 40

16*D/I + 16*D/O
OME-PIO-D48 48*D/I/O 80 01 30
OME-PIO-D24 24*D/I/O 80 01 40

OME-PIO-DA16 16*D/A 80 04 00
OME-PIO-DA8 8*D/A 80 04 00
OME-PIO-DA4 4*D/A 80 04 00

OME-PISO-813 32 * isolated A/D 80 0A 00

Note: Additional sub-IDs may be added without notice. Refer to PIO.H for the

latest information.

16

2.1.2 PIO_GetConfigAddressSpace

PIO_GetConfigAddressSpace(wBoardNo,*wBase,*wIrq, *wSubVendor,

*wSubDevice, *wSubAux, *wSlotBus, *wSlotDevice)

• wBoardNo=0 to N Æ total N+1 boards found by PIO_DriveInit(….)

• wBase Æ base address of the board control word

• wIrq Æ allocated IRQ channel number of this board

• wSubVendor Æ subVendor ID of this board

• wSubDevice Æ subDevice ID of this board

• wSubAux Æ subAux ID of this board

• wSlotBus Æ hardware slot ID1 of this board

• wSlotDevice Æ hardware slot ID2 of this board

This function can be used to save the resources of all OME-PIO/PISO cards

installed in this system.

Sample program code is provided below:

/* step1: detect all OME-PISO-813 cards */

wSubVendor=0x80; wSubDevice=0xa; wSubAux=0x0; /* for OME-PISO-813 */

wRetVal=PIO_DriverInit(&wBoards, wSubVendor,wSubDevice,wSubAux);

printf("There are %d OME-PISO-813 Cards in this PC\n",wBoards);

/* step2: save the resources of all OME-PISO-813 cards installed in this PC */

for (i=0; i<wBoards; i++)
{
PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&t1,&t2,&t3,&t4,&t5);
printf("\nCard_%d: wBase=%x, wIrq=%x", i,wBase,wIrq);
wConfigSpace[i][0]=wBaseAddress; /* save all resource of this card */
wConfigSpace[i][1]=wIrq; /* save all resource of this card */
}

/* step3: control the OME-PISO-813 directly */
wBase=wConfigSpace[0][0]; /* get base address the card_0 */
outport(wBase,1); /* enable all D/I/O operation of card_0 */

wBase=wConfigSpace[1][0]; /* get base address the card_1 */
outport(wBase,1); /* enable all D/I/O operation of card_1*/

17

2.1.3 Show_PIO_PISO

Show_PIO_PISO(wSubVendor,wSubDevice,wSubAux)

• wSubVendor Æ subVendor ID of board to find

• wSubDevice Æ subDevice ID of board to find

• wSubAux Æ subAux ID of board to find

This function will show a text string for the subIDs. This text string is the same as that

defined in PIO.H

Sample code is shown below:

wRetVal=PIO_DriverInit(&wBoards,0xff,0xff,0xff); /*find all OME-PIO_PISO*/

printf("\nThrer are %d OME-PIO_PISO Cards in this PC",wBoards);
if (wBoards==0 ) exit(0);

printf("\n-----------------------------------------------------");
for(i=0; i<wBoards; i++)
{
PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor,
&wSubDevice,&wSubAux,&wSlotBus,&wSlotDevice);

printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x],
SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice,
wSubAux,wSlotBus,wSlotDevice);
printf(" --> ");
ShowPioPiso(wSubVendor,wSubDevice,wSubAux);
}

18

2.2 The Assignment of I/O Address

The plug & play BIOS will assign a valid I/O address to OME-PIO/PISO series

card. If there is only one OME-PIO/PISO board, the user can identify the board as

card_0. If there are two OME-PIO/PISO boards in the system, it is more difficult to

identify which board is card_0? The software driver can support up to16 boards in a

computer.

The simplest way to identify which card is card_0 is to use wSlotBus &

wSlotDevice as follows:

1. Remove all OME-PISO-813 cards from the PC

2. Install one OME-PISO-813 into the PC’s PCI_slot1,

run OME-PIO_PISO.EXE & record the wSlotBus1 & wSlotDevice1

3. Remove all OME-PISO-813 from the PC

4. Install one OME-PISO-813 into the PC’s PCI_slot2,

run OME-PIO_PISO.EXE & record the wSlotBus2 & wSlotDevice2

5. repeat (3) & (4) for all PCI_slots, record all wSlotBus & wSlotDevice

The recorded information may appear as follows:

PC’s PCI slot WslotBus wSlotDevice
Slot_1 0 0x07
Slot_2 0 0x08
Slot_3 0 0x09
Slot_4 0 0x0A
PCI-BRIDGE
Slot_5 1 0x0A
Slot_6 1 0x08
Slot_7 1 0x09
Slot_8 1 0x07

These values will be mapped to this PC’s physical slot. This mapping will not change

for any OME-PIO/PISO cards. This can be used to identify the specific OME-

PIO/PISO card. The procedure is as follows:

Step1: Record all wSlotBus? and wSlotDevice

Step2: Use PIO_GetConfigAddressSpace(…) to get the specific card’s wSlotBus &

wSlotDevice

Step3: The user can identify the specific OME-PIO/PISO card if he compares the

wSlotBus and wSlotDevice of step2 to step1.

19

2.3 The I/O Address Map

The I/O address of OME-PIO/PISO series cards is automatically assigned

by the motherboard ROM BIOS. The I/O address can also be re-assigned by

user. It is strongly recommended that the user not change the BIOS

assigned I/O address. This could result in system problems if an invalid

address is used.

The I/O address map of OME-PISO-813 is shown below:

Address Read Write

WBase+0 RESET\ control register Same

WBase+0xd0 Low byte of A/D Data
WBase+0xd4 High byte of A/D Data
WBase+0xe0
WBase+0xe4
WBase+0xf0

×
×
×

Multiplexer channel select register
PGA gain code register
A/D trigger control register

×
×

2.3.1 RESET\ Control Register

(Read/Write): wBase+0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Reserved Reserved Reserved Reserved Reserved RESET\

When the PC is first power-up, the RESET\ signal is in Low-state. This will disable

all D/I/O operations. The user has to set the RESET\ signal to High-state before any

D/I/O command.

outportb(wBase,1); /* RESET\ = High Æ all D/I/O are enable now */

outportb(wBase,0); /* RESET\ = Low Æ all D/I/O are disable now */

20

2.3.2 A/D Data Register

(Read): wBase+0xD0 → Low Byte of A/D Conversion Data

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D7 D6 D5 D4 D3 D2 D1 D0

(Read): wBase+0xD4 → High Byte of A/D Conversion Data

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

× × ×

×: don’t care

D11 to D0: A/D Conversion Data
Status = 0 : A/D conversion is completed
1 : A/D conversion is not completed
The status bit is used as an indicator for A/D conversion. It is used in software polling.

do
{
HighByte=inportb(wBase+0xd4);
}while(HighByte&0x10); /* check status until conversion complete */
LowByte=inportb(wBase+0xd0);
Data=(HighByte<<8)+LowByte;

Status D11 D10 D9 D8

2.3.3 Multiplexer Channel Select Register

(Write): wBase+0xe0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

× × ×

outportb(wBase+0xe0,0); /* Select analog input channel 0 */
outportb(wBase+0xe0,1); /* Select analog input channel 1 */
outportb(wBase+0xe0,31); /* Select analog input channel 31 */

D4 D3 D2 D1 D0

21

2.3.4 PGA Gain Code Register

(Write): wBase+0xe4

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

× × × × ×

outportb(wBase+0xe4,0); /* Select PGA Gain = × 1 */
outportb(wBase+0xe4,1); /* Select PGA Gain = × 2 */
outportb(wBase+0xe4,2); /* Select PGA Gain = × 4 */
outportb(wBase+0xe4,3); /* Select PGA Gain = × 8 */
outportb(wBase+0xe4,4); /* Select PGA Gain = × 16 */

G2 G1 G0

2.3.5 A/D Trigger Control Register

(Write): wBase+0xf0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

× × × × × × × ×

The OME-PISO-813 A/D data is transferred by software polling. Before reading the

data, the A/D converter must be triggered by a dummy write to the A/D Trigger Control

Register.(Refer to Sec.2.2.5 for more information about A/D converter operation)

outportb(wBase+0xf0,0); /* Trigger A/D converter */

22

3. Demo Programs

The OME-PISO-813 includes a comprehensive set of drivers and demonstration

programs for programming under various operating systems and programming

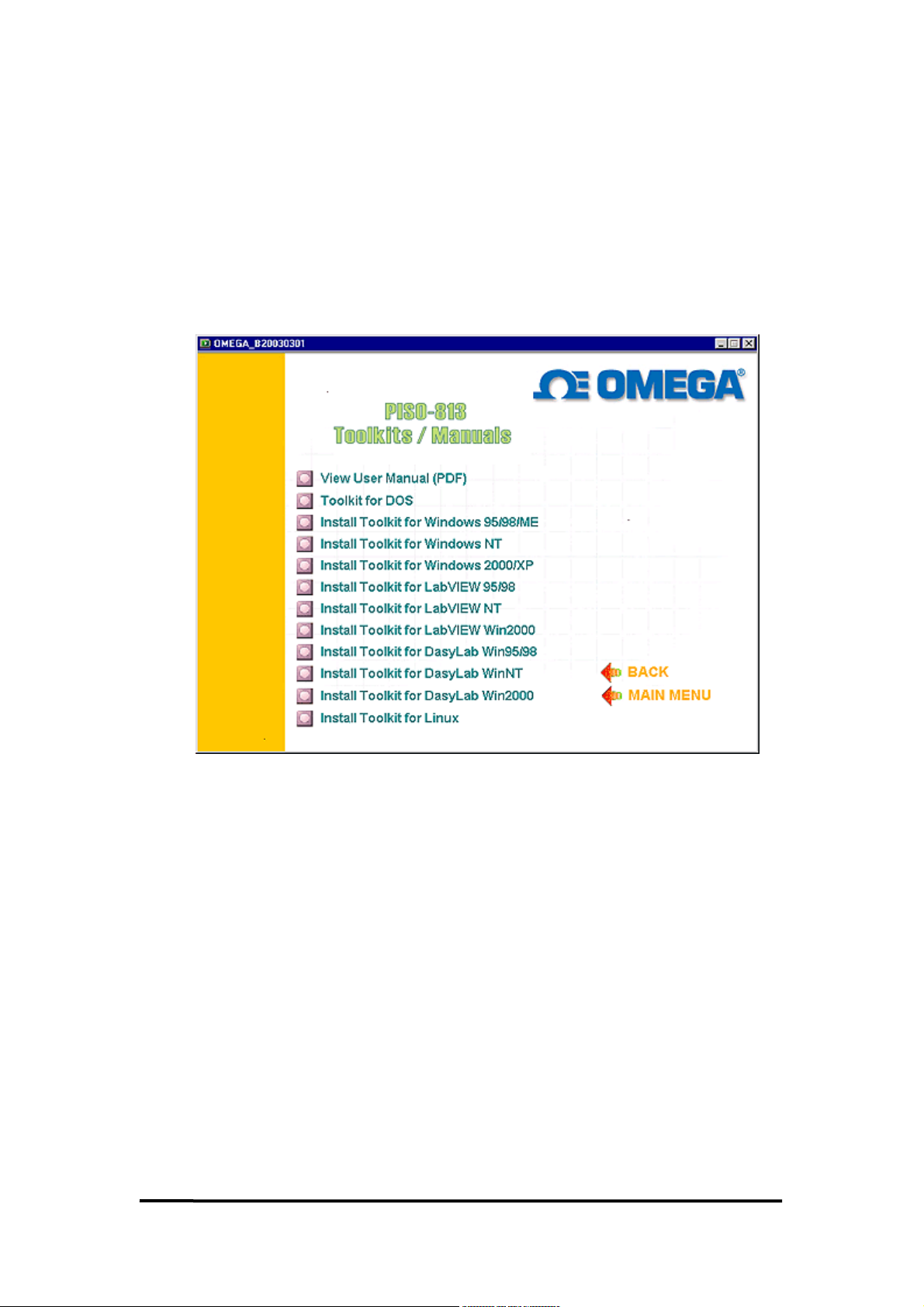

platforms. During the software installation process, the following screen allows the

user to install the appropriate files for a specific installation.

Please read the release notes for the most up to date information regarding the
OME-PISO-813 hardware and software.

The first step for most OME-PISO-813 programs is to identify the cards in the
computer system and determine the resources allocated to those cards. The
PIO_PISO.EXE program performs that function. The source code for the
PIO_PISO.EXE program is shown below.

23

3.1 PIO_PISO.EXE Program

/* ------------------------------------------------------------ */
/* Find all OME-PIO_PISO series cards in this PC system */
/* step 1: plug all OME-PIO_PISO cards into PC */
/* step 2: run PIO_PISO.EXE */
/* ------------------------------------------------------------ */

#include "PIO.H"

WORD wBase,wIrq;
WORD wBase2,wIrq2;

int main()
{
int i,j,j1,j2,j3,j4,k,jj,dd,j11,j22,j33,j44;
WORD wBoards,wRetVal;
WORD wSubVendor,wSubDevice,wSubAux,wSlotBus,wSlotDevice;
char c;
float ok,err;

clrscr();
wRetVal=PIO_DriverInit(&wBoards,0xff,0xff,0xff); /*for PIO-PISO */
printf("\nThere are %d OME-PIO_PISO Cards in this PC",wBoards);
if (wBoards==0 ) exit(0);

printf("\n-----------------------------------------------------");
for(i=0; i<wBoards; i++)
{
PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor,
&wSubDevice,&wSubAux,&wSlotBus,&wSlotDevice);

printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x],
SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice,
wSubAux,wSlotBus,wSlotDevice);
printf(" --> ");
ShowPioPiso(wSubVendor,wSubDevice,wSubAux);
}

PIO_DriverClose();
}

NOTE: PIO_PISO.EXE is valid for all OME-PIO/PISO cards. It can be found in the
DIAG directory. Running PIO_PISO.EXE will provide the following information:

• List all OME-PIO/PISO cards installed in this PC

• List all resources allocated to every OME-PIO/PISO cards

• List the wSlotBus & wSlotDevice for specified OME-PIO/PISO card identification.

(Refer to Sec. 3.2 for more information)

Although most users will use the functions in the software driver to program the PISO-

813, DEMO1.C demonstrates how to measure 32 analog inputs by programming

directly to the registers on the board.

24

3.2 DEMO1

/* ------------------------------------------------------------ */
/* DEMO1.C : OME-PISO-813 */
/* Note : Measure 32-channel A/I.Bipolar range: -10V - +10V */
/* ------------------------------------------------------------ */
#include "PIO.H"
WORD Read_AD_Data(void);
WORD wBase,wIrq;

int main()
{
int i,l,h,x,y;
WORD wBoards,wRetVal,AdResult,t1,t2,t3,t4,t5;
WORD wSubVendor,wSubDevice,wSubAux,wSlotBus,wSlotDevice;
char c;
float ok,err,v,k;

clrscr();
/* step 1: find address-mapping of OME-PIO/PISO cards
*/
wRetVal=PIO_DriverInit(&wBoards,0x80,0x0a,0x00); /* for OME-PISO-813
*/
printf("\nThrer are %d OME-PISO-813 Cards in this PC",wBoards);
if (wBoards==0) exit(0);

printf("\n--------------- The Configuration Space ---------------");
for(i=0; i<wBoards; i++)
{
PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor,&wSubDevice,
&wSubAux,&wSlotBus,&wSlotDevice);
printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x],
SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice,
wSubAux,wSlotBus,wSlotDevice);
printf(" --> ");
ShowPioPiso(wSubVendor,wSubDevice,wSubAux);
}
PIO_GetConfigAddressSpace(0,&wBase,&wIrq,&t1,&t2,&t3,&t4,&t5);
/* step 2: enable all D/I/O port */
outportb(wBase+0,1); /* enable D/I/O */

i=0;x=1;y=1;

clrscr();

/* Step 3: gain setting */
/* Delay more than 5.6us for PGA gain change and optocouple */
/* propagation delay 6.0us. (5.6+6.0)us */
outportb(wBase+0xe4,0x00); /* Gain control,G=1 */
delay(1000);

for(;;)
{
gotoxy(x,y);
printf("Channel %2d ",i);

25 26

/* step 4: channel select */
outportb(wBase+0xe0,i); /* channel select = i*/
/* step 5: delay 10us */
delay(200);

/* step 6: software trigger */
outportb(wBase+0xf0,0x00); /* software trigger */
/* step 7: delay 70us */
delay(200);

AdResult=Read_AD_Data();

k=((float)AdResult-2047.0)*10.0/2048.0;

printf(",value = %2.4f",k);

i++;
if (i==0x20) i=0;

y=i+1;
x=1;

if (i>=16)
{
x=40;
y=i-15;
}

if (kbhit()!=0)
{
c=getch(); if ((c=='q') || (c=='Q')) break;
}
}
gotoxy(1,20);
PIO_DriverClose();
}

/* -------------------------------------------------------------- */
WORD Read_AD_Data(void)
{
int LowByte;
WORD HighByte,Data;
char c;
/* step 8: read high byte of A/D result */
do
{
HighByte=inportb(wBase+0xd4); /* Read high byte of A/D data */
if (kbhit()!=0) break;
}
while(HighByte&0x10);/* Chech status until convertion complete */
/* step 9: read low byte of A/D result */
LowByte=inportb(wBase+0xd0);
Data=((HighByte<<8)+LowByte)&0xfff;
return(Data);
/* step 10: A/D conversion complete */
}

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser , includ­ing but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in suc h a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-WARRANTY REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

M3933/0203

Where Do I Find Everything I Need for

Process Measurement and Contr ol?

OMEGA…Of Course!

Shop online at www.omega.com

TEMPERA TURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DA TA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEA TERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENT AL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
