OM-EL-WiFi-TH-PLUS
High Accuracy WiFi Temperature &
Humidity Data Logging Sensor

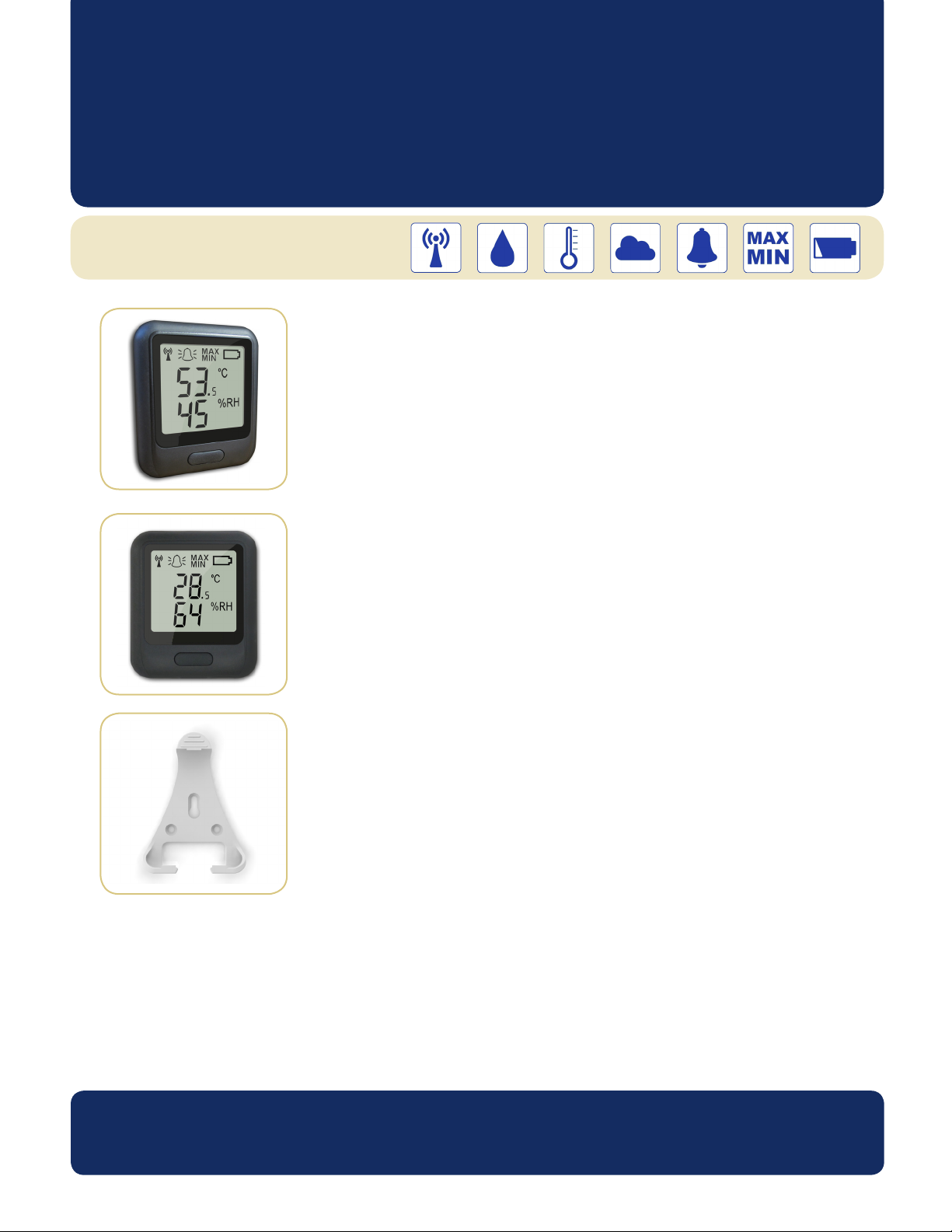

FEATURES
• Temperature and Humidity data logging sensor with integrated display
• Easy sensor set-up using the free PC software application (Downloadable from www.omega.com)
• Wirelessly stream data to PC or Cloud* via WiFi
• View and analyze multiple sensors, including immediate graphing of historic data
• Selectable measurement scale °C / °F
• Temperature accuracy ±0.2°C (0 to +60°C)
• Humidity accuracy ±1.8% (10 to +90%RH)
• Temperature measurement resolution to 0.01°C
• Humidity measurement resolution to 0.1%RH
• Temperature display resolution to 0.5°C
• Humidity display resolution to 1%RH
• Temperature measurement range -20 to +60°C (-4 to +140°F)
• Operating temperature range -20 to +60°C (-4 to +140°F)
• Congurable high and low alarms with indicator
• Maximum and Minimum readings
• Low battery indicator
• WiFi connection indicator
• Signal strength indicator
• 802.11b compliant
• Protection rating IP55
• Rechargeable internal lithium polymer battery
• Fully featured LCD segment display
• Sensor memory stores all data even if WiFi is temporarily disconnected
• USB port used for recharging (unit must be between 0 - 40˚C)
• Firmware upgradable via USB (Downloadable from the Omega website)
• PC can be switched off without loss of data
• Supplied with wall bracket and micro USB lead
• Supported Security Protocols WEP, WPA/WPA2 – PSK
The OM-EL-WiFi-TH-PLUS sensor measures the temperature and humidity of the environment in which it is situated. This high accuracy
version is accurate to ±0.2˚C and ±1.8%RH humidity. Data is streamed wirelessly over any WiFi network and can be viewed on a PC using
free software package or on the OM-EL-WiFi-Cloud*. During conguration, the sensor will search for an existing wireless network while
physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with
the network, it will log readings until it is able to communicate again with the PC application or cloud service (max 120 days at 10 second
sample interval). Although the OM-EL-WiFi sensors have an impressive range, this can be increased by using WiFi extenders.
* OM-EL-WiFi-Cloud due to be released late 2013
www.omega.com
Specications liable to change without prior warning Data Sheet - Issue 02 06/2013 SL Applies to OM-EL-WiFi-TH-PLUS Page 1 of 2
Page 4
The OM-EL-WiFi-TH-PLUS is a low powered battery device. When congured using typical transmission periods (e.g. once every 5 minutes)
the sensor will operate for over one year (at room temperature). The battery can then be recharged via a PC or USB +5V wall adapter using
the USB lead provided or can be permanently powered by the USB wall adapter.
The software installed on the PC will allow set-up, data logging and data review. Set-up features will include sensor name, °C/°F, sample
rate, and high/low alarms. Once congured, historic data can be viewed via the graphing tool or exported into Excel. This software is
available to download for free from www.omega.com.
The sensor is a freestanding unit, however, it can be attached to a wall or vertical surface using the bracket and screws / sticky pad
provided.
Specications Minimum Typical Maximum Unit
Battery life >1* Year
USB supply voltage 4.5 5 5.5 Vdc
Operating temperature range -20 (-4) +60 (+140) °C (°F)
Logging Period (user congurable) 10 sec 10 min 12 hrs
Transmission Period (user congurable) 1 min 1 hr 24 hrs
Temperature measurement range -20 (-4) +60 (+140) °C (°F)
Humidity measurement range 0 100 %RH
Temperature measurement resolution 0.01 (0.01) °C (°F)
Humidity measurement resolution 0.1 %RH
Temperature display resolution 0.5 (0.5) °C (°F)
Humidity display resolution 1 %RH
Temperature accuracy (0 to +60°C) ±0.2 (±0.4) °C (°F)
Humidity accuracy (10 to +90%RH) ±1.8
* Dependant on transmission rate, may be less with frequent transmissions
Warning - do not exceed operating temperatures
%RH

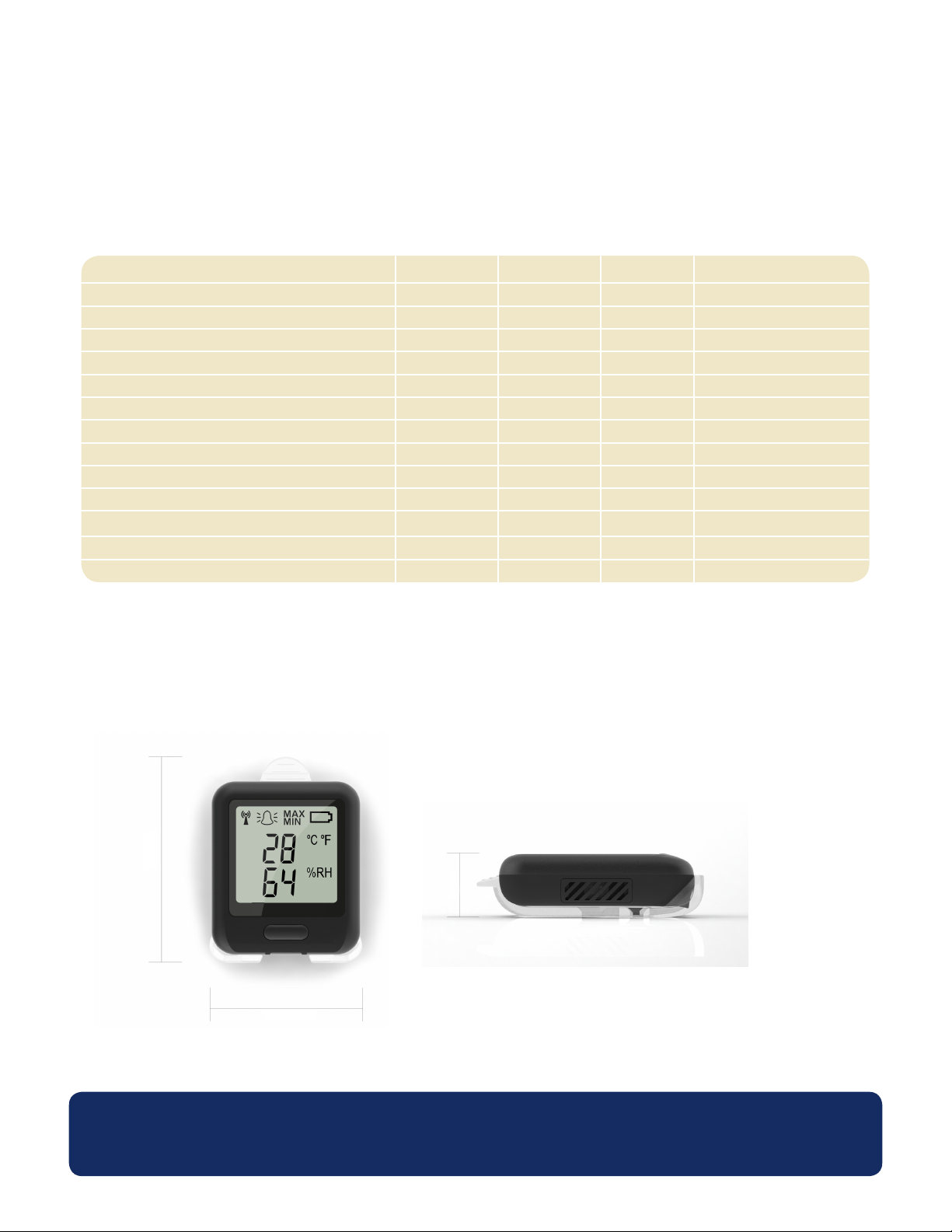

PHYSICAL DIMENSIONS
All dimensions in millimetres (inches)
97.3 (3.83”)
71.3 (2.8”)
26.36 (1.03”)
www.omega.com
Specications liable to change without prior warning Data Sheet - Issue 02 06/2013 SL Applies to OM-EL-WiFi-TH-PLUS Page 2 of 2
