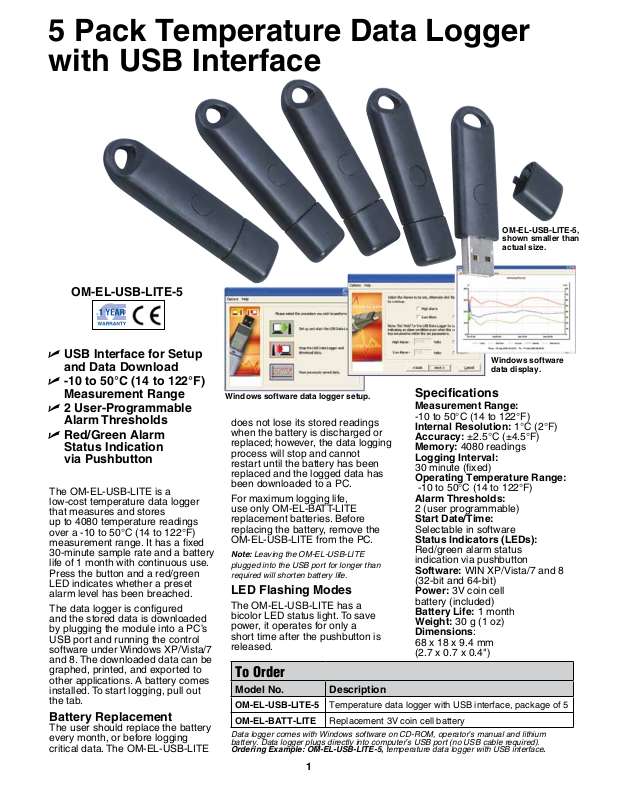

5 Pack Temperature Data Logger
with USB Interface
OM-EL-USB-LITE-5,
shown smaller than
actual size.
OM-EL-USB-LITE-5
U USB Interface for Setup
and Data Download
U -10 to 50°C (14 to 122°F)
Measurement Range
U 2 User-Programmable
Alarm Thresholds
U Red/Green Alarm
Status Indication
via Pushbutton
The OM-EL-USB-LITE is a
low-cost temperature data logger
that measures and stores
up to 4080 temperature readings
over a -10 to 50°C (14 to 122°F)
measurement range. It has a fixed
30-minute sample rate and a battery
life of 1 month with continuous use.
Press the button and a red/green
LED indicates whether a preset
alarm level has been breached.
The data logger is configured
and the stored data is downloaded
by plugging the module into a PC’s
USB port and running the control
software under Windows XP/Vista/7
and 8. The downloaded data can be
graphed, printed, and exported to
other applications. A battery comes
installed. To start logging, pull out
the tab.
Battery Replacement
The user should replace the battery
every month, or before logging
critical data. The OM-EL-USB-LITE
Windows software
data display.
Windows software data logger setup.
does not lose its stored readings
when the battery is discharged or
replaced; however, the data logging
process will stop and cannot
restart until the battery has been
replaced and the logged data has
been downloaded to a PC.
For maximum logging life,
use only OM-EL-BATT-LITE
replacement batteries. Before
replacing the battery, remove the
OM-EL-USB-LITE from the PC.
Note: Leaving the OM-EL-USB-LITE
plugged into the USB port for longer than
required will shorten battery life.
LED Flashing Modes
The OM-EL-USB-LITE has a
bicolor LED status light. To save
power, it operates for only a
short time after the pushbutton is
released.
Specifications
Measurement Range:
-10 to 50°C (14 to 122°F)
Internal Resolution: 1°C (2°F)
Accuracy: ±2.5°C (±4.5°F)
Memory: 4080 readings
Logging Interval:
30 minute (fixed)
Operating Temperature Range:
-10 to 50°C (14 to 122°F)
Alarm Thresholds:
2 (user programmable)
Start Date/Time:
Selectable in software
Status Indicators (LEDs):
Red/green alarm status
indication via pushbutton
Software: WIN XP/Vista/7 and 8
(32-bit and 64-bit)
Power: 3V coin cell
battery (included)
Battery Life: 1 month
Weight: 30 g (1 oz)
Dimensions:
68 x 18 x 9.4 mm
(2.7 x 0.7 x 0.4")
To Order
Model No. Description
OM-EL-USB-LITE-5
OM-EL-BATT-LITE
Data logger comes with Windows software on CD-ROM, operator’s manual and lithium
battery. Data logger plugs directly into computer’s USB port (no USB cable required).
Ordering Example: OM-EL-USB-LITE-5, temperature data logger with USB interface.
Temperature data logger with USB interface, package of 5
Replacement 3V coin cell battery
