WARNING
PLEASE READ THROUGH THIS MANUAL, WHICH SHOULD BE KEPT
FOR FUTURE REFERENCE. PASS ON TO THOSE WHO
USE THIS DEVICE.
DO NOT ATTEMPT TO USE THE OM-EL-USB-CO or OM-EL-USB-CO300
WITHOUT READING AND UNDERSTANDING THE DOCUMENTATION.
CARBON MONOXIDE MONITORING IS A COMPLEX PROCEDURE. IF
THERE IS ANY DOUBT AS TO THE SAFETY OR APPLICATION - STOP!
CONSULT A QUALIFIED EXPERT.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and
reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Copyright Omega Engineering, Inc. Issue 1 06/15
MQS5487/0615

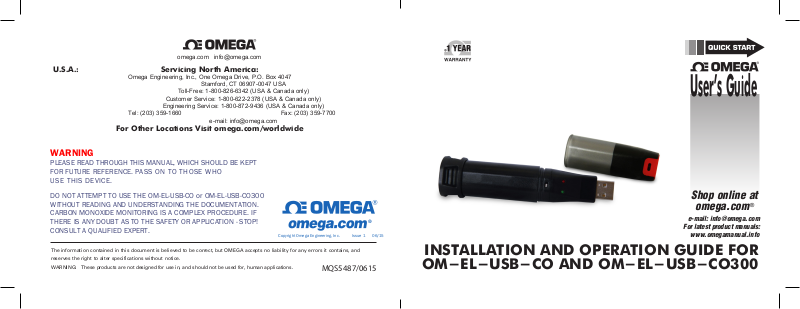

User’s Guide
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
www.omegamanual.info
INSTALLATION AND OPERATION GUIDE FOR
OM-EL-USB-CO AND OM-EL-USB-CO300
®
Page 2
ENVIRONMENTAL DISPOSAL/WARNINGS
WEEE
Battery
Disposal
RoHS
This product may contain substances that can be hazardous to the environment if not disposed of properly.
Electrical and electronic equipment should never be disposed of with general household waste but must
be separately collected for their proper treatment and recovery. The crossed-out bin symbol, placed on the
product, reminds you of the need to dispose of the product correctly at the end of its life. In this way you will
assist in the recovery, recycling and re-use of many of the materials used in this product. At the end of the life
of your product please contact your distributor for information on collection arrangements.
Most batteries end up in landfill where their hazardous material can leach into the soil and cause harm. It is
much more environmentally friendly to recycle batteries in a safe, correct man-ner. Follow applicable country,
state, and local regulations for disposal/recycling of the ½AA battery supplied with your data logger.
The Restriction of Hazardous Substances (RoHS) Directive 2002/95/EC of the European Parliament stipulates
that certain hazardous substances must not be present above defined levels in products. This data logging
product is manufactured to be RoHS compliant.
Page 3
WARNING
CARBON MONOXIDE
IMPORTANT INFORMATION
The OM-EL-USB-CO and OM-EL-USB-CO300 are a professional
measuring instruments, designed to record Carbon Monoxide
(CO) gas levels for later analysis. It is not an alarm/safety/
warning device and should not be used in this capacity for the
following reasons:
•The lights and sound emitted by the OM-EL-USB-CO or OM-EL-
USB-CO300 indicate a high level of CO do not provide adequate
warning to those in the surrounding area that a high level of CO
has been recorded.
•The battery life of the OM-EL-USB-CO or OM-EL-USB-CO300
during audible and visual indication of a high level of CO will
rapidly diminish and will therefore only be active for a short
period of time.
•The OM-EL-USB-CO or OM-EL-USB-CO300 takes a sample
reading at intervals as set by the user for recording/monitoring/
analysis purposes. Dangerous levels of CO will not register with
the device until a sample reading is taken.
•Due to the limitations of the device as a professional
instrument, it is left to the user to set the light and sound
alarms indicating the presence of CO. Therefore the
instrument can be set up to provide NO form of warning.
Carbon Monoxide is poisonous. It is a clear, colorless gas
that has no smell or taste and can be lethal even in very
low concentrations. It can injure or kill people and animals
who are not adequately warned of its presence.
In areas where the safety of humans and animals is a
concern we insist that a domestic or industrial CO
detector/alarm, designed to a nationally approved quality
standard, with features such as a high decibel alarm or
siren and a clear visual warning, specifically designed
to provide adequate warning of dangerous CO levels, be
installed, used and maintained.
Always operate OM-EL-USB-CO or OM-EL-USB-CO300 and
replace its batteries according to these instructions.
The OM-EL-USB-CO or OM-EL-USB-CO300 has a facility to
indicate when a preset level of CO is exceeded. It does this
by flashing a red LED. The factory default is set so that the
indicator is enabled for CO level of 50ppm or greater, with
sounder also enabled. It is possible to change these settings in the OM-EL-USB-CO software, but any such changes
are made entirely at the user’s risk. The OM-EL-USB-CO
or OM-EL-USB-CO300 will take a reading at a set interval
selected from a drop down list. The LED and sounder will be
triggered if a level of gas exceeds the level set, ONLY at the
time the logger takes a sample.
Due to the limitations of the device as a professional
measuring instrument, the lights and sounds emitted by
the device and the strength of the battery are not sufficient
to adequately warn people in the same vicinity or building
of potentially dangerous levels of carbon monoxide gas.
Carbon Monoxide gas can be lethal even in small doses
or concentrations, can injure, or even kill animals or
people who are not adequately warned of its presence.
It is therefore highly recommended that a domestic or industrial
carbon monoxide detector/alarm designed with a nationally
approved quality standards and/or features, such as a high
decibel alarm or siren and a low battery indicator, specifically
designed to provide adequate warning of dangerous carbon
monoxide levels, be properly installed, used, and maintained
in areas occupied by humans or animals.
OM-EL-USB-CO or OM-EL-USB-CO300 is not authorized for use as
a critical component in life support devices or systems.
The OM-EL-USB-CO or OM-EL-USB-CO300 is designed to be used
on non-life saving, analysis projects only. It is designed so that
analysis of areas with the potential for Carbon Monoxide presence can be carried out for your own interest, not to give peace
of mind or save lives. This product is not intended to detect any
parameter other than CO. It is not a fire, methane, propane,
butane, natural gas or any other combustible gas detector –
although it is possible that these gases could affect a
reading of CO if these are also present.
Page 4
EFFECTS OF CARBON MONOXIDE
Symptoms
Time exposed
ppm CO
50 N/A
2002 - 3 hours
4001 - 2 hours
800 45 minutes
Safety level as specified by
the Health and Safety Executive
(HSE) in the UK
Slight headache, some may
experience slight dizziness,
nausea, chest tightness, fatigue,
lack of concentration, memory loss
Headache worsening to a severe
headache with prolonged exposure,
dizziness, nausea, fatigue, tightness
across the chest, memory loss, lack
of concentration
Headache, dizziness, nausea,
convulsions within 45 minutes.
Unconscious within 2 hours.
Death can occur within 2 - 3 hours
CARE INSTRUCTIONS
As a guide, the following levels are often quoted in the United Kingdom:
The levels at which Carbon Monoxide (CO) affect humans will vary from person to person.
Note
ppm is an abbreviation of the industry term, parts per million – if a gas
is measured at 100ppm, there is a concentration of one-hundred parts
to one-million parts of other gases (usually free air).
Carbon Monoxide effects are dependent on time and
this should be considered at all times in any project
involving measurement of this gas. A large amount of
Carbon Monoxide over a short time will kill you, but
exposure to a small amount of CO over a longer period
of time may have a considerable effect and could cause
long term health problems.
The effect of Carbon Monoxide exposure varies greatly
from person to person, depending on age, overall health,
concentration of exposure, and length of exposure.
Persons suffering from any health problems, the elderly,
children and babies, pregnant women and pets can be
affected by Carbon Monoxide poisoning more rapidly
than others. These groups may experience symptoms
sooner than others.
Each country or region has differing views and opinions
on what are considered safe or dangerous levels of
Carbon Monoxide. It is the responsibility of the
OM-EL-USB-CO or OM-EL-USB-CO300 user to ensure that
the best advice is taken and, where applicable, suitable
levels respected. People who spend a lot of time in
indoor areas are more likely to be exposed to any lower
levels of potentially dangerous Carbon Monoxide over
time. This is true whether measuring at a home, workplace, boiler room or any other area.
How to care for your Carbon Monoxide (CO) Data Logger
To keep your Carbon Monoxide Data Logger in good working order,
follow these simple steps:
• Regularly check LED operation and battery.
• Regularly check that the grill is clear of any obstructions.
• Sensor life is 4 years. Once this time has expired replace the unit.
Battery Replacement
• We recommend that you replace the battery every 3 months, prior
to logging critical data, or if the sounder has activated.
• The OM-EL-USB-CO or OM-EL-USB-CO300 does not lose its stored readings when the battery is discharged or when the battery is replaced;
the data logging process will however be stopped and cannot be restarted until the battery has been replaced and the logged data has
been downloaded to PC.
• Only use OM-EL-BATT replacement batteries
Note
Leaving the OM-EL-USB-CO or OM-EL-USB-CO300 plugged into the USB port for
longer than necessary will cause some of the battery capacity to be lost.
What you should NOT do
• DO NOT use near solvents, chemicals,
aerosol sprays and alcohol based products
• DO NOT ignore the indicators. The alert
could be warning you of high levels of CO
• DO NOT install in excessively dusty, dirty
or greasy areas such as kitchens, garages
and furnace rooms. Dust, grease or
household chemicals can contaminate or
coat the data logger’s sensor causing the
logger not to operate properly
• DO NOT obstruct the grill located at the
base of the data logger. Place the data
logger where furniture or other objects do
not obstruct the flow of air to the sensor
• DO NOT continue to use if the sensor is
out of date
• DO NOT ignore any warning messages
in the software
Page 5
OM-EL-USB-CO AND OM-EL-USB-CO300 SET UP GUIDE

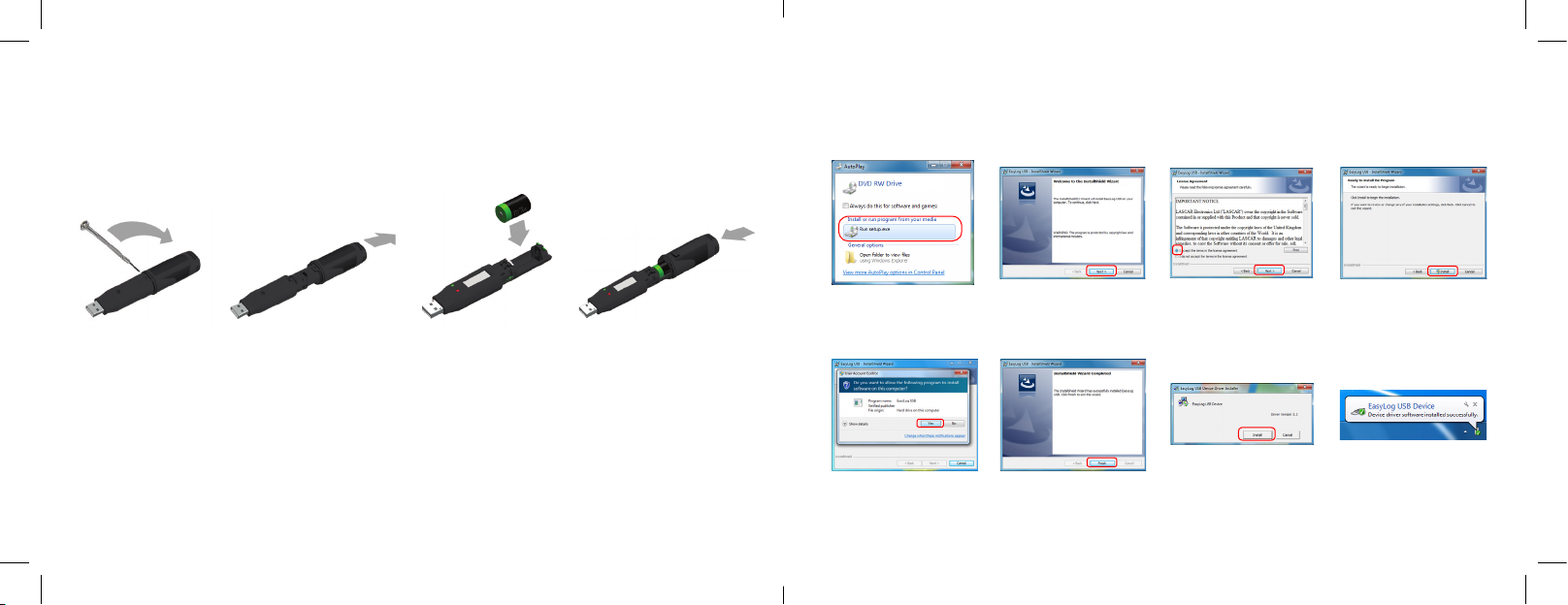

Battery Installation
Before using the data logger you will need to insert the 3.6V 1/2AA battery provided, following the instructions
below. Replacement batteries available from www.omega.com, PN: OM-EL-BATT
INSTALL YOUR SOFTWARE & USB DRIVER
Windows ™ 2000/XP/VISTA/7/8
1 2 3 4
WARNING
Handle lithium batteries carefully, observe warnings on battery casing.
Dispose of in accordance with local regulations.
1. Insert the OM-EL-WIN-USB
Configuration Software CD into the CD
drive of your computer. If the CD does
not automatically load, navigate to the
CD and double click “Setup”
5. Click “Yes”
2. Click “Next”
6. Click “Finish”
3. Read the “IMPORTANT NOTICE”,
select “I Agree” & “Next”
7. Click “Install”
4. Click “Install”
8. You have successfully installed
the necessary software and driver
for your OM-EL-USB data logger. An
“EasyLog USB” icon will be placed
on your desktop
Page 6
OM-EL-USB-CO AND OM-EL-USB-CO300

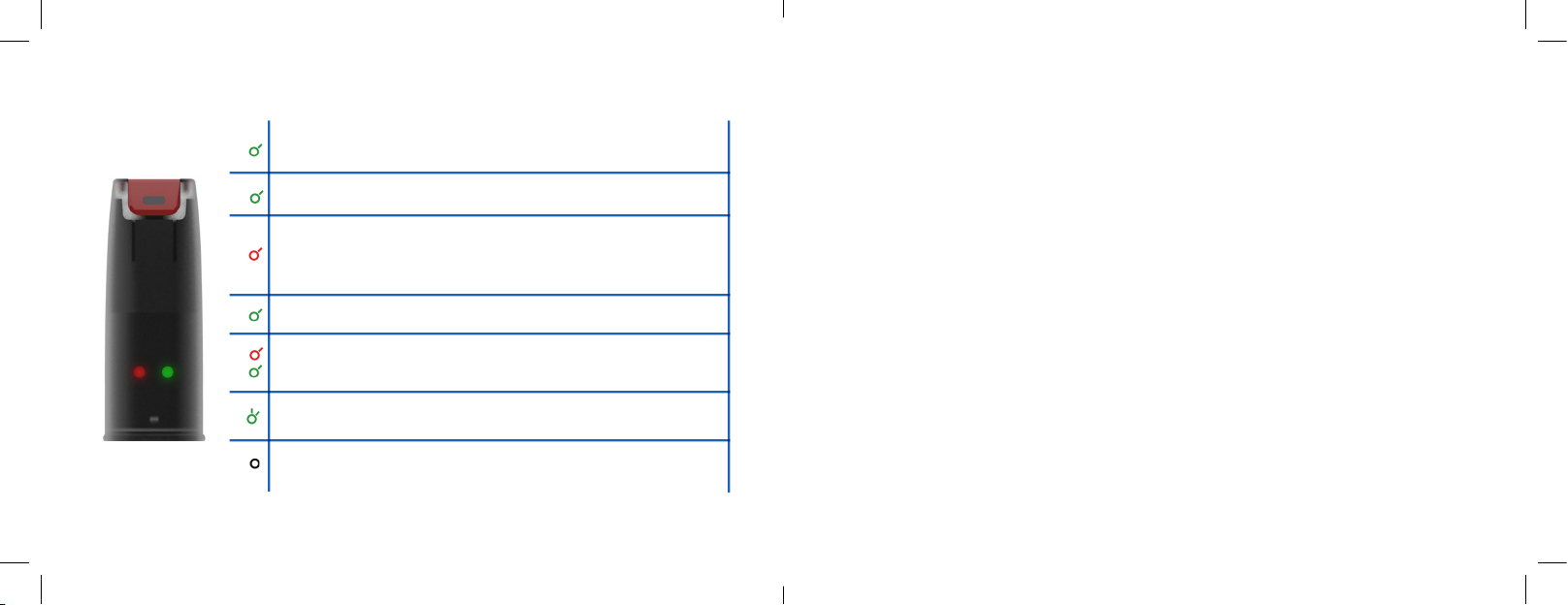

Indicators
Red LED
LED
Green LED
Green single flash every 30 seconds
Logger primed and ready to start
Green single flash every 10 seconds
Logging in progress, last stored value OK
Red single flash every 10 seconds
Logging in progress, the last stored reading is equal to or exceeds the warning
threshold (if latching is turn on, then a stored value is equal to or exceeds the
warning threshold). Will flash once every second when audible warning is enabled
Green single flash every 20 seconds
Low battery, logging in progress, the last stored value OK
Red/Green single flash every 20 seconds, latching turned on
Logger is full, warning threshold exceeded during logging (will flash once every
second when audible warning is enabled)
Green double flash every 20 seconds
Logger is full, last stored value OK
No LEDs flash
Battery inserted, but no logging exercise started or battery dead
By default, latching is disabled. The red LED will not flash after the logged CO level
has returned to normal. Instead, the green LED will flash.
Latching can be turned on via the control software. The red LED will then continue
to flash, even after the logged CO value has returned to normal. The red LED will
effectively have latched into its warning condition. This feature ensures that the
user is notified that the warning threshold has been exceeded, without the need
to download the data from the logger.
Audible warning
The OM-EL-USB-CO or OM-EL-USB-CO300 has a sounder which will issue an audible warning in the event of any alarm threshold being exceeded. By default the sounder is enabled, however it can be disabled in software during configuration of the OM-EL-USB-CO or
OM-EL-USB-CO300.
The audible warning will sound approximately once per second when the warning
threshold has been exceeded. The audible warning will only work with the cap
correctly fitted.
The audible warning will sound once every 60 seconds when there is a low battery
condition. This indicates that the batery must be replaced.
Loading...
