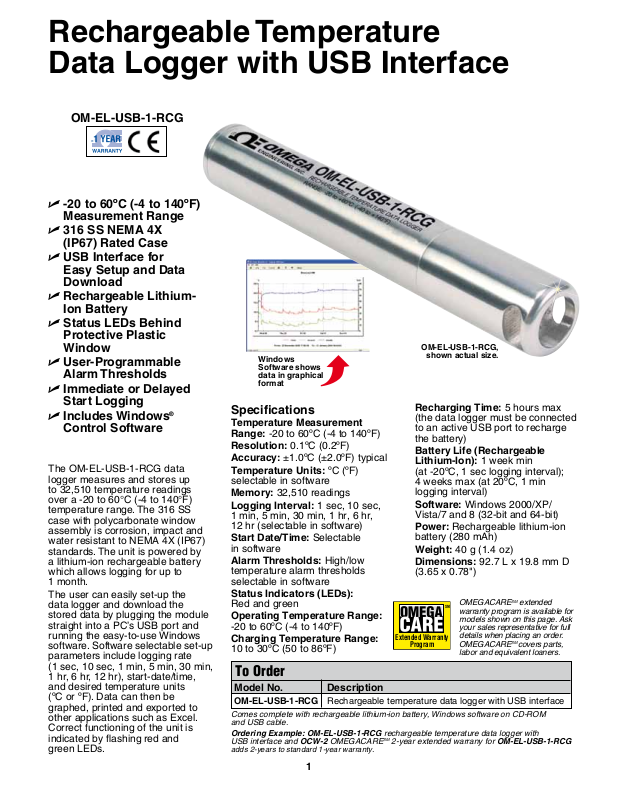

Page 1
Rechargeable Temperature
Data Logger with USB Interface
OM-EL-USB-1-RCG
U -20 to 60ºC (-4 to 140ºF)
Measurement Range
U 316 SS NEMA 4X
(IP67) Rated Case
U USB Interface for
Easy Setup and Data
Download
U Rechargeable Lithium-
Ion Battery
U Status LEDs Behind
Protective Plastic
Window
U User-Programmable
Alarm Thresholds
U Immediate or Delayed
Start Logging
U Includes Windows®
Control Software
The OM-EL-USB-1-RCG data
logger measures and stores up
to 32,510 temperature readings
over a -20 to 60°C (-4 to 140°F)
temperature range. The 316 SS
case with polycarbonate window
assembly is corrosion, impact and
water resistant to NEMA 4X (IP67)
standards. The unit is powered by
a lithium-ion rechargeable battery
which allows logging for up to
1 month.
The user can easily set-up the
data logger and download the
stored data by plugging the module
straight into a PC’s USB port and
running the easy-to-use Windows
software. Software selectable set-up
parameters include logging rate
(1 sec, 10 sec, 1 min, 5 min, 30 min,
1 hr, 6 hr, 12 hr), start-date/time,
and desired temperature units
(ºC or ºF). Data can then be
graphed, printed and exported to
other applications such as Excel.
Correct functioning of the unit is
indicated by flashing red and
green LEDs.
Windows
Software shows
data in graphical
format
Specifications
Temperature Measurement
Range: -20 to 60ºC (-4 to 140ºF)
Resolution: 0.1ºC (0.2ºF)
Accuracy: ±1.0ºC (±2.0ºF) typical
Temperature Units: ºC (ºF)
selectable in software
Memory: 32,510 readings
Logging Interval: 1 sec, 10 sec,
1 min, 5 min, 30 min, 1 hr, 6 hr,
12 hr (selectable in software)
Start Date/Time: Selectable
in software
Alarm Thresholds: High/low
temperature alarm thresholds
selectable in software
Status Indicators (LEDs):
Red and green
Operating Temperature Range:
-20 to 60ºC (-4 to 140ºF)
Charging Temperature Range:
10 to 30ºC (50 to 86ºF)
To Order
Model No. Description
OM-EL-USB-1-RCG Rechargeable temperature data logger with USB interface
Comes complete with rechargeable lithium-ion battery, Windows software on CD-ROM
and USB cable.
Ordering Example: OM-EL-USB-1-RCG rechargeable temperature data logger with
USB interface and OCW-2 OMEGACARESM 2-year extended warrany for OM-EL-USB-1-RCG
adds 2-years to standard 1-year warranty.
OM-EL-USB-1-RCG,
shown actual size.
Recharging Time: 5 hours max
(the data logger must be connected
to an active USB port to recharge
the battery)
Battery Life (Rechargeable
Lithium-Ion): 1 week min
(at -20ºC, 1 sec logging interval);
4 weeks max (at 20ºC, 1 min
logging interval)
Software: Windows 2000/XP/
Vista/7 and 8 (32-bit and 64-bit)
Power: Rechargeable lithium-ion
battery (280 mAh)
Weight: 40 g (1.4 oz)
Dimensions: 92.7 L x 19.8 mm D
(3.65 x 0.78")
OMEGACARESM extended
SM
warranty program is available for
models shown on this page. Ask
your sales representative for full
Extended Warranty
Program
details when placing an order.
OMEGACARE
labor and equivalent loaners.
SM
covers parts,
1
