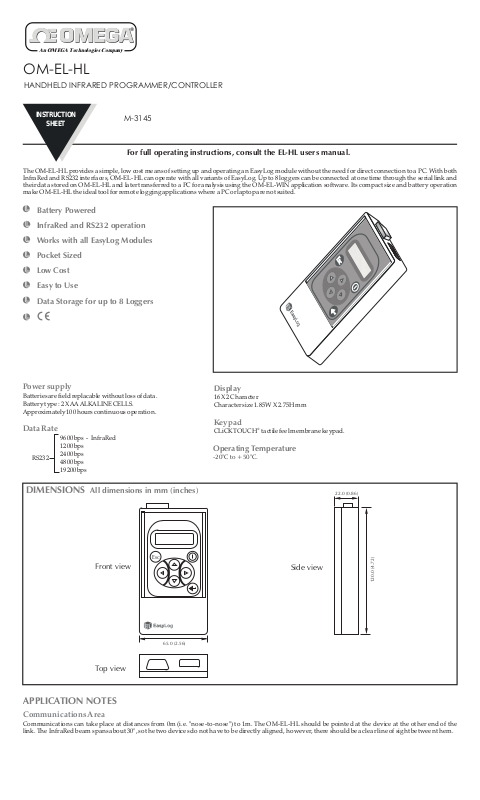

Omega OM-EL-HL User guide

®

An OMEGA Technologies Company

OM-EL-HL

HANDHELD INFRARED PROGRAMMER/CONTROLLER

INSTRUCTION

SHEET

M-3145

For full operating instructions, consult the EL-HL users manual.

The OM-EL-HL provides a simple, low costmeans of setting up and operating anEasyLog module without the needfor direct connection to a PC. With both
InfraRed and RS232 interfaces, OM-EL-HL can operate with all variants of EasyLog. Up to8 loggers canbe connected at one time through the seriallink and
their datastored on OM-EL-HL and later transferred to aPC for analysis using theOM-EL-WIN applicationsoftware. Its compact size andbattery operation
make OM-EL-HL theideal toolfor remote logging applicationswhere a PCor laptopare not suited.

Battery Powered

InfraRed and RS232 operation

Works with all EasyLog Modules

Pocket Sized

Esc

Low Cost

Easy to Use

Data Storage for up to 8 Loggers

Powersupply

Batteries are fieldreplacable withoutloss of data.
Battery type:2XAAALKALINE CELLS.
Approximately 100 hourscontinuous operation.

Data Rate

9600 bps - InfraRed
1200 bps

RS232

2400 bps
4800 bps
19200 bps

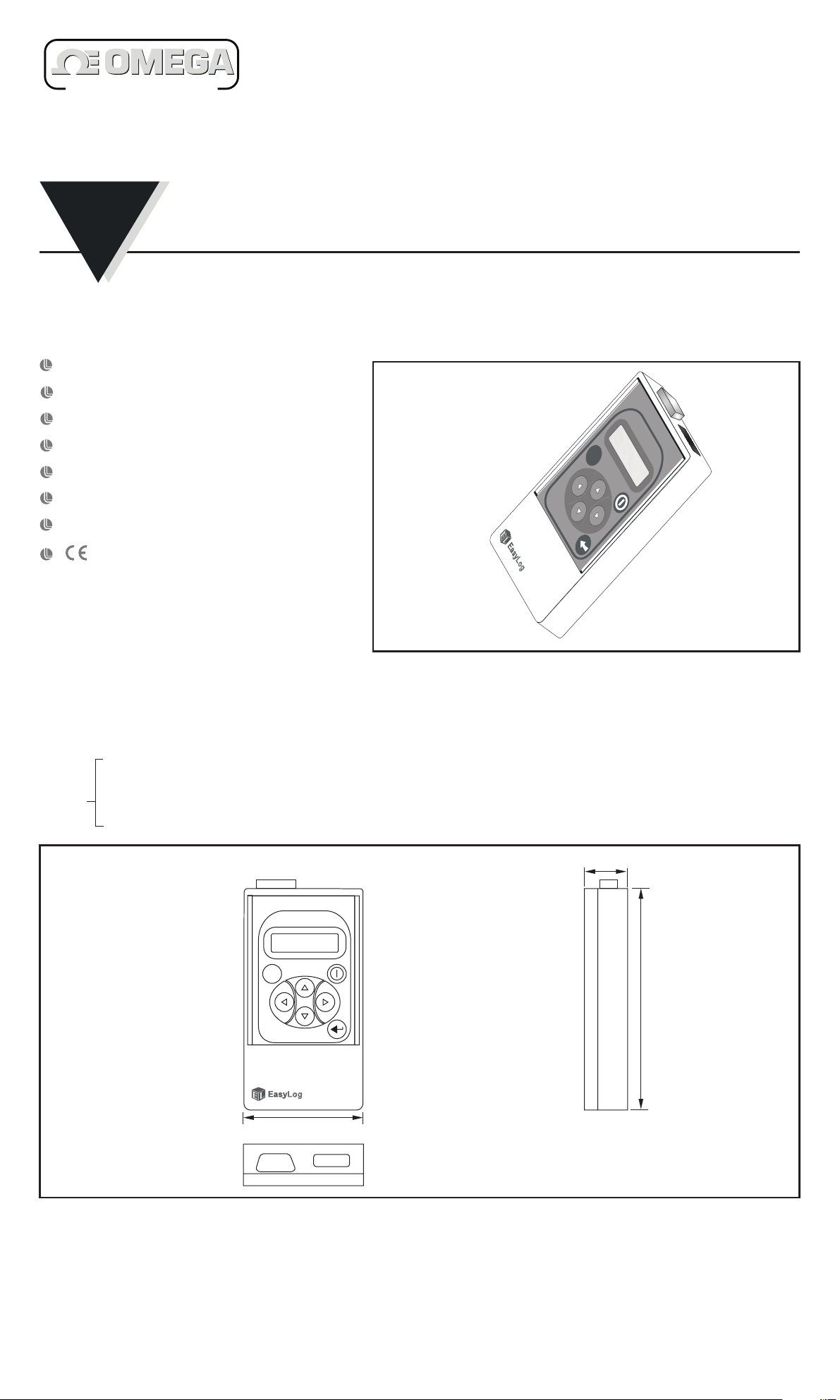

DIMENSIONS All dimensions in mm (inches)

Esc

Front view

Display

16 X 2Character.
Character size 1.85WX 2.75Hmm

Keypad

CLiCKTOUCH tactile feel membranekeypad.

®

Operating Temperature

-20°C to +50°C.

22.0 (0.86)

Side view

120.0 (4.72)

65.0 (2.56)

Top view

APPLICATION NOTES

Communications Area

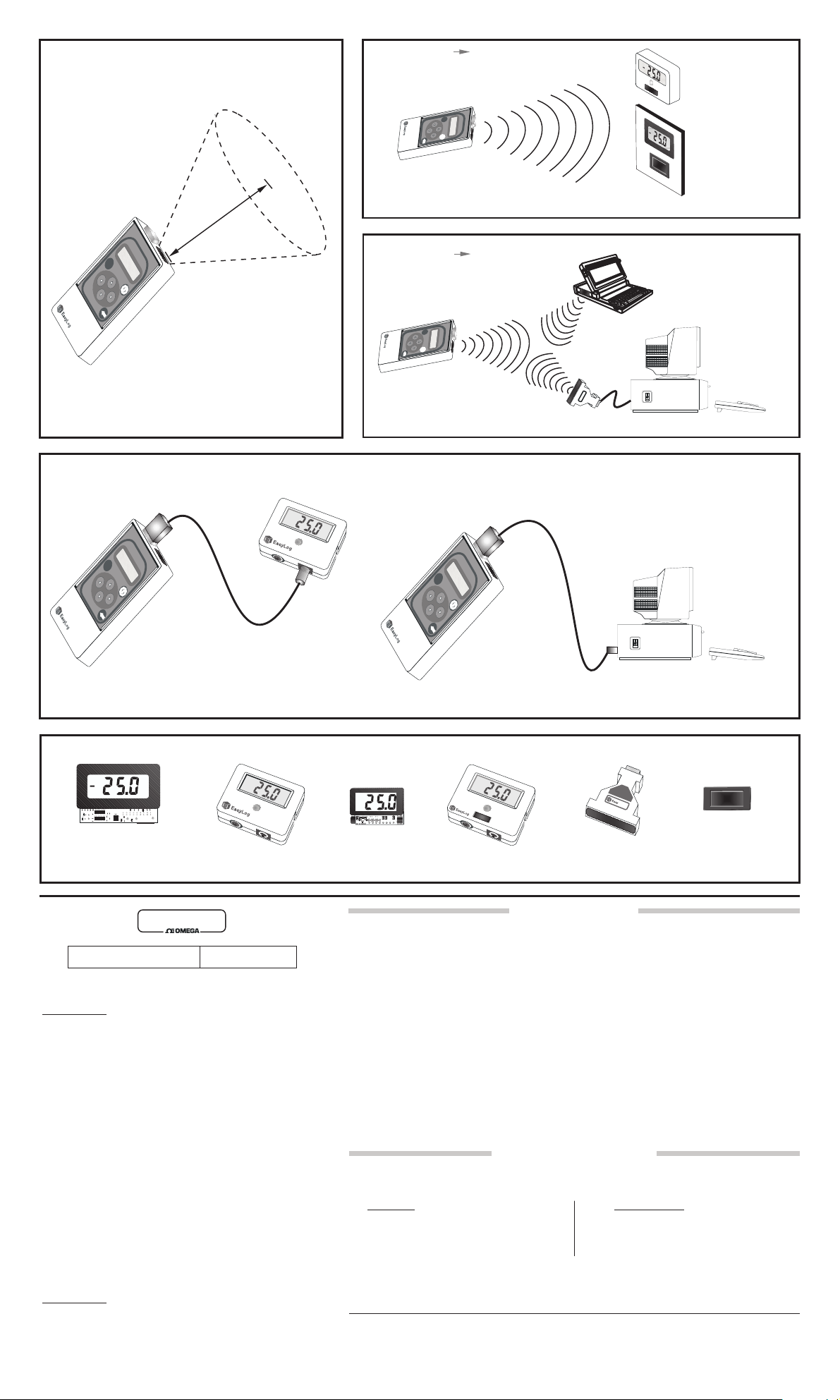

Communications can take place at distances from 0m (i.e. "nose-to-nose") to 1m. The OM-EL-HL should be pointed at the device at the other end of the
link. TheInfraRedbeam spansabout 30°,sothe twodevices donothave tobe directlyaligned, however,there should bea clearline ofsight between them.

INFRA RED COMMUNICATION

OM-EL-HL EASYLOG

OM-EL-HL

Esc

°

C

OM-EL-2-IR

°

C

OM-EL-1

OM-EL-PANEL-IR

OM-EL-HL

Esc

30°

1m (3.3ft)

SERIAL LINK COMMUNICATION

OM-EL-2

Fig 1.

Esc

OM-EL-HL

OM-EL-HL PC

IrDA Serial link

OM-EL-HL

Esc

OM-EL-LINK-IR

Fig 2 Uploading to a PC for processing and presenting data.

°

C

Fig 2.

Esc

OM-EL-HL

Fig 1 OM-EL-HL will also communicate with EasyLog

modules via conventional RS232 links.

COMPATIBLE PRODUCTS LIST

°
