User’s Guide

OME-A826PG
ISA-Bus

Multi-Functional Board

Software Manual

Shop online at

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

TEL: [phone] FAX: [phone]
e-mail: [e-mail]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378 / 1-800-622-BEST

®

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

®

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico: En Espan˜ ol: [phone]-7803 e-mail: [e-mail]

FAX: [phone] [e-mail]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

TEL: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344
e-mail: [e-mail]

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: [phone] FAX: [phone]
Toll Free: 0800-1-66342 e-mail: [e-mail]

France: 11, rue Jacques Cartier, 78280 Guyancourt, France

TEL: [phone] FAX: [phone]
Toll Free in France: 0800 466 342
e-mail: [e-mail]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [e-mail]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in United Kingdom: 0800-488-488
e-mail: [e-mail]

OMEGAnet®Online Service Internet e-mail

www.omega.com [e-mail]

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that
apply. OMEGA is constantly pursuing certification of its products to the European New Approach
Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

OME-A-826PG Software Manual [Win 95/98/NT]

OME-A-826PG

Software Manual

[ For Windows 95/98/NT ]

Date: Aug-15-2000 Ver: 2.2 Page 1

OME-A-826PG Software Manual [Win 95/98/NT]

Table of Contents

1 Introduction ..................................................................................................................4

1.1 References ............................................................................................................. 5

1.2 Range Configuration Code .................................................................................... 6

2 Declaration Files .......................................................................................................... 7

2.1 For C user .............................................................................................................. 8

2.1.1 A826.H (for Win 95/98) ................................................................................. 8

2.1.2 A826.H (for Win NT) ................................................................................... 11

2.1.3 A826U.Cpp (for BCB).................................................................................. 13

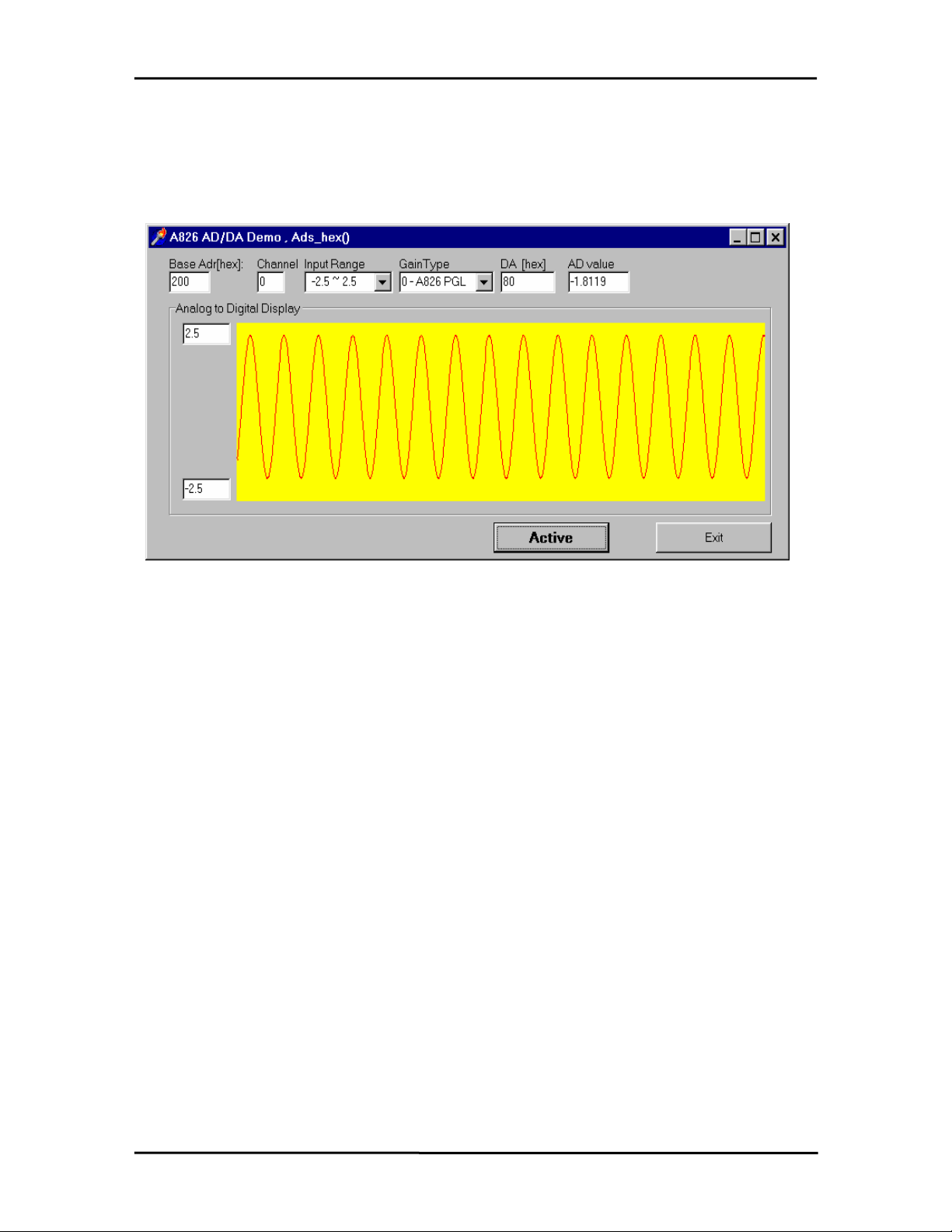

2.1.4 The VC++ Demo Result: .............................................................................. 14

2.1.5 Borland C++ Builder Demo Result .............................................................. 14

2.2 For The VB user .................................................................................................. 15

2.2.1 A826.BAS (for Win 95/98)........................................................................... 15

2.2.2 A826.BAS (for Win NT) .............................................................................. 18

2.2.3 A826U.BAS.................................................................................................. 21

2.2.4 The VB Demo Result:................................................................................... 21

2.3 For The Delphi user............................................................................................. 22

2.3.1 A826.PAS (for Win 95/98)........................................................................... 22

2.3.2 A826.PAS (for Win NT)............................................................................... 26

2.3.3 A826U.PAS .................................................................................................. 29

2.3.4 Delphi Demo Result :.................................................................................... 30

3 Function Description .................................................................................................. 31

3.1 TEST Function .................................................................................................... 33

3.1.1 SHORT_SUB_2........................................................................................... 33

3.1.2 FLOAT_SUB_2............................................................................................ 33

3.1.3 A826_Get_DLL_Version ............................................................................. 34

3.1.4 A826_GetDriverVersion............................................................................... 34

3.2 DI/DO Function................................................................................................... 35

3.2.1 A826_Di........................................................................................................ 35

3.2.2 A826_Do....................................................................................................... 35

3.2.3 A826_OutputByte......................................................................................... 36

3.2.4 A826_OutputWord ...................................................................................... 36

3.2.5 A826_InputByte............................................................................................ 37

3.2.6 A826_InputWord ......................................................................................... 37

3.3 A/D , D/A Functions............................................................................................ 38

3.3.1 A826_AD...................................................................................................... 38

3.3.2 A826_DA...................................................................................................... 38

3.3.3 A826_ADs_Hex............................................................................................ 39

3.3.4 A826_ADs_Float .......................................................................................... 40

3.3.5 A826_Uni5_DA............................................................................................ 41

3.3.6 A826_Uni10_DA.......................................................................................... 41

3.4 Driver Functions.................................................................................................. 42

3.4.1 A826_DriverInit............................................................................................ 42

3.4.2 A826_DriverClose ........................................................................................ 42

3.4.3 A826_DELAY .............................................................................................. 43

Date: Aug-15-2000 Ver: 2.2 Page 2

OME-A-826PG Software Manual [Win 95/98/NT]

3.4.4 A826_Check_Address .............................................................................. 43

3.5 AD, Interrupt functions........................................................................................ 44

3.5.1 A826_InstallIrq............................................................................................. 44

3.5.2 A826_AD_INT_Start.................................................................................... 44

3.5.3 A826_AD_INT_Stop.................................................................................... 45

3.5.4 A826_GetIntCount........................................................................................ 45

3.5.5 A826_GetBuffer ........................................................................................... 46

3.5.6 A826_GetFloatBuffer ................................................................................... 46

3.5.7 Diagram of Interrupt Mode........................................................................... 47

3.6 AD , DMA functions ........................................................................................... 49

3.6.1 A826_AD_DMA_InstallIrq.......................................................................... 49

3.6.2 A826_AD_DMA_RemoveIrq..................................................................... 49

3.6.3 A826_AD_DMA_Start................................................................................. 50

3.6.4 A826_AD_DMA_Stop ................................................................................. 51

3.6.5 A826_AD_DMA_IsNotFinished.................................................................. 51

3.6.6 A826_AD_DMA_GetBuffer ........................................................................ 52

3.6.7 A826_AD_DMA_GetFloatBuffer .............................................................. 52

3.6.8 Diagram of AD , DMA Mode....................................................................... 53

4 Program Architecture ................................................................................................. 55

5 Contact Us .................................................................................................................. 56

Date: Aug-15-2000 Ver: 2.2 Page 3

OME-A-826PG Software Manual [Win 95/98/NT]

1 Introduction

The OME-A-826PG is a multifunction, 16 bits resolution A/D, D/A and digital

I/O card. The feature of the OME-A-826PG are given as below:

1. A/D=16 bits, 16 channels(single-ended) or 8 channels(differential)

2. A-826PG : low gain (1/2/4/8), the analog input signal range configuration code is given in
Sec. 4.1

3. DA=12 bits, 2 channels, 0-5V or 0-10V output by hardware JP1 setting

4. 16 channels TTL compatible digital input

5. 16 channels TTL compatible digital output

The A826.DLL and A826.Vxd is a collection of data acquisition subroutines
for the OME-A-826PG Windows 95/98 Applications. These subroutines are
written with C language and perform a variety of data acquisition operations.

The subroutines in A826.DLL are easy understanding as its name standing
for. It provides powerful, easy-to-use subroutine for developing your data
acquisition application. Your program can call this DLL functions by VC++, VB ,
Delphi , Borland C++ Builder easily. To speed-up your developing process, some
demonstration source program are provided.

The OME-A-826PG consists of these DLLs and device driver :

For Windows 95/98

• A826.dll, A826.lib ÆLibraries for A826 PG card

• A826.Vxd Æ A826 Device driver for Windows 95/98

For Windows NT

• A826.dll, A826.lib ÆLibraries for OME-A826 PGL/PGH card

• A826.sys, Napwnt.sys ÆA826 Device driver for Windows NT

These DLLs can perform a variety of data acquisition operations as follows:

Date: Aug-15-2000 Ver: 2.2 Page 4

OME-A-826PG Software Manual [Win 95/98/NT]

1.1 References

Please refer to the following user manuals:

• SoftInst.pdf:

Describes how to install the software package under Windows 95/98/NT.

• CallDll.pdf:

Describes how to call the DLL functions with VC++5, VB5, Delphi3 and Borland C++

Builder 3.

• ResCheck.pdf:

Describes how to check the resources I/O Port address, IRQ number and DMA

number for add-on cards under Windows 95/98/NT.

Date: Aug-15-2000 Ver: 2.2 Page 5

OME-A-826PG Software Manual [Win 95/98/NT]

1.2 Range Configuration Code

The AD converter of the OME-A-826PG is 16 bits under all

configuration code. If the analog input range is configured to ±5V range, the

resolution of one bit is equal to 2.44 mV. If the analog input range is configured to
±2.5V range, the resolution will be 1.22 mV. If the analog input signal is about
1 V, use configuration 0/1/2 (for OME-A-826PG), it will get nearly the same result

except resolution. So choose the correct configuration code can achieve
the most high precision measurement.

OME-A-826PG Input Signal Range Configuration Code Table

Bipolar/Unipolar

Bipolar
Bipolar
Bipolar
Bipolar

Input Signal Range Configuration Code

± 10V

± 5V

± 2.5V

± 1.25V

0
1
2
3

Date: Aug-15-2000 Ver: 2.2 Page 6

OME-A-826PG Software Manual [Win 95/98/NT]

2 Declaration Files

For the Windows 95/98 user:

|--\Driver
| |--\A826.DLL <-- Dynamic Linking Library
| |--\A826.Vxd <-- Device driver for A826PG
| |--\BCB3
| | |--\A826.h <-- Header file
| | |--\A826.Lib <-- Import Library for BCB
| | +--\A826u.cpp <-- Some function for BCB
| |--\Delphi3
| | |--\A826.pas <-- Declaration file
| | +--\A826u.pas <-- Some function for Delphi
| |--\VB5
| | |--\A826.bas <-- Declaration file
| | +--\A826u.bas <-- Some function for VB
| +--\VC5
| |--\A826.h <-- Header file
| +--\A826.Lib <-- Import Library for VC++

For the Windows NT user:

|--\Driver
| |--\A826.DLL <-- Dynamic Linking Library
| |--\A826.sys <-- device driver
| |--\Napwnt.sys <-- device driver
| |--\BCB3
| | |--\A826.h <-- Header file
| | |--\A826.Lib <-- Import Library for BCB
| | +--\A826u.cpp <-- Some function for BCB
| |--\Delphi3
| | |--\A826.pas <-- Declaration file
| | +--\A826u.pas <-- Some function for Delphi
| |--\VB5
| | |--\A826.bas <-- Declaration file
| | +--\A826u.bas <-- Some function for VB
| +--\VC5
| |--\A826.h <-- Header file
| +--\A826.Lib <-- Import Library for VC++

Date: Aug-15-2000 Ver: 2.2 Page 7

OME-A-826PG Software Manual [Win 95/98/NT]

2.1 For C user

2.1.1 A826.H (for Win 95/98)

#ifdef __cplusplus
#define EXPORTS extern "C" __declspec (dllimport)
#else
#define EXPORTS
#endif

/***************** DEFINE A826 RELATIVE ADDRESS *****************/
#define TIMER0 0x00
#define TIMER1 0x01
#define TIMER2 0x02
#define TIMER_MODE 0x03
#define AD_LO 0x04 /* Analog to Digital, Low Byte */
#define AD_HI 0x05 /* Analog to Digital, High Byte */
#define DA_CH0_LO 0x04 /* Digit to Analog, CH 0 */
#define DA_CH0_HI 0x05
#define DA_CH1_LO 0x06 /* Digit to Analog, CH 1 */
#define DA_CH1_HI 0x07
#define DI_LO 0x06 /* Digit Input */
#define DO_LO 0x0D /* Digit Output */

#define CLEAR_IRQ 0x08
#define SET_GAIN 0x09
#define SET_CH 0x0A
#define SET_MODE 0x0B
#define SOFT_TRIG 0x0C

#define POLLING_MODE 1
#define DMA_MODE 2
#define INTERRUPT_MODE 6

/*** define the gain mode ***/
#define A826_BI_1 0
#define A826_BI_10 1
#define A826_BI_100 2
#define A826_BI_1000 3
#define A826_UNI_1 4
#define A826_UNI_10 5
#define A826_UNI_100 6
#define A826_UNI_1000 7
#define A826_BI_05 8
#define A826_BI_5 9
#define A826_BI_50 10
#define A826_BI_500 11

#define A826_BI_2 1
#define A826_BI_4 2
#define A826_BI_8 3
#define A826_UNI_2 5
#define A826_UNI_4 6
#define A826_UNI_8 7

Date: Aug-15-2000 Ver: 2.2 Page 8

OME-A-826PG Software Manual [Win 95/98/NT]

#define NoError 0
#define DriverOpenError 1
#define DriverNoOpen 2
#define GetDriverVersionError 3
#define InstallIrqError 4
#define ClearIntCountError 5
#define GetIntCountError 6
#define AdError1 100
#define AdError2 -200.0
#define InstallBufError 9
#define GetBufferError 10
#define INTStartError 11
#define INTStopError 12
#define InstallDmaIrqError 13
#define RemoveDmaIrqError 14
#define DmaStartError 15
#define DmaStopError 16
#define DmaGetDataError 17
#define TimeoutError 18
#define AllocateMemoryError 19
#define OtherError 20

//********* Test Functios ************
EXPORTS short CALLBACK SHORT_SUB_2(short nA, short nB);
EXPORTS float CALLBACK FLOAT_SUB_2(float fA, float fB);
EXPORTS WORD CALLBACK A826_Get_DLL_Version(void);
EXPORTS WORD CALLBACK A826_GetDriverVersion(WORD *wDriverVersion);

//********* DI/DO Functios ************
EXPORTS WORD CALLBACK A826_DI(WORD wBase);
EXPORTS void CALLBACK A826_DO(WORD wBase, WORD wHexValue);

//********* DA/AD Functios ************
EXPORTS float CALLBACK A826_AD(WORD wBase, WORD wChannel, WORD wConfig);
EXPORTS WORD CALLBACK A826_ADs_Hex(WORD wBase, WORD wChannel, WORD wConfig,
short wBuf[], WORD wCount);
EXPORTS WORD CALLBACK A826_ADs_Float(WORD wBase, WORD wChannel, WORD wConfig,
float fBuf[], WORD wCount);
EXPORTS void CALLBACK A826_DA(WORD wBase, WORD wChannel, WORD wHexValue);
EXPORTS void CALLBACK A826_Uni5_DA(WORD wBase, WORD wChannel, float fValue);
EXPORTS void CALLBACK A826_Uni10_DA(WORD wBase, WORD wChannel, float fValue);

//********* Driver Functios ************
EXPORTS WORD CALLBACK A826_DriverInit(void);
EXPORTS void CALLBACK A826_DriverClose(void);
EXPORTS WORD CALLBACK A826_DELAY(WORD wBase, WORD wDownCount);
EXPORTS WORD CALLBACK A826_Check_Address(WORD wBase);
EXPORTS void CALLBACK A826_OutputByte(WORD wPortAddr, UCHAR bOutputVal);
EXPORTS void CALLBACK A826_OutputWord(WORD wPortAddr, WORD wOutputVal);
EXPORTS WORD CALLBACK A826_InputByte(WORD wPortAddr);
EXPORTS WORD CALLBACK A826_InputWord(WORD wPortAddr);

Date: Aug-15-2000 Ver: 2.2 Page 9

OME-A-826PG Software Manual [Win 95/98/NT]

//********* IRQ Functios ************
EXPORTS WORD CALLBACK A826_InstallIrq

(WORD wBase, WORD wIrq, HANDLE *hEvent, DWORD dwCount);
EXPORTS WORD CALLBACK A826_AD_INT_Start(WORD Ch, WORD Gain, WORD c1, WORD c2);
EXPORTS WORD CALLBACK A826_AD_INT_Stop(void);
EXPORTS WORD CALLBACK A826_GetIntCount(DWORD *dwVal);
EXPORTS WORD CALLBACK A826_GetBuffer(DWORD dwNum, short wBuffer[]);
EXPORTS WORD CALLBACK A826_GetFloatBuffer(DWORD dwNum, float fBuffer[]);

//********* DMA Functios ************
EXPORTS WORD CALLBACK A826_AD_DMA_InstallIrq(WORD wBase,WORD wIrq,WORD wDmaChan);
EXPORTS WORD CALLBACK A826_AD_DMA_RemoveIrq(void);
EXPORTS WORD CALLBACK A826_AD_DMA_Start(WORD Ch,WORD Gain,WORD c1,WORD c2,
int cnt, WORD wPassOut[]);
EXPORTS WORD CALLBACK A826_AD_DMA_Stop(void);
EXPORTS WORD CALLBACK A826_AD_DMA_IsNotFinished(void);
EXPORTS WORD CALLBACK A826_AD_DMA_GetBuffer(short wBuf[]);
EXPORTS WORD CALLBACK A826_AD_DMA_GetFloatBuffer(float fBuf[]);

Date: Aug-15-2000 Ver: 2.2 Page 10

OME-A-826PG Software Manual [Win 95/98/NT]

2.1.2 A826.H (for Win NT)

#ifdef __cplusplus
#define EXPORTS extern "C" __declspec (dllimport)
#else
#define EXPORTS
#endif

/***************** DEFINE A826 RELATIVE ADDRESS *****************/
#define TIMER0 0x00
#define TIMER1 0x01
#define TIMER2 0x02
#define TIMER_MODE 0x03
#define AD_LO 0x04 /* Analog to Digital, Low Byte */
#define AD_HI 0x05 /* Analog to Digital, High Byte */
#define DA_CH0_LO 0x04 /* Digit to Analog, CH 0 */
#define DA_CH0_HI 0x05
#define DA_CH1_LO 0x06 /* Digit to Analog, CH 1 */
#define DA_CH1_HI 0x07
#define DI_LO 0x06 /* Digit Input */
#define DO_LO 0x0D /* Digit Output */

#define CLEAR_IRQ 0x08
#define SET_GAIN 0x09
#define SET_CH 0x0A
#define SET_MODE 0x0B
#define SOFT_TRIG 0x0C

#define POLLING_MODE 1
#define DMA_MODE 2
#define INTERRUPT_MODE 6

/*** define the gain mode ***/
#define A826_BI_1 0
#define A826_BI_10 1
#define A826_BI_100 2
#define A826_BI_1000 3
#define A826_UNI_1 4
#define A826_UNI_10 5
#define A826_UNI_100 6
#define A826_UNI_1000 7
#define A826_BI_05 8
#define A826_BI_5 9
#define A826_BI_50 10
#define A826_BI_500 11

#define A826_BI_2 1
#define A826_BI_4 2
#define A826_BI_8 3
#define A826_UNI_2 5
#define A826_UNI_4 6
#define A826_UNI_8 7

Date: Aug-15-2000 Ver: 2.2 Page 11

OME-A-826PG Software Manual [Win 95/98/NT]

#define NoError 0
#define DriverOpenError 1
#define DriverNoOpen 2
#define GetDriverVersionError 3
#define InstallIrqError 4
#define ClearIntCountError 5
#define GetIntCountError 6
#define AdError1 100
#define AdError2 -200
#define InstallBufError 9
#define AllocateMemoryError 10
#define CardTypeError 11
#define GetBufferError 12
#define TimeoutError 13
#define OtherError 14

//********* Test Functios ************
EXPORTS short CALLBACK SHORT_SUB_2(short nA, short nB);
EXPORTS float CALLBACK FLOAT_SUB_2(float fA, float fB);
EXPORTS WORD CALLBACK A826_Get_DLL_Version(void);
EXPORTS WORD CALLBACK A826_GetDriverVersion(WORD *wDriverVersion);

//********* DI/DO Functios ************
EXPORTS WORD CALLBACK A826_DI(WORD wBase);
EXPORTS void CALLBACK A826_DO(WORD wBase, WORD wHexValue);

//********* DA/AD Functios ************
EXPORTS float CALLBACK A826_AD(WORD wBase, WORD wChannel, WORD wConfig);
EXPORTS WORD CALLBACK A826_ADs_Hex(WORD wBase, WORD wChannel, WORD
wConfig, short wBuf[], WORD wCount);
EXPORTS WORD CALLBACK A826_ADs_Float(WORD wBase, WORD wChannel, WORD
wConfig, float fBuf[], WORD wCount);
EXPORTS void CALLBACK A826_DA(WORD wBase, WORD wChannel, WORD wHexValue);
EXPORTS void CALLBACK A826_Uni5_DA(WORD wBase, WORD wChannel, float fValue);
EXPORTS void CALLBACK A826_Uni10_DA(WORD wBase, WORD wChannel, float fValue);

//********* Driver Functios ************
EXPORTS WORD CALLBACK A826_DriverInit(void);
EXPORTS void CALLBACK A826_DriverClose(void);
EXPORTS WORD CALLBACK A826_DELAY(WORD wBase, WORD wDownCount);
EXPORTS WORD CALLBACK A826_Check_Address(WORD wBase);
EXPORTS void CALLBACK A826_OutputByte(WORD wPortAddr, UCHAR bOutputVal);
EXPORTS void CALLBACK A826_OutputWord(WORD wPortAddr, WORD wOutputVal);
EXPORTS WORD CALLBACK A826_InputByte(WORD wPortAddr);
EXPORTS WORD CALLBACK A826_InputWord(WORD wPortAddr);

//********* IRQ Functios ************
EXPORTS WORD CALLBACK A826_InstallIrq

(WORD wBase, WORD wIrq, HANDLE *hEvent,DWORD dwCount);
EXPORTS WORD CALLBACK A826_AD_INT_Start

(WORD Ch, WORD Gain, WORD c1, WORD c2);
EXPORTS WORD CALLBACK A826_AD_INT_Stop(void);
EXPORTS WORD CALLBACK A826_GetIntCount(DWORD *dwVal);
EXPORTS WORD CALLBACK A826_GetBuffer(DWORD dwNum, short wBuffer[]);
EXPORTS WORD CALLBACK A826_GetFloatBuffer(DWORD dwNum, float fBuffer[]);

Date: Aug-15-2000 Ver: 2.2 Page 12

OME-A-826PG Software Manual [Win 95/98/NT]

2.1.3 A826U.Cpp (for BCB)

#include <math.h>

//*-----------------------------------------------------*
//* Return voltage value or -100.0 if any error occurs *
//* or parameter is out of range. *
//* HiLo : 1 --> High Gain , 0 --> Low Gain *
//* Gain : 0-3 *
//*-----------------------------------------------------*
float A826_AD2F(Word hex, int Gain )
{
float ZeroBase, VoltageRange, FullRange ;
short int i ;

ZeroBase = 0.0 ;
FullRange = 32767.0 ;
VoltageRange = 10.0 ;
i = hex ;
Gain = Gain % 16;

if ( (Gain < 0) || (Gain > 3) )
return -100.0;

return ((((i - ZeroBase) / FullRange) * VoltageRange) / pow( 2 , Gain));

}

Date: Aug-15-2000 Ver: 2.2 Page 13

OME-A-826PG Software Manual [Win 95/98/NT]

2.1.4 The VC++ Demo Result:

2.1.5 Borland C++ Builder Demo Result

Date: Aug-15-2000 Ver: 2.2 Page 14

OME-A-826PG Software Manual [Win 95/98/NT]

2.2 For The VB user

2.2.1 A826.BAS (for Win 95/98)

Attribute VB_Name = "A826"
'*********************************************************************************
' The Declare of A826.DLL for A826 DAQ Card
'*********************************************************************************

Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)

'***************** DEFINE A826 RELATIVE ADDRESS *****************

Global Const TIMER0 = &H0
Global Const Timer1 = &H1
Global Const TIMER2 = &H2
Global Const TIMER_MODE = &H3
Global Const AD_LO = &H4 '* Analog to Digital, Low Byte *
Global Const AD_HI = &H5 '* Analog to Digital, High Byte *
Global Const DA_CH0_LO = &H4 '* Digit to Analog, CH 0 *
Global Const DA_CH0_HI = &H5
Global Const DA_CH1_LO = &H6 '* Digit to Analog, CH 1 *
Global Const DA_CH1_HI = &H7
Global Const DI_LO = &H6 '* Digit Input *
Global Const DO_LO = &HD '* Digit Output *

Global Const CLEAR_IRQ = &H8
Global Const SET_GAIN = &H9
Global Const SET_CH = &HA
Global Const SET_MODE = &HB
Global Const SOFT_TRIG = &HC

Global Const POLLING_MODE = 1
Global Const DMA_MODE = 2
Global Const INTERRUPT_MODE = 6

'*** define the gain mode ***
Global Const A826_BI_1 = 0
Global Const A826_BI_10 = 1
Global Const A826_BI_100 = 2
Global Const A826_BI_1000 = 3
Global Const A826_UNI_1 = 4
Global Const A826_UNI_10 = 5
Global Const A826_UNI_100 = 6
Global Const A826_UNI_1000 = 7
Global Const A826_BI_05 = 8
Global Const A826_BI_5 = 9
Global Const A826_BI_50 = 10
Global Const A826_BI_500 = 11

Date: Aug-15-2000 Ver: 2.2 Page 15

OME-A-826PG Software Manual [Win 95/98/NT]

Global Const A826_BI_2 = 1
Global Const A826_BI_4 = 2
Global Const A826_BI_8 = 3
Global Const A826_UNI_2 = 5
Global Const A826_UNI_4 = 6
Global Const A826_UNI_8 = 7

Global Const NoError = 0
Global Const DriverOpenError = 1
Global Const DriverNoOpen = 2
Global Const GetDriverVersionError = 3
Global Const InstallIrqError = 4
Global Const ClearIntCountError = 5
Global Const GetIntCountError = 6
Global Const AdError1 = 100
Global Const AdError2 = -200#
Global Const InstallBufError = 9
Global Const GetBufferError = 10
Global Const INTStartError = 11
Global Const INTStopError = 12
Global Const InstallDmaIrqError = 13
Global Const RemoveDmaIrqError = 14
Global Const DmaStartError = 15
Global Const DmaStopError = 16
Global Const DmaGetDataError = 17
Global Const TimeoutError = 18
Global Const AllocateMemoryError = 19
Global Const OtherError = 20

'******* Test Functions ***********
Declare Function SHORT_SUB_2 Lib "A826.DLL" (ByVal nA As Integer, _
ByVal nB As Integer) As Integer
Declare Function FLOAT_SUB_2 Lib "A826.DLL" (ByVal fA As Single, _
ByVal fB As Single) As Single
Declare Function A826_Get_DLL_Version Lib "A826.DLL" () As Integer
Declare Function A826_GetDriverVersion Lib "A826.DLL" _
(wDriverVersion As Integer) As Integer

'******* DI/DO Functions ***********
Declare Function A826_DI Lib "A826.DLL" (ByVal wBase As Integer) As Integer
Declare Sub A826_DO Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wHexValue As Integer)

'******* AD/DA Functions ***********
Declare Function A826_AD Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer) As Single
Declare Function A826_ADs_Hex Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer, _
wBuf As Integer, ByVal wCount As Integer) As Integer
Declare Function A826_ADs_Float Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer, _
fBuf As Single, ByVal wCount As Integer) As Integer
Declare Sub A826_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wHexValue As Integer)
Declare Sub A826_Uni5_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal fValue As Single)

Date: Aug-15-2000 Ver: 2.2 Page 16

OME-A-826PG Software Manual [Win 95/98/NT]

Declare Sub A826_Uni10_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal fValue As Single)

'******* Driver Functions ***********
Declare Function A826_DriverInit Lib "A826.DLL" () As Integer
Declare Sub A826_DriverClose Lib "A826.DLL" ()
Declare Function A826_DELAY Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wDownCount As Integer) As Integer
Declare Function A826_Check_Address Lib "A826.DLL" (ByVal wBase As Integer) As Integer
Declare Sub A826_OutputByte Lib "A826.DLL" (ByVal wPortAddr As Integer, ByVal bOutputVal
As Byte)
Declare Sub A826_OutputWord Lib "A826.DLL" (ByVal wPortAddr As Integer, ByVal wOutputVal
As Integer)
Declare Function A826_InputByte Lib "A826.DLL" (ByVal wPortAddr As Integer) As Integer
Declare Function A826_InputWord Lib "A826.DLL" (ByVal wPortAddr As Integer) As Integer

'******* IRQ Functions ***********
Declare Function A826_InstallIrq Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wIrq As Integer, hEvent As Long, ByVal dwCount As Integer) As Integer
Declare Function A826_GetIntCount Lib "A826.DLL" (dwVal As Long) As Integer
Declare Function A826_GetBuffer Lib "A826.DLL" (ByVal dwNum As Long, _
wBuffer As Integer) As Integer
Declare Function A826_AD_INT_Start Lib "A826.DLL" (ByVal Ch As Integer, _
ByVal Gain As Integer, ByVal c1 As Integer, ByVal c2 As Integer) As Integer
Declare Function A826_AD_INT_Stop Lib "A826.DLL" () As Integer
Declare Function A826_GetFloatBuffer Lib "A826.DLL" (ByVal dwNum As Long, _
fBuffer As Single) As Integer

'******* DMA Functions ***********
Declare Function A826_AD_DMA_InstallIrq Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wIrq As Integer, ByVal wDmaChan As Integer) As Integer
Declare Function A826_AD_DMA_RemoveIrq Lib "A826.DLL" () As Integer
Declare Function A826_AD_DMA_Start Lib "A826.DLL" (ByVal Ch As Integer, _
ByVal Gain As Integer, ByVal c1 As Integer, ByVal c2 As Integer, _
ByVal cnt As Integer, wPassOut As Integer) As Integer
Declare Function A826_AD_DMA_Stop Lib "A826.DLL" () As Integer
Declare Function A826_AD_DMA_IsNotFinished Lib "A826.DLL" () As Integer
Declare Function A826_AD_DMA_GetBuffer Lib "A826.DLL" (wBuf As Integer) As Integer
Declare Function A826_AD_DMA_GetFloatBuffer Lib "A826.DLL" (fBuf As Single) As Integer

Date: Aug-15-2000 Ver: 2.2 Page 17

OME-A-826PG Software Manual [Win 95/98/NT]

2.2.2 A826.BAS (for Win NT)

Attribute VB_Name = "A826"
'*********************************************************************************
' The Declare of A826.DLL for A826 DAQ Card
'*********************************************************************************

Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)

'***************** DEFINE A826 RELATIVE ADDRESS *****************

Global Const TIMER0 = &H0
Global Const Timer1 = &H1
Global Const TIMER2 = &H2
Global Const TIMER_MODE = &H3
Global Const AD_LO = &H4 '* Analog to Digital, Low Byte *
Global Const AD_HI = &H5 '* Analog to Digital, High Byte *
Global Const DA_CH0_LO = &H4 '* Digit to Analog, CH 0 *
Global Const DA_CH0_HI = &H5
Global Const DA_CH1_LO = &H6 '* Digit to Analog, CH 1 *
Global Const DA_CH1_HI = &H7
Global Const DI_LO = &H6 '* Digit Input *
Global Const DO_LO = &HD '* Digit Output *

Global Const CLEAR_IRQ = &H8
Global Const SET_GAIN = &H9
Global Const SET_CH = &HA
Global Const SET_MODE = &HB
Global Const SOFT_TRIG = &HC

Global Const POLLING_MODE = 1
Global Const DMA_MODE = 2
Global Const INTERRUPT_MODE = 6

'*** define the gain mode ***
Global Const A826_BI_1 = 0
Global Const A826_BI_10 = 1
Global Const A826_BI_100 = 2
Global Const A826_BI_1000 = 3
Global Const A826_UNI_1 = 4
Global Const A826_UNI_10 = 5
Global Const A826_UNI_100 = 6
Global Const A826_UNI_1000 = 7
Global Const A826_BI_05 = 8
Global Const A826_BI_5 = 9
Global Const A826_BI_50 = 10
Global Const A826_BI_500 = 11

Global Const A826_BI_2 = 1
Global Const A826_BI_4 = 2
Global Const A826_BI_8 = 3
Global Const A826_UNI_2 = 5
Global Const A826_UNI_4 = 6
Global Const A826_UNI_8 = 7

Date: Aug-15-2000 Ver: 2.2 Page 18

OME-A-826PG Software Manual [Win 95/98/NT]

Global Const NoError = 0
Global Const DriverOpenError = 1
Global Const DriverNoOpen = 2
Global Const GetDriverVersionError = 3
Global Const InstallIrqError = 4
Global Const ClearIntCountError = 5
Global Const GetIntCountError = 6
Global Const AdError1 = 100
Global Const AdError2 = -200#
Global Const InstallBufError = 9
Global Const AllocateMemoryError = 10
Global Const CardTypeError = 11
Global Const GetBufferError = 12
Global Const TimeoutError = 13
Global Const OtherError = 14

'******* Test Functions ***********
Declare Function SHORT_SUB_2 Lib "A826.DLL" (ByVal nA As Integer, _
ByVal nB As Integer) As Integer
Declare Function FLOAT_SUB_2 Lib "A826.DLL" (ByVal fA As Single, _
ByVal fB As Single) As Single
Declare Function A826_Get_DLL_Version Lib "A826.DLL" () As Integer
Declare Function A826_GetDriverVersion Lib "A826.DLL" _
(wDriverVersion As Integer) As Integer

'******* DI/DO Functions ***********
Declare Function A826_DI Lib "A826.DLL" (ByVal wBase As Integer) As Integer
Declare Sub A826_DO Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wHexValue As Integer)

'******* AD/DA Functions ***********
Declare Function A826_AD Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer) As Single
Declare Function A826_ADs_Hex Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer, _
wBuf As Integer, ByVal wCount As Integer) As Integer
Declare Function A826_ADs_Float Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wConfig As Integer, _
fBuf As Single, ByVal wCount As Integer) As Integer
Declare Sub A826_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal wHexValue As Integer)
Declare Sub A826_Uni5_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal fValue As Single)
Declare Sub A826_Uni10_DA Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wChannel As Integer, ByVal fValue As Single)

Date: Aug-15-2000 Ver: 2.2 Page 19

OME-A-826PG Software Manual [Win 95/98/NT]

'******* Driver Functions ***********
Declare Function A826_DriverInit Lib "A826.DLL" () As Integer
Declare Sub A826_DriverClose Lib "A826.DLL" ()
Declare Function A826_DELAY Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wDownCount As Integer) As Integer
Declare Function A826_Check_Address Lib "A826.DLL" (ByVal wBase As Integer) As Integer
Declare Sub A826_OutputByte Lib "A826.DLL" (ByVal wPortAddr As Integer, ByVal bOutputVal
As Byte)
Declare Sub A826_OutputWord Lib "A826.DLL" (ByVal wPortAddr As Integer, ByVal wOutputVal
As Integer)
Declare Function A826_InputByte Lib "A826.DLL" (ByVal wPortAddr As Integer) As Integer
Declare Function A826_InputWord Lib "A826.DLL" (ByVal wPortAddr As Integer) As Integer

'******* IRQ Functions ***********
Declare Function A826_InstallIrq Lib "A826.DLL" (ByVal wBase As Integer, _
ByVal wIrq As Integer, hEvent As Long, ByVal dwCount As Integer) As Integer
Declare Function A826_GetIntCount Lib "A826.DLL" (dwVal As Long) As Integer
Declare Function A826_GetBuffer Lib "A826.DLL" (ByVal dwNum As Long, _
wBuffer As Integer) As Integer
Declare Function A826_AD_INT_Start Lib "A826.DLL" (ByVal Ch As Integer, _
ByVal Gain As Integer, ByVal c1 As Integer, ByVal c2 As Integer) As Integer
Declare Function A826_AD_INT_Stop Lib "A826.DLL" () As Integer
Declare Function A826_GetFloatBuffer Lib "A826.DLL" (ByVal dwNum As Long, _
fBuffer As Single) As Integer

Date: Aug-15-2000 Ver: 2.2 Page 20

OME-A-826PG Software Manual [Win 95/98/NT]

2.2.3 A826U.BAS

Attribute VB_Name = "A826u"

'*-----------------------------------------------------*
'* Return voltage value or -100.0 if any error occurs *
'* or parameter is out of range. *
'* Gain : 0-3
'*-----------------------------------------------------*
Function A826_AD2F(ByVal hex As Integer, ByVal Gain As Integer) As Single
Dim ZeroBase, BullRange, VoltageRange As Single

ZeroBase = 0#
FullRange = 32767#
VoltageRange = 10#
Gain = Gain Mod 16
If Gain < 0 Or Gain > 3 Then
A826_AD2F = -100#
Exit Function
End If

A826_AD2F = ((((hex - ZeroBase) / FullRange) * VoltageRange) / (2 ^ Gain))
End Function

2.2.4 The VB Demo Result:

Date: Aug-15-2000 Ver: 2.2 Page 21

OME-A-826PG Software Manual [Win 95/98/NT]

2.3 For The Delphi user

2.3.1 A826.PAS (for Win 95/98)

unit A826;

interface

type PSingle=^Single;
type PWord=^Word;
type PInteger=^Integer;
type PSmallInt=^PSmallInt;

const

//***************** DEFINE A826 RELATIVE ADDRESS *****************/
TIMER0 = $00;
TIMER1 = $01;
TIMER2 = $02;
TIMER_MODE = $03;
AD_LO = $04; //* Analog to Digital, Low Byte */
AD_HI = $05; //* Analog to Digital, High Byte */
DA_CH0_LO = $04; //* Digit to Analog, CH 0 */
DA_CH0_HI = $05;
DA_CH1_LO = $06; //* Digit to Analog, CH 1 */
DA_CH1_HI = $07;
DI_LO = $06; //* Digit Input */
DO_LO = $0D; //* Digit Output */

CLEAR_IRQ = $08;
SET_GAIN = $09;
SET_CH = $0A;
SET_MODE = $0B;
SOFT_TRIG = $0C;

POLLING_MODE = 1;
DMA_MODE = 2;
INTERRUPT_MODE = 6;

//*** define the gain mode ***/
A826_BI_1 = 0;
A826_BI_10 = 1;
A826_BI_100 = 2;
A826_BI_1000 = 3;
A826_UNI_1 = 4;
A826_UNI_10 = 5;
A826_UNI_100 = 6;
A826_UNI_1000 = 7;
A826_BI_05 = 8;
A826_BI_5 = 9;

Date: Aug-15-2000 Ver: 2.2 Page 22

OME-A-826PG Software Manual [Win 95/98/NT]

A826_BI_50 = 10;
A826_BI_500 = 11;

A826_BI_2 = 1;
A826_BI_4 = 2;
A826_BI_8 = 3;
A826_UNI_2 = 5;
A826_UNI_4 = 6;
A826_UNI_8 = 7;

NoError = 0;
DriverOpenError = 1;
DriverNoOpen = 2;
GetDriverVersionError = 3;
InstallIrqError = 4;
ClearIntCountError = 5;
GetIntCountError = 6;
AdError1 = 100;
AdError2 = -200.0;
InstallBufError = 9;
GetBufferError = 10;
INTStartError = 11;
INTStopError = 12;
InstallDmaIrqError = 13;
RemoveDmaIrqError = 14;
DmaStartError = 15;
DmaStopError = 16;
DmaGetDataError = 17;
TimeoutError = 18;
AllocateMemoryError = 19;
OtherError = 20;

//********* Test Functios ************
Function SHORT_SUB_2(nA, nB : SmallInt):SmallInt; StdCall;
Function FLOAT_SUB_2(fA, fB : Single):Single; StdCall;
Function A826_Get_DLL_Version:WORD; StdCall;
Function A826_GetDriverVersion(var wDriverVersion:WORD):Word; StdCall;

//********* DI/DO Functios ************
Function A826_DI(wBase:Word):Word; StdCall;
Procedure A826_DO(wBase, wHexValue:Word); StdCall;

//********* DA/AD Functios ************
Function A826_AD(wBase,wChannel,wConfig:WORD):Single; StdCall;
Function A826_ADs_Hex(wBase,wChannel,wConfig:WORD; wBuf:PSmallInt;
wCount:WORD):WORD; StdCall;
Function A826_ADs_Float(wBase,wChannel,wConfig:WORD; fBuf:PSingle;
wCount:WORD):WORD; StdCall;
Procedure A826_DA(wBase, wChannel, wHexValue:WORD); StdCall;
Procedure A826_Uni5_DA(wBase,wChannel:Word;fValue:Single); StdCall;
Procedure A826_Uni10_DA(wBase,wChannel:Word;fValue:Single); StdCall;

Date: Aug-15-2000 Ver: 2.2 Page 23

OME-A-826PG Software Manual [Win 95/98/NT]

//********* Driver Functios ************
Function A826_DriverInit:WORD; StdCall;
Procedure A826_DriverClose; StdCall;
Function A826_DELAY(wBase,wDownCount:WORD):WORD; StdCall;
Function A826_Check_Address(wBase:WORD):WORD; StdCall;
Procedure A826_OutputByte(wPortAddr:WORD; bOutputVal:Byte); StdCall;
Procedure A826_OutputWord(wPortAddr:WORD; wOutputVal:WORD); StdCall;
Function A826_InputByte(wPortAddr:WORD):WORD; StdCall;
Function A826_InputWord(wPortAddr:WORD):WORD; StdCall;

//********* IRQ Functios ************
Function A826_InstallIrq

(wBase,wIrq:WORD; var hEvent:LongInt; dwCount:LongInt):WORD; StdCall;
Function A826_AD_INT_Start(Ch,Gain,c1,c2:WORD):WORD; StdCall;
Function A826_AD_INT_Stop:WORD; StdCall;
Function A826_GetIntCount(var dwVal:LongInt):WORD; StdCall;
Function A826_GetBuffer(dwNum:LongInt; wBuffer:PSmallInt):WORD; StdCall;
Function A826_GetFloatBuffer(dwNum :LongInt;fBuffer:PSingle):Word; StdCall;

//********* DMA Functios ************
Function A826_AD_DMA_InstallIrq(wBase,wIrq,wDmaChan:WORD):WORD; StdCall;
Function A826_AD_DMA_RemoveIrq:WORD; StdCall;
Function A826_AD_DMA_Start(Ch,Gain,c1,c2:WORD; cnt:integer; wPassOut:PInteger):WORD;
StdCall;
Function A826_AD_DMA_Stop:WORD; StdCall;
Function A826_AD_DMA_IsNotFinished:WORD; StdCall;
Function A826_AD_DMA_GetBuffer(wBuf:PSmallInt):WORD; StdCall;
Function A826_AD_DMA_GetFloatBuffer(fBuf:PSingle):Word; StdCall;

implementation

Function SHORT_SUB_2; external 'A826.DLL' name 'SHORT_SUB_2';
Function FLOAT_SUB_2; external 'A826.DLL' name 'FLOAT_SUB_2';
Function A826_Get_DLL_Version; external 'A826.DLL' name 'A826_Get_DLL_Version';
Procedure A826_DA; external 'A826.DLL' name 'A826_DA';
Procedure A826_Uni5_DA; external 'A826.DLL' name 'A826_Uni5_DA';
Procedure A826_Uni10_DA; external 'A826.DLL' name 'A826_Uni10_DA';
Procedure A826_DO; external 'A826.DLL' name 'A826_DO';
Function A826_DI; external 'A826.DLL' name 'A826_DI';
Function A826_AD; external 'A826.DLL' name 'A826_AD';
Function A826_ADs_Hex; external 'A826.DLL' name 'A826_ADs_Hex';
Function A826_ADs_Float; external 'A826.DLL' name 'A826_ADs_Float';
Function A826_DELAY; external 'A826.DLL' name 'A826_DELAY';
Function A826_Check_Address; external 'A826.DLL' name 'A826_Check_Address';

Function A826_DriverInit; external 'A826.DLL' name 'A826_DriverInit';
Procedure A826_DriverClose; external 'A826.DLL' name 'A826_DriverClose';
Procedure A826_OutputByte; external 'A826.DLL' name 'A826_OutputByte';
Procedure A826_OutputWord; external 'A826.DLL' name 'A826_OutputWord';
Function A826_InputByte; external 'A826.DLL' name 'A826_InputByte';
Function A826_InputWord; external 'A826.DLL' name 'A826_InputWord';

Date: Aug-15-2000 Ver: 2.2 Page 24

OME-A-826PG Software Manual [Win 95/98/NT]

Function A826_GetDriverVersion; external 'A826.DLL' name 'A826_GetDriverVersion';
Function A826_InstallIrq; external 'A826.DLL' name 'A826_InstallIrq';
Function A826_GetBuffer; external 'A826.DLL' name 'A826_GetBuffer';
Function A826_GetFloatBuffer; external 'A826.DLL' name 'A826_GetFloatBuffer';
Function A826_GetIntCount; external 'A826.DLL' name 'A826_GetIntCount';
Function A826_AD_INT_Start; external 'A826.DLL' name 'A826_AD_INT_Start';
Function A826_AD_INT_Stop; external 'A826.DLL' name 'A826_AD_INT_Stop';
Function A826_AD_DMA_InstallIrq; external 'A826.DLL' name 'A826_AD_DMA_InstallIrq';
Function A826_AD_DMA_RemoveIrq; external 'A826.DLL' name 'A826_AD_DMA_RemoveIrq';
Function A826_AD_DMA_Start; external 'A826.DLL' name 'A826_AD_DMA_Start';
Function A826_AD_DMA_Stop; external 'A826.DLL' name 'A826_AD_DMA_Stop';
Function A826_AD_DMA_IsNotFinished; external 'A826.DLL' name
'A826_AD_DMA_IsNotFinished';
Function A826_AD_DMA_GetBuffer; external 'A826.DLL' name 'A826_AD_DMA_GetBuffer';
Function A826_AD_DMA_GetFloatBuffer; external 'A826.DLL' name
'A826_AD_DMA_GetFloatBuffer';

end.

Date: Aug-15-2000 Ver: 2.2 Page 25

OME-A-826PG Software Manual [Win 95/98/NT]

2.3.2 A826.PAS (for Win NT)

unit A826;

interface

type PSingle=^Single;
type PWord=^Word;
type PInteger=^Integer;
type PSmallInt=^PSmallInt;

const

//***************** DEFINE A826 RELATIVE ADDRESS *****************/
TIMER0 = $00;
TIMER1 = $01;
TIMER2 = $02;
TIMER_MODE = $03;
AD_LO = $04; //* Analog to Digital, Low Byte */
AD_HI = $05; //* Analog to Digital, High Byte */
DA_CH0_LO = $04; //* Digit to Analog, CH 0 */
DA_CH0_HI = $05;
DA_CH1_LO = $06; //* Digit to Analog, CH 1 */
DA_CH1_HI = $07;
DI_LO = $06; //* Digit Input */
DO_LO = $0D; //* Digit Output */

CLEAR_IRQ = $08;
SET_GAIN = $09;
SET_CH = $0A;
SET_MODE = $0B;
SOFT_TRIG = $0C;

POLLING_MODE = 1;
DMA_MODE = 2;
INTERRUPT_MODE = 6;

//*** define the gain mode ***/
A826_BI_1 = 0;
A826_BI_10 = 1;
A826_BI_100 = 2;
A826_BI_1000 = 3;
A826_UNI_1 = 4;
A826_UNI_10 = 5;
A826_UNI_100 = 6;
A826_UNI_1000 = 7;
A826_BI_05 = 8;
A826_BI_5 = 9;
A826_BI_50 = 10;
A826_BI_500 = 11;

A826_BI_2 = 1;
A826_BI_4 = 2;

Date: Aug-15-2000 Ver: 2.2 Page 26

OME-A-826PG Software Manual [Win 95/98/NT]

A826_BI_8 = 3;
A826_UNI_2 = 5;
A826_UNI_4 = 6;
A826_UNI_8 = 7;

NoError = 0;
DriverOpenError = 1;
DriverNoOpen = 2;
GetDriverVersionError = 3;
InstallIrqError = 4;
ClearIntCountError = 5;
GetIntCountError = 6;
AdError1 = 100;
AdError2 = -200.0;
InstallBufError = 9;
AllocateMemoryError = 10;
CardTypeError = 11;
GetBufferError = 12;
TimeoutError = 13;
OtherError = 14;

//********* Test Functios ************
Function SHORT_SUB_2(nA, nB : SmallInt):SmallInt; StdCall;
Function FLOAT_SUB_2(fA, fB : Single):Single; StdCall;
Function A826_Get_DLL_Version:WORD; StdCall;
Function A826_GetDriverVersion(var wDriverVersion:WORD):Word; StdCall;

//********* DI/DO Functios ************
Function A826_DI(wBase:Word):Word; StdCall;
Procedure A826_DO(wBase, wHexValue:Word); StdCall;

//********* DA/AD Functios ************
Function A826_AD(wBase,wChannel,wConfig:WORD):Single; StdCall;
Function A826_ADs_Hex(wBase,wChannel,wConfig:WORD; wBuf:PSmallInt;
wCount:WORD):WORD; StdCall;
Function A826_ADs_Float(wBase,wChannel,wConfig:WORD; fBuf:PSingle;
wCount:WORD):WORD; StdCall;
Procedure A826_DA(wBase, wChannel, wHexValue:WORD); StdCall;
Procedure A826_Uni5_DA(wBase,wChannel:Word;fValue:Single); StdCall;
Procedure A826_Uni10_DA(wBase,wChannel:Word;fValue:Single); StdCall;

//********* Driver Functios ************
Function A826_DriverInit:WORD; StdCall;
Procedure A826_DriverClose; StdCall;
Function A826_DELAY(wBase,wDownCount:WORD):WORD; StdCall;
Function A826_Check_Address(wBase:WORD):WORD; StdCall;
Procedure A826_OutputByte(wPortAddr:WORD; bOutputVal:Byte); StdCall;
Procedure A826_OutputWord(wPortAddr:WORD; wOutputVal:WORD); StdCall;
Function A826_InputByte(wPortAddr:WORD):WORD; StdCall;
Function A826_InputWord(wPortAddr:WORD):WORD; StdCall;

Date: Aug-15-2000 Ver: 2.2 Page 27

OME-A-826PG Software Manual [Win 95/98/NT]

//********* IRQ Functios ************
Function A826_InstallIrq

(wBase,wIrq:WORD; var hEvent:LongInt; dwCount:LongInt):WORD; StdCall;
Function A826_AD_INT_Start(Ch,Gain,c1,c2:WORD):WORD; StdCall;
Function A826_AD_INT_Stop:WORD; StdCall;
Function A826_GetIntCount(var dwVal:LongInt):WORD; StdCall;
Function A826_GetBuffer(dwNum:LongInt; wBuffer:PSmallInt):WORD; StdCall;
Function A826_GetFloatBuffer(dwNum :LongInt;fBuffer:PSingle):Word; StdCall;

implementation

Function SHORT_SUB_2; external 'A826.DLL' name 'SHORT_SUB_2';
Function FLOAT_SUB_2; external 'A826.DLL' name 'FLOAT_SUB_2';
Function A826_Get_DLL_Version; external 'A826.DLL' name 'A826_Get_DLL_Version';
Procedure A826_DA; external 'A826.DLL' name 'A826_DA';
Procedure A826_Uni5_DA; external 'A826.DLL' name 'A826_Uni5_DA';
Procedure A826_Uni10_DA; external 'A826.DLL' name 'A826_Uni10_DA';
Procedure A826_DO; external 'A826.DLL' name 'A826_DO';
Function A826_DI; external 'A826.DLL' name 'A826_DI';
Function A826_AD; external 'A826.DLL' name 'A826_AD';
Function A826_ADs_Hex; external 'A826.DLL' name 'A826_ADs_Hex';
Function A826_ADs_Float; external 'A826.DLL' name 'A826_ADs_Float';
Function A826_DELAY; external 'A826.DLL' name 'A826_DELAY';
Function A826_Check_Address; external 'A826.DLL' name 'A826_Check_Address';

Function A826_DriverInit; external 'A826.DLL' name 'A826_DriverInit';
Procedure A826_DriverClose; external 'A826.DLL' name 'A826_DriverClose';
Procedure A826_OutputByte; external 'A826.DLL' name 'A826_OutputByte';
Procedure A826_OutputWord; external 'A826.DLL' name 'A826_OutputWord';
Function A826_InputByte; external 'A826.DLL' name 'A826_InputByte';
Function A826_InputWord; external 'A826.DLL' name 'A826_InputWord';

Function A826_GetDriverVersion; external 'A826.DLL' name 'A826_GetDriverVersion';
Function A826_InstallIrq; external 'A826.DLL' name 'A826_InstallIrq';
Function A826_GetBuffer; external 'A826.DLL' name 'A826_GetBuffer';
Function A826_GetFloatBuffer; external 'A826.DLL' name 'A826_GetFloatBuffer';
Function A826_GetIntCount; external 'A826.DLL' name 'A826_GetIntCount';
Function A826_AD_INT_Start; external 'A826.DLL' name 'A826_AD_INT_Start';
Function A826_AD_INT_Stop; external 'A826.DLL' name 'A826_AD_INT_Stop';

end.

Date: Aug-15-2000 Ver: 2.2 Page 28

OME-A-826PG Software Manual [Win 95/98/NT]

2.3.3 A826U.PAS

unit A826U;

interface

type PSingle=^Single;
type PWord=^Word;
type PInteger=^Integer;
type PSmallInt=^PSmallInt;

Function A826_AD2F(hex, Gain :Word): Single ; StdCall;

implementation

uses math;

//*-----------------------------------------------------*
//* Return voltage value or -100.0 if any error occurs *
//* or parameter is out of range. *
//* Gain : 0-3 *
//*-----------------------------------------------------*
Function A826_AD2F(hex, Gain :Word): Single ;
Var
ZeroBase, VoltageRange, FullRange : Single ;
i : Integer ;

Begin

ZeroBase := 0;
FullRange := 32767;
VoltageRange := 10;

i := hex;
if i > $7FFF then
i := ((Not hex) + 1) * -1 ;

Gain := Gain mod 16 ;

If (Gain < 0) Or (Gain > 3) Then
begin
result := -100;
exit;
end;

Result := ((((i - ZeroBase) / FullRange) * VoltageRange) / Power(2, Gain));

End;

end.

Date: Aug-15-2000 Ver: 2.2 Page 29

OME-A-826PG Software Manual [Win 95/98/NT]

2.3.4 Delphi Demo Result :

Date: Aug-15-2000 Ver: 2.2 Page 30

OME-A-826PG Software Manual [Win 95/98/NT]

3 Function Description

These functions in DLL are divided into several groups as follows:

1. The test functions

2. The DI/O functions

3. The AD/DA fixed-mode functions

4. The Driver functions

5. The AD Interrupt Mode functions

6. The AD DMA Mode functions

The functions of test listing as follows:

1. SHORT_SUB_2

2. FLOAT_SUB_2

3. A826_Get_DLL_Version

4. A826_GetDriverVersion

The functions of DI/O listing as follows:

1. A826_DI

2. A826_DO

3. A826_InputByte

4. A826_InputWord

5. A826_OutputByte

6. A826_OutputWord

The functions of AD/DA listing as follows:

1. A826_DA

2. A826_AD

3. A826_ADs_Hex

4. A826_ADs_Float

The functions of Driver listing as follows:

1. A826_DriverInit

2. A826_DriverClose

3. A826_DELAY

4. A826_Check_Address

Date: Aug-15-2000 Ver: 2.2 Page 31

OME-A-826PG Software Manual [Win 95/98/NT]

The functions of AD Interrupt listing as follows:

1. A826_InstallIrq

2. A826_GetIntCount

3. A826_GetBuffer

4. A826_AD_INT_Start

5. A826_AD_INT_Stop

6. A826_GetFloatBuffer

The functions of AD DMA listing as follows:

1. A826_AD_DMA_InstallIrq

2. A826_AD_DMA_RemoveIrq

3. A826_AD_DMA_Start

4. A826_AD_DMA_Stop

5. A826_AD_DMA_IsNotFinished

6. A826_AD_DMA_GetBuffer

7. A826_AD_DMA_GetFloatBuffer

(The DMA function supports the Windows 95/98 only.)

In this chapter, we use some keywords to indicate the attribute of Parameters.

Keyword Setting parameter by user

before calling this function ?

Get the data/value

from this parameter

after calling this function ?

[Input] Yes No
[Output] No Yes
[Input, Output] Yes Yes

Date: Aug-15-2000 Ver: 2.2 Page 32

OME-A-826PG Software Manual [Win 95/98/NT]

3.1 TEST Function

3.1.1 SHORT_SUB_2

z Description :

Compute C=nA-nB in short format, Short=16 bits sign integer.

This function is provided for testing purpose.

z Syntax :

short SHORT_SUB_2(short nA, short nB);

z Parameter :

nA : [Input] Short
nB : [Input] Short

z Return Value :

Return = nA - nB Î Short

3.1.2 FLOAT_SUB_2

z Description :

Compute C=fA-fB in float format, float=32 bits floating pointer

number. This function is provided for testing purpose.

z Syntax :

float FLOAT_SUB_2(float fA, float fB)

z Parameter :

fA : [Input] Double value
fB : [Input] Double value

z Return Value :

return= fA - fB Î float value

Date: Aug-15-2000 Ver: 2.2 Page 33

OME-A-826PG Software Manual [Win 95/98/NT]

3.1.3 A826_Get_DLL_Version

z Description :

Read the software version

z Syntax :

WORD A826_Get_DLL_Version(void);

z Parameter :

Void

z Return Value :

return=0x100 Î Version 1.0

3.1.4 A826_GetDriverVersion

z Description :

This subroutine will get the version number about the virtual device driver.

z Syntax :

WORD A826_GetDriverVersion (WORD *wDriverVersion );

z Parameter :

*wDriverVersion : [Output] the address of wDriverVersion.
When wDriverVersion=0x210 → version 2.10

z Return Value :

NoError : successful in opening the device driver

GetDriverVersionError : fail in opening the device driver.

Date: Aug-15-2000 Ver: 2.2 Page 34

OME-A-826PG Software Manual [Win 95/98/NT]

3.2 DI/DO Function

3.2.1 A826_Di

• Description :

This subroutine will read the 16 bits data from the digital input port.

• Syntax :

WORD A826_DI(WORD wBase);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220

• Return Value :

16 bits data read from the digital input port

3.2.2 A826_Do

• Description :

This subroutine will send the 16 bits data to digital output port.

• Syntax :

void A826_DO(WORD wBase, WORD wHexValue);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wHexValue : [Input] 16 bits data send to digital output port

• Return Value :

Void

Date: Aug-15-2000 Ver: 2.2 Page 35

OME-A-826PG Software Manual [Win 95/98/NT]

3.2.3 A826_OutputByte

• Description :

This subroutine will send the 8 bits data to the desired I/O port.

• Syntax :

void A826_OutputByte(WORD wPortAddr, UCHAR bOutputVal);

• Parameter :

wPortAddr : [Input] I/O port address, for example, 0x220
bOutputVal : [Input] 8 bits data send to I/O port

• Return Value :

void

3.2.4 A826_OutputWord

• Description :

This subroutine will send the 16 bits data to the desired I/O port.

• Syntax :

void A826_OutputByte(WORD wPortAddr, WORD wOutputVal);

• Parameter :

wPortAddr : [Input] I/O port address, for example, 0x220
wOutputVal : [Input] 16 bits data send to I/O port

• Return Value :

void

Date: Aug-15-2000 Ver: 2.2 Page 36

OME-A-826PG Software Manual [Win 95/98/NT]

3.2.5 A826_InputByte

• Description :

This subroutine will input the 8 bits data from the desired I/O port.

• Syntax :

WORD A826_InputByte(WORD wPortAddr);

• Parameter :

wPortAddr : [Input] I/O port address, for example, 0x220

• Return Value :

16 bits data with the leading 8 bits are all 0

3.2.6 A826_InputWord

• Description :

This subroutine will input the 16 bits data from the desired I/O port.

• Syntax :

WORD DIO_InputWord(WORD wPortAddr);

• Parameter :

wPortAddr : [Input] I/O port address, for example, 0x220

• Return Value :

16 bits data.

Date: Aug-15-2000 Ver: 2.2 Page 37

OME-A-826PG Software Manual [Win 95/98/NT]

3.3 A/D , D/A Functions

3.3.1 A826_AD

• Description :

This subroutine will perform a A/D conversion by polling. The A/D converter is

16 bits for A82PG. This subroutine will compute the result according to the

configuration code

• Syntax :

float A826_AD(WORD wBase, WORD wChannel, WORD wConfig);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] A/D channel number,
wConfig : [Input] Configuration code, refer to 1.2 for detail information

• Return Value :

AdError2 : A/D converter error
Other value : The floating point value of A/D conversion

.

3.3.2 A826_DA

• Description :

This subroutine will send the 16 bits data to D/A analog output. The output

range of D/A maybe 0 to 5V or 0 to10V setting by hardware jumper, JP1. The
software can not detect the output range of D/A converter. For examples, if

hardware select -5V, the 0xfff will send out 5V. If hardware select -10V, the
0xfff will send out 10V. The factory setting select 0-5V D/A output range.

• Syntax :

WORD A826_DA(WORD wBase, WORD wChannel, WORD wHexValue);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] D/A channel number, validate for 0
wHexValue : [Input] 16 bits data send to D/A converter

• Return Value :

NoError : no error
DaChannelError : wChannel value error, validate only for 0

Date: Aug-15-2000 Ver: 2.2 Page 38

OME-A-826PG Software Manual [Win 95/98/NT]

3.3.3 A826_ADs_Hex

• Description :

This subroutine will perform a number of A/D conversions by polling. This
subroutine is very similar to A826_AD except that this subroutine will perform
wCount of conversions instead of just one conversion. The A/D conversing at the
ISA bus’s max. speed. The sampling rate is about 90K samples/second which
testing under Pentium-133 CPU. After A/D conversing, the A/D data are stored in
a buffer in Hex format. The wBuf

• Syntax :

WORD A826_ADs_Hex(WORD wBase, WORD wChannel, WORD

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] A/D channel number
wConfig : [Input] Configuration code,

please refer to Section 1.2 for detail information
wBuf : [Output] Starting address of the data buffer
wCount : [Input] Number of A/D conversions will be performed

• Return Value :

AdError1 : A/D converter error
NoError : Operation is OK

is the starting address of this data buffer.

wConfig,short wBuf[], WORD wCount);

Date: Aug-15-2000 Ver: 2.2 Page 39

OME-A-826PG Software Manual [Win 95/98/NT]

3.3.4 A826_ADs_Float

• Description :

This subroutine will perform a number of A/D conversions by polling. This
subroutine is very similar to A826_AD except that this subroutine will perform
wCount of conversions instead of just one conversion. The A/D conversing at the
ISA bus’s max. speed. The sampling rate is about 90K samples/second which
testing under Pentium-133 CPU. Then the A/D data are stored in a data buffer in
Float format. The fBuf

• Syntax :

WORD A826_ADs_Float(WORD wBase, WORD wChannel, WORD wConfig,

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] A/D channel number
wConfig : [Input] Configuration code, refer to 1.2 for detail information
fBuf : [Output] Starting address of the data buffer

wCount : [Input] Number of A/D conversions will be performed

• Return Value :

AdError1 : A/D converter error
NoError : Operation is OK

is the starting address of this data buffer.

float fBuf[], WORD wCount);

(in float format)

Date: Aug-15-2000 Ver: 2.2 Page 40

OME-A-826PG Software Manual [Win 95/98/NT]

3.3.5 A826_Uni5_DA

• Description :

This subroutine will send the 16 bits data to D/A analog output. The output
range of D/A dependent on setting by hardware jumper, JP1 ( -5v or –10v),
JP10/JP11 (Bipolar or Unipolar). The software can not detect the output range
of D/A converter. This subroutine can be used only when the jumpers settings

are : Unipolar , -5v . The output range is between 0.0v and 5.0v. Please refer

to hardware manual to setting jumpers.

• Syntax :

void A826_Uni5_DA(WORD wBase, WORD wChannel, float fValue);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] D/A channel number, validate for 0
fValue : [Input] 16 bits data send to D/A converter

• Return Value :

void

3.3.6 A826_Uni10_DA

• Description :

This subroutine will send the 16 bits data to D/A analog output. The output
range of D/A dependent on setting by hardware jumper, JP1 ( -5v or –10v),
JP10/JP11 (Bipolar or Unipolar). The software can not detect the output range
of D/A converter. This subroutine can be used only when the jumpers settings
are: Unipolar , -10v. The output range is between 0.0v and 10.0v. Please
refer to hardware manual to setting jumpers.

• Syntax :

void A826_Uni10_DA(WORD wBase, WORD wChannel, float fValue);

• Parameter :

wBase : [Input] I/O port base address, for example, 0x220
wChannel : [Input] D/A channel number, validate for 0
fValue : [Input] 16 bits data send to D/A converter

• Return Value :

void

Date: Aug-15-2000 Ver: 2.2 Page 41

OME-A-826PG Software Manual [Win 95/98/NT]

3.4 Driver Functions

3.4.1 A826_DriverInit

z Description :

This subroutine will open the device driver.

z Syntax :

WORD A826_DriverInit (void);

z Parameter :

Void

z Return Value :

NoError : successful in opening the device driver
DriverOpenError : fail in opening the device driver.

3.4.2 A826_DriverClose

z Description :

This subroutine will close the virtual device driver.

z Syntax:

void A826_DriverClose(void);

z Parameter:

void

z Return Value:

void

Date: Aug-15-2000 Ver: 2.2 Page 42

OME-A-826PG Software Manual [Win 95/98/NT]

3.4.3 A826_DELAY

• Description:

This subroutine will delay wDownCount mS(machine independent timer).

z Syntax:

WORD A826_DELAY(WORD wBase, WORD wDownCount);

• Parameter:

wBase : [Input] I/O port base address, for example, 0x220

wDownCount : [Input] Number of mS will be delay

• Return Value:

NoError : Operation OK

AdError1 : Operation failure

3.4.4 A826_Check_Address

• Description:

This subroutine will detect the A-826PG in I/O base address = wBase.
This subroutine will perform one A/D conversion, if success Æ find a A-826PG.

z Syntax:

WORD A826_Check_Address(WORD wBase);

• Parameter:

wBase : [Input] I/O port base address, for example, 0x220

• Return Value:

NoError : Find a A-826PG OK

AdError1 : Operation failure

Date: Aug-15-2000 Ver: 2.2 Page 43

OME-A-826PG Software Manual [Win 95/98/NT]

3.5 AD, Interrupt functions

3.5.1 A826_InstallIrq

z Description:

This subroutine will install interrupt handler for a specific IRQ level n.

z Syntax:

WORD A826_InstallIrq(WORD wBase, WORD wIrq,

HANDLE *hEvent, DWORD dwCount );

z Parameter:

wBase : [Input] The I/O port base address for A826 card.
wIrq : [Input] The IRQ level .
hEvent : [Input] The handle of event object that created by user.
dwCount : [Input] The desired A/D entries count for interrupt transfer.

z Return Value:

NoError : successful
InstallIrqError: fail in install IRQ handler.

3.5.2 A826_AD_INT_Start

z Description:

This subroutine will start the interrupt transfer for a specific A/D channel

and programming the gain code and sampling rate..

z Syntax:

WORD A826_AD_INT_Start(WORD Ch, WORD Gain, WORD c1, Word c2 )

z Parameter:

Ch : [Input] the A/D channel.
Gain : [Input] the Gain

c1,c2 : [Input] the sampling rate is 2M/(c1*c2)

z Return Value:

NoError : successful
INTStartError : fail

Date: Aug-15-2000 Ver: 2.2 Page 44

OME-A-826PG Software Manual [Win 95/98/NT]

3.5.3 A826_AD_INT_Stop

z Description:

This subroutine will stop the interrupt transfer and remove the installed

interrupt handler.

z Syntax:

WORD A826_AD_INT_Stop(void )

z Parameter:

void.

z Return Value:

NoError : successful
INTStopError : fail

3.5.4 A826_GetIntCount

z Description:

This subroutine will read the transferred count of interrupt.

z Syntax:

WORD A826_GetIntCount(DWORD *dwVal )

z Parameter:

*dwVal : [Output] the address of dwVal,

the dwVal is the interrupt transferred count.

z Return Value:

NoError : successful

GetIntCountError : fail get interrupt count.

Date: Aug-15-2000 Ver: 2.2 Page 45

OME-A-826PG Software Manual [Win 95/98/NT]

3.5.5 A826_GetBuffer

z Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

z Syntax:

WORD A826_GetBuffer(DWORD dwNum, short wBuffer[] )

z Parameter:

dwNum : [Input] the entry no to transfer.
*wBuffer : [Output] the address of wBuffer,

z Return Value:

NoError : successful

GetBufferError : fail

3.5.6 A826_GetFloatBuffer

z Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

z Syntax:

WORD A826_GetFloatBuffer(DWORD dwNum, float fBuffer[] )

z Parameter:

dwNum : [Input] the entry no to transfer.
*fBuffer : [Output] the address of fBuffer,

z Return Value:

NoError : successful

GetBufferError : fail

Date: Aug-15-2000 Ver: 2.2 Page 46

OME-A-826PG Software Manual [Win 95/98/NT]

ove

.

3.5.7 Diagram of Interrupt Mode

The 3.5.1 to 3.5.6 are functions to perform the A/D conversion with

interrupt transfer. The flow chart to program these function is giver as follows:

Initialize the Device-Driver

Install the IRQ

Start the Interrupt Transfer

Waiting for the signaled event
object.

To copy data into user's buffer

Stop the interrupt transfer and
rem

the interrupt handler

Close the Device-Driver

A826_DriverInit

CreateEvent(…)

A826_InstallIrq( … )

………

A826_AD_INT_Start( … )

……

WaitForSingleObject( …. )

………..

A826_GetBuffer( …. )

……

A826_AD_INT_Stop

CloseHandle( hEvent )

A826_DriverClose

Date: Aug-15-2000 Ver: 2.2 Page 47

OME-A-826PG Software Manual [Win 95/98/NT]

y

A

Next Loop

sampling rate defined by c1,c2

ADC

System

rea

INT_Handler( )

BufferA

BufferB

Application
Area

Using A826_InstallIrq(…) to install a
interrupt handler for IRQ level n that to
transfer A/D data by interrupt.

Using A826_AD_INT_Start to specify the
A/D channel, gain and sampling rate for this
interrupt transfer, then beginning this transfer.

A buffer(ex. BufferA) in Driver will
store the interrupt transferd data. The
buffer is in system area.

Waiting for the signaled event object by
using WaitForSingleObject( )

Yes

To copy datas in bufferA to a user
defined buffer(ex. BufferB) by using
A826_GetBuffer(..) Then the user can
anal

sis these data in BufferB

Using the A826_AD_INT_Stop() to stop
the interrupt transfer and remove the
interrupt handler.

No

Date: Aug-15-2000 Ver: 2.2 Page 48

OME-A-826PG Software Manual [Win 95/98/NT]

3.6 AD , DMA functions

The DMA mechanism supports the Windows 95/98 only.

3.6.1 A826_AD_DMA_InstallIrq

z Description:

This subroutine will install interrupt handler for a specific IRQ Level n and
programming a DMA controller (8237) to handle DMA transfer for DMA Channel
n. Usually, when a DMA transfer finished, a associated IRQ level n occur.

z Syntax:

WORD A826_AD_DMA_InstallIrq(WORD wBase, WORD wIrq, WORD

wDmaChannel );

z Parameter:

wBase : [Input] the I/O port base address for A826 card.

wIrq : [Input] the IRQ level n.

wDmaChannel : [Input] the DMA channel.
Usuallly, the wDmaChannel is 1 or 3.

z Return Value:

NoError : successful in installing the handler

InstallDMAIrqError : failure

3.6.2 A826_AD_DMA_RemoveIrq

z Description:

This subroutine will remove the interrupt handler installed by.
A826_AD_DMA_InstallIrq(…).

z Syntax:

WORD A826_AD_DMA_RemoveIrq(void )

z Parameter:

void

z Return Value:

NoError : successful

RemoveDmaIrqError : failure

Date: Aug-15-2000 Ver: 2.2 Page 49

OME-A-826PG Software Manual [Win 95/98/NT]

3.6.3 A826_AD_DMA_Start

z Description:

This subroutine will allocate a DMA buffer in the system area, and
programming the gain code and sampling rate. then starting the DMA transfer for
a specific A/D channel.

z Syntax:

WORD A826_AD_DMA_Start(WORD Ch, WORD Gain, WORD c1, Word c2,

int Count, WORD wPassOut[ ] )

z Parameter:

Ch : [Input] the A/D channel.

Gain : [Input] the Gain code

c1,c2 : [Input] the DMA sampling rate is 2M/(c1*c2)

Count : [Input] the desired A/D entries count for DMA transfer.

wPassOut[] : [Output] the debug information.

wPassOut[0] : [Output] 0: successful in starting DMA transfer.
others: fail in starting DMA transfer.
wPassOut[1] : [Output] system DMA buffer ID.
wPassOut[2] : [Output] the I/O port base address.
wPassOut[3] : [Output] the IRQ level for DMA.
wPassOut[4] : [Output] the DMA channel no.
wPassOut[5] : [Output] reserved.
wPassOut[6] : [Output] reserved.
wPassOut[7] : [Output] reserved.
wPassOut[8] : [Output] the last 16 bits of physical address
for DMA buffer in system area.
wPassOut[9] : [Output] the first 16 bits of physical address
for DMA buffer in system area.

z Return Value:

NoError : successful

DmaStartError : failure

Date: Aug-15-2000 Ver: 2.2 Page 50

OME-A-826PG Software Manual [Win 95/98/NT]

3.6.4 A826_AD_DMA_Stop

z Description:

This subroutine will free the allocated DMA buffer that in system area.

z Syntax:

WORD A826_AD_DMA_Stop(void )

z Parameter:

void.

z Return Value:

NoError : successful

DmaStopError : fail

3.6.5 A826_AD_DMA_IsNotFinished

z Description:

This subroutine is to detect if the DMA have finished.

z Syntax:

WORD A826_AD_DMA_IsNotFinished(void )

z Parameter:

void.

z Return Value:

0: the DMA transfer is finish.
1: the DMA transfer is proceeding.

Date: Aug-15-2000 Ver: 2.2 Page 51

OME-A-826PG Software Manual [Win 95/98/NT]

3.6.6 A826_AD_DMA_GetBuffer

z Description:

This subroutine will copy the transferred DMA data into the user’s buffer.

z Syntax:

WORD A826_AD_DMA_GetBuffer( short wBuffer[] )

z Parameter:

*wBuffer : [Output] the address of wBuffer,

z Return Value:

The returned bytes no : when successful

DmaGetDataError : failure

3.6.7 A826_AD_DMA_GetFloatBuffer

z Description:

This subroutine will copy the transferred DMA data into the user’s buffer.

z Syntax:

WORD A826_AD_DMA_GetfloatBuffer( float fBuf[] )

z Parameter:

*fBuf : [Output] the address of fBuf

z Return Value:

The returned bytes no : when successful

DmaGetDataError : failure

Date: Aug-15-2000 Ver: 2.2 Page 52

OME-A-826PG Software Manual [Win 95/98/NT]

3.6.8 Diagram of AD , DMA Mode

The 3.6.1 to 3.6.7 are functions to perform the A/D conversion with DMA

transfer. The flow chart to program these function is giver as follows:

Initialize the Device-Driver

Install the IRQ

Start the Interrupt Transfer

Check if finished of data transfer.

To copy data into user's buffer

Stop the interrupt transfer

Remove the interrupt handler.

Close the Device-Driver

A826_DriverInit

…….
A826_AD_DMA_InstallIrq ( … )

………

A826_AD_DMA_Start ( … )

……

A826_AD_DMA_IsNotFinished ()

………..

A826_AD_DMA_GetBuffer ( )

……

A826_AD_DMA_Stop

………

A826_AD_DMA_RemoveIrq

………

A826_DriverClose

Date: Aug-15-2000 Ver: 2.2 Page 53

OME-A-826PG Software Manual [Win 95/98/NT]

y

8237

system
area

Application
area

Next Loop

Sampling rate define by c1,c2

ADC

INT_Handler( )

BufferA

BufferB

Using A826_AD_DMA_InstallIrq(…) to
install a interrupt handler for IRQ level n and
programming the DMA controller.

Using A826_AD_DMA_Start to allocate a
system DMA buffer and programming
sampling rate, desired transfer count then
starting the DMA.

A buffer(ex. BufferA) in VxD will store
the DMA transferd data. The buffer is in
system area.

To test if DMA transfer is finish ?
(Using
A826_AD_DMA_IsNotFinished(..)
Function)

Yes

To copy datas in bufferA to a user
defined buffer(ex. BufferB) by using
A826_AD_DMA_GetData(..) . Then the
user can analysis these data in BufferB

Using the A826_AD_DMA_Stop() to
release s

Using the A826_AD_DMA_RemoveIrq()
to remove IRQ handler.

stem DMA buffer.

No

Date: Aug-15-2000 Ver: 2.2 Page 54

OME-A-826PG Software Manual [Win 95/98/NT]

4 Program Architecture

Initialize the Device-Driver

Access/Control the Device

Access/Control the Device

Close the Device-Driver

Development
Toolkit

A826_DriverInit()

….
A826_InputByte( … )
……..
……..
A826_OutputByte(…)
…..

A826_DriverClose()

User's Application

Function Call into DLLs

DLLs

Services Call into Kernel-Mode

.VXDs, .SYSs (Device Driver)

Device Control

Hardware Devices

Date: Aug-15-2000 Ver: 2.2 Page 55

OME-A-826PG Software Manual [Win 95/98/NT]

5 Contact Us

Technical support is available at no charge as described below. The best
way to report problems is send electronic mail to [e-mail] on the

Internet.

When reporting problems, please include the following information:

1) Is the problem reproducible? If so, how?

2) What kind and version of Operation Systems that you running? For example,

Windows 3.1, Windows for Workgroups, Windows NT 4.0, etc.

3) What kinds of our products that you using? Please see the product's manual.

4) If a dialog box with an error message was displayed, please include the full

text of the dialog box, including the text in the title bar.

5) If the problem involves other programs or hardware devices, what devices or

version of the failing programs that you using?

6) Other comments relative to this problem or any Suggestions will be welcomed.

After we received your comments, we will take about two business days to
testing the problems that you said. And then reply as soon as possible to you.
Please check that we have received your comments? And please keeping
contact with us.

E-mail: [e-mail]

Web-Site: http://www.omega.com

Date: Aug-15-2000 Ver: 2.2 Page 56

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY

RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-W

ARRANTY

REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

M4035/0104

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at www.omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
