User’s Guide

OME-A8111 ISA-BUS

Multi-Functional Board

Hardware Manual

Shop online at

Servicing North America:

USA: One Omega Drive, P.O. Box 4047

ISO 9001 Certified Stamford CT 06907-0047

TEL: [phone] FAX: [phone]
e-mail: [e-mail]

Canada: 976 Bergar

Laval (Quebec) H7L 5A1, Canada
TEL: [phone] FAX: [phone]
e-mail: [e-mail]

For immediate technical or application assistance:

USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA

®

Customer Service: 1-800-622-2378 / 1-800-622-BEST

®

Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN

®

TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA

Mexico: En Espan˜ ol: [phone]-7803 e-mail: [e-mail]

FAX: [phone] [e-mail]

Servicing Europe:

Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands

TEL: [phone] FAX: [phone]
Toll Free in Benelux: 0800 0993344
e-mail: [e-mail]

Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic

TEL: [phone] FAX: [phone]
Toll Free: 0800-1-66342 e-mail: [e-mail]

France: 11, rue Jacques Cartier, 78280 Guyancourt, France

TEL: [phone] FAX: [phone]
Toll Free in France: 0800 466 342
e-mail: [e-mail]

Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany

TEL: [phone] FAX: [phone]
Toll Free in Germany: 0800 639 7678
e-mail: [e-mail]

United Kingdom: One Omega Drive, River Bend Technology Centre

ISO 9002 Certified Northbank, Irlam, Manchester

M44 5BD United Kingdom
TEL: [phone] FAX: [phone]
Toll Free in United Kingdom: 0800-488-488
e-mail: [e-mail]

OMEGAnet®Online Service Internet e-mail

www.omega.com [e-mail]

It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that
apply. OMEGA is constantly pursuing certification of its products to the European New Approach
Directives. OMEGA will add the CE mark to every appropriate device upon certification.

The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.

OME-A-8111

Hardware User’s Manual

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 1

Table of Contents

1. Introduction_________________________________________________________ 4

1.1 General Description ___________________________________________________ 4

1.2 Features _____________________________________________________________ 4

1.3 Specifications _________________________________________________________ 5

1.3.1 Power Consumption _________________________________________________________5

1.3.2 Analog Inputs ______________________________________________________________5

1.3.3 A/D Converter _____________________________________________________________5

1.3.4 DA Converter ______________________________________________________________ 6

1.3.5 Digital I/O_________________________________________________________________ 6

1.3.6 Interrupt Channel ___________________________________________________________ 6

1.3.7 Programmable Timer/Counter _________________________________________________7

1.3.8 Applications _______________________________________________________________ 7

1.4 Product Check List ____________________________________________________ 7

2. Hardware Configuration ______________________________________________ 8

2.1 Board Layout_________________________________________________________ 8

2.2 I/O Base Address Setting _______________________________________________ 9

2.3 Jumper Setting ______________________________________________________ 10

2.3.1 JP1 : D/A Internal Reference Voltage Selection_____________________________________ 10

2.4 I/O Register Address__________________________________________________ 11

2.4.1 The 8254 Counter __________________________________________________________ 12

2.4.2 A/D Input Buffer Register ___________________________________________________ 12

2.4.3 D/A Output Latch Register___________________________________________________ 13

2.4.4 D/I Input Buffer Register ____________________________________________________ 13

2.4.5 Clear Interrupt Request______________________________________________________ 14

2.4.6 A/D Gain Control Register ___________________________________________________ 14

2.4.7 A/D Multiplex Control Register _______________________________________________ 15

2.4.8 A/D Mode Control Register __________________________________________________ 16

2.4.9 A/D Software Trigger Control Register _________________________________________ 17

2.4.10 D/O Output Latch Register __________________________________________________ 18

2.5 Digital I/O __________________________________________________________ 19

2.6 8254 Timer/Counter __________________________________________________ 20

2.7 A/D Conversion ______________________________________________________ 21

2.7.1 A/D conversion flow__________________________________________________________ 22

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 2

2.7.2 A/D Conversion Trigger Modes _______________________________________________ 22

2.7.3 A/D Transfer Modes________________________________________________________ 23

2.7.4 Using software trigger and polling transfer ______________________________________ 23

2.8 D/A Conversion ______________________________________________________ 24

2.9 Analog Input Signal Connection ________________________________________ 25

2.10 Pin Assignment ________________________________________________________ 26

2.11 Daughter Board________________________________________________________ 28

2.11.1 OME-CA-4002 _________________________________________________________ 28

2.11.2 OME-DB-16P __________________________________________________________ 28

2.11.3 OME-DB-16R __________________________________________________________ 28

2.11.4 OME-DB-37 ___________________________________________________________ 28

3. Calibration___________________________________________________________ 29

3.1 Calibration VR Description ______________________________________________ 29

3.2 D/A Calibration Steps ___________________________________________________ 30

3.3 A/D Calibration Steps ___________________________________________________ 30

3.4 DI/O Testing __________________________________________________________ 30

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 3

1. Introduction

1.1 General Description

The OME-A-8111 is a high performance, multifunction (analog and digital I/O) board

for the PC AT compatible computer with the ISA bus. The OME-A-8111 provides

programmable gain (1, 2, 4, 8 and 16). The OME-A-8111 contains a 12-bit ADC with up to 8

single-ended analog inputs. The maximum sample rate of the A/D converter is about 30K

sample/sec. There is a 12-bit DAC with voltage outputs, 16 channels of TTL-compatible

digital input, and 16 channels of TTL-compatible digital output.

1.2 Features

z The maximum sample rate of the A/D converter is about 30 K sample/sec
z Software selective input ranges
z PC AT compatible ISA bus
z A/D trigger mode: software trigger, pacer trigger
z 8 single-ended analog input channels:

Programmable gain: 1, 2, 4, 8, 16

Input range: ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, ±0.3125 V

z 1 output channel: 12-bit D/A voltage output, 0~5 V or 0~10 V
z 16 digital inputs /16 digital outputs (TTL compatible)
z Interrupt handling

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 4

1.3 Specifications

1.3.1 Power Consumption

z +5V @ 300 mA maximum
z +12V @ 60 mA maximum
z -12V @ 30 mA maximum

z Operating temperature: 0°C ~ 50°C

1.3.2 Analog Inputs

z Channels: 8 single-ended
z Input range: (software programmable)

Bipolar: ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, ±0.3125 V

z Input current: 250 nA max (125 nA typical) at 25°C
z On-chip sample and hold
z Over voltage: continuous single channel to

70Vp-p

1.3.3 A/D Converter

z Type: successive approximation, Burr Brown ADS 774
z Conversion time: 8 µ sec.
z Accuracy: ± 1 bit
z Resolution: 12-bit

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 5

1.3.4 DA Converter

z Channels : 1 independent
z Type : 12-bit multiplying , Analog device AD-7948
z Linearity : ± 1/2 bit
z Output Range : 0~5 V or 0~10 V jumper selected , may be used with other AC

or DC reference input. Maximum output limit ± 10V

z Output Drive : ± 5 mA
z Settling Time : 0.6 microseconds to 0.01% for full scale step

1.3.5 Digital I/O

z Output port : 16 bits, TTL compatible
z Input port : 16 bits, TTL compatible

1.3.6 Interrupt Channel

z Level : 3,4,5,6,7 jumper selectable
z Enable : Via control register

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 6

1.3.7 Programmable Timer/Counter

z Type : 82C54 -8 programmable timer/counter
z Counters: The counter1 and counter2 are cascaded as a 32-bit pacer timer.
z Pacer output : 0.00047 Hz to 0.5 MHz
z Input Gate : TTL compatible
z Internal Clock : 2 MHz

1.3.8 Applications

z Signal analysis
z FFT & frequency analysis
z Transient analysis
z Production test
z Process control
z Vibration analysis
z Energy management
z Industrial and laboratory measurement and control

1.4 Product Check List

In addition to this manual, the package includes the following items:

z OME-A-8111 multifunction card
z OME-A-8111 utility diskette/CD ROM

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 7

2. Hardware Configuration

2.1 Board Layout

19

19 20

CN3 D/C OUTCN2 D/C IN

12

20

21

8111

123456

SW1

A

()

BASS ADDRESS

987654

ON

A31

BB ADS-774

P1

JP1

JP2

VR1 VR2 VR3 VR4 VR5

A1

ANA I/0

CN1

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 8

2.2 I/O Base Address Setting

The OME-A-8111 occupies 16 consecutive locations in I/O address space. The base

address is set by DIP switch SW1. The default address is 0x220 as shown below:

BASE ADDR A9 A8 A7 A6 A5 A4

200-20F OFF ON ON ON ON ON

210-21F OFF ON ON ON ON OFF

220-22F(;) OFF ON ON ON OFF ON

230-23F OFF ON ON ON OFF OFF

: : : : : : :

A9 A8 A7 A6 A5 A4

ON

6 5 4 3 2 1

SW1 : BASE ADDRESS

300-30F OFF OFF ON ON ON ON

: : : : : : :

3F0-3FF OFF OFF OFF OFF OFF

(;): default base address is 0x220

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 9

The PC I/O port mapping is given below.

(

)

(

)

ADDRESS DEVICE ADDRESS DEVICE

000-1FF PC reserved 320-32F XT Hard Disk

200-20F Game/control 378-37F Parallel Printer

210-21F XT Expansion Unit 380-38F SDLC

238-23F Bus Mouse/Alt. Bus Mouse 3A0-3AF SDLC

278-27F Parallel Printer 3B0-3BF MDA/Parallel Printer

2B0-2DF EGA 3C0-3CF EGA

2E0-2E7 AT GPIB 3D0-3DF CGA

2E8-2EF Serial Port 3E8-3EF Serial Port

2F8-2FF Serial Port 3F0-3F7 Floppy Disk

300-31F Prototype Card 3F8-3FF Serial Port

2.3 Jumper Setting

2.3.1 JP1 : D/A Internal Reference Voltage

Selection

Reference

Voltage

-5 V

(Default)

Select (-5 V) : D/A voltage output = 0 to 5 V (both channels)

-10 V

(-5 V)

JP1

Reference

Voltage

-10 V

-10 V

(-5 V)

JP1

Select (-10 V) : D/A voltage output = 0 to 10 V (both channels)

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 10

2.4 I/O Register Address

The OME-A-8111 occupies 16 consecutive PC I/O addresses. The following

table lists the registers and their locations.

Address Read Write

Base+0 8254 Counter 0 8254 Counter 0

Base+1 8254 Counter 1 8254 Counter 1

Base+2 8254 Counter 2 8254 Counter 2

Base+3 Reserved 8254 Counter Control

Base+4 A/D Low Byte D/A Channel 0 Low Byte

Base+5 A/D High Byte D/A Channel 0 High Byte

Base+6 DI Low Byte Reserved

Base+7 DI High Byte Reserved

Base+8 Reserved A/D Clear Interrupt Request

Base+9 Reserved A/D Gain Control

Base+A Reserved A/D Multiplexer Control

Base+B Reserved A/D Mode Control

Base+C Reserved A/D Software Trigger Control

Base+D Reserved DO Low Byte

Base+E Reserved DO High Byte

Base+F Reserved Reserved

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 11

2.4.1 The 8254 Counter

The 8254 Programmable timer/counter has 4 registers from Base+0 through

Base+3. For detailed programming information about the 8254, please refer

to Intel‘s “Microsystem Components Handbook”.

Address Read Write

Base+0 8254 Counter 0 8254 Counter 0

Base+1 8254 Counter 1 8254 Counter 1

Base+2 8254 Counter 2 8254 Counter 2

Base+3 Reserved 8254 Counter Control

2.4.2 A/D Input Buffer Register

(READ) Base+4: A/D Low Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D7 D6 D5 D4 D3 D2 D1 D0

(READ) Base+5: A/D High Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0 0 READY D11 D10 D9 D8

A/D 12 bit data: D11…..D0, D11 = MSB, D0 = LSB

READY = 1: A/D 12 bits data not ready

= 0: A/D 12 bits data is ready

The low 8 bits of A/D data are stored in address BASE+4 and the high 4 bits of data are

stored in address BASE+5. The READY bit is used as an indicator for A/D conversion.

When a A/D conversion is completed, the READY bit will be cleared to zero (Low).

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 12

2.4.3 D/A Output Latch Register

(WRITE) Base+4: Channel 1 D/A Low Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D7 D6 D5 D4 D3 D2 D1 D0

(WRITE) Base+5: Channel 1 D/A High Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X X X D11 D10 D9 D8

D/A 12 bit output data: D11…D0, D11 = MSB, D0 = LSB, X = don‘t care

The D/A converter will convert the 12 bits of digital data to analog output. The low 8 bits of

D/A channel are stored in address BASE+4 with the high 4 bits are stored in address

BASE+5. The D/A output latch registers are designed as a “double buffered” structure, so

the analog output latch registers will be updated until the high 4 bits of digital data are

written. The users should send the low 8 bits first and then send the high 4 bits to update the

12 bits of AD output latch registers

NOTE: Send low 8 bits first, then send high 4 bits.

2.4.4 D/I Input Buffer Register

(READ) Base+6: D/I Input Buffer Low Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D7 D6 D5 D4 D3 D2 D1 D0

(READ) Base+7: D/I Input Buffer High Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D15 D14 D13 D12 D11 D10 D9 D8

D/I 16 bit input data: D15…D0, D15 = MSB, D0 = LSB

OME-A-8111 provides 16 TTL compatible digital inputs. The low 8 bits are stored in

address BASE+6. The high 8 bits are stored in address BASE+7.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 13

2.4.5 Clear Interrupt Request

(WRITE) Base+8: Clear Interrupt Request Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X X X X X X X

X = don‘t care, XXXXXXXX = any 8 bit data is valid

If OME-A-8111 is working in the interrupt transfer mode, an on-board hardware status bit

will be set after each A/D conversion. This bit must be cleared by the software before next

hardware interrupt. Writing any value to address BASE+8 will clear this hardware bit and

the hardware will generate another interrupt when next the A/D conversion is completed.

2.4.6 A/D Gain Control Register

(WRITE) Base+9: A/D Gain Control Register Format

Y Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X X X X GAIN2 GAIN1 GAIN0

The OME-A-8111 provides a gain factor of 1/2/4/8/16. The gain controls register control

the gain of the A/D input signal. Bipolar/Unipolar will affect the gain factor.

NOTE : If the gain control code is changed, the hardware needs to have extra gain

settling time. The gain settling time is different for different gain control code. The

software driver does not monitor the gain settling time, so the user needs to delay the

gain settling time if the gain changed.

OME-A-8111 GAIN CONTROL CODE TABLE

GAIN Input Range GAIN2 GAIN1 GAIN0 Settling Time

1 +/- 5V 0 0 0 2.1 µs

2 +/- 2.5V 0 0 1 2.5 µs

4 +/- 1.25V 0 1 0 2.7 µs

8 +/- 0.0625V 0 1 1 3.6 µs

16 +/- 0.03125V 1 0 0 4.1 µs

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 14

2.4.7 A/D Multiplex Control Register

(WRITE) Base+A : A/D Multiplexer Control Register Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X X X X D2 D1 D0

A/D input channel selection data =3 bits: D2...D0, D2=MSB, D0=LSB, X=don‘t care

NOTE: The settling time of the multiplexer depends on the source resistance of input

sources.
Approx. Source resistance = 0.1 KΩ Î Approx. Settling time = 3 µs.
Approx. Source resistance = 1 KΩ Î Approx. Settling time = 5 µs.
Approx. Source resistance = 10 KΩ Î Approx. Settling time = 10 µs.
Approx. Source resistance = 100 KΩ Î Approx. Settling time = 100 µs.

Channel Bit_2 Bit_1 Bit_0

0 0 0 0

1 0 0 1

2 0 1 0

3 0 1 1

4 1 0 0

5 1 0 1

6 1 1 0

7 1 1 1

Sec 2.4.6 gives information about settling time delay.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 15

2.4.8 A/D Mode Control Register

(WRITE) Base+B : A/D Mode Control Register Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X SI2 SI1 SI0 X D2 D1 D0

X=don‘t care

Mode Select Trigger Type Transfer Type

D2 D1 D0 Software Trig Pacer Trig Software Interrupt

0 0 0 Select X Select X

0 0 1 Select X Select X

0 1 0 X Select X X

1 1 0 X Select Select Select

X=disable

SI2 SI1 SI0 IRQ Level

0 0 0 IRQ2

0 0 1 Not used

0 1 0 IRQ2

0 1 1 IRQ3

1 0 0 IRQ4

1 0 1 IRQ5

1 1 0 IRQ6

1 1 1 IRQ7

The A/D conversion operation can be divided into 2 stages, trigger stage and transfer

stage. The trigger stage will generate a trigger signal to the A/D converter and the transfer

stage will transfer the results to the CPU.

The trigger method may be an internal trigger or an external trigger. The internal

trigger can be a software trigger or a pacer trigger. The software trigger is very simple

but can not control the sampling rate very precisely. In software trigger mode, the

program issues a software trigger command (sec. 2.4.9) any time needed. Then the program

will poll the A/D status bit until the ready bit is 0 (sec. 2.4.2).

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 16

The pacer trigger can control the sampling rate very precisely. So the converted

data can be used to reconstruct the waveform of the analog input signal. In pacer trigger

mode, the pacer timer will periodically generate trigger signals to the A/D converter. This

converted data can be transfer to the CPU by polling or interrupt or DMA transfer method.

The software driver provides three polling or interrupt-transfer methods. The polling

subroutine, A8111_AD_PollingVar() or A822_AD_PollingArray(), sets the A/D mode

control register to 0x01. This control word means software trigger and polling transfer. The

interrupt subroutine, A822_AD_INT_START(…), sets the A/D mode control mode register

to ox06. This control word means pacer trigger and interrupt transfer. The interrupt

subroutine, A822_AD_DMA_START(…), sets the A/D mode control register to 0x06 This

control word means pacer trigger and DMA transfer.

2.4.9 A/D Software Trigger Control Register

(WRITE) Base+C : A/D Software Trigger Control Register Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X X X X X X X

X=don‘t care, XXXXXXXX=any 8 bits data is validate

The A/D converter can be triggered by software trigger or pacer trigger. Detailed

information is given in sec.2.4.8 and 2.7. Writing any value to address BASE+C will

generate a trigger pulse to the A/D converter and initiate an A/D conversion operation. The

address BASE+5 offers a ready bit to indicate that an A/D conversion is complete.

The software driver uses this control word to detect the OME-A-8111 hardware board.

The software initiates a software trigger and checks the ready bit. If the ready bit cannot

clear to zero in a fixed time, the software driver will return an error message. If there is an

error in the I/O BASE address setting, the ready bit will not be cleared to zero. The software

driver, A8111_CheckAddress(), uses this method to detect the status of the I/O BASE

address setting.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 17

2.4.10 D/O Output Latch Register

(WRITE) Base+D: D/O Output Latch Low Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D7 D6 D5 D4 D3 D2 D1 D0

(WRITE) Base+E: D/O Output Latch High Byte Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

D15 D14 D13 D12 D11 D10 D9 D8

D/O 16 bits output data: D15...D0, D15=MSB, D0=LSB

The OME-A-8111 provides 16 TTL compatible digital outputs. The low 8 bits are stored in

address BASE+D. The high 8 bits are stored in address BASE+E

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 18

2.5 Digital I/O

R

The OME-A-8111 provides 16 digital input channels and 16 digital output

channels. All levels are TTL compatible. The connections diagram and block

diagram are given below:

Base+D

D0...D7

Base+E

Base+6

D0...D7

Base+7

Output Latch Register

Read

D0...D7

D8...D15

Read

Output Latch Register

Input Buffer Register

Read

D0...D7

D8...D15

Read

Input Buffer Register

CN3

1...8

17...18

DGND

9...16

OME-A-8111

OME-A-8111

CN2

1...8

17...18

DGND

Strobe 20

9...16

TTL

DGND

OME-DB-16

16-Channel Isolated

Input Board

(Option)

TTL

16-Channel Isolated

DI

DGND

OME-DB-16P

Input Board

DO

(Option)

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 19

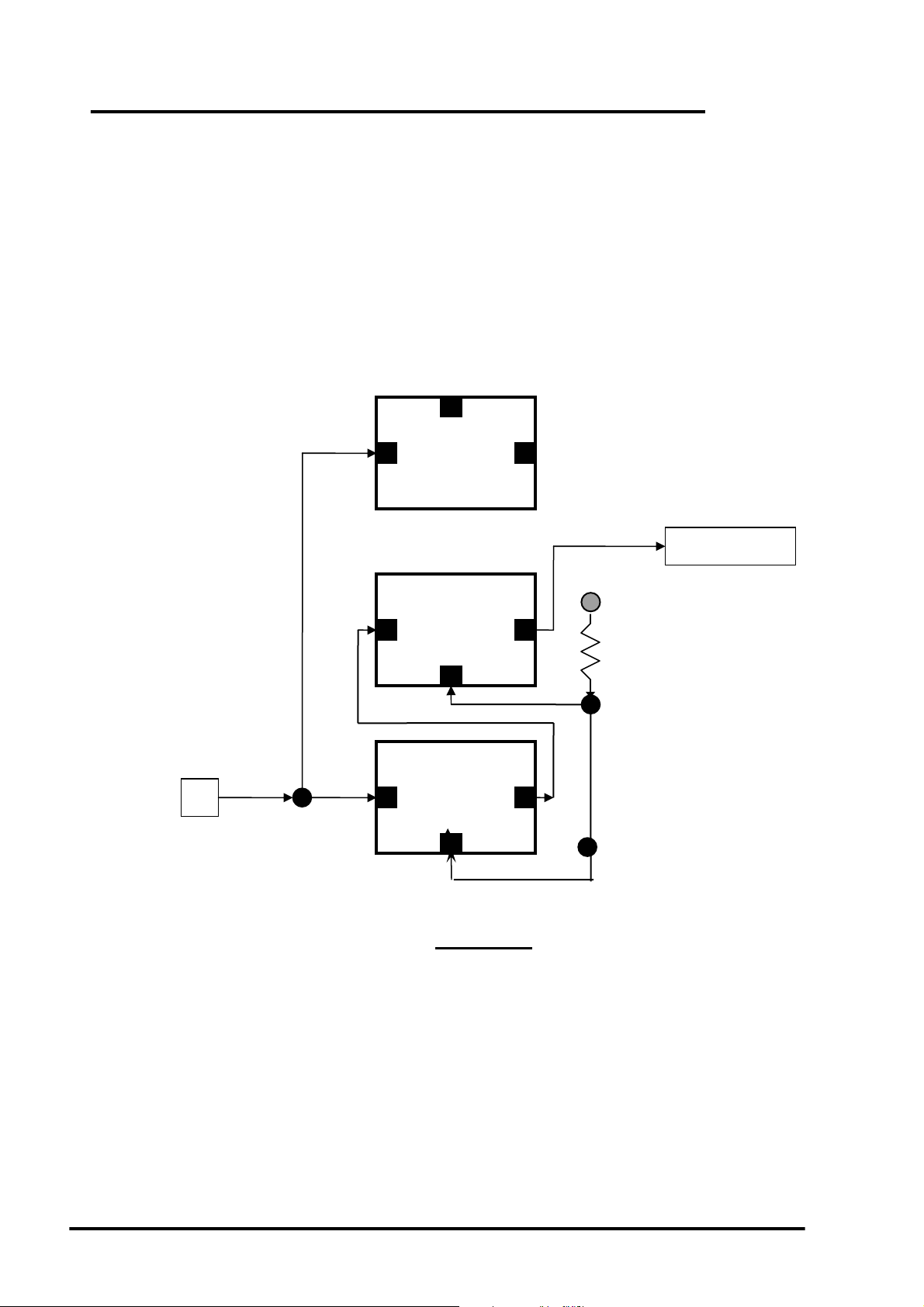

2.6 8254 Timer/Counter

The 8254 Programmable timer/counter has 4 registers from Base+0 through Base+3. For

detailed programming information about 8254, please refer to Intel‘s “Microsystem

Components Handbook”. The block diagram is as below.

Gate

Cin: clock input

Cout: clock output

INTCLK: internal clock

Counter0, counter1 and counter2 are all 16 bit counters. Counter 1 and counter 2 cascade

2M

INTCLK

Cin

Counter 0

Counter 1

Cin

Counter 2

Cin

Gate

Gate

Cout

Cout

Cout

PACER CLK

VCC

10K

as a 32-bit timer. The 32-bit timer is used as a pacer timer.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 20

2.7 A/D Conversion

(

This section explains how to perform A/D conversions. The A/D conversion

can be performed by software trigger by pacer trigger. At the end of the

A/D conversion, it is possible to transfer data by polling and interrupt

before using the A/D conversion function; users should notice the following

issues:

z A/D data register, BASE+4/BASE+5, stores the A/D conversion data (sec. 2.4.2)
z A/D gain control register, BASE+9, select gain (sec. 2.4.6)
z A/D multiplex control register, BASE+A, select analog input
z A/D mode control register, BASE+B, select trigger type and transfer

type (sec. 2.4.8)

z A/D software trigger control register, BASE+C (sec. 2.4.9)

The block diagram is given below:

CN1

OME-A-8111

7 to 0

Multi-

plexer

Base+A Base+9 Trigger

Gain

Control

Base+C

12 bits

A/D

Logic

Base+B

Buffer

Logic

sec. 2.4.7)

Memory

CPU Transfer

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 21

2.7.1 A/D conversion flow

Then the user must decide which A/D conversion mode will be used. The software driver

supports three different modes. The user can control the A/D conversion by polling mode

very easily (sec. 2.4.9). It is recommended to use the software driver if using interrupt or

DMA mode.

The analog input signals come from CN1.

The multiplexer can accept 8 single-ended lines into the gain control module. The gain

control module also needs settling time if the gain control code changed. Because the

software doesn’t monitor the settling time, the user should reserve enough settling time

if switching from one channel to the next (sec. 2.4.6).

The output of the gain control module feeds into the A/D converter. The A/D converter

needs a trigger signal to start an A/D conversion cycle. The OME-A-8111 supports

software trigger or pacer trigger mode.

2.7.2 A/D Conversion Trigger Modes

OME-A-8111 supports two trigger modes.

1 : Software Trigger :

Writes any value to the A/D software trigger control register, BASE+A, will initiate an

A/D conversion cycle. This mode is very simple but very difficult to control the

sampling rate.

2 : Pacer Trigger Mode :

The block diagram of the pacer timer is shown in section 2.6. The pacer timer can give

very precise sampling rates.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 22

2.7.3 A/D Transfer Modes

OME-A-8111 supports two transfer modes.

1 : polling transfer :

This mode can be used with all trigger modes. Detailed information is given in section

2.4.8.The software scans A/D high byte data register, BASE+5, until

READY_BIT=0.The low byte data is also ready in BASE+4.

2 : interrupt transfer :

This mode can be used with pacer trigger or external trigger. Detailed information is

given in section 2.4.8.The user can set the IRQ level by register mode. A hardware

interrupt signal is sent to the PC when an A/D conversion is completed.

2.7.4 Using software trigger and polling transfer

If the user needs to directly control the A/D converter without the OME-A-8111 software

driver, it is recommended to use software trigger and polling transfer. The program steps are

listed as below:

1. Send 0x01 to A/D mode control register (software trigger + polling transfer)

(refer to sec. 2.4.8).

2. Send channel number to multiplexer control register (refer to sec. 2.4.7).

3. Send the gain control code value to gain control register (refer to sec. 2.4.6).

4. Delay the settling time (refer to sec. 2.4.6 and sec. 2.4.6).

5. Send any value to the software trigger control register in order to generate a software

rigger signal (refer to sec. 2.4.9).

6. Scan the READY bit of the A/D high byte data until READY=0 (refer to sec. 2.4.2).

7. Read the 12 bits of A/D data (refer to sec. 2.4.2).

8. Convert these 12 bits of binary data to floating point value

(refer to OME-A-8111 DOS Software Manual, sec. 4.7 and sec. 4.8)

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 23

2.8 D/A Conversion

The OME-A-8111 provides two 12-bit D/A converters. Before using the

D/A conversion function, user should notice the following issues:

z D/A output register, BASE+4/BASE+5/BASE+6/BASE+7 (sec. 2.4.3).
z JP1/JP2 selects internal/external reference voltage (sec. 2.4.1).

NOTE: The DA output latch registers are designed as a “double buffered” structure. The

user must send the low byte data first, then send the high byte
data to store the DA 12-bit digital data. If the user only sends the high byte

data, then the low byte data will be still the previous value. Also, if the user sends high byte

first then sends low byte, the low byte data of DA is still held in the previous one.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 24

2.9 Analog Input Signal Connection

FIG 1: Connecting analog input configuration

Es

OME-A-8111

A/D CH0

A/D CHn

AGND

Signal Shielding

z Signal shielding connections are shown in Fig1.
z Use single-point connection to frame ground (not AGND or DGND)

OME-A-8111

Vin

AGND

DGND

Frame Ground

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 25

2.10 Pin Assignment

The OME-A-8111 provides three connectors. Connect 1, CN1 functions for analog

input & analog output input. Connector 2, CN2, functions as 16 digital outputs. Connector 3,

CN3, function as a digital output.

CN1/CN2/CN3 Pin Assignment

CN1: Analog input/Analog output/Connect Pin Assignment.

Pin Number Description Pin Number Description

1 A/D Analog Input Channel 0 20 Analog GND

2 A/D Analog Input Channel 1 21 Analog GND

3 A/D Analog Input Channel 2 22 Analog GND

4 A/D Analog Input Channel 3 23 Analog GND

5 A/D Analog Input Channel 4 24 Analog GND

6 A/D Analog Input Channel 5 25 Analog GND

7 A/D Analog Input Channel 6 26 Analog GND

8 A/D Analog Input Channel 7 27 Analog GND

9 Not Used 28 Analog GND

10 Analog GND 29 Analog GND

11 Not Used 30 D/A Analog Voltage output

12 Not Used 31 Not Used

13 Not Used 32 Not Used

14 Analog GND 33 Not Used

15 Analog GND 34 Not Used

16 Not Used 35 Not Used

17 Not Used 36 Not Used

18 Not Used 37 Not Used

19 PCB’s + 5V output

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 26

CN2: Analog input/Analog output/Connect Pin Assignment.

Pin Number Description Pin Number Description

1 Digital Input 0/TTL 2 Digital Input 1/TTL

3 Digital Input 2/TTL 4 Digital Input 3/TTL

5 Digital Input 4/TTL 6 Digital Input 5/TTL

7 Digital Input 6/TTL 8 Digital Input 7/TTL

9 Digital Input 8/TTL 10 Digital Input 9/TTL

11 Digital Input 10/TTL 12 Digital Input 11/TTL

13 Digital Input 12/TTL 14 Digital Input 13/TTL

15 Digital Input 14/TTL 16 Digital Input 15/TTL

17 PCB’s GND output 18 PCB’s GND output

19

PCB’s + 5V output

20

STROBE

CN3: Analog input/Analog output/Connect Pin Assignment.

Pin Number Description Pin Number Description

1 Digital output 0/TTL 2 Digital output 1/TTL

3 Digital output 2/TTL 4 Digital output 3/TTL

5 Digital output 4/TTL 6 Digital output 5/TTL

7 Digital output 6/TTL 8 Digital output 7/TTL

9 Digital output 8/TTL 10 Digital output 9/TTL

11 Digital output 10/TTL 12 Digital output 11/TTL

13 Digital output 12/TTL 14 Digital output 13/TTL

15 Digital output 14/TTL 16 Digital output 15/TTL

17 PCB’s GND output 18 PCB’s GND output

19

PCB’s + 5V output

20

PCB’s +12V output

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 27

2.11 Daughter Board

The OME-A-8111 can be connected with many different daughter boards. The function of

these daughter boards is described as follows.

2.11.1 OME-CA-4002

The OME-CA-4002 is a 37-pin D-Sub male connector. It can directly connect to a 37-pin

D-sub connector.

2.11.2 OME-DB-16P

The OME-DB-16P is a 16-channel isolated digital input board. The OME-A-8111

provides a 16 channel, non-isolated, TTL-compatible digital inputs from CN2. If connecting

to the OME-DB-16P, the OME-A-8111 can provide 16 channels of isolated digital input

signals. Isolation can protect the PC if an abnormal input signal is occurs.

2.11.3 OME-DB-16R

The OME-DB-16R provides a 16-channel SPDT relay output. The OME-A-8111

provides a 16 channel, TTL-compatible digital output from CN3. If connecting to the

OME-DB-16R, the OME-A-8111 can provide a 16-channel relay output to control power

devices.

2.11.4 OME-DB-37

The OME-DB-37 is a general-purpose screw terminal board. It provides a 37-pin

connector. This board directly connects to a 37-pin D-sub connector. It is suitable for easy

signal connection and measurement.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 28

3. Calibration

r

r

A

The OME-A-8111 is calibrated to its best state of operation. For environments with large

vibration, recalibration is recommended. Before calibrating the OME-A-8111, users should

have the following items:

z One 6-digit multi-meter.
z One stable voltage source (4.9988V)
z Diagnostic program: this program is included in the delivered package

and will guide the user to in proceeding with the calibration.

3.1 Calibration VR Description

There are seven VRs on the OME-A-8111. Calibration is needed to adjust all seven VRs.

VR Num. Description

VR1 D/A Gain adjustment

VR2 D/A Offset adjustment

VR3 A/D Offset adjustment

VR4 A/D's Gain adjustment

VR5 A/D‘s PGA(Programmable Gain Amplifier) Offset Adjustment

A/D Converte

D/A Converte

VR4

VR3

8 ch.

PG

Mux

CN1

VR1

VR5

VR2

O.P.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 29

3.2 D/A Calibration Steps

1. Run A8111CAL.EXE

2. Connect D/A channel0,, pin 30 of CN1 to DVM

3. Adjust VR1 until DVM=5.0000V

4. Press “Enter" key

5. Adjust VR2 until DVM=0.0000V

3.3 A/D Calibration Steps

1. Press “Enter" key

2. Connot A/D Channel 0 to analog ground, CN1-Pin1 to CN1-Pin20.

3. Input stable DC 4.9988V to A/d channel 1, pin2 of CN1.

4. Connect DVM to TP1(-) & (+).

5. Adjust VR5 until DVM=0.0000V.

6. Press <Enter> Key.

7. Adjust VR4 until A/D data shows 4094 or 4095.

8. Press <Enter> Key

9. Adjust VR3 until A/D data shows 2047 or 2048.

10. Repeat step_3 to step_11 until:

A/D channel 0 input 4.9988VÎA/D reading 4094 or 4095.
A/D channel 0 input 0 V ÎA/D reading 2047 or 2048.

11. Press <Enter> Key.

3.4 DI/O Testing

12. Use 20-pin flat cable (OME-CA-2010, OME-CA-2020 Option) to link CN2 to CN3.

13. Press <Enter> Key.

OME-A-8111 Hardware Manual (ver.1.1, Jul/2003) 30

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY

RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-W

ARRANTY

REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

M4029/0104

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at www.omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
