OME-A-822 Software Manual for Windows 2000

OME-A-822PGL/H

Software Manual

[For Windows 2000]

Ver: 1.1 Date: 09/18/00 Page 1

OME-A-822 Software Manual for Windows 2000

Table of Contents

1. DECLARATION FILES...................................................................................................................... 4

1.1 A822.H ........................................................................................................................................... 5

1.2 A822.BAS .................................................................................................................................... 10

1.3 A822.PAS..................................................................................................................................... 16

2. REFERENCE ..................................................................................................................................... 24

2.1 RANGE CONFIGURATION CODE ........................................................................................... 24

2.2 ERROR CODE ............................................................................................................................. 25

2.3 OTHER MANUALS .................................................................................................................... 27

3. FUNCTION DESCRIPTION ............................................................................................................28

3.1 TEST FUNCTION........................................................................................................................30

3.1.1 A822_SHORT_SUB_2 .......................................................................................................... 30

3.1.2 A822_FLOAT_SUB_2 .......................................................................................................... 30

3.1.3 A822_Get_DLL_Version ...................................................................................................... 31

3.1.4 A822_GetDriverVersion....................................................................................................... 31

3.2 DI/DO FUNCTION...................................................................................................................... 32

3.2.1 A822_DI ............................................................................................................................... 32

3.2.2 A822_DO.............................................................................................................................. 32

3.2.3 A822_OutputByte.................................................................................................................. 33

3.2.4 A822_OutputWord................................................................................................................ 33

3.2.5 A822_InputByte .................................................................................................................... 34

3.2.6 A822_InputWord ..................................................................................................................34

3.3 A/D, D/A FUNCTION.................................................................................................................. 35

3.3.1 A822_SetChGain ..................................................................................................................35

3.3.2 A822_Fast_AD_Hex............................................................................................................. 36

3.3.3 A822_Fast_AD_Float........................................................................................................... 36

3.3.4 A822_AD_Hex...................................................................................................................... 37

3.3.5 A822_AD_Float.................................................................................................................... 37

3.3.6 A822_ADs_Hex ....................................................................................................................38

3.3.7 A822_ADs_Float ..................................................................................................................39

3.3.8 A822_DA_Hex...................................................................................................................... 40

3.3.9 A822 _DA_Uni5 ...................................................................................................................40

3.3.10 A822 _DA_Uni10 ................................................................................................................. 41

3.4 DRIVER FUNCTION .................................................................................................................. 42

3.4.1 A822_DriverInit.................................................................................................................... 42

3.4.2 A822_DriverClose ................................................................................................................42

3.4.3 A822_SetTriggerMode.......................................................................................................... 43

3.4.4 A822_DELAY........................................................................................................................ 44

3.4.5 A822_Check_Address........................................................................................................... 44

3.4.6 A822_GetConfigAddress ...................................................................................................... 45

3.4.7 A822_ActiveBoard................................................................................................................45

3.4.8 A822_SetCounter.................................................................................................................. 46

3.4.9 A822_ReadCounter .............................................................................................................. 46

3.5 AD, INTERRUPT FUNCTION.................................................................................................... 47

3.5.1 A822_Int_Install ................................................................................................................... 47

3.5.2 A822_Int_Start...................................................................................................................... 47

3.5.3 A822_Int_Stop ...................................................................................................................... 48

3.5.4 A822_Int_Remove.................................................................................................................48

3.5.5 A822_Int_GetCount.............................................................................................................. 48

3.5.6 A822_Int_GetHexBuf............................................................................................................ 49

Ver: 1.1 Date: 09/18/00 Page 2

OME-A-822 Software Manual for Windows 2000

3.5.7 A822_Int_GetFloatBuf ......................................................................................................... 49

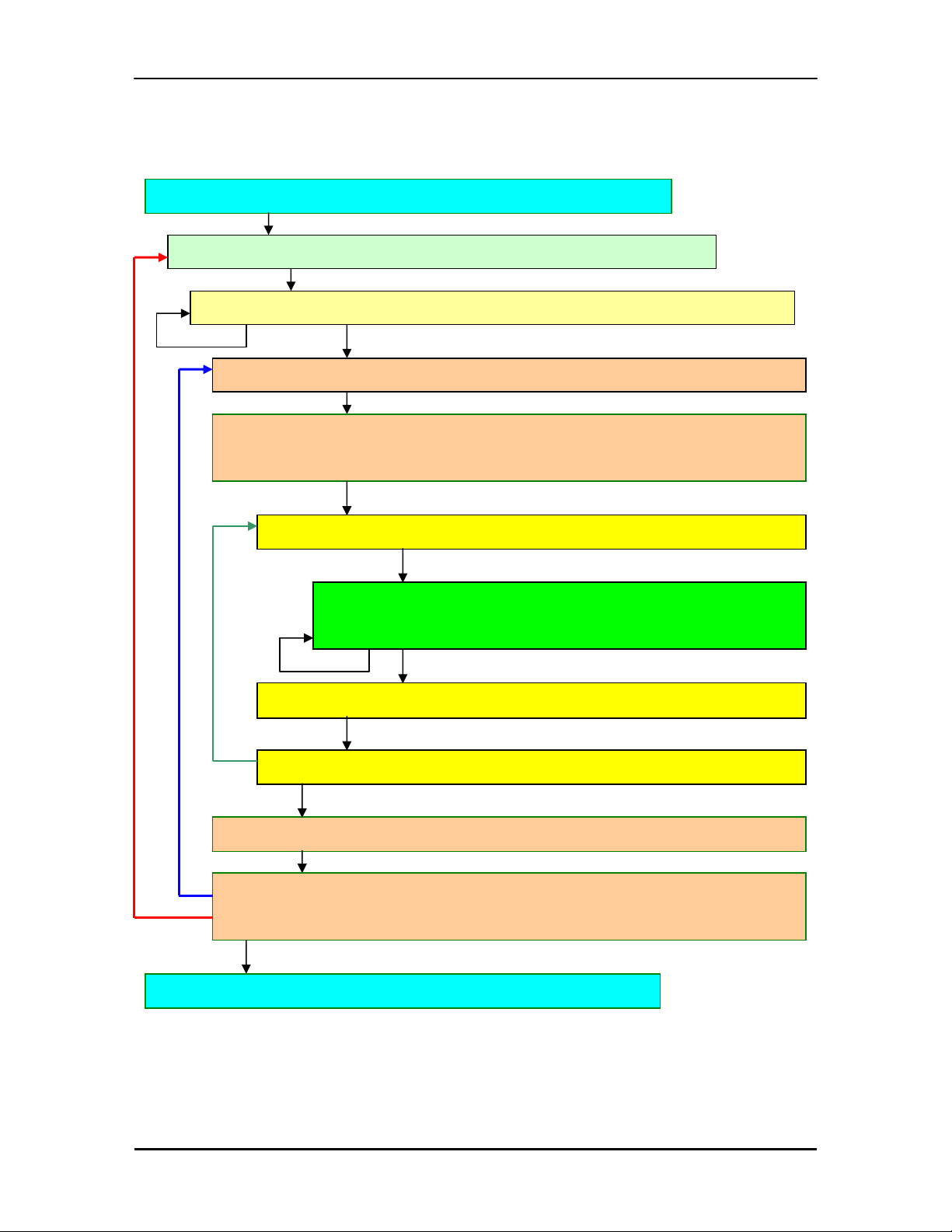

3.5.8 Architecture of Interrupt mode ............................................................................................. 50

3.6 AD, CHANNEL SCAN FUNCTION ........................................................................................... 51

3.6.1 Introduction .......................................................................................................................... 51

3.6.2 A822_ChScan_Clear ............................................................................................................ 52

3.6.3 A822_ChScan_Add............................................................................................................... 52

3.6.4 A822_ChScan_PollingHex ................................................................................................... 53

3.6.5 A822_ChScan_PollingFloat................................................................................................. 54

3.7 AD INTERRUPT, CHANNEL SCAN FUNCTION.................................................................... 55

3.7.1 Introduction .......................................................................................................................... 55

3.7.2 A822_ChScan_IntInstall....................................................................................................... 57

3.7.3 A822_ChScan_IntStart ......................................................................................................... 57

3.7.4 A822_ChScan_IntStop.......................................................................................................... 58

3.7.5 A822_ChScan_IntRemove .................................................................................................... 58

3.7.6 A822_ChScan_IntGetCount ................................................................................................. 58

3.7.7 A822_ChScan_IntGetHexBuf ............................................................................................... 59

3.7.8 A822_ChScan_IntGetFloatBuf ............................................................................................. 59

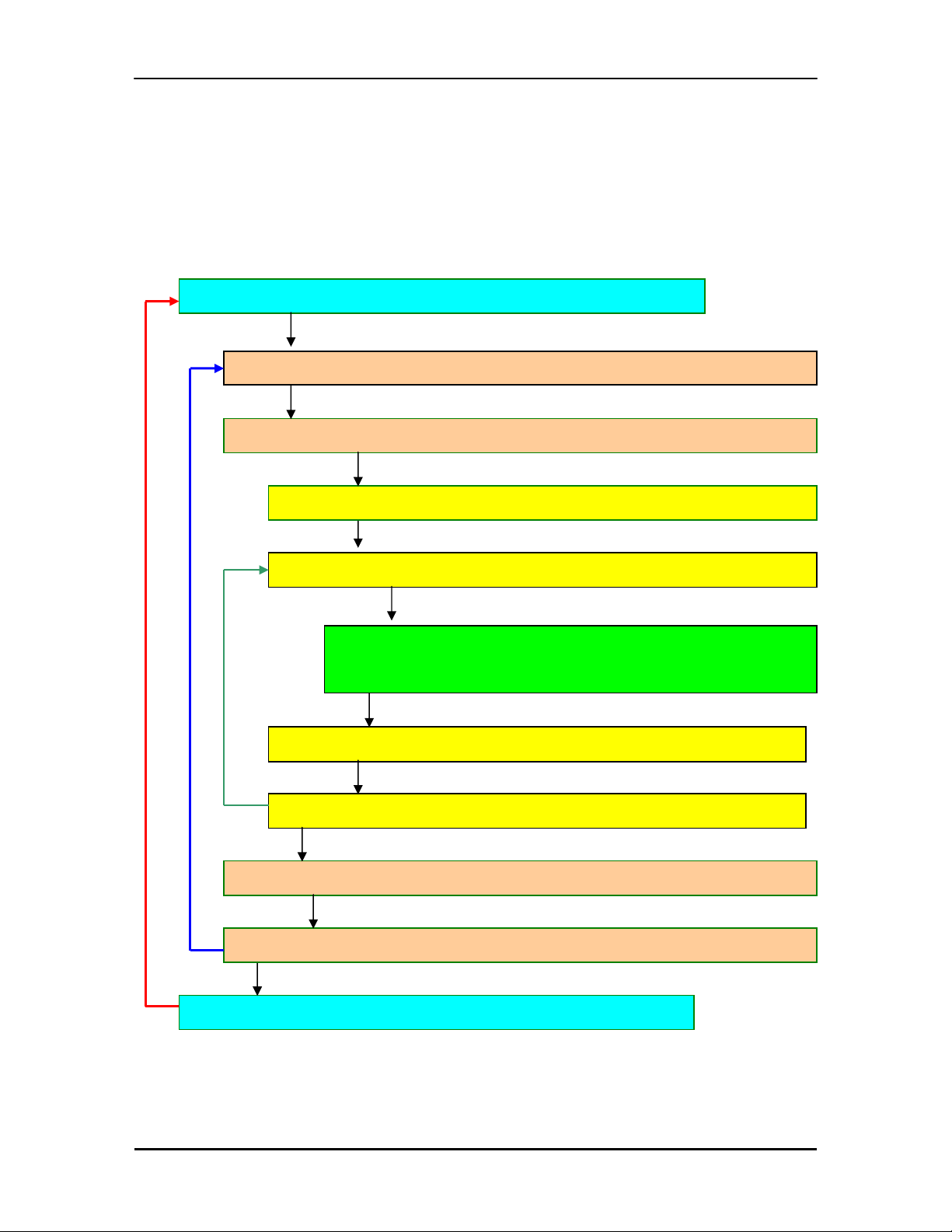

4. PROGRAM ARCHITECTURE........................................................................................................ 60

5. REPORT PROBLEMS ...................................................................................................................... 61

Ver: 1.1 Date: 09/18/00 Page 3

OME-A-822 Software Manual for Windows 2000

1. DECLARATION FILES

Please refer to user manual "

For Windows 2000:

|--\Driver
|--\A822.DLL Å Dynamic Linking Library
|--\A822.sys Å device driver
|--\Napwnt.sys Å device driver
|
|--\BCB Å For Borland C++ Builder
| |--\A822.H Å Header file
| |--\A822.Lib Å Import Library for BCB only
|
|--\Delphi Å For Delphi
| |--\A822.pas Å Declaration file
|
|--\VB Å For Visual Basic
| |--\A822.bas Å Declaration file
|
|--\VC Å For Visual C++
|--\A822.H Å Header file
|--\A822.Lib Å Import Library for VC only

CallDLL.pdf".

Ver: 1.1 Date: 09/18/00 Page 4

OME-A-822 Software Manual for Windows 2000

1.1 A822.H

#ifdef __cplusplus
#define EXPORTS extern "C" __declspec (dllimport)
#else
#define EXPORTS
#endif

/***************** DEFINE A822 RELATIVE ADDRESS *****************/
#define A822_TIMER0 0x00
#define A822_TIMER1 0x01
#define A822_TIMER2 0x02
#define A822_TIMER_MODE 0x03
#define A822_AD_LO 0x04 /* Analog to Digital, Low Byte */
#define A822_AD_HI 0x05 /* Analog to Digital, High Byte */
#define A822_DA_CH0_LO 0x04 /* Digit to Analog, CH 0 */
#define A822_DA_CH0_HI 0x05
#define A822_DA_CH1_LO 0x06 /* Digit to Analog, CH 1 */
#define A822_DA_CH1_HI 0x07
#define A822_DI_LO 0x06 /* Digit Input */
#define A822_DO_LO 0x0D /* Digit Output */

#define A822_CLEAR_IRQ 0x08
#define A822_SET_GAIN 0x09
#define A822_SET_CH 0x0A
#define A822_SET_MODE 0x0B
#define A822_SOFT_TRIG 0x0C

#define A822_POLLING_MODE 1
#define A822_DMA_MODE 2
#define A822_INTERRUPT_MODE 6

Ver: 1.1 Date: 09/18/00 Page 5

OME-A-822 Software Manual for Windows 2000

/*** define the gain mode ***/
#define A822_BI_1 0
#define A822_BI_10 1
#define A822_BI_100 2
#define A822_BI_1000 3
#define A822_UNI_1 4
#define A822_UNI_10 5
#define A822_UNI_100 6
#define A822_UNI_1000 7
#define A822_BI_05 8
#define A822_BI_5 9
#define A822_BI_50 10
#define A822_BI_500 11

#define A822_BI_2 1
#define A822_BI_4 2
#define A822_BI_8 3
#define A822_UNI_2 5
#define A822_UNI_4 6
#define A822_UNI_8 7

#define A822PGL 0
#define A822PGH 1

Ver: 1.1 Date: 09/18/00 Page 6

OME-A-822 Software Manual for Windows 2000

#define A822_NoError 0
#define A822_DriverOpenError 1
#define A822_DriverNoOpen 2
#define A822_GetDriverVersionError 3
#define A822_InstallIrqError 4
#define A822_ClearIntCountError 5
#define A822_GetIntCountError 6
#define A822_GetBufferError 7
#define A822_InstallBufError 10
#define A822_AllocateMemoryError 11
#define A822_CardTypeError 12
#define A822_TimeoutError 13
#define A822_OtherError 14
#define A822_ExceedBoardNumber 15
#define A822_CardNotFound 16
#define A822_GetTotalBoardError 17
#define A822_ChannelNoError 18
#define A822_IntStopError 19
#define A822_IntInstallEventError 20
#define A822_GetConfigError 21
#define A822_ActiveBoardError 22
#define A822_ConfigCodeError 23
#define A822_BufferFull 24
#define A822_NoChannelToScan 25
#define A822_IntInstallChannelError 26
#define A822_IntInstallConfigError 27

// Functions of Test
EXPORTS short CALLBACK A822_SHORT_SUB_2(short nA, short nB);
EXPORTS float CALLBACK A822_FLOAT_SUB_2(float fA, float fB);
EXPORTS WORD CALLBACK A822_Get_DLL_Version(void);
EXPORTS WORD CALLBACK A822_GetDriverVersion(WORD
*wDriverVersion);

// Functions of DI/DO
EXPORTS WORD CALLBACK A822_DI(WORD *wInVal);
EXPORTS WORD CALLBACK A822_DO(WORD wHexValue);

Ver: 1.1 Date: 09/18/00 Page 7

OME-A-822 Software Manual for Windows 2000

// Functions of AD/DA
EXPORTS WORD CALLBACK A822_SetChGain
(WORD wChannel, WORD wConfig, WORD wCardType);
EXPORTS WORD CALLBACK A822_Fast_AD_Hex(WORD *wVal);
EXPORTS WORD CALLBACK A822_Fast_AD_Float(float *fVal);
EXPORTS WORD CALLBACK A822_AD_Hex
(WORD wChannel, WORD wConfig, WORD wCardType, WORD *wVal);
EXPORTS WORD CALLBACK A822_AD_Float
(WORD wChannel, WORD wConfig, WORD wCardType, float *fVal);
EXPORTS WORD CALLBACK A822_ADs_Hex( WORD wBuf[], WORD
wCount );
EXPORTS WORD CALLBACK A822_ADs_Float( float fBuf[], WORD wCount );
EXPORTS WORD CALLBACK A822_Hex2Float
(WORD wConfig, WORD wCardType, WORD wHex, float *fVal);

EXPORTS WORD CALLBACK A822_DA_Hex(WORD wChannel, WORD
wHexValue);
EXPORTS WORD CALLBACK A822_DA_Uni5(WORD wChannel, float fValue);
EXPORTS WORD CALLBACK A822_DA_Uni10(WORD wChannel, float fValue);

// Functions of Driver
EXPORTS WORD CALLBACK A822_DriverInit(WORD *wTotalBoards);
EXPORTS void CALLBACK A822_DriverClose(void);
EXPORTS WORD CALLBACK A822_DELAY(WORD wDownCount);
EXPORTS WORD CALLBACK A822_Check_Address(void);
EXPORTS WORD CALLBACK A822_GetConfigAddress
(WORD *wAddrBase, WORD *wCurrentBoard);
EXPORTS WORD CALLBACK A822_ActiveBoard( WORD wBoardNo );
EXPORTS void CALLBACK A822_SetTriggerMode(WORD wTriggerMode );

EXPORTS void CALLBACK A822_OutputByte
(WORD wPortAddr, UCHAR bOutputVal);
EXPORTS void CALLBACK A822_OutputWord
(WORD wPortAddr, WORD wOutputVal);
EXPORTS WORD CALLBACK A822_InputByte(WORD wPortAddr);
EXPORTS WORD CALLBACK A822_InputWord(WORD wPortAddr);

Ver: 1.1 Date: 09/18/00 Page 8

OME-A-822 Software Manual for Windows 2000

// Functions of Interrupt
EXPORTS WORD CALLBACK A822_Int_Install
(HANDLE *hEvent, DWORD dwCount);
EXPORTS WORD CALLBACK A822_Int_Start(WORD c1, WORD c2);
EXPORTS WORD CALLBACK A822_Int_Stop(void);
EXPORTS WORD CALLBACK A822_Int_Remove(void);
EXPORTS WORD CALLBACK A822_Int_GetCount(DWORD *dwVal);
EXPORTS WORD CALLBACK A822_Int_GetHexBuf
(WORD wBuf[], DWORD dwNum );
EXPORTS WORD CALLBACK A822_Int_GetFloatBuf
(float fBuf[], DWORD dwNum );

// Functions of Channel Scan
EXPORTS void CALLBACK A822_ChScan_Clear(void);
EXPORTS WORD CALLBACK A822_ChScan_Add
(WORD wChannel, WORD wConfig);
EXPORTS WORD CALLBACK A822_ChScan_PollingHex
(WORD wCardType, WORD wBuf[], WORD wNumPerCh);
EXPORTS WORD CALLBACK A822_ChScan_PollingFloat
(WORD wCardType, float fBuf[], WORD wNumPerCh);

// Functions of Channel Scan for Interrupt Only
EXPORTS WORD CALLBACK A822_ChScan_IntInstall
(HANDLE *hEvent, DWORD dwNumPerCh);
EXPORTS WORD CALLBACK A822_ChScan_IntStart
(WORD c1, WORD c2, WORD wCardType);
EXPORTS WORD CALLBACK A822_ChScan_IntGetCount(DWORD *dwVal);
EXPORTS WORD CALLBACK A822_ChScan_IntGetHexBuf(WORD wBuf[]);
EXPORTS WORD CALLBACK A822_ChScan_IntGetFloatBuf(float fBuf[]);
EXPORTS WORD CALLBACK A822_ChScan_IntStop(void);
EXPORTS WORD CALLBACK A822_ChScan_IntRemove(void);

Ver: 1.1 Date: 09/18/00 Page 9

OME-A-822 Software Manual for Windows 2000

1.2 A822.BAS

Attribute VB_Name = "A822"
'*********************************************************************************
' The Declare of A822.DLL for A822 DAQ Card
'*********************************************************************************

Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)

'***************** DEFINE A822 RELATIVE ADDRESS *****************/
Global Const A822_TIMER0 = &H0
Global Const A822_Timer1 = &H1
Global Const A822_TIMER2 = &H2
Global Const A822_TIMER_MODE = &H3
Global Const A822_AD_LO = &H4 '* Analog to Digital, Low Byte */
Global Const A822_AD_HI = &H5 '* Analog to Digital, High Byte */
Global Const A822_DA_CH0_LO = &H4 '* Digit to Analog, CH 0 */
Global Const A822_DA_CH0_HI = &H5
Global Const A822_DA_CH1_LO = &H6 '* Digit to Analog, CH 1 */
Global Const A822_DA_CH1_HI = &H7
Global Const A822_DI_LO = &H6 '* Digit Input */
Global Const A822_DO_LO = &HD '* Digit Output */

Global Const A822_CLEAR_IRQ = &H8
Global Const A822_SET_GAIN = &H9
Global Const A822_SET_CH = &HA
Global Const A822_SET_MODE = &HB
Global Const A822_SOFT_TRIG = &HC

Global Const A822_POLLING_MODE = 1
Global Const A822_DMA_MODE = 2
Global Const A822_INTERRUPT_MODE = 6

Ver: 1.1 Date: 09/18/00 Page 10

OME-A-822 Software Manual for Windows 2000

'*** define the gain mode ***/
Global Const A822_BI_1 = 0
Global Const A822_BI_10 = 1
Global Const A822_BI_100 = 2
Global Const A822_BI_1000 = 3
Global Const A822_UNI_1 = 4
Global Const A822_UNI_10 = 5
Global Const A822_UNI_100 = 6
Global Const A822_UNI_1000 = 7
Global Const A822_BI_05 = 8
Global Const A822_BI_5 = 9
Global Const A822_BI_50 = 10
Global Const A822_BI_500 = 11

Global Const A822_BI_2 = 1
Global Const A822_BI_4 = 2
Global Const A822_BI_8 = 3
Global Const A822_UNI_2 = 5
Global Const A822_UNI_4 = 6
Global Const A822_UNI_8 = 7

Global Const A822PGL = 0
Global Const A822PGH = 1

Ver: 1.1 Date: 09/18/00 Page 11

OME-A-822 Software Manual for Windows 2000

Global Const A822_NoError = 0
Global Const A822_DriverOpenError = 1
Global Const A822_DriverNoOpen = 2
Global Const A822_GetDriverVersionError = 3
Global Const A822_InstallIrqError = 4
Global Const A822_ClearIntCountError = 5
Global Const A822_GetIntCountError = 6
Global Const A822_GetBufferError = 7
Global Const A822_InstallBufError = 10
Global Const A822_AllocateMemoryError = 11
Global Const A822_CardTypeError = 12
Global Const A822_TimeoutError = 13
Global Const A822_OtherError = 14
Global Const A822_ExceedBoardNumber = 15
Global Const A822_CardNotFound = 16
Global Const A822_GetTotalBoardError = 17
Global Const A822_ChannelNoError = 18
Global Const A822_IntStopError = 19
Global Const A822_IntInstallEventError = 20
Global Const A822_GetConfigError = 21
Global Const A822_ActiveBoardError = 22
Global Const A822_ConfigCodeError = 23
Global Const A822_BufferFull = 24
Global Const A822_NoChannelToScan = 25
Global Const A822_IntInstallChannelError = 26
Global Const A822_IntInstallConfigError = 27

'******* Test Functions ***********
Declare Function A822_SHORT_SUB_2 Lib "A822.DLL" _
(ByVal nA As Integer, ByVal nB As Integer) As Integer
Declare Function A822_FLOAT_SUB_2 Lib "A822.DLL" _
(ByVal fA As Single, ByVal fB As Single) As Single
Declare Function A822_Get_DLL_Version Lib "A822.DLL" () As Integer
Declare Function A822_GetDriverVersion Lib "A822.DLL" _
(wDriverVersion As Integer) As Integer

'******* DI/DO Functions ***********
Declare Function A822_DI Lib "A822.DLL" _
(wInVal As Integer) As Integer
Declare Function A822_DO Lib "A822.DLL" _
(ByVal wHexValue As Integer) As Integer

Ver: 1.1 Date: 09/18/00 Page 12

OME-A-822 Software Manual for Windows 2000

'******* AD/DA Functions ***********
Declare Function A822_SetChGain Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal wConfig As Integer, _
ByVal wCardType As Integer) As Integer
Declare Function A822_Fast_AD_Hex Lib "A822.DLL" _
(wVal As Integer) As Integer
Declare Function A822_Fast_AD_Float Lib "A822.DLL" _
(fVal As Single) As Integer
Declare Function A822_AD_Hex Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal wConfig As Integer, _
ByVal wCardType As Integer, wVal As Integer) As Integer
Declare Function A822_AD_Float Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal wConfig As Integer, _
ByVal wCardType As Integer, fVal As Single) As Integer
Declare Function A822_ADs_Hex Lib "A822.DLL" _
(wBuf As Integer, ByVal wCount As Integer) As Integer
Declare Function A822_ADs_Float Lib "A822.DLL" _
(fbuf As Single, ByVal wCount As Integer) As Integer
Declare Function A822_Hex2Float Lib "A822.DLL" _
(ByVal wConfig As Integer, ByVal wCardType As Integer, _
ByVal wVal As Integer, fVal As Single) As Integer

Declare Function A822_DA_Hex Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal wHexValue As Integer) As Integer
Declare Function A822_DA_Uni5 Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal fValue As Single) As Integer
Declare Function A822_DA_Uni10 Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal fValue As Single) As Integer

'******* Driver Functions ***********
Declare Function A822_DriverInit Lib "A822.DLL" _
(wTotalBoards As Integer) As Integer
Declare Sub A822_DriverClose Lib "A822.DLL" ()
Declare Function A822_DELAY Lib "A822.DLL" _
(ByVal wDownCount As Integer) As Integer
Declare Function A822_Check_Address Lib "A822.DLL" () As Integer
Declare Function A822_GetConfigAddress Lib "A822.DLL" _
(wAddrBase As Integer, wCurrentBoard As Integer) As Integer
Declare Function A822_ActiveBoard Lib "A822.DLL" _
(ByVal wBoardNo As Integer) As Integer

Ver: 1.1 Date: 09/18/00 Page 13

OME-A-822 Software Manual for Windows 2000

Declare Sub A822_OutputByte Lib "A822.DLL" _
(ByVal wPortAddr As Integer, ByVal bOutputVal As Byte)
Declare Sub A822_OutputWord Lib "A822.DLL" _
(ByVal wPortAddr As Integer, ByVal wOutputVal As Integer)
Declare Function A822_InputByte Lib "A822.DLL" _
(ByVal wPortAddr As Integer) As Integer
Declare Function A822_InputWord Lib "A822.DLL" _
(ByVal wPortAddr As Integer) As Integer

'******* IRQ Functions ***********
Declare Sub A822_SetTriggerMode Lib "A822.DLL" _
(ByVal wTriggerMode As Integer)
Declare Function A822_Int_Install Lib "A822.DLL" _
(hEvent As Long, ByVal dwCount As Integer) As Integer
Declare Function A822_Int_Start Lib "A822.DLL" _
(ByVal c1 As Integer, ByVal c2 As Integer) As Integer
Declare Function A822_Int_Stop Lib "A822.DLL" () As Integer
Declare Function A822_Int_Remove Lib "A822.DLL" () As Integer
Declare Function A822_Int_GetCount Lib "A822.DLL" _
(dwVal As Long) As Integer
Declare Function A822_Int_GetHexBuf Lib "A822.DLL" _
(wBuffer As Integer, ByVal dwNum As Long) As Integer
Declare Function A822_Int_GetFloatBuf Lib "A822.DLL" _
(fbuffer As Single, ByVal dwNum As Integer) As Integer

' Functions of Channel Scan
Declare Sub A822_ChScan_Clear Lib "A822.DLL" ()
Declare Function A822_ChScan_Add Lib "A822.DLL" _
(ByVal wChannel As Integer, ByVal wConfig As Integer) _
As Integer
Declare Function A822_ChScan_PollingHex Lib "A822.DLL" _
(ByVal wCardType As Integer, wBuf as Integer, _
ByVal wNumPerCh As Integer) As Integer
Declare Function A822_ChScan_PollingFloat Lib "A822.DLL" _
(ByVal wCardType As Integer, fBuf as Single, _
ByVal wNumPerCh As Integer) As Integer

Ver: 1.1 Date: 09/18/00 Page 14

OME-A-822 Software Manual for Windows 2000

' Functions of Channel Scan for Interrupt Only
Declare Function A822_ChScan_IntInstall Lib "A822.DLL" _
(hEvent As Long, ByVal dwNumPerCh as Long) As Integer
Declare Function A822_ChScan_IntStart Lib "A822.DLL" _
(ByVal c1 As Integer, ByVal c2 As Integer, _
ByVal wCardType As Integer) As Integer
Declare Function A822_ChScan_IntGetCount Lib "A822.DLL" _
(dwVal As Long) As Integer
Declare Function A822_ChScan_IntGetHexBuf Lib "A822.DLL" _
(wBuf As Integer) As Integer
Declare Function A822_ChScan_IntGetFloatBuf Lib "A822.DLL" _
(fBuf As Single) As Integer
Declare Function A822_ChScan_IntStop Lib "A822.DLL" () As Integer
Declare Function A822_ChScan_IntRemove Lib "A822.DLL" () As Integer

Ver: 1.1 Date: 09/18/00 Page 15

OME-A-822 Software Manual for Windows 2000

1.3 A822.PAS

unit A822;

interface

type PSingle=^Single;
PWord=^Word;
PInteger=^Integer;

Const
//***************** DEFINE A822 RELATIVE ADDRESS *****************/
A822_TIMER0 = $00;
A822_TIMER1 = $01;
A822_TIMER2 = $02;
A822_TIMER_MODE = $03;
A822_AD_LO = $04; //* Analog to Digital, Low Byte */
A822_AD_HI = $05; //* Analog to Digital, High Byte */
A822_DA_CH0_LO = $04; //* Digit to Analog, CH 0 */
A822_DA_CH0_HI = $05;
A822_DA_CH1_LO = $06; //* Digit to Analog, CH 1 */
A822_DA_CH1_HI = $07;
A822_DI_LO = $06; //* Digit Input */
A822_DO_LO = $0D; //* Digit Output */

A822_CLEAR_IRQ = $08;
A822_SET_GAIN = $09;
A822_SET_CH = $0A;
A822_SET_MODE = $0B;
A822_SOFT_TRIG = $0C;

A822_POLLING_MODE = 1;
A822_DMA_MODE = 2;
A822_INTERRUPT_MODE = 6;

Ver: 1.1 Date: 09/18/00 Page 16

OME-A-822 Software Manual for Windows 2000

//*** define the gain mode ***/
A822_BI_1 = 0;
A822_BI_10 = 1;
A822_BI_100 = 2;
A822_BI_1000 = 3;
A822_UNI_1 = 4;
A822_UNI_10 = 5;
A822_UNI_100 = 6;
A822_UNI_1000 = 7;
A822_BI_05 = 8;
A822_BI_5 = 9;
A822_BI_50 = 10;
A822_BI_500 = 11;

A822_BI_2 = 1;
A822_BI_4 = 2;
A822_BI_8 = 3;
A822_UNI_2 = 5;
A822_UNI_4 = 6;
A822_UNI_8 = 7;

A822PGL = 0;
A822PGH = 1;

Ver: 1.1 Date: 09/18/00 Page 17

OME-A-822 Software Manual for Windows 2000

A822_NoError = 0;
A822_DriverOpenError = 1;
A822_DriverNoOpen = 2;
A822_GetDriverVersionError = 3;
A822_InstallIrqError = 4;
A822_ClearIntCountError = 5;
A822_GetIntCountError = 6;
A822_GetBufferError = 7;
A822_InstallBufError = 10;
A822_AllocateMemoryError = 11;
A822_CardTypeError = 12;
A822_TimeoutError = 13;
A822_OtherError = 14;
A822_ExceedBoardNumber = 15;
A822_CardNotFound = 16;
A822_GetTotalBoardError = 17;
A822_ChannelNoError = 18;
A822_IntStopError = 19;
A822_IntInstallEventError = 20;
A822_GetConfigError = 21;
A822_ActiveBoardError = 22;
A822_ConfigCodeError = 23;
A822_BufferFull = 24;
A822_NoChannelToScan = 25;
A822_IntInstallChannelError = 26;
A822_IntInstallConfigError = 27;

// Function of Test
Function A822_SHORT_SUB_2(nA, nB : SmallInt):SmallInt; StdCall;
Function A822_FLOAT_SUB_2(fA, fB : Single):Single; StdCall;
Function A822_Get_DLL_Version:WORD; StdCall;
Function A822_GetDriverVersion(var wDriverVersion:WORD):Word; StdCall;

// Function of DI/DO
Function A822_DO(wHexValue:Word):Word; StdCall;
Function A822_DI(var wInVal:Word):Word; StdCall;

Ver: 1.1 Date: 09/18/00 Page 18

OME-A-822 Software Manual for Windows 2000

// Function of AD/DA
Function A822_SetChGain(wChannel,wConfig,wCardType:WORD):Word;
StdCall;
Function A822_Fast_AD_Hex(var wVal:WORD):Word; StdCall;
Function A822_Fast_AD_Float(var fVal:Single):Word; StdCall;
Function A822_AD_Hex
(wChannel,wConfig,wCardType:WORD; var wVal:Word):Word; StdCall;
Function A822_AD_Float
(wChannel,wConfig,wCardType:WORD; var fVal:Single):Word; StdCall;
Function A822_ADs_Hex( wBuf:PWord; wCount:WORD):WORD; StdCall;
Function A822_ADs_Float(fBuf:PSingle; wCount:WORD):WORD; StdCall;
Function A822_Hex2Float
( wConfig, wCardType:Word; wVal:Word; var fVal:Single ):WORD; StdCall;

Function A822_DA_Hex(wChannel, wHexValue:WORD):WORD; StdCall;
Function A822_DA_Uni5(wChannel:Word;fValue:Single):WORD; StdCall;
Function A822_DA_Uni10(wChannel:Word;fValue:Single):WORD; StdCall;

// Function of Driver
Function A822_DriverInit(var wTotalBoards:WORD):WORD; StdCall;
Procedure A822_DriverClose; StdCall;
Function A822_DELAY(wDownCount:WORD):WORD; StdCall;
Function A822_Check_Address:WORD; StdCall;
Function A822_GetConfigAddress
(var wAddrBase:WORD; var wCurrentBoard:WORD):WORD; StdCall;
Function A822_ActiveBoard(wBoardNo:WORD):WORD; StdCall;

Procedure A822_OutputByte(wPortAddr:WORD; bOutputVal:Byte); StdCall;
Procedure A822_OutputWord(wPortAddr:WORD; wOutputVal:WORD); StdCall;
Function A822_InputByte(wPortAddr:WORD):WORD; StdCall;
Function A822_InputWord(wPortAddr:WORD):WORD; StdCall;

// Function of Interrupt
Procedure A822_SetTriggerMode( wTriggerMode:WORD ); StdCall;
Function A822_Int_Install(var hEvent:LongInt; dwCount:LongInt):WORD; StdCall;
Function A822_Int_Start(c1,c2:WORD):WORD; StdCall;
Function A822_Int_Stop:WORD; StdCall;
Function A822_Int_Remove:WORD; StdCall;
Function A822_Int_GetCount(var dwVal:LongInt):WORD; StdCall;
Function A822_Int_GetHexBuf(wBuf:PWORD; dwNum:LongInt):WORD; StdCall;
Function A822_Int_GetFloatBuf(fBuf:PSingle; dwNum:LongInt):WORD; StdCall;

Ver: 1.1 Date: 09/18/00 Page 19

OME-A-822 Software Manual for Windows 2000

// Functions of Channel Scan
Procedure A822_ChScan_Clear; StdCall;
Function A822_ChScan_Add
(wChannel:WORD; wConfig:WORD):WORD; StdCall;
Function A822_ChScan_PollingHex
(wCardType:WORD; wBuf:PWORD; wNumPerCh:WORD):WORD; StdCall;
Function A822_ChScan_PollingFloat
(wCardType:WORD; fBuf:PSingle; wNumPerCh:WORD):WORD; StdCall;

// Functions of Channel Scan for Interrupt Only
Function A822_ChScan_IntInstall
(var hEvent:LongInt; dwNumPerCh:LongInt):WORD; StdCall;
Function A822_ChScan_IntStart
(c1:WORD; c2:WORD; wCardType:WORD):WORD; StdCall;
Function A822_ChScan_IntGetCount(var dwVal:LongInt):WORD; StdCall;
Function A822_ChScan_IntGetHexBuf(wBuf:PWORD):WORD; StdCall;
Function A822_ChScan_IntGetFloatBuf(fBuf:PSingle):WORD; StdCall;
Function A822_ChScan_IntStop:WORD; StdCall;
Function A822_ChScan_IntRemove:WORD; StdCall;

implementation

Function A822_SHORT_SUB_2; external 'A822.DLL' name
'A822_SHORT_SUB_2';
Function A822_FLOAT_SUB_2; external 'A822.DLL' name
'A822_FLOAT_SUB_2';
Function A822_Get_DLL_Version; external 'A822.DLL' name
'A822_Get_DLL_Version';
Function A822_GetDriverVersion; external 'A822.DLL' name
'A822_GetDriverVersion';

Function A822_DO; external 'A822.DLL' name
'A822_DO';
Function A822_DI; external 'A822.DLL' name
'A822_DI';

Ver: 1.1 Date: 09/18/00 Page 20

OME-A-822 Software Manual for Windows 2000

Function A822_SetChGain; external 'A822.DLL' name
'A822_SetChGain';
Function A822_Fast_AD_Hex; external 'A822.DLL' name
'A822_Fast_AD_Hex';
Function A822_Fast_AD_Float; external 'A822.DLL' name
'A822_Fast_AD_Float';
Function A822_AD_Hex; external 'A822.DLL' name
'A822_AD_Hex';
Function A822_AD_Float; external 'A822.DLL' name
'A822_AD_Float';
Function A822_ADs_Hex; external 'A822.DLL' name
'A822_ADs_Hex';
Function A822_ADs_Float; external 'A822.DLL' name
'A822_ADs_Float';
Function A822_Hex2Float; external 'A822.DLL' name
'A822_Hex2Float';

Function A822_DA_Hex; external 'A822.DLL' name
'A822_DA_Hex';
Function A822_DA_Uni5; external 'A822.DLL' name
'A822_DA_Uni5';
Function A822_DA_Uni10; external 'A822.DLL' name
'A822_DA_Uni10';

Function A822_DriverInit; external 'A822.DLL' name
'A822_DriverInit';
Procedure A822_DriverClose; external 'A822.DLL' name
'A822_DriverClose';
Function A822_DELAY; external 'A822.DLL' name
'A822_DELAY';
Function A822_Check_Address; external 'A822.DLL' name
'A822_Check_Address';
Function A822_GetConfigAddress; external 'A822.DLL' name
'A822_GetConfigAddress';
Function A822_ActiveBoard; external 'A822.DLL' name
'A822_ActiveBoard';

Ver: 1.1 Date: 09/18/00 Page 21

OME-A-822 Software Manual for Windows 2000

Procedure A822_OutputByte; external 'A822.DLL' name
'A822_OutputByte';
Procedure A822_OutputWord; external 'A822.DLL' name
'A822_OutputWord';
Function A822_InputByte; external 'A822.DLL' name
'A822_InputByte';
Function A822_InputWord; external 'A822.DLL' name
'A822_InputWord';

Procedure A822_SetTriggerMode; external 'A822.DLL' name
'A822_SetTriggerMode';
Function A822_Int_Install; external 'A822.DLL' name
'A822_Int_Install';
Function A822_Int_Start; external 'A822.DLL' name
'A822_Int_Start';
Function A822_Int_Stop; external 'A822.DLL' name
'A822_Int_Stop';
Function A822_Int_Remove; external 'A822.DLL' name
'A822_Int_Remove';
Function A822_Int_GetCount; external 'A822.DLL' name
'A822_Int_GetCount';
Function A822_Int_GetHexBuf; external 'A822.DLL' name
'A822_Int_GetHexBuf';
Function A822_Int_GetFloatBuf; external 'A822.DLL' name
'A822_Int_GetFloatBuf';

// Functions of Channel Scan
Procedure A822_ChScan_Clear; external 'A822.DLL' name
'A822_ChScan_Clear';
Function A822_ChScan_Add; external 'A822.DLL' name
'A822_ChScan_Add';
Function A822_ChScan_PollingHex; external 'A822.DLL' name
'A822_ChScan_PollingHex';
Function A822_ChScan_PollingFloat; external 'A822.DLL' name
'A822_ChScan_PollingFloat';

Ver: 1.1 Date: 09/18/00 Page 22

OME-A-822 Software Manual for Windows 2000

// Functions of Channel Scan for Interrupt Only
Function A822_ChScan_IntInstall; external 'A822.DLL' name
'A822_ChScan_IntInstall';
Function A822_ChScan_IntStart; external 'A822.DLL' name
'A822_ChScan_IntStart';
Function A822_ChScan_IntGetCount; external 'A822.DLL' name
'A822_ChScan_IntGetCount';
Function A822_ChScan_IntGetHexBuf; external 'A822.DLL' name
'A822_ChScan_IntGetHexBuf';
Function A822_ChScan_IntGetFloatBuf; external 'A822.DLL' name
'A822_ChScan_IntGetFloatBuf';
Function A822_ChScan_IntStop; external 'A822.DLL' name
'A822_ChScan_IntStop';
Function A822_ChScan_IntRemove; external 'A822.DLL' name
'A822_ChScan_IntRemove';

end.

Ver: 1.1 Date: 09/18/00 Page 23

OME-A-822 Software Manual for Windows 2000

2. REFERENCE

2.1 RANGE CONFIGURATION CODE

The AD converter of OME-A822PGH/L is 12-bit under all

configuration codes. If the analog input range is configured to +/- 5V range,

the resolution of one bit is equal to 2.44 mV. If the analog input range is
configured to +/- 2.5V range, the resolution will be 1.22 mV. If the analog input
signal is about 1 V, use configuration 0/1/2 (for OME-A822PGL) will get nearly
the same result except resolution. So choosing the correct configuration

code can achieve the highest precision measurement.

OME-A-822PGL Input Signal Range Configuration Code Table

Bipolar/Unipolar Input Signal Range Configuration Code

Bipolar
Bipolar
Bipolar

Bipolar
Unipolar
Unipolar
Unipolar
Unipolar

Bipolar

OME-A-822PGH Input Signal Range Configuration Code Table

Bipolar/Unipolar Input Signal Range Configuration Code

Bipolar

Bipolar

Bipolar

Bipolar
Unipolar
Unipolar
Unipolar
Unipolar

Bipolar

Bipolar

Bipolar

Bipolar

+/- 5V 0

+/- 2.5V 1

+/- 1.25V 2

+/- 0.0625V 3

0V ~ 10V 4

0V ~ 5V 5

0V ~ 2.5V 6

0V ~ 1.25V 7

+/- 10V 8

+/- 5V 0

+/- 0.5V 1

+/- 0.05V 2

+/- 0.005V 3

0 ~ 10V 4

0 ~ 1V 5

0 ~ 0.1V 6

0 ~ 0.01V 7

+/- 10V 8

+/- 1V 9

+/- 0.1V 10

+/- 0.01V 11

Ver: 1.1 Date: 09/18/00 Page 24

OME-A-822 Software Manual for Windows 2000

2.2 ERROR CODE

Error Code Number Description

A822_NoError 0 OK

A822_DriverOpenError 1 Please check if the driver installed correctly.

A822_DriverNoOpen 2 Please call the driver initial function to open the

driver first.

A822_GetDriverVersionError 3 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_InstallIrqError 4 1. Please call the driver initial function to open

the driver firstly.

2. Please check the resource that does not
conflicted with other device.

A822_ClearIntCountError 5 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_GetIntCountError 6 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_GetBufferError 7 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_AllocateMemoryError 11 Can’t allocate the memory for buffer. Please

check your system’s resource.

A822_CardTypeError 12 Valid range is : 0 to 1 (OME-A-822L or OME-A-

822H)

A822_TimeoutError 13 ADC timeout error

A822_OtherError 14 Unknown error

A822_ExceedBoardNumber 15 The driver initial function will return number of

total boards. The board number to be active must
less then this number. For example: if the driver
initial function returns 3, and the valid range is 0
to 2.

Ver: 1.1 Date: 09/18/00 Page 25

OME-A-822 Software Manual for Windows 2000

A822_CardNotFound 16 The card not found by the device driver. Please

check your hardware and driver settings.

A822_ChannelNoError 17 The valid AD channel no range is 0 to 15.

The valid DA channel no range is 0 to 1.

A822_IntStopError 18 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_IntInstallEventError 19 Can’t call the device driver function. Please call

the driver initial function to open the driver first.

A822_GetConfigError 20 1. Can’t call the device driver function. Please

call the driver initial function to open the driver
firstly.

2. Call the “ActiveBoard” function first.

A822_ActiveBoardError 21 1. Please call the driver initial function to open

the driver first.

2. The driver initial function will return number of
total boards. The board number to be active
must less then this number.

A822_ConfigCodeError 22 Please refer to “Section 2.1 Range Configuration

Code” for the valid configuration code.

A822_BufferFull 23 The buffer for the Channel Scan had full. The

max number of buffer is 100 channels to scan.
Please use the A822_ChScan_Clear() function to
clear the buffer.

A822_NoChannelToScan 24 The user has to setting the channels to scan.

Please use the A822_ChScan_Add() function to
add channel and configuration-code to buffer for
the Channel Scan.

A822_IntInstallChannelError 25 Failed to install the list for the Channel Scan into

the interrupt service routine. Please check your
system’s resource.

A822_IntInstallConfigError 26 Failed to install the list for the Channel Scan into

the interrupt service routine. Please check your
system’s resource.

Ver: 1.1 Date: 09/18/00 Page 26

OME-A-822 Software Manual for Windows 2000

2.3 OTHER MANUALS

Please refer to the following user manuals:

• SoftInst.pdf:

Install the software package under Windows 95/98/NT/2000.

• CallDll.pdf:

Include the declaration files and call the DLL functions with VC++5, VB5,

Delphi3 and Borland C++ Builder 3.

• ResCheck.pdf:

Check the resources I/O Port address, IRQ number and DMA number

for add-on cards under Windows 95/98/NT/2000.

• PnPInstall.pdf:

Install the Plug and Play information file (*.inf) under Windows

95/98/2000.

Ver: 1.1 Date: 09/18/00 Page 27

OME-A-822 Software Manual for Windows 2000

3. FUNCTION DESCRIPTION

These functions in DLL are divided into several groups as following:

1. The test functions

2. The DI/O functions

3. The AD/DA fixed-mode functions

4. The Driver functions

5. The AD Interrupt Mode functions

6. The AD, Channel Scan functions

7. The AD Interrupt, Channel Scan functions

The functions of test listing as follows:

1. A822_SHORT_SUB_2

2. A822_FLOAT_SUB_2

3. A822_Get_DLL_Version

4. A822_GetDriverVersion

The functions of DI/O listing as follows:

1. A822_DI

2. A822_DO

3. A822_InputByte

4. A822_InputWord

5. A822_OutputByte

6. A822_OutputWord

The functions of AD/DA listing as follows:

1. A822_SetChGain

2. A822_Fast_AD_Hex

3. A822_Fast_AD_Float

4. A822_AD_Hex

5. A822_AD_Float

6. A822_ADs_Hex

7. A822_ADs_Float

8. A822_Hex2Float

9. A822_DA_Hex

10. A822 _DA_Uni5

11. A822 _DA_Uni10

Ver: 1.1 Date: 09/18/00 Page 28

OME-A-822 Software Manual for Windows 2000

The functions of Driver listing as follows:

1. A822_DriverInit

2. A822_DriverClose

3. A822_DELAY

4. A822_Check_Address

5. A822_SetTriggerMode

6. A822_GetConfigAddress

7. A822_ActiveBoard

8. A822_SetCounter

9. A822_ReadCounter

The functions of AD Interrupt listing as follows:

1. A822_Int_Install

2. A822_Int_Start

3. A822_Int_Stop

4. A822_Int_Remove

5. A822_Int_GetCount

6. A822_Int_GetHexBuf

7. A822_Int_GetFloatBuf

The functions of AD, Channel Scan listing as follows:

1. A822_ChScan_Clear

2. A822_ChScan_Add

3. A822_ChScan_PollingHex

4. A822_ChScan_PollingFlaot

The functions of AD Interrupt, Channel Scan listing as follows:

1. A822_ChScan_IntInstall

2. A822_ChScan_IntStart

3. A822_ChScan_IntStop

4. A822_ChScan_IntRemove

5. A822_ChScan_IntGetCount

6. A822_ChScan_IntGetHexBuf

7. A822_ChScan_IntGetFloatBuf

In this chapter, we use some keywords to indicate the attribute of Parameters.

Keyword Parameter Set by user

before calling this function ?

[In] Yes No
[Out] No Yes
[In, Out] Yes Yes

Note: All of the parameters require space allocation by the user.

User Gets the data/value

from this parameter

after calling this function ?

Ver: 1.1 Date: 09/18/00 Page 29

OME-A-822 Software Manual for Windows 2000

3.1 TEST FUNCTION

3.1.1 A822_SHORT_SUB_2

• Description:

Compute C=A-B in short formats, short = 16-bit signed integer.

This function is provided for testing purpose.

• Syntax:

short A822_SHORT_SUB_2(short nA, short nB);

• Parameter:

nA : [In] short integer
nB : [In] short integer

• Return:

return=nA-nB Æ short integer

3.1.2 A822_FLOAT_SUB_2

• Description:

Compute A-B in float format, float = 32-bit floating pointer number.

This function is provided for testing purpose.

• Syntax:

float A822_FLOAT_SUB_2(float fA, float fB);

• Parameter:

fA : [In] floating point value
fB : [In] floating point value

• Return:

return=fA-fB Æ floating point value

Ver: 1.1 Date: 09/18/00 Page 30

OME-A-822 Software Manual for Windows 2000

3.1.3 A822_Get_DLL_Version

• Description:

Read the software version of the A822.DLL.

• Syntax:

WORD A822_Get_DLL_Version(void) ;

• Parameter:

void

• Return:

return=0x200 Æ Version 2.00 (WORD = 16-bit unsigned integer)

3.1.4 A822_GetDriverVersion

z Description:

This subroutine will get the version number from the device driver.

z Syntax:

WORD A822_GetDriverVersion(WORD *wDriverVersion );

z Parameter:

wDriverVersion :[Out] the address of wDriverVersion.

when wDriverVerion=0x210 → version 2.10

z Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

Ver: 1.1 Date: 09/18/00 Page 31

OME-A-822 Software Manual for Windows 2000

3.2 DI/DO FUNCTION

3.2.1 A822_DI

• Description:

This subroutine will read the 16-bit data from the digital input port.

• Syntax:

WORD A822_DI(WORD *wInVal);

• Parameter:

wInVal : [In] 16 bits Digital-Input value.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

3.2.2 A822_DO

• Description:

This subroutine will send the 16-bit data to digital output port.

• Syntax:

WORD A822_DO(WORD wHexValue);

• Parameter:

wHexValue : [In] 16 bit data sent to digital output port

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

Ver: 1.1 Date: 09/18/00 Page 32

OME-A-822 Software Manual for Windows 2000

3.2.3 A822_OutputByte

• Description:

This subroutine will send the 8-bit data to the desired I/O port.

• Syntax:

void A822_OutputByte(WORD wPortAddr, UCHAR bOutputVal);

• Parameter:

wPortAddr : [In] I/O port address, for example, 0x220
bOutputVal : [In] 8-bit data sent to I/O port

• Return:

void

3.2.4 A822_OutputWord

• Description:

This subroutine will send the 16-bit data to the desired I/O port.

• Syntax:

void A822_OutputByte(WORD wPortAddr, WORD wOutputVal);

• Parameter:

wPortAddr : [In] I/O port address, for example, 0x220
wOutputVal : [In] 16-bit data sent to I/O port

• Return:

void

Ver: 1.1 Date: 09/18/00 Page 33

OME-A-822 Software Manual for Windows 2000

3.2.5 A822_InputByte

• Description:

This subroutine will input the 8-bit data from the desired I/O port.

• Syntax:

WORD A822_InputByte(WORD wPortAddr);

• Parameter:

wPortAddr : [In] I/O port address, for example, 0x220

• Return:

16-bit data with the leading 8 bits are all 0

3.2.6 A822_InputWord

• Description:

This subroutine will input the 16-bit data from the desired I/O port.

• Syntax:

WORD DIO_InputWord(WORD wPortAddr);

• Parameter:

wPortAddr : [In] I/O port address, for example, 0x220

• Return:

16-bit data.

Ver: 1.1 Date: 09/18/00 Page 34

OME-A-822 Software Manual for Windows 2000

3.3 A/D, D/A FUNCTION

3.3.1 A822_SetChGain

• Description:

The subroutine sets the channel number and configuration code for

the ADC. And then user delays for the settling time.

The user have to call this function once before calling the
“A822_Fast_AD_Hex()”, “A822_Fast_AD_Float()”, “A822_Int_Start()”,
“A822_ADs_Hex()” and “A822_ADs_Float()” functions.

• Syntax:

WORD A822_SetChGain

(WORD wChannel, WORD wConfig, WORD wCardType);

• Parameter:

wChannel : [In] A/D channel number, 0 to 15.
wConfig : [In] Configuration code, refer to “Section 2.1 Range

Configuration Code” for detailed information.

wCardType : [In] 0 Æ OME-A-822PGL, 1Æ OME-A-822PGH

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

Ver: 1.1 Date: 09/18/00 Page 35

OME-A-822 Software Manual for Windows 2000

3.3.2 A822_Fast_AD_Hex

• Description:

This subroutine will perform an A/D conversion by polling. The A/D
converter is 12 bits for OME-A822PGH/L. The user has to call the

“A822_SetChGain()” function before calling this function.

• Syntax:

WORD A822_Fast_AD_Hex(WORD *wVal);

• Parameter:

wVal : [Out] 12 bits hex value of Analog-Input.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

3.3.3 A822_Fast_AD_Float

• Description:

This subroutine will perform an A/D conversion by polling. The A/D
converter is 12 bits for OME-A822PGH/L. This subroutine will compute the
result according to the configuration code

“A822_SetChGain()” function before calling this function.

• Syntax:

WORD A822_Fast_AD_Float(float *fVal);

• Parameter:

fVal : [Out] Floating point value of Analog-Input.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

. The user has to call the

Ver: 1.1 Date: 09/18/00 Page 36

OME-A-822 Software Manual for Windows 2000

3.3.4 A822_AD_Hex

• Description:

This subroutine will perform an A/D conversion by polling. The A/D

converter is 12 bits for OME-A822PGH/L.

• Syntax:

WORD A822_AD_Hex

(WORD wChannel, WORD wConfig, WORD wCardType, WORD *wVal);

• Parameter:

wChannel : [In] A/D channel number, 0 to 15.
wConfig : [In] Configuration code, refer to “Section 2.1 Range

Configuration Code” for detail information

wCardType : [In] 0 Æ OME-A-822PGL, 1Æ OME-A-822PGH
wVal : [Out] 12 bits hex value of Analog-Input.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

3.3.5 A822_AD_Float

• Description:

This subroutine will perform an A/D conversion by polling. The A/D
converter is 12 bits for OME-A822PGH/L. This subroutine will compute the
result according to the configuration code

• Syntax:

WORD A822_AD_Float

(WORD wChannel, WORD wConfig, WORD wCardType, float *fVal);

• Parameter:

wChannel : [In] A/D channel number, 0 to 15.
wConfig : [In] Configuration code, refer to “Section 2.1 Range

Configuration Code” for detail information

wCardType : [In] 0 Æ OME-A-822PGL, 1Æ OME-A-822PGH
fVal : [Out] Floating point value of Analog-Input.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

.

Ver: 1.1 Date: 09/18/00 Page 37

OME-A-822 Software Manual for Windows 2000

3.3.6 A822_ADs_Hex

• Description:

This subroutine will perform a number of A/D conversions by polling.
This subroutine is very similar to A822_AD_Hex except that this subroutine
will perform wCount of conversions instead of just one conversion. The A/D
conversion happens at the ISA bus’s max speed. After A/D conversion, the
A/D data are stored in a buffer in Hex format. The wBuf
address of this data buffer. The user has to call the “A822_SetChGain()”

function before calling this function.

• Syntax:

WORD A822_ADs_Hex(WORD wBuf[], WORD wCount);

• Parameter:

wBuf : [Out] Starting address of the data buffer
(In WORD format)

The user must allocate space for this buffer and send
the address in the function. This function will fill the data
into this buffer. The user can analyze this data from the
buffer after calling this function.

wCount : [In] Number of A/D conversions will be performed

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

is the starting

Ver: 1.1 Date: 09/18/00 Page 38

OME-A-822 Software Manual for Windows 2000

3.3.7 A822_ADs_Float

• Description:

This subroutine will perform a number of A/D conversions by polling.
This subroutine is very similar to A822_AD except that this subroutine will
perform wCount of conversions instead of just one conversion. The A/D
conversion happens at the ISA bus’s max speed. Then the A/D data are
stored in a data buffer in Float format. The fBuf
data buffer. The user has to call the “A822_SetChGain()” function before

calling this function.

• Syntax:

WORD A822_ADs_Float(float fBuf[], WORD wCount);

• Parameter:

fBuf : [Out] Starting address of the data buffer

(In float format)

The user must allocate space for this buffer and send
the address in the function. This function will fill the data
into this buffer. The user can analyze this data from the
buffer after calling this function.

wCount : [In] Number of A/D conversions will be performed

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

is the starting address of this

Ver: 1.1 Date: 09/18/00 Page 39

OME-A-822 Software Manual for Windows 2000

3.3.8 A822_DA_Hex

• Description:

This subroutine will send 12 bits of data to D/A analog output. The

output range of D/A maybe 0-5V or 0-10V set by the hardware jumper,

JP1. The software cannot detect the output range of D/A converter. For
examples, if hardware select -5V, the 0xfff will send out 5V. If
hardware select -10V, the 0xfff will send out 10V. The factory setting
select 0-5V D/A output range.

• Syntax:

WORD A822_DA_Hex(WORD wChannel, WORD wHexValue);

• Parameter:

wChannel : [In] D/A channels number, validate for 0 or 1.
wHexValue : [In] 12 bit data send to D/A converter

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.3.9 A822 _DA_Uni5

• Description:

This subroutine will send the 12 bits of data to D/A analog output. The
output range of D/A dependent on hardware jumper settings, JP1 (- 5v or –
10v), JP10/JP11 (Bipolar or Unipolar). The software cannot detect the
output range of D/A converter. This subroutine can be used only when the
jumper's settings are: Unipolar, -5v. The output range is between 0.0v and

5.0v. Please refer to hardware manual to setting jumpers.

• Syntax:

void A822 _DA_Uni5 (WORD wChannel, float fValue);

• Parameter:

wChannel : [In] D/A channel number, validated for 0 or 1
fValue : [In] 12 bit data send to D/A converter

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 40

OME-A-822 Software Manual for Windows 2000

3.3.10 A822 _DA_Uni10

• Description:

This subroutine will send the 12 bits of data to D/A analog output. The
output range of D/A dependent on hardware jumper settings, JP1 ( - 5v or -
10v) , JP10/JP11 (Bipolar or Unipolar). The software cannot detect the
output range of D/A converter. This subroutine can be used only when the
jumper's settings are: Unipolar , -10v . The output range is between 0.0v

and 10.0v. Please refer to hardware manual to setting jumpers.

• Syntax:

void A822 _DA_Uni10 (WORD wChannel, float fValue);

• Parameter:

wChannel : [In] D/A channels number, validate for 0 or 1
fValue : [In] 12 bit data send to D/A converter

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 41

OME-A-822 Software Manual for Windows 2000

3.4 DRIVER FUNCTION

3.4.1 A822_DriverInit

z Description:

This subroutine will open the device driver. After calling the A822_DriverInit()
function, the user still have to call the A822_ActiveBoard() function before
accessing the device.

z Syntax:

WORD A822_DriverInit(WORD *wTotalBoards);

z Parameter:

WTotalBoards : [Out] Returns the number of boards that were found by

the driver.

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.4.2 A822_DriverClose

z Description:

This subroutine will close the device driver.

z Syntax:

void A822_DriverClose(void);

z Parameter:

None

z Return:

None

Ver: 1.1 Date: 09/18/00 Page 42

OME-A-822 Software Manual for Windows 2000

3.4.3 A822_SetTriggerMode

z Description:

This subroutine will set the trigger mode - internal or external. The
default value/mode is the internal trigger mode if the user does not use
this function. The user must call this function before calling any AD
function (include the “A822_ActiveBoard” and "A822_Check_Address"
functions) if the user uses external trigger mode.

Please refer to the hardware manual to set the jumper JP4(A/D
Trigger Source Selection). The JP4 default setting is "INTTRG"(Internal­Trigger).

z Syntax:

void A822_SetTriggerMode(WORD wTriggerMode )

z Parameter:

wTriggerMode : [In] 0: Internal Trigger Mode

1: External Trigger Mode

z Return:

None

Ver: 1.1 Date: 09/18/00 Page 43

OME-A-822 Software Manual for Windows 2000

3.4.4 A822_DELAY

• Description:

This subroutine will delay wDownCount mS (machine independent timer).
This function uses the Counter0 to implement delay function.
The unit of A822_DELAY() is 0.5uSeconds. (2MHz Î 2000K times/sec)

• Syntax:

WORD A822_DELAY(WORD wDownCount);

• Parameter:

wDownCount : [In] Number of 0.5uS it will delay

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.4.5 A822_Check_Address

• Description:

This subroutine will detect the OME-A-822PGH/L in I/O base address.
This subroutine will perform one A/D conversion. If successful, it found an
OME-A-822PGH/L. This function will always return 0 if the user set the
trigger mode to external.

Refer to the function "A822_SetTriggerMode".

• Syntax:

WORD A822_Check_Address(void);

• Parameter:

None

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 44

OME-A-822 Software Manual for Windows 2000

3.4.6 A822_GetConfigAddress

• Description:

This subroutine returns the Base-Address and board-number of the

current board.

If the current board is invalid, the Base-Address will be 0.

• Syntax:

WORD A822_GetConfigAddress

(WORD *wAddrBase, WORD *wCurrentBoard);

• Parameter:

wAddrBase : [Out] Returns the Base-Address of the current board.
wCurrentBoard : [Out] Returns the board-number of the current board.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.4.7 A822_ActiveBoard

• Description:

This subroutine activates the specified board. User can then call the
A822_Check_Address() function to check this hardware automatically. If the
function can not access this device, it also returns A822_CardNotFound
error code. Please refer to the “A822_DriverInit()” function for the valid
range of board numbers.

• Syntax:

WORD A822_ActiveBoard( WORD wBoardNo );

• Parameter:

wBoardNo : [In] The board number to be active.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 45

OME-A-822 Software Manual for Windows 2000

3.4.8 A822_SetCounter

• Description:

This subroutine will set the 8254 counter mode and value.

• Syntax:

void A822_SetCounter(WORD wCounterNo,

WORD bCounterMode, DWORD wCounterValue);

• Parameter:

wCounterNo : [Input] Counter Number 0 to 2 for the 8254
wCounterMode : [Input] Counter Mode 0 to 5 for the 8254
wCounterValue : [Input] Counter Value 0 to 65535 for the 8254

• Return:

None

3.4.9 A822_ReadCounter

• Description:

This subroutine will read the 8254 counter value.

• Syntax:

DWORD A822_ReadCounter(WORD wCounterNo, WORD bCounterMode);

• Parameter:

wCounterNo : [Input] Counter Number 0 to 2 for the 8254
wCounterMode : [Input] Counter Mode 0 to 5 for the 8254

• Return:

Return the counter's value and only the lower WORD is valid.

Ver: 1.1 Date: 09/18/00 Page 46

OME-A-822 Software Manual for Windows 2000

3.5 AD, INTERRUPT FUNCTION

3.5.1 A822_Int_Install

• Description:

This subroutine will install interrupt handler and allocate buffer. For
more detail information of using interrupt please refer to “Section 3.5.8

Architecture of Interrupt Mode".

• Syntax:

WORD A822_Int_Install(HANDLE *hEvent, DWORD dwCount );

• Parameter:

hEvent : [In] The Event handle that created by the user.
dwCount : [In] The desired A/D entries count for interrupt transfer.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.5.2 A822_Int_Start

z Description:

This subroutine will clear the interrupt-counter and start the interrupt
transfer for a specific A/D channel and programming the gain code and
sampling rate. The user has to call the “A822_SetChGain()” function once

before this function.

z Syntax:

WORD A822_Int_Start(WORD c1, Word c2);

z Parameter:

c1,c2 : [In] the sampling rate is 2M/(c1*c2)

c1Î Counter1, c2Î Counter2

These values be used only when the Trigger-Mode is

set to Internal-Trigger. Please refer to the function
"A822_SetTriggerMode".

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 47

OME-A-822 Software Manual for Windows 2000

3.5.3 A822_Int_Stop

z Description:

This subroutine will stop the interrupt transfer.

z Syntax:

WORD A822_Int_Stop(void );

z Parameter:

void.

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.5.4 A822_Int_Remove

z Description:

This subroutine will remove the interrupt handler and free the buffer.

z Syntax:

WORD A822_Int_Remove(void );

z Parameter:

void.

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.5.5 A822_Int_GetCount

• Description:

This subroutine will read the transferred count of interrupts.

• Syntax:

WORD A822_Int_GetCount(DWORD *dwVal )

• Parameter:

dwVal : [Out] Returns the count of interrupts transferred.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 48

OME-A-822 Software Manual for Windows 2000

3.5.6 A822_Int_GetHexBuf

• Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

• Syntax:

WORD A822_Int_GetHexBuf(WORD wBuf[], DWORD dwNum)

• Parameter:

wBuf : [Out] The address of wBuffer(In WORD format).

The user must allocate spaces for this buffer and send
the address in the function. This function will fill the data
into this buffer. The user can analyze this data from the
buffer after calling this function.

dwNum : [In] The number to transfer.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.5.7 A822_Int_GetFloatBuf

• Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

• Syntax:

WORD A822_Int_GetFloatBuf(float fBuf[],DWORD dwNum)

• Parameter:

fBuf : [Out] The address of fBuffer(In float format).

The user must allocate spaces for this buffer and send
the address in the function. This function will fill the data
into this buffer. The user can analyze this data from the
buffer after calling this function.

dwNum : [In] The number to transfer.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 49

OME-A-822 Software Manual for Windows 2000

3.5.8 Architecture of Interrupt mode

The functions listed in sections 3.5.1 to 3.5.7 are the functions to perform the A/D
conversion with interrupt transfer. The flow chart to program these functions is
given as follows:

A822_DriverInit( ) : Initialize the Device-Driver

CreateEvent( ) : Create the Event object.

A822_Int_Install( ) : Install the interrupt handler and allocate Buffer.

A822_SetChGain( ) : Setting the Channel and Gain-Code.

A822_Int_Start( ) : Starting the Interrupt Transfer

WaitForSingleObject( ) : Waiting for the Event object be
signaled.

A822_Int_Stop( ) : Stop the interrupt transfer.

A822_Int_GetHexBuf( ) : To copy data into user's buffer

A822_Int_Remove( ) : Remove the interrupt handler and free buffer.

CloseHandle( ) : Free the Event object.

A822_DriverClose( ) : Close the Device-Driver

Ver: 1.1 Date: 09/18/00 Page 50

OME-A-822 Software Manual for Windows 2000

3.6 AD, CHANNEL SCAN FUNCTION

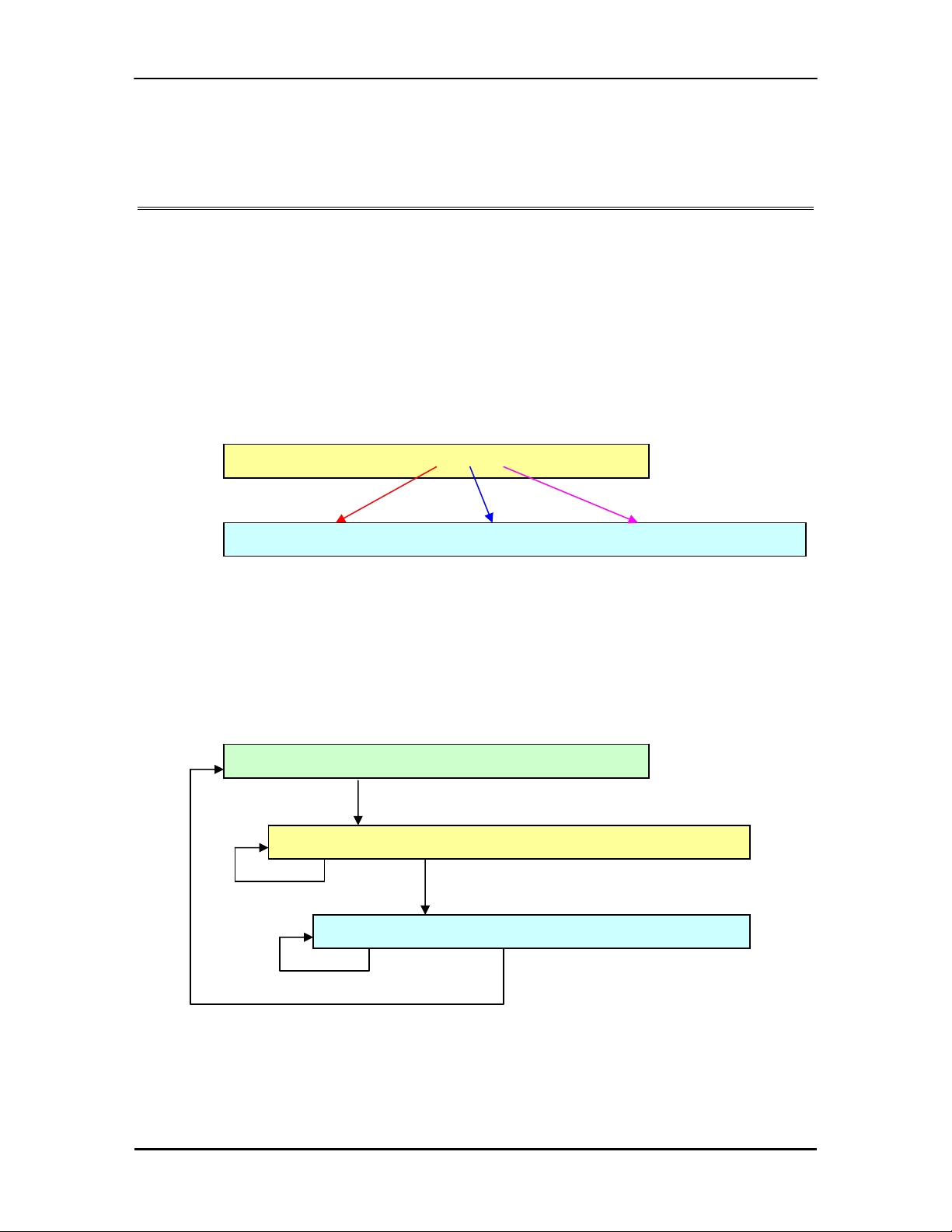

3.6.1 Introduction

The user can specify channels into a list buffer. User then uses other
functions to perform the ADC to get the data. Then user can read the list buffer to
change to next channel and set to specify configuration code.

The data will be saved into the following style:

List buffer for Channel Scan : CA, CB, CC

User’s buffer : CAV, CAV, CAV, …… CBV, CBV, CBV, ….. CCV, CCV, CCV….

Note:
CA= Channel A; CB= Channel B; CC= Channel C
CAV= Channel A’s value; CBV= Channel B’s value;

CCV= Channel C’s value

The user program’s architecture should be as described below:

A822_ChScan_Clear : Clear the list buffer for Channel Scan

A822_ChScan_Add : Add channels to the list buffer for Channel Scan

A822_ChScan_PollingFloat : Do the Channel Scan to get data

Ver: 1.1 Date: 09/18/00 Page 51

OME-A-822 Software Manual for Windows 2000

3.6.2 A822_ChScan_Clear

• Description:

This subroutine will clear the list buffer for the Channel Scan.

• Syntax:

void A822_ChScan_Clear(void);

• Parameter:

None

• Return:

None

3.6.3 A822_ChScan_Add

• Description:

This function will add the specified channel number and configuration-

code into the list buffer for the Channel Scan. The max number of the list
buffer (for the Channel Scan) is 100 channels.

• Syntax:

WORD A822_ChScan_Add(WORD wChannel, WORD wConfig);

• Parameter:

wChannel : [In] Which channel to be scanned.
WConfig : [In] Specify the configuration-code for this channel.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 52

OME-A-822 Software Manual for Windows 2000

3.6.4 A822_ChScan_PollingHex

• Description:

This subroutine will perform a number of A/D conversions by polling.
After getting the channel’s data, it then reads the list buffer for the Channel
Scan to change to next channel and set to specified configuration code. The
A/D conversion happens at the ISA bus’s max speed. After A/D conversion,
the A/D data are stored in a buffer in Hex format.

Before calling this function, the user have to call the
A822_ChScan_Clear() and A822_ChScan_Add() functions to setup the list
buffer for Channel Scan. Please refer to the “Section 3.6.1 Introduction” for
more information.

• Syntax:

WORD A822_ChScan_PollingHex

(WORD wCardType, WORD wBuf[], WORD wNumPerCh);

• Parameter:

WCardType : [In] 0: OME-A-822L 1: OME-A-822H
wBuf : [Out] Starting address of the data buffer (WORD format)

The user must allocate spaces for this buffer and send
the address into the function. This function will fill the data
into this buffer. The user can analyzes these data from the
buffer after calling this function.

The buffer size

= Total-Channels * wNumPerCh * sizeof(WORD)

wNumPerCh : [In] Number of A/D conversions will be performed for every

channel.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 53

OME-A-822 Software Manual for Windows 2000

3.6.5 A822_ChScan_PollingFloat

• Description:

This subroutine will perform a number of A/D conversions by polling.
And after getting the channel’s data, it will then read the list buffer for the
Channel Scan to change to next channel and set to specified configuration
code. The A/D conversion happens at the ISA bus’s max speed. After A/D
conversion, the A/D data gets stored in a buffer in floating format.

Before calling this function, the user have to call the
A822_ChScan_Clear() and A822_ChScan_Add() functions to setup the list
buffer for Channel Scan. Please refer to the “Section 3.6.1 Introduction” for
more information.

• Syntax:

WORD A822_ChScan_PollingFloat

(WORD wCardType, float fBuf[], WORD wNumPerCh);

• Parameter:

WCardType : [In] 0: OME-A-822L 1: OME-A-822H
fBuf : [Out] Starting address of the data buffer (floating format)

The user must allocate spaces for this buffer and send
the address into the function. This function will fill the data
into this buffer. The user can analyze this data from the
buffer after calling this function.

The buffer size

= Total-Channels * wNumPerCh * sizeof(float)

wNumPerCh : [In] Number of A/D conversions will be performed for every

channel.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 54

OME-A-822 Software Manual for Windows 2000

3.7 AD INTERRUPT, CHANNEL SCAN

FUNCTION

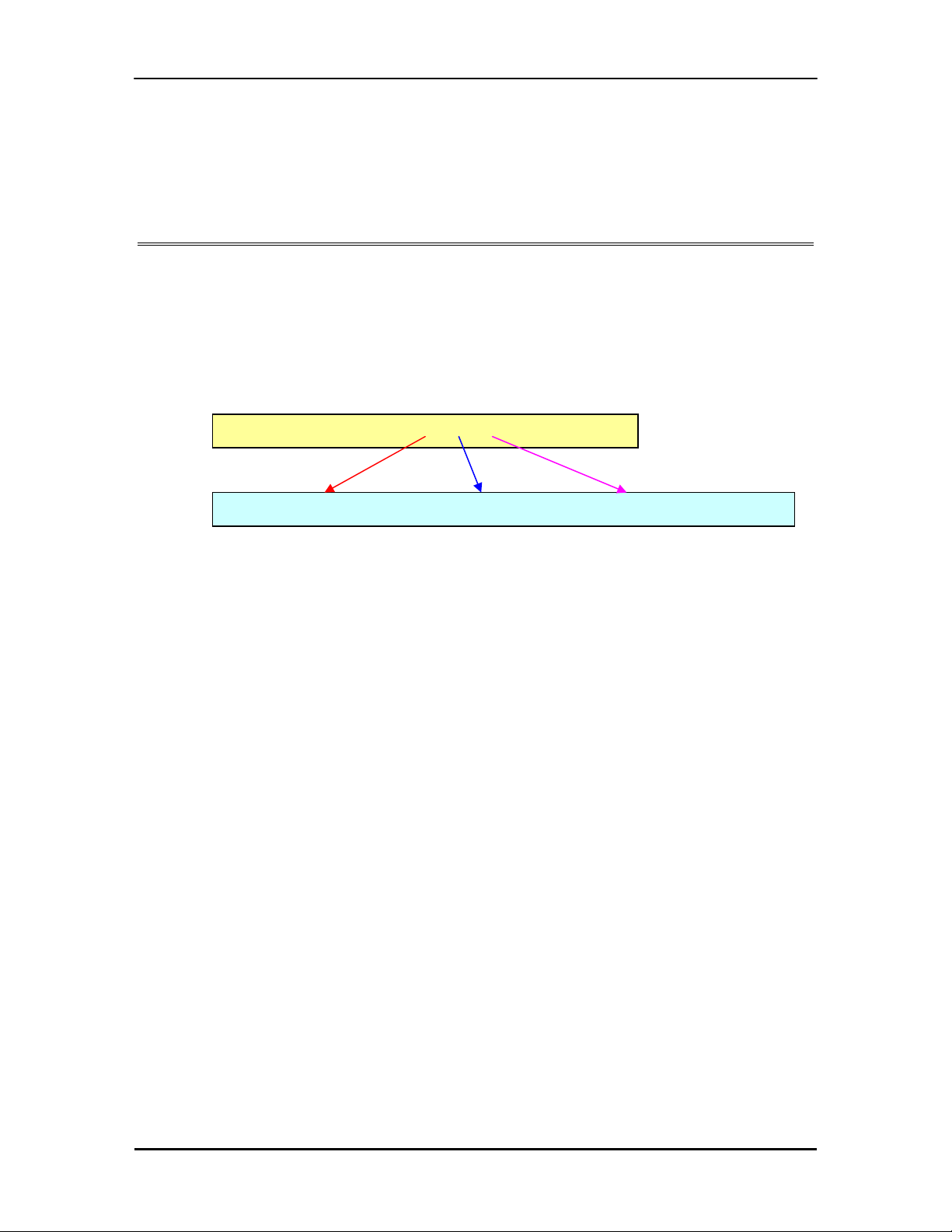

3.7.1 Introduction

The user can specify channels into a list buffer. Then user uses functions
to perform the ADC to get the data. Then they read the list buffer to change to
next channel and set to specify configuration code.

List buffer for Channel Scan : CA, CB, CC

User’s buffer: CAV, CAV, CAV, … CBV, CBV, CBV, … CCV, CCV, CCV, …

The data will be saved into the following style:

Note:
CA= Channel A; CB= Channel B; CC= Channel C
CAV= Channel A’s value; CBV= Channel B’s value; CCV= Channel C’s value

After setting the next channel and specified configuration code, it will have

to delay for period equal to the settling time before next ADC. The interrupt

service routinue doesn’t provide for the delay for the settling time. Thus, to get

the correct ADC data, the user has to slow-down the sampling-rate of interrupt.

The sampling-rate is for all channels.
For example:

The list buffer for the Channel Scan is set to channel 2 and channel 0. The
sampling rate is setting to 10 KHz. Actually the channel 2 has the sampling rate
of 5KHz and the channel 0 also has the sampling rate of 5KHz.

Ver: 1.1 Date: 09/18/00 Page 55

OME-A-822 Software Manual for Windows 2000

A

A

The user program architecture should be as described here:

A822_DriverInit( ) : Initialize the Device-Driver

822_ChScan_Clear( ) : Clear the list buffer for Channel Scan

822_ChScan_Add( ) : Add channels to the list buffer for Channel

CreateEvent( ) : Create the Event object.

A822_ChScan_IntInstall( ) : Install the interrupt handler, list buffer for
Channel Scan and allocate Buffer for all channels.

A822_ChScan_IntStart( ) : Starting the Interrupt Transfer

WaitForSingleObject( ) : Waiting for the Event object be
signaled.

A822_ChScan_IntStop( ) : Stop the interrupt transfer.

A822_ChScan_IntGetFloatBuf( ) : Copy data into user's buffer

CloseHandle( ) : Free the Event object.

A822_ChScan_IntRemove( ) : Remove the interrupt handler and free
allocated buffers.

A822_DriverClose( ) : Close the Device-Driver

Ver: 1.1 Date: 09/18/00 Page 56

OME-A-822 Software Manual for Windows 2000

3.7.2 A822_ChScan_IntInstall

• Description:

This subroutine will install interrupt handler, copy the list buffer for
Channel Scan into kernel-mode driver and allocate buffers for every channels.
Before install the interrupt, the user has to call the "A822_ChScan_Clear()"

and "A822_ChScan_Add()" functions to setup the list buffer for Channel Scan
firstly. For more detail information regarding using interrupts please refer to

“Section 3.7.1 Introduction".

• Syntax:

WORD A822_ChScan_IntInstall(HANDLE *hEvent, DWORD dwNumPerCh);

• Parameter:

hEvent : [In] The Event handle created by the user.
dwNumPerCh : [In] The desired A/D count for every channels to transfer.

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.7.3 A822_ChScan_IntStart

z Description:

This subroutine will clear the interrupt-counter and start the interrupt
transfer for the specific A/D channels and program the gain code and
sampling rate.

z Syntax:

WORD A822_ChScan_IntStart(WORD c1, WORD c2, WORD wCardType);

z Parameter:

c1,c2 : [In] the sampling rate is 2M/(c1*c2); c1=Counter1, c2=Counter2

These counter's value only used when the Trigger-Mode is set
to Internal-Trigger. Please refer to the "A822_SetTriggerMode"
function.

wCardType : [In] 0: OME-A-822L 1: OME-A-822H

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 57

OME-A-822 Software Manual for Windows 2000

3.7.4 A822_ChScan_IntStop

z Description:

This subroutine will stop the interrupt transfer.

z Syntax:

WORD A822_ChScan_IntStop(void );

z Parameter:

void.

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.7.5 A822_ChScan_IntRemove

z Description:

This subroutine will remove the interrupt handler and free the buffers.

z Syntax:

WORD A822_ChScan_IntRemove(void );

z Parameter:

void.

z Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.7.6 A822_ChScan_IntGetCount

• Description:

This subroutine will read the transferred count of interrupt.

• Syntax:

WORD A822_Int_GetCount(DWORD *dwVal )

• Parameter:

dwVal : [Out] Returns the interrupt transferred count.

• Return:

Please refer to “Section 2.2 Error Code” for the detailed information.

Ver: 1.1 Date: 09/18/00 Page 58

OME-A-822 Software Manual for Windows 2000

3.7.7 A822_ChScan_IntGetHexBuf

• Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

• Syntax:

WORD A822_ChScan_IntGetHexBuf(WORD wBuf[])

• Parameter:

wBuf : [Out] The address of wBuf(WORD format).

The user must allocate spaces for this buffer and send the
address in the function. This function will fill the data into this buffer.
The user can analyze this data from the buffer after calling this
function.
Buffer size = Total-Channels * dwNumPerCh * sizeof(WORD)

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

3.7.8 A822_ChScan_IntGetFloatBuf

• Description:

This subroutine will copy the transferred interrupted data into the user’s

buffer.

• Syntax:

WORD A822_ChScan_IntGetFloatBuf(float fBuf[])

• Parameter:

fBuf : [Out] The address of fBuf(float format).

The user must allocate spaces for this buffer and send the
address in the function. This function will fill the data into this buffer.
The user can analyze this data from the buffer after calling this
function.
Buffer size = Total-Channels * dwNumPerCh * sizeof(float)

• Return:

Please refer to “Section 2.2 Error Code” for the detail information.

Ver: 1.1 Date: 09/18/00 Page 59

OME-A-822 Software Manual for Windows 2000

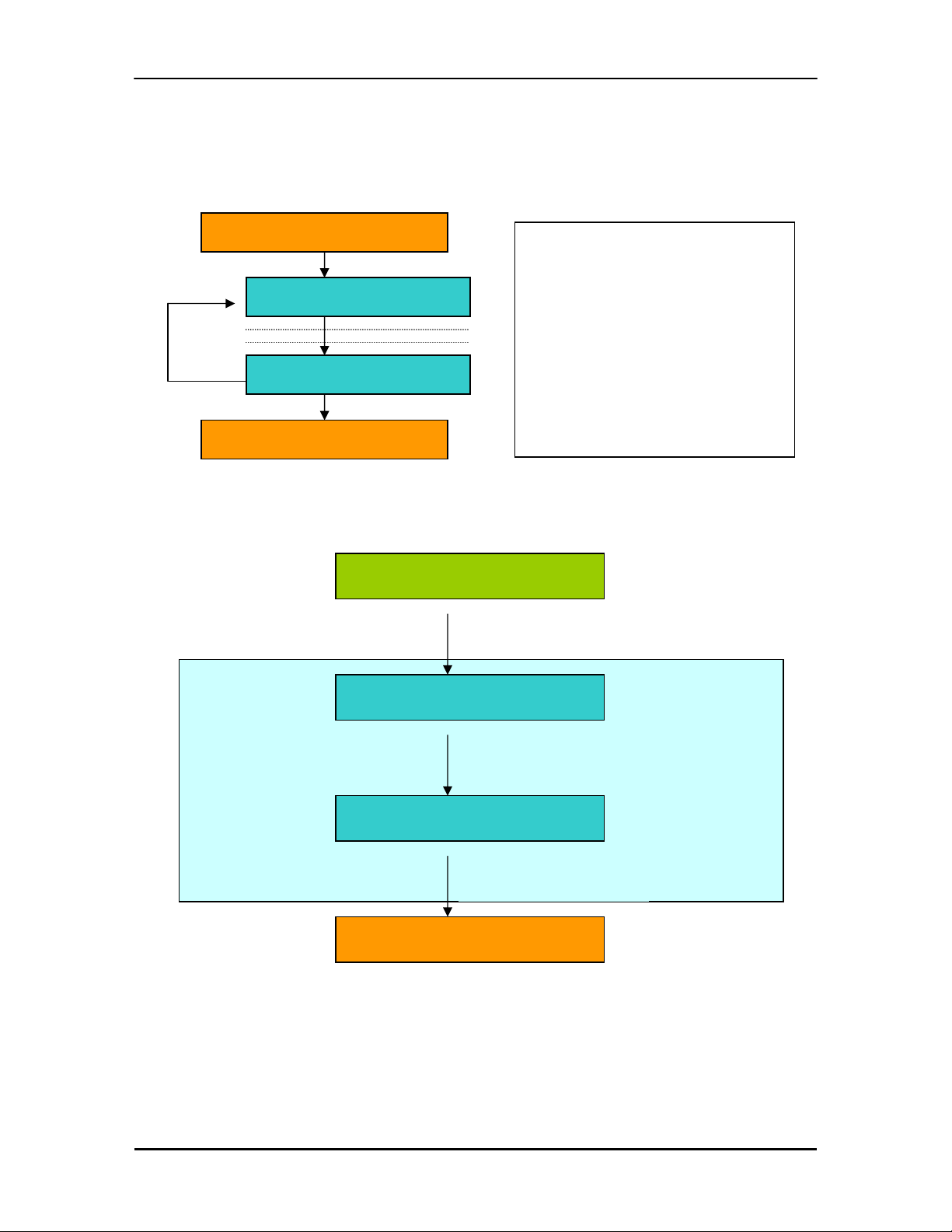

4. PROGRAM ARCHITECTURE

Initialize the Device-Driver

Access/Control the Device

Access/Control the Device

Close the Device-Driver

Development
Toolkit

A822_DriverInit()

….
A822_InputByte( … )
……..
……..
A822_OutputByte(…)
…..

A822_DriverClose()

User's Application

Function Call into DLLs

DLLs

Services Call into Kernel-Mode

.VXDs, .SYSs (Device Driver)

Device Control

Hardware Devices

Ver: 1.1 Date: 09/18/00 Page 60

OME-A-822 Software Manual for Windows 2000

5. REPORT PROBLEMS

Technical support is available at no charge as described below. The best

way to report problems is send electronic mail to [email protected] on the
Internet.

When reporting problems, please include the following information:

1) Is the problem reproducible? If so, how?

2) What kind and version of Operation Systems that you running? For example,

Windows 3.1, Windows for Workgroups, Windows NT 4.0, etc.

3) What kinds of our products that you using? Please see the product's manual.

4) If a dialog box with an error message was displayed, please include the full

text of the dialog box, including the text in the title bar.

5) If the problem involves other programs or hardware devices, what devices or

version of the failing programs that you using?

6) Other comments relative to this problem or any Suggestions will be welcomed.

After we received your comments, we will take about two business days to
testing the problems that you said. And then reply as soon as possible to you.
Please check that we have received your comments? And please keeping
contact with us.

E-mail: [email protected]

Web-Site: http://www.omega.com

Ver: 1.1 Date: 09/18/00 Page 61

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be
as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF TITLE,
AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.

The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

FOR W

ARRANTY

RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product

was PURCHASED,

2. Model and serial number of the product under

warranty, and

3. Repair instructions and/or specific problems

relative to the product.

FOR NON-W

ARRANTY

REPAIRS,

consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST

of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.

OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,

reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

M4032/0104

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at www.omega.com

TEMPERATURE



Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies



Wire: Thermocouple, RTD & Thermistor



Calibrators & Ice Point References



Recorders, Controllers & Process Monitors



Infrared Pyrometers

PRESSURE, STRAIN AND FORCE



Transducers & Strain Gages



Load Cells & Pressure Gages



Displacement Transducers



Instrumentation & Accessories

FLOW/LEVEL



Rotameters, Gas Mass Flowmeters & Flow Computers



Air Velocity Indicators



Turbine/Paddlewheel Systems



Totalizers & Batch Controllers

pH/CONDUCTIVITY



pH Electrodes, Testers & Accessories



Benchtop/Laboratory Meters



Controllers, Calibrators, Simulators & Pumps



Industrial pH & Conductivity Equipment

DATA ACQUISITION



Data Acquisition & Engineering Software



Communications-Based Acquisition Systems



Plug-in Cards for Apple, IBM & Compatibles



Datalogging Systems



Recorders, Printers & Plotters

HEATERS



Heating Cable



Cartridge & Strip Heaters



Immersion & Band Heaters



Flexible Heaters



Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL



Metering & Control Instrumentation



Refractometers



Pumps & Tubing



Air, Soil & Water Monitors



Industrial Water & Wastewater Treatment



pH, Conductivity & Dissolved Oxygen Instruments
