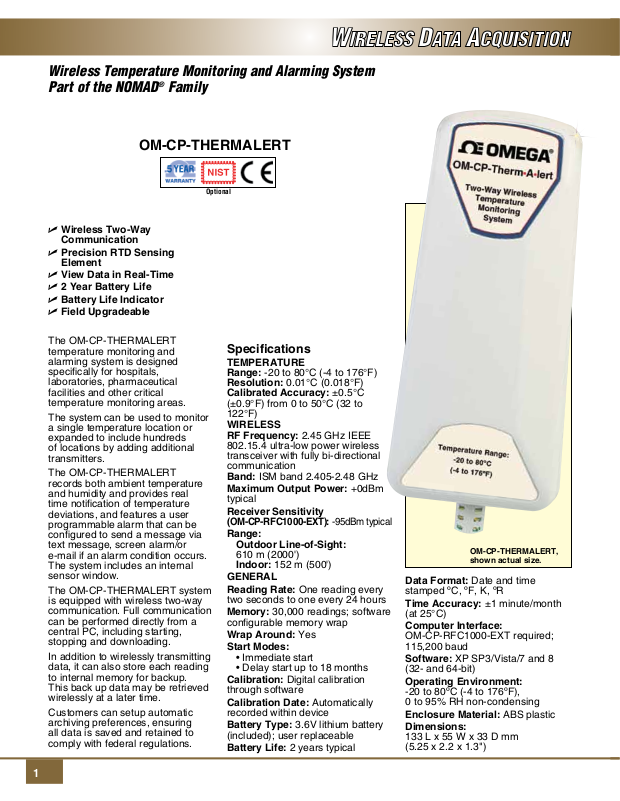

Page 1
Wireless Temperature Monitoring and Alarming System
Part of the NOMAD® Family
OM-CP-THERMALERT
Optional
U
Wireless Two-Way
Communication
U
Precision RTD Sensing
Element
U
View Data in Real-Time
U
2 Year Battery Life
U
Battery Life Indicator
U
Field Upgradeable
The OM-CP-THERMALERT
temperature monitoring and
alarming system is designed
specifically for hospitals,
laboratories, pharmaceutical
facilities and other critical
temperature monitoring areas.
The system can be used to monitor
a single temperature location or
expanded to include hundreds
of locations by adding additional
transmitters.
The OM-CP-THERMALERT
records both ambient temperature
and humidity and provides real
time notification of temperature
deviations, and features a user
programmable alarm that can be
configured to send a message via
text message, screen alarm/or
e-mail if an alarm condition occurs.
The system includes an internal
sensor window.
The OM-CP-THERMALERT system
is equipped with wireless two-way
communication. Full communication
can be performed directly from a
central PC, including starting,
stopping and downloading.
In addition to wirelessly transmitting
data, it can also store each reading
to internal memory for backup.
This back up data may be retrieved
wirelessly at a later time.
Customers can setup automatic
archiving preferences, ensuring
all data is saved and retained to
comply with federal regulations.
Specifications
TEMPERATURE
Range: -20 to 80°C (-4 to 176°F)
Resolution: 0.01°C (0.018°F)
Calibrated Accuracy: ±0.5°C
(±0.9°F) from 0 to 50°C (32 to
122°F)
WIRELESS
RF Frequency: 2.45 GHz IEEE
802.15.4 ultra-low power wireless
transceiver with fully bi-directional
communication
Band: ISM band 2.405-2.48 GHz
Maximum Output Power: +0dBm
typical
Receiver Sensitivity
(OM-CP-RFC1000-EXT): -95dBm typical
Range:
Outdoor Line-of-Sight:
610 m (2000')
Indoor: 152 m (500')
GENERAL
Reading Rate: One reading every
two seconds to one every 24 hours
Memory: 30,000 readings; software
configurable memory wrap
Wrap Around: Yes
Start Modes:
•Immediatestart
•Delaystartupto18months
Calibration:Digitalcalibration
through software
Calibration Date: Automatically
recorded within device
Battery Type: 3.6V lithium battery
(included); user replaceable
Battery Life: 2 years typical
OM-CP-THERMALERT,
shown actual size.
Data Format:Dateandtime
stamped ºC, ºF, K, ºR
Time Accuracy: ±1 minute/month
(at 25°C)
Computer Interface:
OM-CP-RFC1000-EXT required;
115,200 baud
Software: XP SP3/Vista/7 and 8
(32- and 64-bit)
Operating Environment:
-20 to 80ºC (-4 to 176ºF),
0 to 95% RH non-condensing
Enclosure Material: ABS plastic
Dimensions:
133Lx55Wx33Dmm
(5.25 x 2.2 x 1.3")
1
Page 2
OM-CP-THERMALERT,
shown smaller
than actual size.
OM-CP-RFC1000-EXT,
Windows software
displays data in graphical
or tabular format
(sold separately).
To Order
Model No. Description
OM-CP-THERMALERT Wireless temperature transmitter
OM-CP-THERMALERT-CERT Wireless temperature transmitter with NIST calibration certificate
OM-CP-RFC1000-EXT
OM-CP-RFC1000-EXT-EUR
OM-CP-RFC1000-IP69K
OM-CP-BAT109 Replacement 3.6V lithium battery
Comes complete with 3.6V lithium battery. Operator’s manual, Windows software and USB interface cable are included with the
OM-CP-RFC1000-EXT wireless transceiver package (required to operate the data logger, sold separately).
Note: Because of transmission frequency regulations, OM-CP-THERMALERT wireless data loggers are only approved for use in the following
countries: Australia, Austria, Belgium, Bulgaria, Canada, Chile, Columbia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland,
France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Mexico, New Zealand,
Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Thailand, The
Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam.
Ordering Example: OM-CP-THERMALERT-CERT, wireless temperature transmitter with NIST calibration certificate and OM-CP-RFC1000-EXT,
wireless transceiver package.
Wireless transceiver package includes RF transceiver, USB cable, Windows software and
operator’s manual (not CE approved)
Wireless transceiver package includes RF transceiver, USB cable, Windows software and
operator’s manual (CE approved)
Splash proof (IP69K) wireless transceiver package includes RF transceiver, USB cable,
Windows software and operator’s manual (not CE approved)
