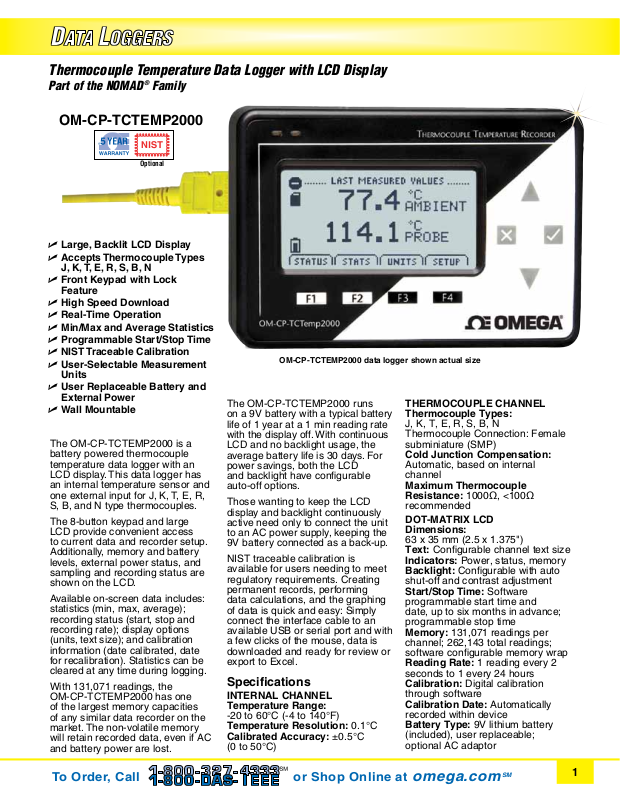

Page 1
Thermocouple Temperature Data Logger with LCD Display
Part of the NOMAD® Family
OM-CP-TCTEMP2000
Optional
U
Large, Backlit LCD Display
U
Accepts Thermocouple Types
J, K, T, E, R, S, B, N
U
Front Keypad with Lock
Feature
U
High Speed Download
U
Real-Time Operation
U
Min/Max and Average Statistics
U
Programmable Start/Stop Time
U
NIST Traceable Calibration
U
User-Selectable Measurement
Units
U
User Replaceable Battery and
External Power
U
Wall Mountable
The OM-CP-TCTEMP2000 is a
battery powered thermocouple
temperature data logger with an
LCD display. This data logger has
an internal temperature sensor and
one external input for J, K, T, E, R,
S, B, and N type thermocouples.
The 8-button keypad and large
LCD provide convenient access
to current data and recorder setup.
Additionally, memory and battery
levels, external power status, and
sampling and recording status are
shown on the LCD.
Available on-screen data includes:
statistics (min, max, average);
recording status (start, stop and
recording rate); display options
(units, text size); and calibration
information (date calibrated, date
for recalibration). Statistics can be
cleared at any time during logging.
With 131,071 readings, the
OM-CP-TCTEMP2000 has one
of the largest memory capacities
of any similar data recorder on the
market. The non-volatile memory
will retain recorded data, even if AC
and battery power are lost.
The OM-CP-TCTEMP2000 runs
on a 9V battery with a typical battery
life of 1 year at a 1 min reading rate
with the display off. With continuous
LCD and no backlight usage, the
average battery life is 30 days. For
power savings, both the LCD
and backlight have configurable
auto-off options.
Those wanting to keep the LCD
display and backlight continuously
active need only to connect the unit
to an AC power supply, keeping the
9V battery connected as a back-up.
NIST traceable calibration is
available for users needing to meet
regulatory requirements. Creating
permanent records, performing
data calculations, and the graphing
of data is quick and easy: Simply
connect the interface cable to an
available USB or serial port and with
a few clicks of the mouse, data is
downloaded and ready for review or
export to Excel.
Specifications
INTERNAL CHANNEL
Temperature Range:
-20 to 60°C (-4 to 140°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C
(0 to 50°C)
OM-CP-TCTEMP2000 data logger shown actual size
THERMOCOUPLE CHANNEL
Thermocouple Types:
J, K, T, E, R, S, B, N
Thermocouple Connection: Female
subminiature (SMP)
Cold Junction Compensation:
Automatic, based on internal
channel
Maximum Thermocouple
Resistance: 1000Ω, <100Ω
recommended
DOT-MATRIX LCD
Dimensions:
63 x 35 mm (2.5 x 1.375")
Text: Configurable channel text size
Indicators: Power, status, memory
Backlight: Configurable with auto
shut-off and contrast adjustment
Start/Stop Time: Software
programmable start time and
date, up to six months in advance;
programmable stop time
Memory: 131,071 readings per
channel; 262,143 total readings;
software configurable memory wrap
Reading Rate: 1 reading every 2
seconds to 1 every 24 hours
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Battery Type: 9V lithium battery
(included), user replaceable;
optional AC adaptor
To Order, Call or Shop Online at omega.com
SM
1
Page 2
Thermocouple
Type Range Resolution Accuracy*
-210 to 760°C 0.1°C ±0.5°C
-270 to 1370°C 0.1°C ±0.5°C
-270 to 400°C 0.1°C ±0.5°C
-270 to 980°C 0.1°C ±0.5°C
-50 to 1760°C 0.5°C ±2.0°C
-50 to 1760°C 0.5°C ±2.0°C
50 to 1820°C 0.5°C ±2.0°C
-270 to 1300°C 0.1°C ±0.5°C
* Accuracy does not include errors due to thermocouple.
5SRTC/5LRTC
Series, sold
separately.
Battery Life: 1 year battery life
at 1 min reading rate with display
off. 30 days typical with continuous
LCD and no backlight usage
Data Format: Date and time
stamped °C, °F, K, °R
Time Accuracy: ±1 minute/month
(at 20 to 30°C)
Computer Interface: PC serial
or USB (interface cable required);
115,200 baud
Software: XP SP3/Vista/7 and 8
(32-bit and 64-bit)
Operating Environment:
-20 to 60°C (-4 to 140°F),
0 to 95% RH non-condensing
Dimensions: 122 x 84 x 32 mm
(4.8 x 3.3 x 1.25")
Weight: 440 g (16 oz)
Enclosure: Black anodized
aluminum
OM-CP-TCTEMP2000 data logger shown
smaller than actual size
OM-CP-IFC200 Windows® software displays data
in graphical or tabular format
To Order
Model No. Description
OM-CP-TCTEMP2000 Thermocouple temperature data logger with
LCD display
OM-CP-TCTEMP2000-CERT Thermocouple temperature data logger with
LCD display and NIST calibration certificate
OM-CP-IFC200 Windows software and 1.8 m (6') USB
interface cable
OM-CP-SVP-SYSTEM FDA 21 CFR part 11 compliant IQ/OQ/PQ secure
software validation workbook and software
package (unlimited users, license per computer)
OM-CP-BAT103 Replacement 9V lithium battery
OM-CP-110-PWR-2000 110 Vac power adaptor
OM-CP-220-PWR-2000 220 Vac power adaptor
Comes complete with 9V lithium battery. Operator’s manual and USB interface cable are
included with the OM-CP-IFC200 software/cable package (required for data logger operation,
sold separately).
Ordering Example: OM-CP-TCTEMP2000-CERT, thermocouple temperature data logger
with LCD display and NIST calibration certificate and OM-CP-IFC200, Windows software
and USB cable with DB9F termination.
