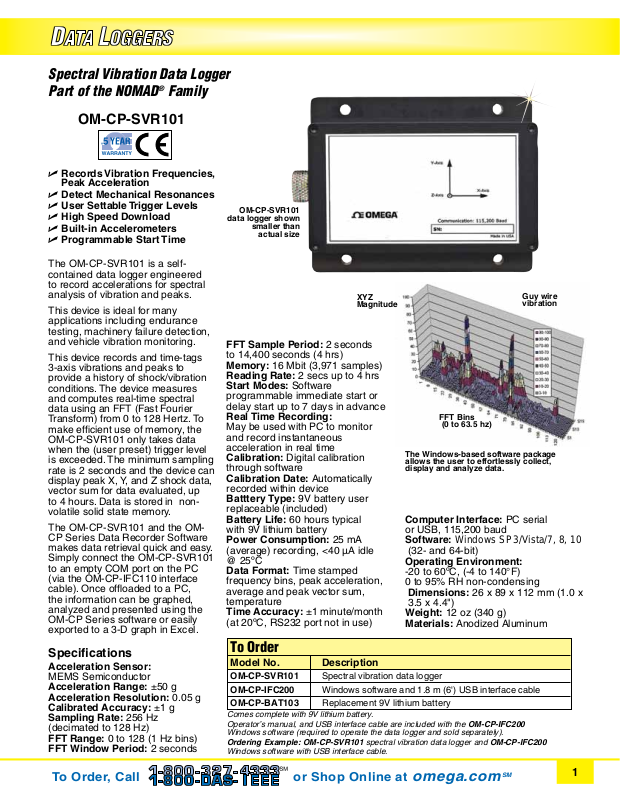

Spectral Vibration Data Logger
Part of the NOMAD® Family
OM-CP-SVR101
U Records Vibration Frequencies,
Peak Acceleration
U Detect Mechanical Resonances
U User Settable Trigger Levels
U High Speed Download
U Built-in Accelerometers
U Programmable Start Time
The OM-CP-SVR101 is a selfcontained data logger engineered
to record accelerations for spectral
analysis of vibration and peaks.
This device is ideal for many
applications including endurance
testing, machinery failure detection,
and vehicle vibration monitoring.
This device records and time-tags
3-axis vibrations and peaks to
provide a history of shock/vibration
conditions. The device measures
and computes real-time spectral
data using an FFT (Fast Fourier
Transform) from 0 to 128 Hertz. To
make efficient use of memory, the
OM-CP-SVR101 only takes data
when the (user preset) trigger level
is exceeded. The minimum sampling
rate is 2 seconds and the device can
display peak X, Y, and Z shock data,
vector sum for data evaluated, up
to 4 hours. Data is stored in nonvolatile solid state memory.
The OM-CP-SVR101 and the OMCP Series Data Recorder Software
makes data retrieval quick and easy.
Simply connect the OM-CP-SVR101
to an empty COM port on the PC
(via the OM-CP-IFC110 interface
cable). Once offloaded to a PC,
the information can be graphed,
analyzed and presented using the
OM-CP Series software or easily
exported to a 3-D graph in Excel.

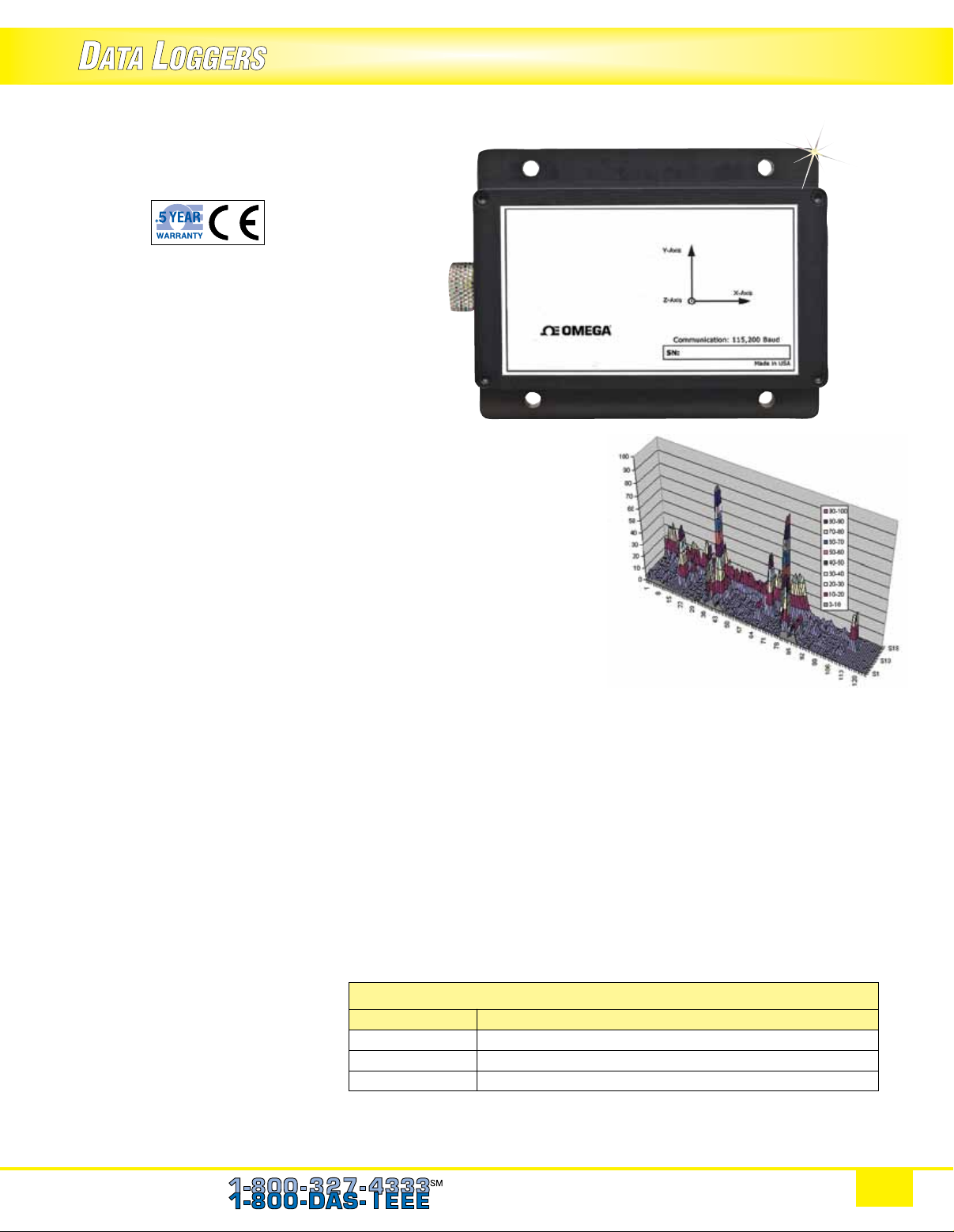

OM-CP-SVR101
data logger shown
smaller than
actual size
XYZ
Magnitude
FFT Sample Period: 2 seconds
to 14,400 seconds (4 hrs)
Memory: 16 Mbit (3,971 samples)
Reading Rate: 2 secs up to 4 hrs
Start Modes: Software
programmable immediate start or
delay start up to 7 days in advance
Real Time Recording:
May be used with PC to monitor
and record instantaneous
acceleration in real time
Calibration: Digital calibration
through software
Calibration Date: Automatically
recorded within device
Batttery Type: 9V battery user
replaceable (included)
Battery Life: 60 hours typical
with 9V lithium battery
Power Consumption: 25 mA
(average) recording, <40 µA idle
@ 25ºC
Data Format: Time stamped
frequency bins, peak acceleration,
average and peak vector sum,
temperature
Time Accuracy: ±1 minute/month
(at 20ºC, RS232 port not in use)
Guy wire
vibration
FFT Bins
(0 to 63.5 hz)
The Windows-based software package
allows the user to effortlessly collect,
display and analyze data.
Computer Interface: PC serial
or USB, 115,200 baud
Software: Windows SP3/Vista/7, 8, 10
(32- and 64-bit)
Operating Environment:
-20 to 60ºC, (-4 to 140°F)
0 to 95% RH non-condensing
Dimensions: 26 x 89 x 112 mm (1.0 x
3.5 x 4.4")
Weight: 12 oz (340 g)
Materials: Anodized Aluminum
Specifications
Acceleration Sensor:
MEMS Semiconductor
Acceleration Range: ±50 g
Acceleration Resolution: 0.05 g
Calibrated Accuracy: ±1 g
Sampling Rate: 256 Hz
(decimated to 128 Hz)
FFT Range: 0 to 128 (1 Hz bins)
FFT Window Period: 2 seconds
To Order
Model No. Description
OM-CP-SVR101 Spectral vibration data logger
OM-CP-IFC200 Windows software and 1.8 m (6') USB interface cable
OM-CP-BAT103 Replacement 9V lithium battery
Comes complete with 9V lithium battery.
Operator’s manual, and USB interface cable are included with the OM-CP-IFC200
Windows software (required to operate the data logger and sold separately).
Ordering Example: OM-CP-SVR101 spectral vibration data logger and OM-CP-IFC200
Windows software with USB interface cable.
