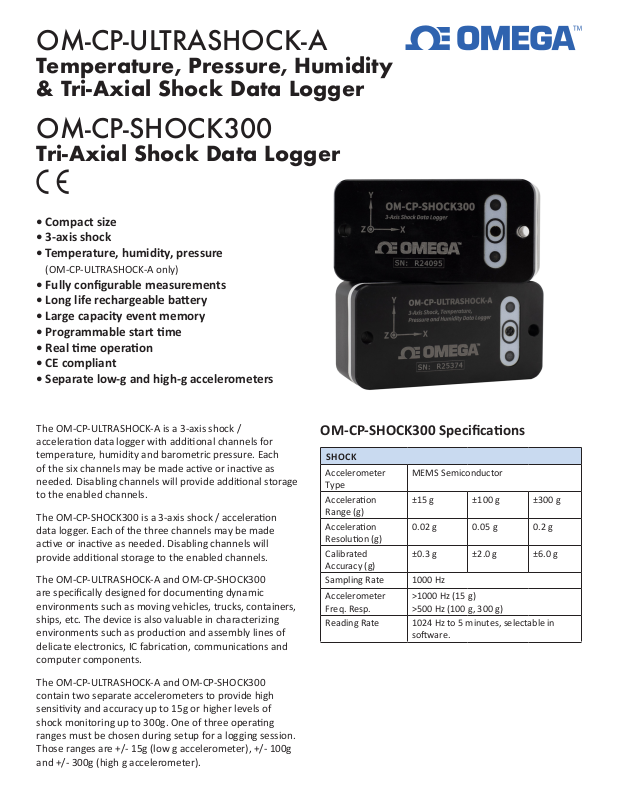

OM-CP-ULTRASHOCK-A

Temperature, Pressure, Humidity & Tri-Axial Shock Data Logger

OM-CP-SHOCK300

Tri-Axial Shock Data Logger

• Compact size

• 3-axis shock

• Temperature, humidity, pressure

(OM-CP-ULTRASHOCK-A only)

• Fully congurable measurements

• Long life rechargeable baery

• Large capacity event memory

• Programmable start me

• Real me operaon

• CE compliant

• Separate low-g and high-g accelerometers

The OM-CP-ULTRASHOCK-A is a 3-axis shock /

acceleraon data logger with addional channels for temperature, humidity and barometric pressure. Each of the six channels may be made acve or inacve as needed. Disabling channels will provide addional storage to the enabled channels.

The OM-CP-SHOCK300 is a 3-axis shock / acceleraon data logger. Each of the three channels may be made acve or inacve as needed. Disabling channels will provide addional storage to the enabled channels.

The OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 are specically designed for documenng dynamic environments such as moving vehicles, trucks, containers, ships, etc. The device is also valuable in characterizing environments such as producon and assembly lines of delicate electronics, IC fabricaon, communicaons and computer components.

The OM-CP-ULTRASHOCK-A and OM-CP-SHOCK300 contain two separate accelerometers to provide high sensivity and accuracy up to 15g or higher levels of shock monitoring up to 300g. One of three operang ranges must be chosen during setup for a logging session. Those ranges are +/- 15g (low g accelerometer), +/- 100g and +/- 300g (high g accelerometer).

OM-CP-SHOCK300 Specicaons

SHOCK

Accelerometer Type

Acceleraon Range (g)

Acceleraon Resoluon (g)

Calibrated Accuracy (g)

Sampling Rate 1000 Hz

Accelerometer Freq. Resp.

Reading Rate 1024 Hz to 5 minutes, selectable in

MEMS Semiconductor

±15 g ±100 g ±300 g

0.02 g 0.05 g 0.2 g

±0.3 g ±2.0 g ±6.0 g

>1000 Hz (15 g) >500 Hz (100 g, 300 g)

soware.

Page 2

OM-CP-ULTRASHOCK-A Specicaons General Specicaons

TEMPERATURE

Sensor Semiconductor

Range -20 °C to +60 °C

Resoluon 0.1 °C

Accuracy ±0.5 °C (+5 °C to +60 °C)

HUMIDITY

Sensor Capacive Polymer

Range 0 %RH to 95 %RH

Resoluon 0.1 %RH

Calibrated Accuracy

Specied Accuracy Range

PRESSURE

Sensor Semiconductor Strain Gage

Range 100 mbar to 1300 mbar

Resoluon 0.05 mbar

Calibrated Accuracy

SHOCK

Accelerometer Type

Acceleraon Range (g)

Acceleraon Resoluon (g)

Calibrated Accuracy (g)

Sampling Rate 1000 Hz

Accelerometer Freq. Resp.

Reading Rate 1024 Hz to 5 minutes for shock,

BATTERY WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CRUSH, PENETRATE, INCINERATE OR

DISASSEMBLE. AVOID TEMPERATURES ABOVE THE MAXIMUM OPERATING TEMPERATURE OF THE PRODUCT. DISPOSE OF PROPERLY. CHARGE ONLY WITH THE PROVIDED OMEGA CHARGER, OR FROM OTHER USB POWER SOURCE VIA THE OMEGA PROVIDED CABLE.

±3 %RH (±2 %RH typical at 25 °C)

+20 °C to +40 °C; 25 %RH to 75 %RH

±1.5 mbar at 25 °C; at 750 mbar

MEMS Semiconductor

±15 g ±100 g ±300 g

0.02 g 0.05 g 0.2 g

±0.3 g ±2.0 g ±6.0 g

>1000 Hz (15 g) >500 Hz (100 g, 300 g)

selectable in soware. Temperature, pressure and humidity sampled approx. every 2 seconds at intervals shorter than 2 seconds. Otherwise, sampled at the reading rate.

GENERAL

Memory 3,593,358 readings (598,893 per channel,

all channels in use)

Start Modes Soware programmable immediate start or

delay start, up to 6 months in advance

Real Time Recording

Password Protecon

Calibraon Digital calibraon through soware

Calibraon Date Automacally recorded within device

Baery Type Internal Lithium Ion pack, charger

Baery Life 90 days typical at 64Hz rate

Data Format Date and me stamped gravies (g and

IP Rang IP64

Time Accuracy 10 seconds/month (at 0 °C to 50 °C)

Computer Interface

Supported Soware

Soware Compability

Operang Environment

Dimensions 3.4 in x 1.7 in x 1.3 in

Weight 8 oz (227 g)

Enclosure Anodized aluminum

Approvals CE compliant

May be used with PC to monitor and record data in real me at a 1 second sample rate

An oponal password may be programmed into the device to restrict access to conguraon opons. Data may be read out with the password.

included

mg), temperature (°C, °F, K, °R), humidity (%RH, mg/ml water vapor concentraon), pressure (PSIA, inHg, mmHg, bar, atm, Torr, Pa, kPa, MPa)

USB-C cable required (included); 1MBaud

Windows XP SP3/7/8/10

Standard Soware version 4.2.15.0 or later Secure Soware version 4.2.14.0 or later

-20 °C to +60 °C, 0 %RH to 95 %RH non-condensing

(86 mm x 43 mm x 33 mm)

EMC Direcve 2014/30/EU RoHS Direcve 2011/65/EU

To Order

P/N Descripon

OM-CP-ULTRASHOCK-A Temperature, Humidity, Pressure and ±15 g / ±100 g / ±300 g Tri-Axial Shock Data Logger,

Baery Charger and USB-C Interface Cable

OM-CP-SHOCK300 ±15 g / ±100 g / ±300 g Tri-Axial Shock Data Logger, Baery Charger and USB-C Interface

Cable
