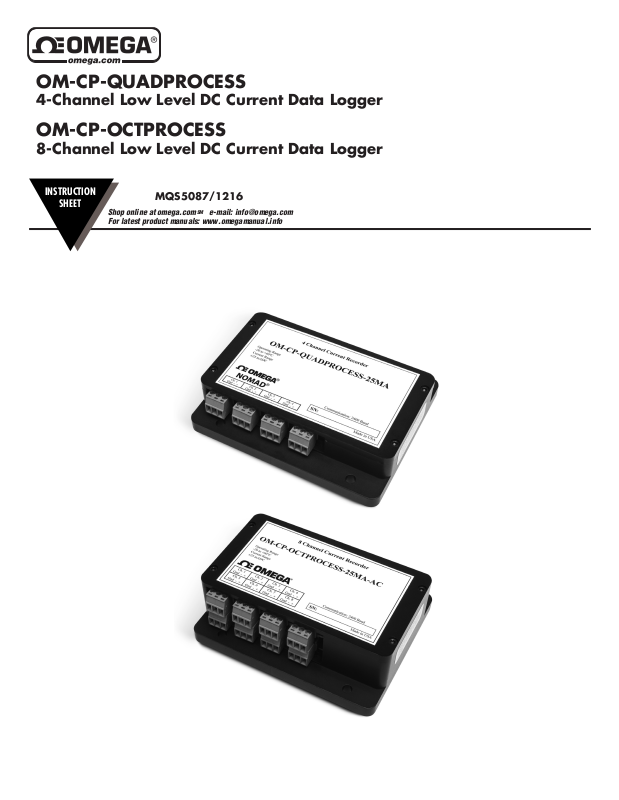

4-Channel Low Level DC Current Data Logger
OM-CP-OCTPROCESS
8-Channel Low Level DC Current Data Logger
MQS5087/1216
Page 2
OM-CP-QUADPROCESS and OM-CP-OCTPROCESS
Product Overview
Engineering Units
Engineering units are used to convert one measurement reading to another. The OM-CP Data Logger software
allows for software level Engineering Units (conversion applied to data after download). Certain devices have
device level Engineering Units, which upon download automatically appear in the chosen unit of measure.

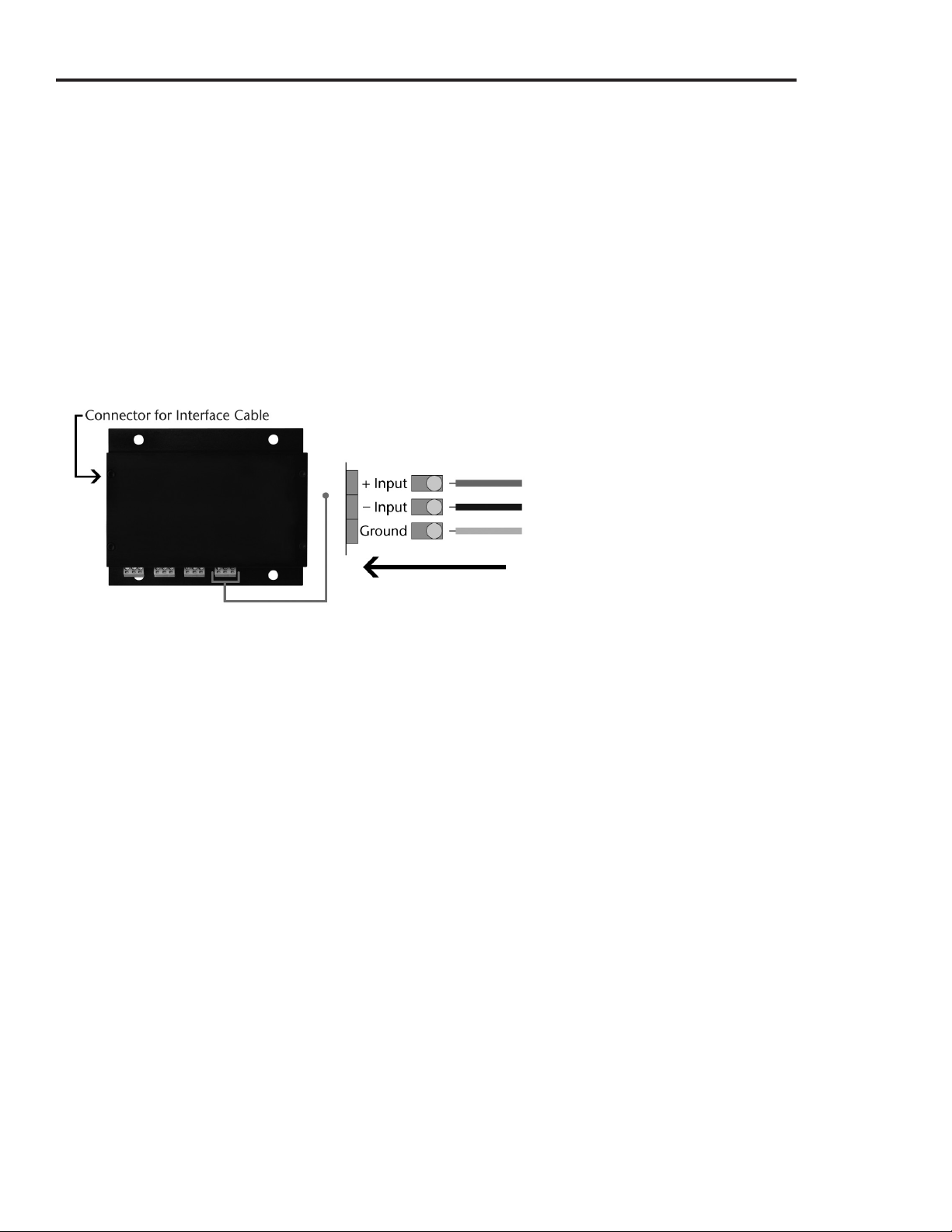

Wiring the Data Logger
The OM-CP-QUADPROCESS and OM-CP-OCTPROCESS both have two-position removable screw terminal
connections. The OM-CP-QUADPROCESS has 4 connections, the OM-CP-OCTPROCESS has 8 connections.
They accept 3-wire configurations.
Warning: Note the polarity instructions. Do not attach wires to the wrong terminals.
Page 3
OM-CP-QUADPROCESS and OM-CP-OCTPROCESS
Installation Guide
Installing the Interface Cable
- OM-CP-IFC200
Insert the device into a USB port. The drivers will install automatically.
- OM-CP-IFC110
Plug the serial cable into the port and verify it is secure.
Installing the software
Insert the Omega Software Flash Drive in an open USB port. If the autorun does not appear, locate the drive
on the computer and double click on Autorun.exe. Follow the instructions provided in the Wizard.
Device Operation
Connecting and Starting the data logger
- Once the software is installed and running, plug the interface cable into the data logger.
- Connect the USB end of the interface cable into an open USB port on the computer.
- The device will appear in the Connected Devices list, highlight the desired data logger.
- For most applications, select “Custom Start” from the menu bar and choose the desired start method,
reading rate and other parameters appropriate for the data logging application and click “Start”. (“Quick
Start” applies the most recent custom start options, “Batch Start” is used for managing multiple loggers at once,
“Real Time Start” stores the dataset as it records while connected to the logger.)
- The status of the device will change to “Running”, “Waiting to Start” or “Waiting to Manual Start”,
depending upon your start method.
- Disconnect the data logger from the interface cable and place it in the environment to measure.
Note: The device will stop recording data when the end of memory is reached or the device is stopped. At this point
the device cannot be restarted until it has been re-armed by the computer.
Downloading data from a data logger
- Highlight the data logger in the Connected Devices list. Click “Stop” on the menu bar.
- Once the data logger is stopped, with the logger highlighted, click “Download”. You will be prompted to
name your report.
- Downloading will offload and save all the recorded data to the PC.
Page 4
OM-CP-QUADPROCESS and OM-CP-OCTPROCESS
Device Maintenance
Battery Replacement
Materials: 3/32” HEX Driver (Allen Key) and Replacement Battery (OM-CP-BAT103)
- Remove the cover from the device by unscrewing the four screws.
- Remove the battery from its compartment and unsnap it from the connector.
- Snap the new battery into the terminals and verify it is secure.
- Replace the cover taking care not to pinch the wires. Screw the enclosure back together securely.
Note: Be sure not to over tighten the screws or strip the threads.
Recalibration
The OM-CP-QUADPROCESS or OM-CP-OCTPROCESS standard calibration is at two points. The points are
dependent on the range of the data logger.
Range 1mA 25mA 100mA
Calibration Point 0mA and 0.9-1mA 0mA and 22.5-25mA 0mA and 90-100mA
Recalibration is recommended annually for any Omega data logger; a reminder is automatically displayed in
the software when the device is due. Specifications subject to change. See Omega’s terms and conditions at
www.omega.com
Page 5
OM-CP-QUADPROCESS and OM-CP-OCTPROCESS
OM-CP-QUADPROCESS General Specifications
Description OM-CP-QUADPROCESS
Current Range
Current Resolution
*See Table Below
Current Accuracy
Input Impedance
Channels 4
Memory 32,767/channel
Reading Rate 1 reading every second up to 1 reading every 12 hours
LED Indicator None
Required Interface Package IFC110 or IFC200
Baud Rate 2,400
Typical Battery Life 1 year
Operating Environment -20°C to +60°C, 0%RH to 95%RH (non–condensing)
Material Anodized aluminum
Dimensions
Weight 13 oz (370 g)
*OM-CP-QUADPROCESS Range, Resolution and Calibrated Accuracy
Nominal Range +-1mA +-25mA +-100mA
Measurement Range +-1.5mA +-30mA +-120mA
Common Mode Input Range 0 to 2.5V 0 to 2.5V 0 to 2.5V
Resolution 0.05µA 1µA 5µA
Calibrated Accuracy @25 oC +-0.5 %FSR +-0.1%FSR +-0.1 %FSR
3.5” x 4.4” x 1.0”
(89 mm x 112 mm x 26 mm)
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH,
PENETRATE OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 60°C (140°F).
Specifications subject to change.
See Omega’s terms and conditions at www.omega.com
Still need help? For more troubleshooting tips and information, refer to the built in help section visit us online at www.omega.com
or contact us for support at 1 (800) 872-9436.
Page 6
OM-CP-QUADPROCESS and OM-CP-OCTPROCESS
OM-CP-OCTPROCESS General Specifications
Description
Current Range
Current Resolution
Current Accuracy
Input Impedance
Channels 8
Memory 16,383/channel
Reading Rate 1 reading every second up to 1 reading every 12 hours
LED Indicator None
Required Interface Package IFC110 or IFC200
Baud Rate 2,400
Typical Battery Life 1 year
Operating Environment -20°C to +60°C, 0%RH to 95%RH (non–condensing)
OM-CP-OCTPROCESS
*See Table Below
Material Anodized aluminum
Dimensions
Weight 17 oz (480 g)
*OM-CP-OCTPROCESS Range, Resolution and Calibrated Accuracy
Nominal Range +-1mA +-25mA +-100mA
Measurement Range +-1.5mA +-30mA +-120mA
Common Mode Input Range 0 to 2.5V 0 to 2.5V 0 to 2.5V
Resolution 0.05µA 1µA 5µA
Calibrated Accuracy @25 oC +-0.5 %FSR +-0.1 %FSR +-0.1 %FSR
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH,
PENETRATE OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 60°C (140°F).
3.5” x 4.4” x 1.5”
(89 mm x 112 mm x 39 mm)
Battery Warning
Specifications subject to change.
See Omega’s terms and conditions at www.omega.com
Still need help? For more troubleshooting tips and information, refer to the built in help section visit us online at www.omega.com
or contact us for support at 1 (800) 872-9436.
